expo seats

hey all scored some expo eddie bauer seats yesterday! got the front bolt hole larger but my question is on the seat belts. the seat belts connector that come with the seats doesnt fit my belts now, but the connector that i have from my seats wont mount where the seat belt connector is now cuz its a dif shape. when photobucket comes back up i will get pics up.
Reply With Quote
  #2
Old 08-25-2010
j99ranger4x4's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
nm the seatbelt question. just need to bend the tabs down where the connector mounts at and it fits fine. what wire is power on 96 eddie bauer expo seats?
Reply With Quote
  #3
Old 08-25-2010
j99ranger4x4's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
nm to that too, figured out black is ground and black/white is power. seats are nice.
Reply With Quote
  #4
Old 08-25-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
you put them in a reg cab?
Reply With Quote
  #5
Old 08-26-2010
j99ranger4x4's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
no in a ext cab 2 dr. sorry my pic isnt up to date that was my last truck.
Reply With Quote
  #6
Old 08-26-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
i got ya. i was going to say, if you got them in a reg cab that easy, i want to know your secret!
Reply With Quote
  #7
Old 08-28-2010
Turbo Roadster's Avatar
Member

Join Date: Jul 2007
Location: Lancaster, CA
Posts: 277
I should come here more often, first off I apoligize for jacking your thread, but I spent the whole day today putting in a set of expo seats. Had to move some stuff around to get them in had an amp under the drivers seat now it sits under my sub box.

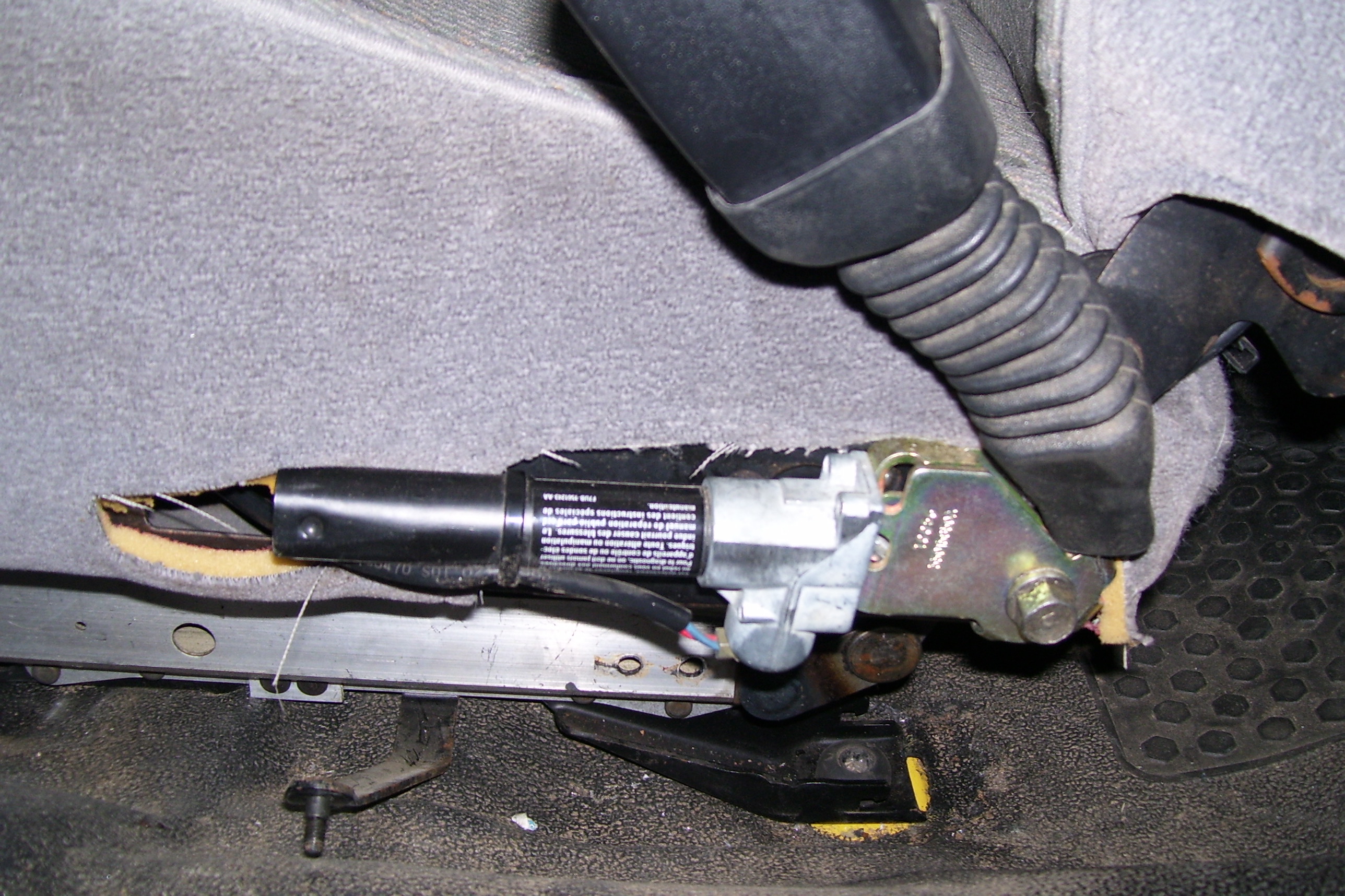

Used the seat belts from the ranger and tapped out the rear most hole in the expo seat to 10mmx1.25 thread and drilled and slotted for the tang on the srs tensioner so I could use the rangers wiring.
Ran power to the seats from my distribution block for my amps to power them up.
Fused them with a 20 amp fuse for both.

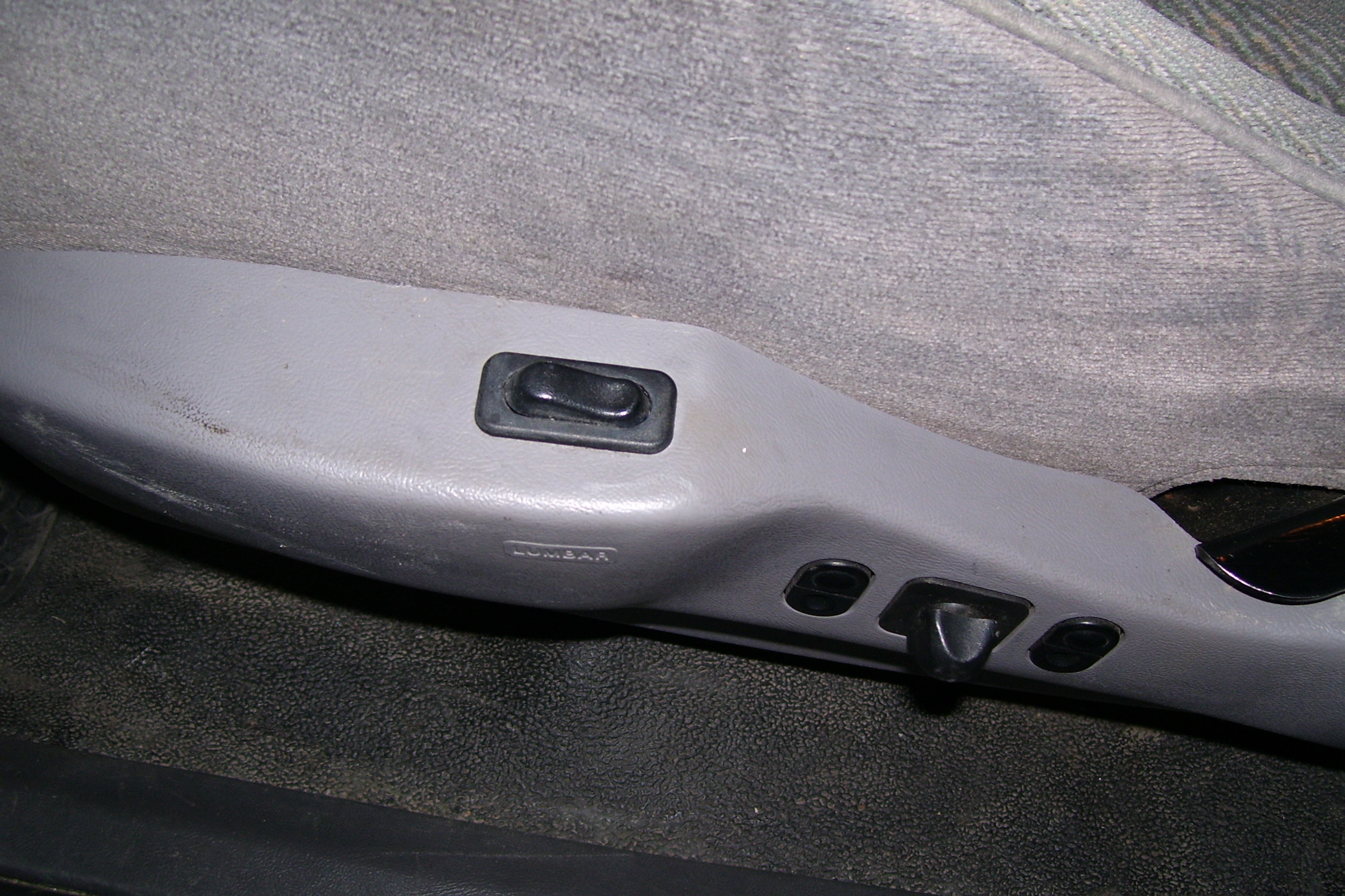

I wish I knew what year they are out of the driverside lumbar switch doesn't hold air so I am going to need a new one, Anyone know if the switches are different I am pretty sure they are from a early 2000-2004 vintage expo.

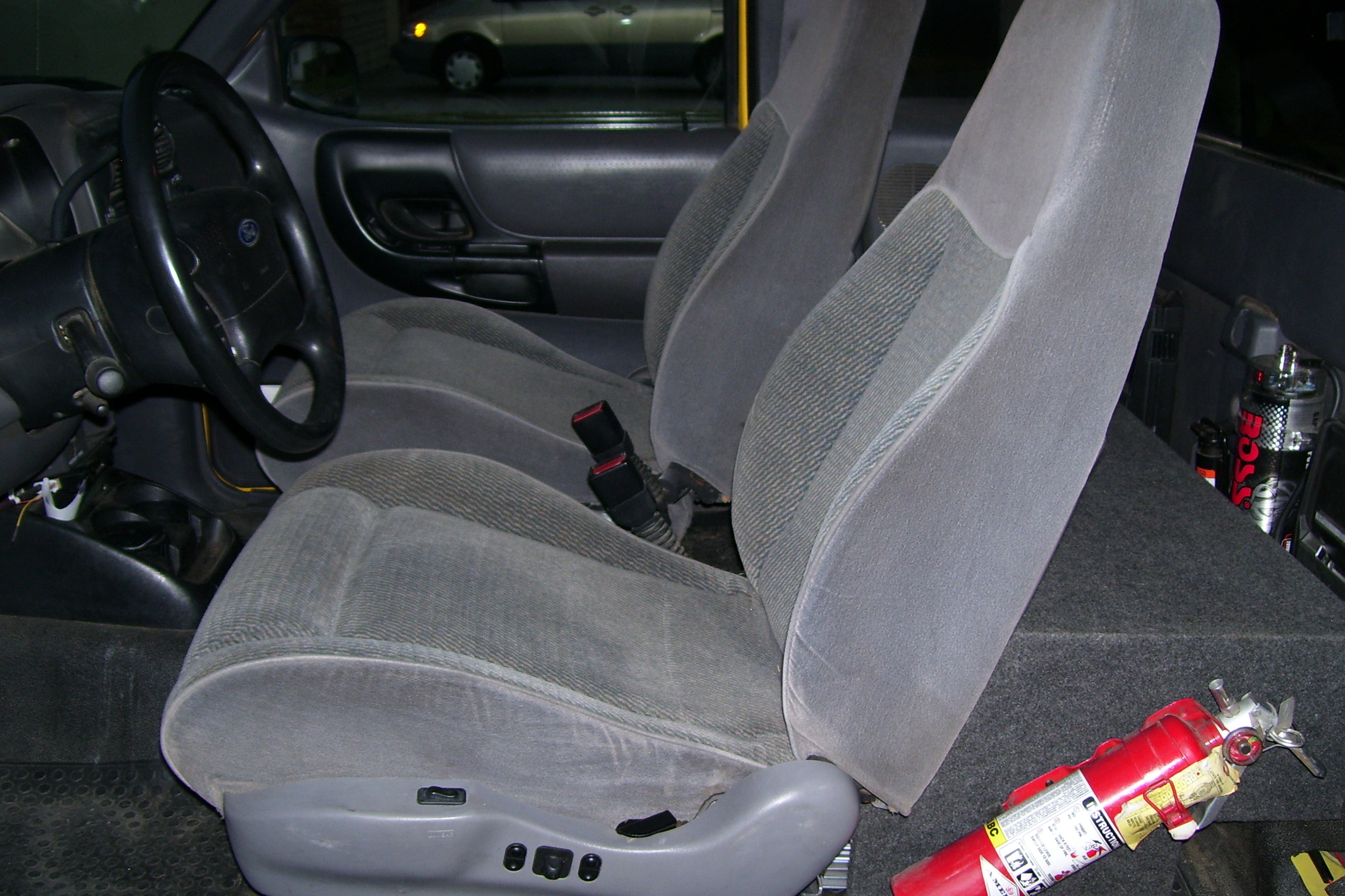

Seats are nice now all I need is a console. Attached are a couple pics.
Attached Thumbnails
expo seats-expo-seats-001.jpg   expo seats-expo-seats-002.jpg   expo seats-expo-seats-003.jpg
Reply With Quote
  #8
Old 08-28-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
turbo, pm'd you...
Reply With Quote
  #9
Old 08-28-2010
Turbo Roadster's Avatar
Member

Join Date: Jul 2007
Location: Lancaster, CA
Posts: 277
Quote:
Originally Posted by drppdyllwrngr View Post
turbo, pm'd you...
Got it pm'd ya back!
