FML with this OHC

So i looked up the How To Install OHC by mossyoak03 and went ahead and started cutting and running wires and everything was going well untill i snapped in the OHC into the bracket. well it seems when i line up the screw holes towards the garage door clicker holder thing

the tabs towards the windshield keep popping out. I know that they are in there good too cuse i had to punch them in. So then I had the idea of "well if all these counsels are the same and the mounting bracket is the same why is this not fitting? What about the roof brace towards the windshield, is that different?" so now i think i have a valid argument that doing this to an 06 is different than other trucks. dont know why but it is. here are the pictures
mossyoak03

mine

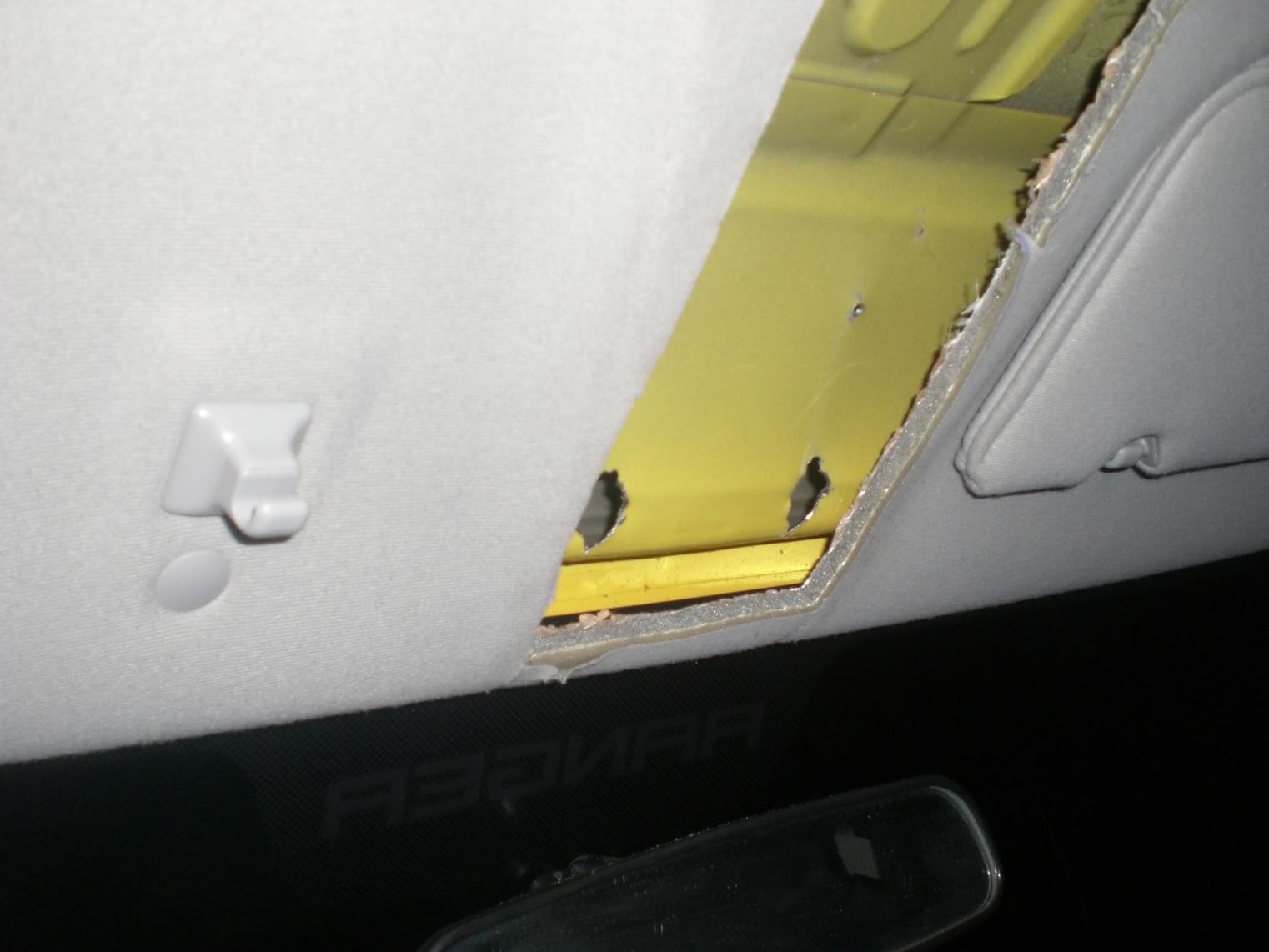

Name:  CIMG1707.jpg
Views: 1
Size:  102.4 KB

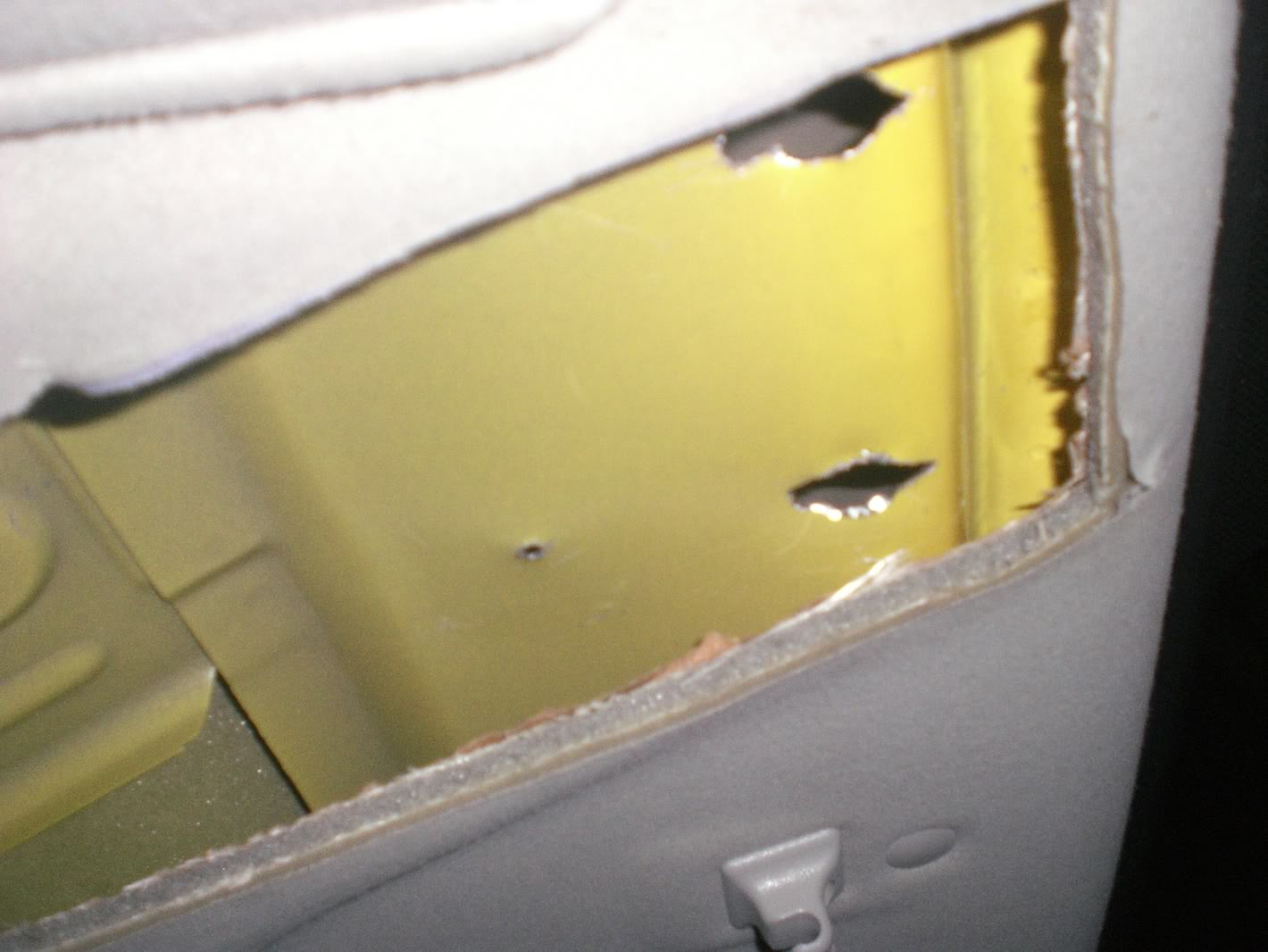

Name:  CIMG1711.jpg
Views: 1
Size:  113.2 KB

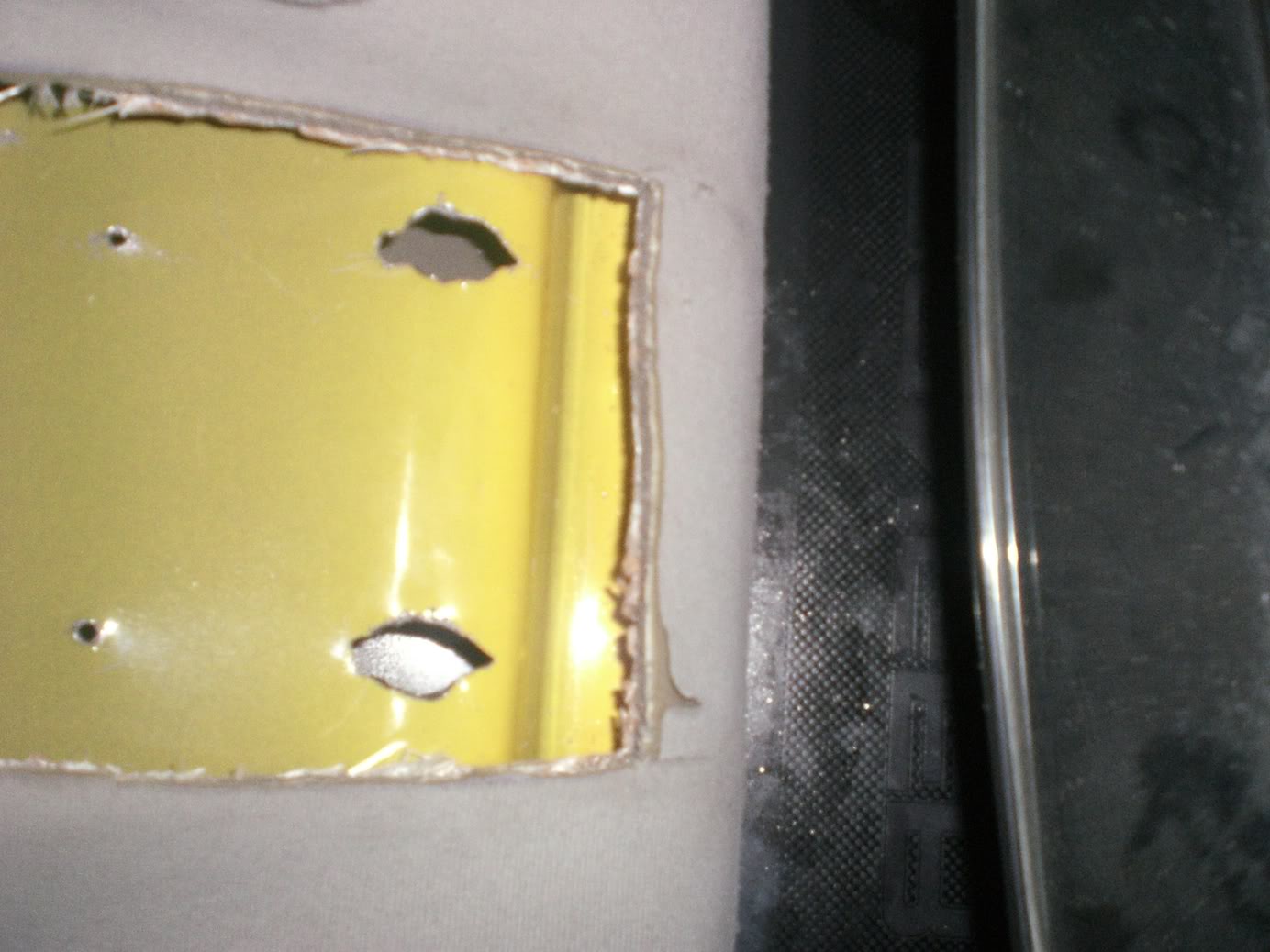

Name:  CIMG1708.jpg
Views: 0
Size:  118.0 KB

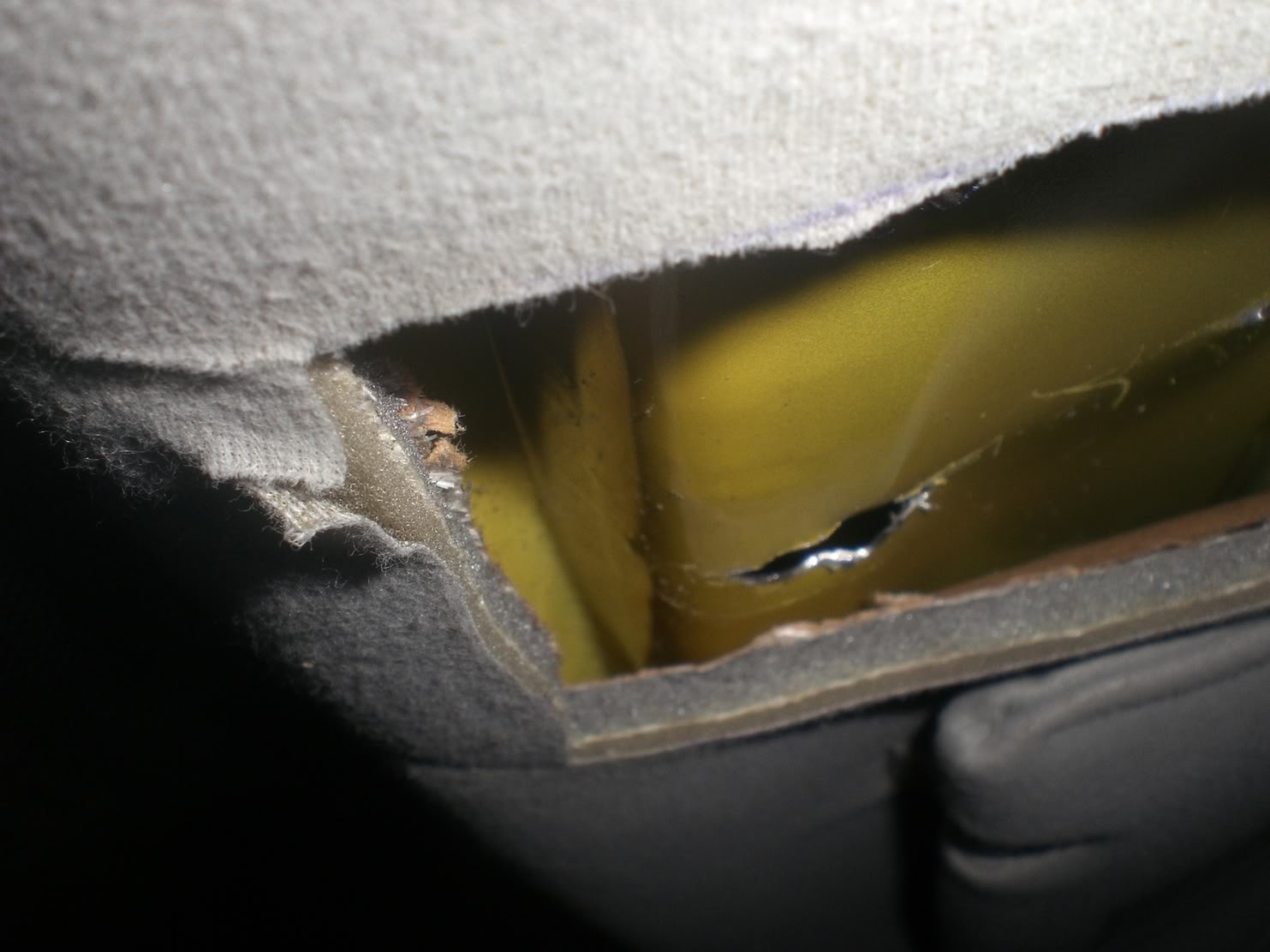

Name:  CIMG1709.jpg
Views: 0
Size:  111.6 KB

PLEASE HELP!!! I need to prove my fiance wrong and show her that it will fit and that im not going to have to drive around with a hole in my headliner for the rest of time
Reply With Quote
  #2
Old 01-25-2011
blue_oval's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
*bump

AAAAAAAAAAAAAAAAAAAAHHHHHHHHHHHHHHHHHHHHHHHHHHH!
Reply With Quote
  #3
Old 01-25-2011
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Its been a bit since i did mine, but those front cuts for the clips look a little big...
Reply With Quote
  #4
Old 01-25-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
so make some new holes bud. im sure you can fab something up. to me it looks like that front roof brace is preventing it from sliding that little bit farther.
Reply With Quote
  #5
Old 01-25-2011
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
X2 on the front mounting holes being to big.... Do they feel like they are snapping into place?

To fix this you might think of placing a piece of sheet metal over the existing holes and making smaller ones.

Maybe JB Weld it on.
Reply With Quote
  #6
Old 01-25-2011
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Umm... aren't you supposed to screw a mounting plate into the roof? And then clip the OHC onto the mounting plate? I haven't done mine yet... but I'm pretty sure that's how you're supposed to do it.
Reply With Quote
  #7
Old 01-25-2011
blue_oval's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
lol i have a bracket and yes the holes are on the big side but what im thinking is that front brace sticks down lower on 06 and newer and i think ill have to cut out a box to get it to sit flush on the roof because as of right now when i screw the plate in then add the OHC the part that is towards the back window of the OHC hangs almost an inch below the headliner. I just dont know if anyone had this same problem in the newer trucks.
Reply With Quote
  #8
Old 01-25-2011
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Holes look a little big.
Reply With Quote
  #9
Old 01-25-2011
blue_oval's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
Quote:
Originally Posted by robert99ranger View Post
Holes look a little big.
the holes are just the clearance for the tabs thru the bracket they have nothing to do with why OHC is pitched one way
Reply With Quote
  #10
Old 01-26-2011
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Same thing happened in my truck, the trick is to put the screws in loose (a few threads) and then snap it into the bracket. Once it is in the bracket tighten down the screws.

if that doesn't work bending the bracket down some will help, or putting a washer or 2 between the bracket and the roof sheet metal to lower it down some.

hope that helps ya.
Reply With Quote
  #11
Old 01-26-2011
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
Quote:
Originally Posted by blue_oval View Post
lol i have a bracket and yes the holes are on the big side but what im thinking is that front brace sticks down lower on 06 and newer and i think ill have to cut out a box to get it to sit flush on the roof because as of right now when i screw the plate in then add the OHC the part that is towards the back window of the OHC hangs almost an inch below the headliner. I just dont know if anyone had this same problem in the newer trucks.
worked just fine on my 07.
Reply With Quote
  #12
Old 01-26-2011
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
slots just look like they are in the wrong place to me but then again its been a long time since I did this. It works fine on the newer trucks I have one in my 07 too.
Reply With Quote
  #13
Old 01-26-2011
Mike Del's Avatar
Member

Join Date: Dec 2010
Location: Frigid New England
Posts: 2
The center tab of the bracket should slide into a slot that you need to cut (horizontally) between the two vertical slots that the tabs pass through. A lot of guys skip that process, but that is the correct way. That will keep the bracket in position and was how it was mounted in the Explorer that it was removed from. Also, bend the rear portion of the bracket slightly so it will push the headliner out a little more. The rear portion of the bracket will be under the headliner. A piece of heavy foam or carpet wrapped around and duct taped to the rear edge of the bracket will also help push the headliner down toward the OHC and help eliminate the gap. Don't worry, it will fit. Take your time and don't let it get you frustrated.

If you've cut the headliner the full length of the bracket (not good), you'll need to put a piece of sheetmetal across the rear of the opening to reduce the length of the opening, so the bracket will push the headliner out when it is behind it. Duct tape the sheet metal to the inside of the headliner. I hope you can understand what I'm trying to explain.

Last edited by Mike Del; 01-26-2011 at 12:01 PM.
Reply With Quote
  #14
Old 01-26-2011
blue_oval's Avatar
Member
Thread Starter

Join Date: Feb 2008
Location: Worcester MA
Posts: 366
Quote:
Originally Posted by Mike Del View Post
The center tab of the bracket should slide into a slot that you need to cut (horizontally) between the two vertical slots that the tabs pass through. A lot of guys skip that process, but that is the correct way. That will keep the bracket in position and was how it was mounted in the Explorer that it was removed from. Also, bend the rear portion of the bracket slightly so it will push the headliner out a little more. The rear portion of the bracket will be under the headliner. A piece of heavy foam or carpet wrapped around and duct taped to the rear edge of the bracket will also help push the headliner down toward the OHC and help eliminate the gap. Don't worry, it will fit. Take your time and don't let it get you frustrated.

If you've cut the headliner the full length of the bracket (not good), you'll need to put a piece of sheetmetal across the rear of the opening to reduce the length of the opening, so the bracket will push the headliner out when it is behind it. Duct tape the sheet metal to the inside of the headliner. I hope you can understand what I'm trying to explain.
yes great help thank you very much
Reply With Quote
  #15
Old 01-30-2011
kthomas515's Avatar
Member

Join Date: Jan 2006
Location: Cullman, AL
Posts: 43
I want to thank you also, i just installed mine and it has the gap. The TRS how-to never said anything about having a gap.
Reply With Quote
  #16
Old 01-30-2011
Mike Del's Avatar
Member

Join Date: Dec 2010
Location: Frigid New England
Posts: 2
Glad to help. This is a great forum and the people on it are fantastic! Blue_Oval is fairly close to me in New England. Hey kthomas, check out Unique Motorcars in Gadsden, AL. I drive my Cobra to Gadsden,AL every spring for Homecoming. Stop by and see some cool Ford powered sports cars. Check out www.uniquecobra.com for info.
Reply With Quote
  #17
Old 01-30-2011
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
I also had a slight gap between the OHC and the headliner. I loosened the screws a little bit that hold the bracket in place. Tada.
Reply With Quote
  #18
Old 01-30-2011
edgeman4.0's Avatar
Member
iTrader: (2)

Join Date: Oct 2008
Location: All Over
Posts: 1,475
your first mistake was letting your fiance out of the kitchen and into the garage...
Reply With Quote
  #19
Old 02-06-2011
Ranger093's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: Blaine, Minnesota
Posts: 289
Quote:
Originally Posted by edgeman4.0 View Post
your first mistake was letting your fiance out of the kitchen and into the garage...
Amazing
Reply With Quote
