GREAT....fml

So went to finish putting my locker in my truck today and right when i went to put the pinion shaft in it wouldnt go in so then i decided to "tap" it like the instructions said....it went in pretty easy....well then the other problem popped up and that was that it wasnt lining up with the other side...so i decided to hit it back out and try again...but ofcourse when i turned the diff around so i could hit it out, I ended up hitting it to far and now its stuck between the spider gear at the back of the diff and the actual diff wall...so im screwed and i cant think of anyway to get the pinion shaft back out
Reply With Quote
  #2
Old 06-09-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
take the 4 bolts out and bring the whole carrier out. Just remember those caps need to go in the same way they came out and i think they need torqued to 80 ft/lbs
Reply With Quote
  #3
Old 06-09-2010
Member
Thread Starter

Join Date: Mar 2010
Location: houston,tx
Posts: 56

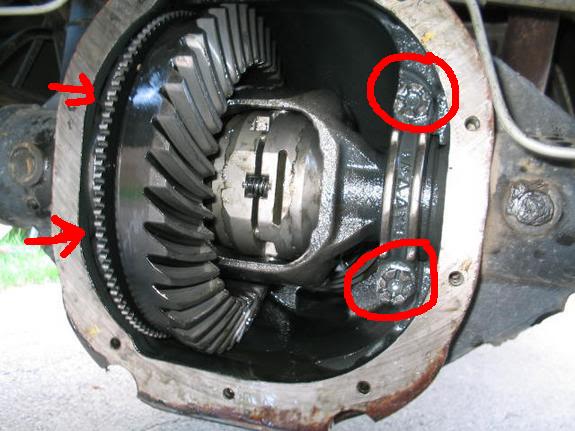

what 4 bolts? you mean the ones that have two on each side?

Name:  387428_208_full.jpg
Views: 0
Size:  44.9 KB
Reply With Quote
  #4
Old 06-09-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
yes those
Reply With Quote
  #5
Old 06-09-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
lol
Yeah that is totally something I would do.
Reply With Quote
  #6
Old 06-09-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Wait why was the pinion shaft out? I thought all you do is take out the cross shaft and then remove the spider gears and put the locker in place of them. Are you talking about the pinion shaft or the cross shaft? Or am I just retarded (very likely)?
Reply With Quote
  #7
Old 06-09-2010
rangerluc's Avatar
Member
iTrader: (1)

Join Date: Dec 2009
Location: kalamazoo, Michigan
Posts: 420
Quote:
Originally Posted by korey89 View Post
Wait why was the pinion shaft out? I thought all you do is take out the cross shaft and then remove the spider gears and put the locker in place of them. Are you talking about the pinion shaft or the cross shaft? Or am I just retarded (very likely)?
pinion shaft.
Reply With Quote
  #8
Old 06-09-2010
David N's Avatar
Member

Join Date: Dec 2008
Location: Williamston, NC
Posts: 1,060
lol. You'll get it straight... somehow.
Reply With Quote
  #9
Old 06-09-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
**cross pin
Reply With Quote
  #10
Old 06-09-2010
Member
Thread Starter

Join Date: Mar 2010
Location: houston,tx
Posts: 56
ya so i unbolted those bolts and got the "pinion shaft" unstuck but lemme tell you it was a PITA to get out....any suggestions on how the heck to get it in "easy" as some say??
Reply With Quote
  #11
Old 06-09-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Tap it lighter?
I guess I don't understand exactly what happened with it.
Reply With Quote
  #12
Old 06-09-2010
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
hire someone who knows what they are doing.....
Reply With Quote
  #13
Old 06-10-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
sometimes you will need to grind the cross pin or the teeth on the ring gear to let it slide in.

or are you talking about the carrier i recommended you pull out? get it started evenly then hit it in with a rubber mallet.
Reply With Quote
  #14
Old 06-10-2010
Member
Thread Starter

Join Date: Mar 2010
Location: houston,tx
Posts: 56
okay well went ahead and bought another pinion shaft and same thing happen...it just wont line up one the other side of the carrier....i hit it with a rubber mallet and it goes through past the spacers in the locker and past the axles fine...but then when i get to the other side of the carrer its about 1/8 of an inch off so i have no idea what to do now... and the ring gear isnt getting in the way at all and i really cant take the carrier out cause that would mean i would have to take the pinion shaft out and thats gonna be a pita and also i cant get the c clips off of the axles because the locker gives you a limited space to work with, i alreadytried what the instructions said about taping the tire in to get the c clip out but that didnt work
Reply With Quote
  #15
Old 06-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
What exactly is happening? I don't get it. Maybe take some pictures of what you are talking about.

If you were closer I'd do it for you.
Reply With Quote
  #16
Old 06-10-2010
Member
Thread Starter

Join Date: Mar 2010
Location: houston,tx
Posts: 56
well we are pretty close only about couple hundred miles lol....and i took pics but photobucket is acting stupid and aint letting me up load em...but to explain it the best that i can....pretty much im all done putting the locker in and so i go to put the pinion shaft in and when i do it doesnt slide in easy at all,like you cant push it in by hand you have to hit it with a rubber mallet, so i hit it and it goes it but almost like it goes in in stages like you hit it a couple of times and it'll go in past the spacers and its loose at this point like you could turn it by hand so anyways i go ahead and hit it some more and it slides in a little farther and then once again its loose enough to turn by hand and at this point its about an inch away from the other hole of the carrier and this is where the whole thing goes south...i go ahead and hit it some more and it'll slide in all the way till it hits the side of the carrier and like i said its off by about 1/8 inch
Reply With Quote
  #17
Old 06-10-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
You mean cross shaft? What locker are you installing?
Reply With Quote
  #18
Old 06-10-2010
rangerluc's Avatar
Member
iTrader: (1)

Join Date: Dec 2009
Location: kalamazoo, Michigan
Posts: 420
dissamble the locker and start over. just re-install it
Reply With Quote
  #19
Old 06-10-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
My aussie locker was super tight, I used a big metal hammer to get the cross-pin in.
Reply With Quote
  #20
Old 06-10-2010
Member
Thread Starter

Join Date: Mar 2010
Location: houston,tx
Posts: 56
ya i would disassemble it but i cant get the c clips out but i ended uo just grinding some of the cross pin off and it went in pretty easy so thats out of the way now as for the four bolts to remove the carrier i should torque those at 80 ft lbs right?
Reply With Quote
  #21
Old 06-10-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
did you take them out? if so yes, 80ft lb.
Reply With Quote
  #22
Old 06-10-2010
Member
Thread Starter

Join Date: Mar 2010
Location: houston,tx
Posts: 56
ya i took em out...and i appreciate everyones input with trying to get this thing installed really helped out alot
