Heater Panel in RED

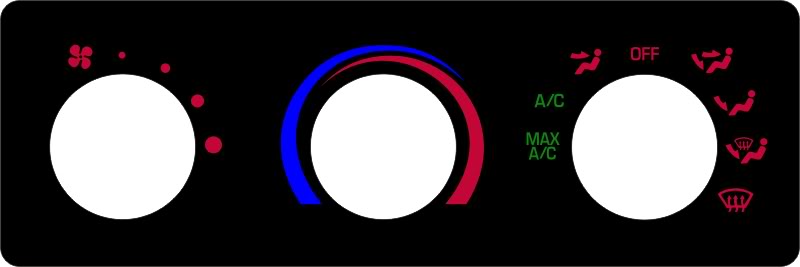

Just got the proof from the Mfgr.

Take a look:
Almost all RED Lettering…

Name:  SANDYBHVAC1.jpg
Views: 5
Size:  18.0 KB

White SMD LED Strip for lighting or maybe just white LED Bulbs, we will see.

Adding to the list, now I can pull the Dash apart, RED Cluster, RED Heater Panel, maybe Silver Gauge Cluster Bezel, chkg it out.
I like the black so the silver cluster bezel may not make it.
Reply With Quote
  #2
Old 06-08-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
gonna be like an Audi :-)
Reply With Quote
  #3
Old 06-08-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Ya gotta LOVE an Audi’s Dash, that’s where the idea came from.
Got a RED Gauge Cluster to match, now a RED Tach mounted on the left side of the Dash.
Reply With Quote
  #4
Old 06-09-2010
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Umm, dont waste money on somethin liek that - pull your little thing apart, scrape the back, and put red brake light repair tape behind it, works like a charm
Reply With Quote
  #5
Old 06-10-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Quote:
Originally Posted by WowMike2001 View Post
Umm, dont waste money on somethin liek that - pull your little thing apart, scrape the back, and put red brake light repair tape behind it, works like a charm
It never turns out RED, that is the problem.
The white that remains always brings out a lighter red and I was true red.

I tried the painting the speed-o with out success and attempted only part of the heater panel without success so these will be the way to go to get the Audi look.

Thanks,
Reply With Quote
  #6
Old 06-10-2010
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
Quote:
Originally Posted by Scrambler82 View Post
It never turns out RED, that is the problem.
The white that remains always brings out a lighter red and I was true red.

I tried the painting the speed-o with out success and attempted only part of the heater panel without success so these will be the way to go to get the Audi look.

Thanks,
You have to use multiple layers of the film to get the appropriate color. I had the same issue when I did blue. A single layer just made it look washed out. You gotta use 2 or 3 layers to get that nice bold deep color.

And I hear ya on the failed attempt at using translucent paint. F*** paint, it looked like garbage and I spent SO much time on it. Never again.
Reply With Quote
  #7
Old 06-10-2010
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
This is sitting a few feet from me right now, once i get the oomph up to actually mod the LED's in - it will turn out quite nice, heeps better then using that translucent paint stuff for window glass... red tape > paint! :-)


Name:  SwitchLED014.jpg
Views: 4
Size:  140.1 KB
Reply With Quote
  #8
Old 06-10-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Looks good.

Let’s see it installed.
Reply With Quote
  #9
Old 06-10-2010
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by WowMike2001 View Post
red tape > paint! :-)
red smd plcc leds > red tape > paint
Reply With Quote
  #10
Old 06-11-2010
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by Jp7 View Post
red smd plcc leds > red tape > paint
Sooo night blindness -laughs-
Reply With Quote
  #11
Old 06-11-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
If the LEDs are too bright and the Dimmer doesn’t take it low enough there is always a resistor or two.

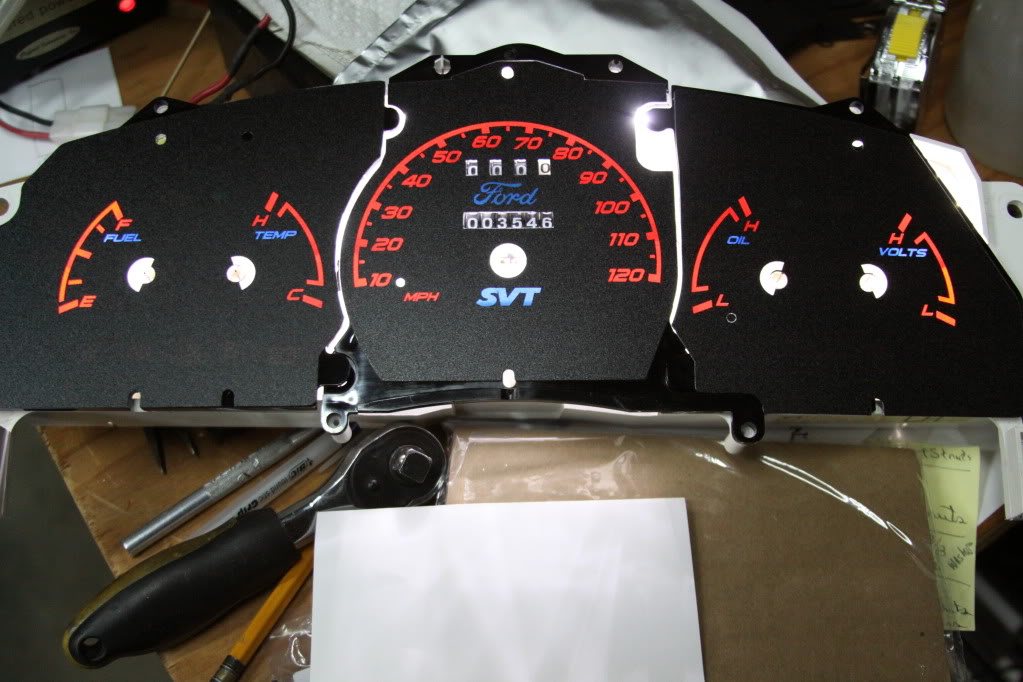

Here is my cluster faces, working on getting it together, almost there.

Name:  IMG_0009.jpg
Views: 4
Size:  136.5 KB
Reply With Quote
  #12
Old 06-11-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
lookin good. red is by far my favorite interior lighting color for sure.
Reply With Quote
  #13
Old 06-11-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Quote:
Originally Posted by Tys 4x4 FTW View Post
lookin good. red is by far my favorite interior lighting color for sure.
Thanks man, mine too for the dash (Audi Dash Color), the rest of the interior is just white LEDs.

Last edited by Scrambler82; 06-11-2010 at 06:45 PM. Reason: spl chk
Reply With Quote
  #14
Old 06-11-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Quote:
Originally Posted by WowMike2001 View Post
This is sitting a few feet from me right now, once i get the oomph up to actually mod the LED's in - it will turn out quite nice, heeps better then using that translucent paint stuff for window glass... red tape > paint! :-)


that is going to be sexy!
Reply With Quote
  #15
Old 06-14-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Got the Panel, looks good on the cardboard, now to install it.
Reply With Quote
  #16
Old 06-16-2010
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
Quote:
Originally Posted by Jp7 View Post
red smd plcc leds > red tape > paint
that's not true. Colored LED's suck
Reply With Quote
  #17
Old 06-16-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Quote:
Originally Posted by gts007 View Post
that's not true. Colored LED's suck
I’m using White Strip SMD LEDs.
Same as my Gauge Cluster.

Will have to wait and see how many and where they will be mounted because I have never seen the inside of the Heater Panel Control Box.

Hoping for a straight forward setup.

The ***** will be interesting, one SMD LED per **** Indicator, should be more than enough light.
Indicator are always too dim so this should brighten things up.
Reply With Quote
  #18
Old 06-16-2010
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by gts007 View Post
that's not true. Colored LED's suck
you must know more than all the OEMs because that is the direction everyone is going...
Reply With Quote
  #19
Old 06-16-2010
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
Quote:
Originally Posted by Jp7 View Post
you must know more than all the OEMs because that is the direction everyone is going...
irrelevant. im only talking about ranger gauge clusters and HVACs.
Reply With Quote
  #20
Old 06-22-2010
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,781
Believe me when I said the SMD LEDs I put in the Radio Front End are Bright.
I am hoping the Cluster, the Heater Panel and the ***** will be just as bright so I can turn then down some.
They WILL dim but as far as an incandescent bulb but still a lot.
My only problem is the needles, I wanted RED but have not had any luck so far.
I am looking at fluorescent paint that is supposedly made for Cluster Needles.
Reply With Quote
