Oem Guages?

How would I go about changing my stock gauges from black to the white on newer models?
Reply With Quote
  #2
Old 06-24-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
buy an new guage faces from these guys (easy): http://www.nuimage1.com/

Or swap out your guage cluster with one from a newer truck (hard)
Reply With Quote
  #3
Old 06-24-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You must use 04+ gauge clusters in your truck. Check out ebay for used EDGE/SPORT cluster. Usually runs $30-60 for a complete used cluster. It's a direct swap, your basically replacing your cluster entirely. But...I am completely unsure about the mileage meter on 04+ trucks. So I mgiht be talking out my butt though. Don't know much about the 04+ trucks electronics.


The swap itsself is very very easy. There should be a how to to replace your bulbs...follow that to pull the cluster.
Reply With Quote
  #4
Old 06-24-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by rwenzing
The odometer is stored in the cluster on all Rangers. 2003 and earlier use a mechanical odometer. 2004+ have a microprocessor in the cluster that stores the digital odo.

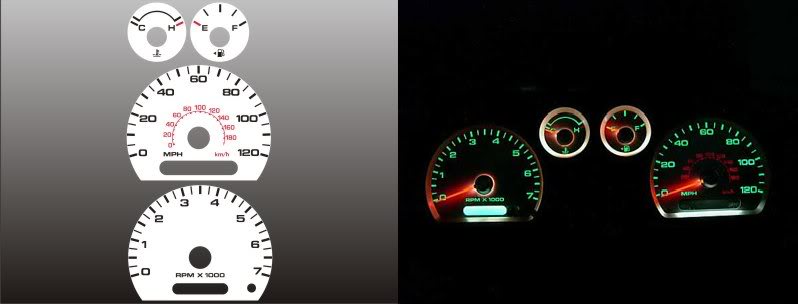

They have these now they are basially a sticker you put on over. You keep the same green light from behind

Name:  gauges.jpg
Views: 0
Size:  25.7 KB

http://cgi.ebay.com/ebaymotors/2004-...QQcmdZViewItem

Last edited by Mykhael; 06-24-2008 at 08:51 AM.
Reply With Quote
  #5
Old 06-26-2008
Member

Join Date: Jul 2007
Location: NH
Posts: 292
Quote:
Originally Posted by STL515273 View Post
They have these now they are basially a sticker you put on over. You keep the same green light from behind


Has anyone installed these yet (04+)? I don't see how they would work w/o removing stock overlay first.

I don't see how a sticker overlay could be installed w/o removing needles. I've installed indaglo over needles but those arn't sticky on the back.

As for the cluster swap I beleve the 00+ Focus keeps mileage in the ECU and the Odomoter. 04+ is probably the same. I am told that a Ford dealership can match the new odo to your current mileage but you also have to pay them to install it so it gets the exact milage at time of swap. The whole odo fraud thing.
Reply With Quote
  #6
Old 06-27-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
LUCKILY, since those overlays are for single gauges, you CAN put them on with the neetles still in place. It's the dual gauges overlays(like mine) that suck trying to put it on w/o removing the neetles.
Reply With Quote
  #7
Old 06-27-2008
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
You would have to take your time but here is how I see how you can do it without removing the needle. Kind of bow the material in the middle and slide it under the needle. Then carefully work it to the other side so the needle is now in the center and then place them. The only thing I would worry about is getting bumps or the sticker not perfectly matching up.

Zach
Reply With Quote
  #8
Old 06-27-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by Hillyard View Post
You would have to take your time but here is how I see how you can do it without removing the needle. Kind of bow the material in the middle and slide it under the needle. Then carefully work it to the other side so the needle is now in the center and then place them. The only thing I would worry about is getting bumps or the sticker not perfectly matching up.

Zach
I might be wrong but the 04+ needles wont even come off

I think with patience you could do this


Here are the install instructions for these

http://ebay.whitegauges.net/products...structions.gif
Reply With Quote
