Painted the A/C guages.

Trying to get my interior to go with the blue/ red theme, to go with the guage over lays i recently put in.
So i painted the HVAC tonight. It took about 3 hours to do and was very easy. I just need to figure out how to change the color of the **** now, and the rest of the buttons.

Here are the pix.

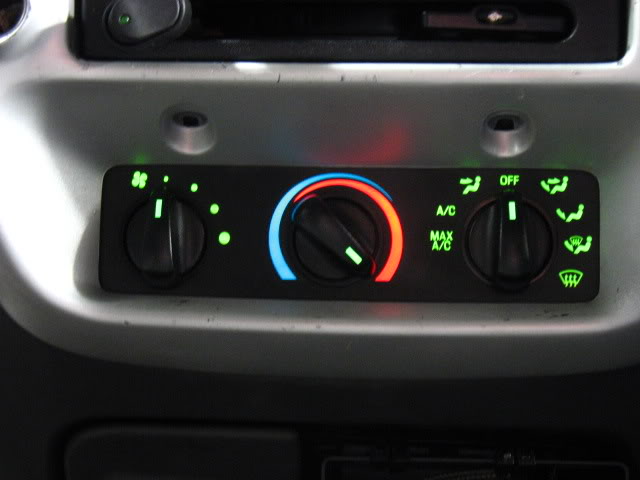

before
Name:  bd4f378d.jpg
Views: 2
Size:  33.3 KB

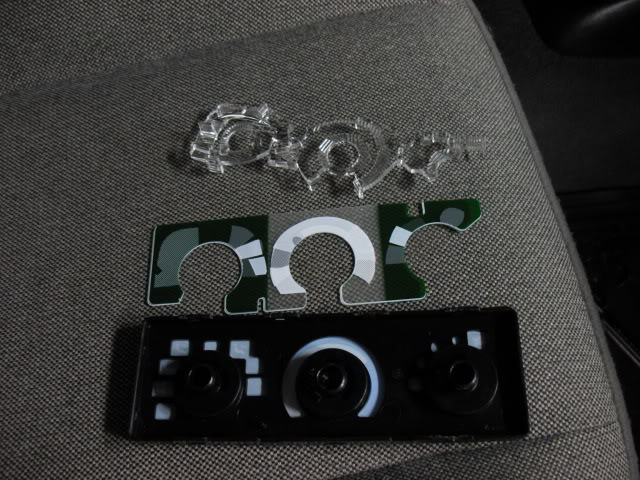

removed
Name:  f074469c.jpg
Views: 2
Size:  88.3 KB
checked color of paint before I painted on the part.
Name:  c7e5abff.jpg
Views: 2
Size:  24.9 KB

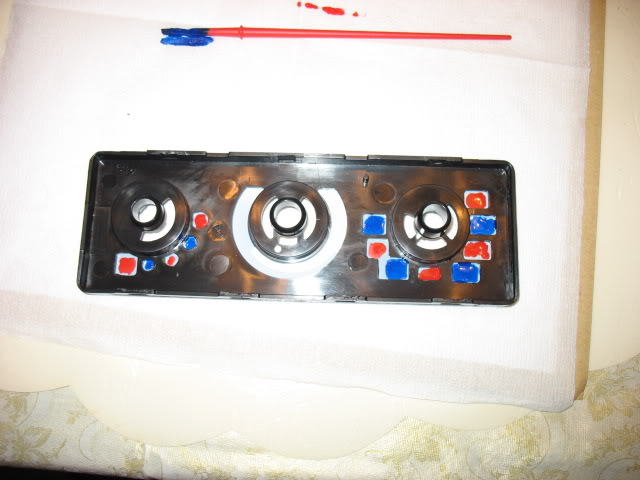

painted
Name:  aea26b05.jpg
Views: 2
Size:  47.3 KB

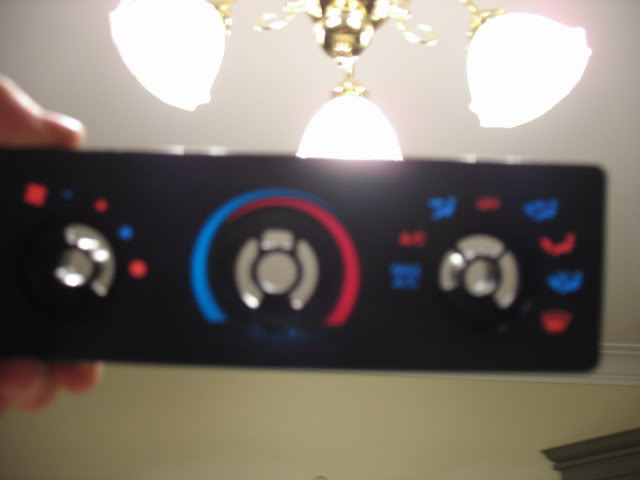

before its in the truck
Name:  87372f1e.jpg
Views: 1
Size:  22.5 KB

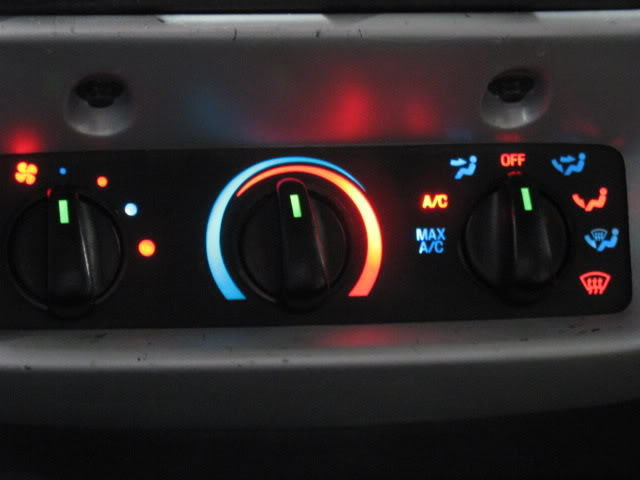

done
Name:  b7464349.jpg
Views: 2
Size:  31.6 KB

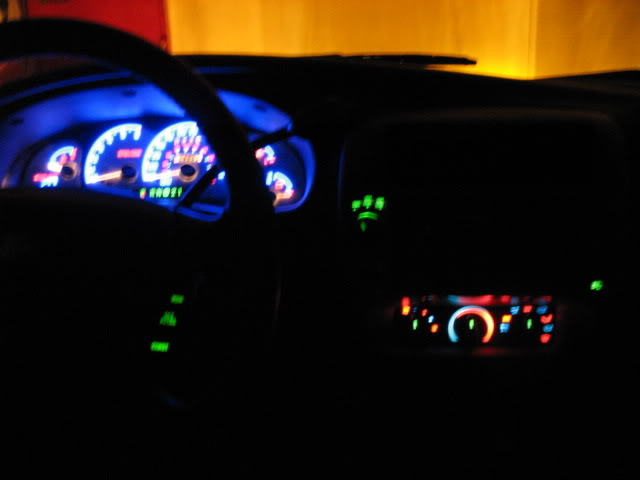

blury??
Name:  2e69d74e.jpg
Views: 2
Size:  24.9 KB

if anyone knows how to change the green on the ****, please let me no. The green is a plastic piece that slides out, but just painting it will not do the job.\

4x4 switch and gear selector is next.
Reply With Quote
  #2
Old 01-26-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
oh wow much nicer then i was expecting you where explaining good job erv now get a new bezel and DONT paint it this time lol...
Reply With Quote
  #3
Old 01-26-2006
birdie2000's Avatar
Member

Join Date: Nov 2004
Location: Abilene,Texas
Posts: 528
looks good dude!
Reply With Quote
  #4
Old 01-26-2006
rangererv's Avatar
Member
Thread Starter

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
lol im workin on that bezel, but i cant find it.

my radio keeps falling out and scratching the paint on it, i need a new radio clip/holder thing.
Reply With Quote
  #5
Old 01-26-2006
SanityAside's Avatar
Member

Join Date: Aug 2005
Location: Houston, Tx
Posts: 2,199
looks good, i wish i had that little *** on my bezel to switch to 4wd
Reply With Quote
  #6
Old 01-26-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by rangererv
lol im workin on that bezel, but i cant find it.

my radio keeps falling out and scratching the paint on it, i need a new radio clip/holder thing.
i dont care dont paint the next one just leave it if you want it painted take it to the place that painted my truck for god sakes they will put like 5 coats of clear lol
Reply With Quote
  #7
Old 01-26-2006
rangererv's Avatar
Member
Thread Starter

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
^^^lol ya, well c
Reply With Quote
  #8
Old 01-26-2006
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
That looks really good!!! What kind of paint did you use?
Reply With Quote
  #9
Old 01-26-2006
rangererv's Avatar
Member
Thread Starter

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
glass paint.
Just went to a local crafts shop and got it for like $2
came with like 8 colors.
Reply With Quote
  #10
Old 01-26-2006
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
Thats sweet!! Just one coat?
Reply With Quote
  #11
Old 01-26-2006
rangererv's Avatar
Member
Thread Starter

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
yup, you have to be very carefull to lay the paint even. If you have more paint on one side then the other then the side will be darker then the rest.
If you do it, make sure you are right under or buy a light. I keep holding mine up to the light ever 10 sec. while painting to make sure i layed the coat even and i didnt miss any spots.

very easy mod tho.
Reply With Quote
  #12
Old 01-26-2006
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
Ya..knowin me id have 3 different colors of blue on there..Id like to try it though...look awesome!!
Reply With Quote
  #13
Old 01-27-2006
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Can it be done on the older model dashes? I want mine all white w/ red and blue
Reply With Quote
  #14
Old 01-27-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by rangererv
if anyone knows how to change the green on the ****, please let me no. The green is a plastic piece that slides out, but just painting it will not do the job
Ah thank you! I'm supposed to mail out a set of ***** to someone and I forgot!

On some models (like my 2002) the clear plastic piece isn't actually green. It looks like it is sometimes even when it isn't. When I popped mine out, they were clear with a coating on the end which I removed. I then put a layer of green glass paint followed by a layer of white.

Also it should work on older dashes as well. Check out the how to on my Cardomain site here: http://www.cardomain.com/member_page...296394&page=24

I did my AC panel also, but since replaced it with the EATC. I don't know if I still even have a picture on there anymore of what I did with the heater panel.
Reply With Quote
  #15
Old 01-27-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
looks good Evan..

now quick question..that middle piece thats the piece that is green that makes the gauges look green...and the part that you painted...can you remove anythin else in there..

cuz i was plannin on laying down some translucient viynl like blue or somethin so the light would shine throught but what it looks like in the pic..it would be a PINA to lay it down there....
Reply With Quote
  #16
Old 01-27-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good evan.
Reply With Quote
  #17
Old 01-27-2006
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
Quote:
Originally Posted by rangererv
glass paint.
Just went to a local crafts shop and got it for like $2
came with like 8 colors.
What colors? I want to do this mod since it's cheap.
Reply With Quote
  #18
Old 01-27-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by HighRollerII
looks good Evan..

now quick question..that middle piece thats the piece that is green that makes the gauges look green...and the part that you painted...can you remove anythin else in there..

cuz i was plannin on laying down some translucient viynl like blue or somethin so the light would shine throught but what it looks like in the pic..it would be a PINA to lay it down there....
That would work fine and some guys have done just that. However, you need to cut a hole in the middle of your sheet to shine white light on the middle dial because that red/blue mandala pattern is painted on the face and not in the overlay.

You can use the original sheet as a template to cut your new sheet and change the whole setup with one piece of plastic and NO painting at all.
Reply With Quote
  #19
Old 01-27-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
awsome..im adding that to my list of stuff to do with weekend :)
Reply With Quote
  #20
Old 01-27-2006
rangererv's Avatar
Member
Thread Starter

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
Quote:
Originally Posted by karrbass4life
What colors? I want to do this mod since it's cheap.
There were many different color choices at the store.
They just put a random 8 colors together in a kit.
just make sure the kit has the colors you need.



thanks for all the comments guys.
Reply With Quote
  #21
Old 01-27-2006
rangererv's Avatar
Member
Thread Starter

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
Quote:
Originally Posted by n3elz

On some models (like my 2002) the clear plastic piece isn't actually green. It looks like it is sometimes even when it isn't. When I popped mine out, they were clear with a coating on the end which I removed. I then put a layer of green glass paint followed by a layer of white.

i poped it out and the whole piece was green. I should try and scratch it and maybe its just the outer layer. i donno, well c
Reply With Quote
  #22
Old 01-27-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
That looks pretty good Evan, nice work.
Reply With Quote
  #23
Old 01-27-2006
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
i took mine out tonight...now i gotta figure out somethin..i dont wanna paint em..but i wanna cover in viynl..but i need the center clear and the ends blue..but what could i use for that little cover..ill make my own but dunno what material to use
Reply With Quote
  #24
Old 01-27-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
There's a couple of things.

Theatrical lighting "gels" -- colored sheets of clear material.

But also, you can use tinted "report covers". They have this little binder-thingies in office stores you can get with transparent plastic covers in various shades. That plastic is perfect for this kind of thing if you can find it.

If you go into a hobby store, you should be able to find some transparent, tinted sheets of some sort also.

The originator of this mod, $tone02, used brake light tape to tint his dash originally. I found the glass paint and used that instead because it gave me more shades. There is yellow and red brake light tape -- I don't know if there's any blue tape like that or whatever.
Reply With Quote
  #25
Old 01-27-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
looks good Evan. That makes me want to start on mine.

Chad
Reply With Quote
