instrument cluster

Im wondering if the instrument cluster from a 2005 ranger would work in a 1999 ranger?
Reply With Quote
  #2
Old 08-11-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
clusters from 95+ are interchangeable
Reply With Quote
  #3
Old 08-12-2009
dan24's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Vancouver, Canada
Posts: 483
right on, so its nice and easy?
Reply With Quote
  #4
Old 08-12-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
should be plug and play
Reply With Quote
  #5
Old 08-12-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
i thought it was 95 to 03 that were compatible....

if true then 99 in an 05 won't work
Reply With Quote
  #6
Old 08-12-2009
dan24's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Vancouver, Canada
Posts: 483
hmm,
I have no idea at all. So i will just wait for someone to make a dominate answer :P lol
Reply With Quote
  #7
Old 08-12-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Nope, won't work.
after 2003 ford changed the pin outs, so it won't plug in

95 to 03 are the only clusters that will work for you.
Reply With Quote
  #8
Old 08-12-2009
dan24's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Vancouver, Canada
Posts: 483
greeeat thanks man
saved me the mass confusion
Reply With Quote
  #9
Old 08-12-2009
edgerider2002's Avatar
Member
iTrader: (9)

Join Date: Aug 2008
Location: Fresno, CA
Posts: 1,584
while were on this subject, will an 02 sport trac cluster work in my 02 ranger? me and alan think so but i wanna double check before i go bidding
Reply With Quote
  #10
Old 08-12-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by edgerider2002 View Post
while were on this subject, will an 02 sport trac cluster work in my 02 ranger? me and alan think so but i wanna double check before i go bidding

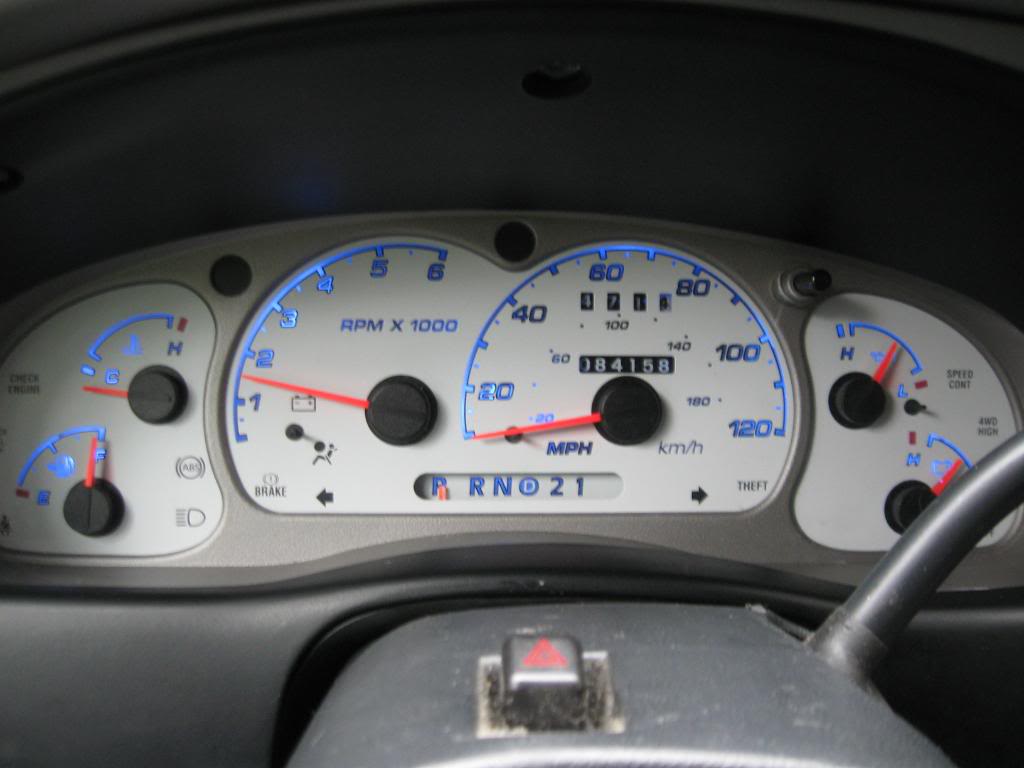

ya it will. I have an 03 in my 99
Name:  IMG_0326.jpg
Views: 20
Size:  57.5 KB
end whorage lol
Reply With Quote
  #11
Old 08-13-2009
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by dan24 View Post
Im wondering if the instrument cluster from a 2005 ranger would work in a 1999 ranger?
Yes it will. It will just require alot of splicing wires and if I remember correctly there is no way of making the odometer work.
Reply With Quote
  #12
Old 08-13-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
Quote:
Originally Posted by 99offroadrngr View Post
ya it will. I have an 03 in my 99

end whorage lol
yes....cuz it is a 03

they are compatible from 95 TO 03

he's looking for an 05 to put in his 99 which will not work
Reply With Quote
  #13
Old 08-13-2009
edgerider2002's Avatar
Member
iTrader: (9)

Join Date: Aug 2008
Location: Fresno, CA
Posts: 1,584
Quote:
Originally Posted by TheStig88 View Post
yes....cuz it is a 03

they are compatible from 95 TO 03

he's looking for an 05 to put in his 99 which will not work
he was referring to my question lol
Reply With Quote
  #14
Old 08-31-2009
DranMac's Avatar
Member

Join Date: Aug 2009
Location: ON
Posts: 20
Stigg, are those blue lights on your cluster aftermarket? Cause they look great.

I would totally consider doing that to my 09 4x4. I think the lights on the door panel window switch and lock/un-lock would look out of place. Unless they could be changed to a blue LCD as well.

Do you think it's possible?
Reply With Quote
  #15
Old 10-04-2009
Member

Join Date: Oct 2009
Location: El Paso, TX
Posts: 4
yea the blue light look really good you do that yourself or is there a kit for it?
Reply With Quote
  #16
Old 10-04-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
you have to sand off the overlays and put in blue leds or paint the overlays blue
Reply With Quote
  #17
Old 10-18-2009
Member
iTrader: (3)

Join Date: Aug 2009
Location: dearborn, Michigan
Posts: 63
Quote:
Originally Posted by Smakes View Post
you have to sand off the overlays and put in blue leds or paint the overlays blue
any specail kind of paint. im actuaully thinking of putting the same cluster in my 99.
Reply With Quote
  #18
Old 10-20-2009
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Glass paint is what most people use, can be found at most hobby shops.
Reply With Quote
  #19
Old 10-20-2009
ace of texas's Avatar
Member

Join Date: Sep 2009
Location: saginaw, texas
Posts: 172
can you sand off the overlays to a 1993 and paint it also? if so im doing it today.
Reply With Quote
  #20
Old 10-27-2009
mitchell561's Avatar
Member

Join Date: Sep 2008
Location: wellington,fl
Posts: 191
i know a kid that will never use a forum idk why but he made a custom harness so he can have the 06 guages in is 01... he got one from the junk yard and just cut the wires halfway and rewired it to his he said color to color but i dont wanna risk it.
im gonna ask him for a pic tmw
