LED's Behind cluster?

So in my 85, when it gets dark i cant see any of my gauges, has anyone changed the stock lights out to LED's?
Reply With Quote
  #2
Old 07-22-2012
rangerrunner11's Avatar
Member

Join Date: Feb 2011
Location: .
Posts: 1,018
yes, numerous people have

buggman or JP7 feel free....was gonna reply but yall are much more into this than me....
Reply With Quote
  #3
Old 07-22-2012
85XLT's Avatar
Member
Thread Starter

Join Date: Jul 2012
Location: Bartlett, Tn
Posts: 25
Like i don't know where to get them from or install if i could get some info i would be grateful :D
Reply With Quote
  #4
Old 07-23-2012
rangerrunner11's Avatar
Member

Join Date: Feb 2011
Location: .
Posts: 1,018
alright, there is a guy that goes by the screen name buggman on this site. He sells LED set ups without the lights, and as well does LED's with the lights you just bolt in.

His stuff is second to none so ive heard and seen and the prices are pretty sweet as well.

heres a thread showing off his work: https://www.ranger-forums.com/vehicl...read**-134875/

and here is his profile: Ford Ranger Forums - The Ultimate Ford Ranger Resource - View Profile: buggman

But if youre the super DIY type and want to do this project yourself then look up a site called superbrightled.com they have our exact instrument cluster bulbs in LED form, so you just have to disassemble and install and reassemble.
LED Lights, Bulbs & Accessories - SUPER BRIGHT LEDS

and for the tear down, heres the thread: https://www.ranger-forums.com/interi...-lights-65263/
Reply With Quote
  #5
Old 07-23-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
I don't know if they have done custom 1st gen clusters, but you may just be able to swap out bulbs. check superbrightleds.com
Reply With Quote
  #6
Old 07-23-2012
85XLT's Avatar
Member
Thread Starter

Join Date: Jul 2012
Location: Bartlett, Tn
Posts: 25
My ranger is Gen 1 So im not sure which leds on superbrightleds.com to get, if any?
Reply With Quote
  #7
Old 07-23-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
you will probably have to pull the bulb to see what you have.
Reply With Quote
  #8
Old 07-23-2012
85XLT's Avatar
Member
Thread Starter

Join Date: Jul 2012
Location: Bartlett, Tn
Posts: 25
II have, they dont look similar to me though
Reply With Quote
  #9
Old 07-23-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
post some pics up. or ask buggman he can proabbly tell you what you have
Reply With Quote
  #10
Old 07-23-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313

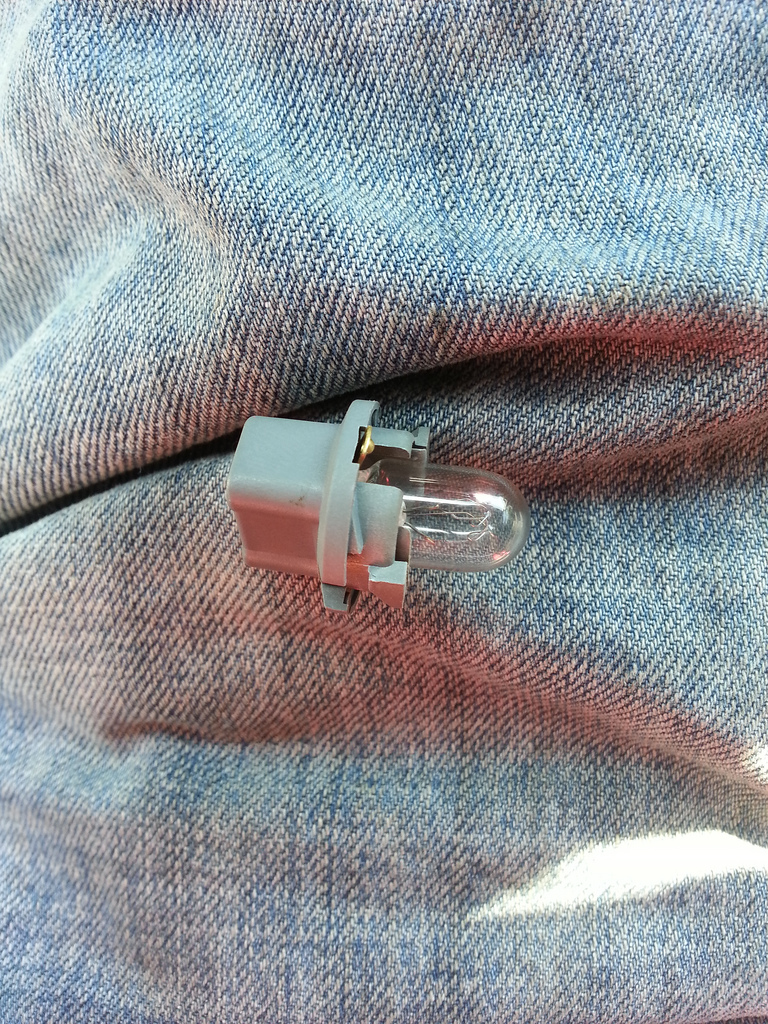

If behind the dash, you have something that looks like this:

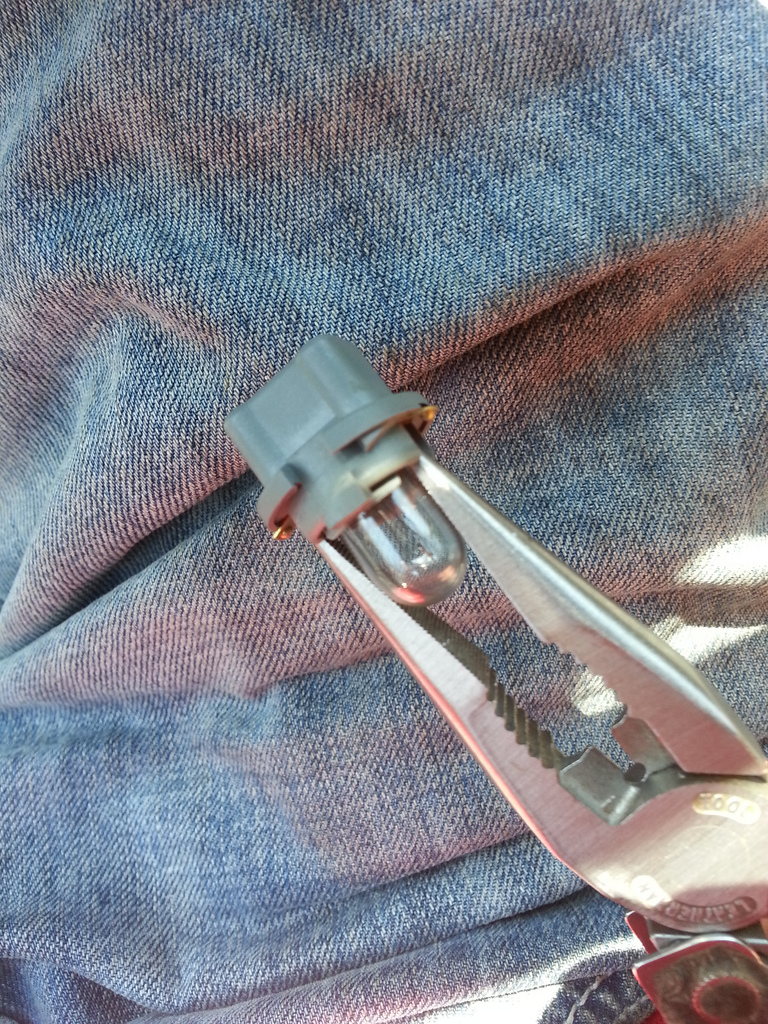

You need to do this.

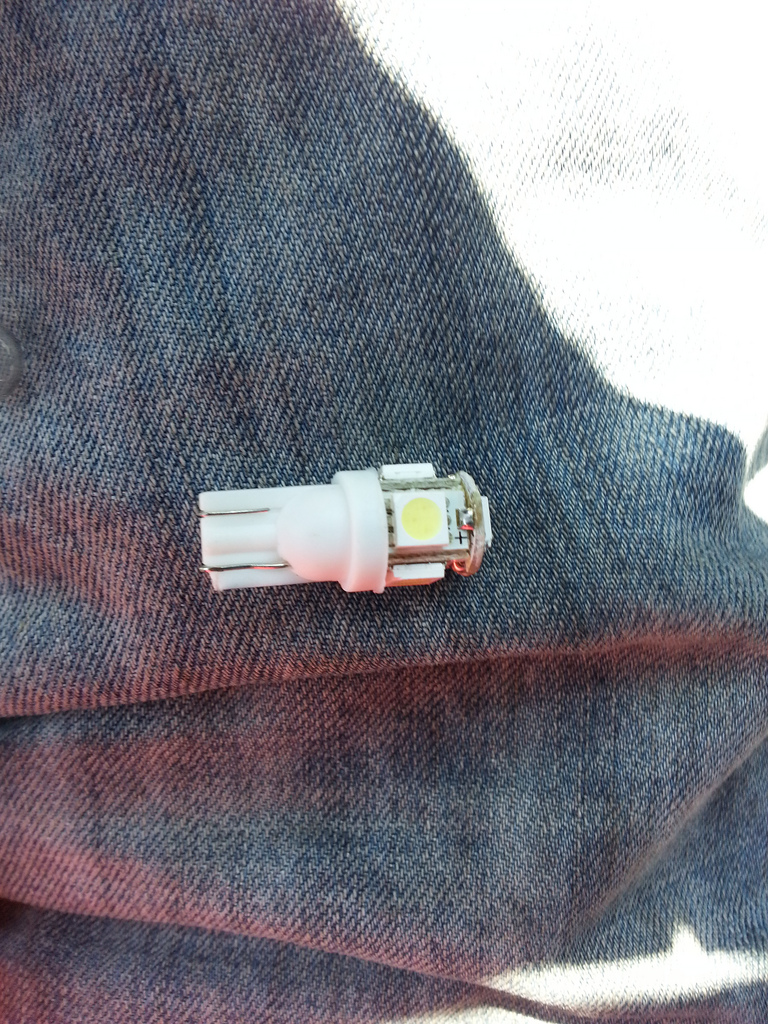

and replace it with this.
Attached Thumbnails
LED's Behind cluster?-7632154302_1078aa56f5_b.jpg   LED's Behind cluster?-7632156818_71f2a99820_b.jpg   LED's Behind cluster?-7632153034_350471dcba_b.jpg
Reply With Quote
  #11
Old 07-23-2012
85XLT's Avatar
Member
Thread Starter

Join Date: Jul 2012
Location: Bartlett, Tn
Posts: 25
Quote:
Originally Posted by StxDangerRanger View Post
If behind the dash, you have something that looks like this:

Okay thanks so much, Thats exactly what i have!
Reply With Quote
  #12
Old 07-23-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
For reference. They are T-10 or 194 bulbs. That one came out of my OHC.
My LED's are from Buggman.
Reply With Quote
  #13
Old 07-25-2012
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Most of the gauge clusters from 03 back will use the 5smd T10 base led's like STXDangerRanger showed.

The quantity will differ depending on the year of the truck. For the pre-94 trucks I'm honestly not sure how many there are, but if you have the dash apart, just count all the bulb holders that are that size & change 'em all to make sure you get 'em all.

As mentioned before, I have led's for pretty much any application inside or out. I'm proud to say that several of the members here are using my led's.
Reply With Quote
  #14
Old 07-25-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
The ones i have pictured are actually Terry's. Haven't had a problem with the T-5's and the one thing i did have a small issue with, he fixed right away.
Reply With Quote
