More Light Behind the truck.

Well I added the Superduty TBL and Cargo And i like the light added to the bed. I currently hooked it up to the dome light... I would like to run a separate wire and use a relay and switch for the Cargo light... Also i would like to have light behind the truck as well so along with the cargo light being hooked to the switch and relay i am going to hook a separate wire from the relay to the reverse light positive wires and t-tap it into it so the reverse lights will work normal but can be turned on with the truck off along with the cargos...

A little wiring but it should be an interesting little Saturday project.

I got the idea from how the GMs reverse lights illuminate when the dome is on... Plus i like the extra light behind me when using the truck at night.
Reply With Quote
  #2
Old 11-05-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I like the function of what GM's lights do, but I hate it when I'm going through a parking lot and they are on and I'm looking for a place to park. Hook up a set of lights under the bumper or mold some into the bumper.
Reply With Quote
  #3
Old 11-05-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Well mine wont come on when its unlocked or when the dome is on just when i flick the switch
Reply With Quote
  #4
Old 11-05-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by btm757 View Post
Well mine wont come on when its unlocked or when the dome is on just when i flick the switch
That's the way to do it.
Reply With Quote
  #5
Old 11-05-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
So has anyone else here done this or am i gonna be the first at something
Reply With Quote
  #6
Old 11-05-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
You are not the first.

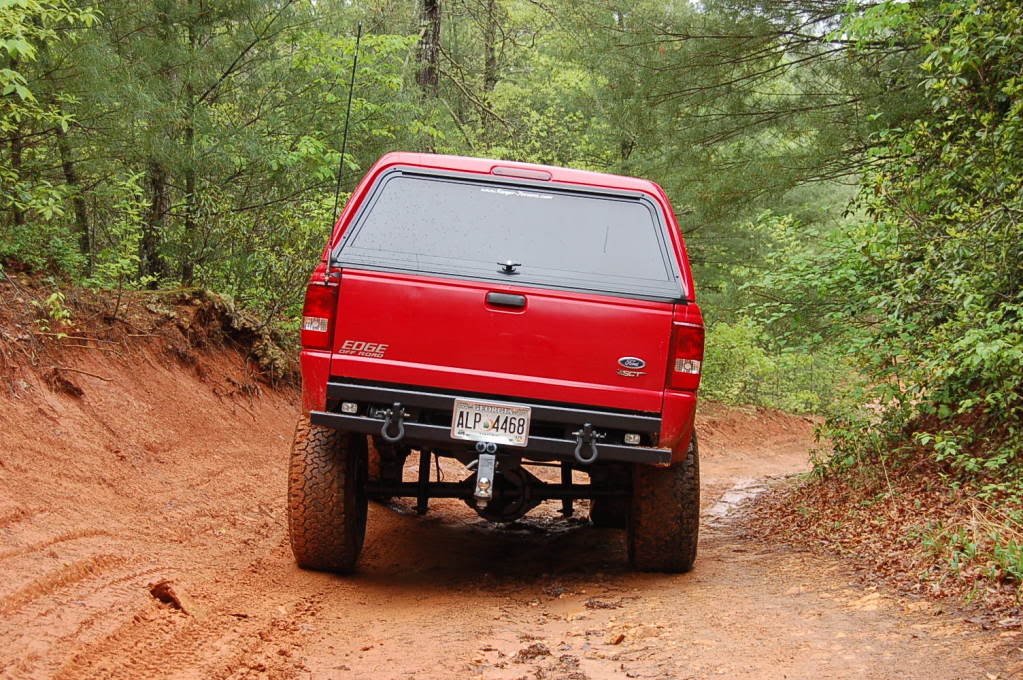

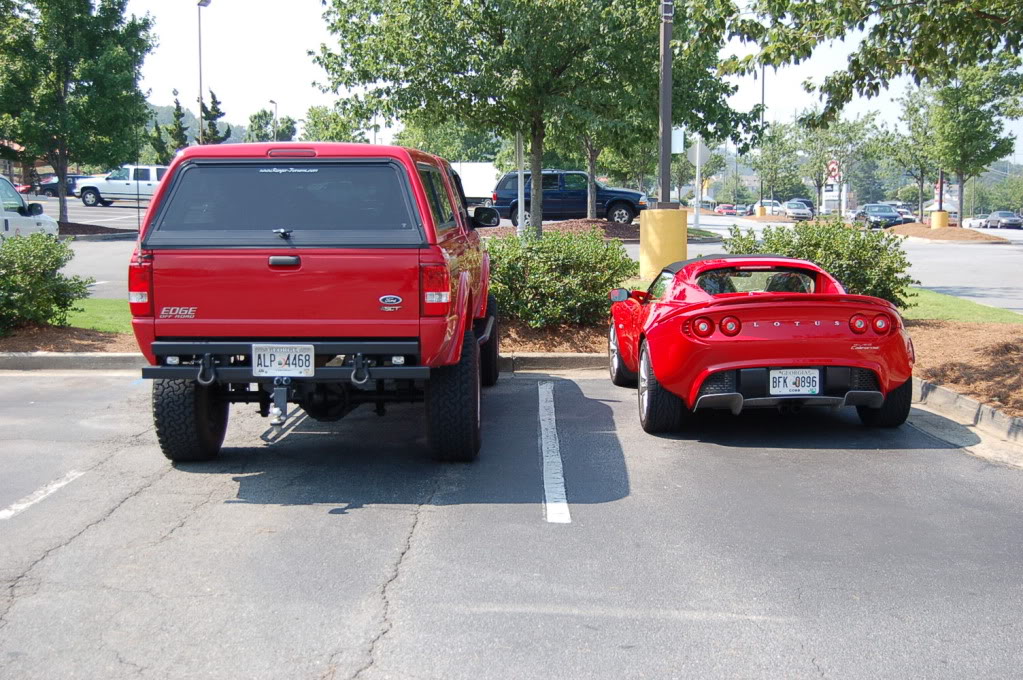

Name:  DSC_0001-2.jpg
Views: 1
Size:  227.9 KB
Name:  DSC_0017-2.jpg
Views: 3
Size:  200.3 KB
Reply With Quote
  #7
Old 11-05-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Gotcha but im talking about the factory reverse lights not after markets
Reply With Quote
  #8
Old 11-05-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by btm757 View Post
Gotcha but im talking about the factory reverse lights not after markets
Oooooohhhhhhh. Then I think you'd be the first.
Reply With Quote
  #9
Old 11-05-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Sweeet.. Ill be the first at something... Yesss im excited now
Reply With Quote
  #10
Old 11-05-2009
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
is it done yet?!
Reply With Quote
  #11
Old 11-05-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Not yet ill prolly do it Saturday after i wire up mossyoak03 factory fog lights
Reply With Quote
  #12
Old 11-05-2009
Member

Join Date: May 2007
Location: Rio Rancho, New Mexico
Posts: 323
i really like that idea. what 3rd brake light are you using to get the cargo light?
Reply With Quote
  #13
Old 11-05-2009
btm757's Avatar
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
One off of a 2008 super duty
Reply With Quote
  #14
Old 11-07-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
my suggestion, use a diode so that the flow from the reverse-reverse lights, don't tunr your cargo lamp on... or on second thought... would you want that light to give you more back up lighting when in reverse?
Reply With Quote
  #15
Old 11-07-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
You know....you've already got the circuits relayed already. I wonder if you can just run the BLK/PNK wire from the reverse lamps up to the TBL BLK/PNK wire. But I worry, if you do that, you may have that dome light turn on when you shift into reverse. That'll be funky! lol.
Reply With Quote
  #16
Old 11-07-2009
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
DIODE!

installing a diode to allow the flow from the dome light to the reverse lights will eliminate that problem...
