New tow hooks in the rear

I couldn't get the tow hitch back on without a lot of work after I got the lift kit so I decided to not put it on and come up with another idea.
Went to the junkyard and got 2 front hooks off a Suburban. The holes almost line up with the holes in the frame but not quite and the big rivet for the spare tire carrier was in the way. I grinded those 2 rear rivets off (1 on each side) drilled 2 new holes and painted the frame black where it was grinded. Used grade 8 bolts. They are massive meaty hooks and I got to test them out today. They worked perfect.
They are hard to see and close to the frame but have plenty of clearance for any angle needed on the strap.
This may not be a new idea here but I think they came out nice. I can always tow the boat with the Tahoe.

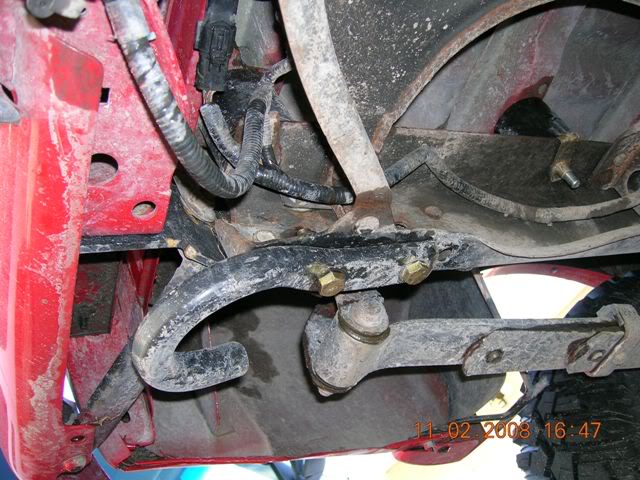

Name:  towhooks001.jpg
Views: 4
Size:  72.8 KB

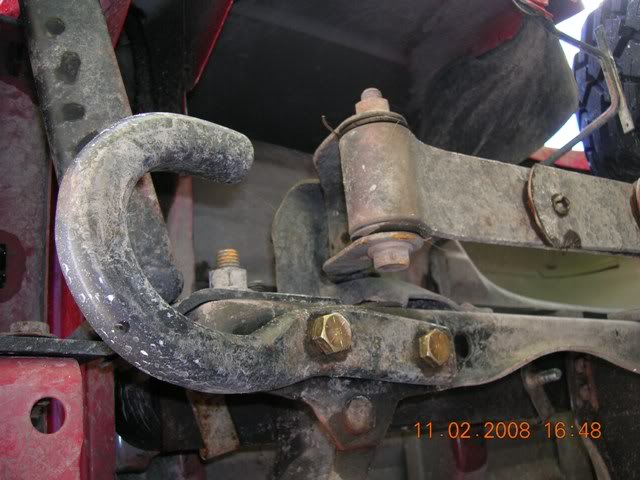

Name:  towhooks002.jpg
Views: 3
Size:  54.6 KB

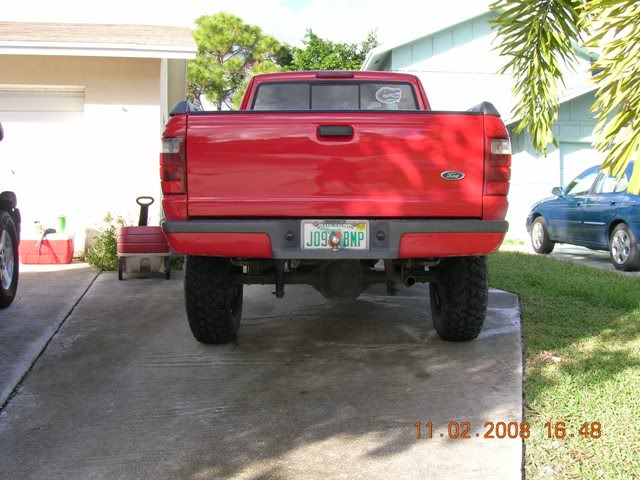

Name:  towhooks003.jpg
Views: 3
Size:  60.8 KB
Reply With Quote
  #2
Old 11-02-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Nicely done, I need to get some like that.
Reply With Quote
  #3
Old 11-02-2008
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
very nice... and go gators!
Reply With Quote
  #4
Old 11-02-2008
swamper06's Avatar
Member

Join Date: May 2007
Location: McAdoo, PA
Posts: 735
Me likey.
Reply With Quote
  #5
Old 11-02-2008
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
seems like the tow strap could hit the bumper if pulled at in the wrong angle.
Reply With Quote
  #6
Old 11-03-2008
03Shadowbob's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Palm Beach, FL
Posts: 193
I was worried about the angles and the bumper but even with me standing about 4 feet away holding a tow strap over my head it doesn't touch.
Reply With Quote
  #7
Old 11-04-2008
JordanD's Avatar
Member

Join Date: Feb 2008
Location: Maitland, FL
Posts: 61
i like, the best part thought is the gators sticker HOOAH gators!!!
Reply With Quote
  #8
Old 11-09-2008
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
Maybe you should put a washer on the bolts before it goes thru the tow hooks. This would give you slightly better/more secure anchor at the bolt, and, take some of the strain of the head of the bolt.

Also, did u happen to put a lock washer and washer on the inside?
Reply With Quote
  #9
Old 11-10-2008
03Shadowbob's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: Palm Beach, FL
Posts: 193
FMD,
I did put lock washers on the inside. I thought about adding a few washers to drop them down a bit however I thought that may put more strain on the bolt stem. I could add a washer though if you guys think that is better.
Reply With Quote
  #10
Old 11-10-2008
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
I was always taught that a single washer on the inside and outside of any major stress point is a good idea.... If anything it gives that warm fuzzy feeling.

I geuss the thought process behind it is that when yanking on it, you have horizontal sheer forces being applied to the bolt stem. being what it is, and depending upon your angle, that sheer force could be applied indirectly to the bolt head. It would make ME feel better knowing that the head of the bolt has a little more surface area via a washer to prevent slip... However being what it is, the chance of it coming lose of 'slipping' is probably in the range of 1 in 10000000000000000000 heh.
Reply With Quote
  #11
Old 11-26-2008
skateboard34's Avatar
Member

Join Date: Sep 2008
Location: fkj, nv
Posts: 39
ah man all i need to do it get one of those in chrome
Reply With Quote
  #12
Old 12-11-2008
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
nicely done. look great and smart idea.
