No need to move radiator with a Body lift

I read some threads about people moving their rad. and some are having problems with the rad. when putting on a body lift. When i did my BL, i didnt want my RAD hanging down so low. So I just kept my rad in its original location and only moved the plastic fan shroud. I just put it upside down and it fits great. Just a few pics to help those in the process.

Name:  toomuchgoodstuff222.jpg
Views: 22
Size:  103.1 KB
Name:  toomuchgoodstuff223.jpg
Views: 21
Size:  78.7 KB

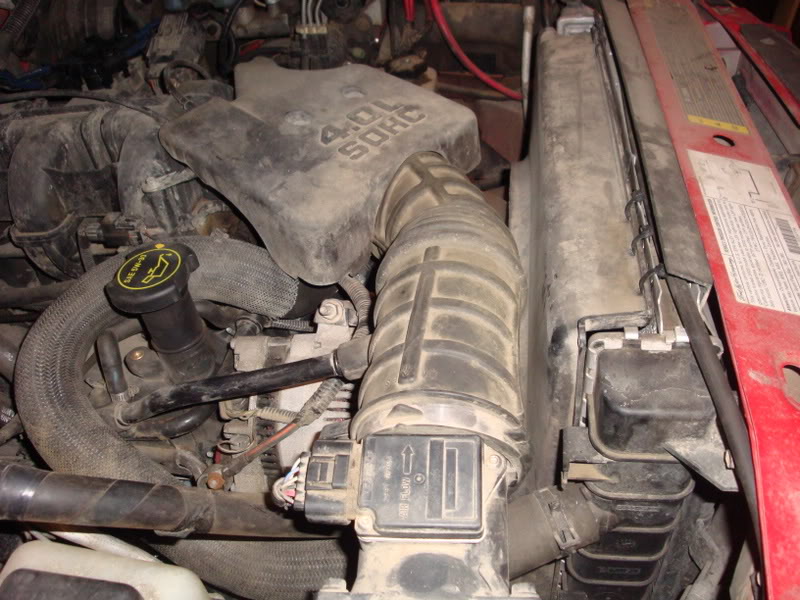

Name:  toomuchgoodstuff224.jpg
Views: 21
Size:  108.9 KB
Name:  toomuchgoodstuff227.jpg
Views: 21
Size:  75.0 KB
Name:  toomuchgoodstuff225.jpg
Views: 21
Size:  71.9 KB
Name:  toomuchgoodstuff237.jpg
Views: 19
Size:  88.3 KB
Reply With Quote
  #2
Old 02-13-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That's a great idea.
Reply With Quote
  #3
Old 02-13-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
how is the shroud secured on the bottom?? is it just hung in there via those zip ties to the top of the rad??

I know a couple who've not lowered their radiators....goin' on over a year now with one of them havn't had any issues either.
Reply With Quote
  #4
Old 02-13-2009
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
i would not trust those zip ties i broke 2 just by tightening them to tight when running some wires.....
Reply With Quote
  #5
Old 02-13-2009
CBFranger's Avatar
Member

Join Date: May 2008
Location: Tampa Bay Area
Posts: 1,029
If you get an E-Fan you dont have to relocate the radiator either do you?
Reply With Quote
  #6
Old 02-13-2009
PUNKROCKPILOT's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: Santa Maria
Posts: 446
the bottom is held on by a bunch of zip ties too but i couldnt get a pic cause of my skid plate. The Zip ties are holding just fine and i didnt try to tighten the dog sh*t out of them so they should hold up for a long while. Its been over a year now and no problems yet. I guess if i really wanted to, i could replace the zip ties with new ones, but since not one of them has broke, im not worried about it. An e-fan doesnt really matter in relocating the rad. Its the plastic fan shroud that would hit the fan blades if you dont do some adjustments. So instead of moving the whole rad. i just moved the shroud.
Reply With Quote
  #7
Old 02-13-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Sorry, but those zip ties will get brittle and break over time, and the fan will eat that shroud and whatever else it takes out. I have seen shrouds held on by zip ties. It's wise to come up with a better solution. E-fan would be better off.
Reply With Quote
  #8
Old 02-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Ditch the shroud. be cool like me. i have no cooling issues what so ever.
Reply With Quote
  #9
Old 02-14-2009
PUNKROCKPILOT's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: Santa Maria
Posts: 446
I moving back to SD and am gonna be wheelin in the dessert, so Im gonna need as much cooling help as i can get, so the shroud is gonna stay for now. And for all you zip tie haters...... when i get back i'll go ahead and safety wire my shroud on so you guys can sleep at nite.
Reply With Quote
  #10
Old 02-14-2009
Member

Join Date: Oct 2004
Location: ***
Posts: 2,099
wait I feel real confused, my body lift came with brackets to move the fan shround down a few inches, are people having cooling problems with this? I've had this setup for almost 4 years now without an issue

and like Shane said, I've seen alot of guys just toss the shroud and not have problems
Reply With Quote
  #11
Old 02-14-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by Fx4wannabe01 View Post
Ditch the shroud. be cool like me. i have no cooling issues what so ever.
But does your A/C hit 14* out of the vents like me?
Reply With Quote
  #12
Old 02-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
well...she's got 100k and came from AZ, sooo.....she's got some use in the A/C department. BUT...still makes my nipples and her nipples rock hard if that's what your asking.
Reply With Quote
  #13
Old 02-14-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Are you sure thats just from the AC?
Reply With Quote
  #14
Old 02-14-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by Fx4wannabe01 View Post
well...she's got 100k and came from AZ, sooo.....she's got some use in the A/C department. BUT...still makes my nipples and her nipples rock hard if that's what your asking.
lol
Reply With Quote
  #15
Old 02-14-2009
PUNKROCKPILOT's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: Santa Maria
Posts: 446
lol x2
