Supports for Hauling Plywood

I dont know if anyone has ever done this before, people almost probably have, but I thought I would share this with you guys. I have a Ford bed liner in mine and I saw the slots in the sides and wondered what they were there for.

Name:  0823071939.jpg
Views: 110
Size:  37.0 KB
After looking at them for a while my dad and I noticed that they were just about level with the wheel wells so we thought maybe we could put wood from slot to slot to better haul big items like plywood. We got two pieces of cedar and the cut them to length.

Name:  0823071942.jpg
Views: 405
Size:  41.6 KB

Name:  0823071940.jpg
Views: 359
Size:  38.1 KB

Now the piece fit in the front pretty easily enough. The back one was another story. The piece in the front has enough room to be swung into place but the back one doesnt. We ended up cutting the other piece in half and then putting a door hinge to connect the two pieces and some rods to support the wood when it had weight on it.

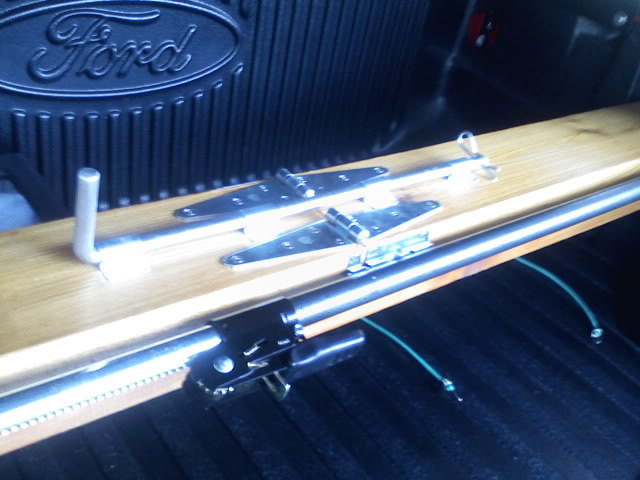

Pics of the underside of the back piece
Name:  0823071938.jpg
Views: 103
Size:  45.4 KB

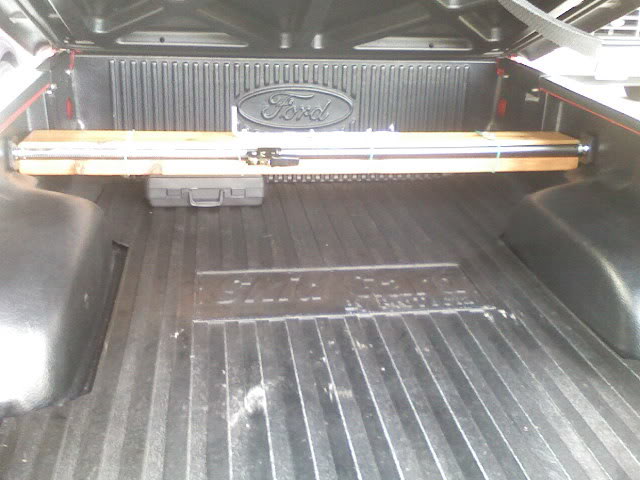

When I dont need them I just lay them one top of the other in the front
Name:  0823071937a.jpg
Views: 112
Size:  50.7 KB

They have worked for me so far and come in handy when I need to get plywood, which we seem to get a lot here!

Just curious, anyone else have something similar to this or ever seen this before??
Reply With Quote
  #2
Old 08-23-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Awesome man! I've always thought thats what those are for, just never tried it. Nicely done.
Reply With Quote
  #3
Old 08-23-2007
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Nice.
Reply With Quote
  #4
Old 08-24-2007
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Some trucks back in the 80's had the slots molded into the actual bedside just for that purpose.It's to allow contractors to double stack building materials , ie-long lumber for a project in the bottom and plywood stacked above.This way they could leave the plywood on the truck for one job but still get to the lumber easily.
Reply With Quote
  #5
Old 08-24-2007
dave01978's Avatar
Member

Join Date: Jun 2004
Location: Romeoville, IL
Posts: 539
yeah thats designed into the liner for just that reason
Reply With Quote
  #6
Old 08-24-2007
greygooseranger's Avatar
Member

Join Date: Apr 2006
Location: SE Michigan
Posts: 3,293
Nice work!
Reply With Quote
  #7
Old 08-24-2007
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
[QUOTE=OTRtech]Some trucks back in the 80's had the slots molded into the actual bedside just for that purpose.QUOTE]

I know on my Gen II's they have a spot in front of and behind the wheel wells that I can lay a board right across.

I like how u put it all together, looks good and most importantly functional
Reply With Quote
  #8
Old 08-24-2007
bryanjints's Avatar
Member
iTrader: (1)

Join Date: Dec 2005
Location: Mount Holly, NJ
Posts: 1,857
I don't have a bedliner so when I load plywood or sheet rock in the truck. I leave the tailgate up and then move my spare tire all the way against the tailgate. Then I have 4 points of contact and have never had a piece more or sheetrock break. The spare ends up supporting the middle while the wheel wells the sides the bottom of the bed in the front and the tailgate in the back. It gives me an awesome big wing also hahahaha.
Reply With Quote
  #9
Old 08-24-2007
nbro3232's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: Nokomis, FL / Tallahassee
Posts: 784
Quote:
Originally Posted by bryanjints
I don't have a bedliner so when I load plywood or sheet rock in the truck. I leave the tailgate up and then move my spare tire all the way against the tailgate. Then I have 4 points of contact and have never had a piece more or sheetrock break. The spare ends up supporting the middle while the wheel wells the sides the bottom of the bed in the front and the tailgate in the back. It gives me an awesome big wing also hahahaha.
Yea thats what I do with plywood, you don't even have to tie it down.
