  #176
Old 02-28-2010
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
Great sounding setup. And if fox is good enough for my mtb it should be equally impressive with my truck. Willl you guys ship to canada and/or have any canadian dealers?
  #177
Old 03-01-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
We ship all over just need to know what part of canada to quote you the shipping cost.
  #178
Old 03-01-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
So when I get this done on my non lifted truck will my stock bumpstops work or does something new need to be fabbed?
  #179
Old 03-02-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
It will be necessary to trim the existing bumpstop mount on the frame to allow for about 1/2" clearance. I used the spring as a guide to mark the corner of the mount that needs to be trimmed.
  #180
Old 03-02-2010
mmmtof's Avatar
Member
iTrader: (2)

Join Date: Nov 2009
Location: Charlotte, NC
Posts: 211
is there a picture of the area that needs to be trimmed?
  #181
Old 03-02-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
I don't have any pictures. That's my fault, but I plan on getting some on the next truck we do in our shop.
  #182
Old 03-02-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by mmmtof View Post
is there a picture of the area that needs to be trimmed?

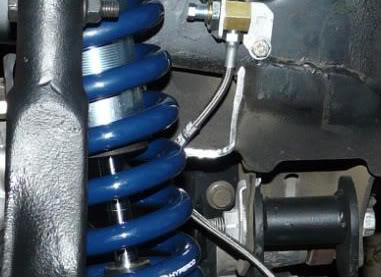

You can see the mount in the middle of this picture when it was bare metal before I painted it:

Name:  001-1.jpg
Views: 15
Size:  26.8 KB
  #183
Old 03-03-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
I'm having ORW install my kit on Monday. Nick said that they'll take plenty of pictures during the install of all the steps along the way so there should be tons of pictures soon. My truck will be famous!!! This kit is going on a stock height 01 edge 4x4 by the way
  #184
Old 03-05-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
Great about time to see one on a stocker...
  #185
Old 03-07-2010
shooterdude199's Avatar
Member

Join Date: Dec 2009
Location: Columbia, SC
Posts: 168
fit for a sport trac? id love to take out my tbars.
  #186
Old 03-08-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
Just dropped my truck off with Nick. I get to pick it up later and test out the ride on my way to work. Plenty of railroad tracks and trolley tracks and dirt roads between me and the San Diego airport.. Been looking forward to a smoothe ride ever since I cranked the torsion bars
  #187
Old 03-08-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
Quote:
Originally Posted by shooterdude199 View Post
fit for a sport trac? id love to take out my tbars.
This kit will also work with:
* 1995-2001 Ford Explorer 2wd & 4wd
* 2001-2005 Ford Explorer Sport-Trac 2wd & 4wd
  #188
Old 03-10-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
If anyone is interested I have 1 of the conversion bracket kits, new never installed without the hardware for $120.
  #189
Old 03-10-2010
mmmtof's Avatar
Member
iTrader: (2)

Join Date: Nov 2009
Location: Charlotte, NC
Posts: 211
Any updates yet on Villens truck?
  #190
Old 03-11-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
Just finished Villens truck. I'll post some pics. tomorrow of the install.
  #191
Old 03-11-2010
Member

Join Date: Sep 2009
Location: San Diego, CA
Posts: 74
No more t-bars... And the ride is unreal!!!! Took a test drive on the way home over some bumpy roads that used to rattle my teeth out and the truck soaked them up like it was a freshly paved road. I'll write more after work. On my way out the door.
  #192
Old 03-11-2010
mmmtof's Avatar
Member
iTrader: (2)

Join Date: Nov 2009
Location: Charlotte, NC
Posts: 211
cant wait to see the pics. that is the only thing holding holding me back for this..
  #193
Old 03-11-2010
Seb_L's Avatar
Member
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
I will be getting this kit once I get some money to afford it
  #194
Old 03-11-2010
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
Nick did you get my PM about the spacers?
  #195
Old 03-12-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165

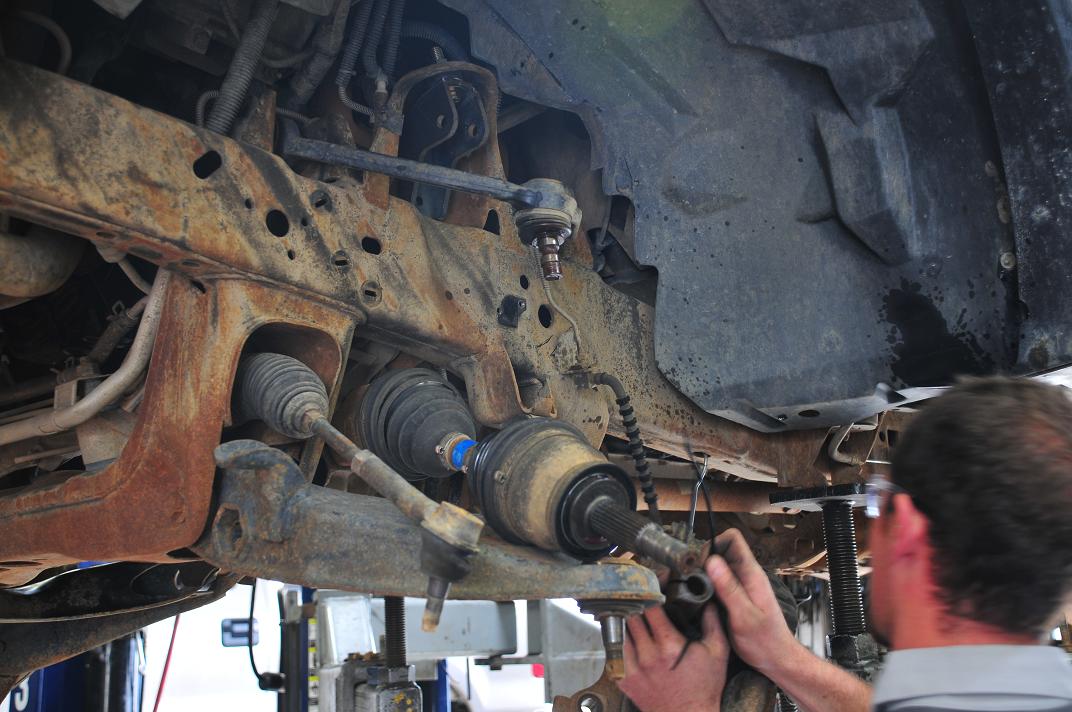

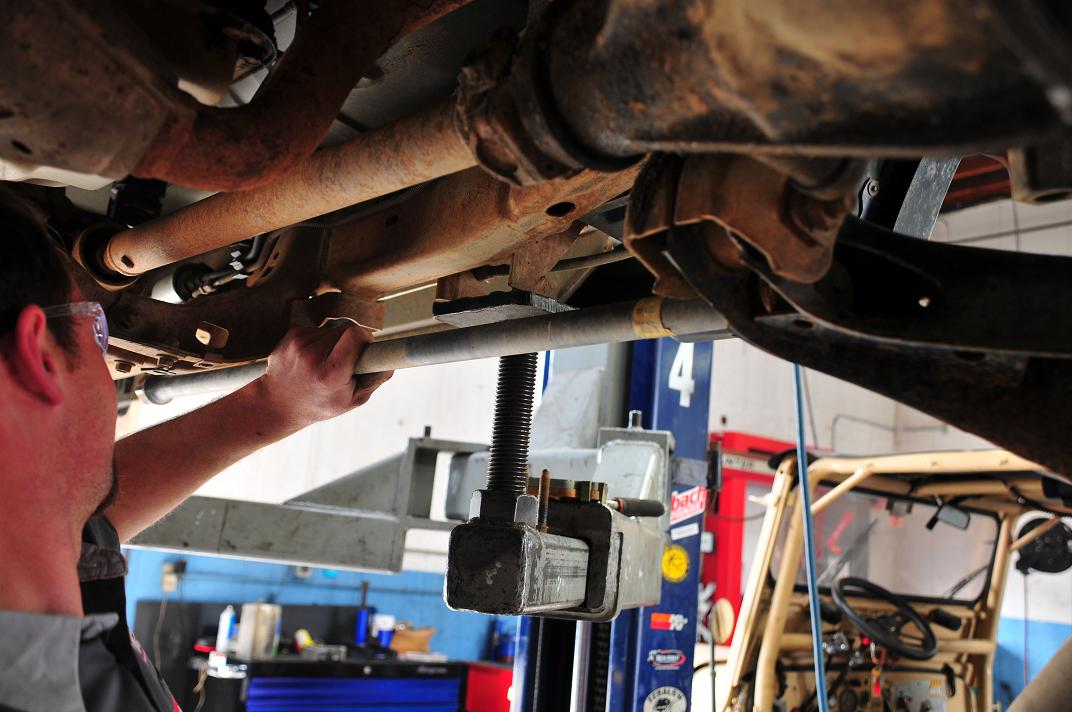

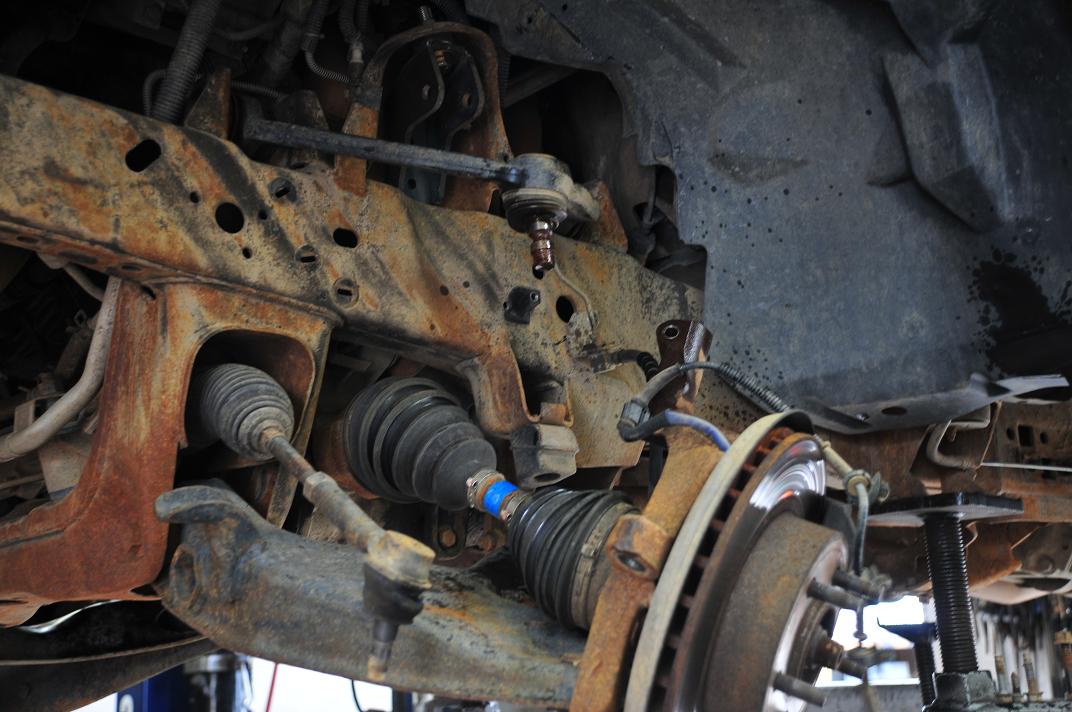

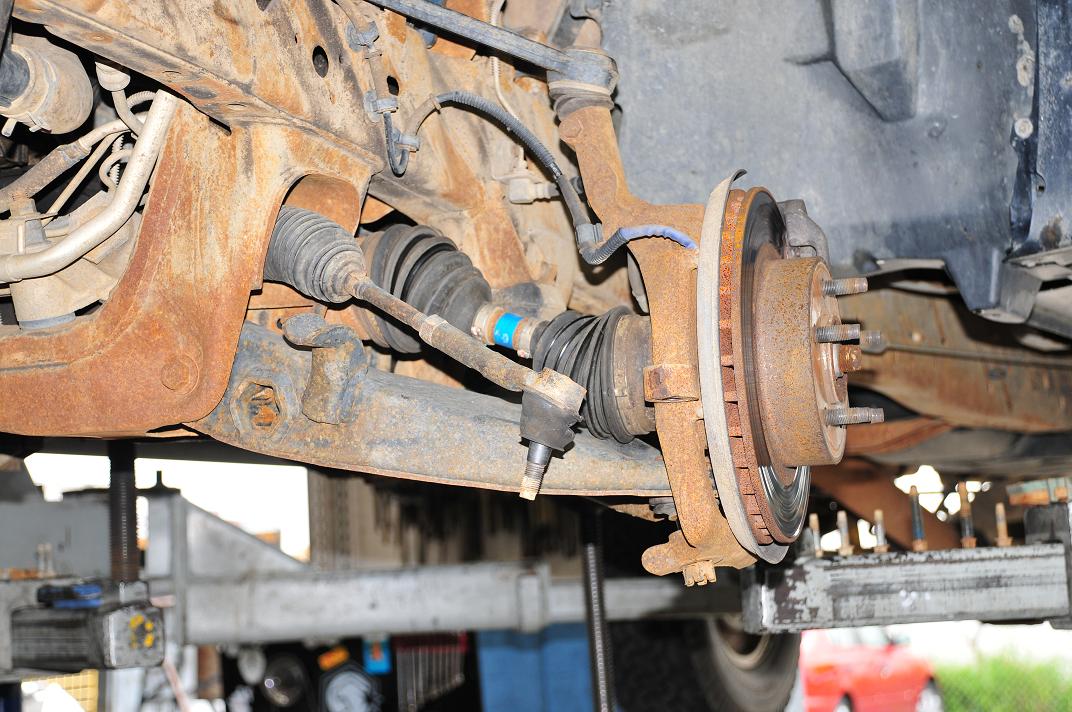

Here some pics. of the tear down.
ORW COIL-OVER CONVERSION BRACKETS-dsc_1901.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1907.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1914.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1924.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1925.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1928.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1930.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1932.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1933.jpg
  #196
Old 03-12-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165

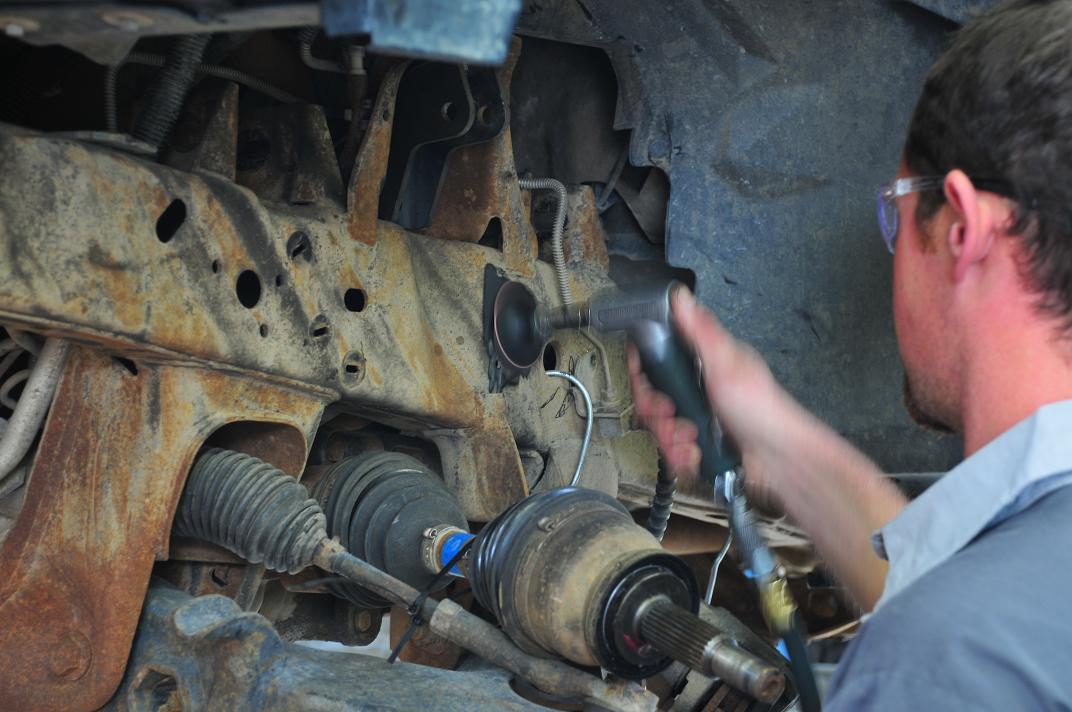

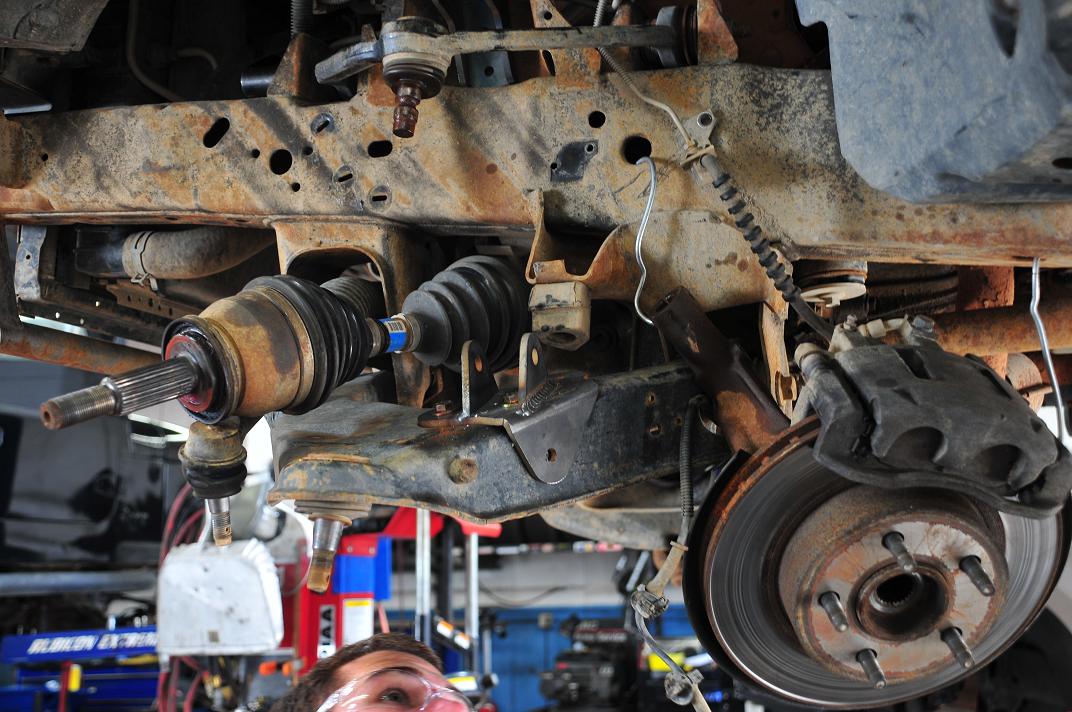

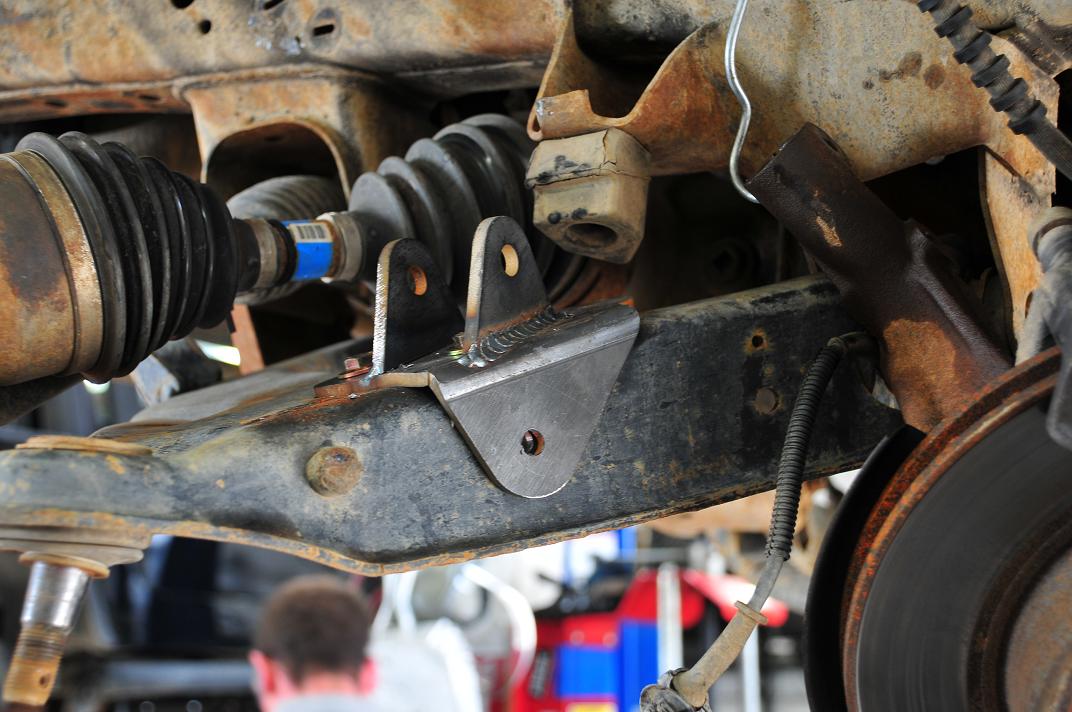

Installing the conversion brackets
ORW COIL-OVER CONVERSION BRACKETS-dsc_1941.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1935.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1934.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1936.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1940.jpg

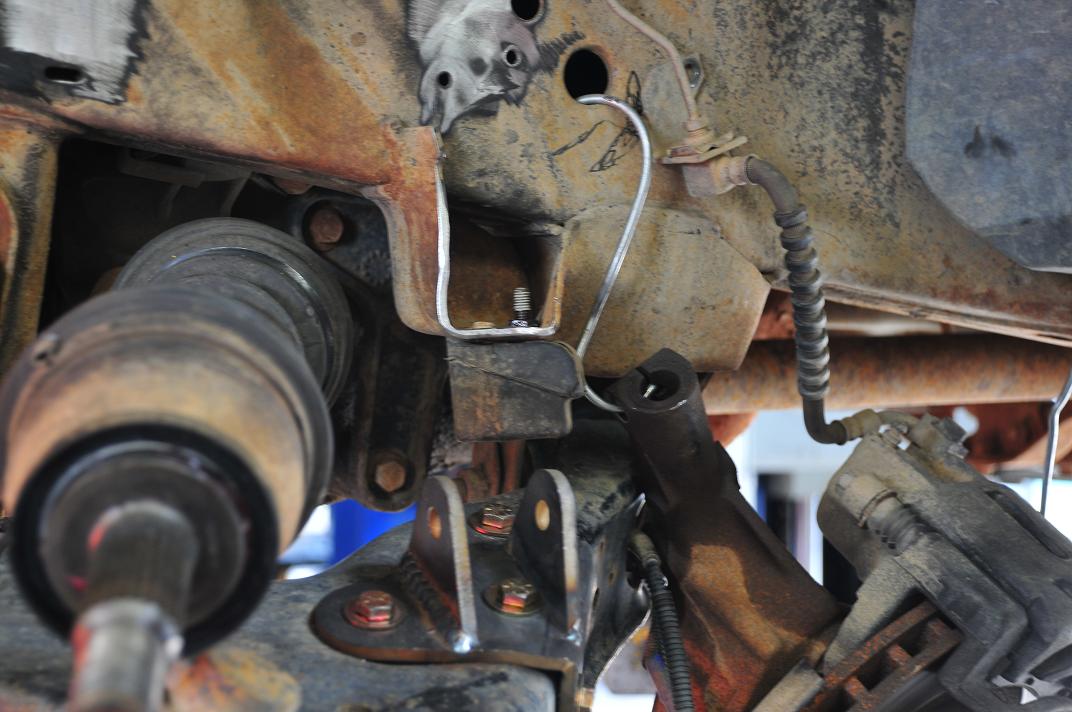

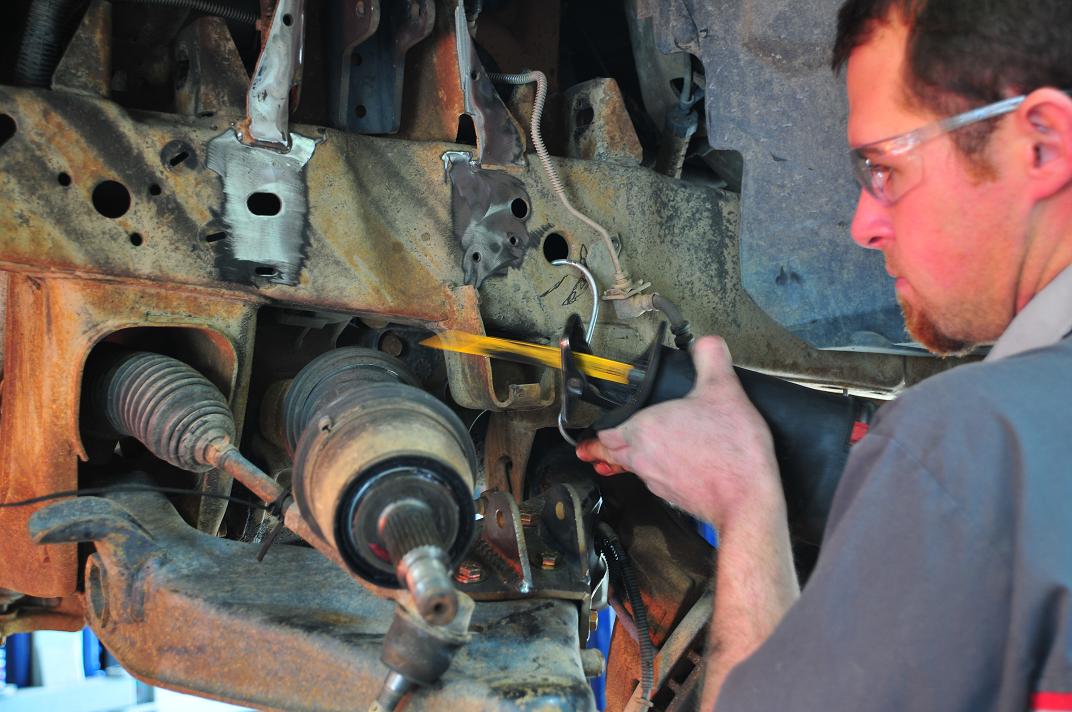

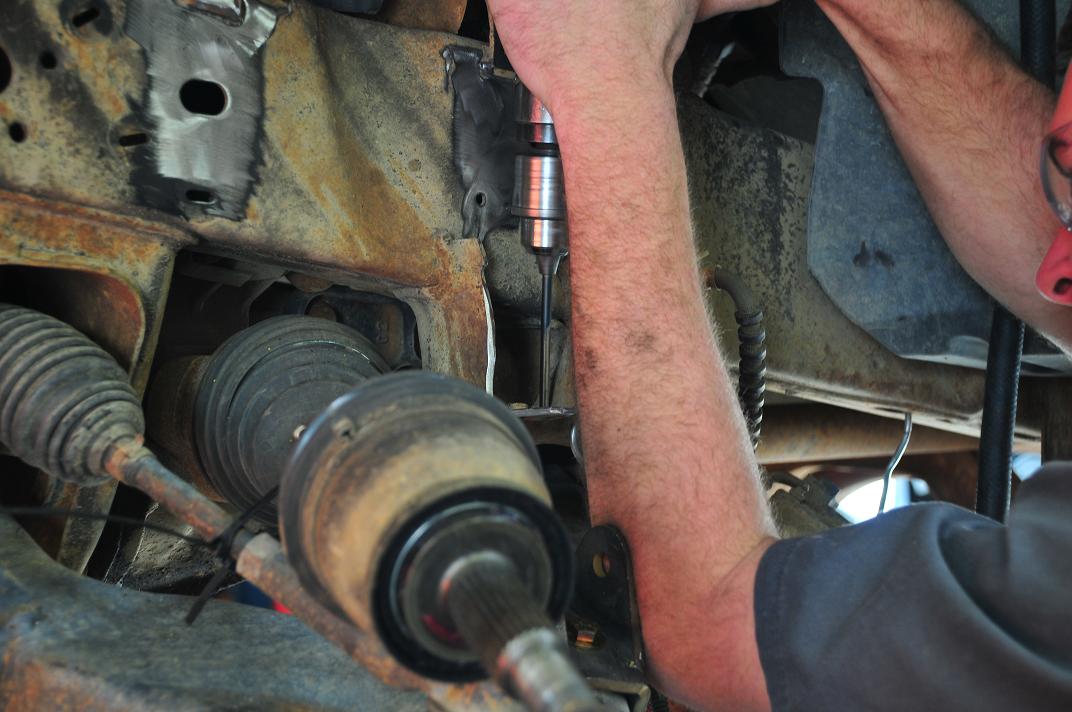

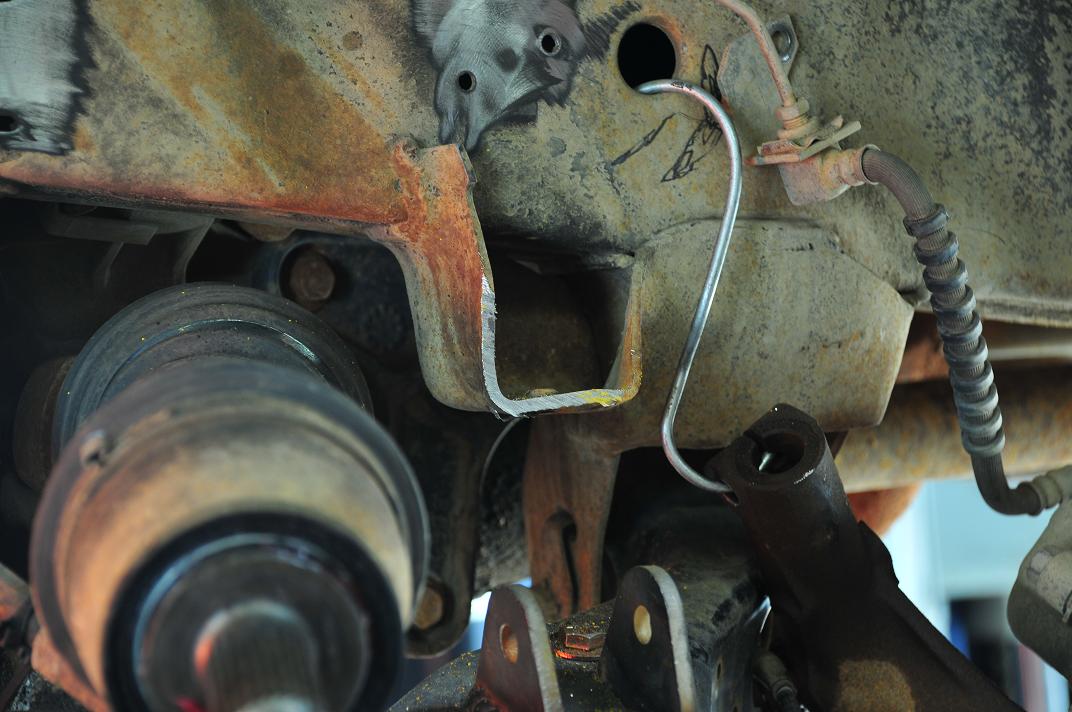

Trimming of the stock bump stop mounts for clearence
ORW COIL-OVER CONVERSION BRACKETS-dsc_1942.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1944.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1946.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1949.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1953.jpg

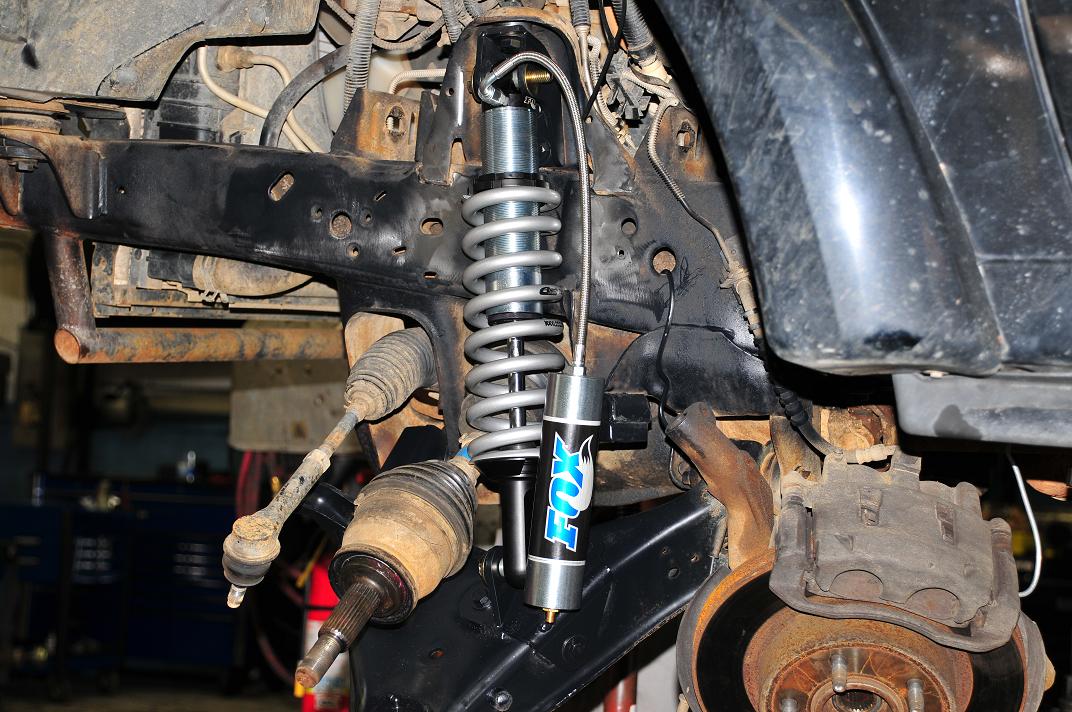

Coil-Over shocks w/ remote reservoir
ORW COIL-OVER CONVERSION BRACKETS-dsc_1955.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1957.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1958.jpg

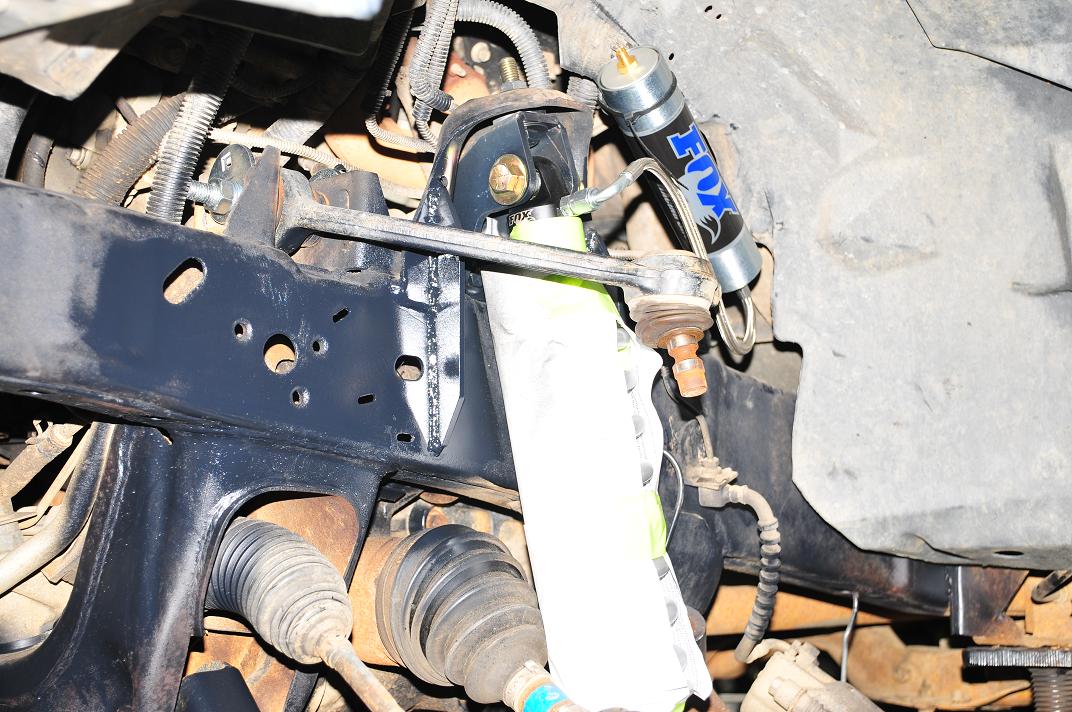

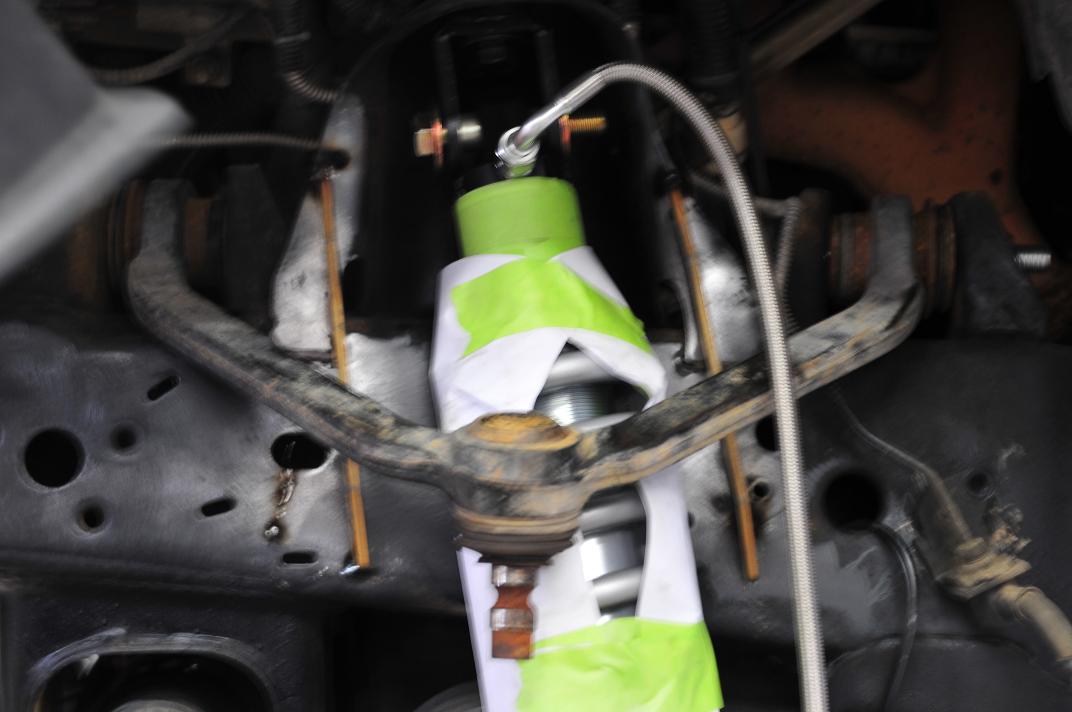

Welding in shock tower gussets
ORW COIL-OVER CONVERSION BRACKETS-dsc_1962.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1965.jpg

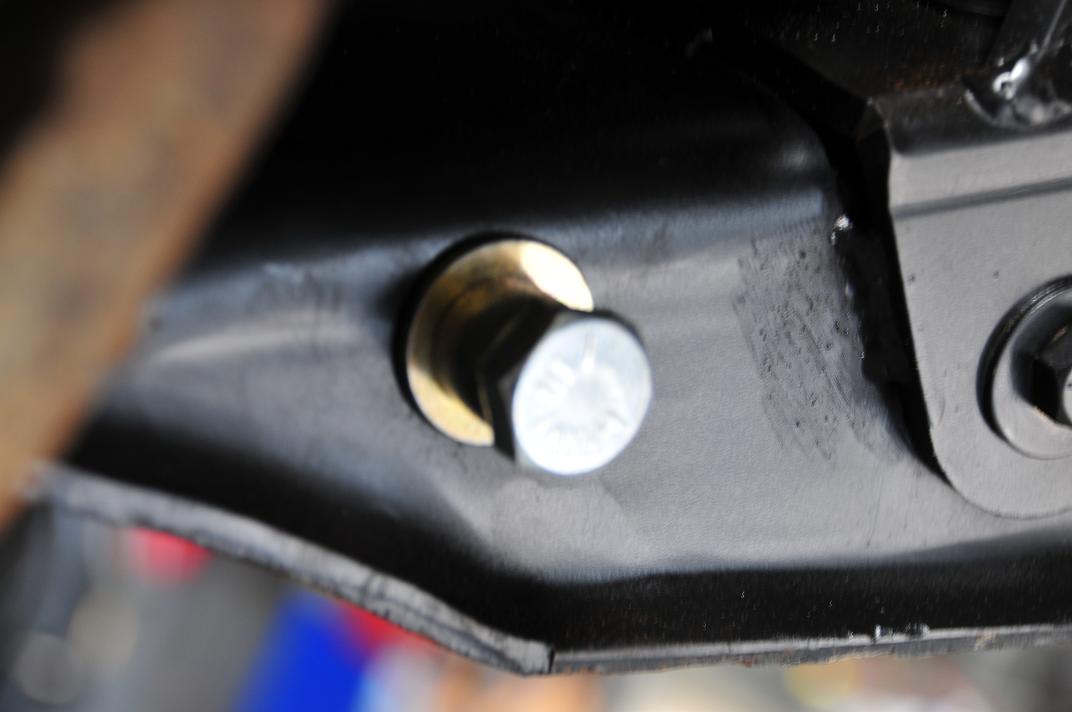

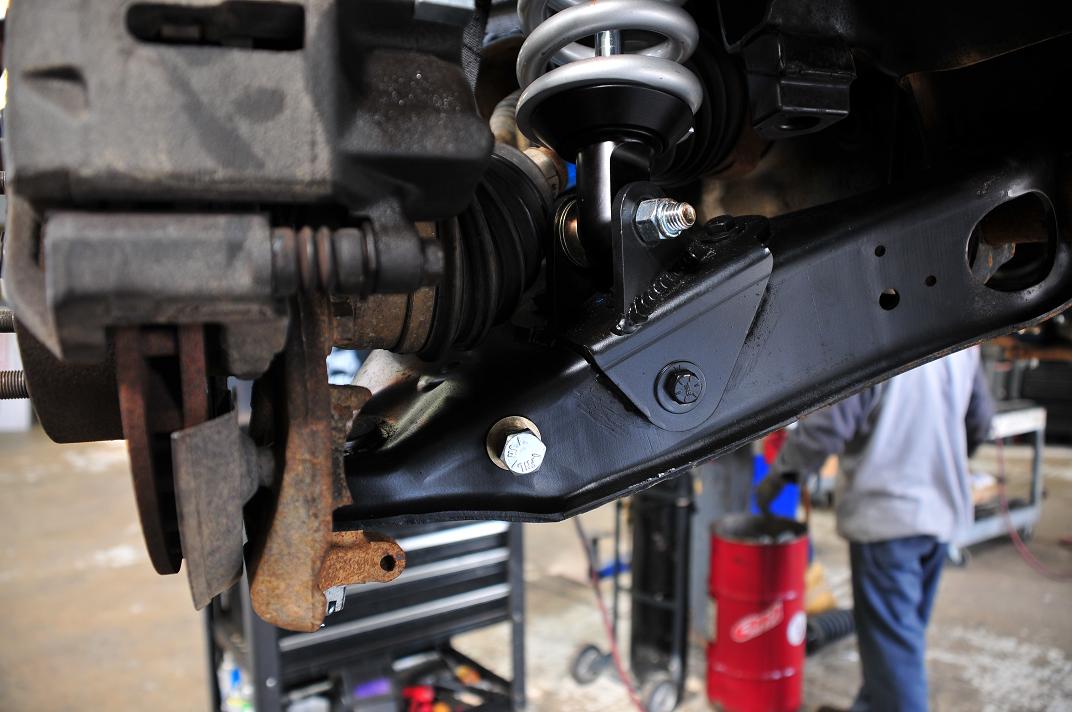

MAY REQUIRE STEERING STOP KIT!! This is the first time we have run into this, needing to modify the factory steering stops.
Not all models require but this one did. At full turn the caliper was too close to the lower bracket. So we ended up using a small spacer and 1/2" bolt.
ORW COIL-OVER CONVERSION BRACKETS-dsc_1968.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1969.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1970.jpg

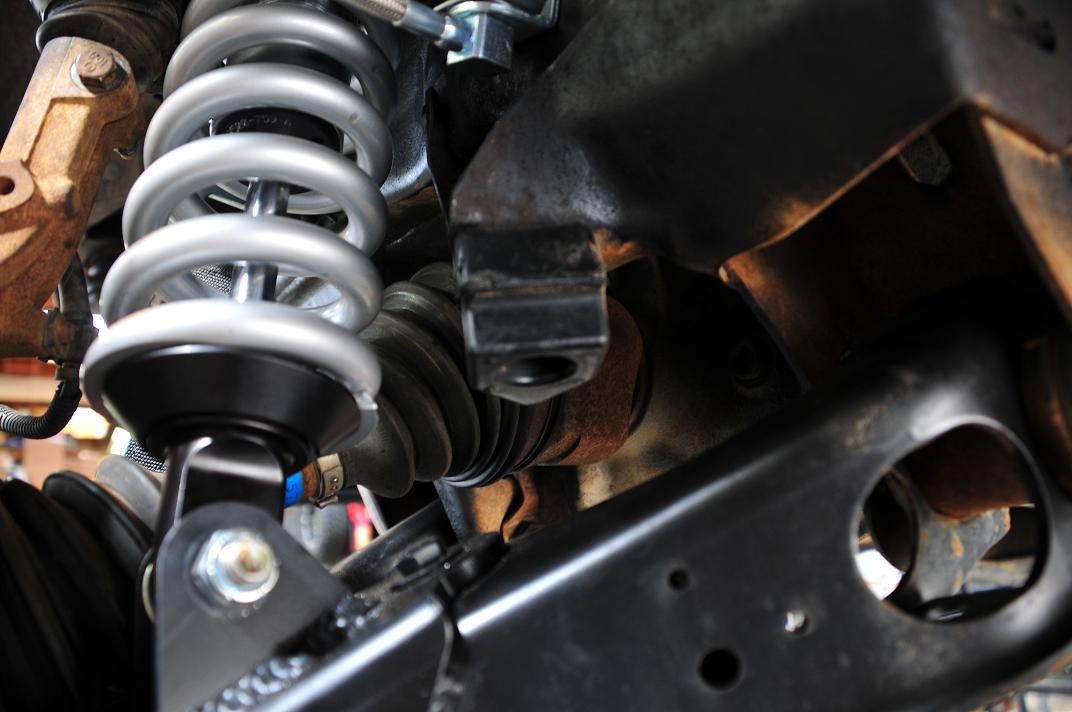

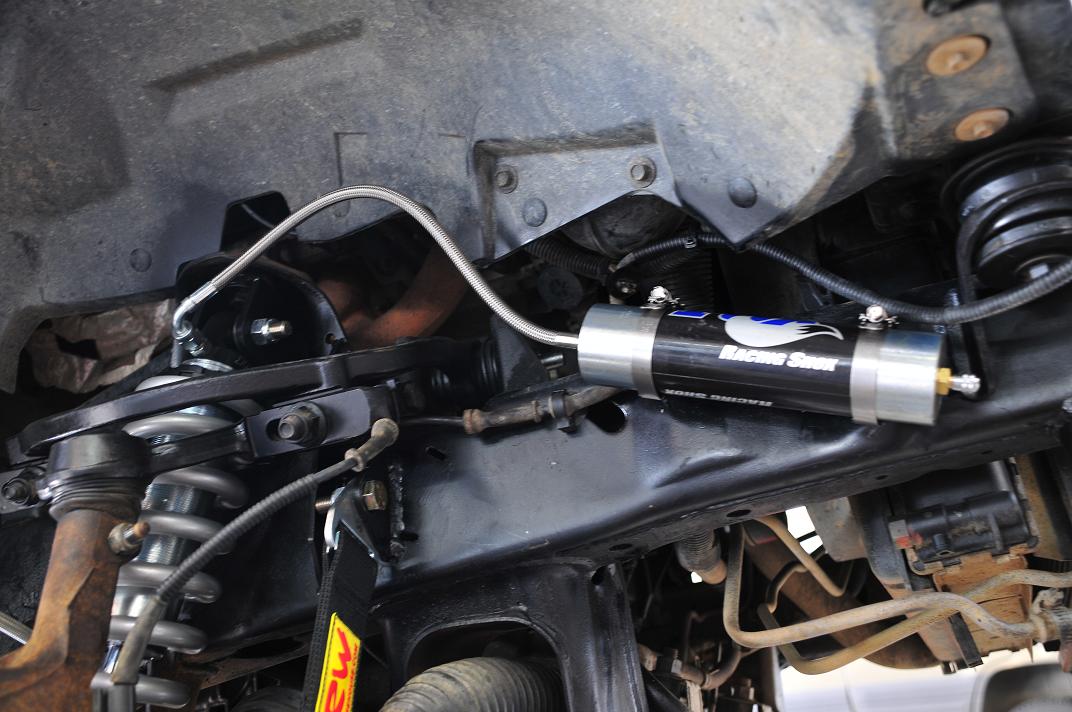

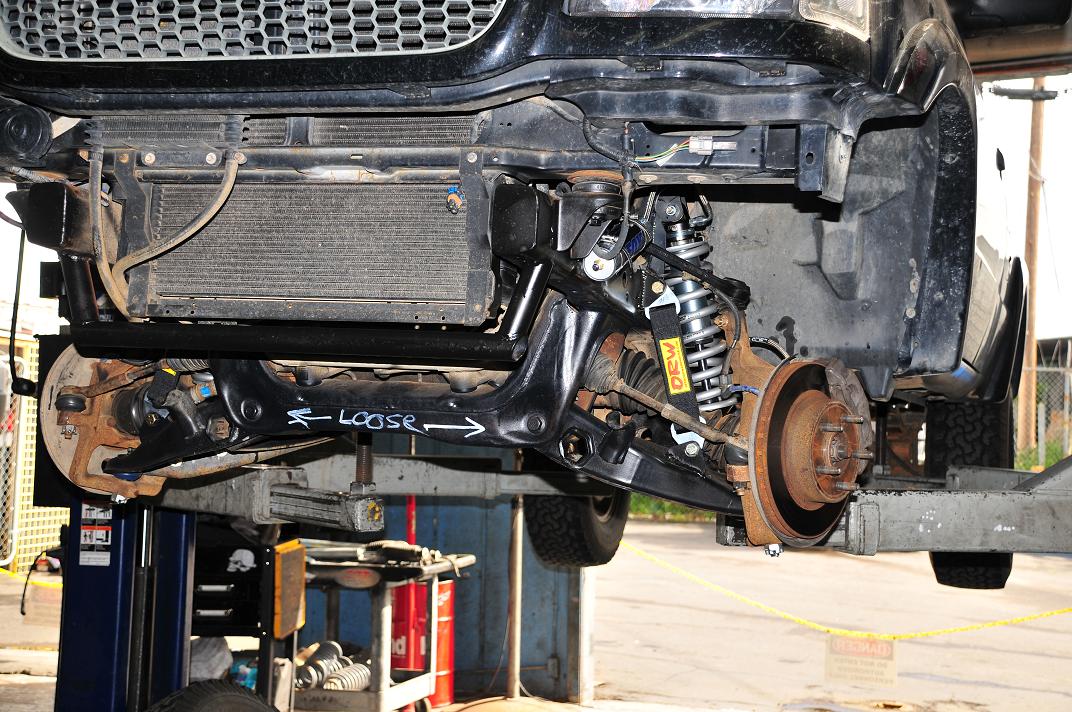

The final product
ORW COIL-OVER CONVERSION BRACKETS-dsc_1972.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1974.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1976.jpgORW COIL-OVER CONVERSION BRACKETS-dsc_1978.jpg
  #197
Old 03-12-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks great!
  #198
Old 03-12-2010
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Nice!
  #199
Old 03-12-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
Quote:
Originally Posted by camodown View Post
Nick did you get my PM about the spacers?
I don't think that I did what spacers did you need?
  #200
Old 03-12-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Man I really want to do this conversion
