03 FX4 Level II SL 4" lift ready to begin

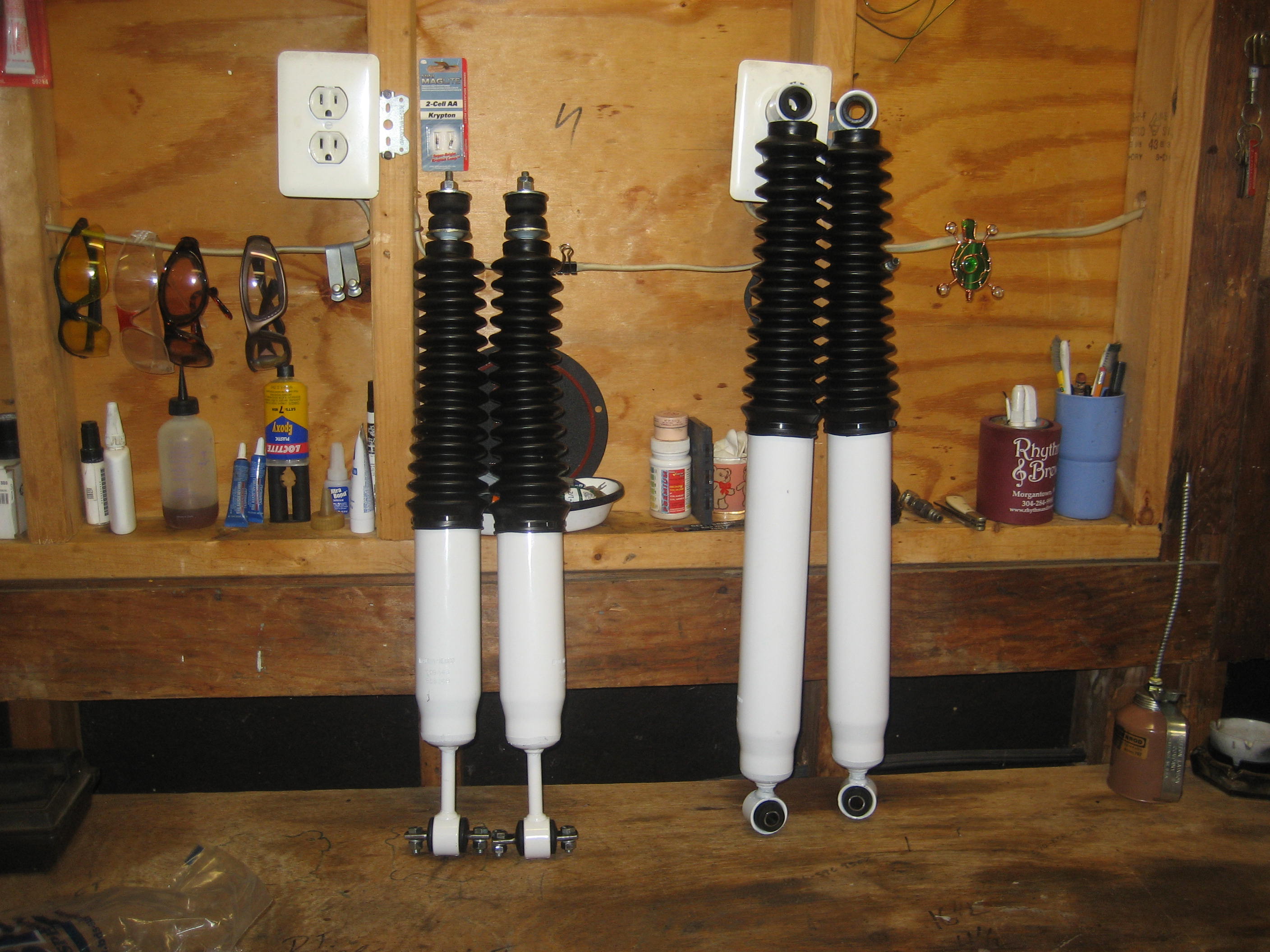

Ok Superlift lift kit came in Yesterday 19325937

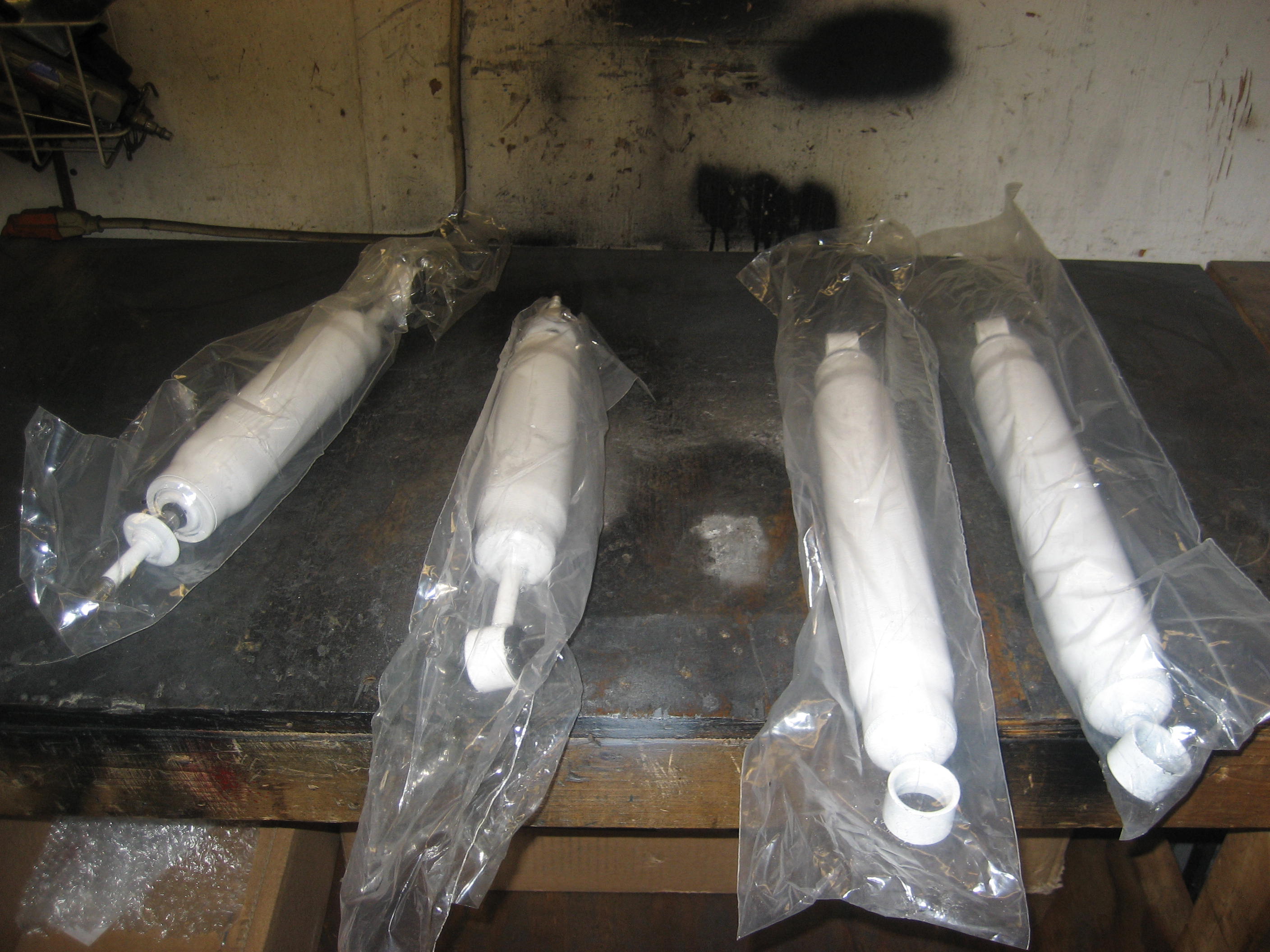

Pulled out the shocks and put the boots on
to get things ready to roll, will still need to have
some u bolts made as know one seems to have any
of the SL kits for the FX4 Don't know what else I am going
to get done until thanks giving weekend As I go to see my son
graduate from basic training next week for 5 days but will see
really ready to get things rolling along can't wait to see her lifted
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-157.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-158.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-159.jpg
Reply With Quote
  #2
Old 11-15-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Lucky. Just send all that down here my way. Or if you want I will come and pick it up.
Reply With Quote
  #3
Old 11-15-2009
David N's Avatar
Member

Join Date: Dec 2008
Location: Williamston, NC
Posts: 1,060
Nice man! Good luck with the project and report back with some pictures!
Reply With Quote
  #4
Old 11-15-2009
God,Country,FORD's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Red Oak, IA
Posts: 2,468
why does it have to be for the FX4? the kit is the same for all 4X4's if i am not mistaken..?
Reply With Quote
  #5
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
the FX4 has a different Rear end and the U bolts don't fit So I need u-bolt Kit for FX4 thats all
everything else is the same I will get some U bolts not worried about that was more worried about not getting a kit when I called SL they said 10 to 12 weeks out for kits so I am glad I got one in a week
U bolts I can deal with local if need be
Reply With Quote
  #6
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
Getting things ready

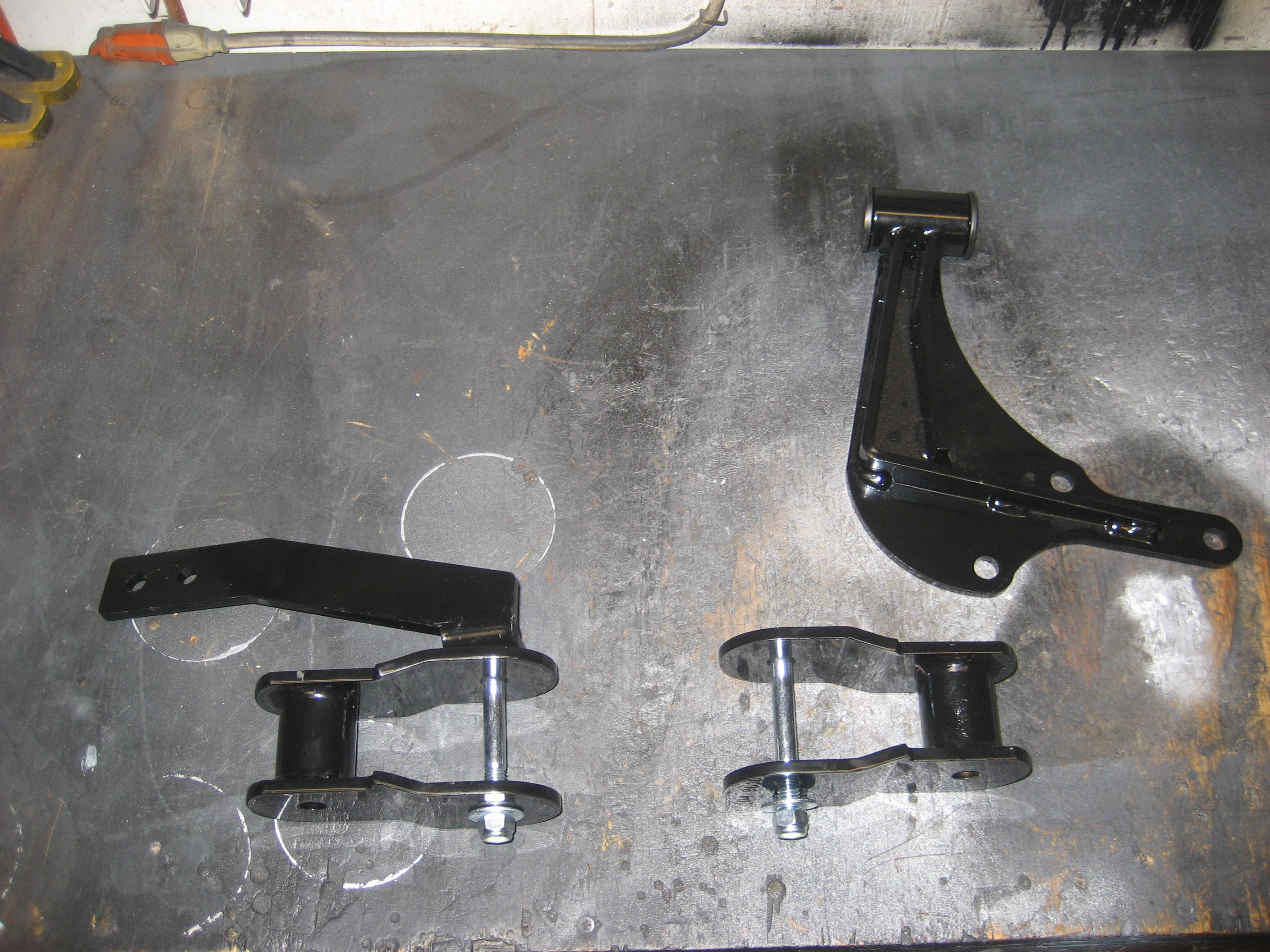

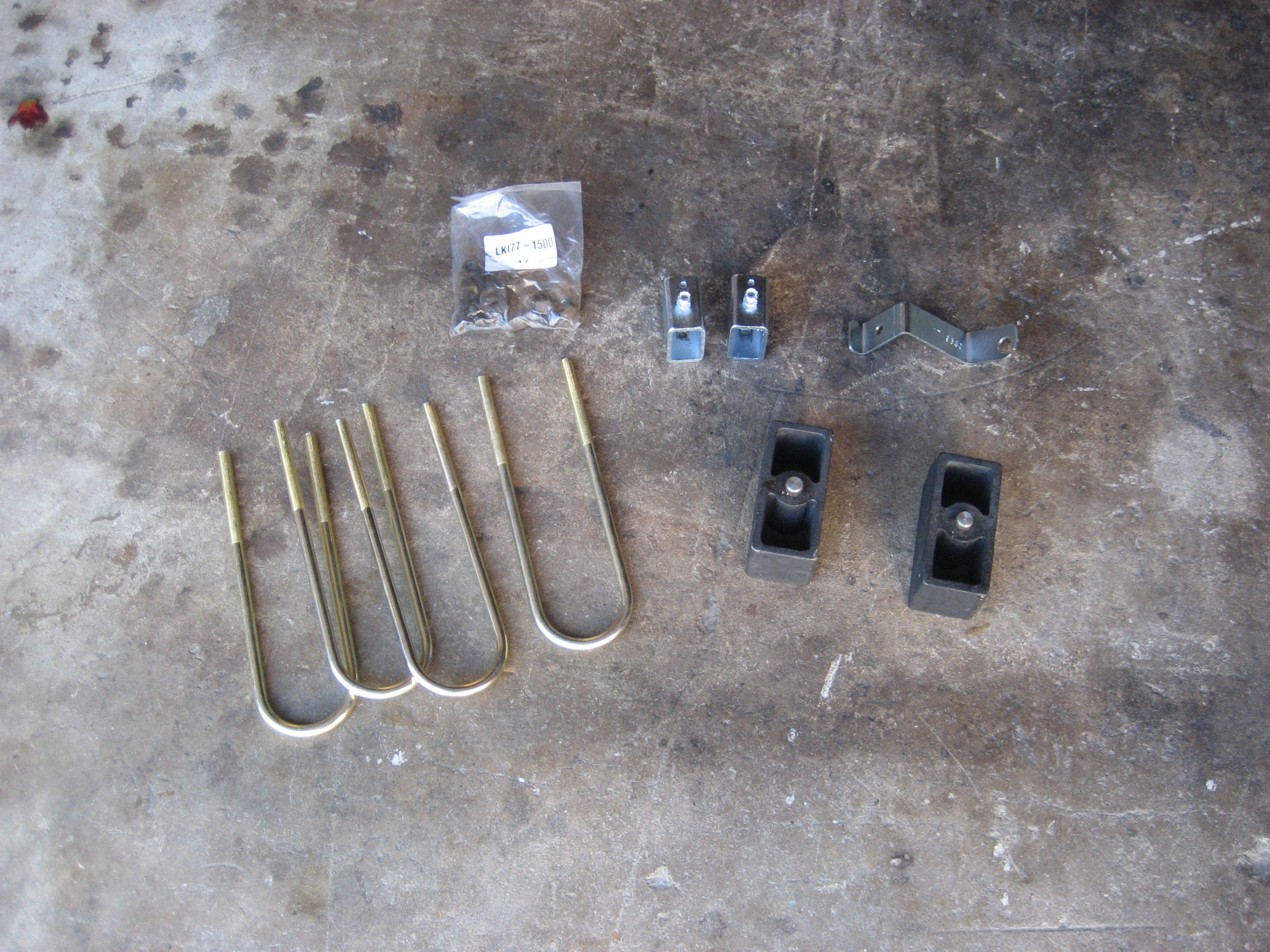

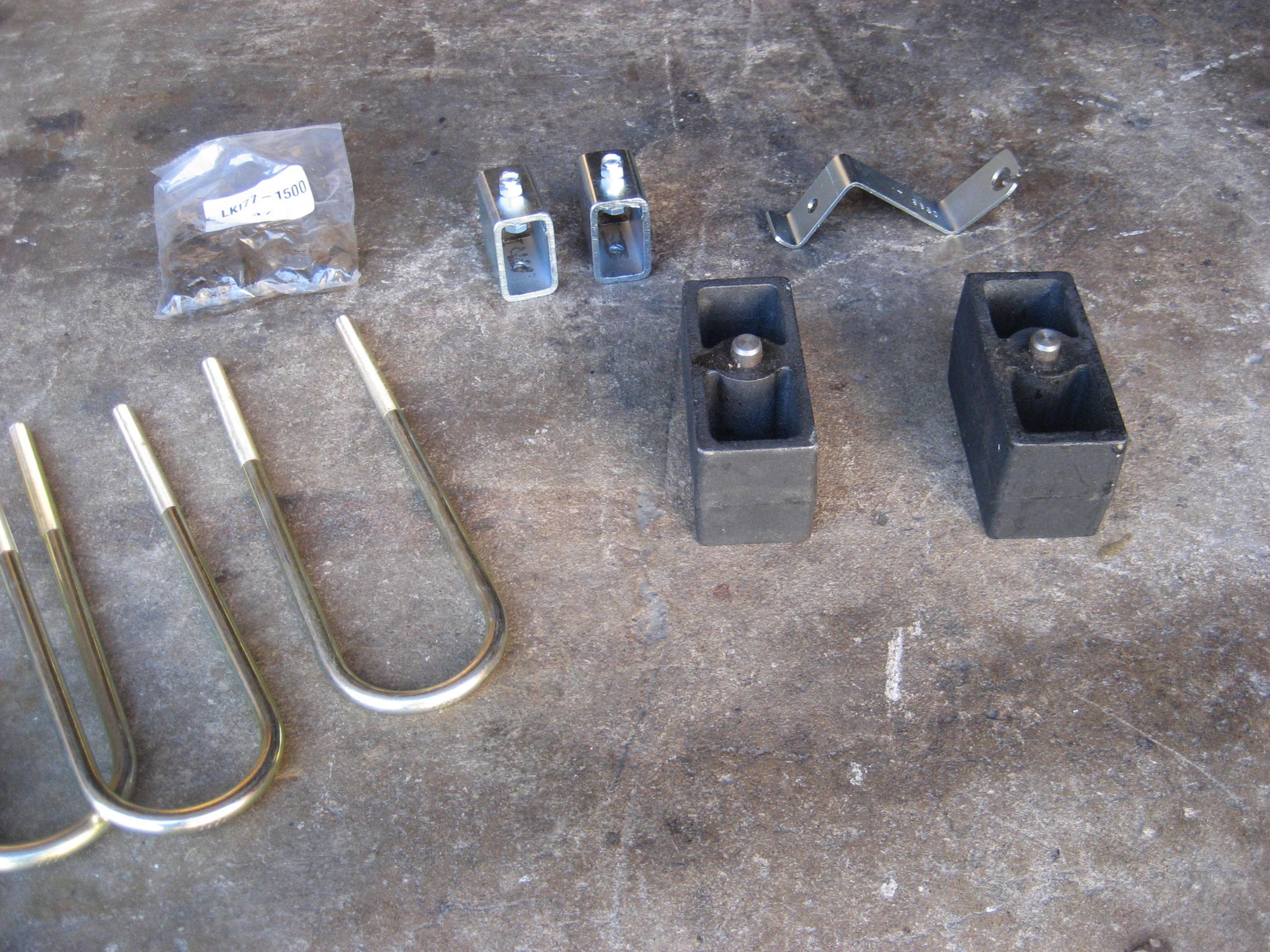

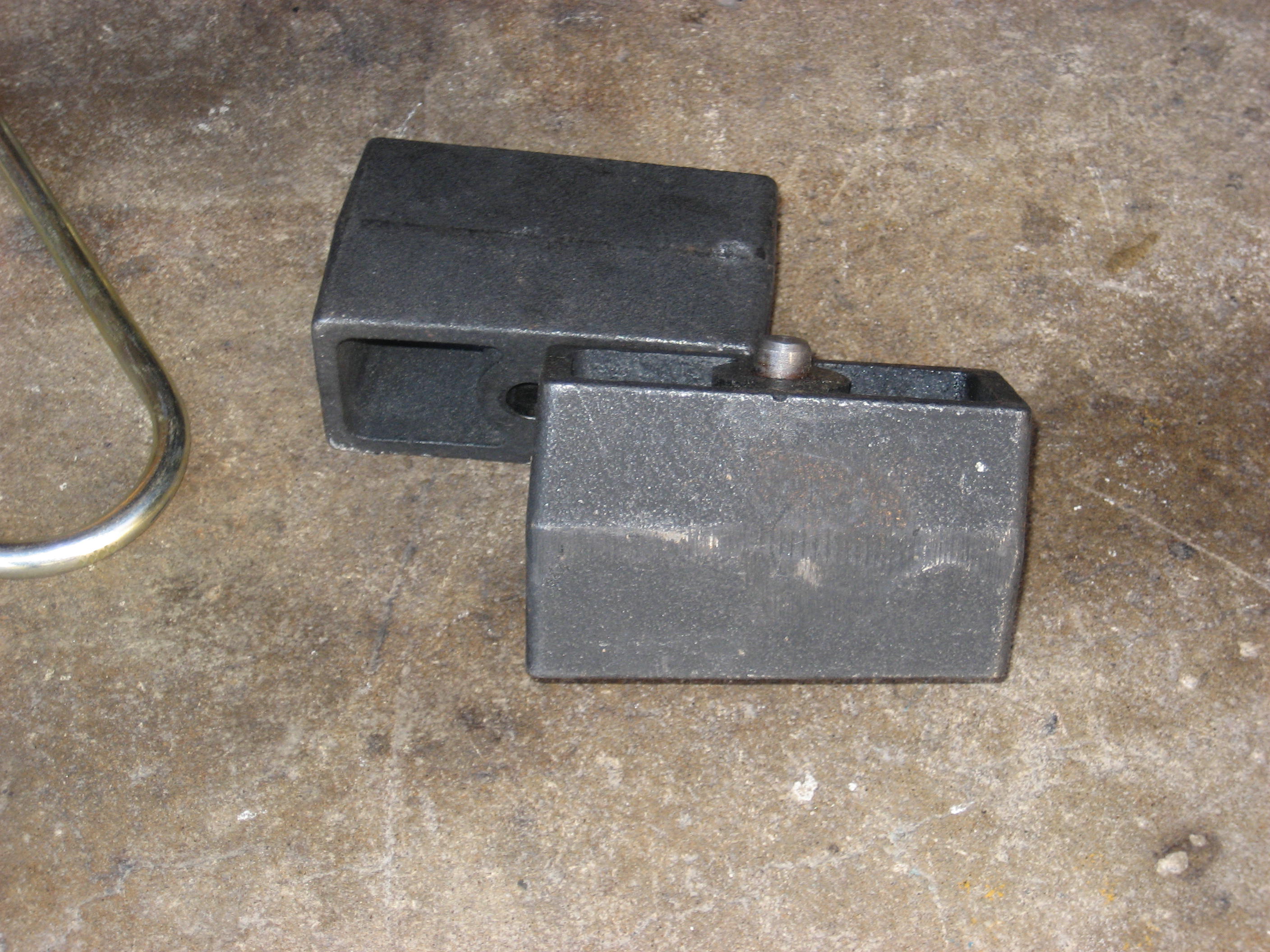

Ok so did a small side job this morning so when I got home decided to get things ready for Lift install Pictures of the rear blocks , cable / hose bracket and U bolts I can not use
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-159.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-157.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-158.jpg
Reply With Quote
  #7
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
front spindles

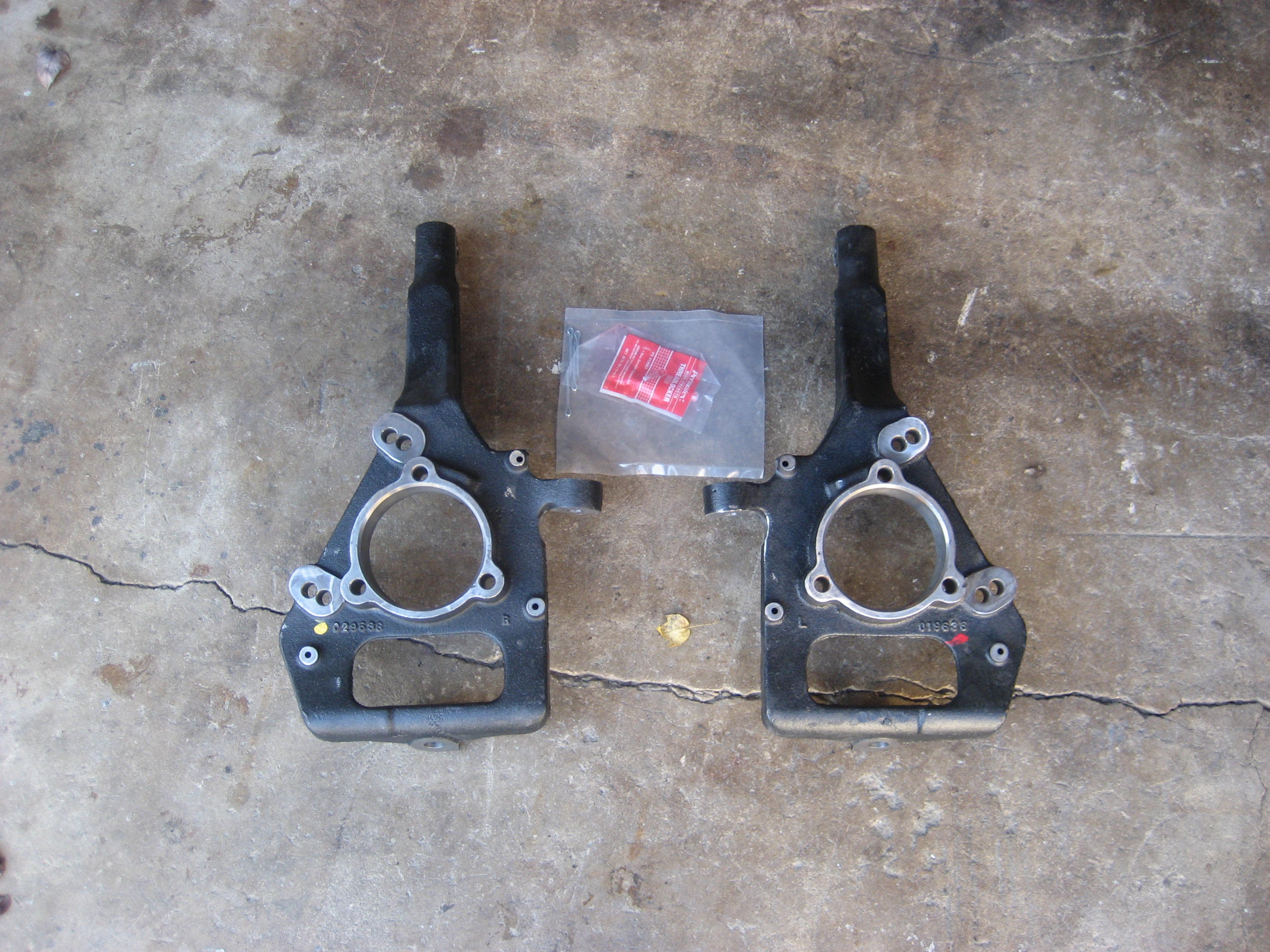

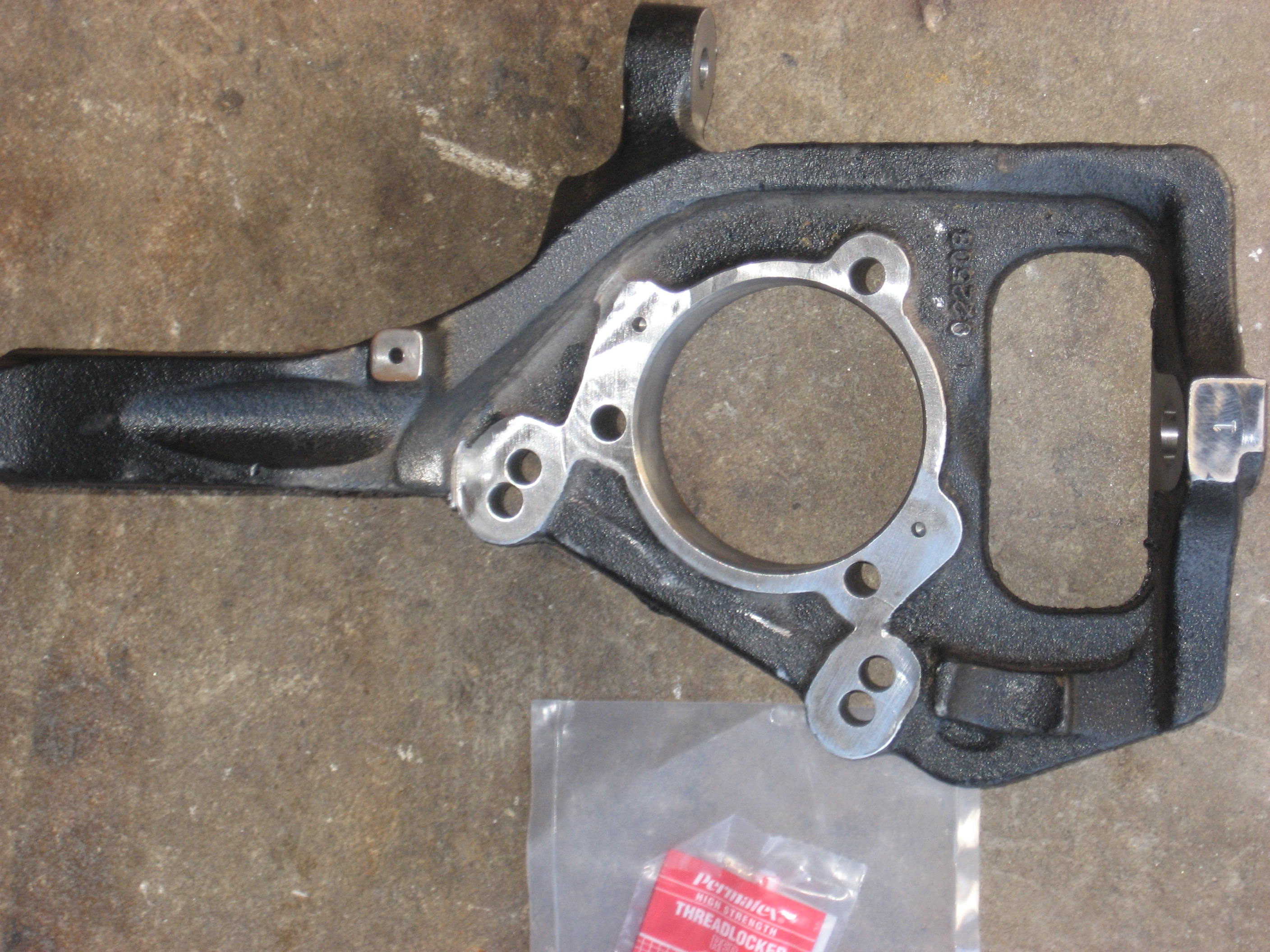

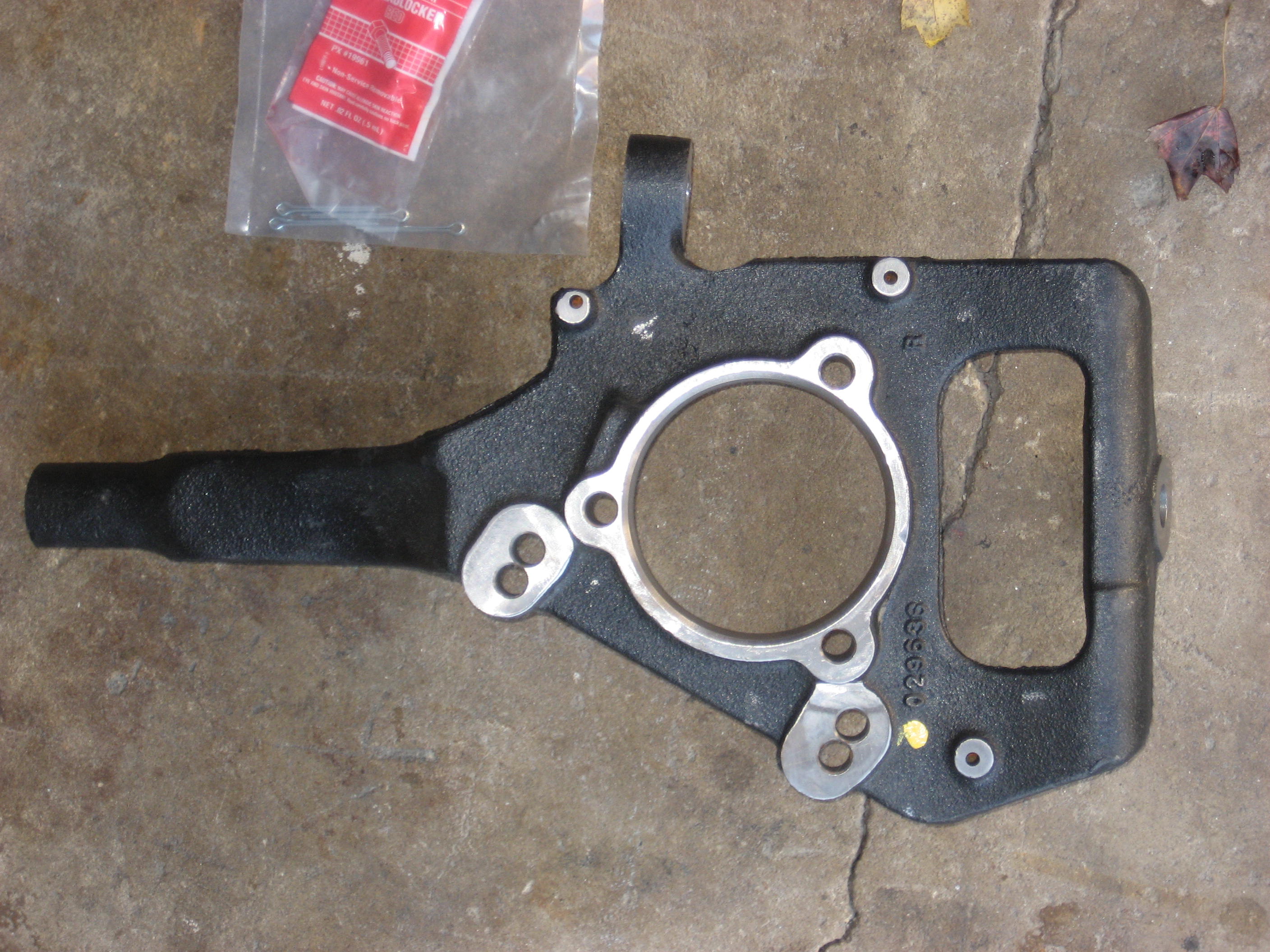

Here are the superlift spindles
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-160.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-161.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-162.jpg
Reply With Quote
  #8
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
Just giving you Ideas

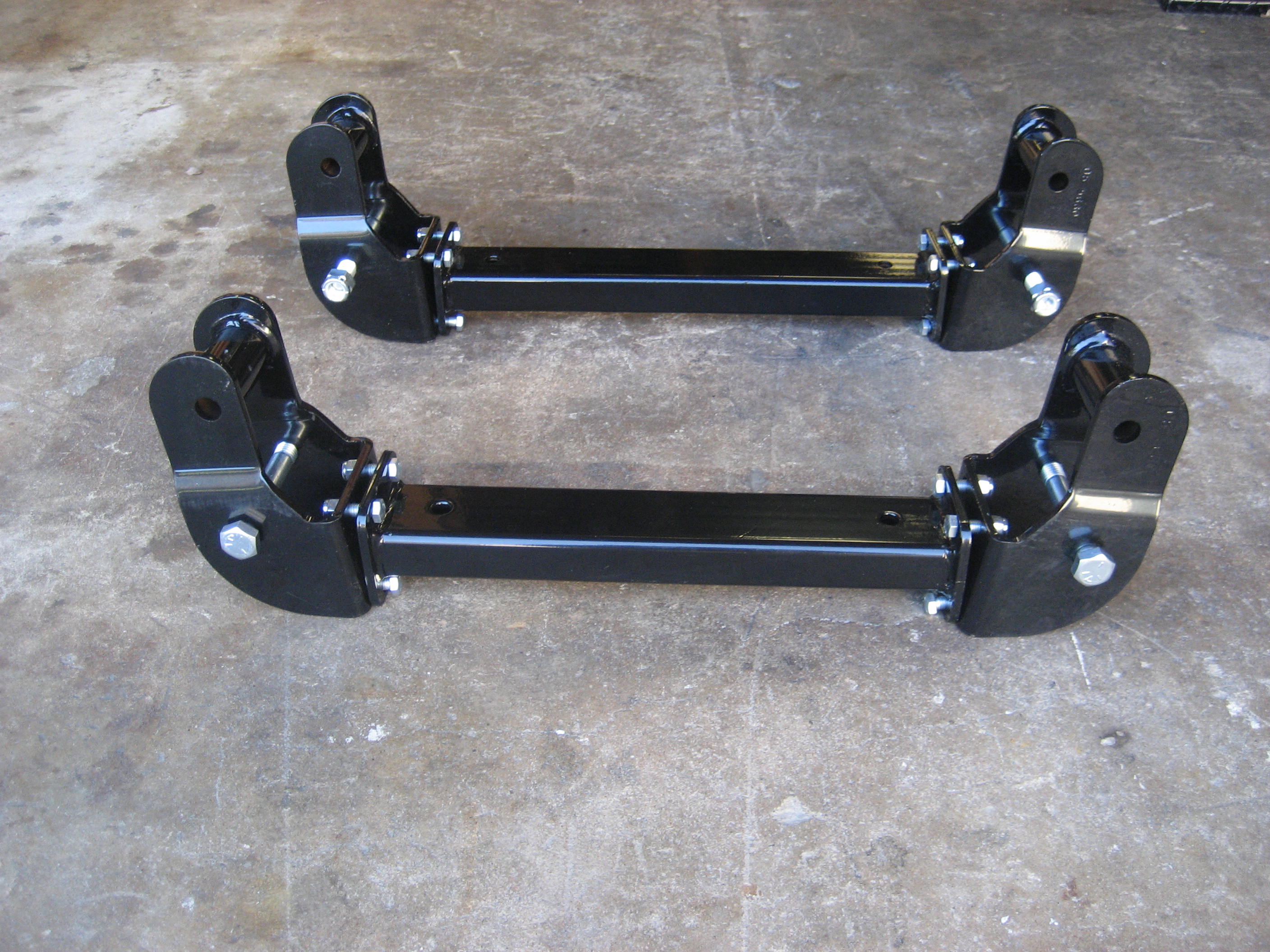

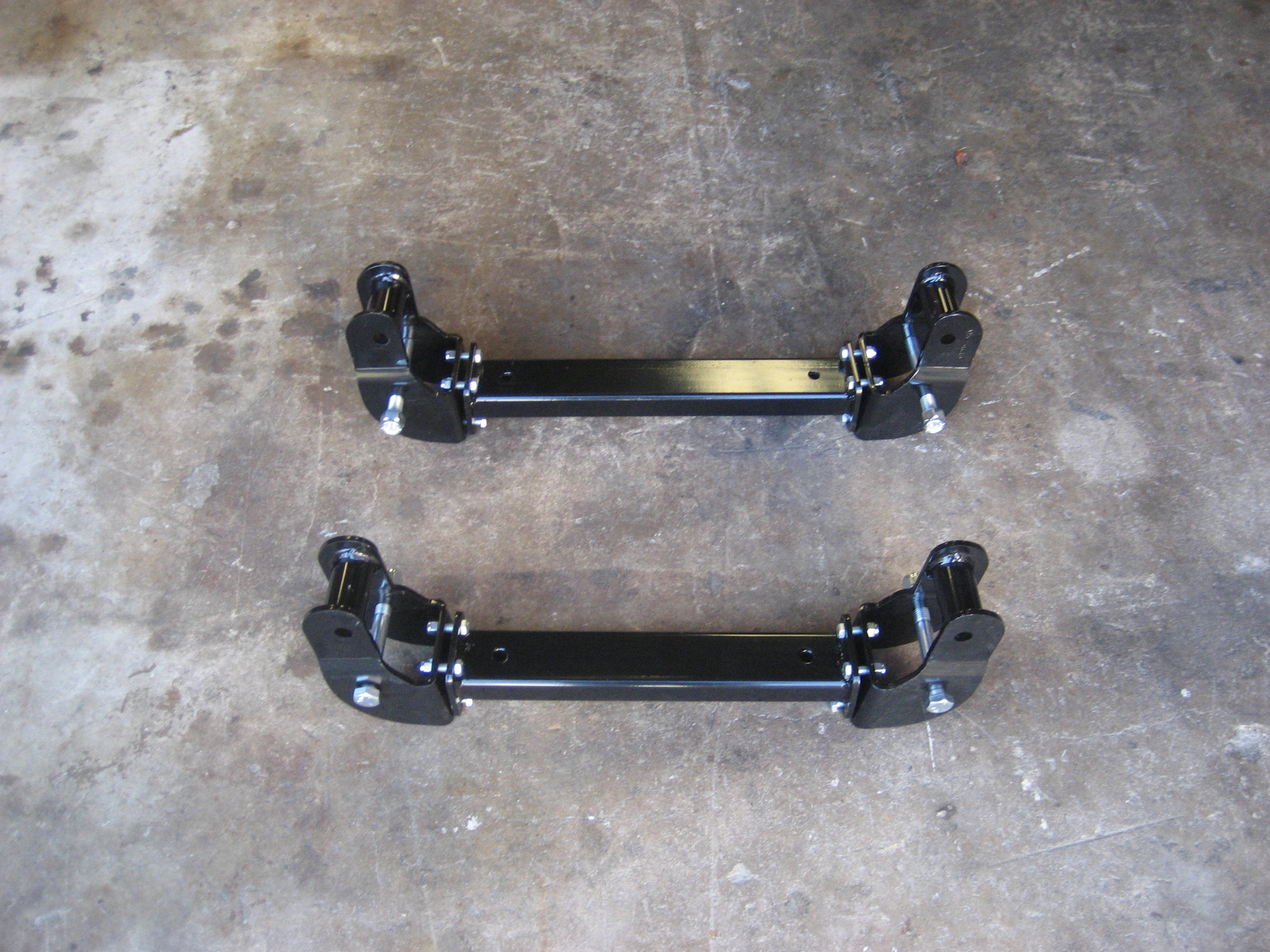

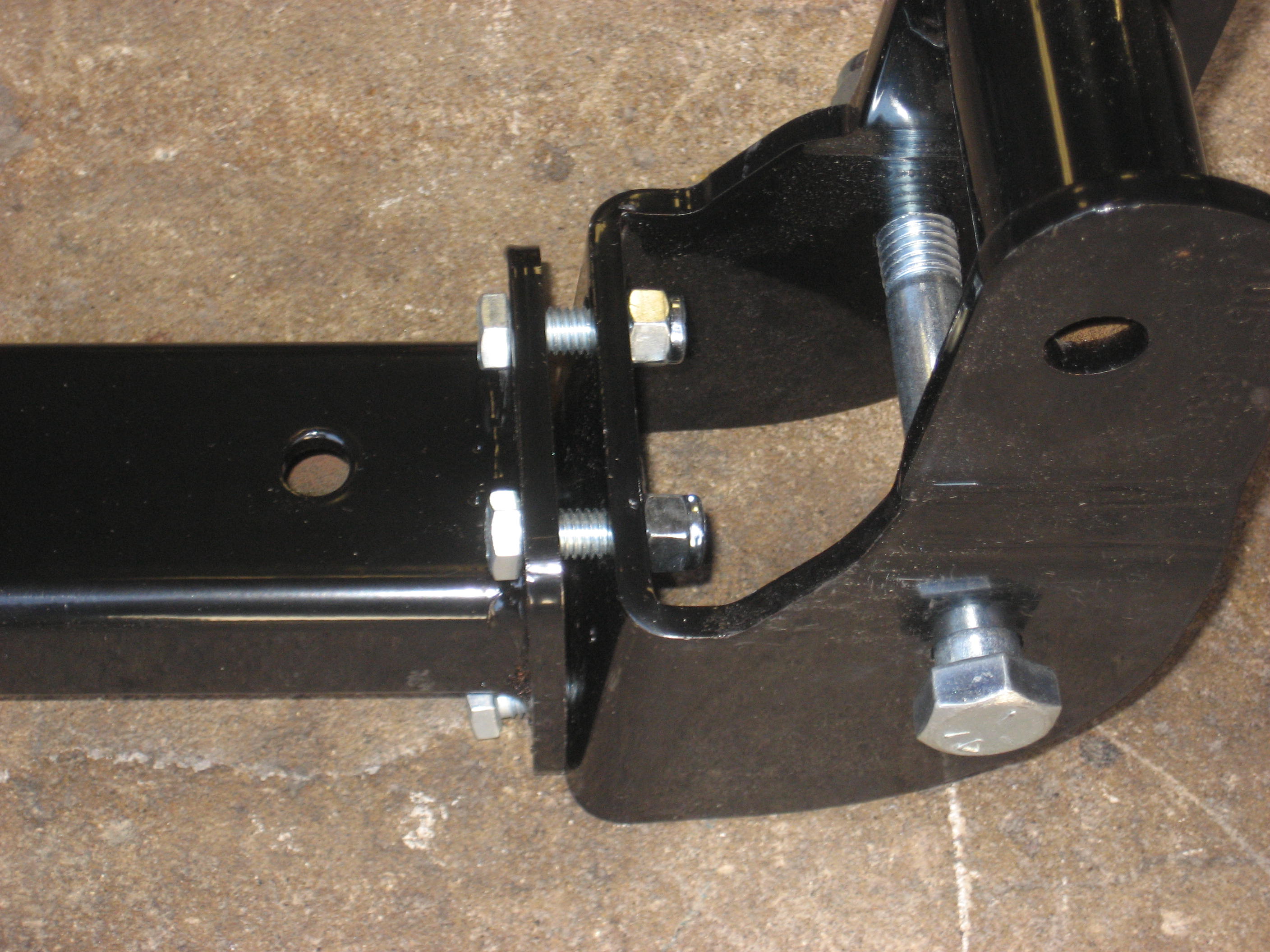

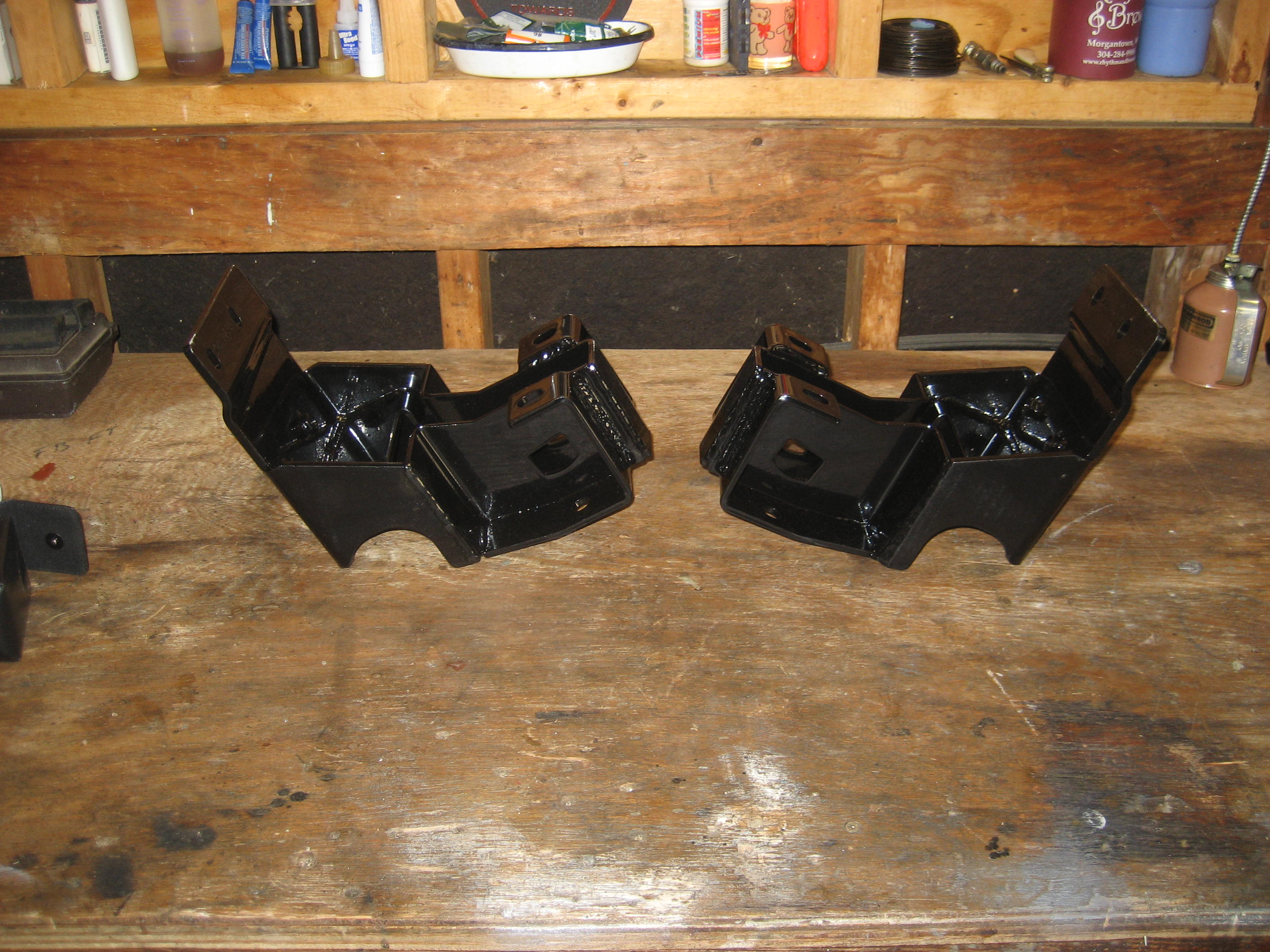

Some have never done this so giveing you pictures of the parts I know when I was looking for the kits the Pictures where very vague here is the new front cross member put together loosly and also the drop down brackets for the torsion bars so far seems to have all the hardware so far
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-170.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-171.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-172.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-163.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-165.jpg

Reply With Quote
  #9
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191

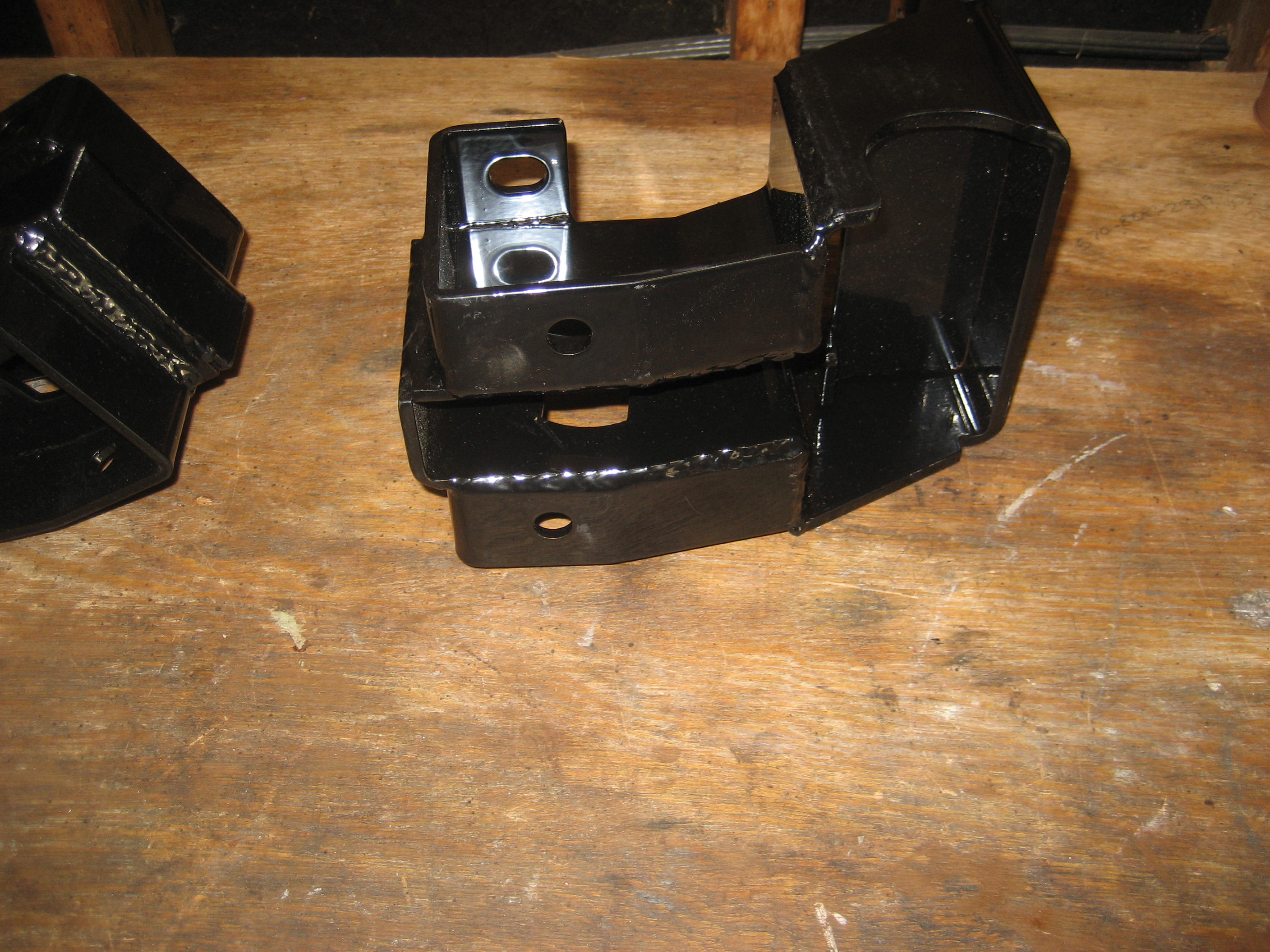

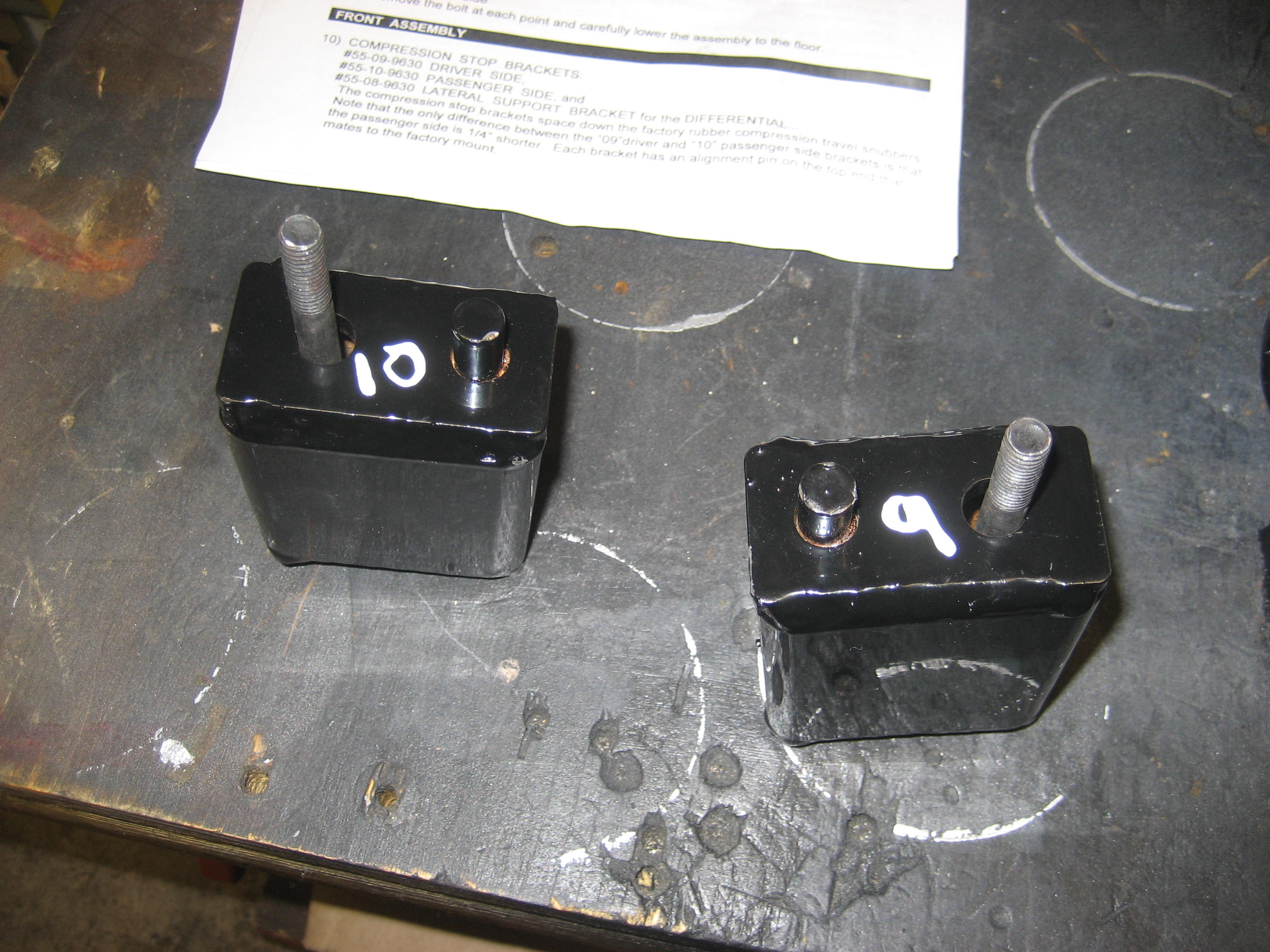

brakets for the front Differential

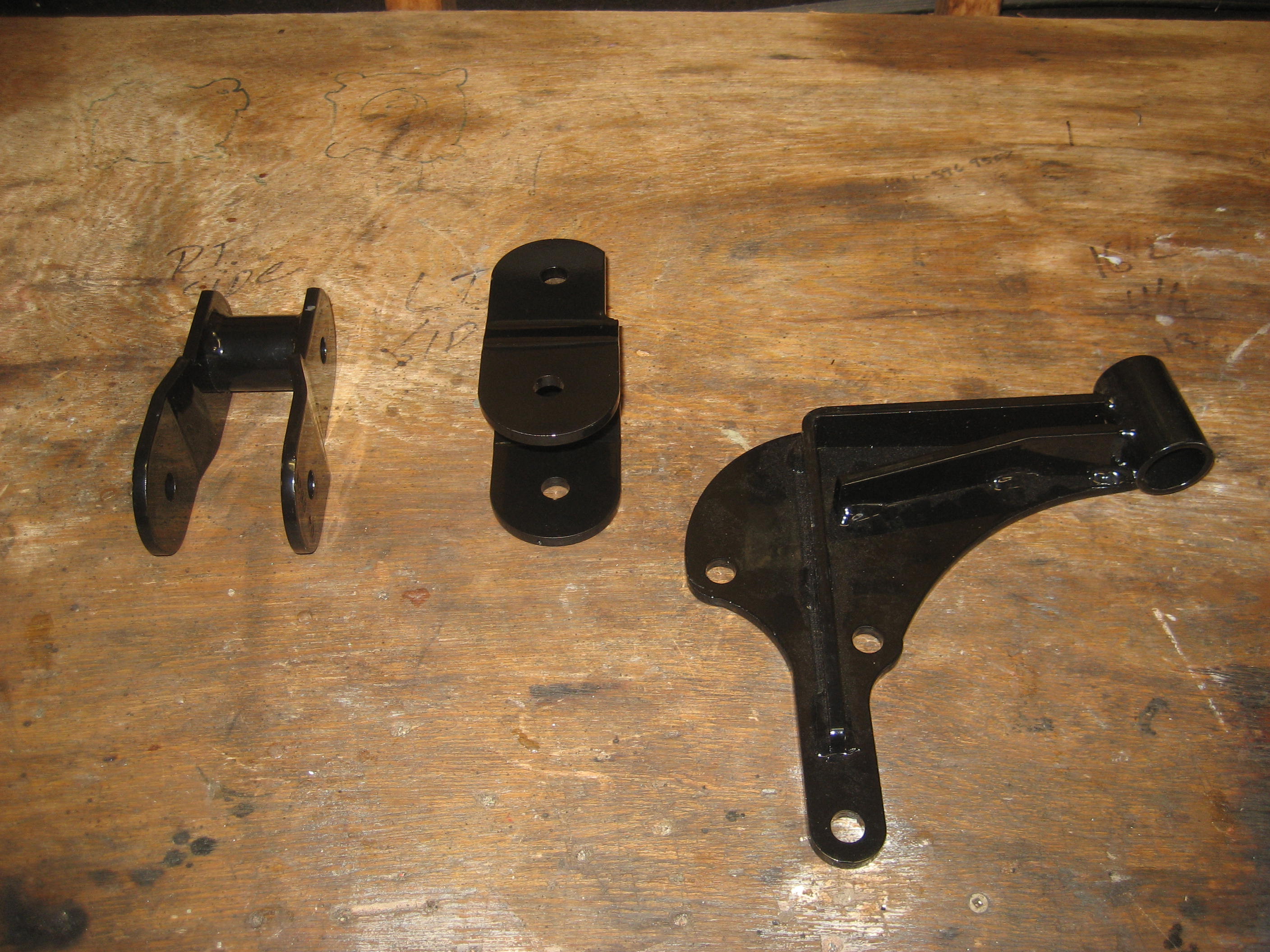

Here are the brakets for the front differential
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-166.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-187.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-178.jpg
Reply With Quote
  #10
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191

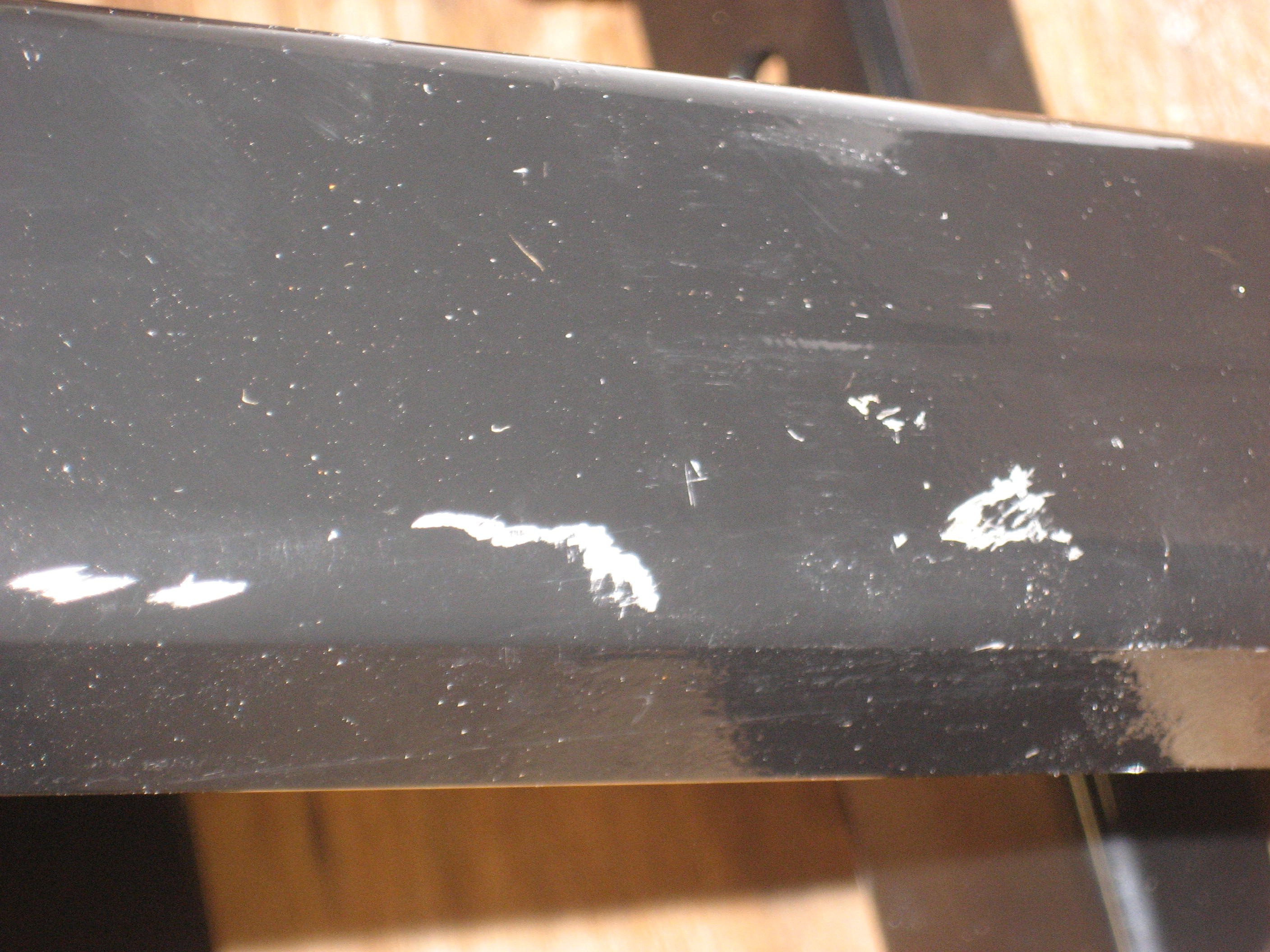

Parts are not all perfect

Hey most everything looks good althought some things are not perfect
Scratched paint and so forth but its going to get torn up and mudded so who cares
right , Plus thats why god made spray paint
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-169.jpg
Reply With Quote
  #11
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191

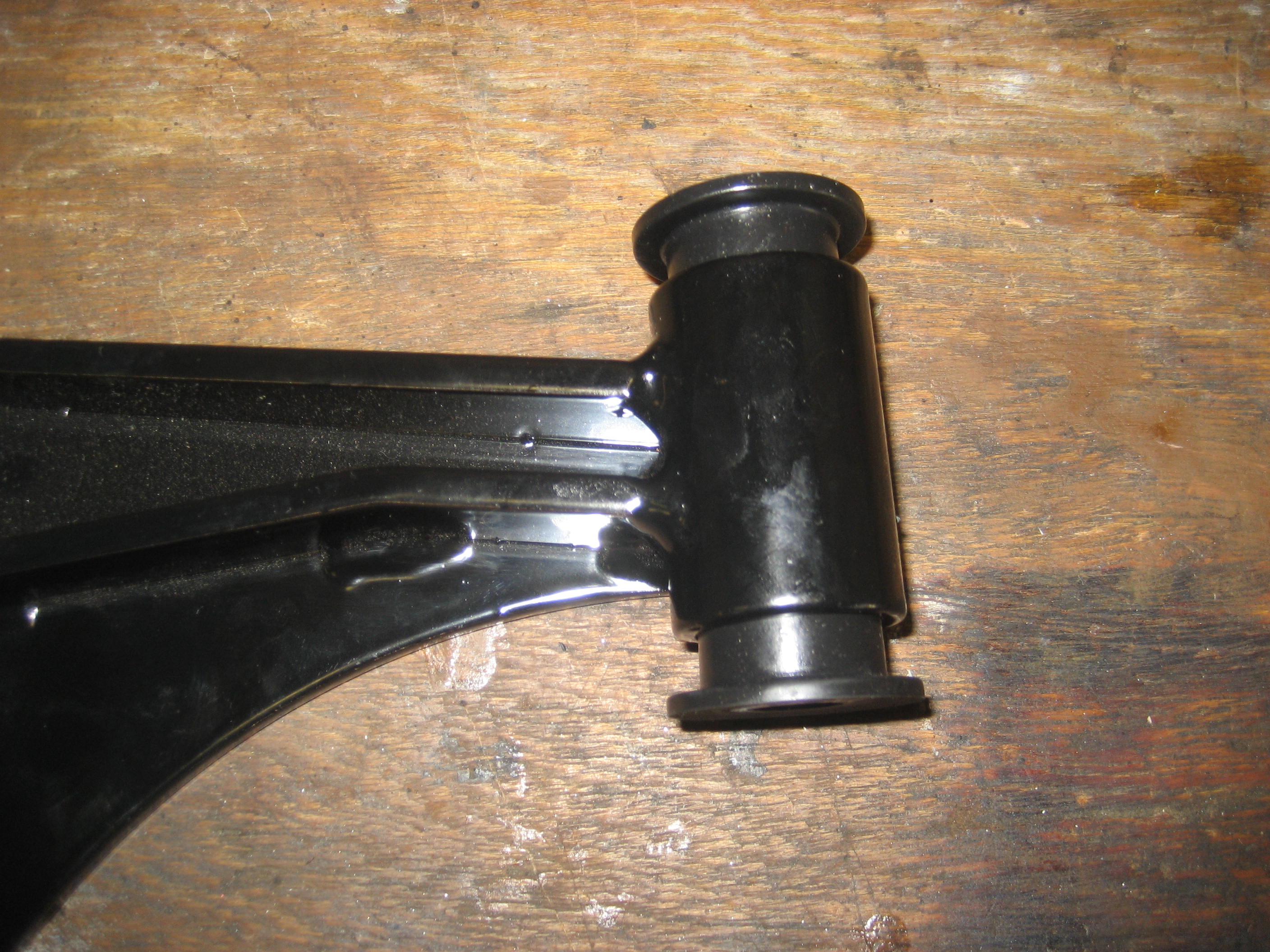

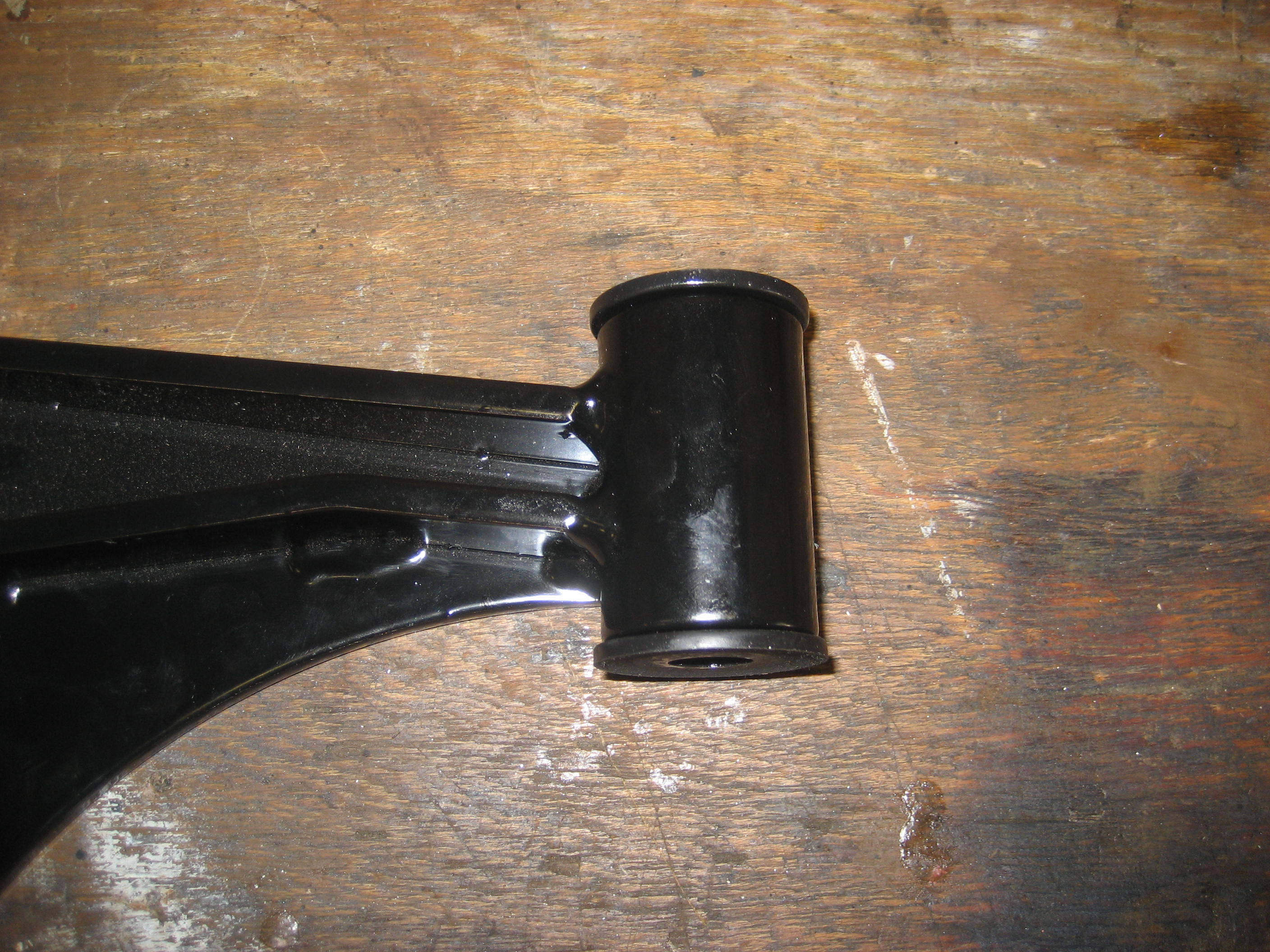

Vibration Dampener Assm

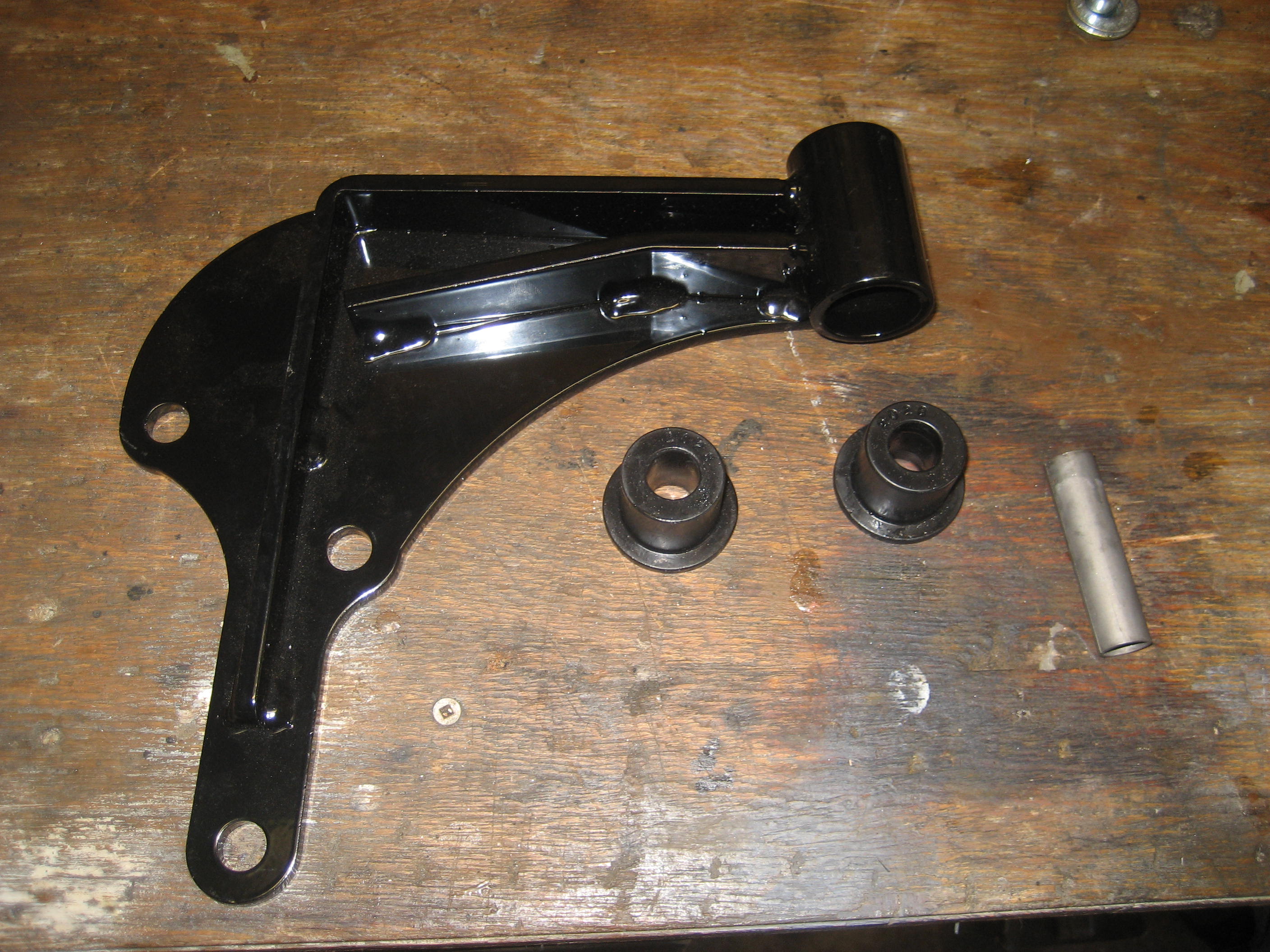

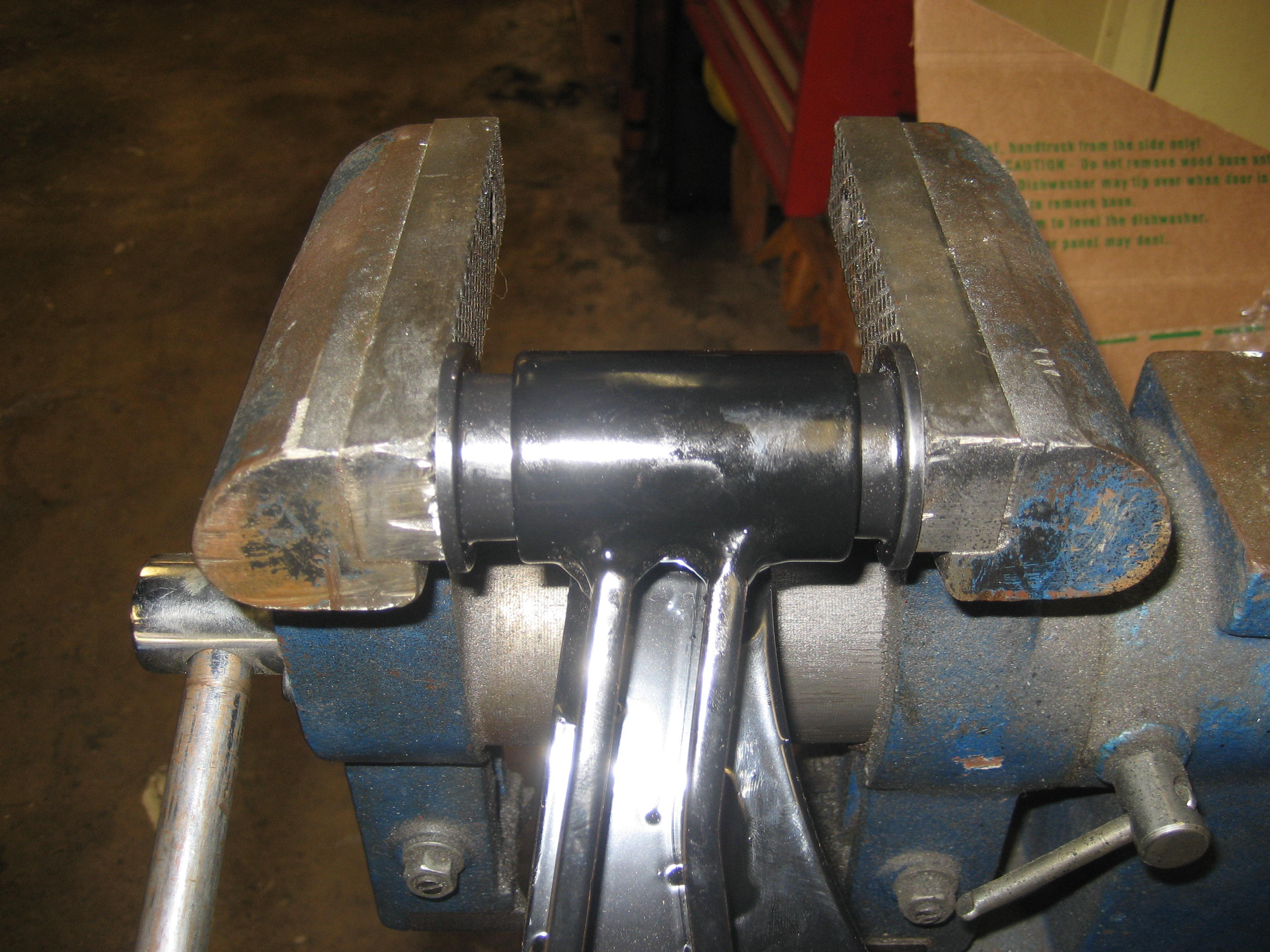

Had to Assemble this bracket some bushing and sleeve Could use the press for this
but decided to just use the bench vise it worked just as well
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-175.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-173.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-174.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-176.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-177.jpg

Reply With Quote
  #12
Old 11-15-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191

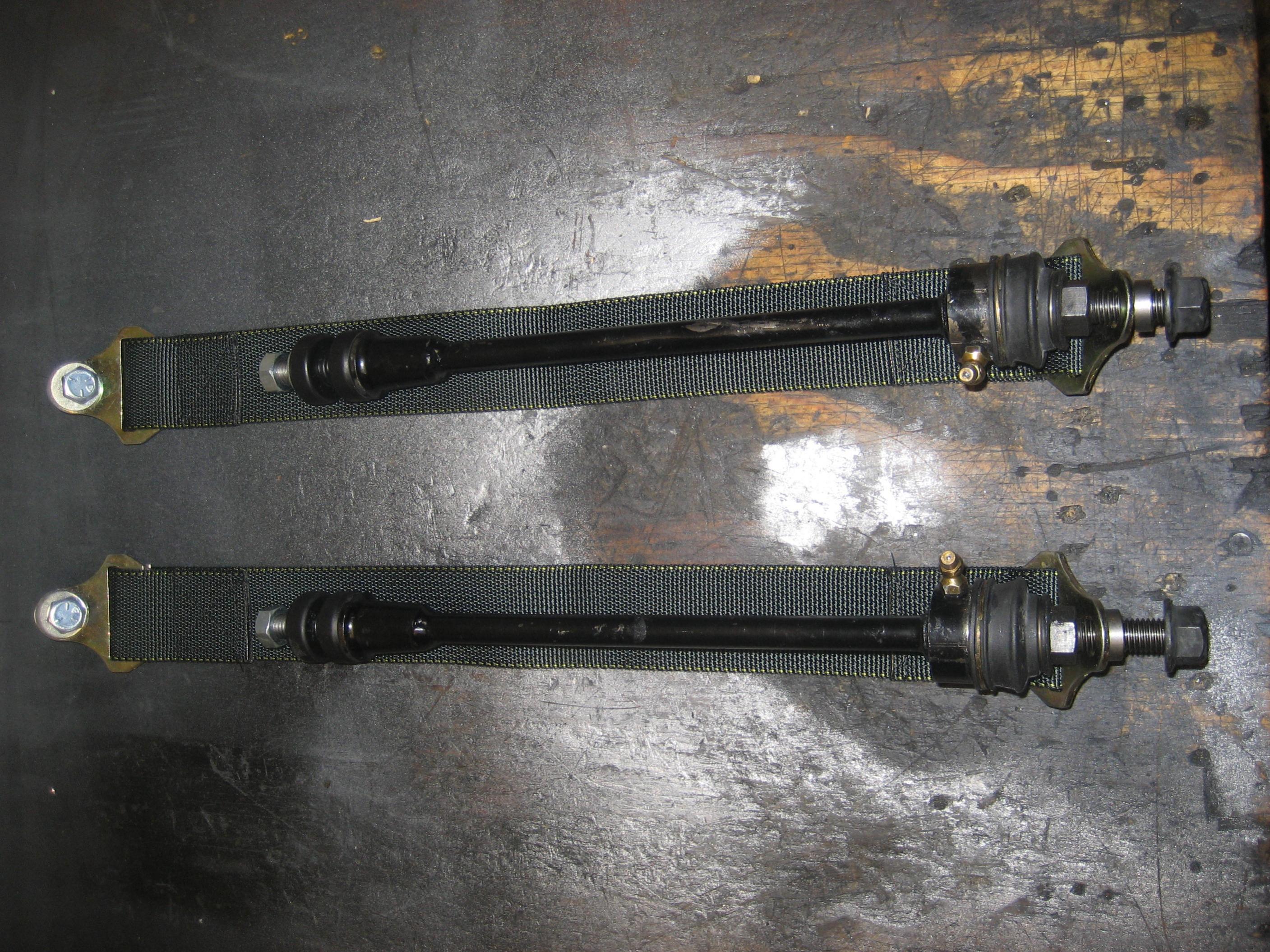

now the sway bar link is different story

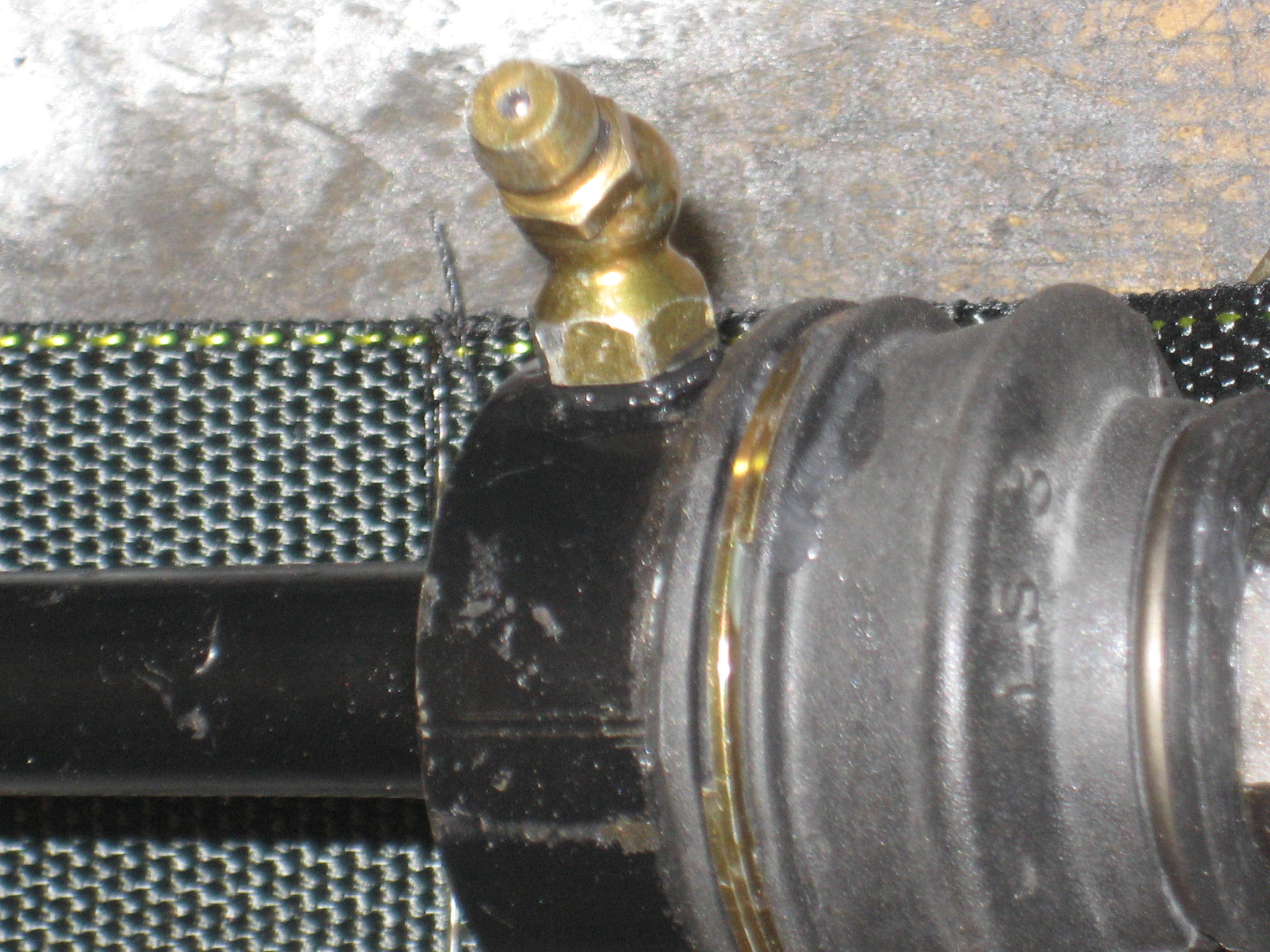

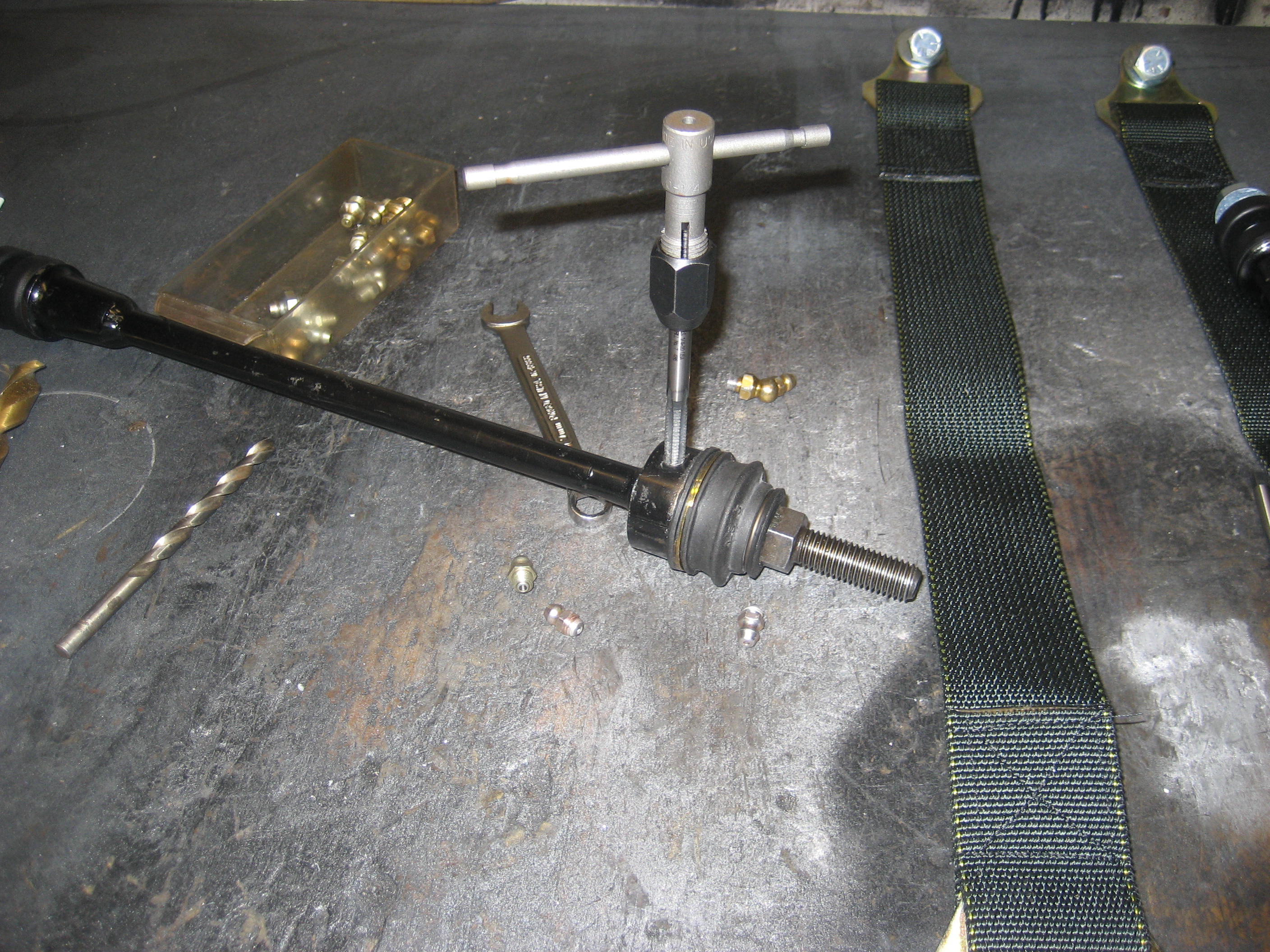

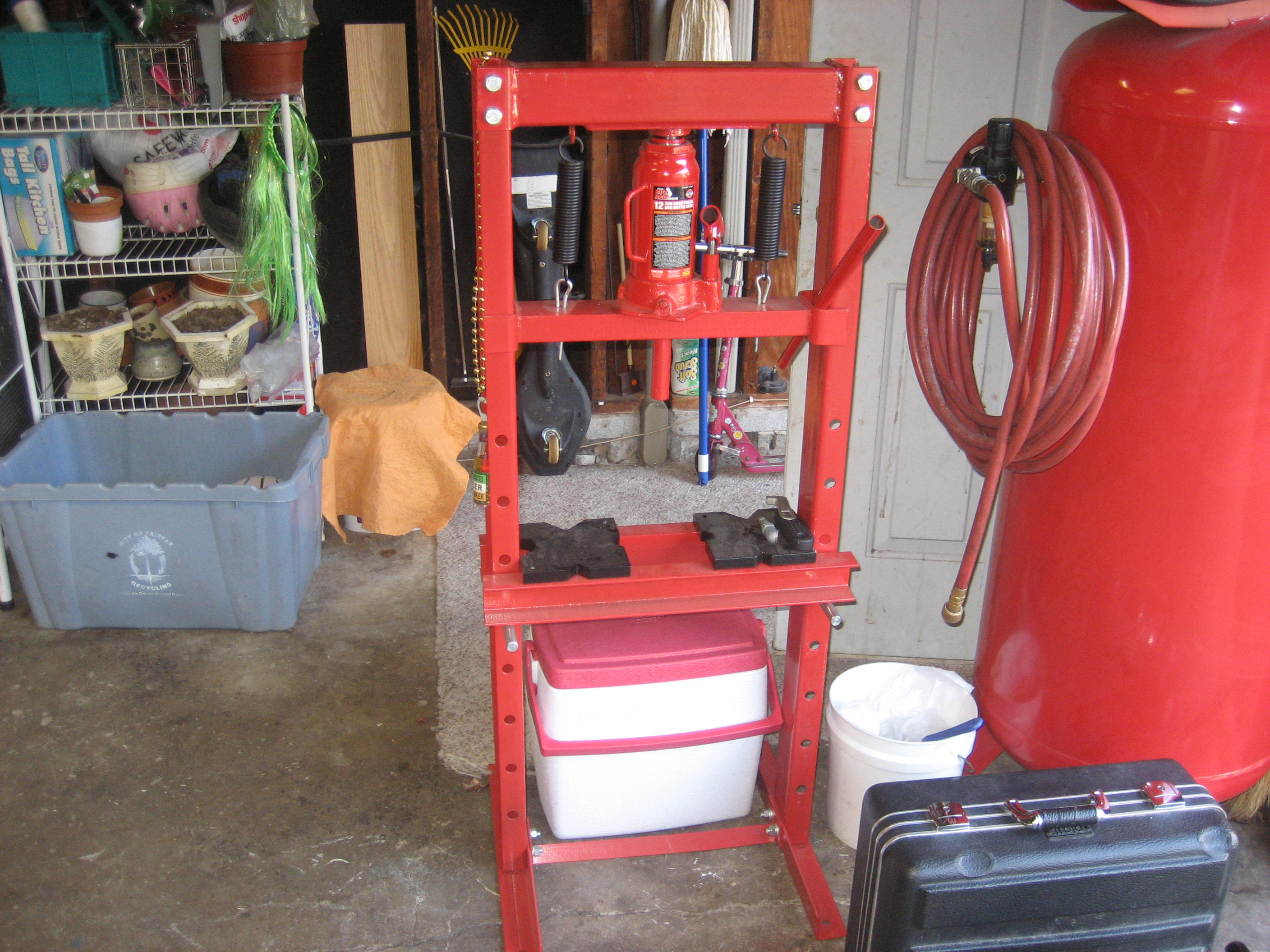

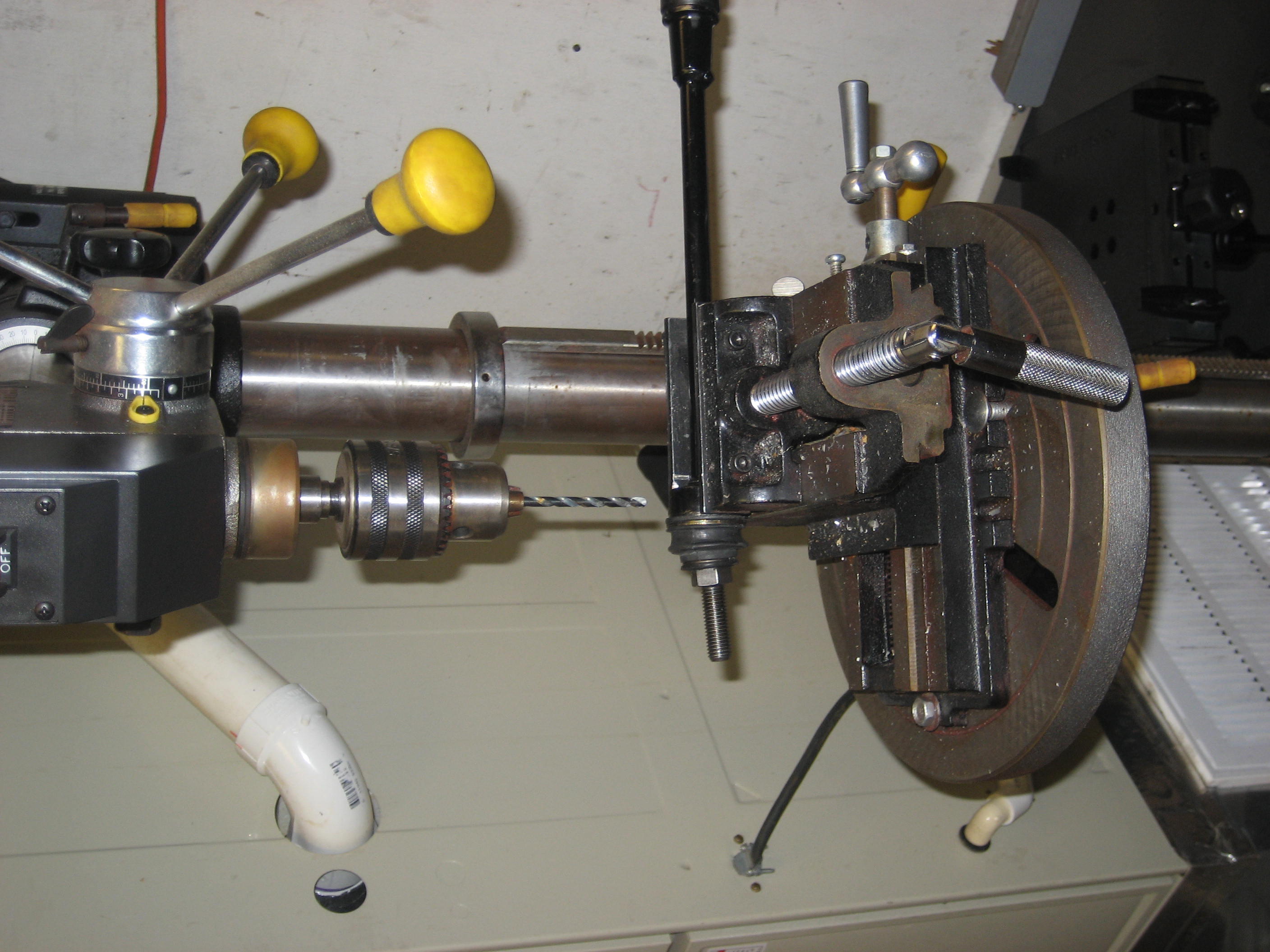

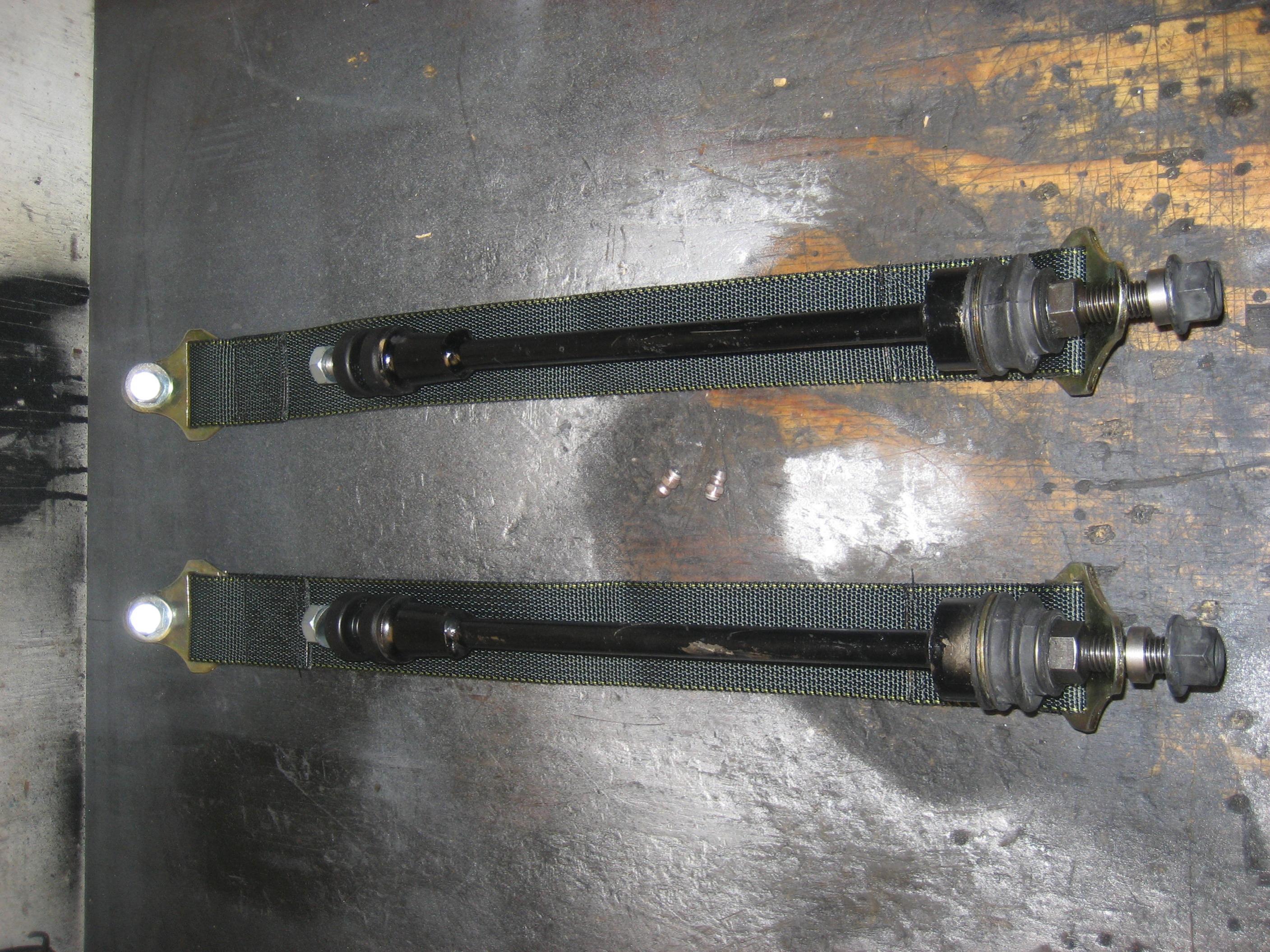

Well the sway bar link come with Jerk fitting but there where no hole drilled to install them in and no greese in the end at the fitting so I put them in to the press drilled holes in them tapped the threads then cleaned them out did not use the supplied jerks used some of my own wanted to be able to get to them easy. here is what I did and them all assm. with straps ready for installation, So thats it for today and probably this week hope to start install maybe Thanksgiving weekend there are other things I want to do while I have the front end torn apart new bearing hubs and such making sure every things is going to be tight and fresh
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-picture-179.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-180.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-183.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-185.jpg   03 FX4 Level II   SL 4" lift ready to begin-picture-184.jpg

Reply With Quote
  #13
Old 11-15-2009
David N's Avatar
Member

Join Date: Dec 2008
Location: Williamston, NC
Posts: 1,060
Nice job so far man! Keep the pictures coming.
Reply With Quote
  #14
Old 11-15-2009
00Ranger4digbeast's Avatar
Member
iTrader: (1)

Join Date: Aug 2006
Location: Hudson,Fl
Posts: 252
Quote:
Originally Posted by squrll View Post
Here are the brakets for the front differential
whats that in the center i have the SL for an 00 and i dont have those brackets

?
Reply With Quote
  #15
Old 11-16-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
You will have that thing installed in no time.
Reply With Quote
  #16
Old 11-16-2009
Kevooo's Avatar
Member

Join Date: Jun 2005
Location: Tamarac, FL
Posts: 656
You're going to hate those SL shocks, they are waaaay to soft, almost feels like you're riding around with no shocks. Also, I would recommend using an add-a-leaf and chevy drop shackle in the rear instead of stacking that SL block on the factory block. That way you don't need new u-bolts, and it is a much better ride.
Reply With Quote
  #17
Old 11-18-2009
00Ranger4digbeast's Avatar
Member
iTrader: (1)

Join Date: Aug 2006
Location: Hudson,Fl
Posts: 252
the center picture there of the dif. brackets can u tell me what what is....? is that the extended bumpstops?......someone plz help bought my lift used about to put it on n i dont have that part....what is it?
Reply With Quote
  #18
Old 11-18-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
Sorry Cb I have been traveling yes those are the bump stop extensions
Reply With Quote
  #19
Old 11-18-2009
fordlife's Avatar
Member

Join Date: Aug 2008
Location: Lemoore CA/561, Fl
Posts: 773
lookin good. and congratulations to your son. what branch did he join?
Reply With Quote
  #20
Old 11-18-2009
00Ranger4digbeast's Avatar
Member
iTrader: (1)

Join Date: Aug 2006
Location: Hudson,Fl
Posts: 252
10 4 thanks buddy i didnt get those but ill make my own
Reply With Quote
  #21
Old 11-19-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
The Army
Both of my sons left in July both in the Army
My youngest already graduated in Oct
now mt oldest graduates tomorrow
he turns blue today this morning can't wait
can't even sleep proud pops I guess
Reply With Quote
  #22
Old 11-25-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
And so It begins

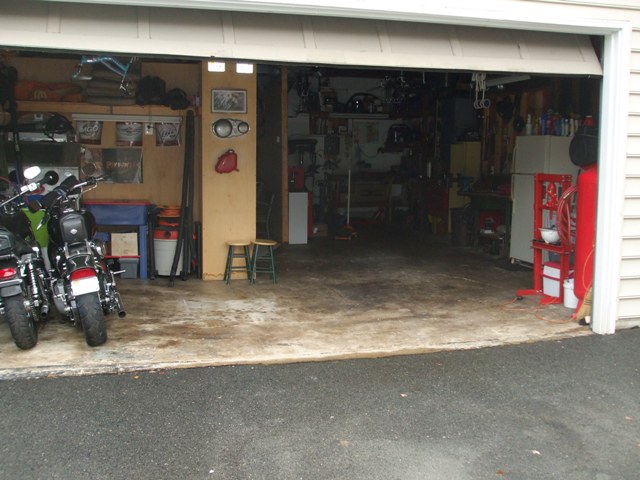

Moved stuff around in Garage to make room to work
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-dscf1182.jpg
Reply With Quote
  #23
Old 11-25-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191

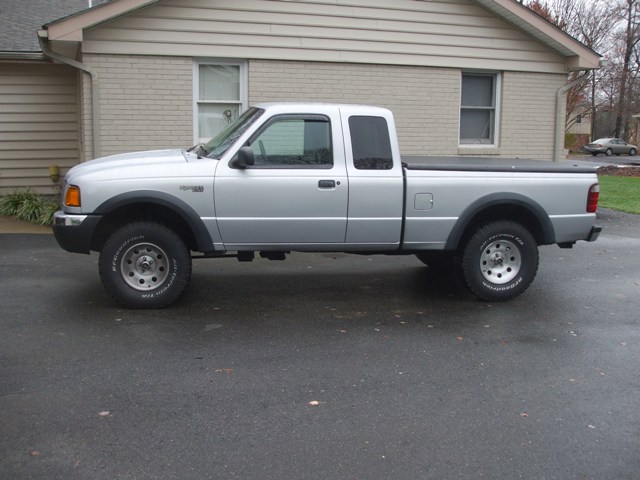

Stop at local spring shop

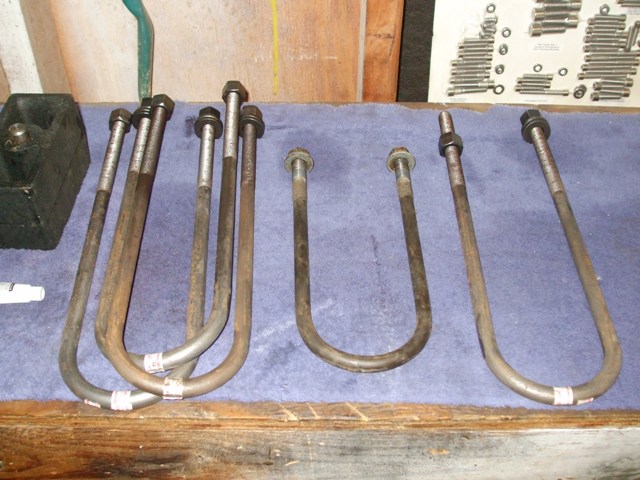

Went to the local Spring shop and had u bolts made as I could not find any
$40 not bad one more stock pic before the lift
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-dscf1184.jpg   03 FX4 Level II   SL 4" lift ready to begin-dscf1186.jpg
Reply With Quote
  #24
Old 11-25-2009
squrll's Avatar
Member
Thread Starter

Join Date: Nov 2009
Location: fairfax va
Posts: 191
random pics from tonight

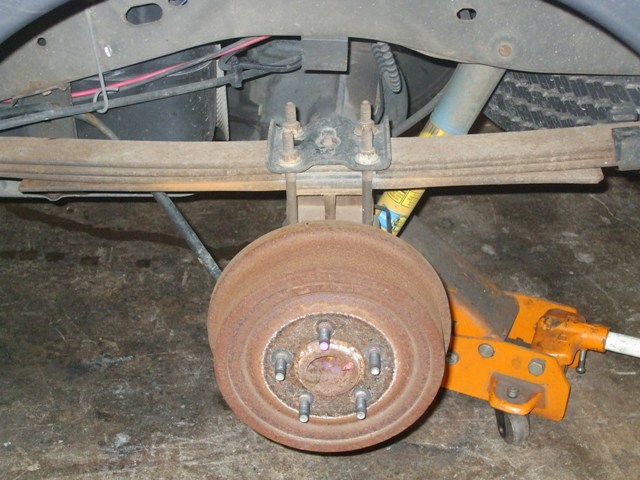

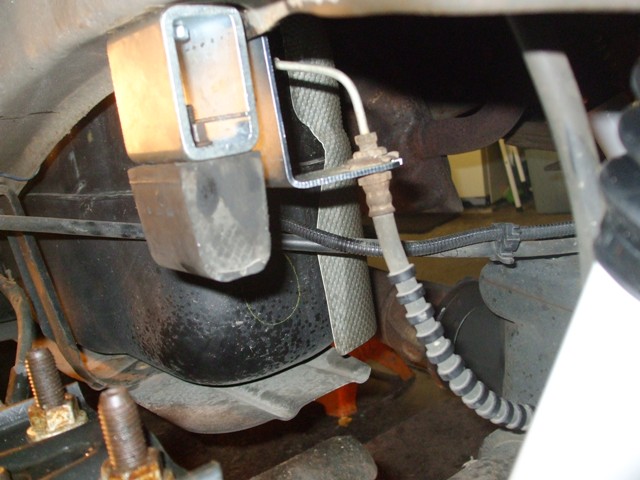

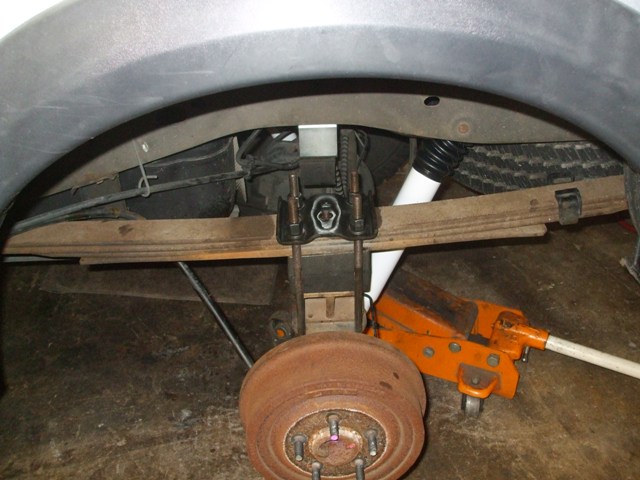

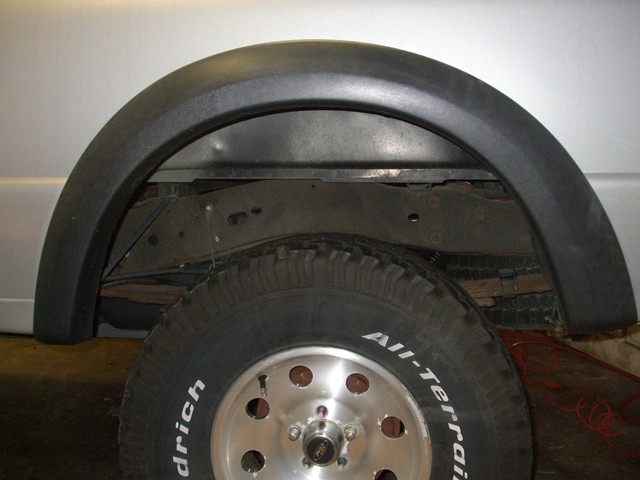

Ok started on the rear tonight still waiting an a few front end parts from Ford
will be here Friday afternoon so they say, So went a head and decided to go ahead and get started so here are some pics
Attached Thumbnails
03 FX4 Level II   SL 4" lift ready to begin-dscf1187.jpg   03 FX4 Level II   SL 4" lift ready to begin-dscf1197.jpg   03 FX4 Level II   SL 4" lift ready to begin-dscf1198.jpg   03 FX4 Level II   SL 4" lift ready to begin-dscf1201.jpg

Last edited by squrll; 11-25-2009 at 08:39 PM.
Reply With Quote
  #25
Old 11-25-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
did you stack those blocks?
