Quote:
Originally Posted by Mcleary316 View Post
They need to hurry up. I want to see progress lol

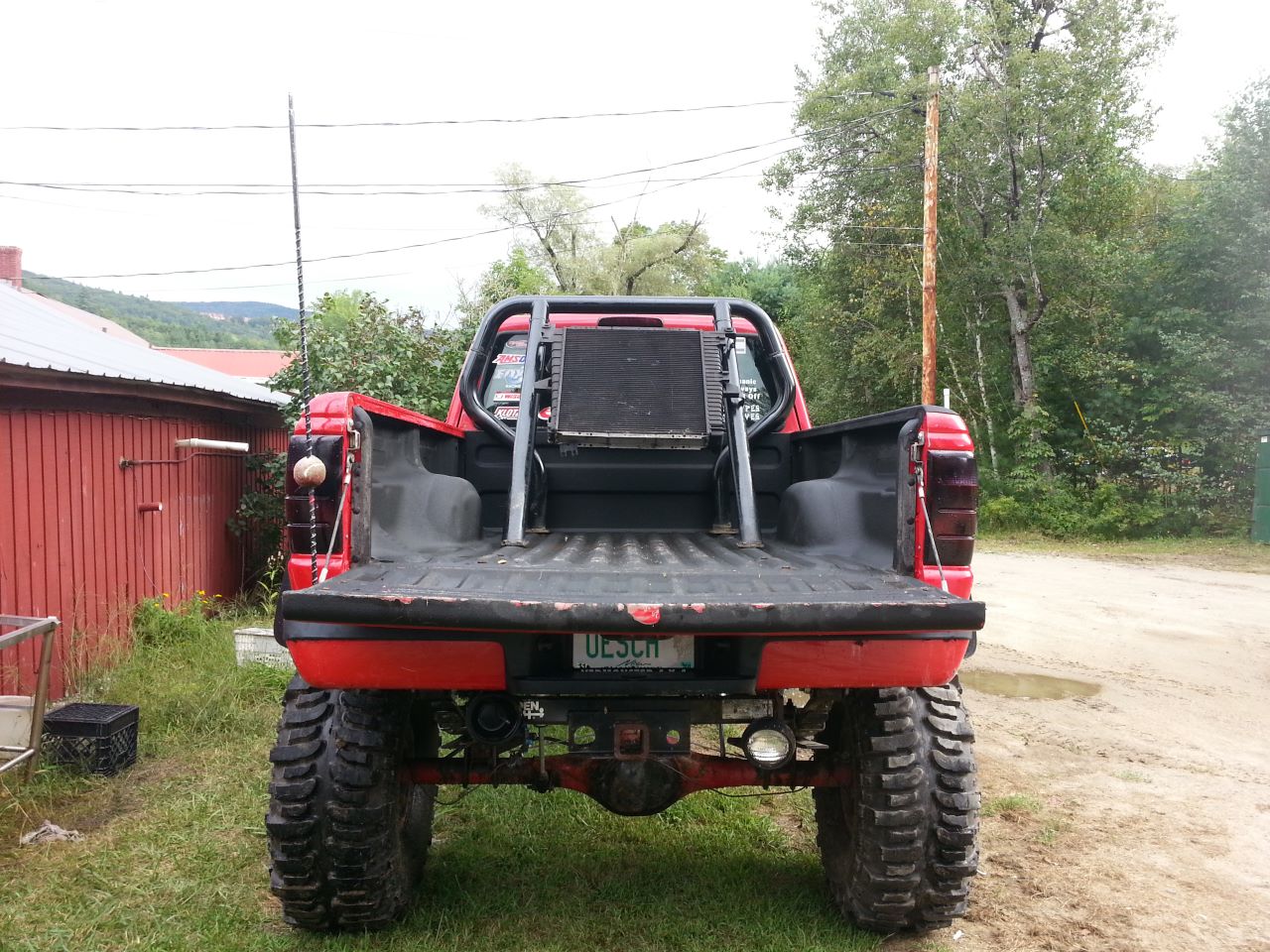

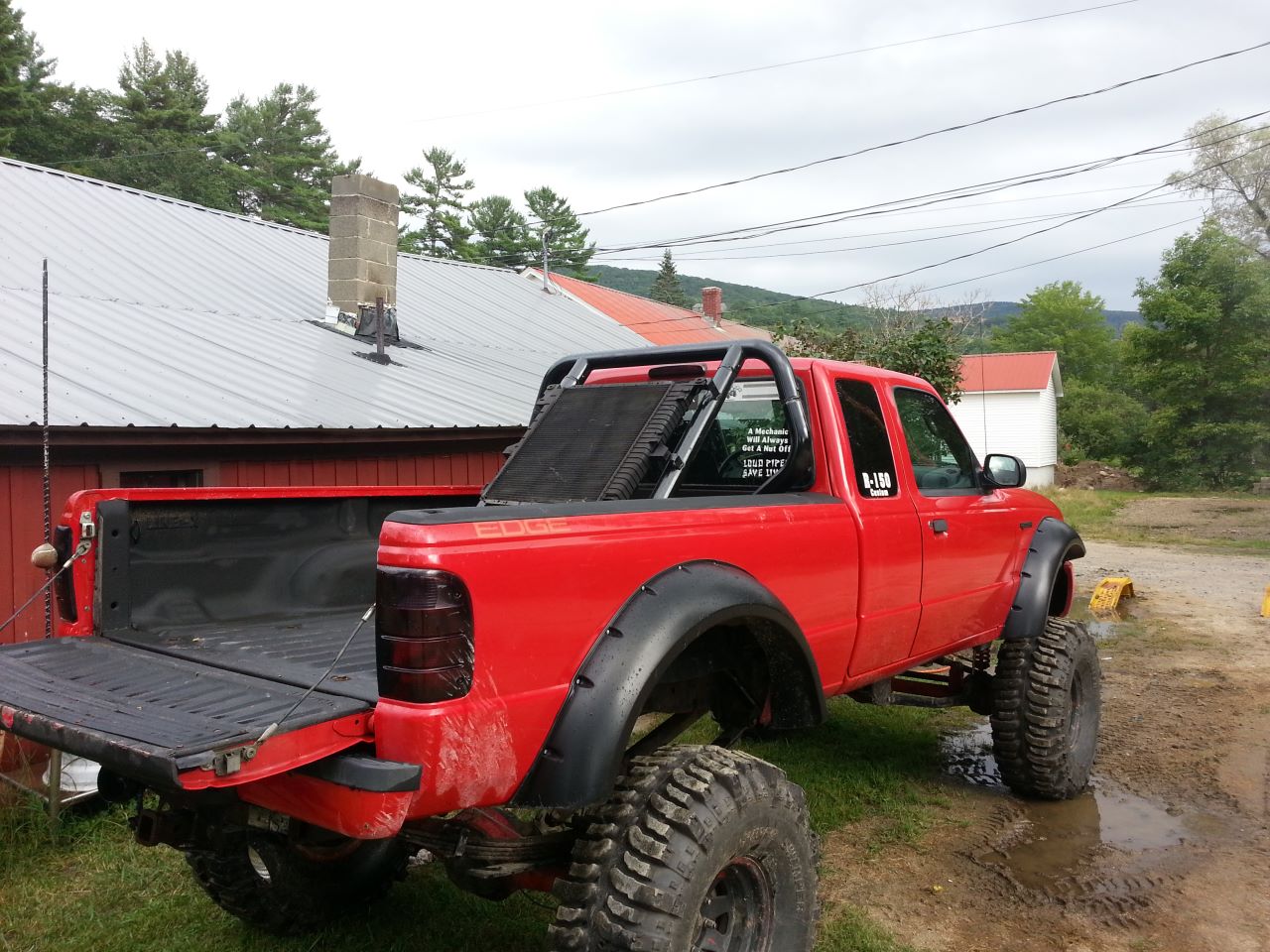

Tell me about it. I got a little progress. The new radiator is installed waiting for the e fan.


Attached Thumbnails
05edge's V8 swap-p1j1.jpg   05edge's V8 swap-o7nm.jpg

Last edited by 05edge; 09-03-2013 at 04:40 PM.
Reply With Quote
  #77
Old 09-03-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Same rad from the donor truck?

I've seen several builds with it mounted in the bed. is it because of benefit's of the air cooling and such, or is there no room in the engine bay?
Reply With Quote
  #78
Old 09-03-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Yes, the explorers radiator is twice as thick. There's a few purposes to it. It keeps it up out of the mud, away from rocks, more room in engine bay, better cooling, and it just looks badass!
Reply With Quote
  #79
Old 09-06-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Not much to update. The guy from the machine shop didn't answer at all yesterday. I got a hold of him today, he tells me he has the pistons. Great you better have a lot more then that for $350. Then he tells me he got messed up from the holiday and it will be ready by Tuesday at the latest. All he's doing is the machine work, freeze plugs, cam bearings, and ordering the piston kit, I'm doing everything else...

I got my bolt kit in from summit today. It came with every bolt I need for the whole block for $170 not bad. So now I have everything to rebuild this engine, except for the block. Awesome.
Reply With Quote
  #80
Old 09-06-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 05edge View Post
Yes, the explorers radiator is twice as thick. There's a few purposes to it. It keeps it up out of the mud, away from rocks, more room in engine bay, better cooling, and it just looks badass!
I will somewhat agree with you. It doesnt cool better however. Also how do you plan to run coolant back there? I really need to convert my hoses to tubes along the frame rail. It just keeps getting way to hot. I cant drive 10 minutes down the highway without the temps reaching 210.
Reply With Quote
  #81
Old 09-06-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Quote:
Originally Posted by zabeard View Post
I will somewhat agree with you. It doesnt cool better however. Also how do you plan to run coolant back there? I really need to convert my hoses to tubes along the frame rail. It just keeps getting way to hot. I cant drive 10 minutes down the highway without the temps reaching 210.
Makes sense not as much air flow. I'm going to use copper piping for most of it. Are you using a stock water pump?
Reply With Quote
  #82
Old 09-11-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,726
Block back yet?
Reply With Quote
  #83
Old 09-11-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Nope. I called him Tuesday he had just bored it and was getting the crank ready to turn down. Thursday he says now. This is really hurting my deadline. I was warned he takes awhile, but the way he was talking, he was very convincing he'd have it done in no time.
Reply With Quote
  #84
Old 09-11-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,726
damn that stinks. Its limiting your time down to make it to that bog you wanted to go to
Reply With Quote
  #85
Old 09-11-2013
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Can't rush perfection right?
Reply With Quote
  #86
Old 09-11-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Oh no, I'm not rushing the work, I'm rushing him to start the damn work lol
Reply With Quote
  #87
Old 09-12-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 05edge View Post
Makes sense not as much air flow. I'm going to use copper piping for most of it. Are you using a stock water pump?
Its supposed to be a high flow water pump, not really sure to what degree though.

Copper pipe! that wont be cheap
Reply With Quote
  #88
Old 09-12-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
I'm going to use the stock one to see how it will work, but I plan on buying one from Flowkooler.

I just ripped out most most of the base board heating in my parents house. There is some pretty good size copper in the basement I think might work.
Reply With Quote
  #89
Old 09-12-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Just got off the phone with the machine shop, he said it will be done by 2 this afternoon! Stay tuned a lot of progress is about to happen.
Reply With Quote
  #90
Old 09-12-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 05edge View Post
Just got off the phone with the machine shop, he said it will be done by 2 this afternoon! Stay tuned a lot of progress is about to happen.
Sounds like your weekend is about to be busy. Are they doing anything special, or just a clean up/resurface?
Reply With Quote
  #91
Old 09-12-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Quote:
Originally Posted by StxDangerRanger View Post
Sounds like your weekend is about to be busy. Are they doing anything special, or just a clean up/resurface?
Lol that's what I'm hoping for. Sat is my brothers birthday so I will see. They bored it .030 over.
Reply With Quote
  #92
Old 09-12-2013
Unregistered User

Join Date: Aug 2013
Location: Long Beach, CA
Posts: 77
Quote:
Originally Posted by zabeard View Post
Its supposed to be a high flow water pump, not really sure to what degree though.

Copper pipe! that wont be cheap
I'd use aluminum tubing and silicone hoses/bends/connectors
Reply With Quote
  #93
Old 09-12-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
What would dissipate the heat better? Copper or aluminum. Copper cools water better and its stronger.

Last edited by 05edge; 09-12-2013 at 07:16 PM.
Reply With Quote
  #94
Old 09-12-2013
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,481
Well did you get the engine back?
Reply With Quote
  #95
Old 09-12-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Quote:
Originally Posted by RazorsEDGE View Post
Well did you get the engine back?
Ha oh ya sorry! Yes its finally back! Hopefully painting it tomorrow with the heads. Ill get some pictures tomorrow.
Reply With Quote
  #96
Old 09-13-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901

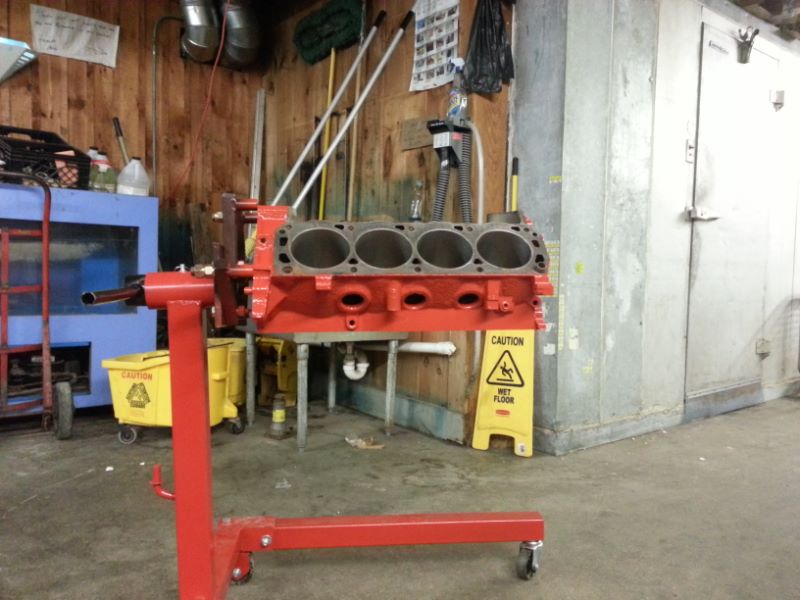

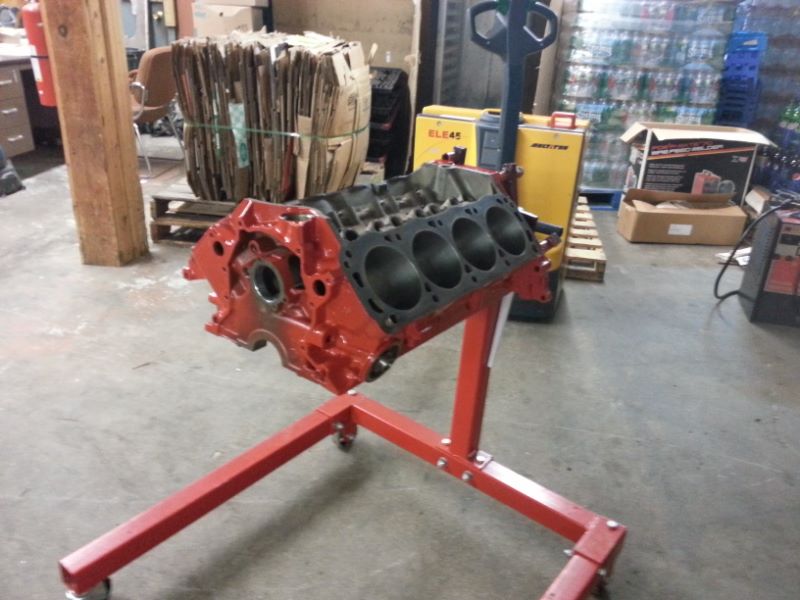

I got the block painted today so it can dry over night. Assembly starts tomorrow.




Attached Thumbnails
05edge's V8 swap-inj2.jpg   05edge's V8 swap-5p5v.jpg   05edge's V8 swap-e65f.jpg
Reply With Quote
  #97
Old 09-14-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,694
Glancing back through the thread it appears that this is your first rebuild ?

If I am correct and I did not reread all of the post, but things to watch:
-End gap on rings, each rings needs to be placed in the upper section of the cyclones and the end gap measured, keep the gaps to the low side of the tolerance. Gp filing and clean up needs to be done out of the block and then re fit and re measure back in the block.
-make sure to place the end gaps on opposite sides of the pistons, staggering each one.

Did you have the crank turned and who purchased the bearings ?
The machine shop that does the machining should get the parts to match the machined block and crank. You can get them but you need to check and recheck all of the parts for size and in turn for tolerances.
Cylinder size vs piston and ring size.
Ring end gap as mentioned above.
Crank journal size vs bearing size and don't just take the package stated size. You need to assembly all of the mains with the bearing in place but no crank, the same for the rods, and measure the ID of the bearings, then measure the crank journals and find the difference and determine if it is within tolerance.
And then there is finding max travel for the piston, top dead center on each piston, after assembling the crank, rods and block, find out if there is enough room for the valves when the engine is running, especially in the higher rpm ranges while running the mud.

Sorry to mention this stuff if it has been mentioned before but just check everything it is important for an engine that is expected to run a long dependable and yet powerful life. A bearing that has too much or even not enough clearance will burn up a crank. Ring end gaps that are too big will allow,what is clued the Black Death or blow by and will rob some of the power from the motor.

Good luck on the engine build, it is very gratifying when the engine fires up and runs well.
I only mention this stuff because of my own first engine rebuild.
Reply With Quote
  #98
Old 09-14-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Quote:
Originally Posted by Scrambler82 View Post
Glancing back through the thread it appears that this is your first rebuild ?
Yes it is. Thank you for all the information its helpful! Being my first rebuild, I do have a lot more to learn, but I'm pretty knowledgeable in this stuff so i have a good direction. The cranks been turned and polished. I had to go .010 under on the mains. The machine shop ordered all the internals, so everything should be good there. Ill still messure my tolerances like you mentioned to be safe.

I'm definitely looking forward to the day I go to start it. Im getting excited about it already! Im planning on opening my own shop, where I do these kinds of builds. I want to go into the direction of fabrication and performance stuff. My ranger has been my lab rat.
Reply With Quote
  #99
Old 09-14-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,694
Good go on the machine buying the parts, that way they get the right stuff, hopefully !

Take your time, measure, measure and clean, clean, clean, should be a nice ride when done.

ltr
Reply With Quote
  #100
Old 09-14-2013
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901

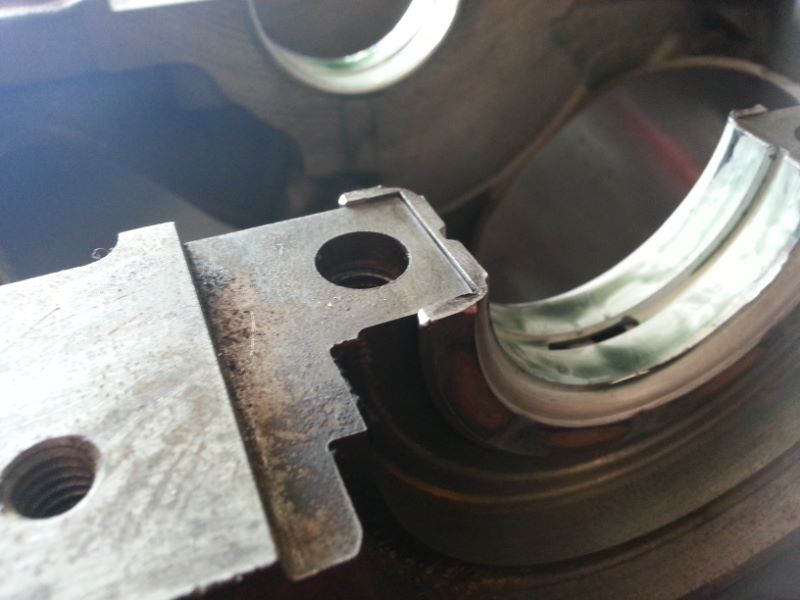

Well I should have gotten a lot done today, but this stopped me.




That's supposed to sit flush and no matter what I do I can get it down. When I put the crank in and tighten it down, it doesn't suck it in and binds the crank. Any idea if you can order just the thrust bearing?
Attached Thumbnails
05edge's V8 swap-atjz.jpg

Last edited by 05edge; 09-14-2013 at 05:03 PM.
Reply With Quote
