  #101
Old 09-17-2009
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
that looks sick
Reply With Quote
  #102
Old 09-18-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by swickwake View Post
heres a though. cantilever brake system. sick as hell. you would be able to clear 35 with no problem

Here are some cantilever pics




but it all depends on where mike decides to take the engine cage when he tie into the cab cage.


now THATS cool! I've never even thought about doing that for clearance reasons let alone seen it.
Reply With Quote
  #103
Old 09-18-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah that could be used for multiple applications, lowered, rock/trail trucks, and desert guys. pretty slick
Reply With Quote
  #104
Old 09-18-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
must be a photo bucket picture because i see red X's on the work computers.

as of right now we are going to run a cnc brake setup, may switch it around, but next pay check i am going to fork out the $$ for the dang dual rate 10" coil overs.
so october should be a month of putting together the engine cage and some other "stuff"

if anyone wants to buy some deaver f-31s that have been re arched by deaver and added an 8th leaf, blitz shakles, a 8.8 rear end with 4.30 gears, factory lsd and MAC diff cover, or 16" 2.5 FOA's all that is for sale.... also the part of the cage is for sale. re doing the rear cage to accept 18" quad bypass shocks and a new tire setup an fuel cell
Reply With Quote
  #105
Old 09-22-2009
turbonegro32's Avatar
Member

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
how much for 8.8?
Reply With Quote
  #106
Old 09-22-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
Quote:
Originally Posted by turbonegro32 View Post
how much for 8.8?
$400...ford racing gears, PERFECT FIT, and dead center mesh pattern
Reply With Quote
  #107
Old 09-24-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
what about the shocks?
Reply With Quote
  #108
Old 09-24-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
look at my for sale ad in classifieds.....
Reply With Quote
  #109
Old 10-10-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
have not seen the truck in about 3 weeks, going to lay out the engine cage next weekend and start cycling the front end with the coil overs in place.

goal is to get the main tubes layed out and both sides of the suspension bolted on with all new hardware. relocate battery out back and cut about 5" off each side of the bumper.

i may attempt to make a mold of my hood out of fiberglass and run that hood for a while if it comes out good, dont realy want to put hood pins in the factory hood
Reply With Quote
  #110
Old 10-18-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
weekends progress...

drivers side inner fender removed, all interior dash remains have been removed.
ALL A/C minus compressor are removed
core support removed
tubular core support tacked into place. passenger outside main tube that ties into a pillar and tube core support mocked up.

bummped and drooped passenger side with a 10" triple bypass shock. with old shock tabs on lower, used 8" of shock. mounts will be kicked out towards the wheel more to use more shock and better dampening.

will be running FOA coil over and 2 tube bypass up front. since i cannot afford to buy new "big name" shocks now, and there are no 10" 2.5s for sale used
Reply With Quote
  #111
Old 10-18-2009
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Damn dude I bet your truck is tight as **** now!
Reply With Quote
  #112
Old 10-18-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
pics on their way
Reply With Quote
  #113
Old 10-18-2009
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
Oh they better be!
Reply With Quote
  #114
Old 10-18-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193

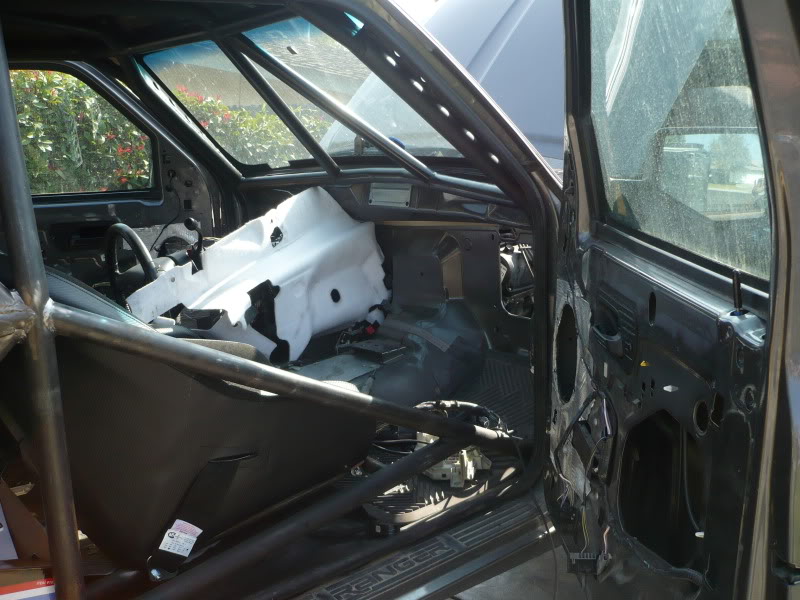

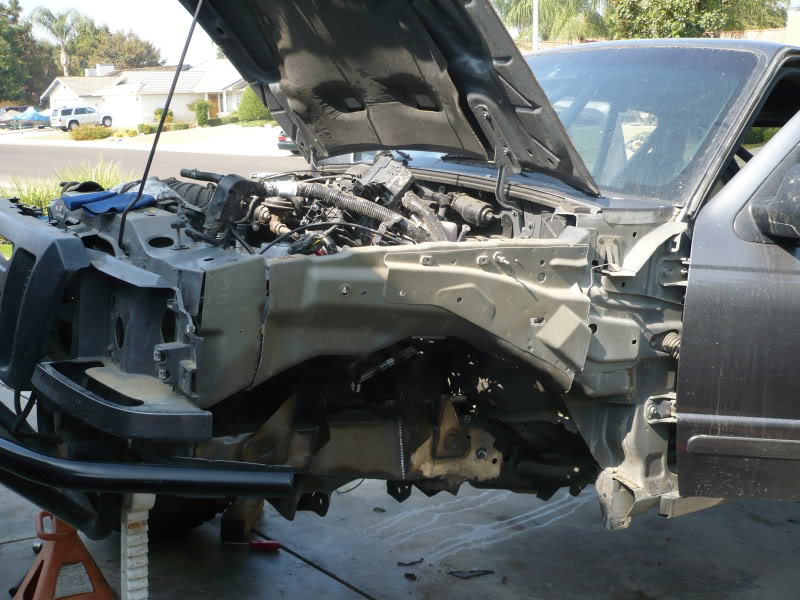

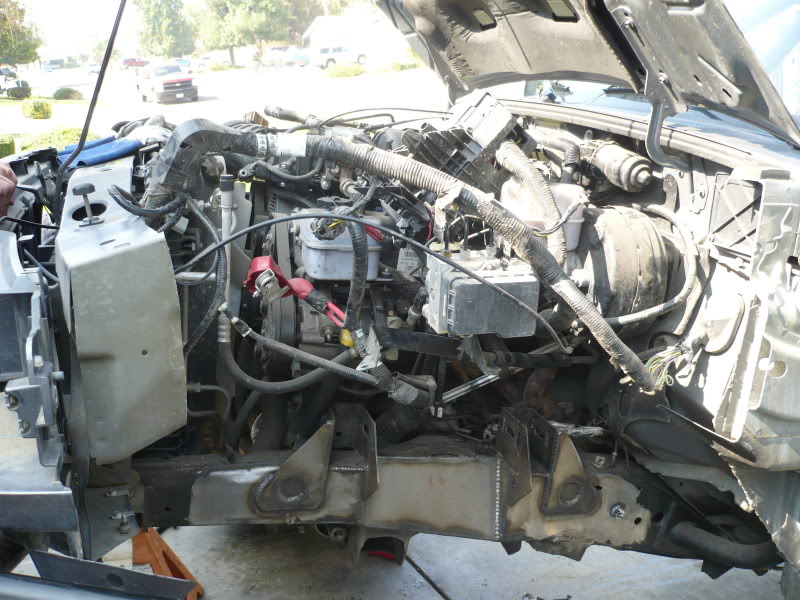

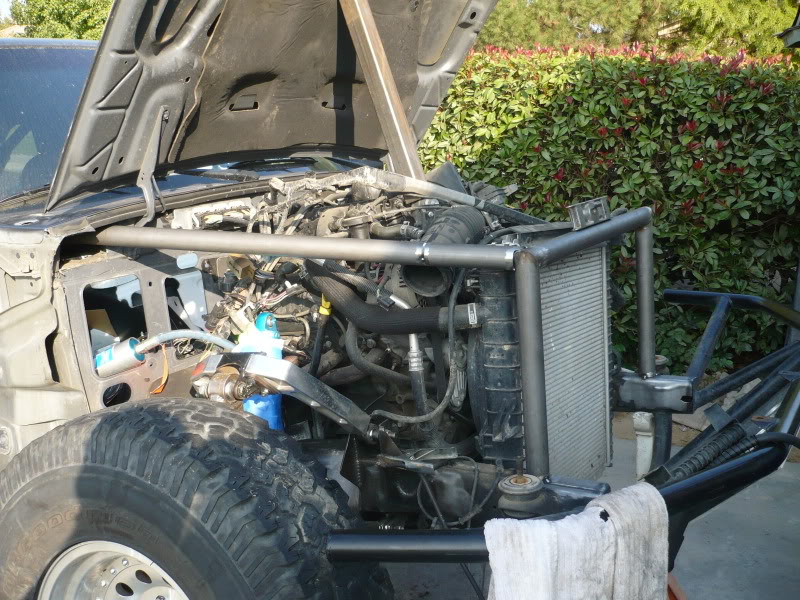

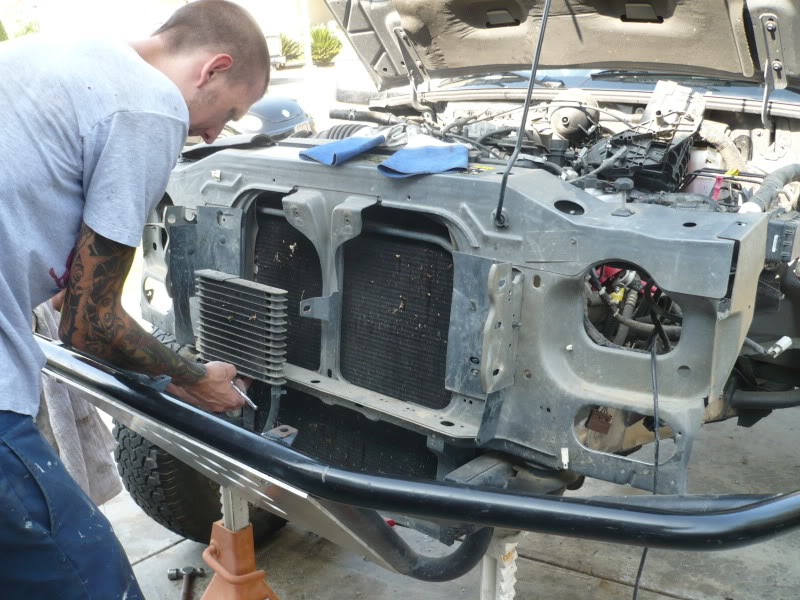

Name:  P1000343.jpg
Views: 1
Size:  127.7 KB
Name:  P1000341.jpg
Views: 1
Size:  120.2 KB
Name:  P1000344.jpg
Views: 1
Size:  149.5 KB
Name:  P1000345.jpg
Views: 1
Size:  138.9 KB
Name:  P1000350.jpg
Views: 1
Size:  174.5 KB
Name:  P1000357.jpg
Views: 1
Size:  111.9 KB
Name:  P1000358.jpg
Views: 1
Size:  169.8 KB
Name:  P1000360.jpg
Views: 1
Size:  133.8 KB
Reply With Quote
  #115
Old 10-18-2009
The_Punisher's Avatar
Member

Join Date: Feb 2009
Location: Chino Hills, CA
Posts: 438
efergdrthtry
Reply With Quote
  #116
Old 10-18-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
wtf^^
Reply With Quote
  #117
Old 10-18-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Quote:
Originally Posted by The_Punisher View Post
efergdrthtry
Quote:
Originally Posted by Urandaman View Post
wtf^^
I think he was speechless.
Reply With Quote
  #118
Old 10-18-2009
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Looks BEEFY!!!!
Reply With Quote
  #119
Old 10-18-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
Quote:
Originally Posted by Roach2004 View Post
Looks BEEFY!!!!
it will never work
Reply With Quote
  #120
Old 10-18-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
you might have answered this already but are you going with a one piece front end or are you just gonna build hangers of the engine cage?
Reply With Quote
  #121
Old 10-18-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Are you keeping the A/C compressor for OBA? If you are can you take some pics? Mine is out of Freon and I have been thinkin of doin something like that.
Reply With Quote
  #122
Old 10-18-2009
swickwake's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
im liking the progress keep it up.
Reply With Quote
  #123
Old 10-18-2009
4x4RangerOffroad's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Barrington, NH
Posts: 434
nasty
Reply With Quote
  #124
Old 10-21-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
Quote:
Originally Posted by chainfire View Post
Are you keeping the A/C compressor for OBA? If you are can you take some pics? Mine is out of Freon and I have been thinkin of doin something like that.
thought about it, but i am removing it. i will have only the nessecary things on the motor. going with dual 10" e-fans so the fan off the crank will be pulled also. i am wondering how much power all that will free up.


Today i FINALLY made my decision on shocks and ordered some other parts.
ordered all my shock tabs, new bump cans, bump can brackets, and tube couplers for the removeable cross member in the engine bay.
and i ordered 10" 2.5 FOX Coil Over and 10" 2.5 3-tube FOX bypass.
just ordered one side for mock up purposes and will order my second coil over later in november. not sure on what spring rates i will be running yet tho.
Reply With Quote
  #125
Old 10-21-2009
Urandaman's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: wher ever uncle sam wants
Posts: 1,193
Quote:
Originally Posted by The S-10 Killer View Post
you might have answered this already but are you going with a one piece front end or are you just gonna build hangers of the engine cage?
build mounts off the cage using 1" tubing.
i will be running some sort of fiberglass hood, i really like the Perrys Fab n Fiber hood.
Reply With Quote
