  #26
Old 04-04-2010
Auto's Avatar
Member

Join Date: Jan 2008
Location: Jeannette, PA (Pittsburgh
Posts: 511
looks like fun. I'll bring mine back next week for you. lol
Reply With Quote
  #27
Old 04-04-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
I'll help you after I get this one done if you want, just let me know.
Reply With Quote
  #28
Old 04-04-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Well the wife had to work this morning so I went down and did a little work...

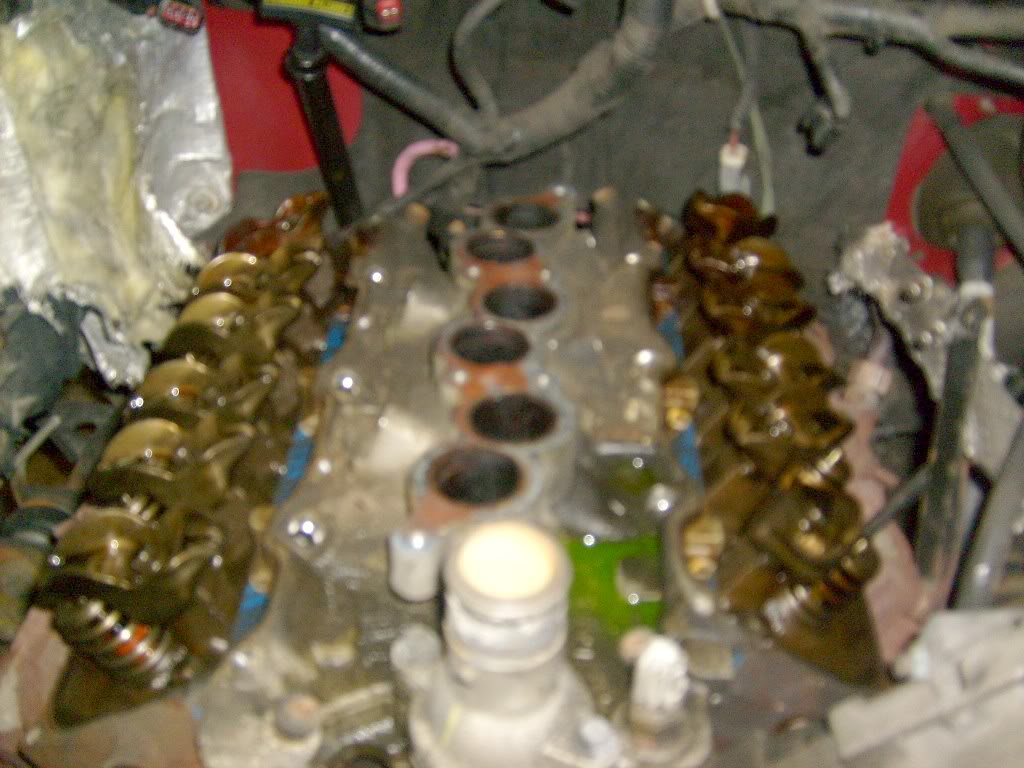

First I pulled the injectors out
Name:  Picture158-1.jpg
Views: 3
Size:  107.7 KB

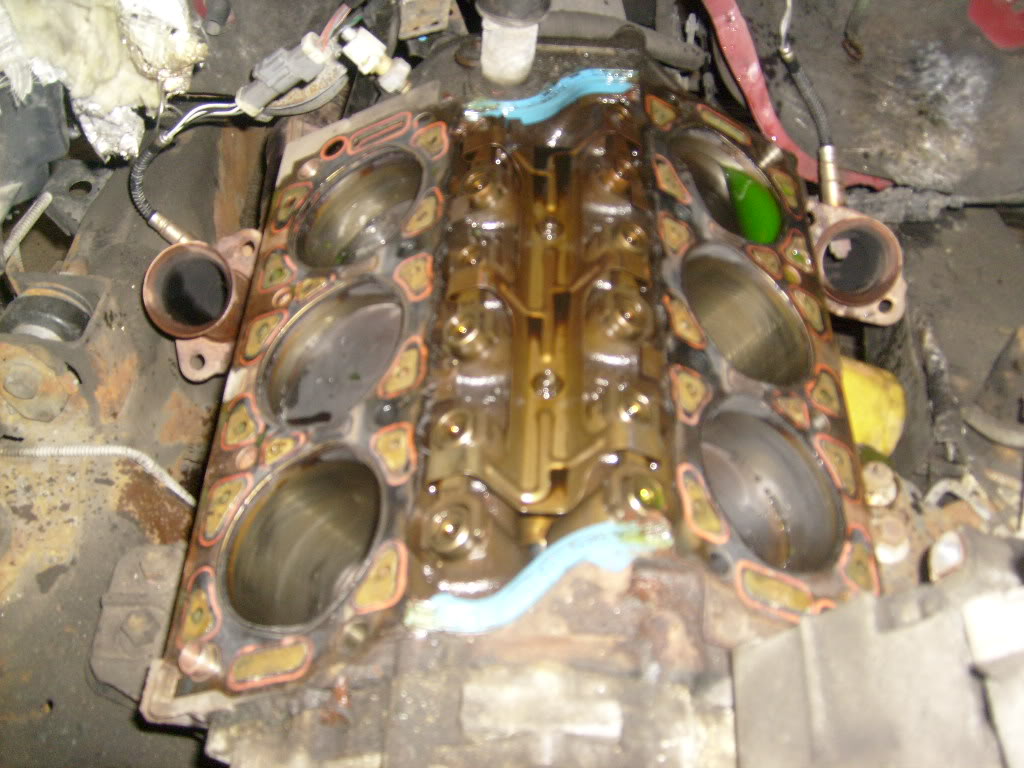

Next I pulled off the heads
Name:  Picture159-1.jpg
Views: 4
Size:  148.5 KB

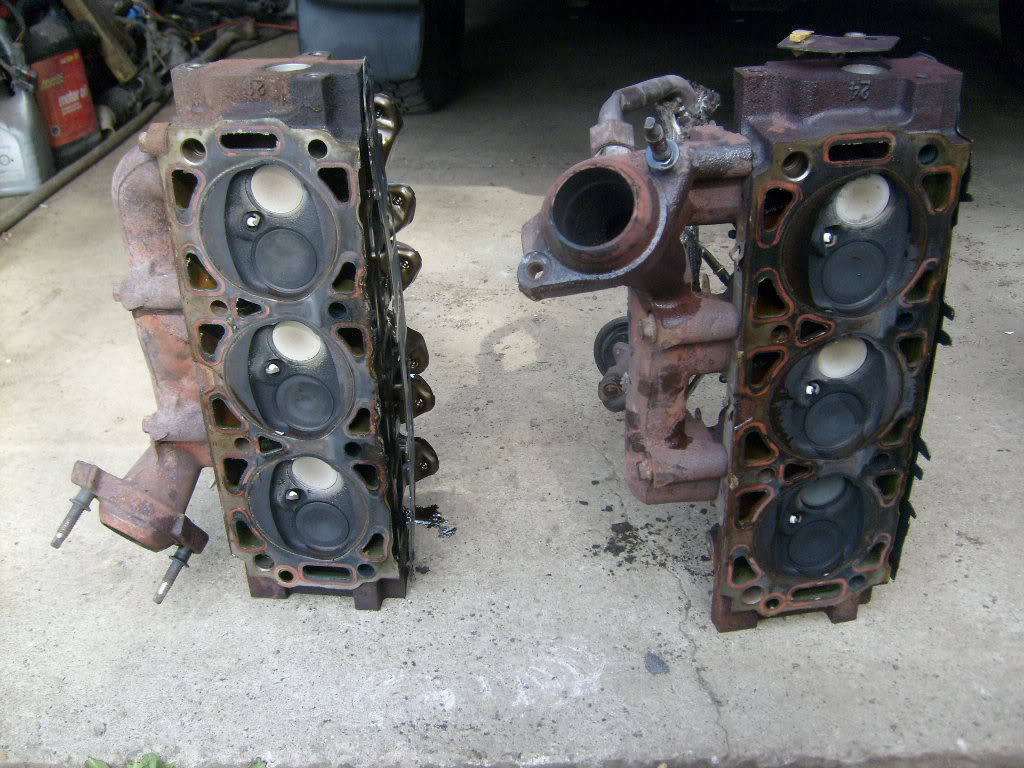

Can you see the missing cylinder?..hint...look at the color of the exhaust valves...
Name:  Picture160-1.jpg
Views: 3
Size:  174.8 KB

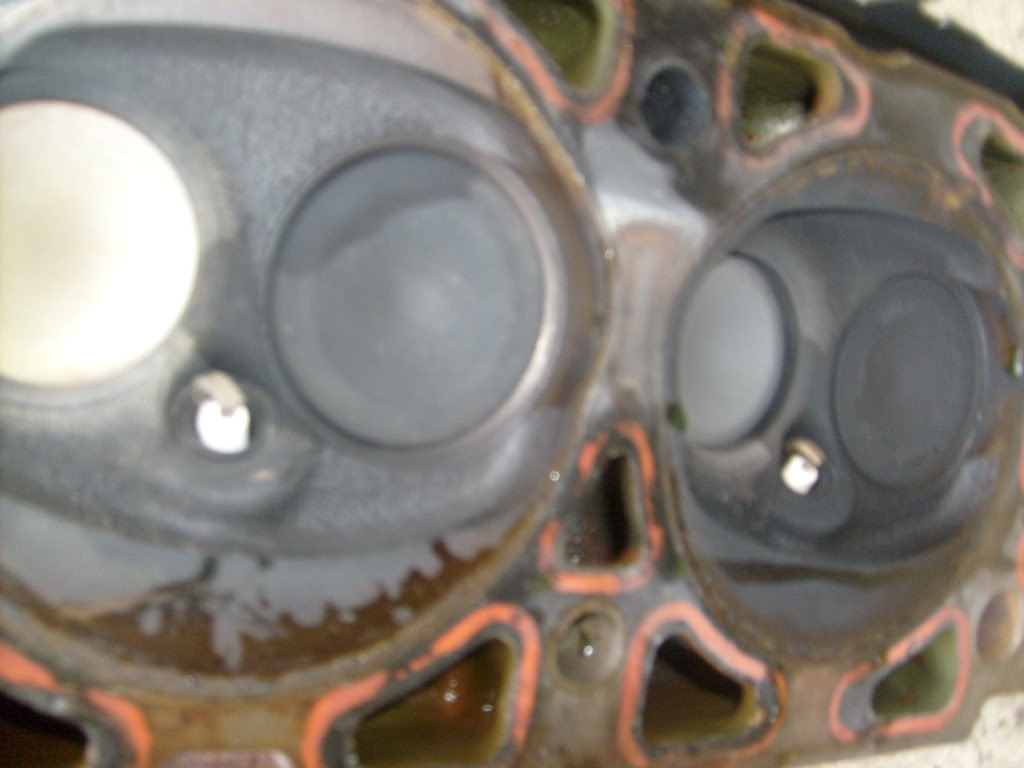

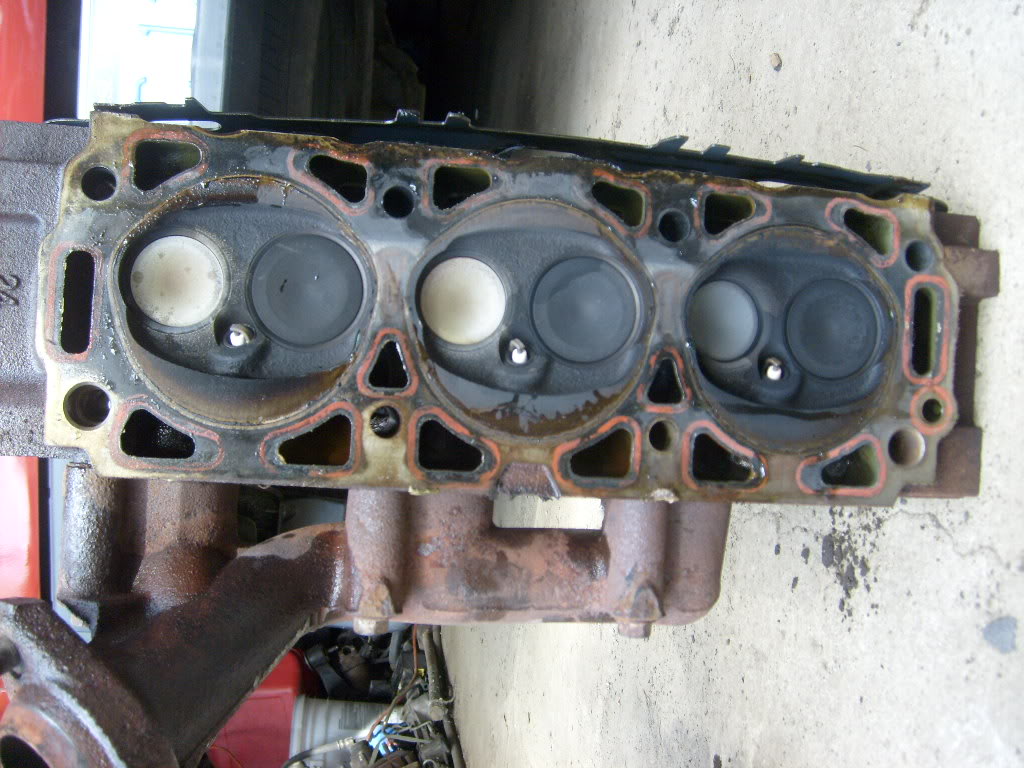

Closer inspection reveals where the exhaust valve sunk into the seat...
Name:  Picture163-1.jpg
Views: 4
Size:  167.0 KB
Name:  Picture165-2.jpg
Views: 6
Size:  97.4 KB

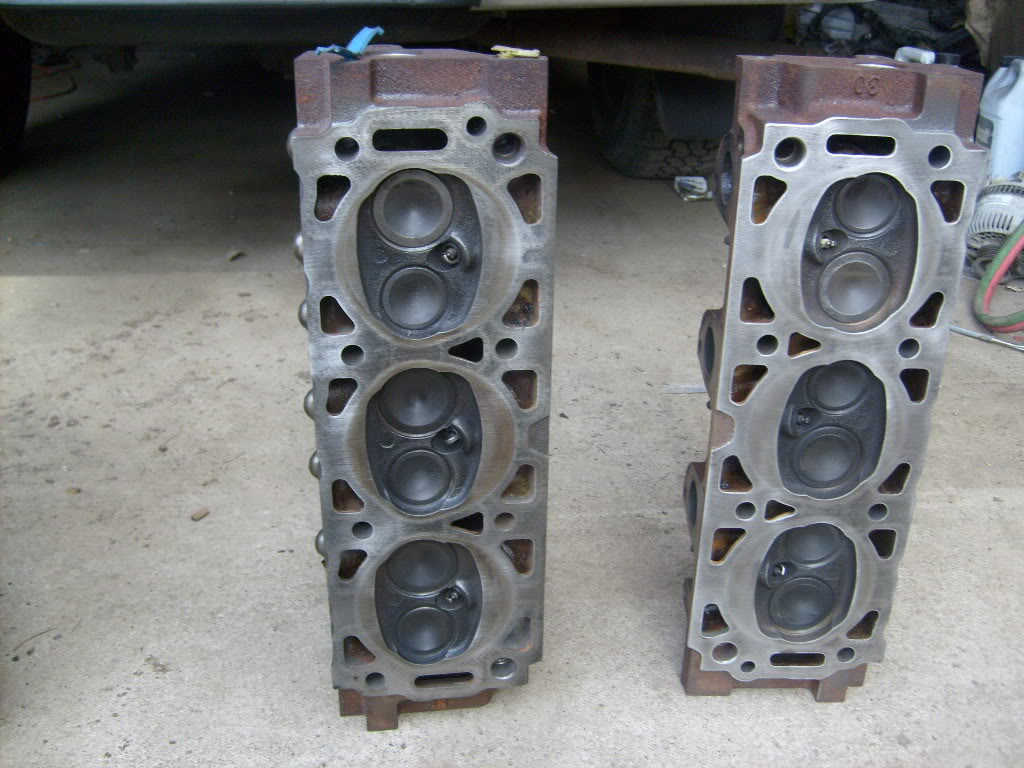

Sure is nice to have spare parts...lol
Name:  Picture162-2.jpg
Views: 4
Size:  155.0 KB
Reply With Quote
  #29
Old 04-04-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
dude, you rock.
Reply With Quote
  #30
Old 04-04-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Nice job man
Reply With Quote
  #31
Old 04-04-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Thanks, I try to make nice trucks for somebody...my daughter might want this one...lol
Reply With Quote
  #32
Old 04-04-2010
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
if only you had a spare 4.0 trans lol.
Reply With Quote
  #33
Old 04-04-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Yeah seems I had a run on 3.0 trucks...lol The next time I get a 4.0 it will probably go into the blck/grey truck.
Reply With Quote
  #34
Old 04-04-2010
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Damn that trucks to clean!
Reply With Quote
  #35
Old 04-05-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044

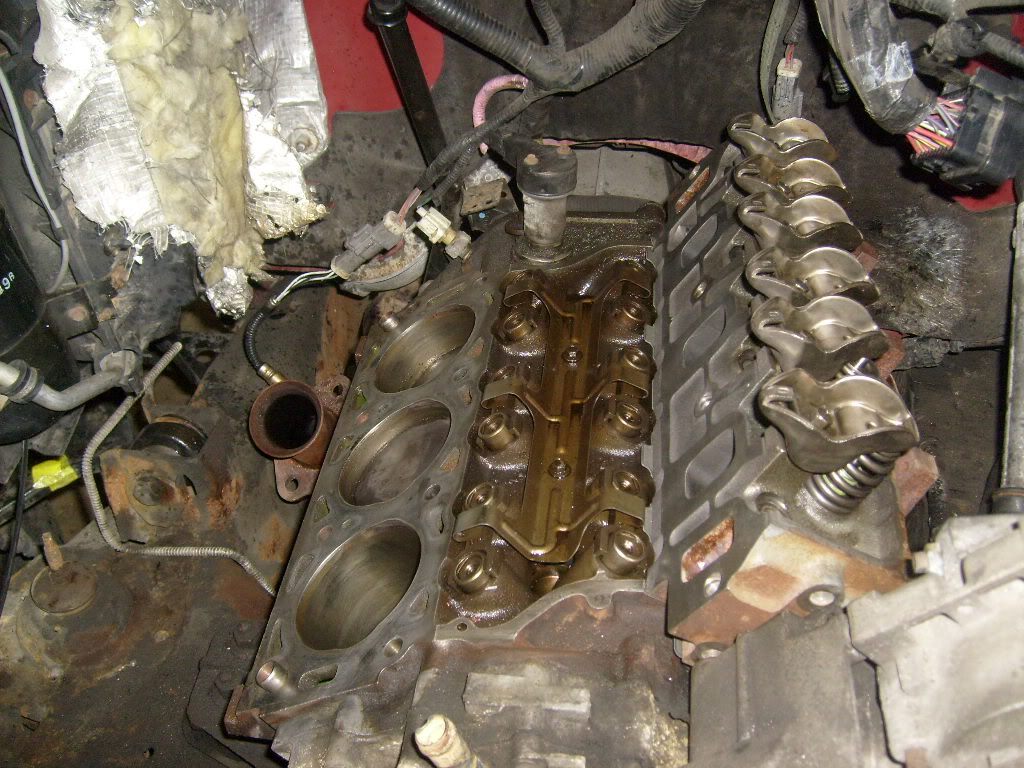

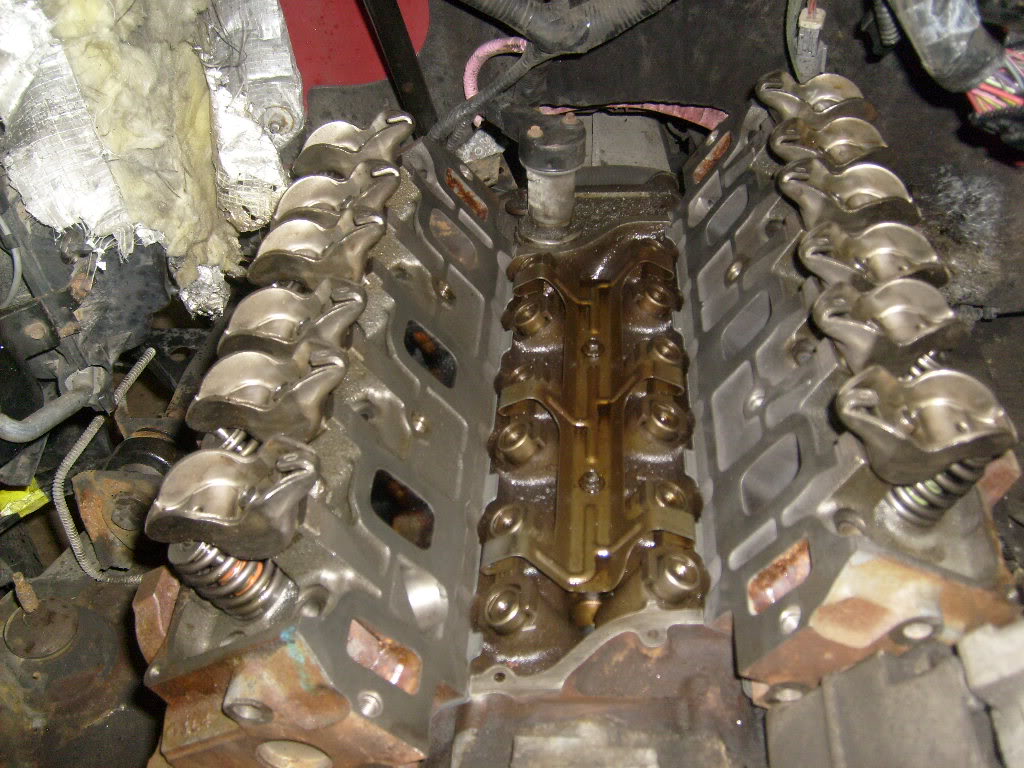

Ok started the reassembly.After cleaning the block up I sat the heads on and torqued them down...
Name:  Picture166-1.jpg
Views: 5
Size:  193.8 KB
Name:  Picture167-2.jpg
Views: 4
Size:  181.3 KB

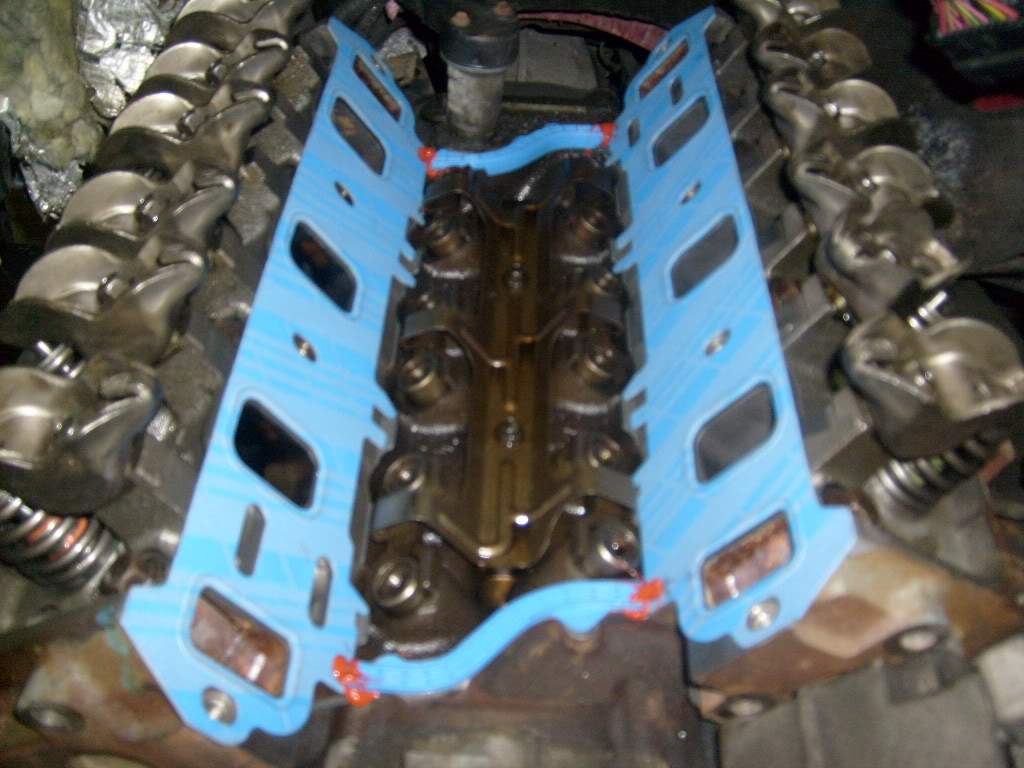

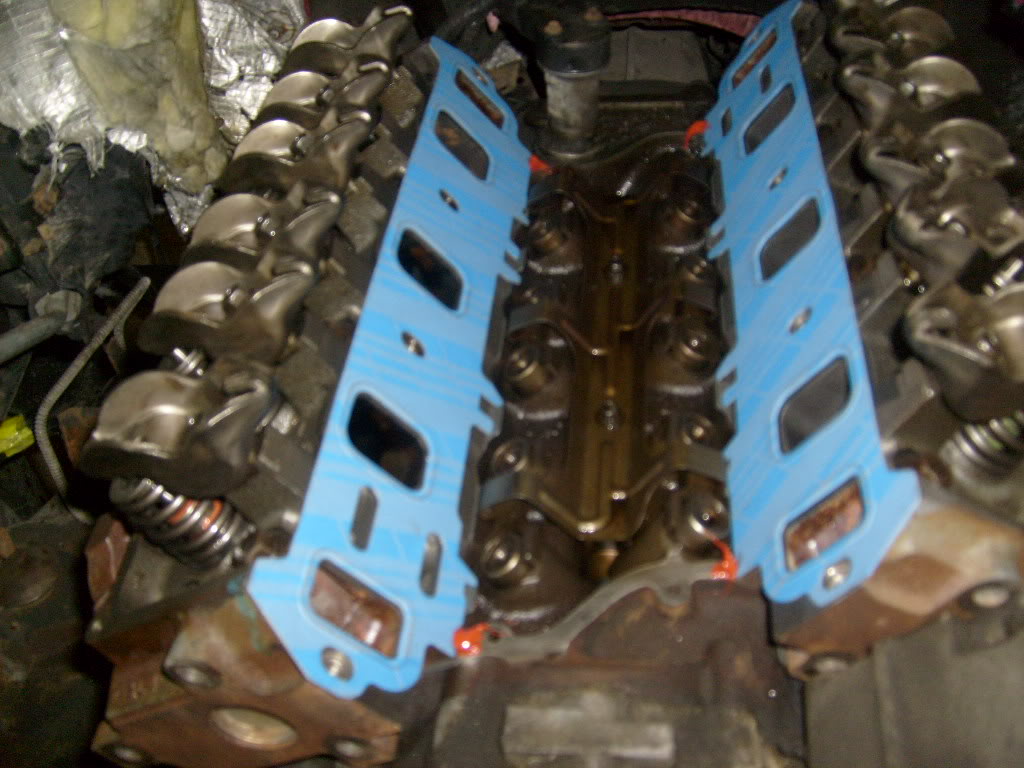

Some people use silicone...some don't...lol I do top and bottom...
Name:  Picture168-2.jpg
Views: 6
Size:  142.3 KB
Name:  Picture169-2.jpg
Views: 4
Size:  140.4 KB

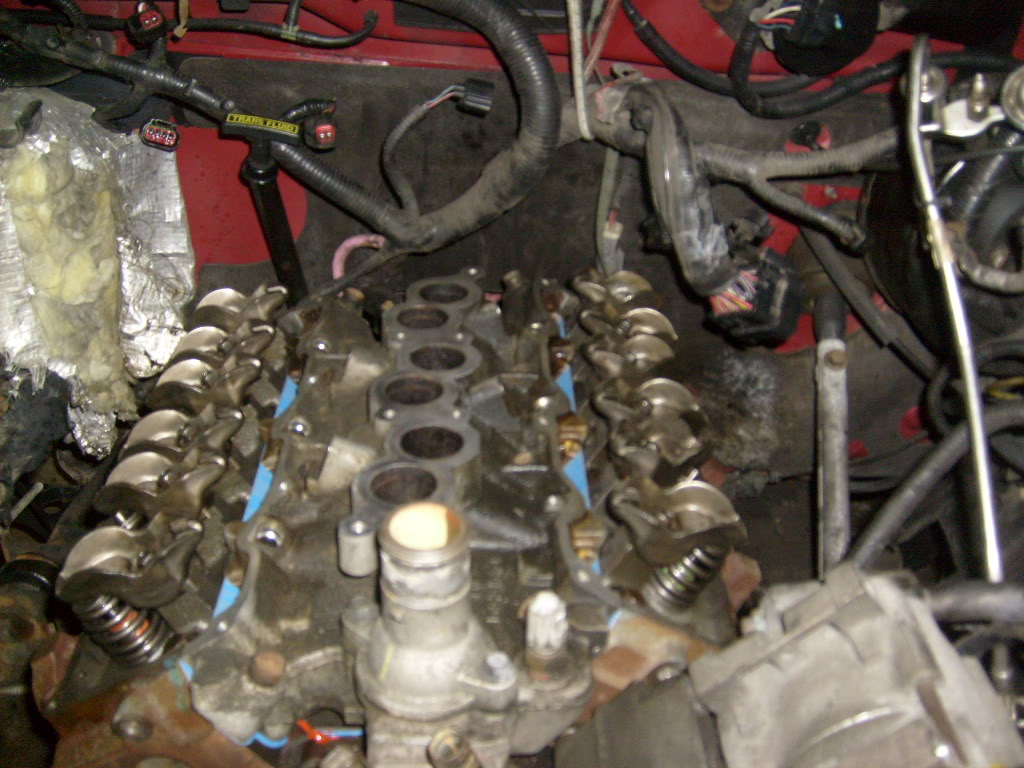

Intake
Name:  Picture170-2.jpg
Views: 4
Size:  152.3 KB

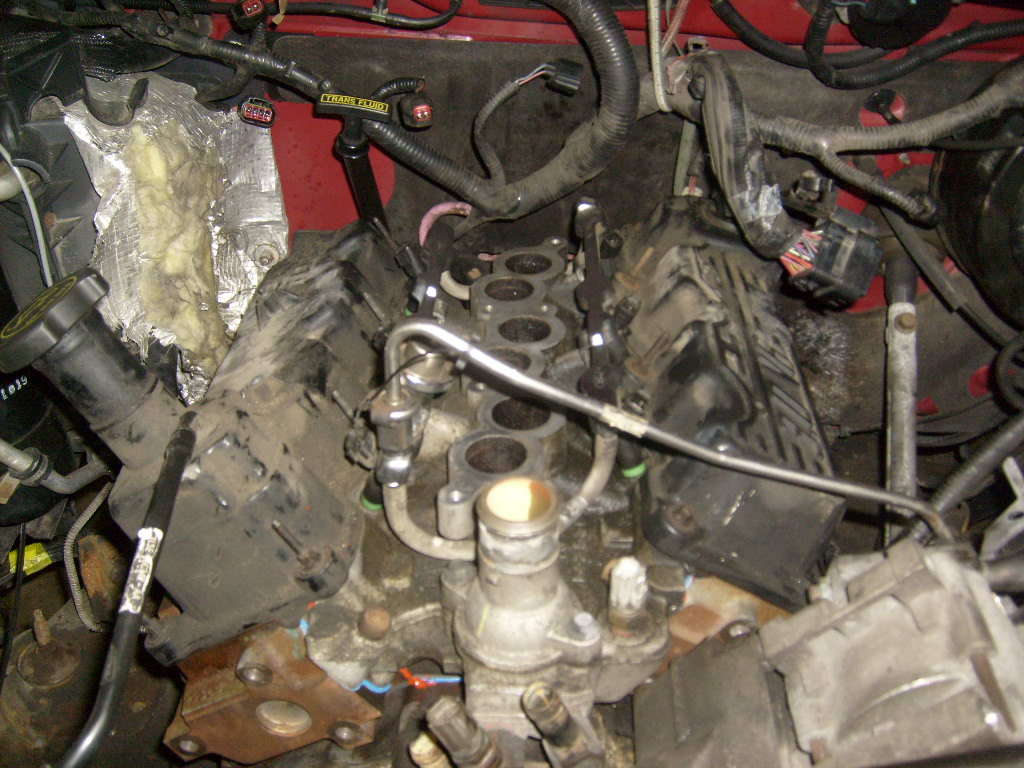

Installed the pushrods,rockers and valve covers
Name:  Picture171-2.jpg
Views: 7
Size:  168.1 KB

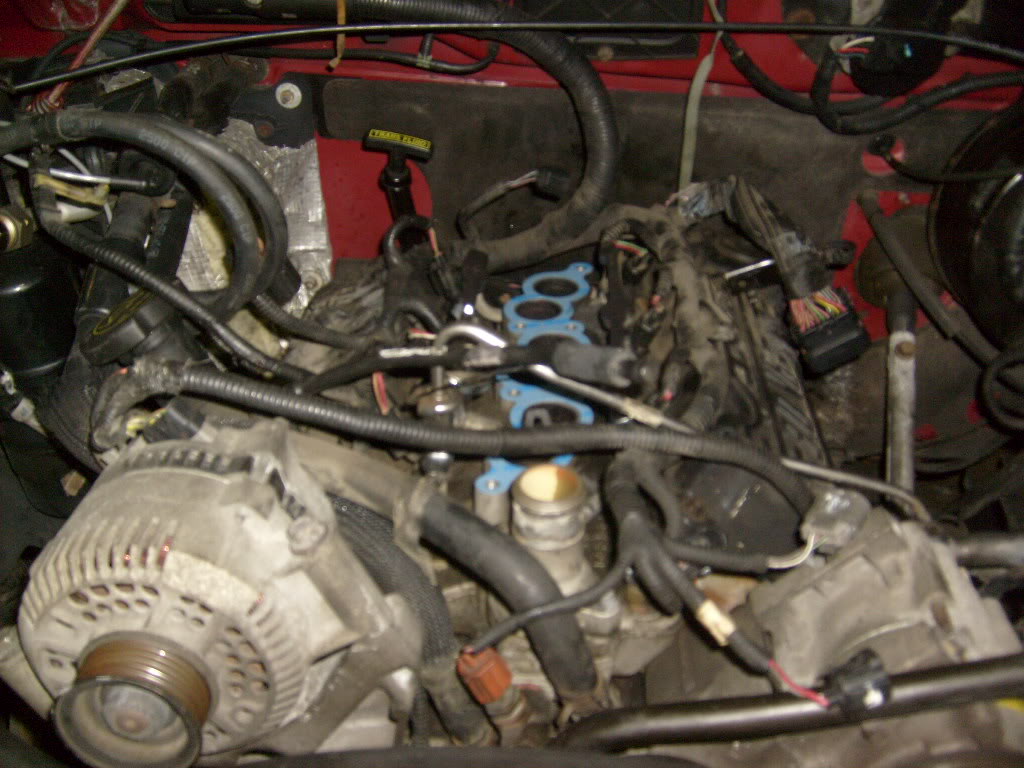

Remounted the a/c & alt mount, a/c & alt, wiring harness...
Name:  Picture172-2.jpg
Views: 8
Size:  148.4 KB
Reply With Quote
  #36
Old 04-06-2010
winks's Avatar
Member
iTrader: (5)

Join Date: May 2005
Location: Jackson, New Jersey
Posts: 4,872
You could probably do this stuff in your sleep, couldn't you? That's awesome that you've got the ability and the parts to do this.
Reply With Quote
  #37
Old 04-06-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
looking good john
Reply With Quote
  #38
Old 04-06-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Quote:
Originally Posted by winks View Post
You could probably do this stuff in your sleep, couldn't you? That's awesome that you've got the ability and the parts to do this.
Yeah in my nightmares I work on them...lol Thanks man.

Quote:
Originally Posted by vista4.0 View Post
looking good john
Thanks, I actually started it up this evening and then quit....lol
Reply With Quote
  #39
Old 04-07-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
haha sounds like something i would do.
Reply With Quote
  #40
Old 04-07-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044

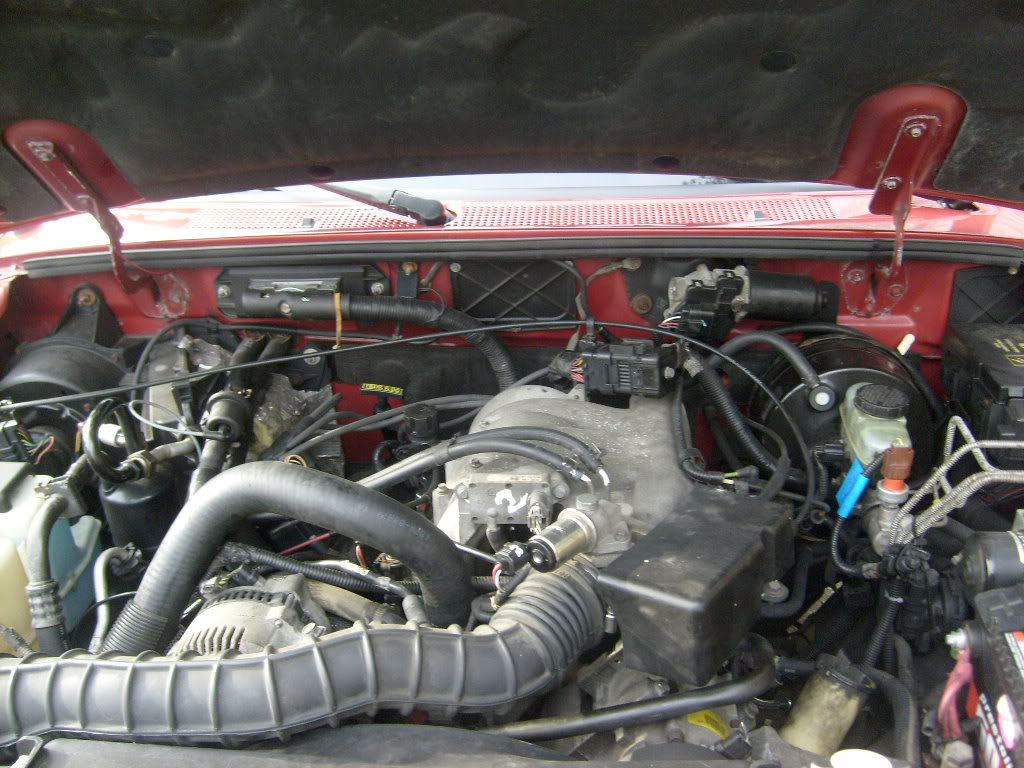

Well I drove it to work today and she ran smooth. Got a cel on the way to work for an o2 sensor, Swapped it out and reset the light, Should be mechanically done! Figured I post a final pic...
Name:  Picture173-2.jpg
Views: 2
Size:  168.4 KB
Reply With Quote
  #41
Old 04-08-2010
RedOctober's Avatar
Member

Join Date: Jun 2008
Location: Anchorage, AK
Posts: 465
Cool #20.. how many more miles do you think are in it before it really dies? would make a great commuter down south.. Crazy turnaround time on the head swap!! with a quickness you are!
Reply With Quote
  #42
Old 04-08-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
quite impressive that your capable of doing all of this just like that. wish i was just as confident to go pull apart my motor like that.
Reply With Quote
  #43
Old 04-08-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
Quote:
Originally Posted by RedOctober View Post
Cool #20.. how many more miles do you think are in it before it really dies? would make a great commuter down south.. Crazy turnaround time on the head swap!! with a quickness you are!
Well its hard to say how many miles are left on the motor but it runs good and doesn't make any noises or smoke so thats a good sign. Also I didn't notice a ridge at the top of the cylinders so the bores have very little wear. Yeah I just wanted to get it done and having spare head made it faster too.

Quote:
Originally Posted by rstangboi View Post
quite impressive that your capable of doing all of this just like that. wish i was just as confident to go pull apart my motor like that.
I used to be a muscle car guy and have rebuilt a few motors so this was an easy project for me.
Reply With Quote
  #44
Old 04-20-2010
wvcat's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
I ended up putting it on ebay...it ends thursday...
item # 150434620750
