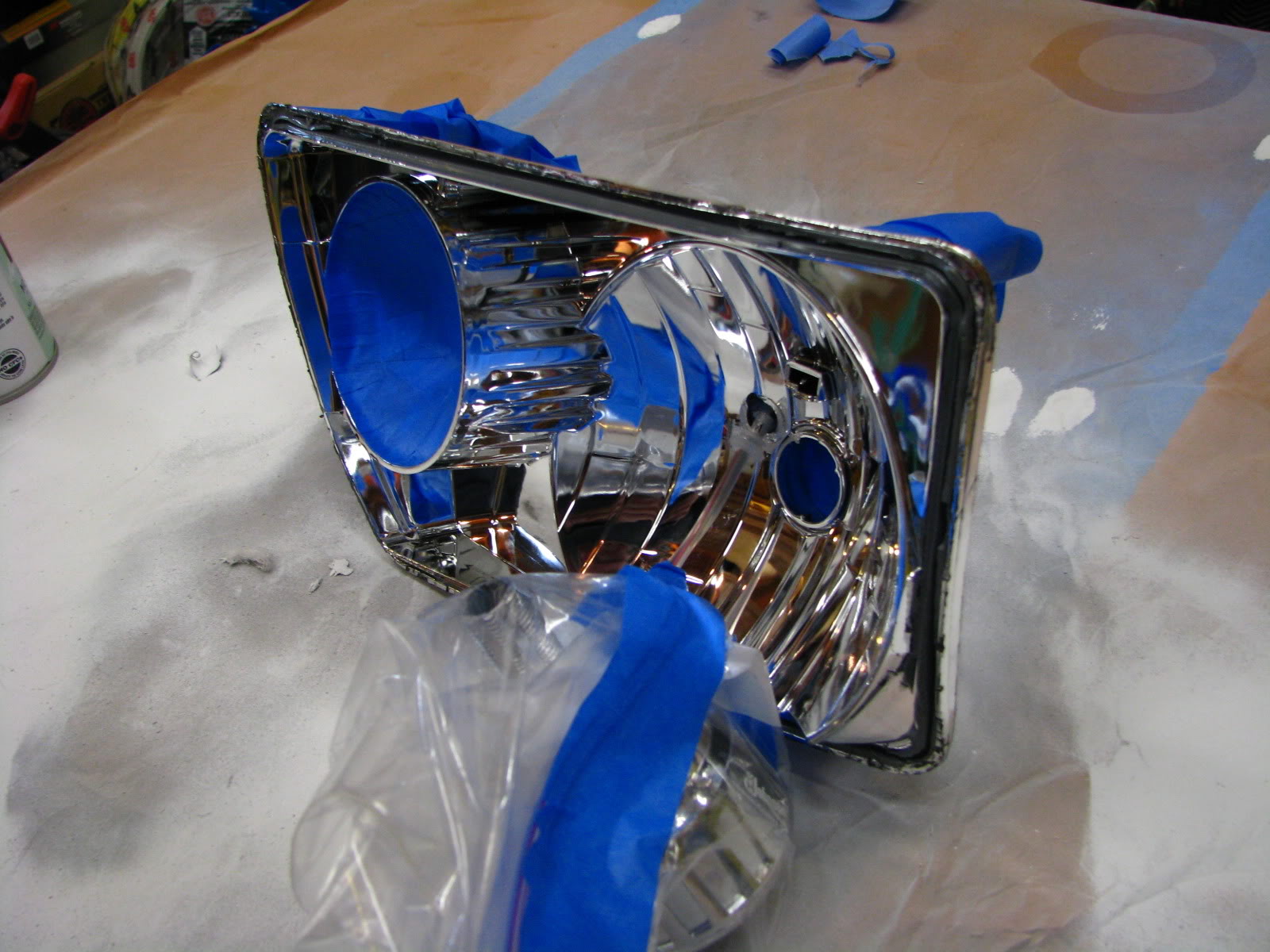

Getting some prep work done, will edit in a few pictures - working on the first headlight housing paint - picked up some Krylon Fusion Satin Black...

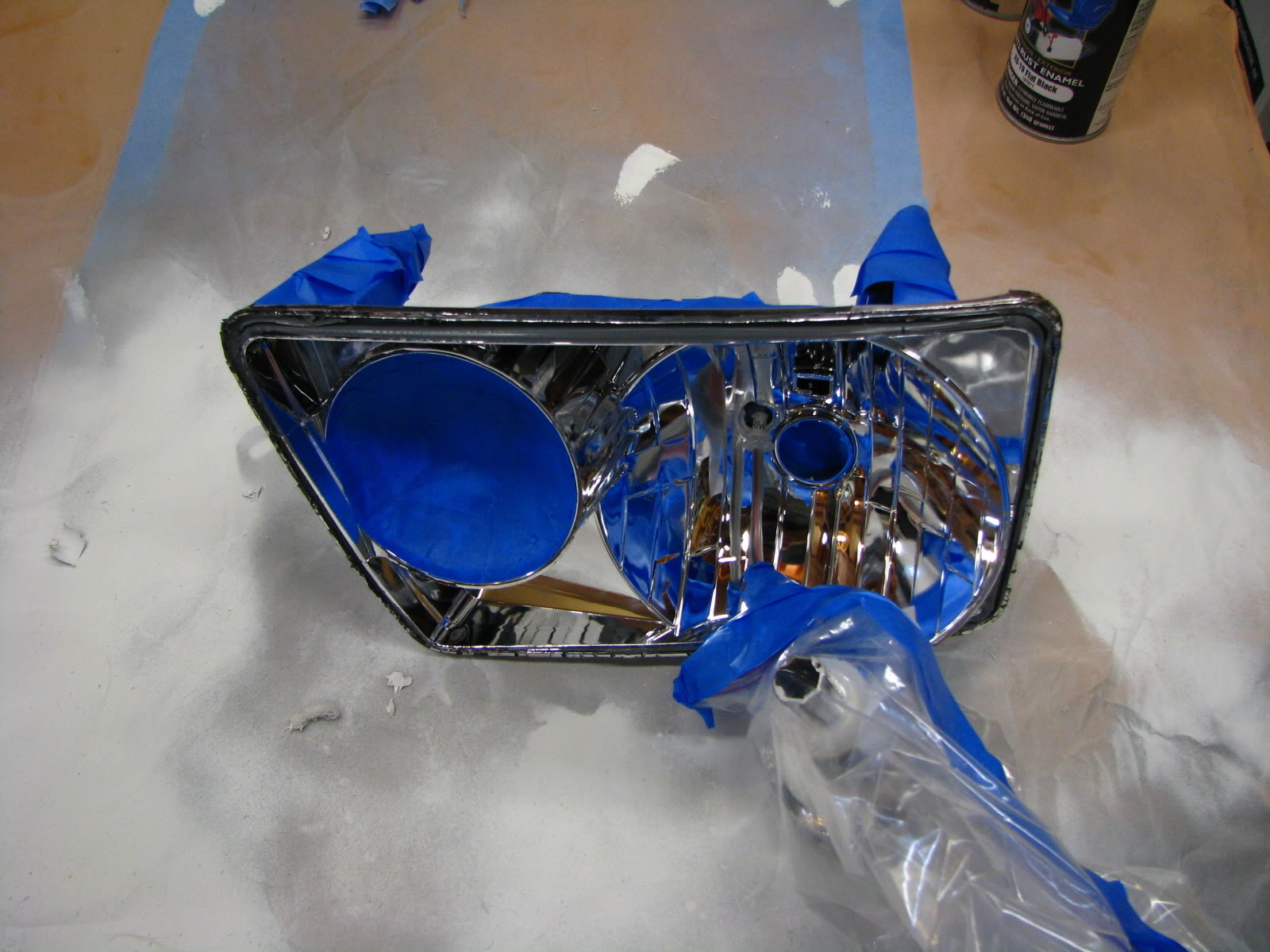

Name:  CustomHIDProjector4002.jpg
Views: 66
Size:  233.6 KB


Name:  CustomHIDProjector4004.jpg
Views: 67
Size:  231.9 KB





Heading back out to fire off a first coat..!
Reply With Quote
  #27
Old 08-25-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

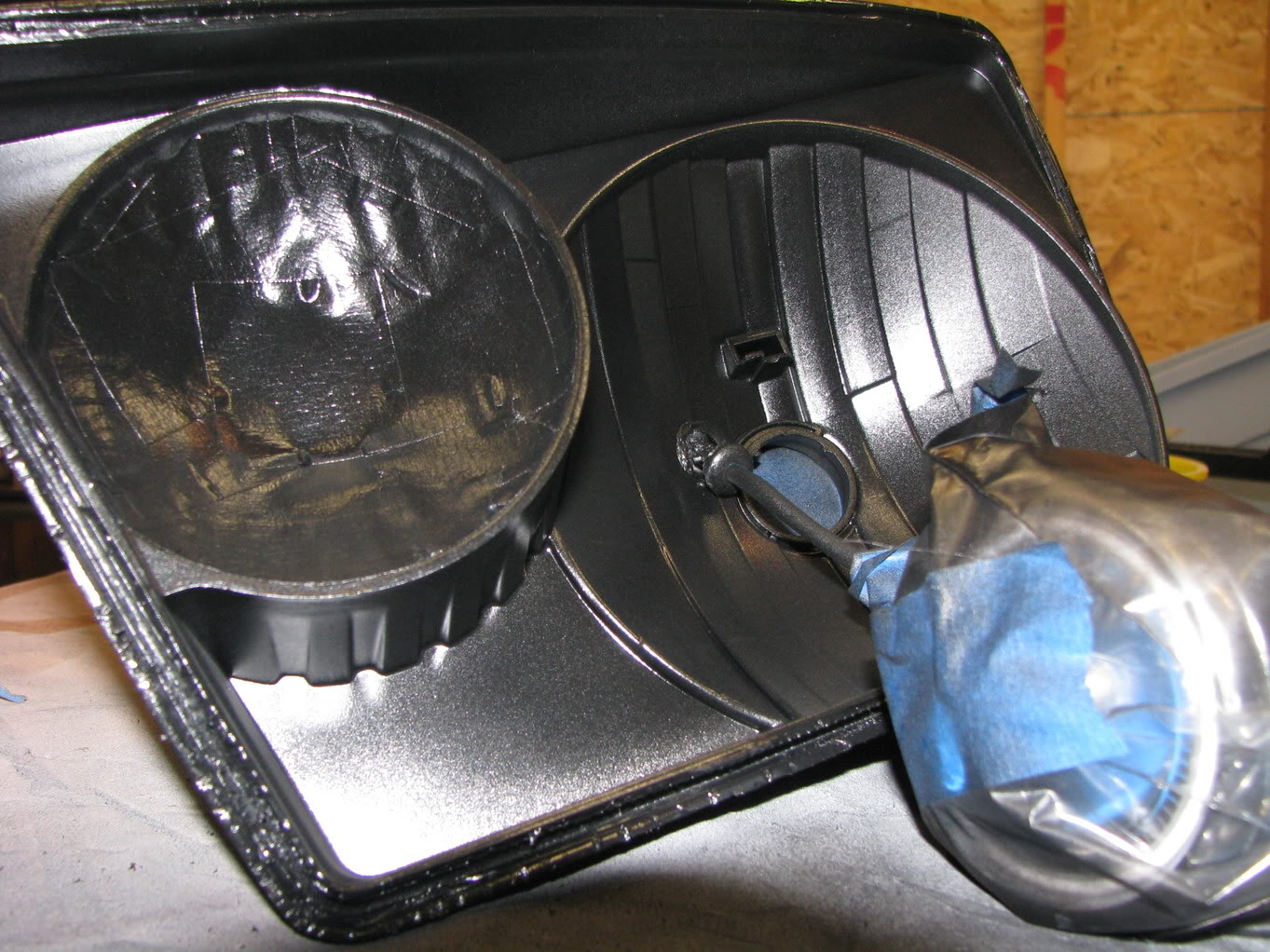

Krylon Fusion: Satin Black Several Coats (It dries extra fast, so you can touch up almost non-stop)



Name:  CustomHIDProjector5003.jpg
Views: 65
Size:  273.2 KB

Name:  CustomHIDProjector5005.jpg
Views: 64
Size:  283.1 KB
Reply With Quote
  #28
Old 08-25-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
NICE!! If it were me, I'd set the projo deeper in the headlamp housing. Cut that hole that the stock 9007 goes into, and countersink that projo some. Possible cutting of the rad core support may be needed and I wouldn't hesitate on whipping out the dremel. I want a stock look to it, so I'd be leaving that area chrome around the projo, and possibly machine some alum trim rings then polish 'em out to a chrome like shine. From a distance, it'll look like a headlight mod, but get closer, you'll see the projo. Just my thoughts.
Reply With Quote
  #29
Old 08-25-2009
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Looks really good Mike!
Reply With Quote
  #30
Old 08-25-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by Fx4wannabe01 View Post
NICE!! If it were me, I'd set the projo deeper in the headlamp housing. Cut that hole that the stock 9007 goes into, and countersink that projo some. Possible cutting of the rad core support may be needed and I wouldn't hesitate on whipping out the dremel. I want a stock look to it, so I'd be leaving that area chrome around the projo, and possibly machine some alum trim rings then polish 'em out to a chrome like shine. From a distance, it'll look like a headlight mod, but get closer, you'll see the projo. Just my thoughts.
That's time I don't feel like spending on it honestly - laughs-


The part with dremeling it to set it back further - you have to realize there isnt much room behind the housign itself - I coudl cut into the truck a bit.. but to get the housing back in further would take some JB Weld - and then trying to make taht look pretty would strt making things look funky - PLUS you have to line it up correctly, using the pins for the 9007 holes puts it dead center perfect - you would have to spend a serious amount of time getting it lined up while it dries - and make sure as heck it doesnt go crosseyed or out to the side.. extra tough to do



You'll like what happens next.. next set of pictures coming through! .. darn photobucket..
Reply With Quote
  #31
Old 08-25-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

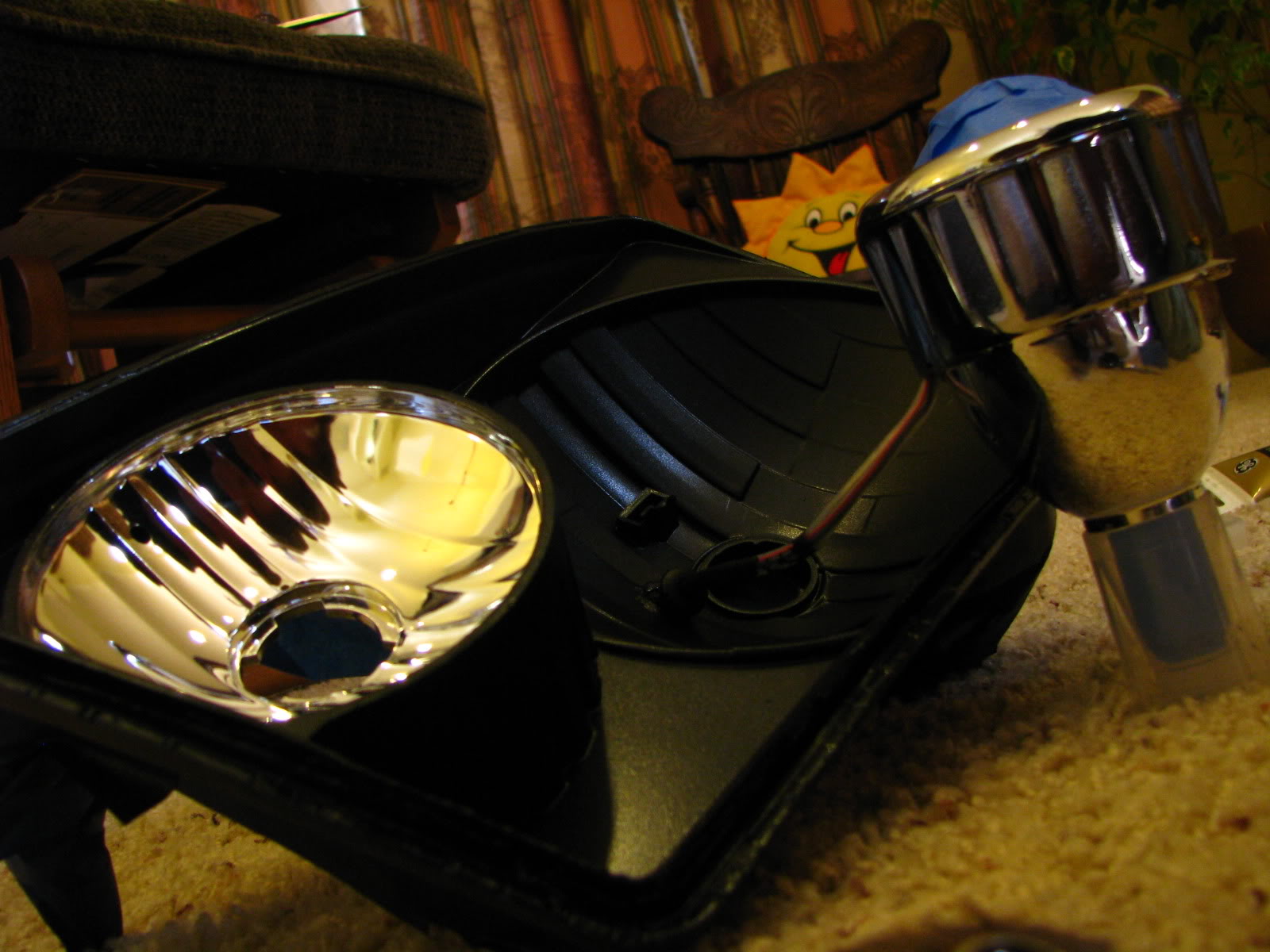

Name:  CustomHIDProjector5007.jpg
Views: 63
Size:  191.9 KB

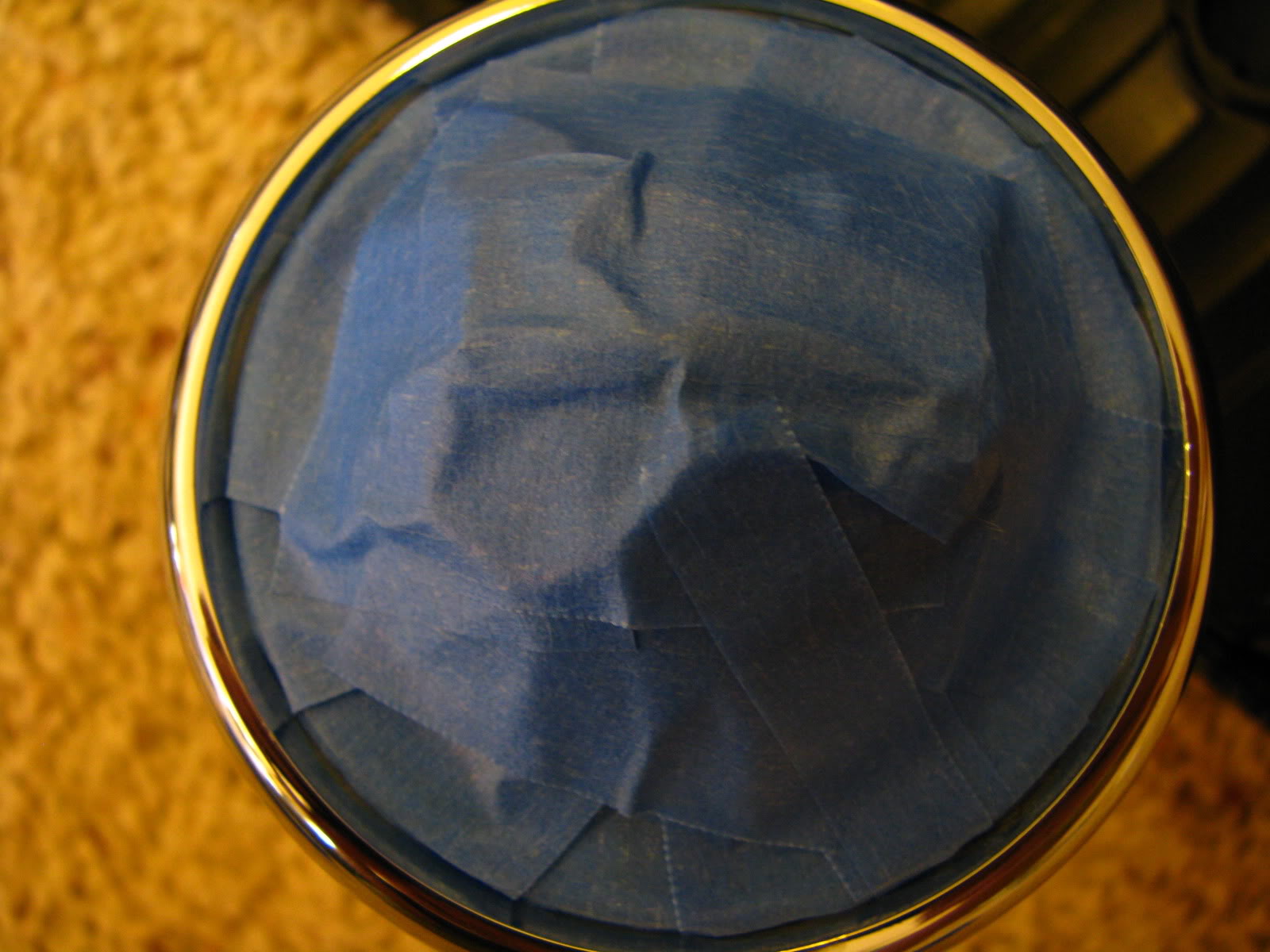

This = PITA!!

Name:  CustomHIDProjector5009.jpg
Views: 65
Size:  184.0 KB




Working as fast as I possibly can.. I woudl really like to have these done by tonight - but I wont be putting them on my truck until I get it 100% sealed up and properly cured so I dont ever have to touch them again, lol

Last edited by WowMike2001; 08-25-2009 at 05:34 PM.
Reply With Quote
  #32
Old 08-25-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

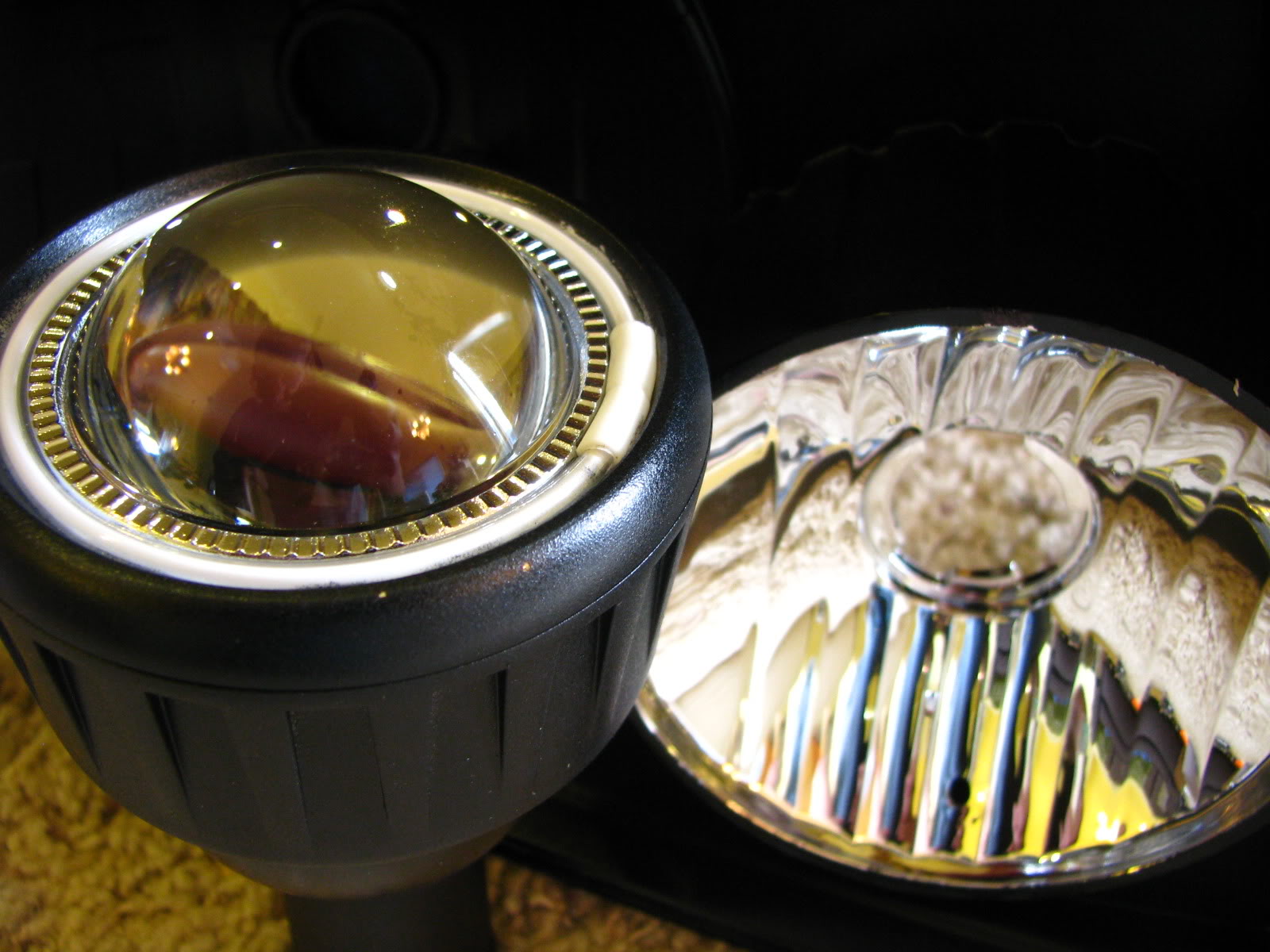

Name:  CustomHIDProjector5013.jpg
Views: 65
Size:  218.9 KB
Reply With Quote
  #33
Old 08-25-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
So let me get this straight.....this projo kit you got is specifically made for a 9007 bulb? Am I understanding this right?
Reply With Quote
  #34
Old 08-25-2009
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Mike where did you get the projectors?
Reply With Quote
  #35
Old 08-25-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
That is a nice cutoff. I can't wait too see them done and get some actual night shots.

x4534534234 For a link to where you picked up this projector kit.
Reply With Quote
  #36
Old 08-25-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Reply With Quote
  #37
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Oh gosh, so sorry about that people - Gorge.net (my internet provider) had a huge problem with a switch out in portland and my service went down around 4pm, didnt come up again until sometime this morning.



I got them finished up, they are sitting upstairs with the glue curing.. uno momento whiel I post up shots of what I was doing duing it, and the finished product :-)





Thats it exactly, great kit for the money! Although, I dont think I payed that much.. let me check on my order, find out what my total was.




Edit:
I bought my own kit for 89.99 + free shipping.. through hiking1978's store http://stores.shop.ebay.com/Xeaz__W0QQ_armrsZ1

Last edited by WowMike2001; 08-26-2009 at 01:14 PM.
Reply With Quote
  #38
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by Fx4wannabe01 View Post
So let me get this straight.....this projo kit you got is specifically made for a 9007 bulb? Am I understanding this right?
The kit is designed to fit into a specific bulb slot - the actual bulb itself is (I think) an H3 bulb, I need to take a look at some pictures first - Then has a screw backing to tighten it into the 9007/9004 slot.
Reply With Quote
  #39
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

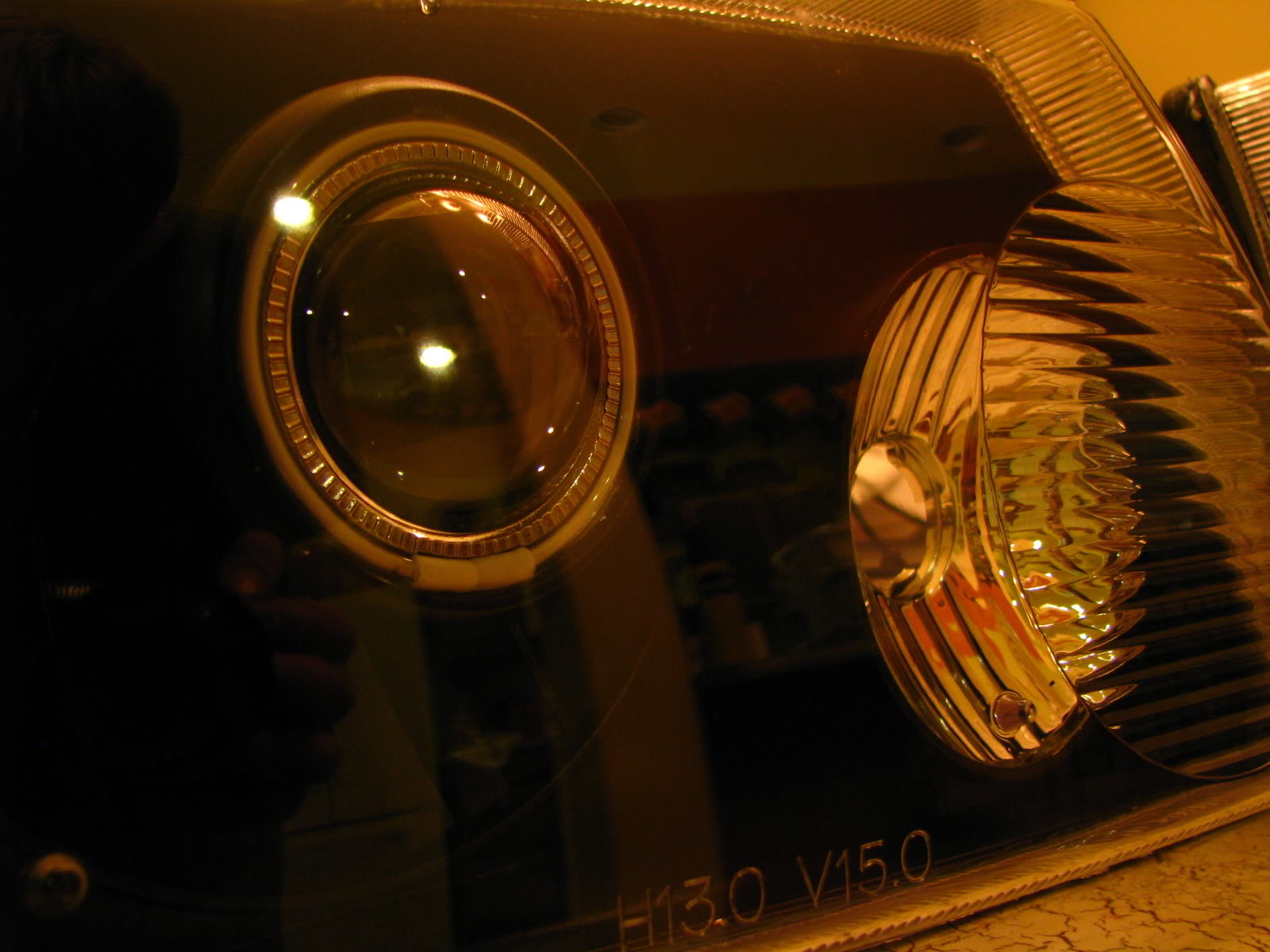

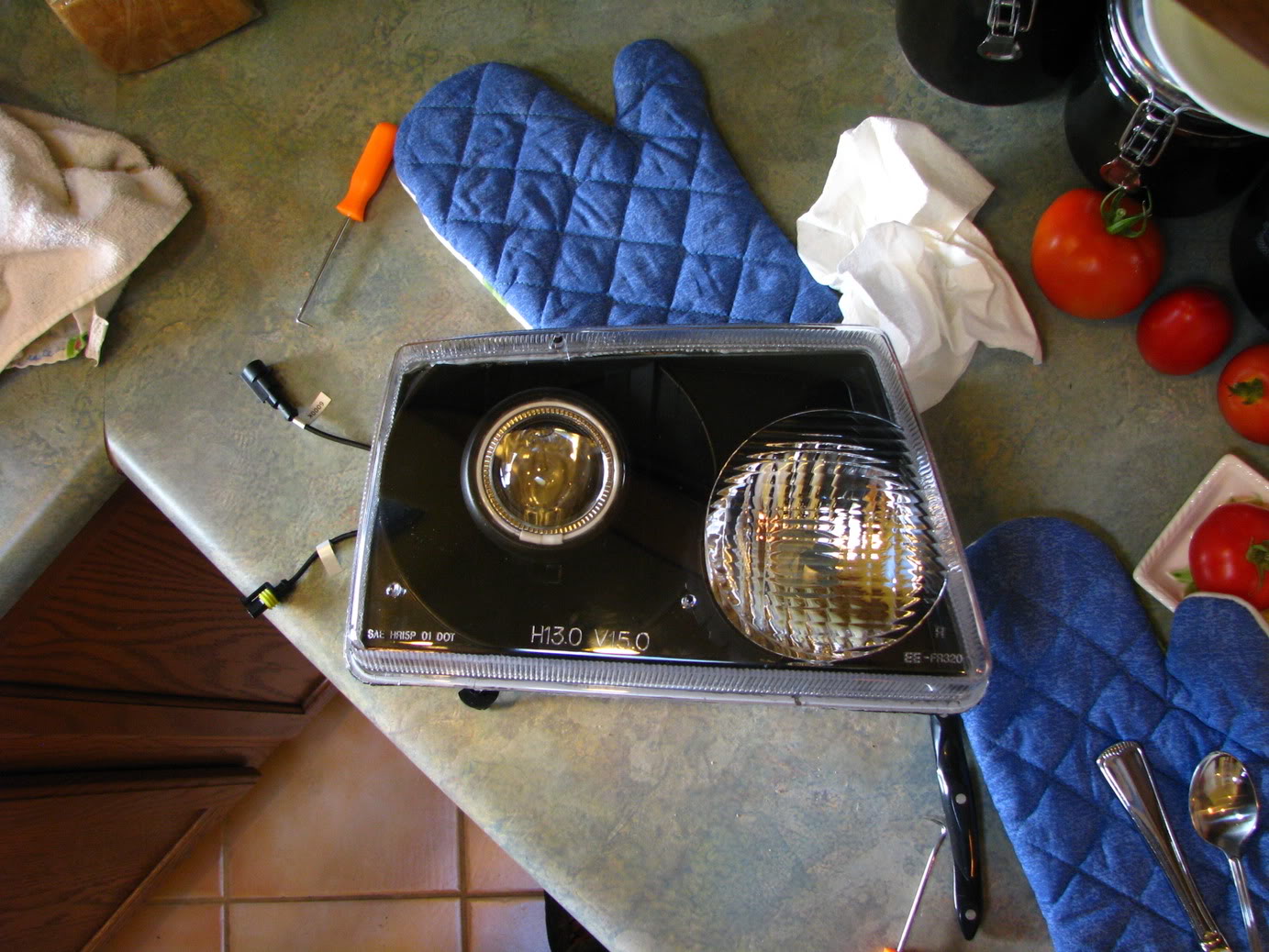

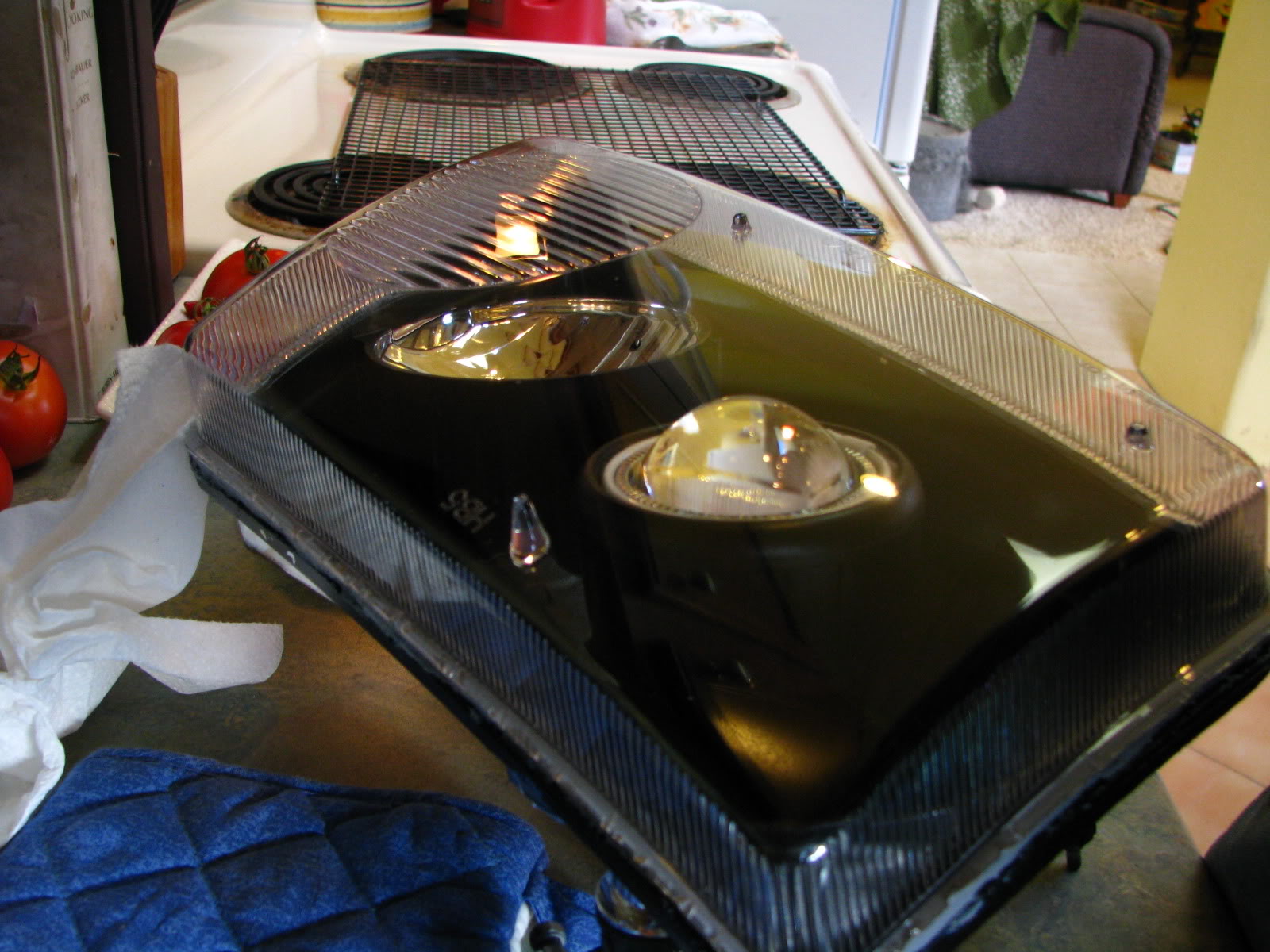

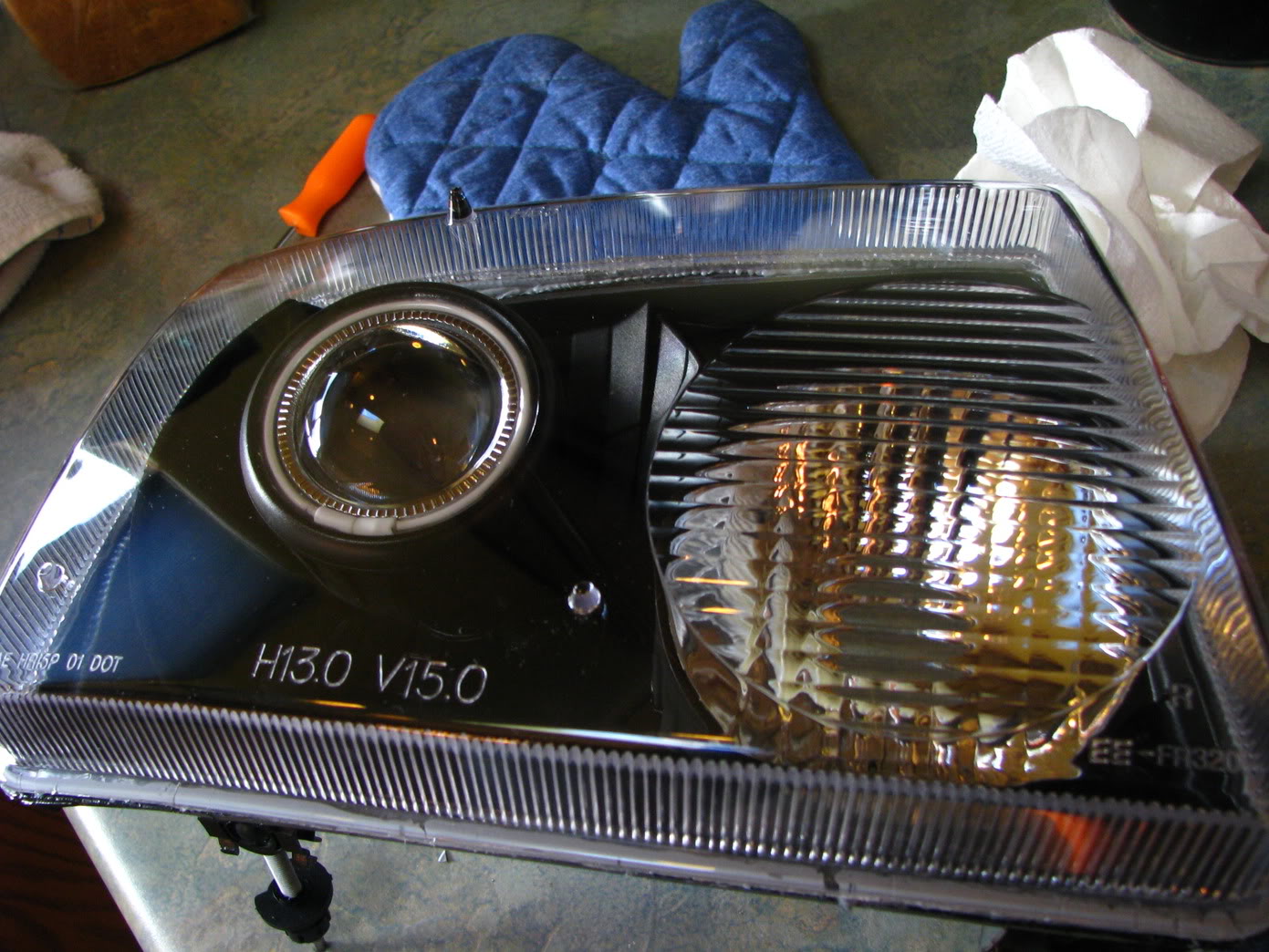

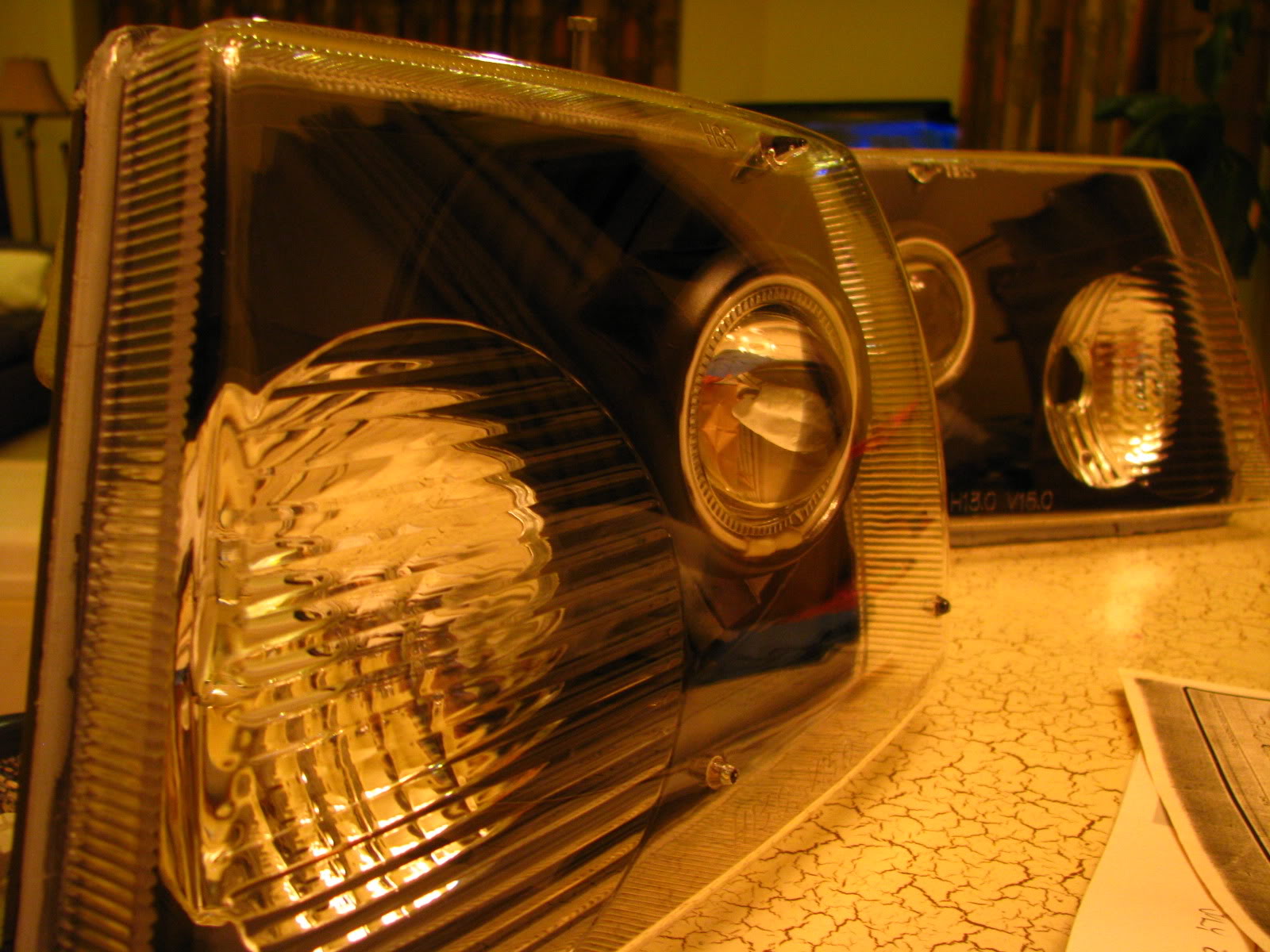

After taking the supplied heavy duty glue - I finally mounted eerything back up together after it was all painted.. took me about 4-5 hours or so after I finished the first one, to finish the second one. Lots of little pieces needing blacked out with the Krylon Fusion Satin Black paint, and after each one is mounted in the housing - it has to be tested to make sure it fully works.



Name:  CustomHIDProjector7005.jpg
Views: 64
Size:  252.3 KB

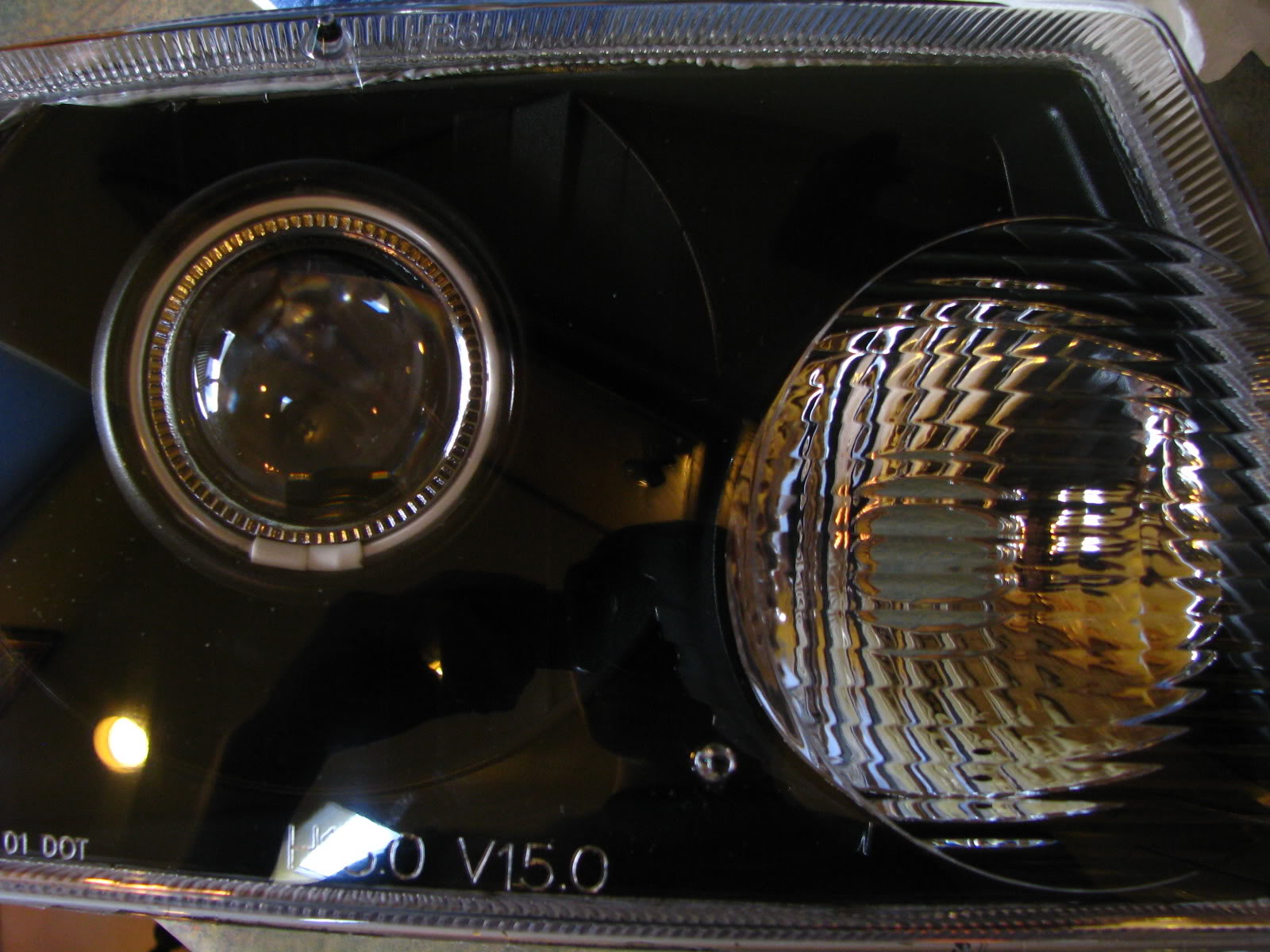

Name:  CustomHIDProjector7004.jpg
Views: 64
Size:  246.9 KB

Name:  CustomHIDProjector7001.jpg
Views: 64
Size:  257.3 KB

Name:  CustomHIDProjector7003.jpg
Views: 65
Size:  248.0 KB

Name:  CustomHIDProjector7007.jpg
Views: 64
Size:  261.5 KB

Name:  CustomHIDProjector7008.jpg
Views: 65
Size:  191.6 KB

Name:  CustomHIDProjector7009.jpg
Views: 63
Size:  261.0 KB
Reply With Quote
  #40
Old 08-26-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Those look sweet man.
Reply With Quote
  #41
Old 08-26-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Those look awesome man.
Reply With Quote
  #42
Old 08-26-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
They turned out great! Can't wait to see some installed beam shots!
Reply With Quote
  #43
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by whippersnapper02 View Post
Those look sweet man.
Quote:
Originally Posted by RangerNDog View Post
Those look awesome man.
Quote:
Originally Posted by KLC View Post
They turned out great! Can't wait to see some installed beam shots!
Thank ya! Sadly I work at 3pm, but Ill bring my camera with me, and when I get these installed take some pictures either at work, or on the way back (If I can remember to)


Trying to find my dang electrical tape.. I have like 50 rolls of that stuff, and they are never where you need them.. ugh!
Reply With Quote
  #44
Old 08-26-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Those look awesome!! They blow Ty's out the water!!




Thats what I thought....the projo 'housing' slides into a 9007/9004 headlamp housing bulb 'slot'. Pretty neato!

Any thoughts of doing the halo around the signal? Too late now. lol.
Reply With Quote
  #45
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by Fx4wannabe01 View Post
Those look awesome!! They blow Ty's out the water!!




Thats what I thought....the projo 'housing' slides into a 9007/9004 headlamp housing bulb 'slot'. Pretty neato!

Any thoughts of doing the halo around the signal? Too late now. lol.


Its a CFL lamp - not an LED - so probably not best for it to keep flashing on and off all the time :-(

I tested by applying a 9v current (Battery) to it, and as figured, its based on a full 12v circuit, only 3/4ths of it lit up, the upper 1/4th was off.


So - no can do on the turn signal setup :-(


BTW - Next post = Ownage :-D (As soon as photobucket hurries up!)
Reply With Quote
  #46
Old 08-26-2009
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Wow the first picture you posted of the "one eyed dog" made me cringe... awful.

It's really amazing how much difference some black paint makes! Those look fantastic!
Reply With Quote
  #47
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

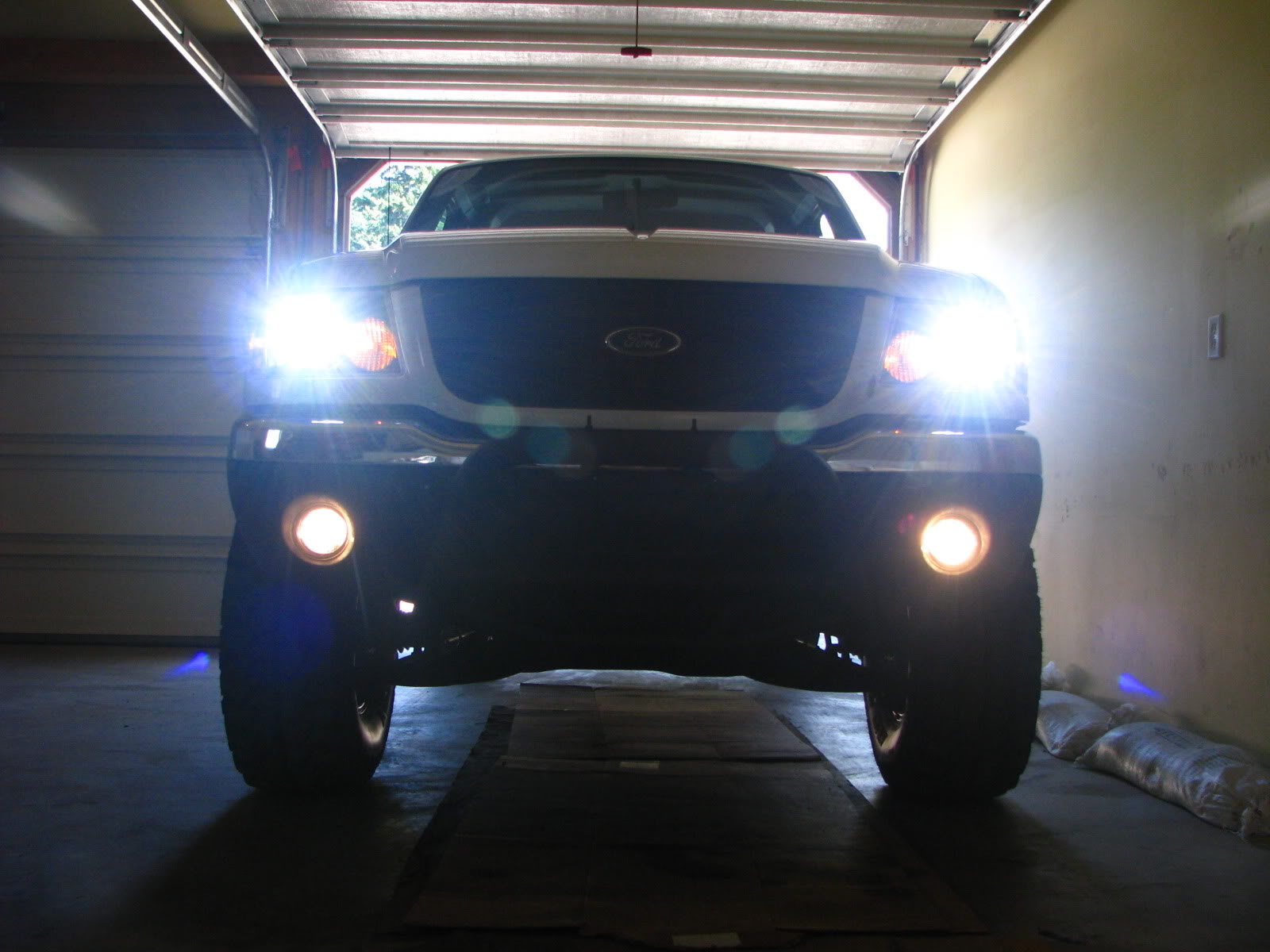

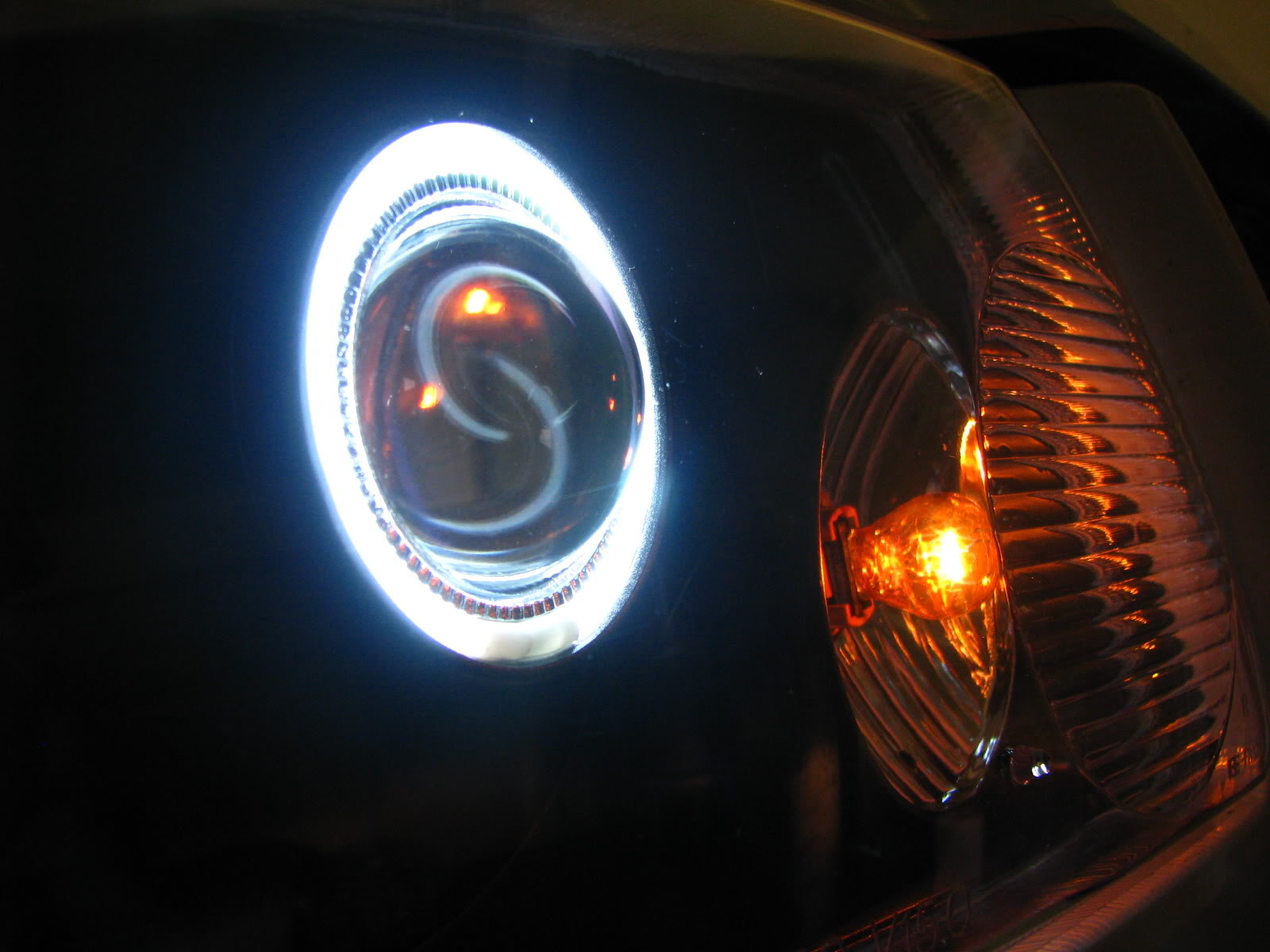

Just Angel Eyes + Running Lights:

Name:  CustomHIDProjectorDONE002.jpg
Views: 66
Size:  163.0 KB

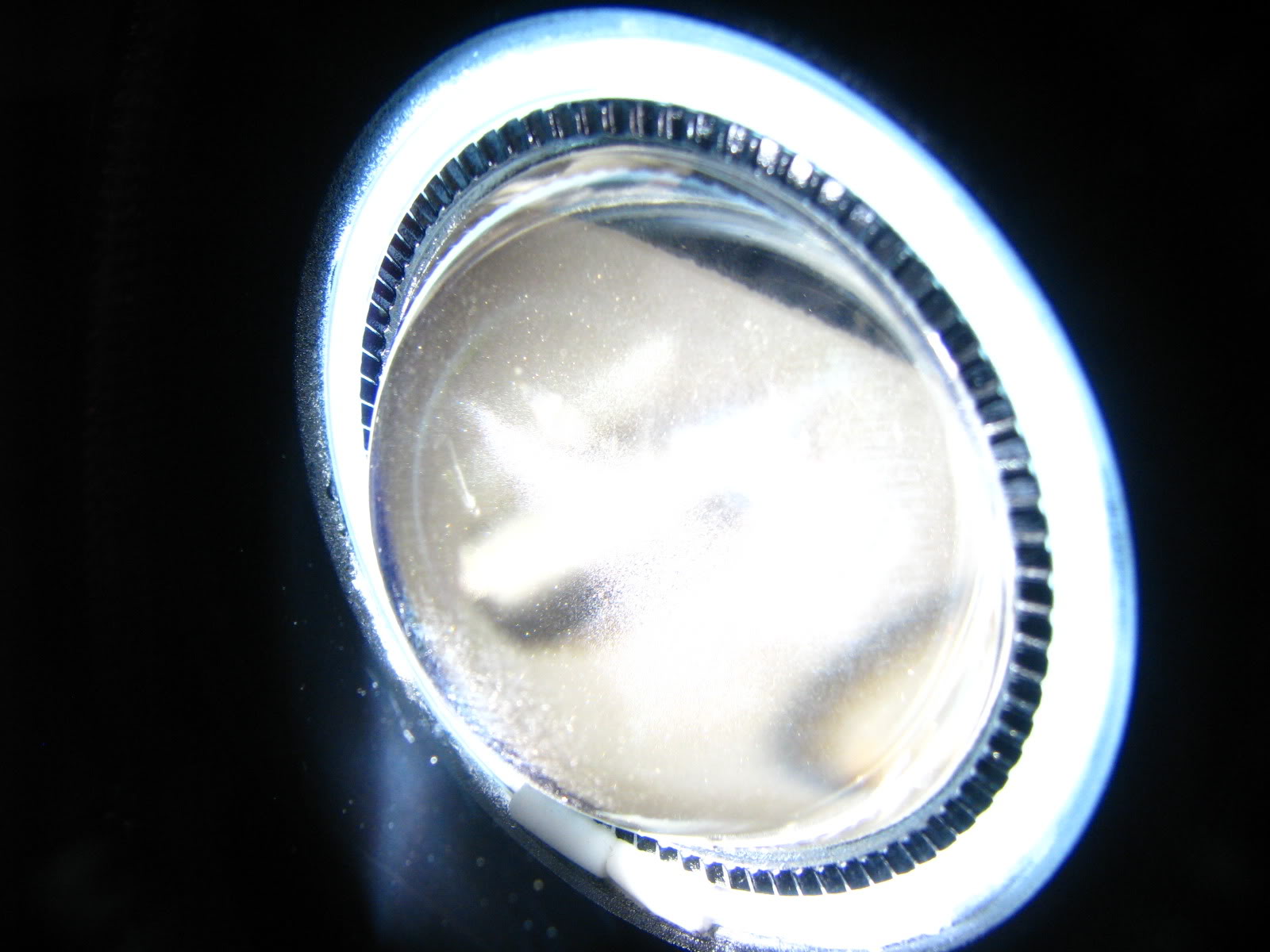

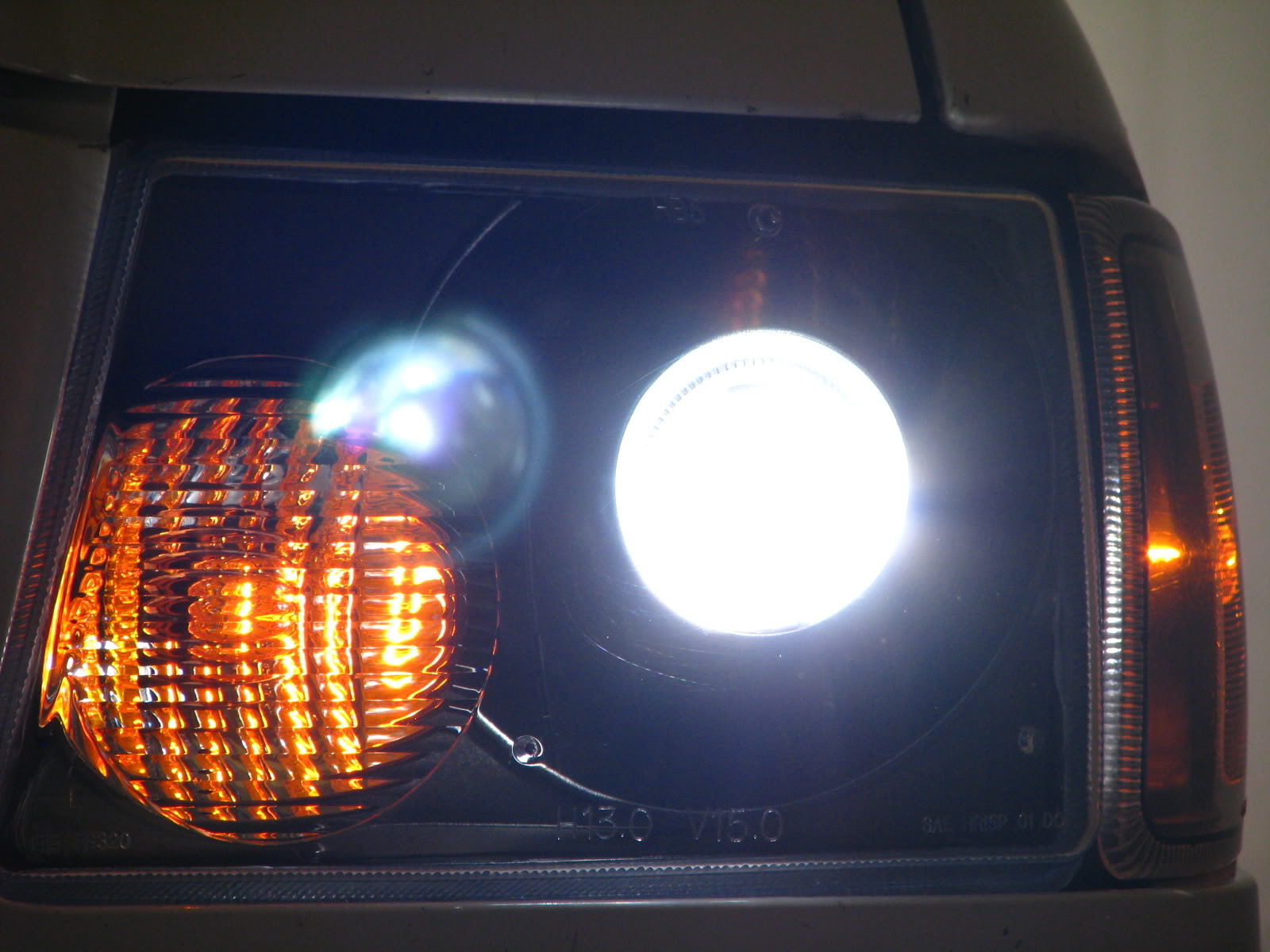

Angel Eyes + Bulb All On:

Name:  CustomHIDProjectorDONE010.jpg
Views: 64
Size:  159.0 KB

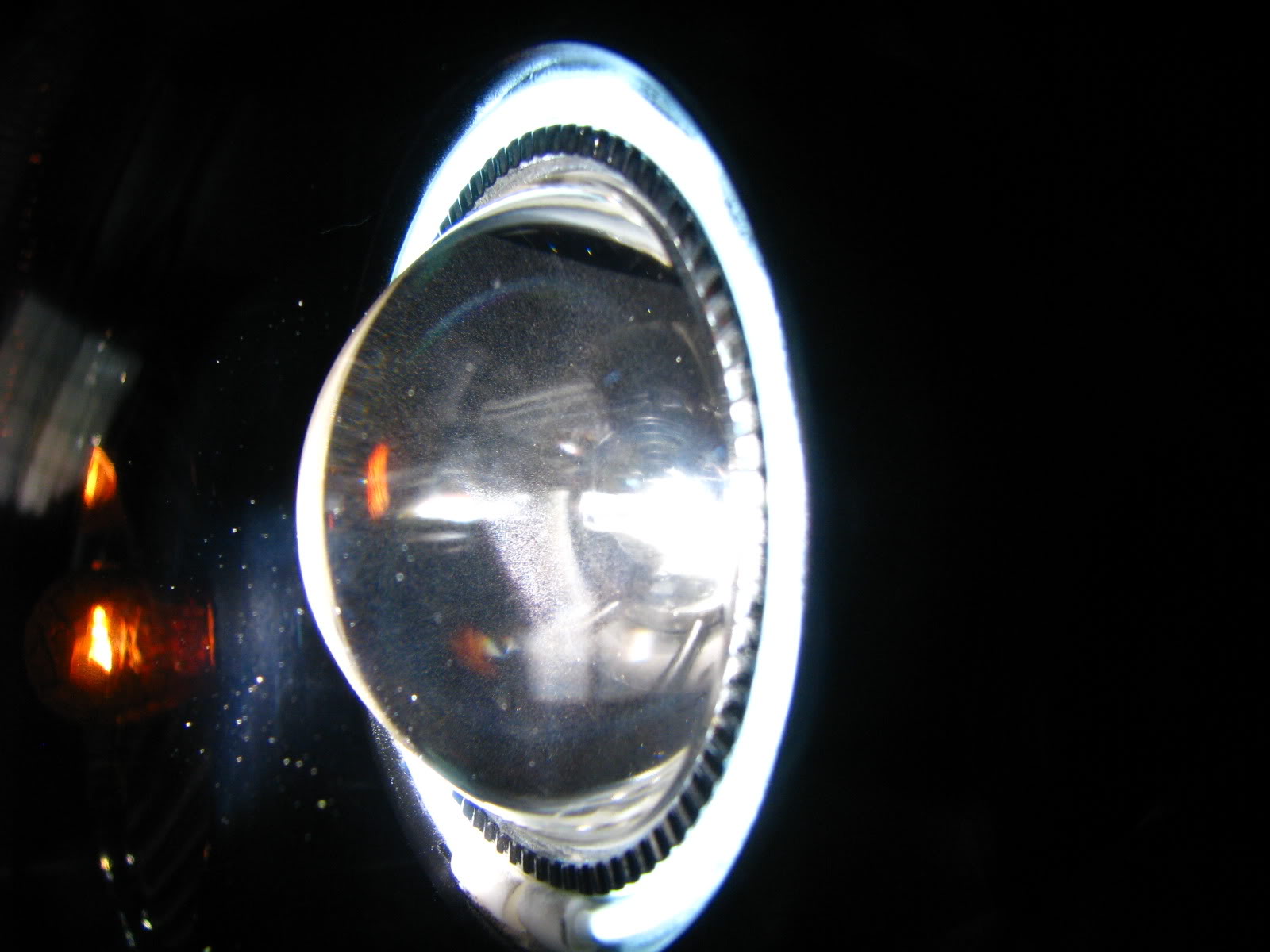

Name:  CustomHIDProjectorDONE009.jpg
Views: 65
Size:  143.9 KB

Name:  CustomHIDProjectorDONE008.jpg
Views: 66
Size:  220.1 KB






Standing Back:

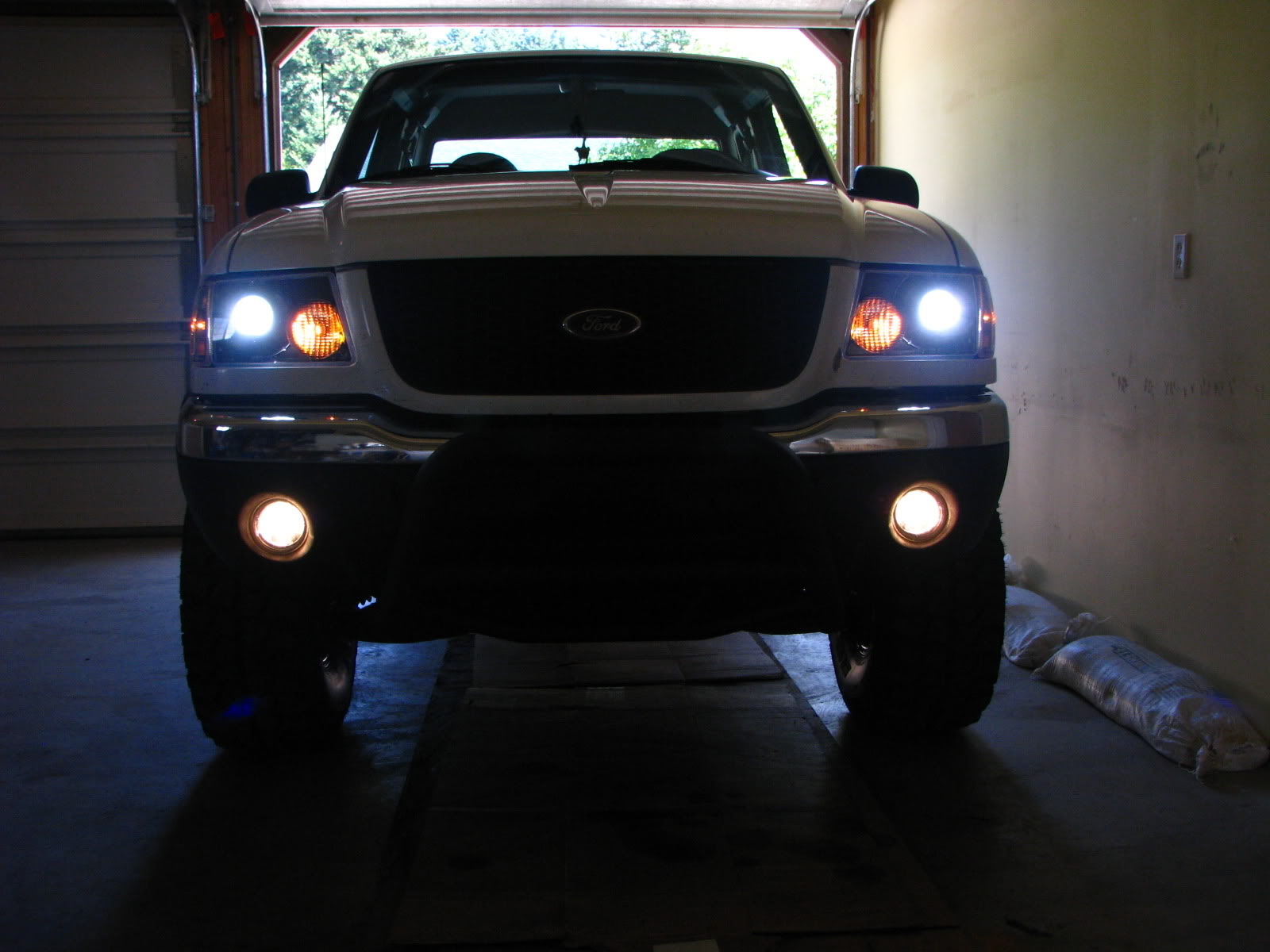

Name:  CustomHIDProjectorDONE007.jpg
Views: 65
Size:  161.0 KB


Name:  CustomHIDProjectorDONE006.jpg
Views: 66
Size:  172.3 KB

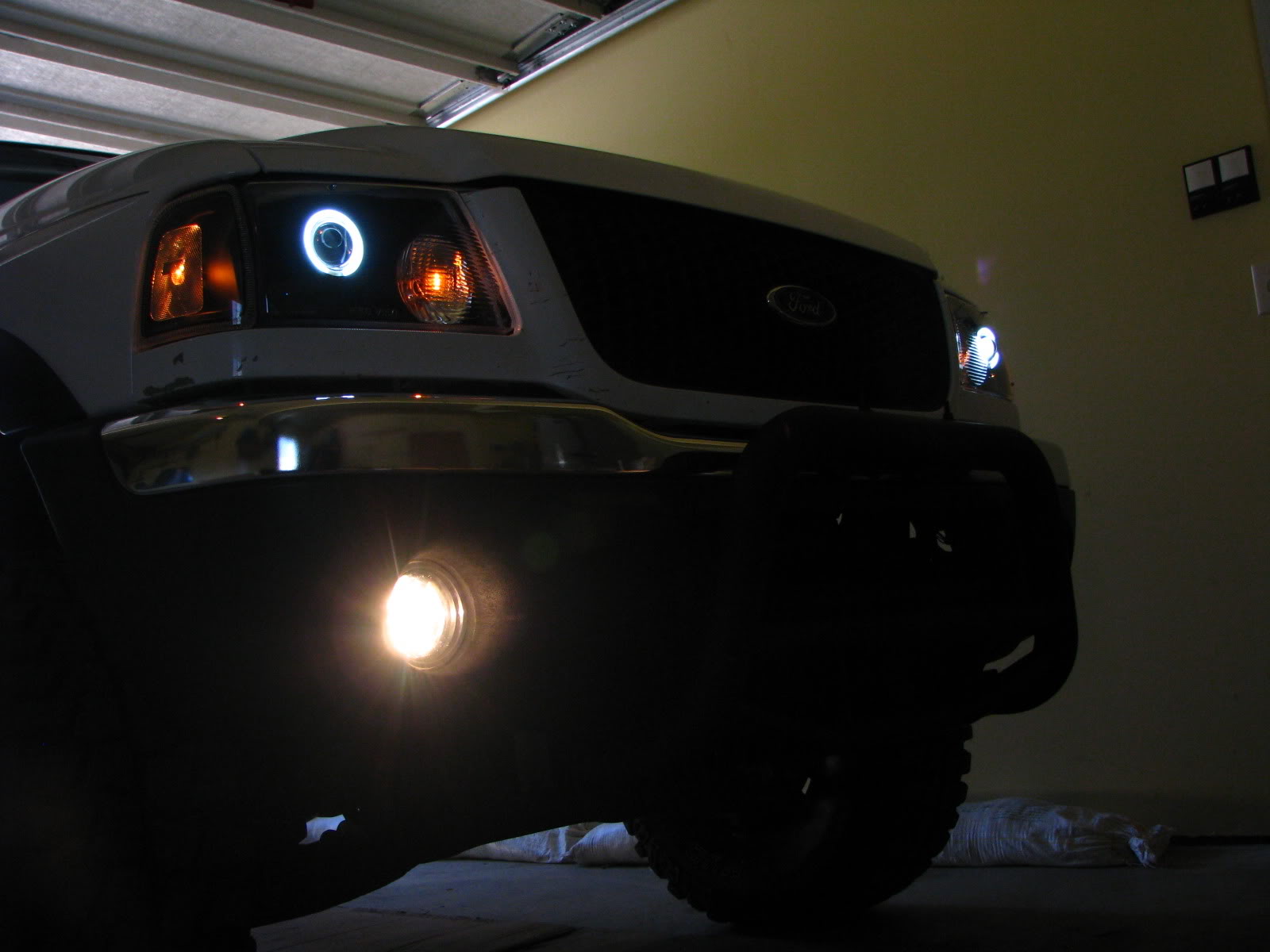

Name:  CustomHIDProjectorDONE003.jpg
Views: 63
Size:  125.4 KB






Sex: .. Thats all.. just Sex.

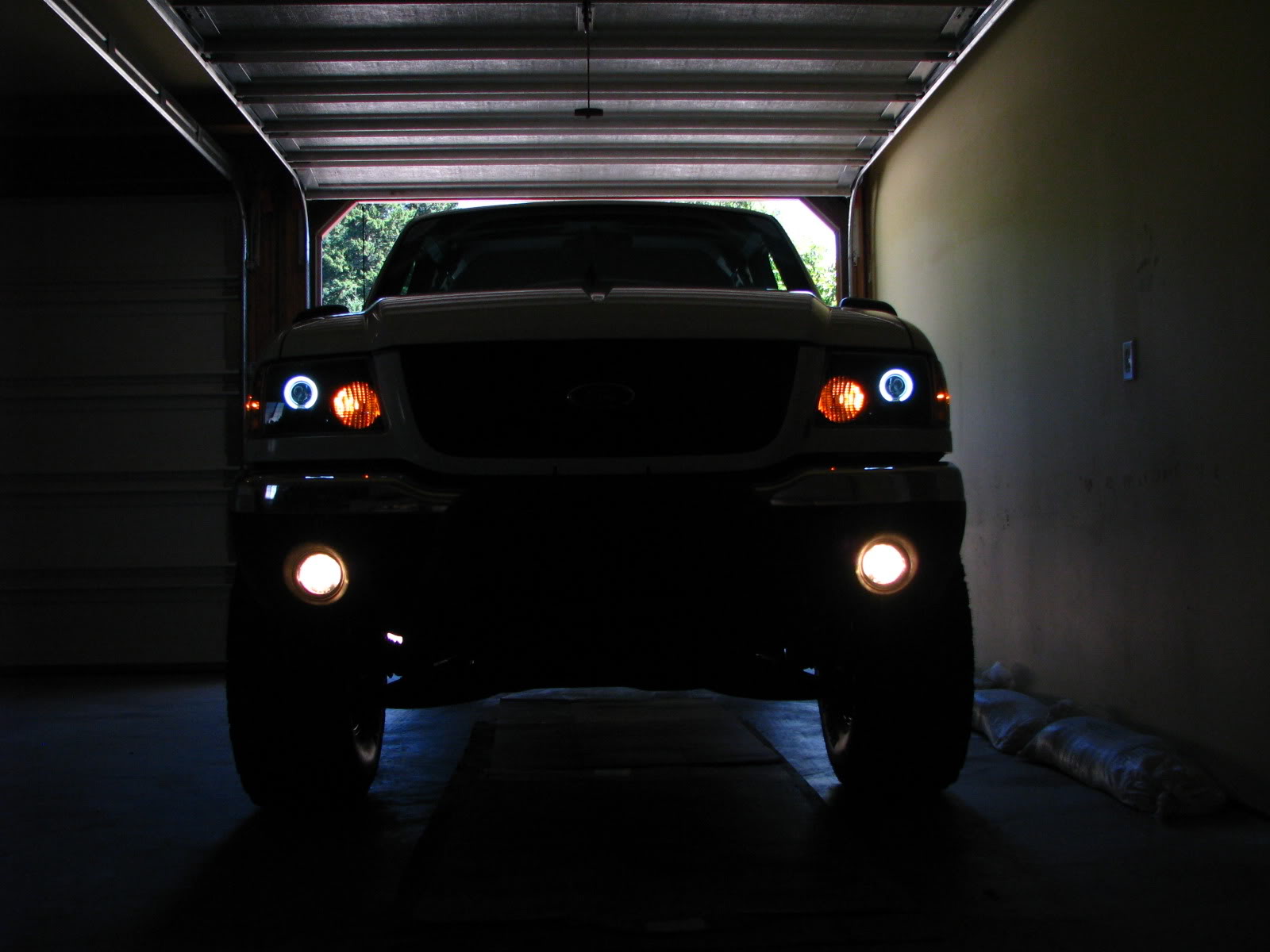

Name:  CustomHIDProjectorDONE001.jpg
Views: 65
Size:  141.0 KB

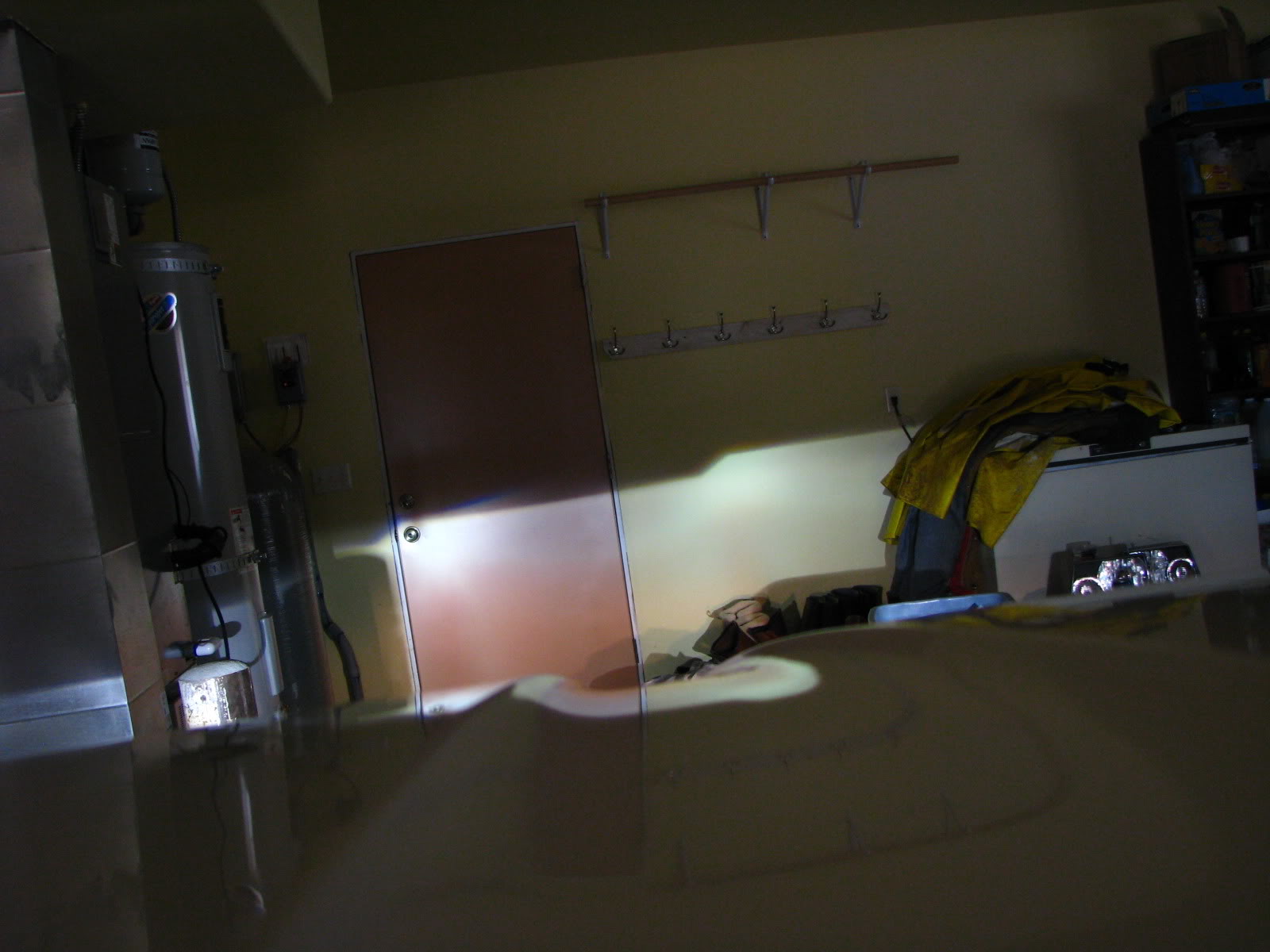

Low Beam and High Beam: It switches as fast as hearing a click, no warming up of a second bulb = as fast as you can move your fingers.

Name:  CustomHIDProjectorDONE004.jpg
Views: 64
Size:  130.6 KB

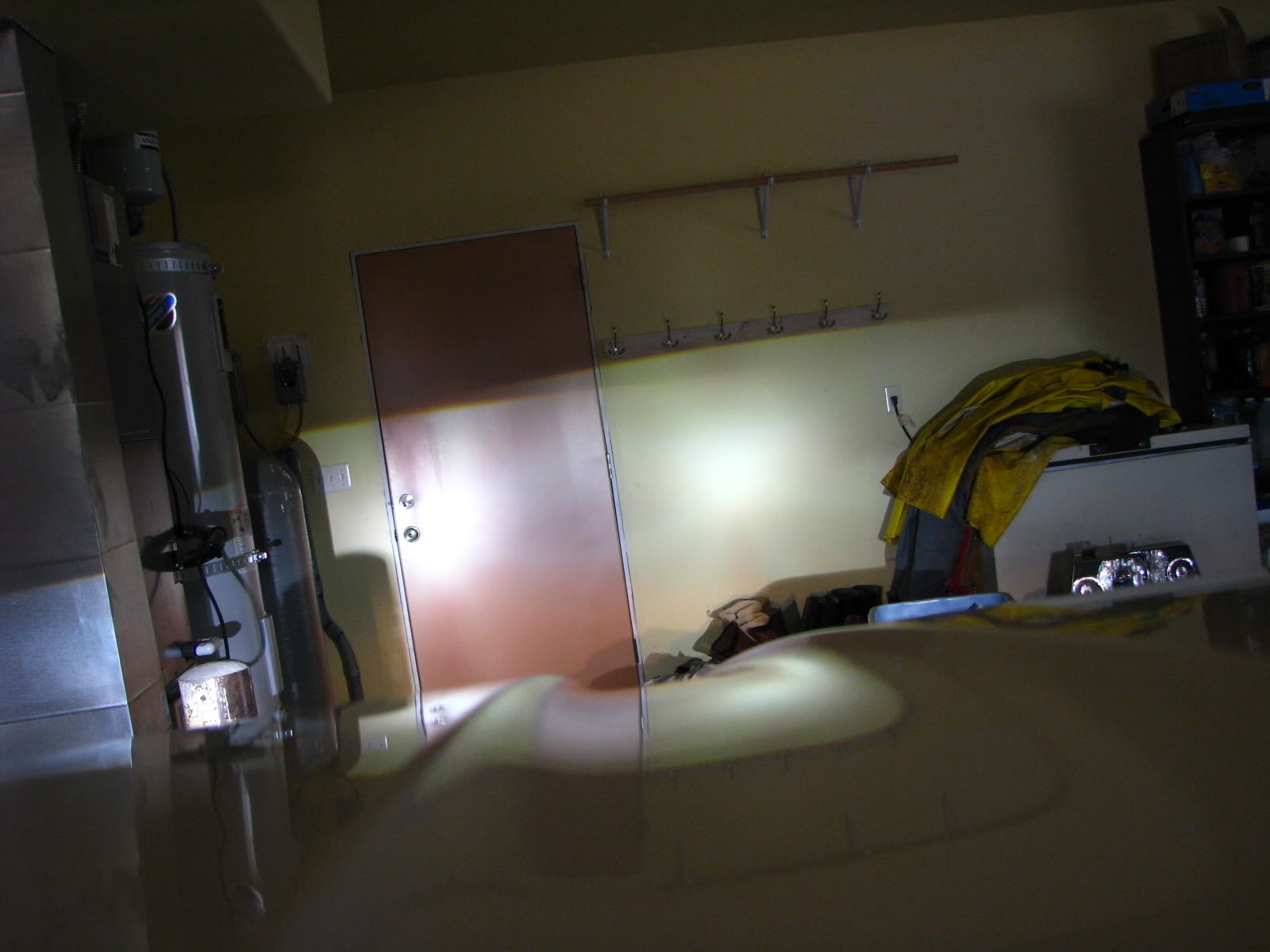

Name:  CustomHIDProjectorDONE005.jpg
Views: 64
Size:  145.0 KB







Next Step: Find some 4300k bulbs to fit, preferably 50w.. and install ;-D

These are 6000k btw
Reply With Quote
  #48
Old 08-26-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
And.. I need to get ready for work - finished right at 2pm - started doing the wiring right around noon.. gotta scoot and get readied up for work!
Reply With Quote
  #49
Old 08-26-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
HOLY *****!!! I WANNNNT!!! So mike...you gonna let me run 'em? lol.
Reply With Quote
  #50
Old 08-26-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Thats so sick, I'm tempted to try this on my headlights. You could make some bank doing this and then selling the whole thing, headlights and all.
Reply With Quote
