  #51
Old 06-21-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by 98liftedranger View Post
What is sw? I see it in all of your posts and can't figure out what the hell it is.
I think he means switch
Reply With Quote
  #52
Old 06-21-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by 01RangerEdge View Post
I think he means switch
Why not type out the extra 4 letters? Its like reading in code or something.
Reply With Quote
  #53
Old 06-21-2012
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Thks, yes it is switch.
When writing things up in electronics you shorten things as much as possible.

Sorry for any confusion.

In the future I will strive to spell all of my word out, I promise… lol.

Last edited by Scrambler82; 06-24-2012 at 09:04 AM. Reason: spl chk
Reply With Quote
  #54
Old 06-24-2012
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
I decided to paint the Gauge Bezel Area of my Dash AND to use some of this new “Painters Tape” to tape off the area I wanted to paint.

All I can say about the new tape is that “it $UCKS” !

It says on the package that it hold a great tight sealed edge, WRONG !

I now have an edge I have to clean up, why didn't I just do it the old school way and use Masking Tape.

I didn’t read that the tape I picked up was "Medium Adhesion to Multi-Surfaces", what does that really mean.
Nothing against any other people in this country that speak a language other than english but this package has more NON-ENGLISH on it than I could read through or wanted to.

Lesson Learned.

I will post a pic after I attempt cleaning up the edge.

Last edited by Scrambler82; 06-25-2012 at 11:00 AM.
Reply With Quote
  #55
Old 06-24-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Scrambler82 View Post
Manual T/C will take away one sw.

Four in the OHC, in place of the Digital Readout.



.
Thats EXACTLY what I wanted to do with mine.

Did you make that panel yourself?
Reply With Quote
  #56
Old 06-24-2012
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Yup.
There are the four switches where the four holes are, I added four mini LEDs, one for each switch, and the two black squares are two more switches, these operate the LED reading lights.

I took some cardboard, like a Bud Case, and made a templet.
I had some 0.062 aluminum, cut out the panel.
then formed it using a 2.5” wooden dowel.

More time than skill.

Last edited by Scrambler82; 06-25-2012 at 10:57 AM.
Reply With Quote
  #57
Old 06-28-2012
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Found a set of Powered 06 type mirrors on e-bay.
Just need more picture of them before getting them.
$110 but I guess from what Clinton says that is the going price for OEM JY Mirrors.
Reply With Quote
  #58
Old 11-20-2012
Wingman108's Avatar
Member

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
I can't wait to see your truck with the bumpers on grev. that OHC is sweet too.
Reply With Quote
  #59
Old 11-20-2012
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Front bumper is sitting on the shop floor waiting for the rear bumper to be finished.

The rear bumper is in the prototype mode, waiting for pics to approve it.

Custom 4x4 Fabrication does great work, hard to wait.
Reply With Quote
  #60
Old 11-20-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Scrambler82 View Post
Front bumper is sitting on the shop floor waiting for the rear bumper to be finished.

The rear bumper is in the prototype mode, waiting for pics to approve it.

Custom 4x4 Fabrication does great work, hard to wait.
I missed something.

You ordered custom front and rear bumpers?

Nice Grev.
Reply With Quote
  #61
Old 11-20-2012
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Post MORE PICTURES.
Reply With Quote
  #62
Old 11-20-2012
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Yup, both of them.

Started with the front, you've seen pic from other Ranger but the rear is C4x4 first Ranger Rear Bumper.

I am such a slacker on getting the Ranger List done it is sad.
I have theatre for other projects but no time or just can't get started.

Anyway, waiting on the rear.
Reply With Quote
  #63
Old 01-22-2013
DangerRanger96's Avatar
Member

Join Date: Aug 2010
Location: Thomasville, NC
Posts: 611
bumpers on yet?
Reply With Quote
  #64
Old 01-22-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
Quote:
Originally Posted by DangerRanger96 View Post
bumpers on yet?
Prolly not. Grev is a procrastinator.
Reply With Quote
  #65
Old 01-22-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Mcleary316 View Post
Prolly not. Grev is a procrastinator.
My reputation precedes me… lol.

No I do not have the bumpers installed, front one is just sitting there in the shop the rear is almost done.

Waiting to get the rear delivered and I will ATTEMP to get both installed, then removed and get them painted, not sure with what… (?) and then reinstall.

I need to get pictures of the whole process and get them back to C4x4.

Sorry but nothing yet and looks like maybe the middle of Feb before any gets started again.

My daughter’s wedding is coming up the first part of April so more to think about.

Thanks for asking

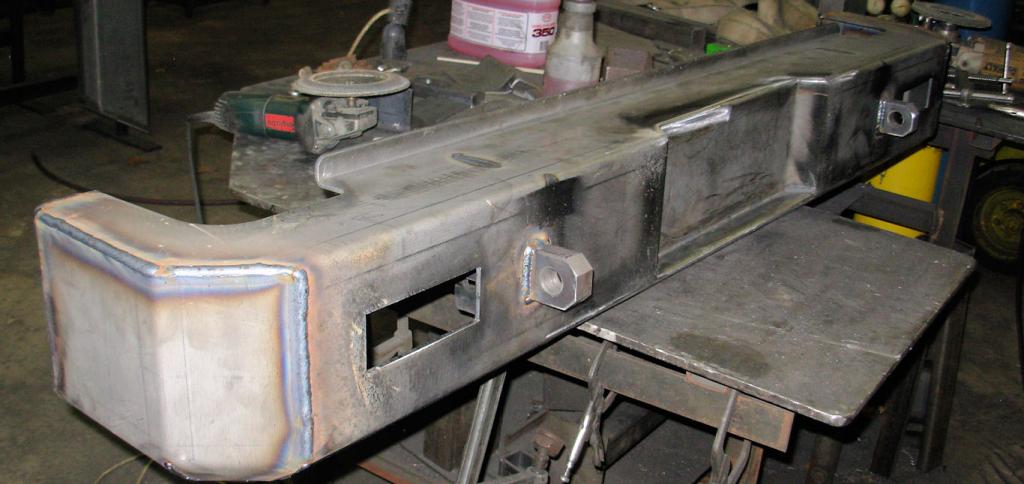

A couple of pictures of the rear bumper:





Waiting for the finished pictures from C4x4.
Attached Thumbnails
The EDGE Project - Scrambler82 - MA-bumper-weldedup-1_zps383dd3d9.jpg   The EDGE Project - Scrambler82 - MA-bumperweldedupunderside_zps9a4fa4d1.jpg

Last edited by Scrambler82; 01-22-2013 at 11:31 AM. Reason: Added pictures
Reply With Quote
  #66
Old 01-22-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Taylor View Post
Thats EXACTLY what I wanted to do with mine.

Did you make that panel yourself?
Hey Taylor,
I have the templet for the Switch Panel on my OHC, ask me for it when you come get the T/C and you can have it.

Also, you interested in an 8.8, 31 spline, LS, 4.10 geared ’03 FX4 LVL II Rear Axle ?

54K mile approximately on it and I think I will be asking around $350/picked up.

Thinking of selling the 8.8 I was going to use and getting something different.

ltr
Reply With Quote
  #67
Old 02-20-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
You have that damn bumper on yet?
Reply With Quote
  #68
Old 02-20-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Mcleary316 View Post
You have that damn bumper on yet?

Check out this thread...

https://www.ranger-forums.com/fabric...x4-fab-136698/
Reply With Quote
  #69
Old 02-20-2013
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Scrambler82 View Post
Hey Taylor,
I have the templet for the Switch Panel on my OHC, ask me for it when you come get the T/C and you can have it.

Also, you interested in an 8.8, 31 spline, LS, 4.10 geared ’03 FX4 LVL II Rear Axle ?

54K mile approximately on it and I think I will be asking around $350/picked up.

Thinking of selling the 8.8 I was going to use and getting something different.

ltr
Yes.

I was hoping that you would find that template.

Switching jobs soon, and STILL trying to work out a date for us to drive up.

I need to get out of this town.
Reply With Quote
  #70
Old 02-20-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Taylor View Post
Yes.

I was hoping that you would find that template.

Switching jobs soon, and STILL trying to work out a date for us to drive up.

I need to get out of this town.
Taylor,

Do you want me to send the Templet of the Switch Plate to you ?
E-Mail me your address to [email protected]
Reply With Quote
  #71
Old 02-20-2013
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Quote:
Originally Posted by Scrambler82 View Post
Taylor,

Do you want me to send the Templet of the Switch Plate to you ?
E-Mail me your address to [email protected]
That shouldnt be necessary.

I emailed you some details about our trip up north.
Reply With Quote
  #72
Old 05-07-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Rear Bumper has been fitted and await new mounting brackets to raise the bumper approx. 1/25”.

Front Bumper is still waiting but it will be worked on after the Back Rack.

Then we go to the Powered Doors and the Stereo.

The list is never ending.

Where is that Early Bronco Frame… ?
Reply With Quote
  #73
Old 08-26-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Taylor View Post
I missed something.

You ordered custom front and rear bumpers?

Nice Grev.
These are waiting to be installed, both from C4x4 in OK, both primed, the rear painted.

The BackRack has been stripped and has been primed and the first coat of paint applied, need another coat but a little too windy to do now !

Ordered 4.56 gear of true EDGE and an OX Locker for the rear.
Found an 8.8, 31 spline, large tube axle will need to set that up then swap it in.
Also need to add the adjusting bolts to the front end at the same time.

Then I can start on the electric door conversion, power windows, locks and '06 mirrors, maybe the LED lock condition indicators.

Where is all the time going...?
Reply With Quote
  #74
Old 09-04-2013
Scrambler82's Avatar
Old Guy User… ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Just to keep the EDGE Page up to date.

Rear Bumper is on and the front bumper is primed.





The Back Rack has been modified and it needs one more coat of paint and I will get there today while the wife is still sleeping; install and wiring soon.

After that I need to remove the front bumper and valance and get started on the front bumper, oh ya it needs painting.

After that power windows, mirrors and locks, then the stereo/amp/speakers and run the wires for the single 10” sub.

And last but not least, clean the rug and install the new seat covers, wow, how long do I have here in MA, lol

ltr
Reply With Quote
  #75
Old 09-04-2013
Wingman108's Avatar
Member

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
That bumper looks awesome Grev! can't wait to see the rig with both bumpers on it. the rear bumper you traded me is still holding up nice too btw, haha.
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 01:11 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
