  #26
Old 07-28-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
you need to make it so the top and side pieces fit together with the inside edges of the plate touching, the welds will be a lot stronger that way.

and yea, I got the 3" ballistic joint and i was like HOLY ****! my buddy has 2.63 TG creeper joints and those things are pretty big.
Reply With Quote
  #27
Old 07-28-2009
MXranger489's Avatar
Member

Join Date: Jan 2007
Location: Newington CT
Posts: 142

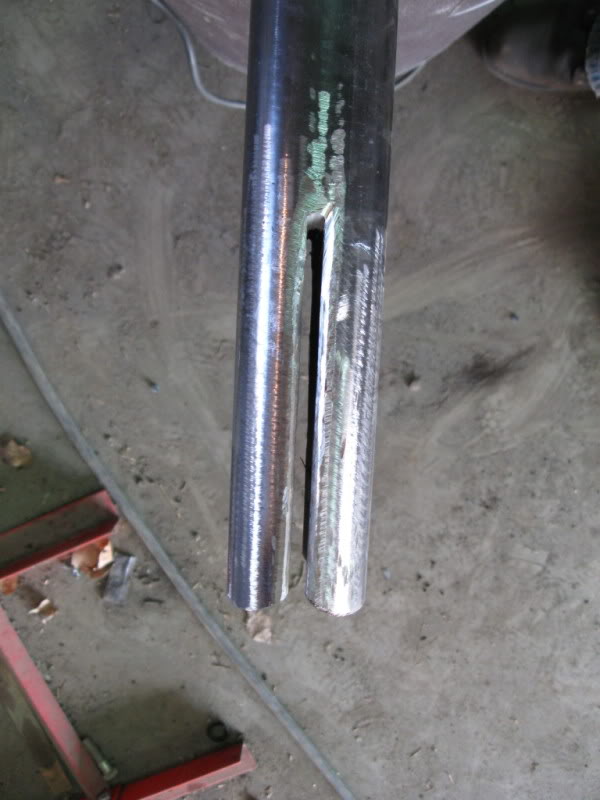

BrayD's

Name:  IMG_0106.jpg
Views: 3
Size:  65.8 KB

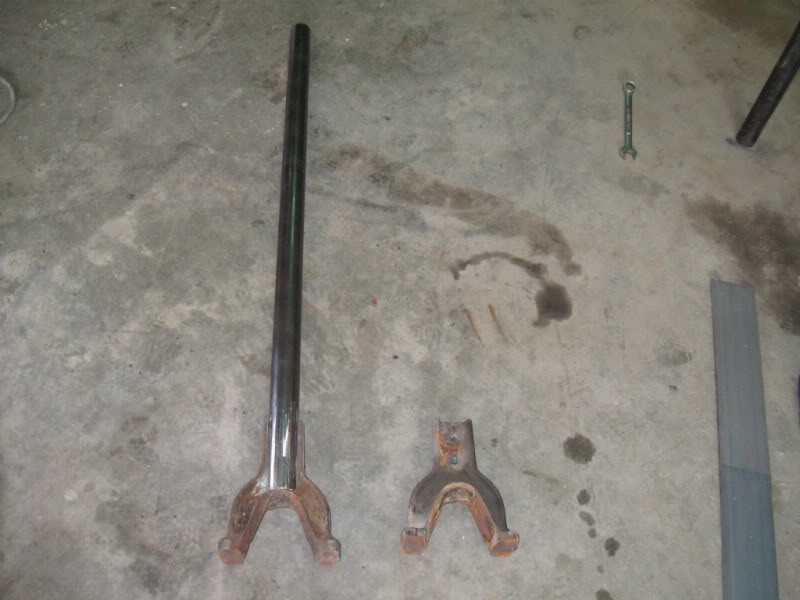

Name:  IMG_0107.jpg
Views: 2
Size:  57.4 KB

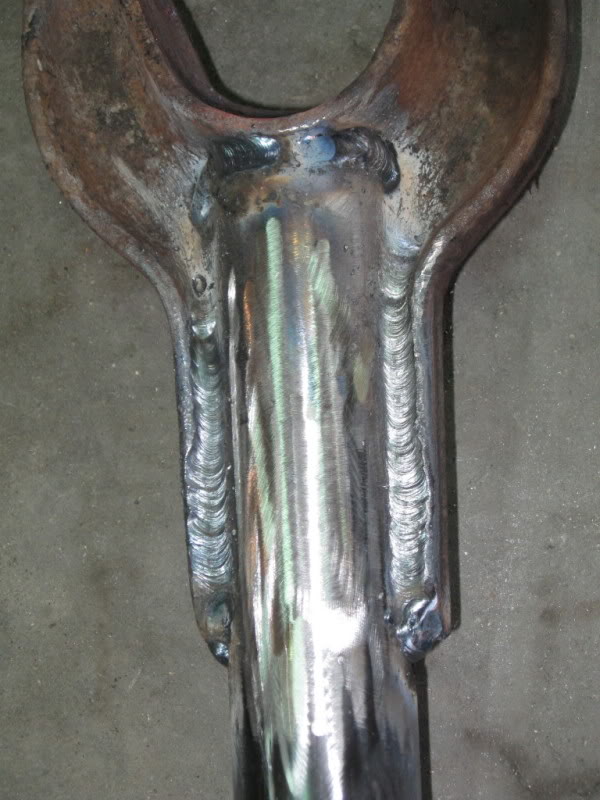

Name:  IMG_0112.jpg
Views: 3
Size:  89.8 KB
Reply With Quote
  #28
Old 07-28-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
beard already showed us those arms
Reply With Quote
  #29
Old 07-28-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Those look pretty easy to make.. i might do that since i already have all the other parts too.

if someones gonna break that design i will.
Reply With Quote
  #30
Old 07-28-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
I see that design bending before breaking but w/e thanks for the replys guys, ballistic still hasent sent me my DOM but the truck is comming apart thursday morning so i will have some pics
Reply With Quote
  #31
Old 07-28-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by zabeard View Post
nice work.
thanks
Reply With Quote
  #32
Old 07-29-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
My tube will be here friday so im happy about that.
Reply With Quote
  #33
Old 07-29-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
is ballistic the only place you can get it?
Reply With Quote
  #34
Old 07-29-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I thought i heard Poly performance sells tube by the foot, I'm pretty sure BTF does.. and there was another website i just forgot who..

what size are you making it? 2x.250? I saw some 1/4" links get bent to **** this weekend, I'll probably go 2.125x.375" ha
Reply With Quote
  #35
Old 07-29-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
go 2.5" and .5" wall. i would of if i didnt already order it all.
Reply With Quote
  #36
Old 07-29-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
We sell tube by the foot.

And cut those box-in plates back off, narrow them so the 2 peices make a corner ( L ). You will get alot better penetration, and it won't look like **** with the weld protruding past the outside edge.
Reply With Quote
  #37
Old 07-29-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Im not sure if i will change it again or not ill probably forget to do it but i am going to weld the inside and outside so it will have plenty of weld.
Zach how did you put the arms in the lathe i assume you put the stud in the lathe and clamped onto that?

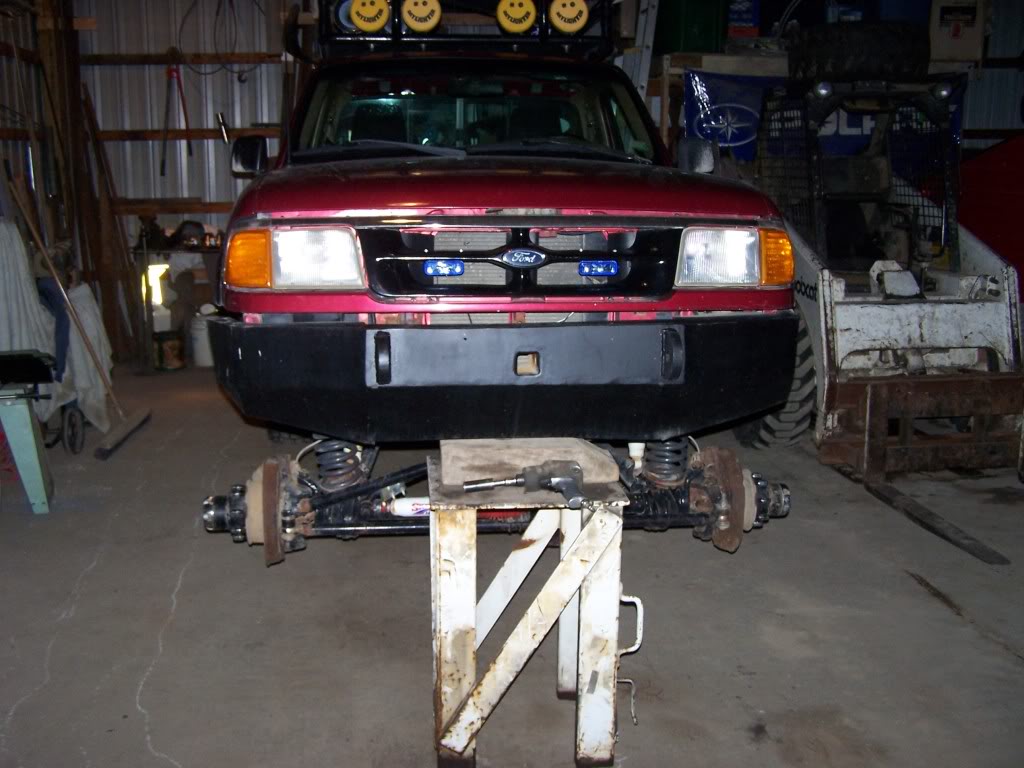

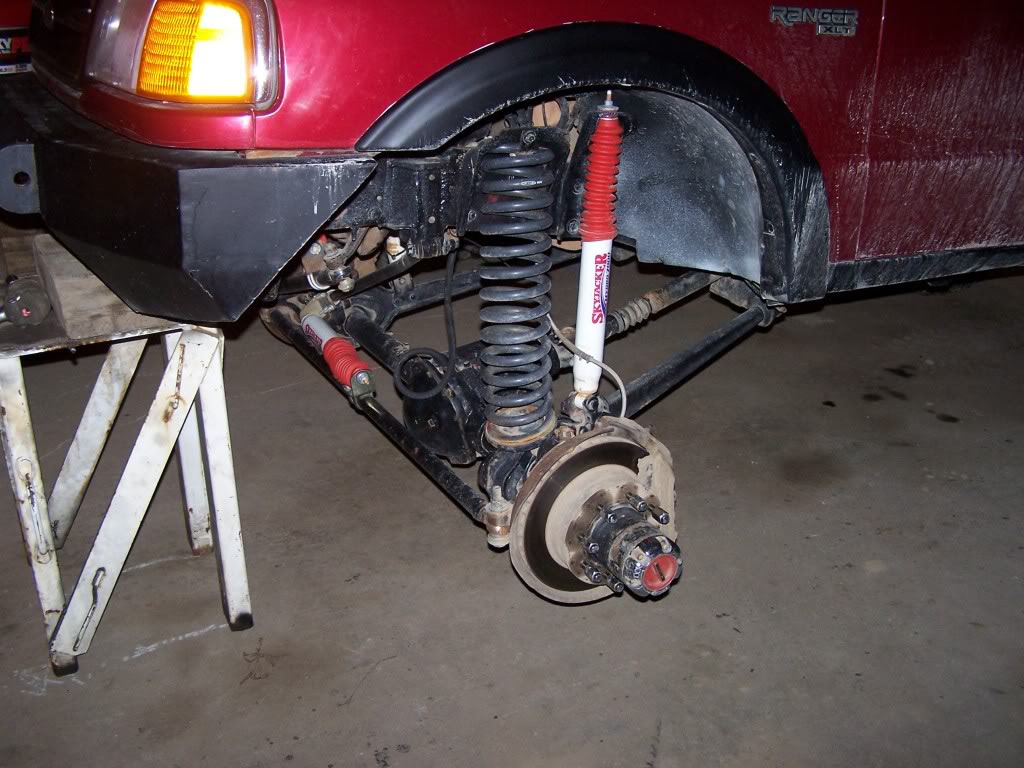

Anyways heres pics of the truck tonight
Name:  100_2802.jpg
Views: 2
Size:  132.6 KB
Name:  100_2801.jpg
Views: 2
Size:  105.1 KB
Reply With Quote
  #38
Old 07-29-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by 99ranger4x4 View Post
I thought i heard Poly performance sells tube by the foot, I'm pretty sure BTF does.. and there was another website i just forgot who..

what size are you making it? 2x.250? I saw some 1/4" links get bent to **** this weekend, I'll probably go 2.125x.375" ha
Im not to worried about bending them if white rhino never bent his and he does way more rocks then i ever will get to do. its mostly trails and mud around here and the dunes off course
Reply With Quote
  #39
Old 07-30-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah on the stud, but you will have to block the other end because its gonna go all over.
Reply With Quote
  #40
Old 07-30-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by 034x4 View Post
We sell tube by the foot.

And cut those box-in plates back off, narrow them so the 2 peices make a corner ( L ). You will get alot better penetration, and it won't look like **** with the weld protruding past the outside edge.
...

Quote:
Originally Posted by ford rules View Post
Im not to worried about bending them if white rhino never bent his and he does way more rocks then i ever will get to do. its mostly trails and mud around here and the dunes off course
his were 1/4?
Reply With Quote
  #41
Old 07-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Thats what he told people, same as mine 2"od 1.5"id so i am sure i wont bend them if i do oh well
So here is some pics of my one hours work this morning just have to pull the bolts off the radius arm and shes out.

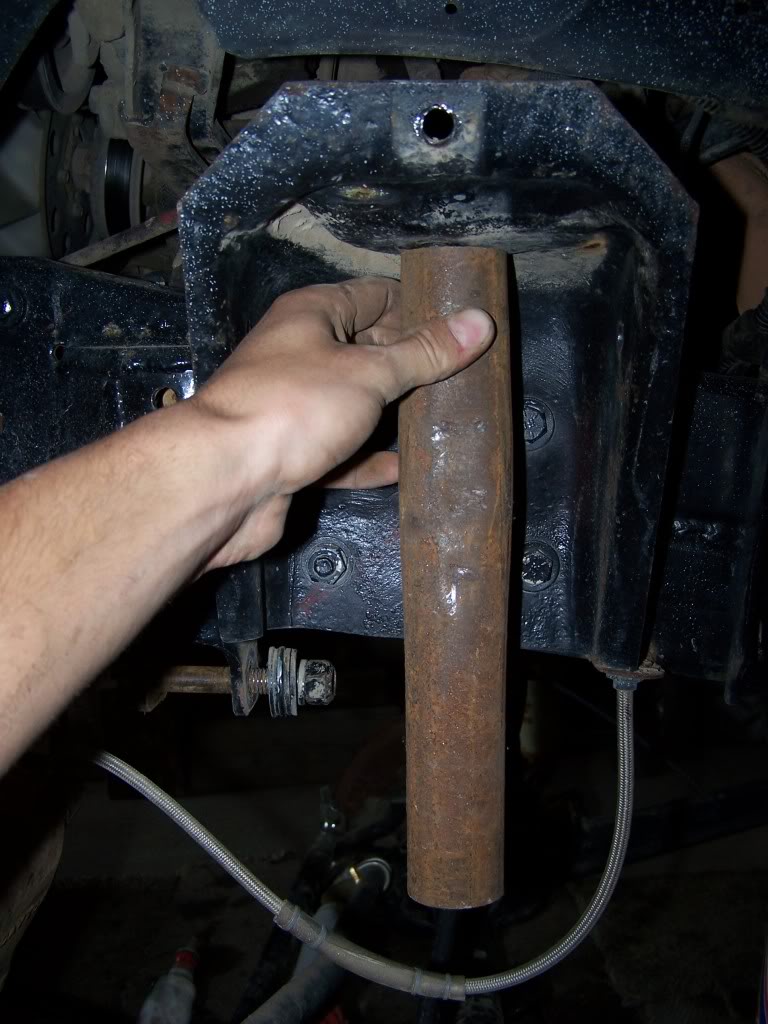

I need some advice from you guys do you think it would be a good or bad idea to weld a tube vertically to my upper coil bucket and then not attach the coil to the top off the bucket so the coil can drop out as much as it can i have seen it done and it seams to work pretty good. kinda like this.
Name:  100_2809.jpg
Views: 3
Size:  118.2 KB

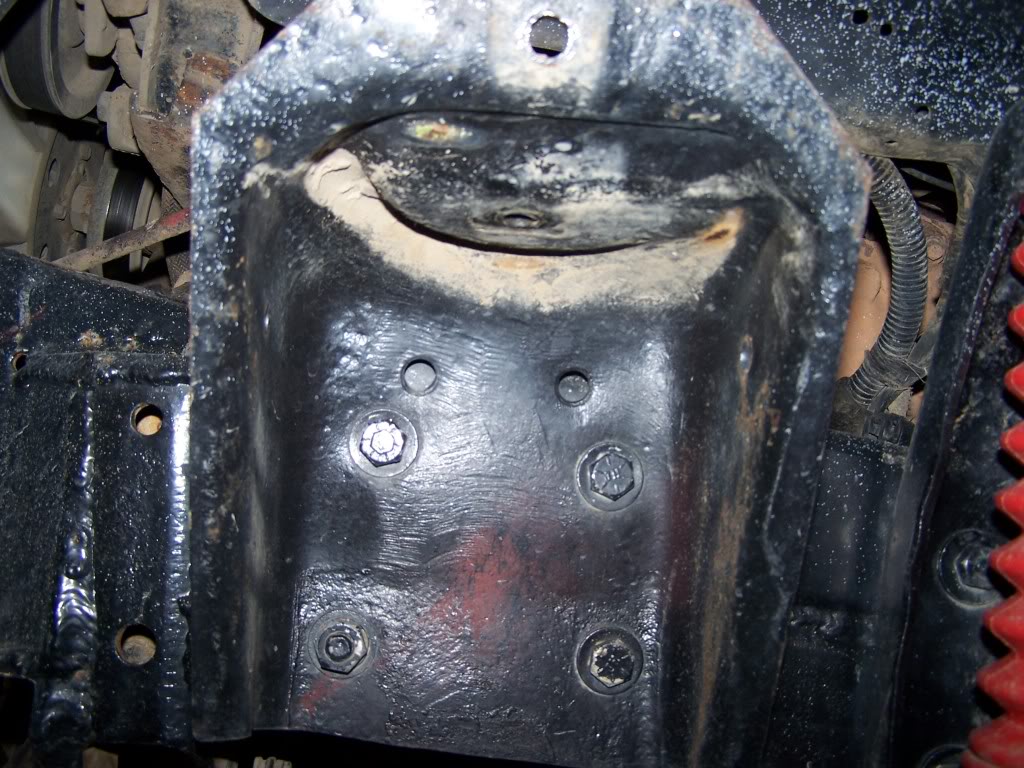

Name:  100_2808.jpg
Views: 3
Size:  166.0 KB

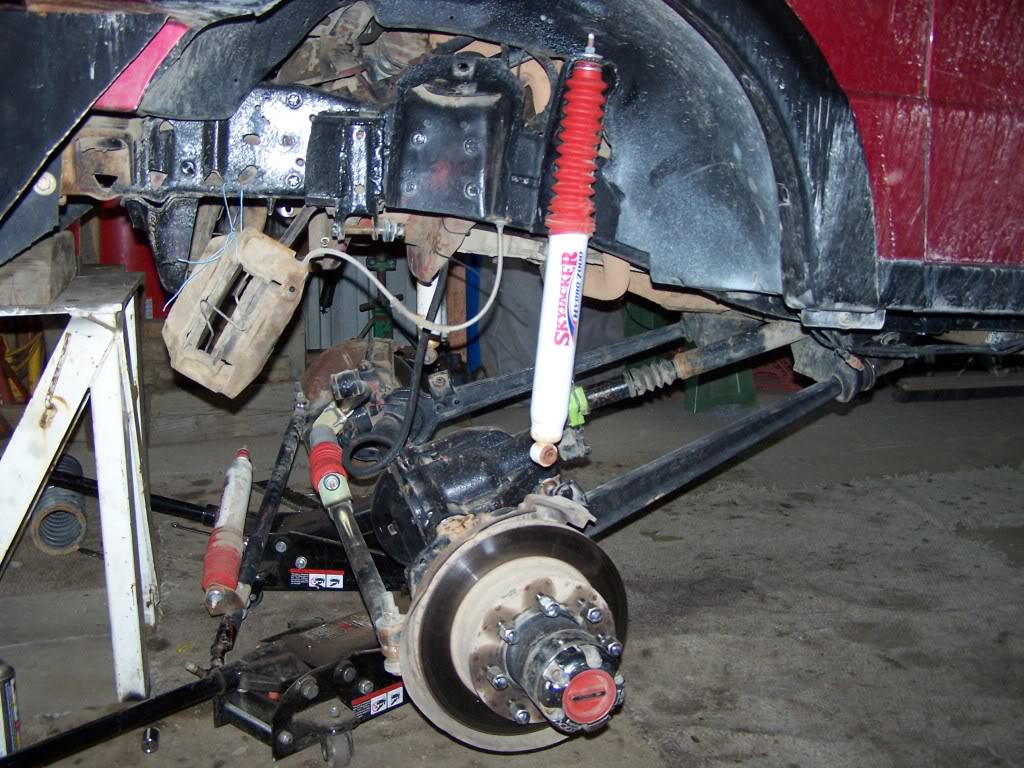

Name:  100_2806.jpg
Views: 3
Size:  170.4 KB

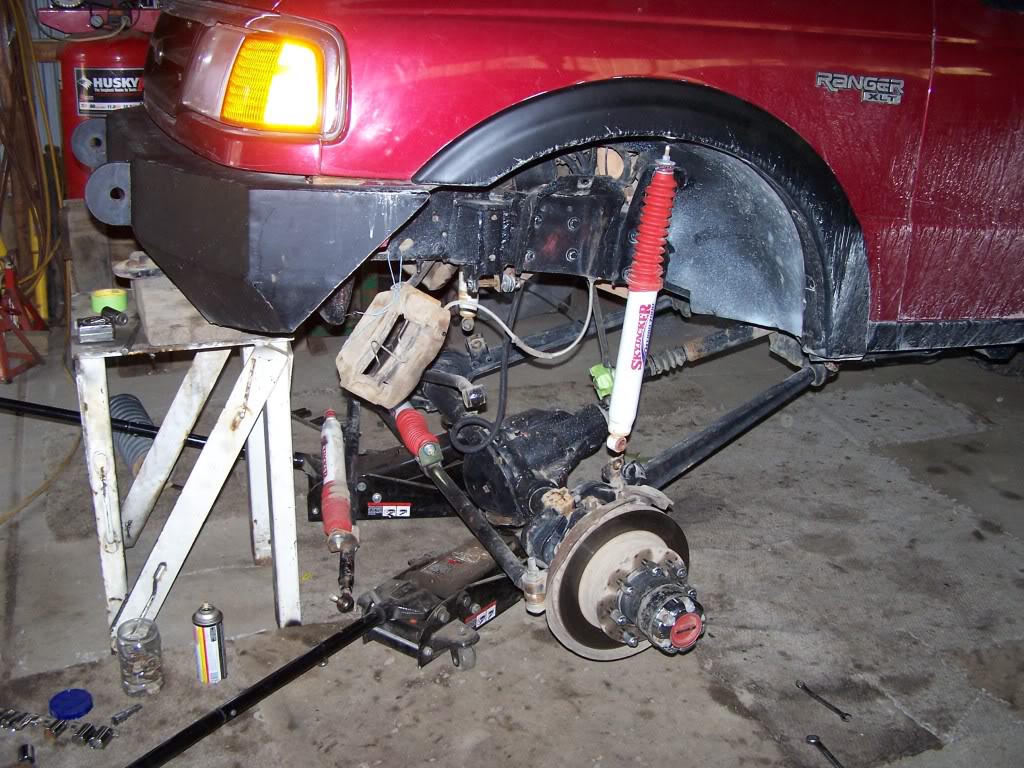

Name:  100_2805.jpg
Views: 3
Size:  177.0 KB
Reply With Quote
  #42
Old 07-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by zabeard View Post
yeah on the stud, but you will have to block the other end because its gonna go all over.
what do you mean block it
Reply With Quote
  #43
Old 07-30-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
having the tube isnt a bad idea.. its like the bump stop on jeeps to keep it in place when drooping a lot.
Reply With Quote
  #44
Old 07-30-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i wouldnt, keep the spring retained. the additional flex wont be much, whats limiting you is the RAs, not the coils.
Reply With Quote
  #45
Old 07-30-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
wow i never could get my axle to drop that much... it was a PITA to get my coils out!!!

did you weld your trac bar mount right to the frame or onto a piece of plate then to the frame?
Reply With Quote
  #46
Old 07-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by stRanger View Post
wow i never could get my axle to drop that much... it was a PITA to get my coils out!!!

did you weld your trac bar mount right to the frame or onto a piece of plate then to the frame?
Right to the frame but if i did it again i would have plated it but it has held up fine for about a year now.
Reply With Quote
  #47
Old 07-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Quote:
Originally Posted by zabeard View Post
i wouldnt, keep the spring retained. the additional flex wont be much, whats limiting you is the RAs, not the coils.
Thats what i was kinda thinking to but i dont think i would ever have a problem with the coils popping out and i could always get limit straps ya the ra's drop down alot if the axle is going down level but if only one side needs to drop they bind up alot
Couple pics

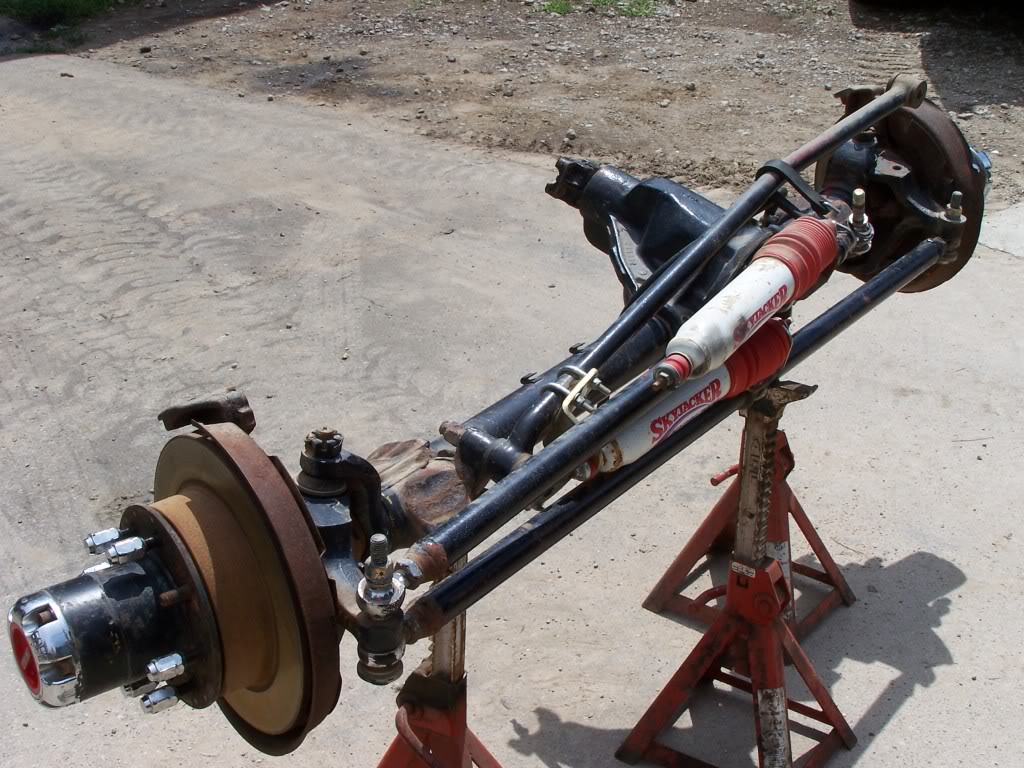

Name:  100_2818.jpg
Views: 2
Size:  173.4 KBall washed up

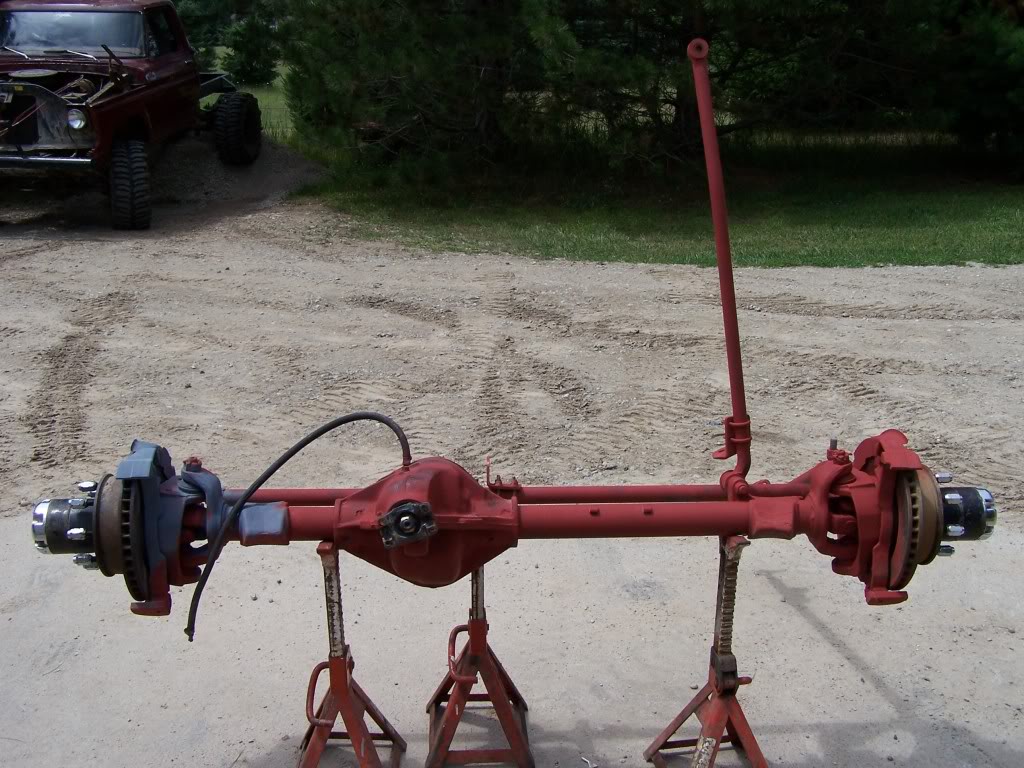

Name:  100_2820.jpg
Views: 2
Size:  166.4 KB

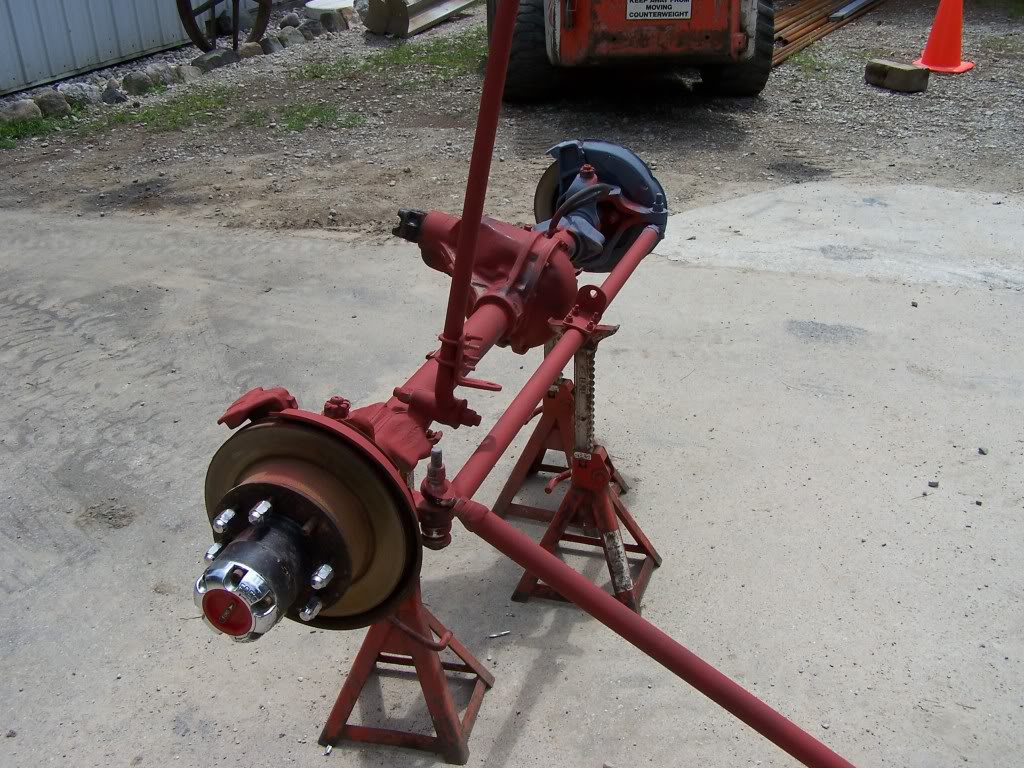

Name:  100_2821.jpg
Views: 2
Size:  171.2 KB
primered

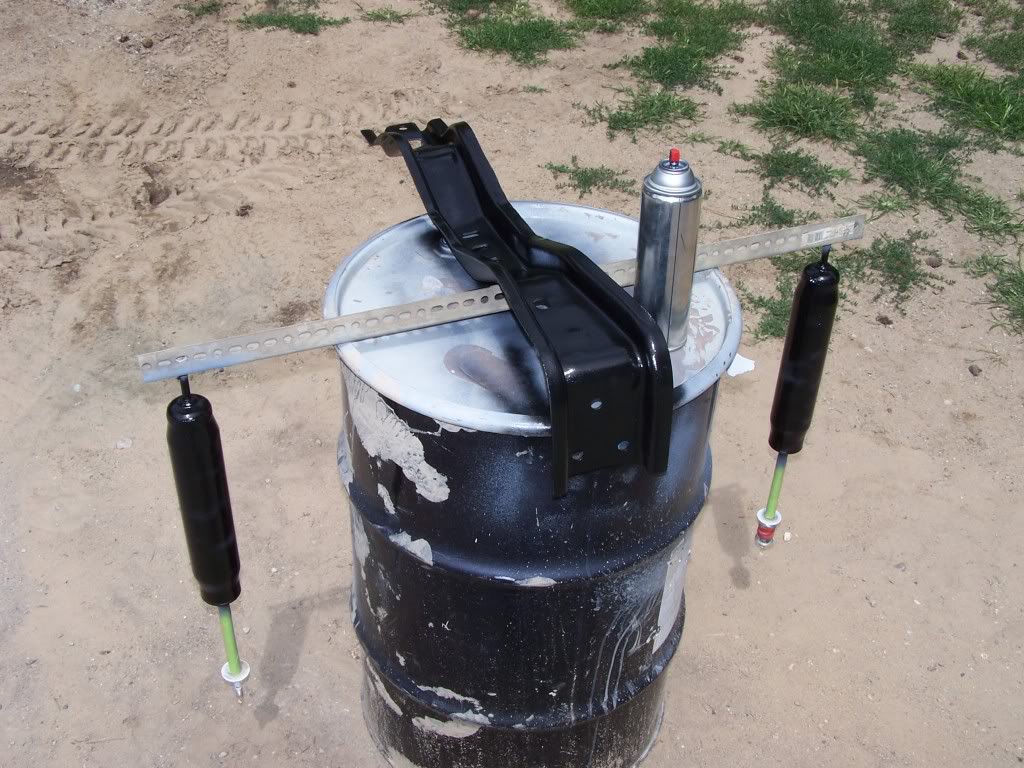

Name:  100_2819.jpg
Views: 3
Size:  164.5 KB
steering stablizer and tranny mount

Last edited by ford rules; 07-30-2009 at 12:56 PM.
Reply With Quote
  #48
Old 07-30-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
the stock trac bar worked or is that cut down?
Reply With Quote
  #49
Old 07-30-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
It "works" but not the greatest angles for the steering it does have a little bumpsteer but not to bad i want to get some 3/4" heims and make my own trac bar to get the angles a little closer
Reply With Quote
  #50
Old 07-30-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by 99ranger4x4 View Post
...
I was reiterating what you said previously, but I guess he's not going to take the advice?
Reply With Quote
