Ford Rules Extended Radius Arm Build

Okay so i got my 3.0 ballistic joints and 4' of dom on order i will be extending them about a foot then plate them in also. I want to have this project done by august 14 cuz i will be taking the truck up to our cabin wheeling. What would be the best way to slide the dom over the stock arms should i just grind the arms down till the tube fits or could i get that arm in a lathe and turn it down?
Thanks
Rob
Reply With Quote
  #2
Old 07-10-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I think that's how Beard did Evan's. Just grinded them down and slid it over.
Reply With Quote
  #3
Old 07-10-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Reply With Quote
  #4
Old 07-10-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
I thought about doing them that ways but if white rhinos have held up for as long as they did and are now on another truck i think they will be fine like this.FULL width WHITE RHINO - Pirate4x4.Com Bulletin Board if i do have a problem i geuss il have to find a 60 and 3 link it then haha not for a long time though.
Reply With Quote
  #5
Old 07-10-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
white rhino's truck is a hoss.
Reply With Quote
  #6
Old 07-10-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by ford rules View Post
I thought about doing them that ways but if white rhinos have held up for as long as they did and are now on another truck i think they will be fine like this.FULL width WHITE RHINO - Pirate4x4.Com Bulletin Board if i do have a problem i geuss il have to find a 60 and 3 link it then haha not for a long time though.
i did Evans like that, but tossed them in the lathe and spun them down, it worked fine but i like the other way better now, just cleaner and just as strong.
Reply With Quote
  #7
Old 07-10-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by zabeard View Post
i like that idea thanks beard
Reply With Quote
  #8
Old 07-14-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
well ballistic is taking there sweet time as usual but i have everything else i need so as soon as they get here its go time.
I am also thinking about pushing my axle forward to because i ended up with the axle about an inch further back then it should be what do you guys think i should do leave it where it is or push it forward i dont want to have to change my steering and tracbar setup also though?
Reply With Quote
  #9
Old 07-14-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
how far are you going to push it forward? i would imagine steering and trac bar would have a lil play, might have to adjust the trac bar though
Reply With Quote
  #10
Old 07-14-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
One inch forward. i might just put two holes in my mount bracket so i can push it forward and see how it is then if it binds up i can go to the hole farther back.
Reply With Quote
  #11
Old 07-14-2009
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
If you're going to grind them down, use a lathe. Don't just go at it *****-nilly with a grinder. That's my 2 cents. Good luck on your project!
Reply With Quote
  #12
Old 07-17-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
yaya one of my buddys has i lathe i will try to use that
Reply With Quote
  #13
Old 07-23-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
I called ballistic today cuz i ordered my stuff on the 9th of this month and it stil isnt hear and they said it will ship out today and will take 4 days to get here they really need to work on getting their stuff out faster imo. So now i wait 4 more days
Reply With Quote
  #14
Old 07-23-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah they do they loose business like crazy when they are so slow.

it took me 4 weeks to get my stuff.

josh it took 4 weeks for his stuff too. they are really freaking slow. Now I just call, ask if its in stock and when they can ship it. If they say today ill buy otherwise i pass. LOL
Reply With Quote
  #15
Old 07-23-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Where else can you get that type of stuff though BTF i s the only other place i know off.
Reply With Quote
  #16
Old 07-23-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Trail gear sells a bunch of stuff
Reply With Quote
  #17
Old 07-24-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
http://www.polyperformance.com
RuffStuffSpecialties.com - Off-Road Fabrication Parts

there are a million places but i think ballistic covers the most product at the best prices.
Reply With Quote
  #18
Old 07-24-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Okay thanks
Reply With Quote
  #19
Old 07-27-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Holy chit these things a friggin huge lol well i got the joints but not my DOM tube

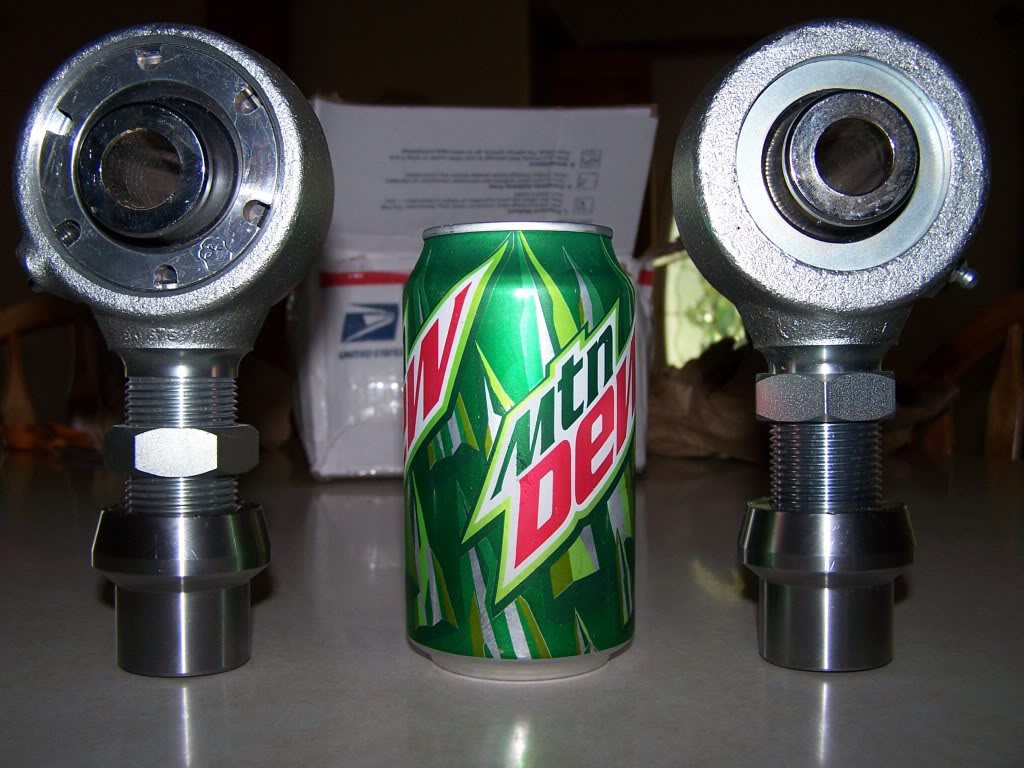

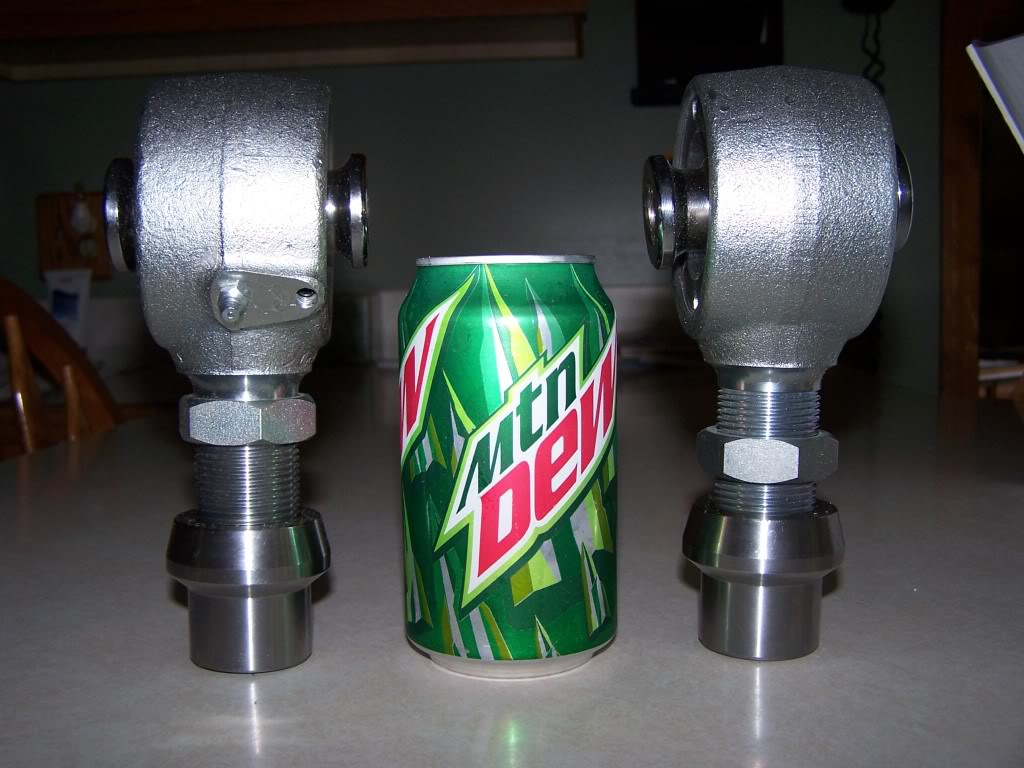

But here is the joints next to a mountain dew can
Name:  100_2785.jpg
Views: 6
Size:  128.1 KB
Name:  100_2784.jpg
Views: 5
Size:  111.8 KB
Truck will get torn apart thursday.
Reply With Quote
  #20
Old 07-27-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
damn i didnt think they were that big either
Reply With Quote
  #21
Old 07-27-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
Wow, seeing those make me think the 2.63 woulda worked, but over kill is goooooood!
Reply With Quote
  #22
Old 07-27-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
LOL, yeah thats 3"

I love their joints, they do such a nice job making them.
Reply With Quote
  #23
Old 07-27-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
ya i will admit that it was worth the wait their quality is amazing and i agree the 2.63's would have been plenty but i like to overbuild stuff.
Reply With Quote
  #24
Old 07-28-2009
ford rules's Avatar
Member
Thread Starter

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391

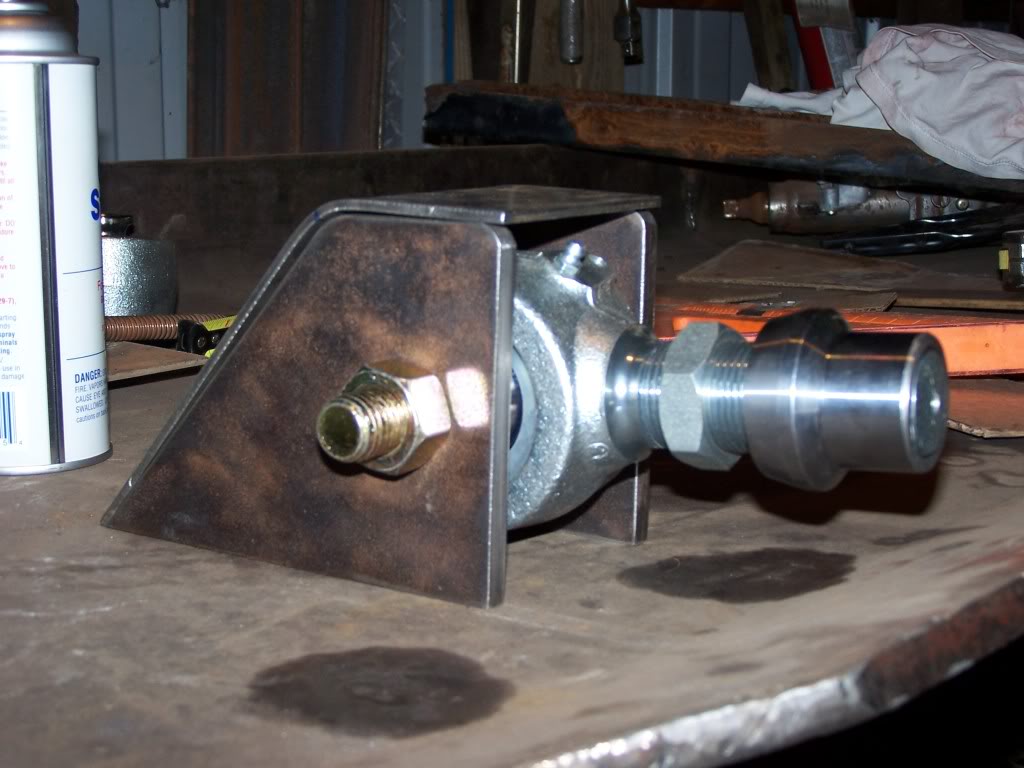

well i got both mounts made i just have to make a crossmember now to weld these to and then extend my arms.
heres the pics.
Name:  100_2787.jpg
Views: 5
Size:  89.5 KB

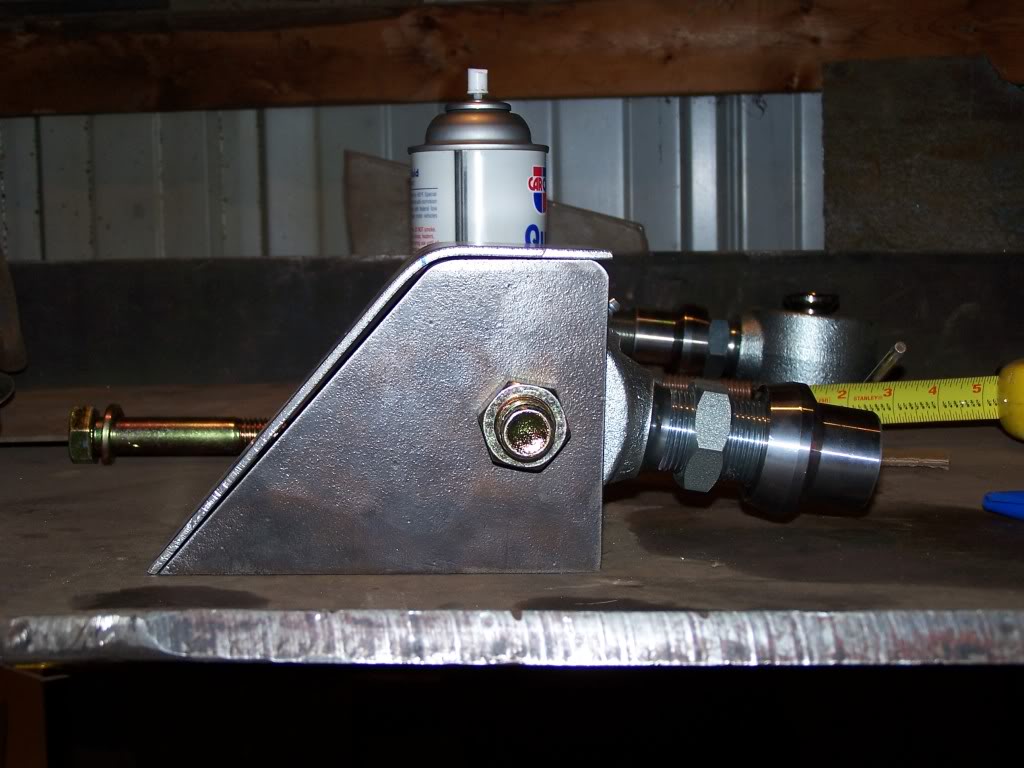

Name:  100_2788.jpg
Views: 5
Size:  104.5 KB

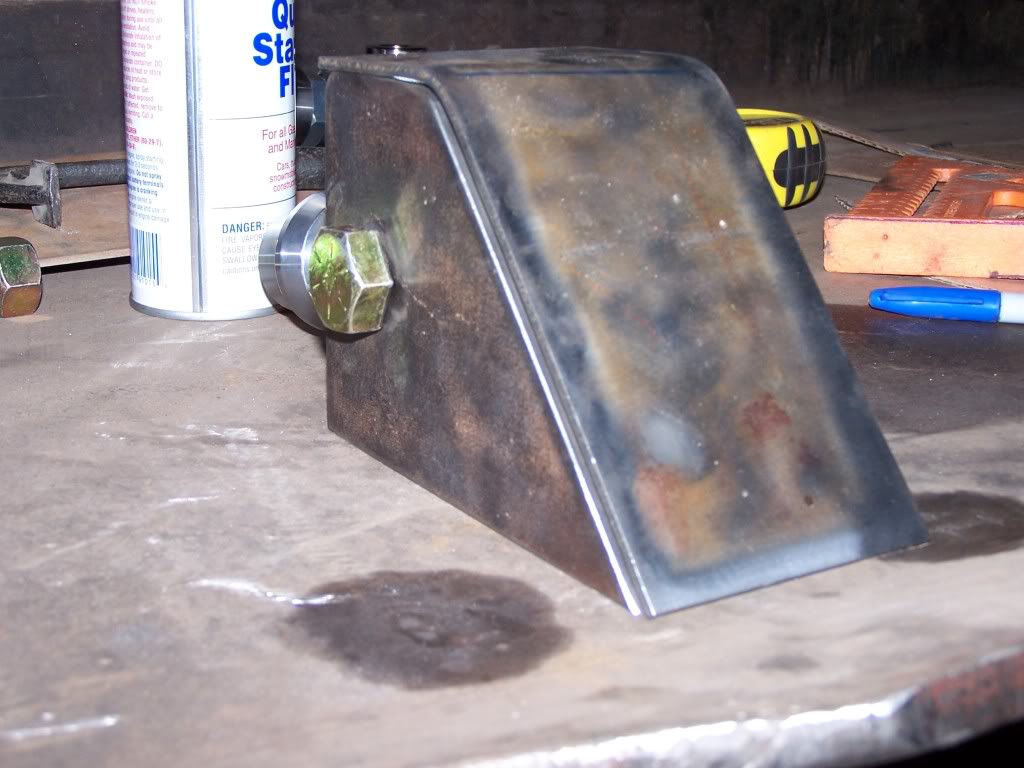

Name:  100_2789.jpg
Views: 4
Size:  91.9 KB

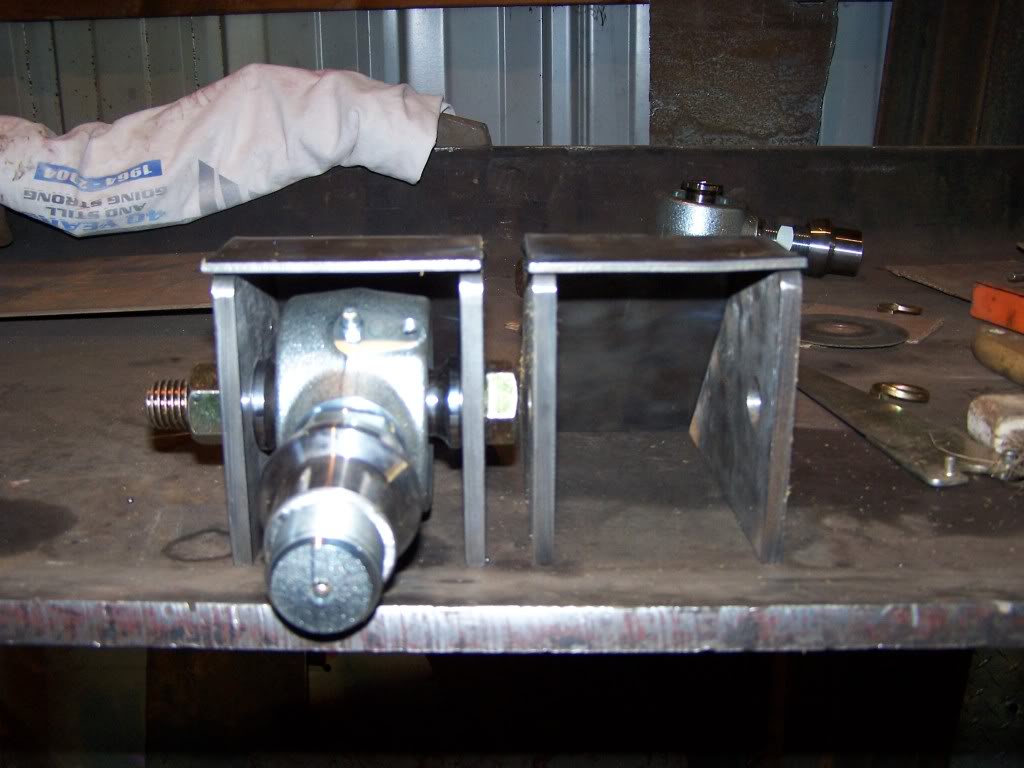

Name:  100_2793.jpg
Views: 6
Size:  85.1 KB

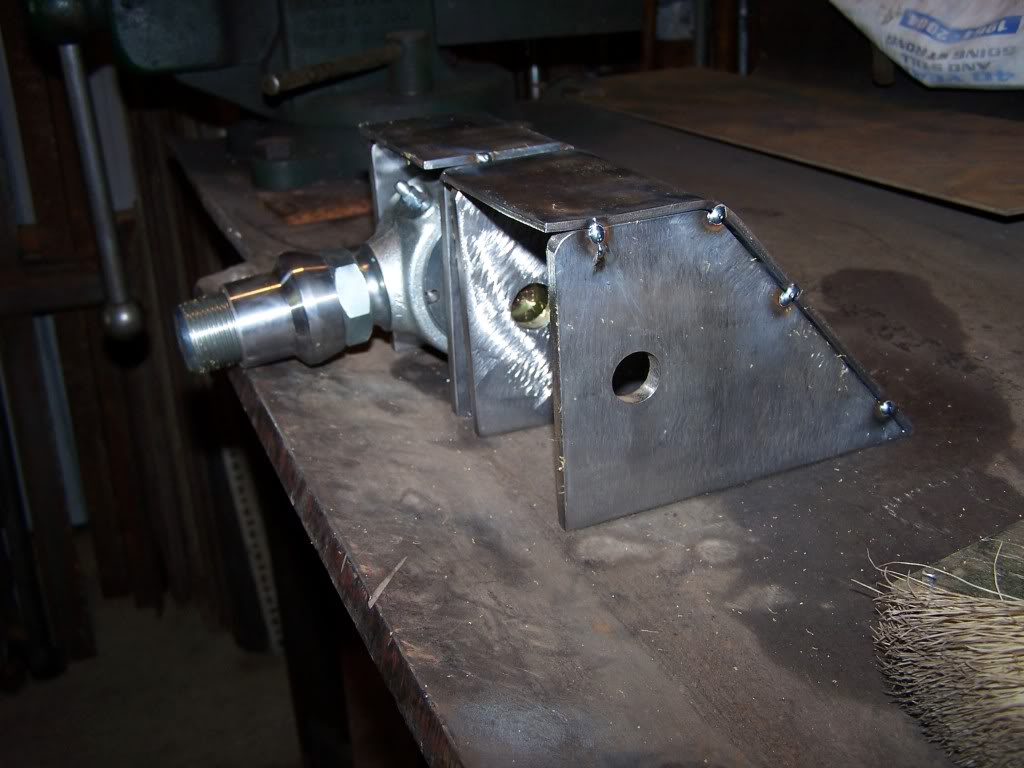

Name:  100_2794.jpg
Views: 4
Size:  91.8 KB

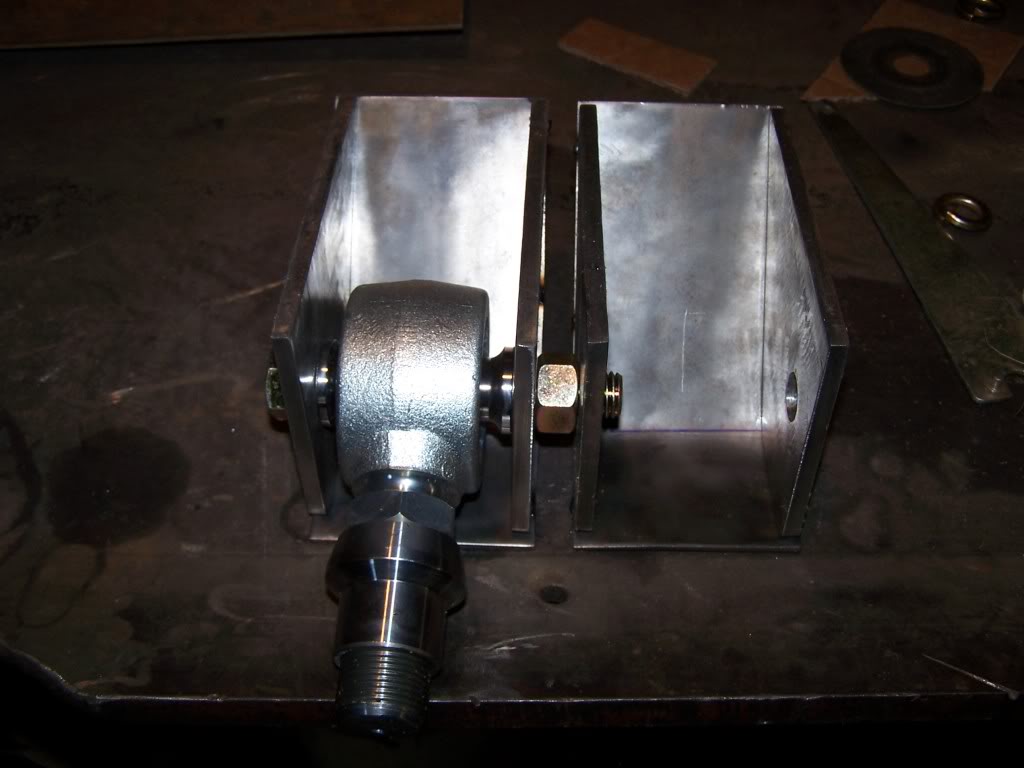

Name:  100_2795.jpg
Views: 5
Size:  68.5 KB

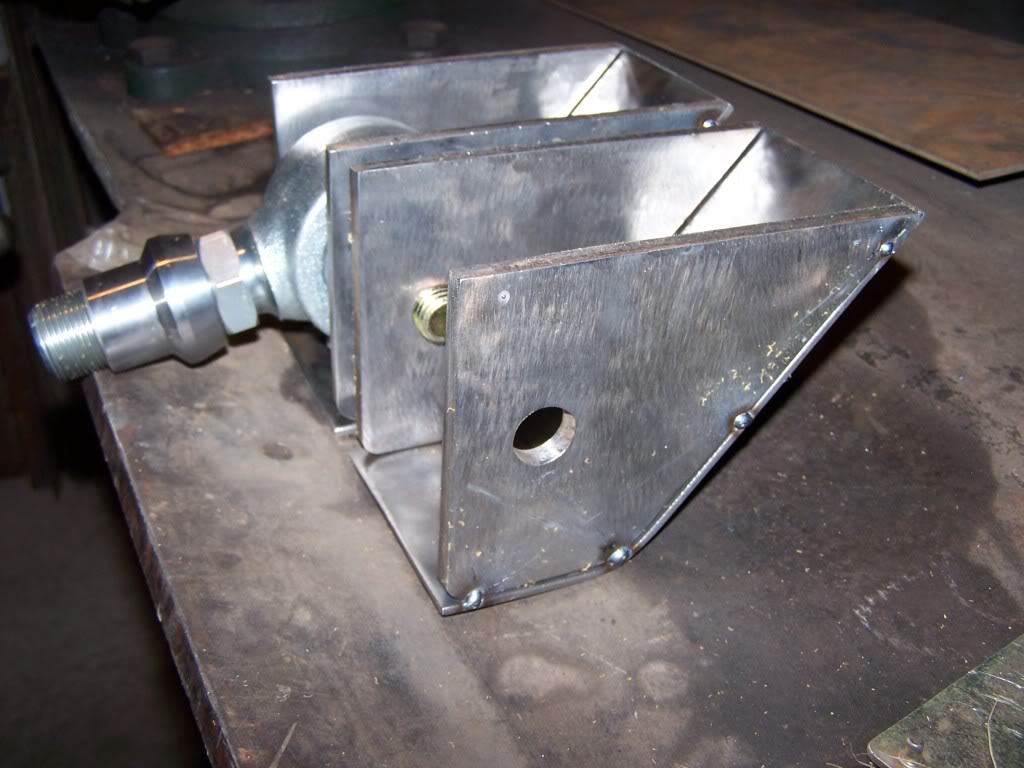

Name:  100_2796.jpg
Views: 7
Size:  96.1 KB

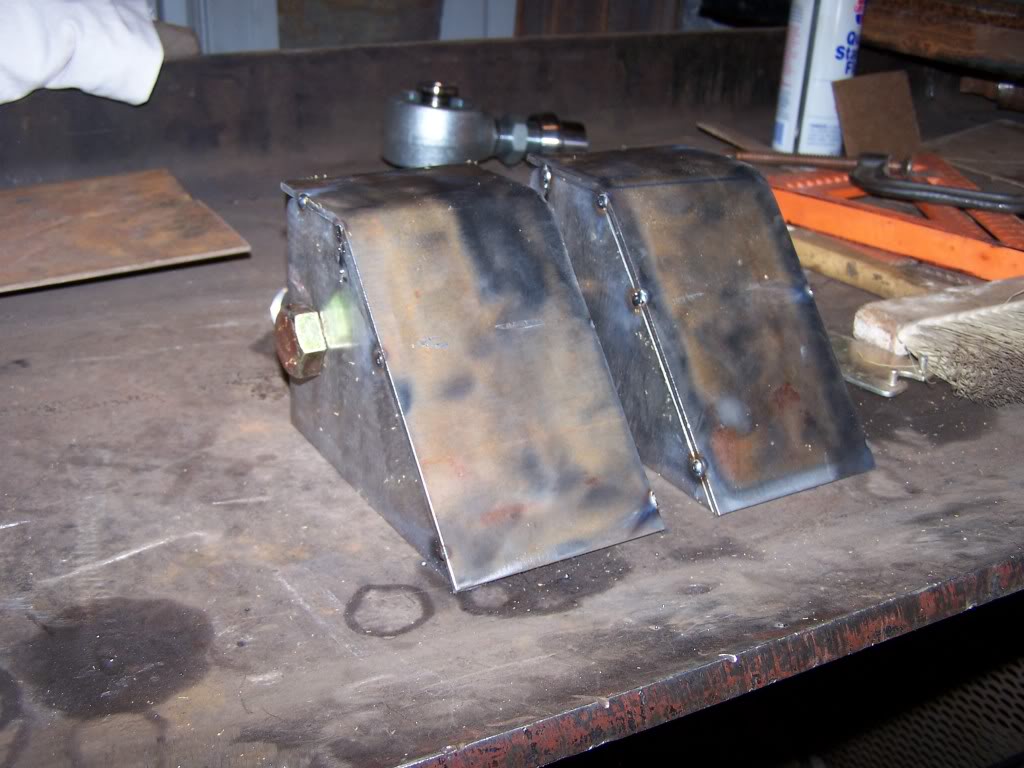

Name:  100_2797.jpg
Views: 4
Size:  102.8 KB
the side plates are 1/4" and the top is 1/8"
Reply With Quote
  #25
Old 07-28-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice work.
