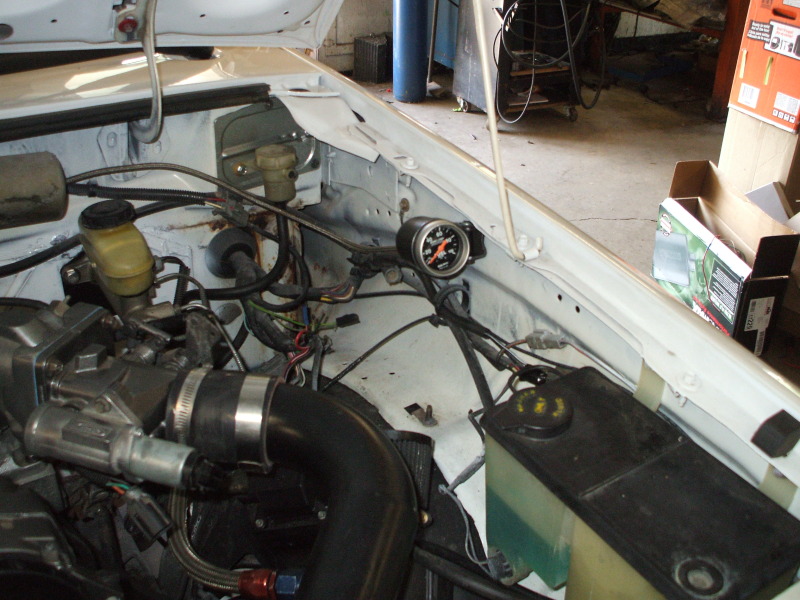

Here is the wiring under the hood finished and all the vac lines hooked up.

I have relays in corner for fuel pumps and the fan that plug into the harness. The blue wire and fuel block run into the cab and goes to another block under the dash for powering the wide band,12v outlet in dash,ecm and amps.

Mounted a fuel pressure guage under the hood.I have yet to find a good small guage for the rail that reads correct so I just went with a good old Autometer I can trust.


I also started working on my Sirius dock..no more ash tray.

And here is the begining of the sterio install





Still havent decided if I want to keep adding more white accents to interior or stay with darker colors..the jury is still out on that.
The console/sub enclosure turned out awesome and fits perfect.Uses a Jeep Cherokee lid and tray so it is easlily replaced should it get broken. Colors match interior alot better than they show up on my camera using the flash. Still might change color of the lid later tho.

And as a bonus I have a second console made that is longer and taller that will be going in my 83 Ranger truggy since its an auto trans.
