My SAS... Tons of pics beware

So i'm in the middle of my sas rightnow so thought i'd do a write-up. This is just a quick one but I can add more later. My superlift is sold so please don't ask...

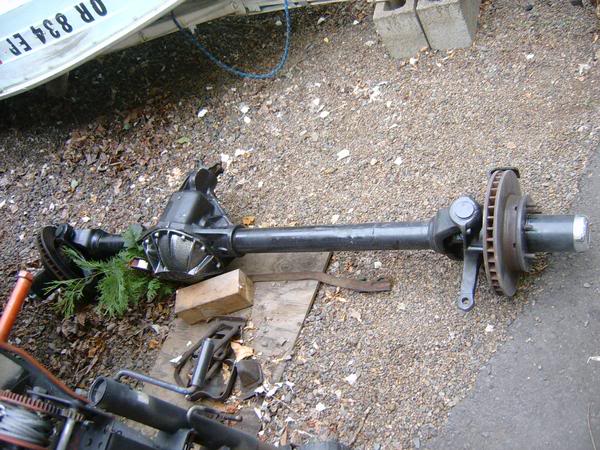

Front axle-
Waggy D44
5.13's
Solid Diff cover
Warn Premium hubs
Only bad thing is i'm not doing hi steer. I really don't need it with a 3 link in my opinion and for what i'm going to be doing... I'm just drilling out my knuckle steering holes and running 3/4" QA1 heims.
etc...

Rear axle-
Ford 9"
5.14's
Lockrite locker
Shafts redrilled to 6 lug
Explorer disks converted to 6 lug
14" Bilsteins with rezzy's
Stock blocks
63" chevy procomp 5.5" lift springs with belltech 6400's with mounts moved down...
etc...

Suspension-
3 link with Panhard (Like zabeards)

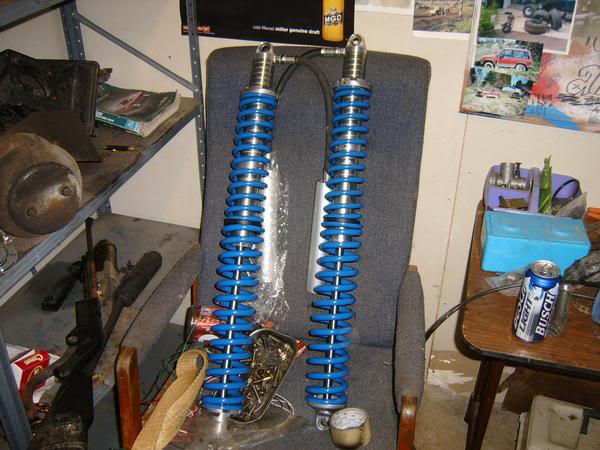

14" FOA coilovers

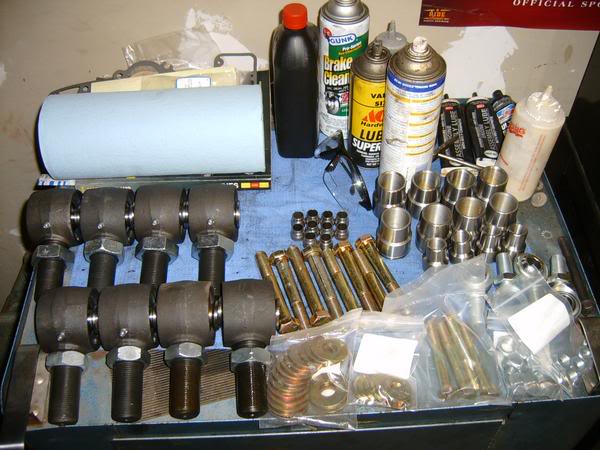

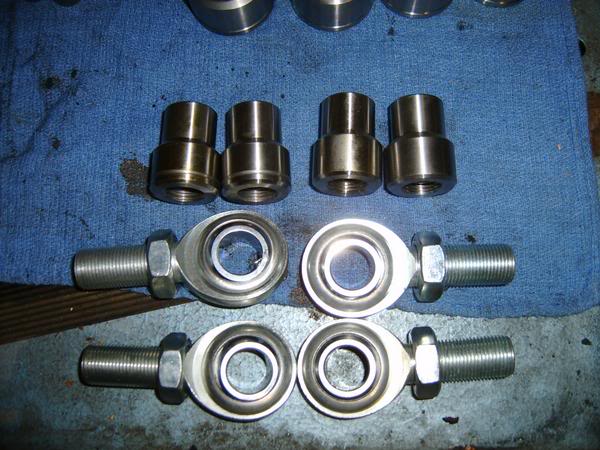

Trailgear creeper 2.63 Joints

Metal-

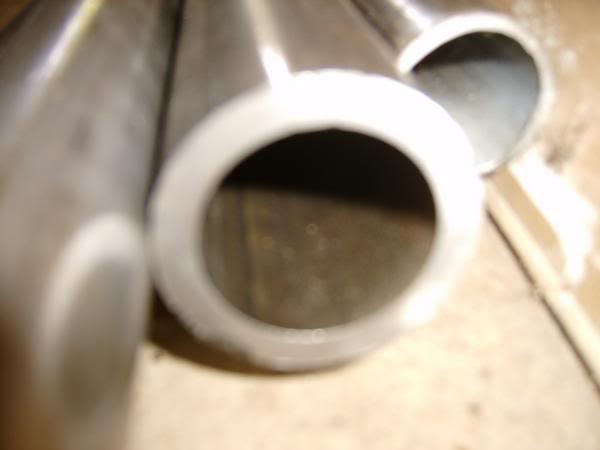

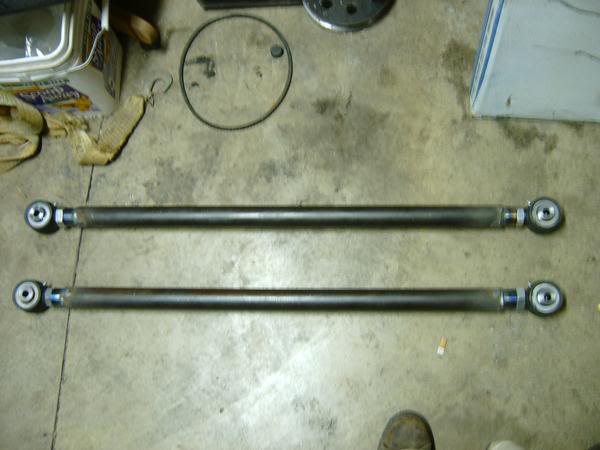

Link material- 2" 1/4" wall DOM
Steering 1.5" 1/4" dom

Misc-
Yota steering box with allpro pitman arm
Custom lengthened rear driveshaft
I'm leaving my bodylift on till this is done. The rear in the pics is about the amount of lift it'll have after the bodylift is out.

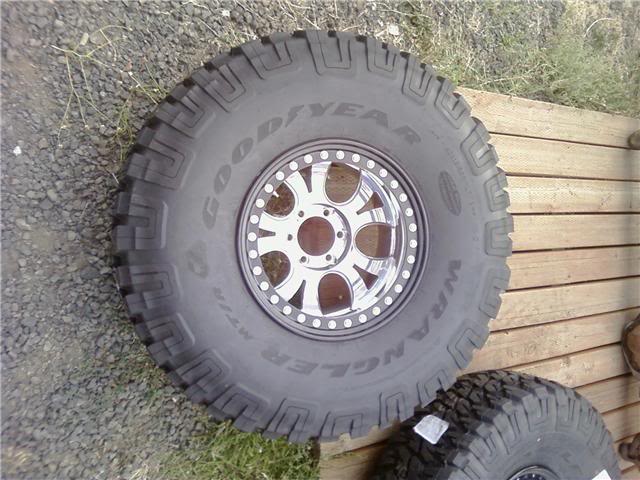

Tires/wheels-
40x13.50x17 Goodyear Mtr's
17x10 Aluminum Beadlocks

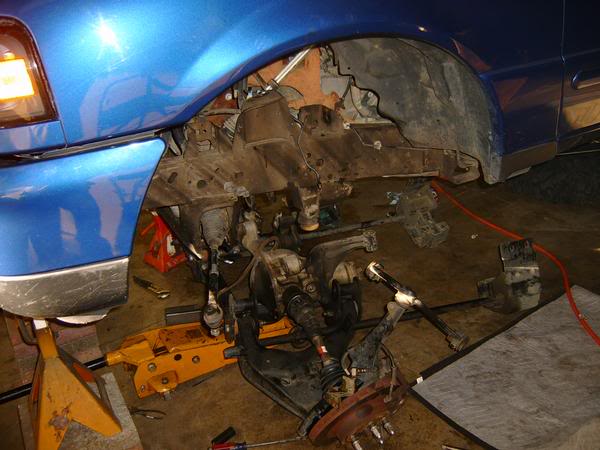

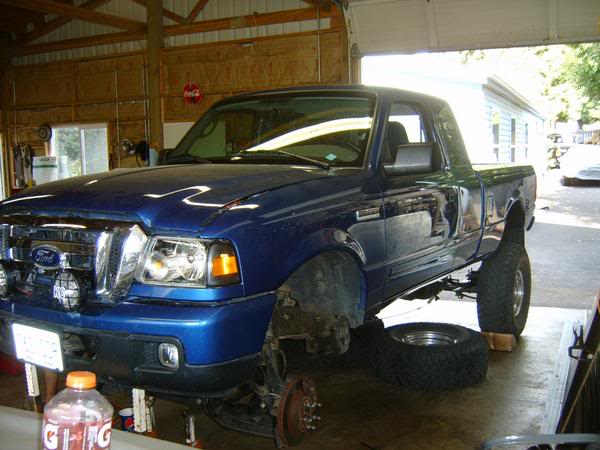

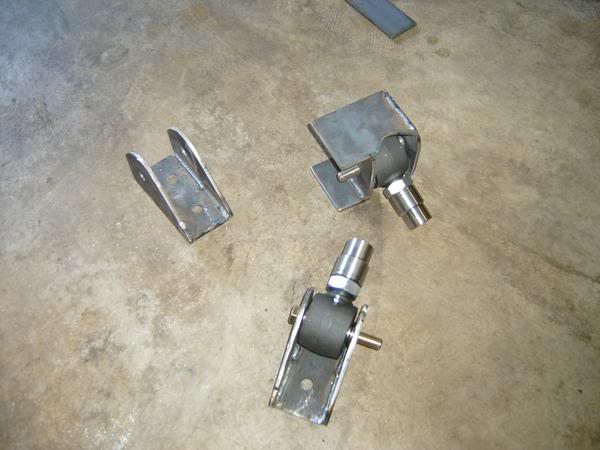

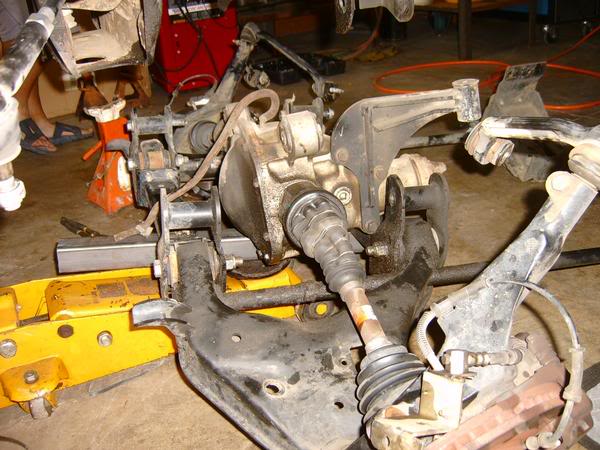

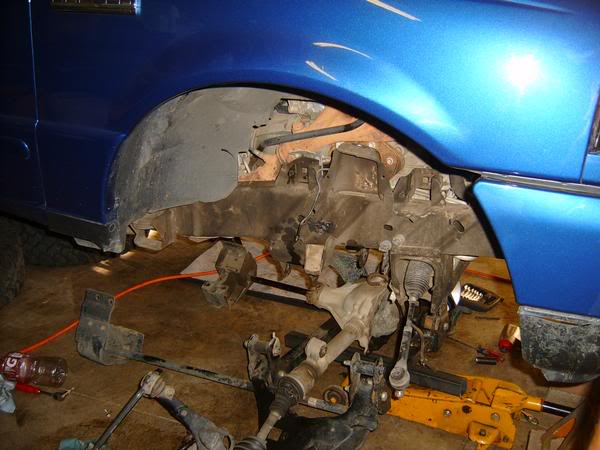

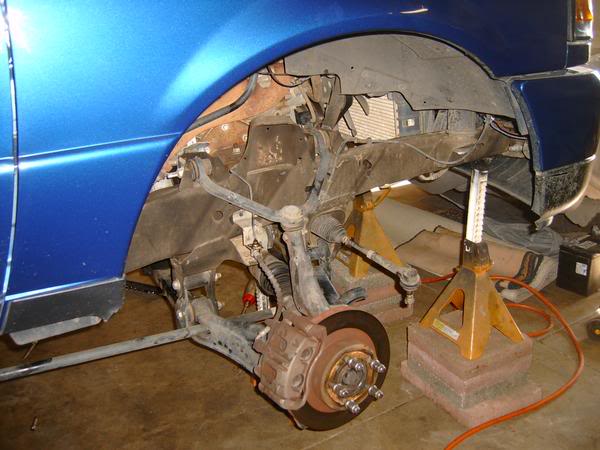

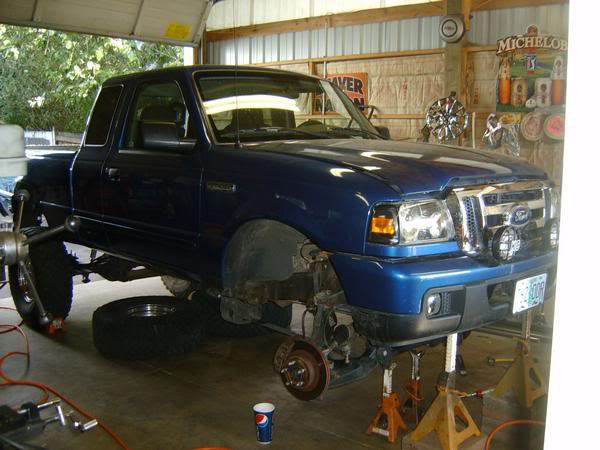

Day 1-


Name:  l_0a09eeff03024f8e98621ce4a668bab2.jpg
Views: 60
Size:  75.2 KB

Name:  l_f3dc394d670b405397231439c2231295.jpg
Views: 58
Size:  32.6 KB

Name:  40-1.jpg
Views: 58
Size:  58.9 KB

Name:  l_ed72c86d30a04011a410a57bea7d723d.jpg
Views: 57
Size:  53.1 KB

Name:  l_f7d6c8774b194ac79994c4a7893c617d.jpg
Views: 64
Size:  44.6 KB

Name:  l_dfd9423164ed440e984003a66b64e610.jpg
Views: 58
Size:  15.9 KB

Name:  l_d1b830ef37da4d6c8d13eaacc40fe127.jpg
Views: 62
Size:  41.1 KB



Name:  l_7f7954bb01114d1fad9d2f19510fd50c.jpg
Views: 58
Size:  52.0 KB

Name:  l_6f2acd33eb444577b97cde5ae90c07dc.jpg
Views: 60
Size:  44.7 KB

Name:  l_6e7cde8691a4443ea285679b1b408cda.jpg
Views: 61
Size:  57.0 KB

Name:  l_6bc964a1ac5f4ceeb8adaf4b01910447.jpg
Views: 57
Size:  30.1 KB

Name:  l_5bd229d8044a4204867cc0103cd86a06.jpg
Views: 61
Size:  34.8 KB

Name:  l_5bf115fd4e954a9f8c68c0a0a4b3bc28.jpg
Views: 65
Size:  35.2 KB

Name:  l_68c321146cfa41f7bdf350a968d0a169.jpg
Views: 62
Size:  42.2 KB

Name:  l_79223683d46f46c8869bc87f56a34b92.jpg
Views: 57
Size:  45.1 KB

Name:  l_057019e14357481e857085214cf3b258.jpg
Views: 57
Size:  46.6 KB

Name:  l_87d109f05eff4d50a19001650cd441c3.jpg
Views: 57
Size:  44.2 KB

Name:  l_775a11fbe64d4dfb85b5dfae6cea3cc1.jpg
Views: 58
Size:  43.5 KB

Name:  l_0ef3661fee8445529d4f793f4e0d3826.jpg
Views: 60
Size:  58.3 KB

Name:  l_13c753d31fe64659b7d0cddebd803075.jpg
Views: 57
Size:  52.5 KB

Name:  l_775a11fbe64d4dfb85b5dfae6cea3cc1.jpg
Views: 58
Size:  43.5 KB

Name:  l_ed72aa16e89b4e93b583d780b5cc896d.jpg
Views: 57
Size:  40.1 KB



Attached Images
File Type: jpg l_775a11fbe64d4dfb85b5dfae6cea3cc1.jpg (43.5 KB, 5 views)
Reply With Quote
  #2
Old 08-02-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Lookin good so far. Cant wait to see this thing finished.
Reply With Quote
  #3
Old 08-02-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
*****n, i was wondering when this was going to start. Cant wait to see it finished,makes me wish I could get get going on mine.
Reply With Quote
  #4
Old 08-02-2009
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
looks awesome. how long can you go without your truck??
Reply With Quote
  #5
Old 08-02-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
um....i hate you.

hurry up and finish so i can hate you some more
Reply With Quote
  #6
Old 08-02-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
Is that a passenger side drop front diff?? Looks slick! You runnin the same rezzy shocks on the front?
Reply With Quote
  #7
Old 08-02-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looks like a good start. Gonna be badass!
Reply With Quote
  #8
Old 08-02-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Cant wait to see it done.
Reply With Quote
  #9
Old 08-02-2009
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
i knew this was coming. its going to be awesome man
Reply With Quote
  #10
Old 08-02-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
gonna look So0o0o0o badass! I wish i had the know how and money to SAS... i will one day in the future! Good luck and keep us posted.
Reply With Quote
  #11
Old 08-02-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by stRanger View Post
Is that a passenger side drop front diff?? Looks slick! You runnin the same rezzy shocks on the front?
its a waggy axle so driver, its just upside down
Reply With Quote
  #12
Old 08-02-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
the tubes on the axle just seems so freaking long..
Reply With Quote
  #13
Old 08-02-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
What kind of wheels are those? are they real beadlocks of sims?

Quote:
Originally Posted by INT3RC3PTOR View Post
its a waggy axle so driver, its just upside down
some waggy axles are passenger.

Thats all yall have done Corey? We had the frame cleaned up all pretty after 2 days

Last edited by 99ranger4x4; 08-02-2009 at 10:51 AM.
Reply With Quote
  #14
Old 08-02-2009
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Subscribed! Your truck is going to look awesome.
Reply With Quote
  #15
Old 08-02-2009
cory07ranger4x4's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Apr 2007
Location: Corvallis,OR
Posts: 502
Matt- Real beadlocks. I'm not going to waste my money on fake ones. ha
Reply With Quote
  #16
Old 08-02-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Can't wait to see if it's finished! Just curious, is your truck paid off yet? I'm just wondering how far people will modify their truck before they have the title.
Reply With Quote
  #17
Old 08-02-2009
cory07ranger4x4's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Apr 2007
Location: Corvallis,OR
Posts: 502
Not quite! ha. I'm not too worried bout it. I plan on keeping it for a long time.
Reply With Quote
  #18
Old 08-02-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Quote:
Originally Posted by 99ranger4x4 View Post
What kind of wheels are those? are they real beadlocks of sims?



some waggy axles are passenger.

Thats all yall have done Corey? We had the frame cleaned up all pretty after 2 days
yeah I suppose he didnt say a year
Reply With Quote
  #19
Old 08-02-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
What brand are theY?

Quote:
Originally Posted by INT3RC3PTOR View Post
yeah I suppose he didnt say a year
but at the same time waggy axles are low pinion, if that was a pass. axle it would be HP which would mean its not a waggy axle lol.. actually there arent any HP passenger drop axles.
Reply With Quote
  #20
Old 08-02-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
tiss true as long as everybody knows that they are all LP, but in my thread everybody thought the same as in here lol. Its a starter axle for sure, it will get me on the road and then I can save.


anyways back on topic, wtf more progress pics lets go!
Reply With Quote
  #21
Old 08-02-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
those c/os are major bling!! 16"? what brand are they?

my chevy double cardan joint doesn't have enough travel in it for the amount of down travel i had, i cant imagine a LP axle, hell i've stuck the yoke on a few rocks too.
Reply With Quote
  #22
Old 08-02-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
14" FOA's son. read!
Reply With Quote
  #23
Old 08-02-2009
cory07ranger4x4's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Apr 2007
Location: Corvallis,OR
Posts: 502
A couple camera phone pics... We got more done than shown...

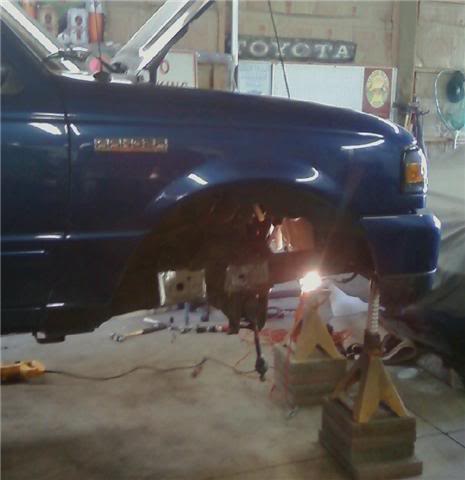

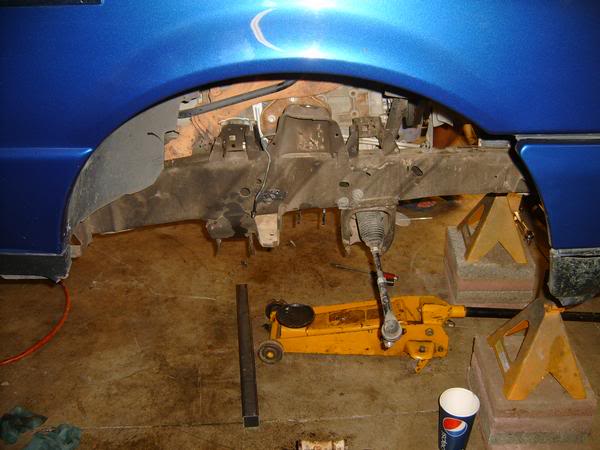

Frame all clean except the engine crossmember/steering...

Name:  1-2.jpg
Views: 59
Size:  23.2 KB

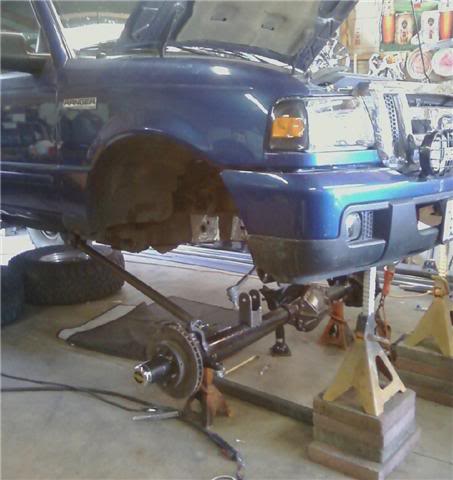

Lower links mounted up and upper link mounts on.

Name:  2-2.jpg
Views: 61
Size:  31.5 KB
Reply With Quote
  #24
Old 08-02-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by INT3RC3PTOR View Post
14" FOA's son. read!
reading is overrated
Reply With Quote
  #25
Old 08-02-2009
Bottoms Up's Avatar
Member

Join Date: Jul 2009
Location: Clifton Forge, VA
Posts: 97
Going to be ****ing sick outcome!
Reply With Quote
