Project Bronco2 !!

Well you talkabout good timing!

Took my B2 out for a day of wheeling and I pushed it a little harder than I have before and it looks like I may have done damage to the stock d35 finally.
You see pix from that day here...
https://www.ranger-forums.com/forum2...-orv-park.html

Truck is still covered in mud but it looks as if the axle beams bent or cracked.
That all happened on Saturday.I was bummed all the way home.....

....until I got online and found the deal of the year.Sunday morn I made some calls,struck a deal and hit the road in the afternoon. I drove 300 miles round trip to pick this up.



74 EB d44,new Yukon 4.56 gears,Warn hubs,new joints,new wheel bearings,new calipers,Earls stainless brake hoses,radius arms,Rancho shocks,Deaver 5.5" coils,steering and a adjustable track bar.Everything is clean and in perfect shape. One tank of gas and 500.00 later it was home in my garage!

Now Im starting a project thread for this in hopes to getting as much input from you other SAS guys as possible. This whole setup came out of a 91 Explorer so if I want I could have this under the B2 in a weekend pretty easy,which I may do for now, but I really want to just do coilovers but have never really looked into them before.

Please shoot me some tips,tricks,ideas or any other opinions on this project!

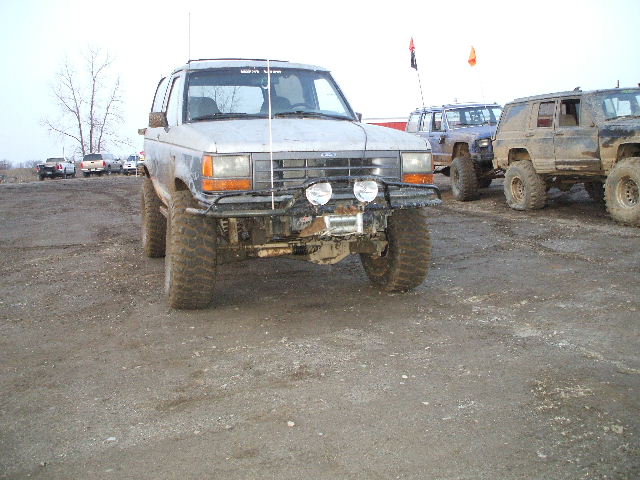

I dont wanna see this anymore!!
Name:  2009_1120bundy11-210032.jpg
Views: 4
Size:  80.8 KB
Reply With Quote
  #2
Old 11-24-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Hell yeah man. Saw a badass blue sasd bII at dunes in august I'd love one . Nice find!
Reply With Quote
  #3
Old 11-24-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yes run coilovers!!!
Reply With Quote
  #4
Old 11-24-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
So I was lookin at Ballistic and Bluetorch for c/o....any opinions?
Bluetorch has the cheapest I have seen at 230 each,Ballistic looks to start at 300.00
Reply With Quote
  #5
Old 11-24-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
What are you looking to run?

12? 14? 16?

If i was looking i would be scouring pirate for a set of 14s. Those guys are always selling stuff. I found a set of triple rate sway away racerunners 16" for 580 shipped!!! You cant beat that anywhere.

Plus most of them come with coils and you can atleast get a base on what you want to run. If you get some numbers on what you are looking for i will figure the spring rate for you.
Reply With Quote
  #6
Old 11-24-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Quote:
Originally Posted by zabeard View Post
What are you looking to run?

12? 14? 16?

If i was looking i would be scouring pirate for a set of 14s. Those guys are always selling stuff. I found a set of triple rate sway away racerunners 16" for 580 shipped!!! You cant beat that anywhere.

Plus most of them come with coils and you can atleast get a base on what you want to run. If you get some numbers on what you are looking for i will figure the spring rate for you.
Honestly I have gave very little thought towards this so far...I have only had the axle since sunday! But after looking at the Ex it came out of and looking at my truck it just seems the c/o would be so much simpler and better.
As of now I have no idea what kind of travel thissetup will net me nor do I even know what this truck weighs. Im not even sure if im using these radius arms either,I might go longer.
Reply With Quote
  #7
Old 11-24-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
go longer... those need tossed in a lathe turned down then some good 2" .25 wall DOM welded on it with a 3" JJ from ballistic. It will flex really well then and it is fairly cheap.

id go 8-10 inches longer myself.

id run 14" coilovers with like 4 inches of up travel and the rest down. that should keep you fairly low and give you plenty of flex. Then if you were to head up to the dunes or some high speed stuff adjust the coilovers for more up travel.

you will need some hoops bent but i know someone with a bender if you need it.
Reply With Quote
  #8
Old 11-24-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Thats almost exactly what I was thinking for the arms!

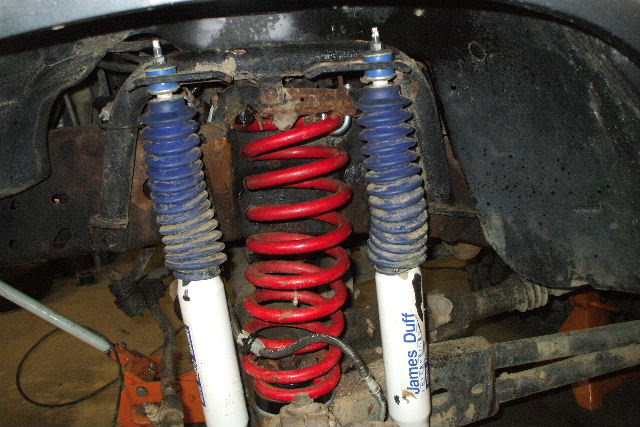

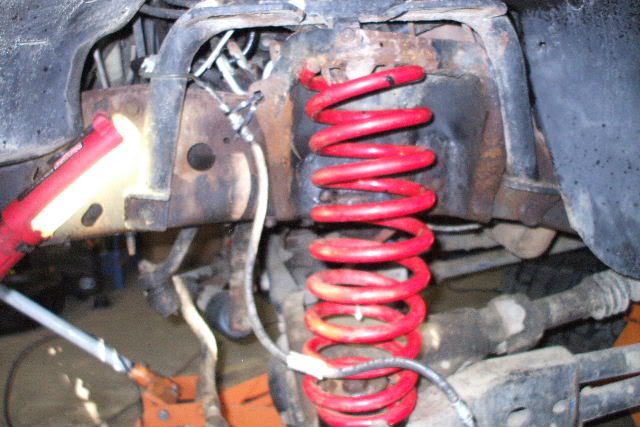

My truck has that James Duff dual shock hoop already and I want to see if its possible to just use that for a c/o mount. They are bolted to the frame so I would just weld em to the frame to be safe but other than that they look like I could raise them a couple inches and be good. I will go get some pix later.
Reply With Quote
  #9
Old 11-24-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
I already pix. lol

Name:  2009_0304coils0010.jpg
Views: 5
Size:  62.2 KB
Name:  2009_0304coils0007.jpg
Views: 7
Size:  56.7 KB
Obviously I would pull them off,sandblast them,inspect and then weld some plates to where they used to bolt to the frame and them weld plates to frame to spread load out better. Then add a brace from center of hoop to top of frame rail and maybe even tie them together with a removable loop over the motor.?.
Reply With Quote
  #10
Old 11-24-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Brian that will be great!!! cant wait to see it.
Reply With Quote
  #11
Old 11-24-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
those hoops would probably work but they wont be high enough. a 14" shock is 26" long with 5" of up travel

so you would need about that much room between the hoop and the axle.
Reply With Quote
  #12
Old 11-26-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Boy Zach you were right about Pirate! I found a few for sale already on there. Im picking up my turbo for my other Ranger this week so most likely the following week I will have the funds to start lookin for c/o setups. Thanks for the tip!
Reply With Quote
  #13
Old 11-26-2009
OVERtheEDGE's Avatar
Member

Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
sounds good. cant wait to see this one done. gonna be bad ***
Reply With Quote
  #14
Old 11-26-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks like a good buy. Nice BII!
Reply With Quote
  #15
Old 11-26-2009
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Looks like a great project Brain!
Reply With Quote
  #16
Old 12-01-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Thank you Mr. Stone!!!

Ok I think I scored tonite.

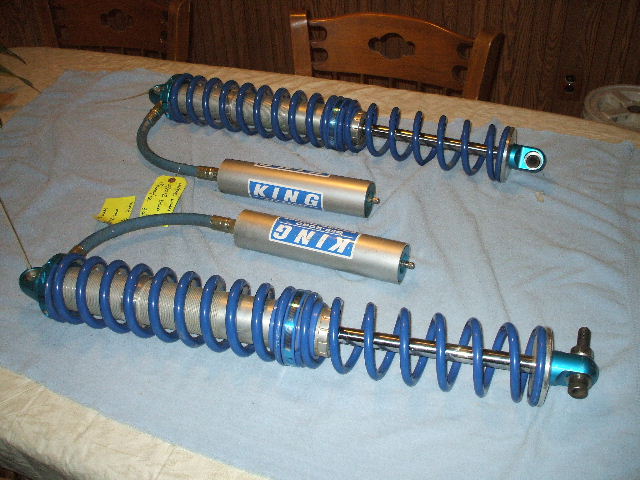

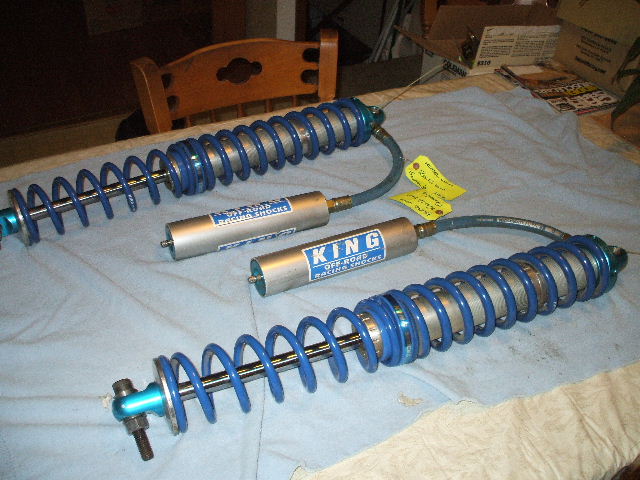

I picked up a set of King coilovers that are brand new and have never been bolted to a truck! 12" with 350/250lb springs. Very cool guy up in Warren had em and I got em for 400.00! There has to be at least a 1000.00 into these.

Name:  2009_1130coilover0002.jpg
Views: 8
Size:  79.3 KB
Name:  2009_1130coilover0003.jpg
Views: 8
Size:  81.1 KB


king set them up for his XJ so Im thinking they should be pretty close to good enough for my v8 bronco2.
Reply With Quote
  #17
Old 12-01-2009
lepp1892's Avatar
Member

Join Date: Oct 2007
Location: Almont, MI
Posts: 103
Sweet deal, I really need to straight axle my ranger. My ttb probably isn't going to last to much longer.
Reply With Quote
  #18
Old 12-01-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
V8?!
Reply With Quote
  #19
Old 12-02-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Quote:
Originally Posted by 0RangerEdge2 View Post
V8?!


I have 87 5.0 {non H.O.} 100% complete out of a Cougar. I have mustang High Output intakes,cam,injector,2 wire harnesses and a 87 Mustang speed density ecm. Motor has 89k miles so Im just doing quick check of the bottom end,fresh gaskets,new paint and then bolting it to a C4 auto trans I converted to 4wd output using Bronco2 c5 trans tailhousing and output shaft.

I also have Energy Suspension mounts,electric fan,controller,3 different sets of headers and manifolds,a non- A/C heaterbox,March underdrive pulleys,3G alt.......
Reply With Quote
  #20
Old 12-02-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yes you got a really good deal! you will enjoy them they should be close enough for what you are doing. you wont really know until you get them under the truck though.

nice find!!
Reply With Quote
  #21
Old 12-06-2009
deathbypsi's Avatar
Member
Thread Starter

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676

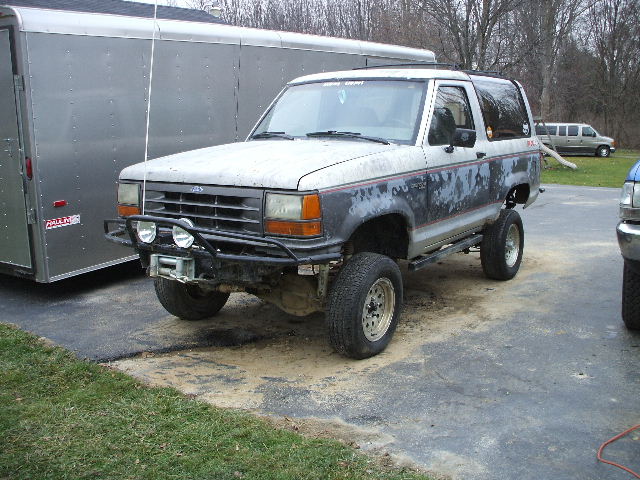

No turning back now! Tires and wheels are gone! Ordering my 35" KM2's Monday and picking up some old skool wagon wheels tomorrow in the new 5x5.5 pattern.

Name:  2009_1204parts0001.jpg
Views: 6
Size:  94.8 KB
Reply With Quote
  #22
Old 12-06-2009
93rangerXLT4x4's Avatar
Member

Join Date: Aug 2009
Location: Salmon Arm BC
Posts: 959
sweet deal it looks tiny now!!!!
Reply With Quote
  #23
Old 12-06-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by deathbypsi View Post
Thank you Mr. Stone!!!

Ok I think I scored tonite.
your welcome man i saw those and they where screaming your name
Reply With Quote
  #24
Old 12-06-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
nah leave it like that, looks beef!
Reply With Quote
  #25
Old 12-06-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by deathbypsi View Post


I have 87 5.0 {non H.O.} 100% complete out of a Cougar. I have mustang High Output intakes,cam,injector,2 wire harnesses and a 87 Mustang speed density ecm. Motor has 89k miles so Im just doing quick check of the bottom end,fresh gaskets,new paint and then bolting it to a C4 auto trans I converted to 4wd output using Bronco2 c5 trans tailhousing and output shaft.

I also have Energy Suspension mounts,electric fan,controller,3 different sets of headers and manifolds,a non- A/C heaterbox,March underdrive pulleys,3G alt.......
can you explain a little more about what you did with the tranny might be interested in doing the same when i swap in a 5.8
