Project: Paint Prep

Well, the time has some for a little rear end work to be done. I have been waiting for this time for several months now. Been collecting supplies and parts and now have what I need.

Fiberglass fillers....Check.
New tail lights....Check.
Epoxy, Fiberglass resin/cloth....Check.
New Roll pan....Check.

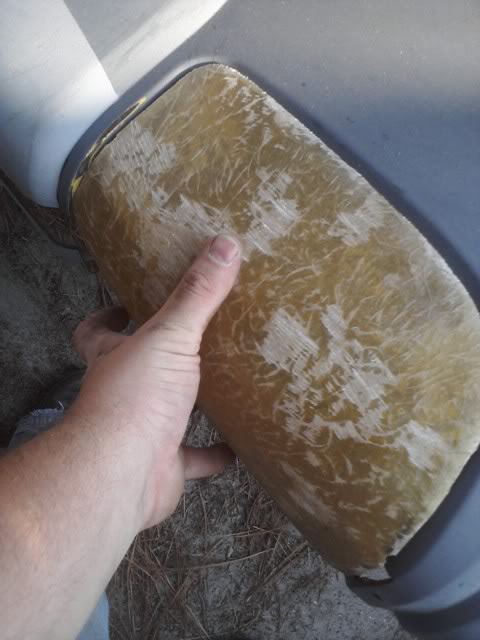

I'm not going to expose what tails I have, but if anyone wants to guess, they are more than welcome. Dj224Ranger made the tail light fillers for me. A little trimming and they fit pretty well.

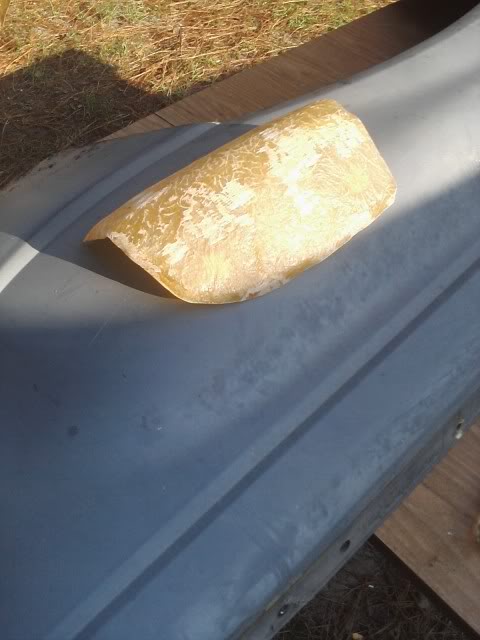

Name:  Image09042010085033.jpg
Views: 11
Size:  39.5 KB
Name:  Image09042010093844.jpg
Views: 8
Size:  64.9 KB
Name:  Image09042010085804.jpg
Views: 11
Size:  43.1 KB

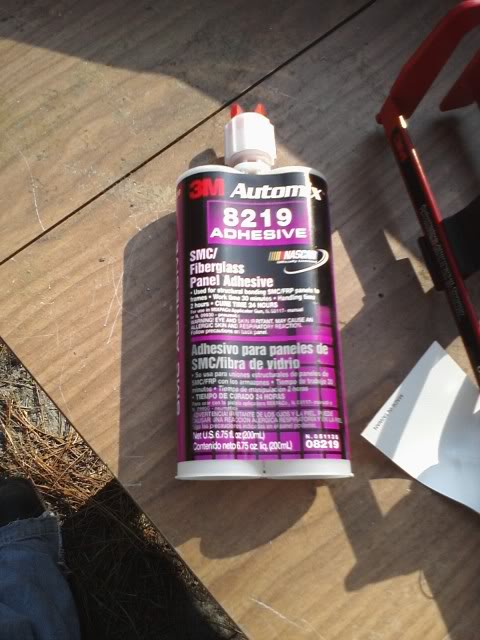

Then picked up a 3M applicator gun, and some 8219 SMC/Fiberglass adhesive. Found a guy on ebay that sells at a package, and at a good price. Got both for less than the cost of a gun.

Name:  Image09042010093823.jpg
Views: 9
Size:  59.3 KB
Name:  Image09042010093816.jpg
Views: 9
Size:  54.8 KB

Everything fit, trimmed, and ready to go.
Name:  Image09042010095710.jpg
Views: 10
Size:  61.7 KB

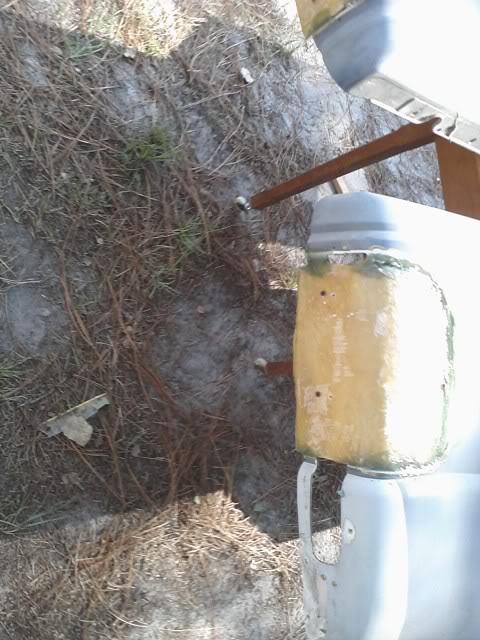

Glued in:
Name:  Image09042010101306.jpg
Views: 7
Size:  40.0 KB
Name:  Image09042010101249.jpg
Views: 11
Size:  70.6 KB
Name:  Image09042010101543.jpg
Views: 10
Size:  67.6 KB

After about 3 hours, I went ahead and trimmed down the inside in preparation for adding the mat. Hoping to lay some tomorrow. Also have a few cracks here and there that are ready to be reinforced from the rear.

Name:  Image09042010124539.jpg
Views: 11
Size:  74.4 KB
Name:  Image09042010124509.jpg
Views: 10
Size:  61.2 KB



I plan to add a layer of mat to the areas where I had cut out for the Caddy's before, then fill it in from the front. should work out great. Have Monday off as well, so hoping to get the majority of the fiberglass work roughed in, ready for sanding. I need to pick up an air file, but that won't be for another week or so. I'm planning to get all the body work done on my truck this fall so I can try to get it painted either this winter or in the spring.

And as time allows, I will try to include all the interior work I have done. It will be a lot of copy/paste from RPS as I have a build thread going there.
Reply With Quote
  #2
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Here is some of the interior stuff. A lot of this is well over a year old. Any questions, feel free to ask.

Finally got around to redoing my interior. Got the speaker box modified from 2 12's to 1 10, and now my amp is mounted to where the other sub used to be. I had to do that due to my new console not fitting the amp under it anymore.

Old:

Name:  20cbre2.jpg
Views: 8
Size:  171.7 KB

New:
Name:  PC270086.jpg
Views: 8
Size:  101.9 KB


I think I'm going to build a cover over the amp at a later time. Mainly to hide the wires. I also upgraded my power wire from an 8ga to a 4ga.
Reply With Quote
  #3
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

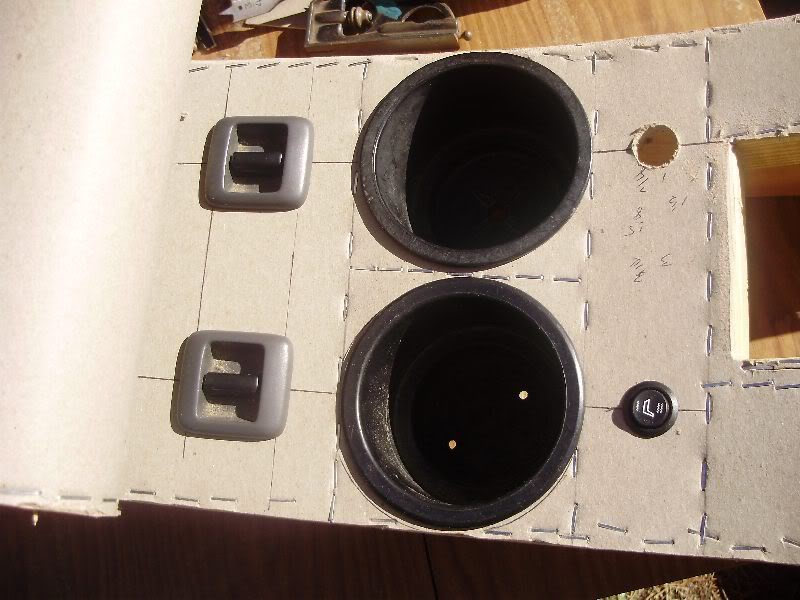

Built a new console as well. It houses two large cup holders, my power window switches, and the switches for my seat heaters. It is covered in yellow suede and charcoal vinyl. It is installed in the truck now, but ran out of light. Will try to get pics of it tomorrow in the truck.

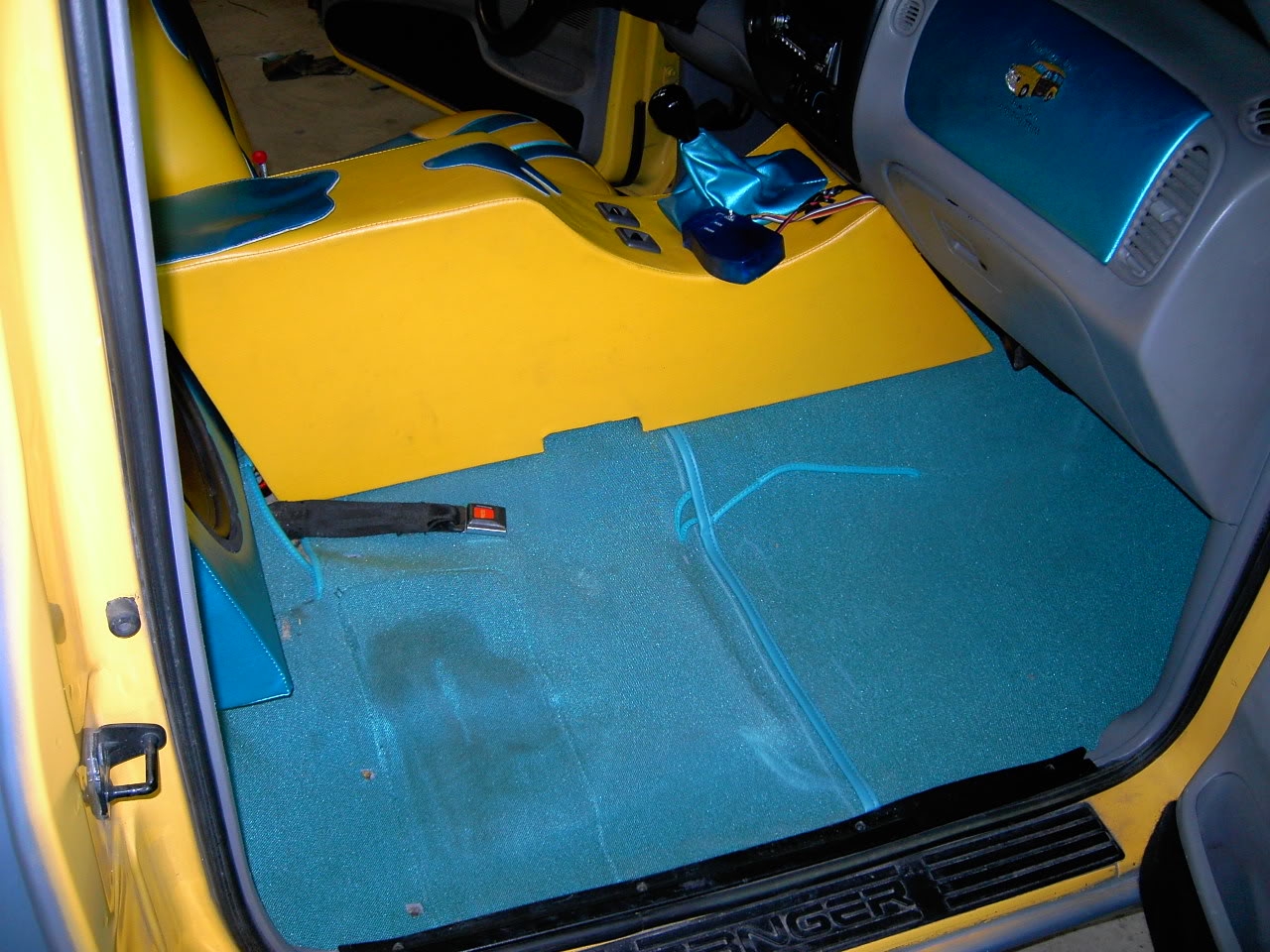

Old:
Name:  ab24re2.jpg
Views: 9
Size:  233.4 KB

New:
Name:  PC280093.jpg
Views: 6
Size:  86.2 KB
Name:  PC280096.jpg
Views: 9
Size:  132.7 KB
Name:  PC280099.jpg
Views: 7
Size:  73.3 KB
Name:  PC280101.jpg
Views: 7
Size:  59.8 KB
Name:  PC280102.jpg
Views: 8
Size:  52.8 KB
Reply With Quote
  #4
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Still haven't gotten pictures of the console yet. I nee to pull it back out to finish running wires for the seats. That will probably happen Sunday.

Got time to work on my seats today. I got the driver's done, and part of the passenger. Seats are from a 95 Mustang GT, with power lumbar from a set of Cobra seats, seat heaters, and no head rests.

Old seat covers:

Name:  15ddre2.jpg
Views: 7
Size:  25.0 KB

Cutting the seat belt loop bracket off:
Name:  P1010107.jpg
Views: 9
Size:  86.0 KB

Backrest Seat Heater:
Name:  P1010104.jpg
Views: 11
Size:  71.1 KB

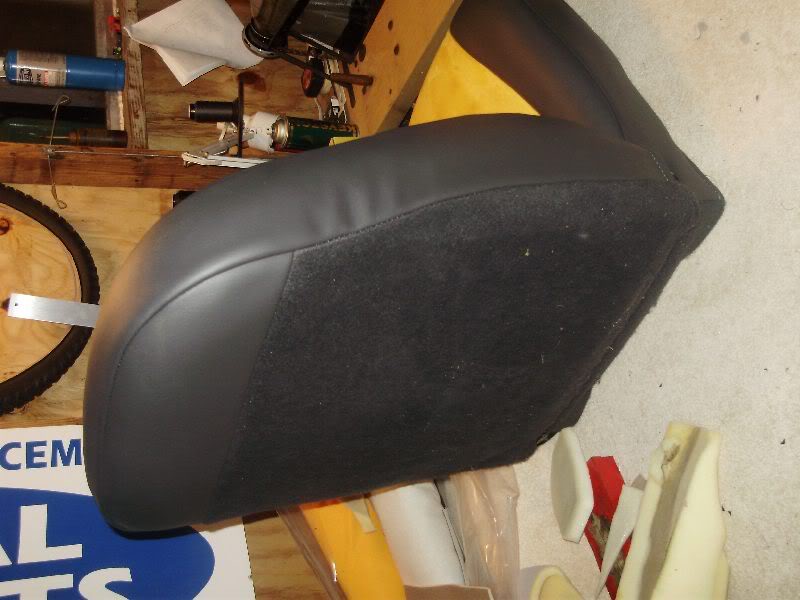

Finished Seat:
Name:  P1010112.jpg
Views: 6
Size:  60.7 KB
Name:  P1010113.jpg
Views: 8
Size:  61.1 KB
Name:  P1010110.jpg
Views: 8
Size:  54.2 KB

Lumbar Switch:
Name:  P1010111.jpg
Views: 11
Size:  46.8 KB

I'm heading to South Carolina tomorrow to get a couple dash pieces and a headliner. I'm hoping in a month or so, I can get a new sunroof so I can get my headliner in. Next on the list is getting the door panels wrapped.
Reply With Quote
  #5
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Got the other seat covered today. I'm hoping to get out tomorrow and play with some pieces for the dash.

Name:  P1030115.jpg
Views: 7
Size:  89.5 KB
Name:  P1030114.jpg
Views: 7
Size:  58.2 KB
Reply With Quote
  #6
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Got some more little things done today. Got my horn wired up through the mustang steering column. The clock spring was bad, so luckfully I had another stang column laying around. Next electrical job is trying to get the cruise to work. Still have to wire the lumbar/seat heaters. Might just wait now until I pull the carpet to replace it. I got the panel under the steering column wrapped and installed. Also got the glove box covered. I started on the door panels. I have one arm rest done, and about half way done on a door panel. I do have a question though. should i do black carpet, or find a charcoal carpet? I was thinking black earlier, but I think now it should be charcoal. also, the fuse door, the gauge bezel will be dyed to match the vinyl. I'm planning on painting the door handle bezels, and around the gauges yellow. what color should I do the little vents on top of the dash? I was thinking yellow, but I think it will be too much. what do ya'll think? match the vinyl for the vents or yellow?
Reply With Quote
  #7
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
I got one of the door panels finished today. well, other than carpet at the bottom. i'm really happy how it turned out. i'm on my way out the door to get some chicken, but will post some pics when i get back.

the stang seats are from a 95 gt, and are bolt in for 97 and older. they would require heavy modifying of the seat tracks for 98+. your best bet would be to find a set of seat tracks for a 97 and older and see if you can get them to work.

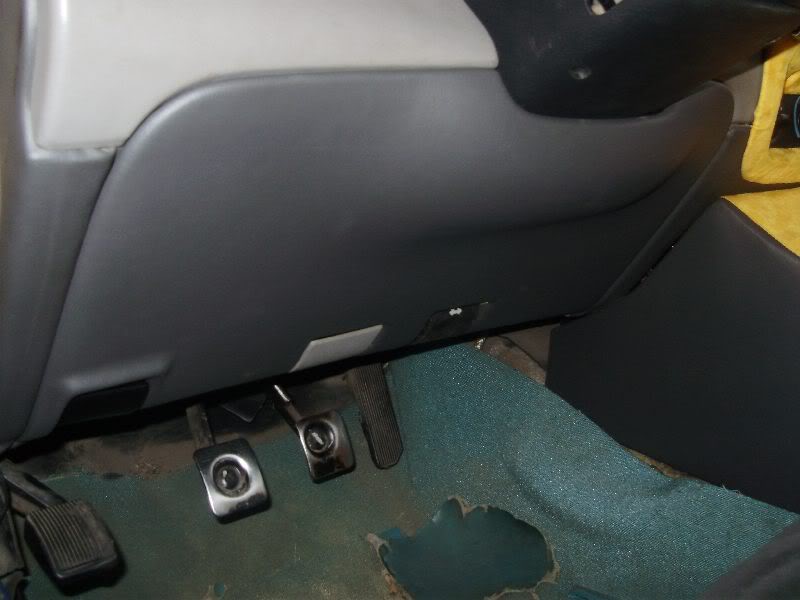

onto the work. here is the under dash panel. still need to get the small plastic pieces dyed. i'll get them all lined up and give them to the lady that does our dye work.
Name:  P1110125.jpg
Views: 9
Size:  44.7 KB

the glove box, and how the console fits under the dash. don't worry about the white stuff on the dash, i had a box crammed in there and it rubbed off. I just need to clean it.
Name:  P1110129.jpg
Views: 8
Size:  47.6 KB
Name:  P1110130.jpg
Views: 7
Size:  39.9 KB
Reply With Quote
  #8
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
And now the door panels.

old:
Name:  P1110126.jpg
Views: 10
Size:  66.1 KB
Name:  P1110127.jpg
Views: 9
Size:  59.2 KB
Name:  P1110128.jpg
Views: 7
Size:  53.4 KB

Speaker hole cut out and filled grooves:


Lock hole filled: I don't lock my doors so I don't need it. (shaved door handles)
Name:  P1110117.jpg
Views: 9
Size:  49.7 KB

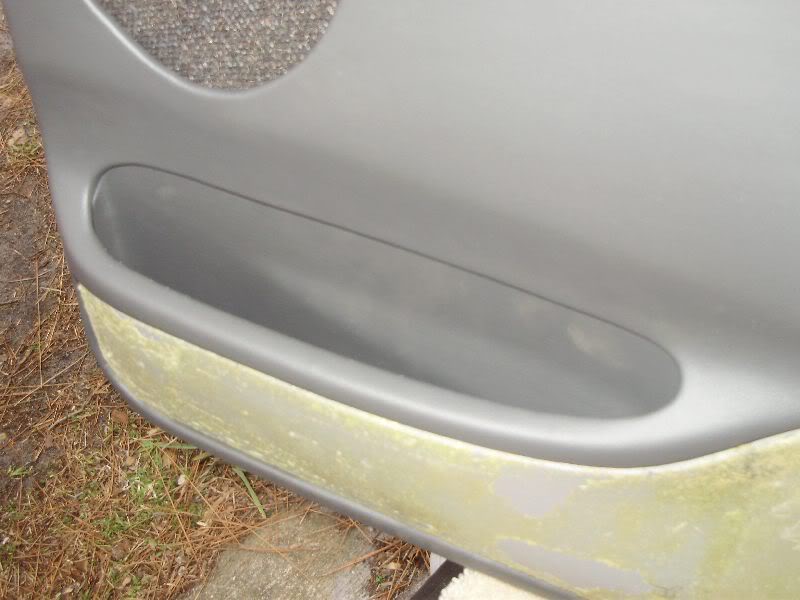

Pocket covered:
Name:  P1110122.jpg
Views: 7
Size:  56.8 KB

Door panel covered, and arm rest:
Name:  P1110119.jpg
Views: 9
Size:  90.1 KB

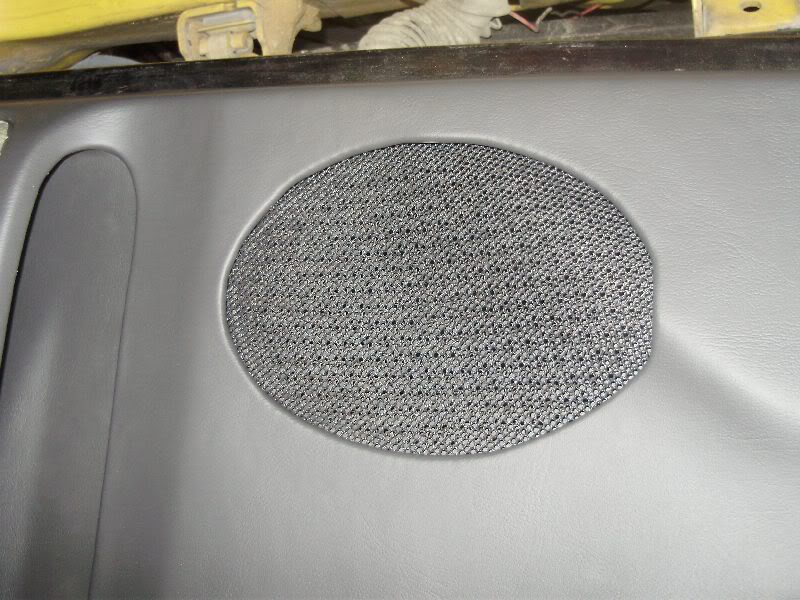

Speaker grill:
Name:  P1110132.jpg
Views: 7
Size:  100.4 KB

Test fitting to make sure door handle bezel fits:
Name:  P1110131.jpg
Views: 8
Size:  90.2 KB

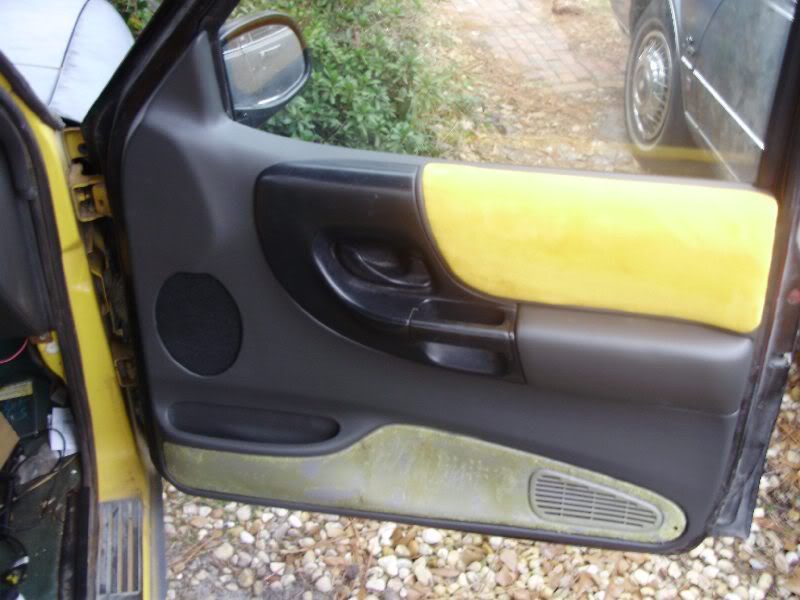

And finished (minus carpet on the bottom):
Name:  P1110140.jpg
Views: 10
Size:  64.0 KB
Reply With Quote
  #9
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

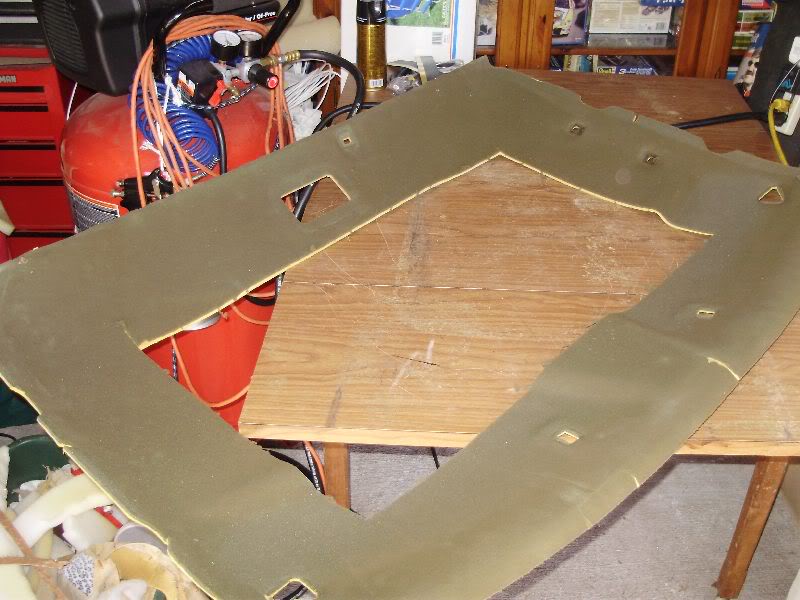

Finally, after nearly three years, I have a working sunroof! I still need to do the headliner, but I'm getting there. I now need to lower my seats about an inch. With the trim ring for the sunroof in, the first big bump out of my driveway I hit my head on the ring. Ouch! I think I'm going to pull the foam out of the bottom, and cut a 1/2" off the bottom. It's either that or cut the mounts off the seat frame, and raise it up. Not sure how that would work though.

I have also come to the conclusion that I'm going to ditch the suede on the center console. It's not holding up very well. I'm also going to ditch it off the radio bezel, and just paint it, along with the door handle bezels, and the gauge bezel yellow. The console will be all charcoal vinyl.

Name:  P3080109.jpg
Views: 9
Size:  105.2 KB
Name:  P3080108.jpg
Views: 7
Size:  109.0 KB
Name:  P3080112.jpg
Views: 10
Size:  51.5 KB
Name:  P3080111.jpg
Views: 9
Size:  73.5 KB
Name:  P3080113.jpg
Views: 8
Size:  79.6 KB
Reply With Quote
  #10
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
this is way overdue for an update. so to get caught up, this is what has been done.

went from this:
Name:  PICT4455.jpg
Views: 6
Size:  14.0 KB

to this:
Name:  P7190320.jpg
Views: 8
Size:  47.0 KB

Then i picked up a set of white face explorer sport gauges and the matching hvac panel. (sorry, no pics. we all know what they look like)

And I got a new set of seats from KingofSpades. 65-67 Cougar/Mustang seats. I will hopefully get these covered soon.

Design I'm thinking about:


charcoal suede with the same charcoal vinyl that's in it now. will have seat heaters, and maybe lumbar.

now that we are up to date, here comes all the stuff from the past week.
Reply With Quote
  #11
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Alright, now the fun stuff.

I took that explorer gauge cluster and tore it all apart. all the way.

Sanded all the green off the back of the overlays and painted them blue. Also rolled the odometer to a closer approx of what's on the truck. it's not been correct for over 5 years.
Name:  PC280176.jpg
Views: 6
Size:  45.8 KB

Also attempted to do the same to the hvac panel, but screwed it up:
Name:  PC220094.jpg
Views: 10
Size:  31.2 KB

After painting the overlays, I added a few blue LEDS to the cluster:Name:  PC280177.jpg
Views: 9
Size:  47.7 KB

Name:  PC280180.jpg
Views: 6
Size:  61.6 KB

Bought a new hvac panel and gave it the same treatment. I'm not happy with it right now. I need to get the green off but haven't found a safe way. also need to see if i can add a few more leds to it.
Name:  PC280164.jpg
Views: 8
Size:  40.4 KB
Name:  PC280165.jpg
Views: 9
Size:  36.8 KB
Name:  PC280163.jpg
Views: 7
Size:  35.3 KB

did the headlight switch. didn't know it lights up whenever the truck is on. thought only when the headlights are on:


and did the sunroof switch. used to be green, now blue:
Reply With Quote
  #12
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
And i got a few other parts in for it.

another new speedo bezel.
Name:  PC280174.jpg
Views: 9
Size:  43.8 KB

the headlight switch pigtail is trashed. have two wires that are burnt badly. got a new pigtail from carquest. heavy gauge wires all the way across it. part # ECC 57-4783. I highly recommend anyone that runs higher wattage headlight bulbs to upgrade this wiring. i have higher wattage bulbs, plus the projectors and my headlight switch gets extremely hot. also bought the upgraded headlight harness from LMC truck. it's plug and play, but pulls the power off the battery instead of through the headlight switch.

Name:  PC280186.jpg
Views: 11
Size:  67.5 KB
Name:  PC280182.jpg
Views: 7
Size:  65.5 KB

explorer overhead console and auto mirror is going in as well. hopefully some more updates this weekend.
Reply With Quote
  #13
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
finished the leds up in the cluster today. tried them out this morning, wasn't happy. had three dark spots. 5-6k on the tach, 40 mph, and 80 mph
Name:  PC290190.jpg
Views: 9
Size:  51.6 KB

a couple more day time shots:
Name:  PC290192.jpg
Views: 9
Size:  39.4 KB
Name:  PC290194.jpg
Views: 11
Size:  45.5 KB

and after adding 10 more leds:
Name:  PC290202.jpg
Views: 10
Size:  32.8 KB

Name:  PC290199.jpg
Views: 10
Size:  33.6 KB

i'm really happy with them now. the spots are still slightly dark, but i think it looks good.

here is the final dimmed down. the dark spots really show when it's dimmed.
Name:  PC290201.jpg
Views: 10
Size:  26.5 KB
Reply With Quote
  #14
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

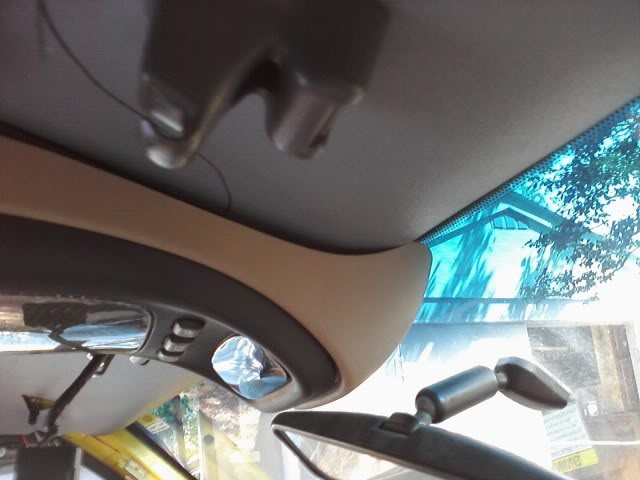

Got the overhead console in. So far, i like it.

Had to modify the bracket quite a bit. basically cut it in half:
Name:  p_00202.jpg
Views: 7
Size:  30.0 KB


back holes for the screws:
Name:  p_00203.jpg
Views: 5
Size:  17.6 KB

first fitting:
Name:  p_00204.jpg
Views: 12
Size:  39.2 KB

need to extend the console up to match the sunroof. no big deal.

Name:  p_00207.jpg
Views: 9
Size:  62.0 KB
Name:  p_00209.jpg
Views: 8
Size:  51.0 KB

lines up pretty well!

cut out the inside of the garage door compartment to get to the switch. I'll clean it up later when it gets covered:
Name:  p_00206.jpg
Views: 9
Size:  25.1 KB

it's all wired except for the temp sensor. plug it all in and the lcd doesn't light up. what did i wire wrong? everything looks fine. plug in the last one i've sold. it's works fine. out of all the ones i bought and sold, i ended up with the one that doesn't work! *$(@ oh well. need to find a new screen now. hoping this next weekend to get the auto dim/light mirror in.
Reply With Quote
  #15
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Got the temp sensor wired up and the other lcd screen in. Damn thing looks green, but it has the blue filter! I'll probably add another blue filter behind it at a later time. Temp showed 43 this morning working on it.

Went to put the auto dim mirror in and the tab on the windshield isn't the right size. Hopefully the local advance will have one.
Reply With Quote
  #16
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
got the dash buttoned back up tonight. well, almost. still need to finish the hvac panel. dem084 is helping with that.

anyways, here are the pics:

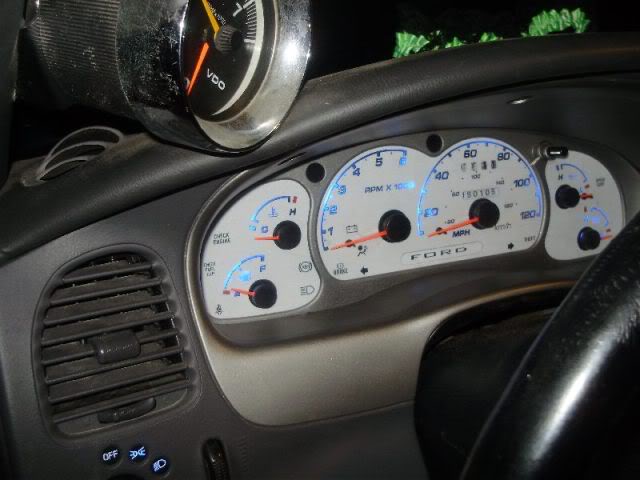

explorer sport gauge bezel:
Name:  P1060221.jpg
Views: 7
Size:  55.2 KB

headlight switch:
Name:  P1060214.jpg
Views: 9
Size:  22.0 KB

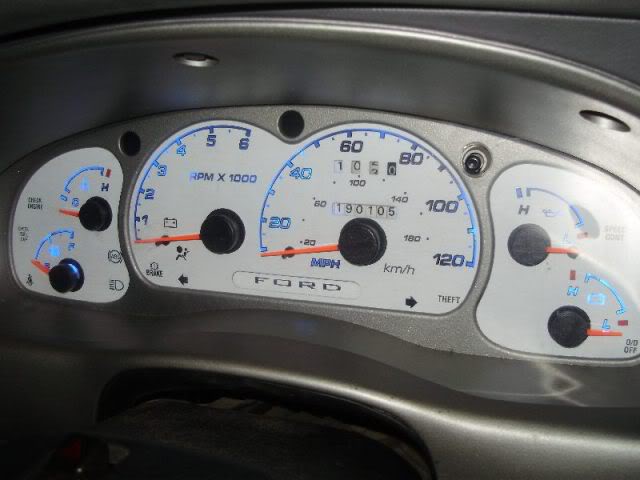

and the newest mod, backlit "FORD" logo in place of the gear selector:
Name:  P1060211.jpg
Views: 7
Size:  29.2 KB
Name:  P1060213.jpg
Views: 7
Size:  35.8 KB
Name:  P1060220.jpg
Views: 9
Size:  50.4 KB

The logo took a lot of trial and error to get it to shine right. at first, the leds were too bright, causing the entire area to illuminate blue instead of just the "FORD". a little cutting, and a little painting took care of it.
Reply With Quote
  #17
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
No real progress yet, but have changed some parts, and ordered some more. Over the last month, I have picked up the rest of the dash plastic, in dark charcoal. This includes both defrost vents, the little vent between the radio and the airbag, the fuse panel cover, and the passenger side vent. No more light grey plastic. I have picked up charcoal seat belts from an explorer. Haven't tried putting them in yet, but I think they should work. I've also got a silver radio bezel coming, with two cig lighters, and a fog light switch. plan to tie the projectors into the fog light switch. got the seat heaters wired up. very happy with them. nice and toasty.

And the big purchase, i just ordered my ABS headliner board. When it gets here, i'll post some pics of it.
Reply With Quote
  #18
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

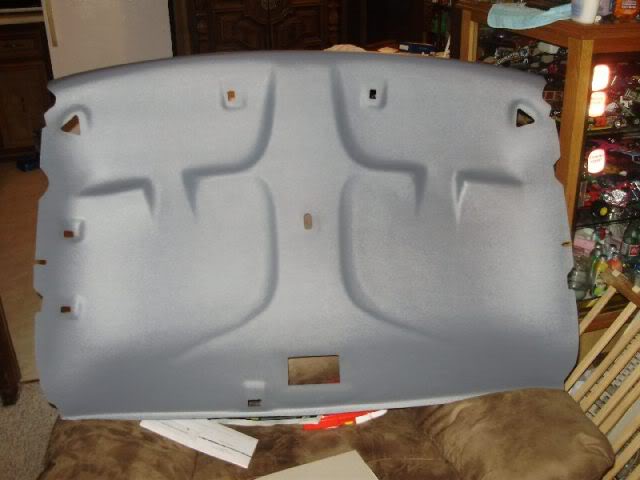

Got the headliner board last week. It looks pretty nice. Haven't gotten a chance to fit it yet, but hopefully sometime soon. I want to test it in my truck without a sunroof first, but I don't want to tear into that truck right now.

Name:  P2150390.jpg
Views: 8
Size:  38.2 KB
Name:  P2150391.jpg
Views: 9
Size:  48.1 KB
Name:  P2150396.jpg
Views: 9
Size:  36.5 KB

this would look good painted, or even smoothed out and then painted. would be much easier than trying to fiberglass your stock board. only problem with it is there is an extra hole in the middle of the board. not sure what it's for, but it's not a problem for me.
Reply With Quote
  #19
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Hmmmm.......What is this?

Name:  Image04222010191405.jpg
Views: 9
Size:  31.3 KB

Oh yeah, HURST! I love it! Simple to install. Thanks to daranger94 for selling it! I actually had more time in reinstalling the console than i did installing the shifter. took me about 15 minutes to put it in, and another 30 minutes to put the console back in. the shape of the shifter make it difficult to slide a console brace between the shifter and the dash. i finally got it in, then found the shifter arm hits a different brace in 1, 3, and 5th gears. so i knocked it out for now, and will fix it when i recover the console. I think i'm also going to make an adapter to move the shifter back about 1.5". It's just a little too close to the dash for me.

I also just bought a pistol grip **** and a "hurst equipped" emblem. I got both of those for $33. The **** alone is $75 from jegs or summit. got to love ebay.

here are a few more pics of it with the console back in.
Name:  P4050284.jpg
Views: 7
Size:  38.9 KB
Name:  P4050287.jpg
Views: 9
Size:  43.0 KB

when i recover the console, i will probably make the boot not come up so high so you see more of the arm.
Reply With Quote
  #20
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

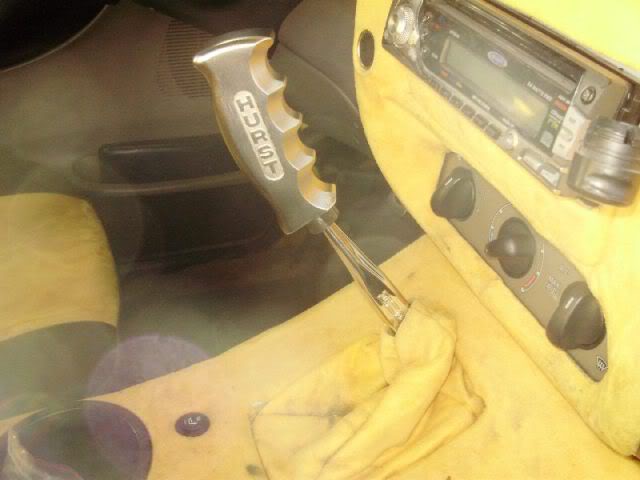

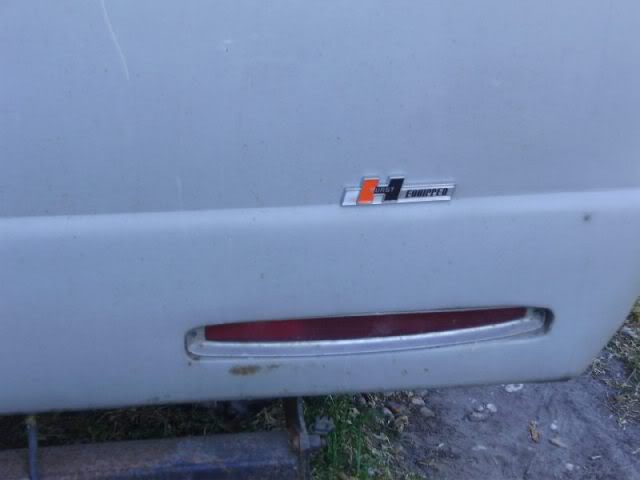

Got the pistol grip handle in. Also got an emblem. I think it will look better on the stepside below a "ranger" emblem. Hoping that will be soon.

Name:  P4100301.jpg
Views: 8
Size:  44.8 KB
Name:  P4100304.jpg
Views: 11
Size:  71.9 KB
Name:  P4100306.jpg
Views: 7
Size:  34.9 KB
Reply With Quote
  #21
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

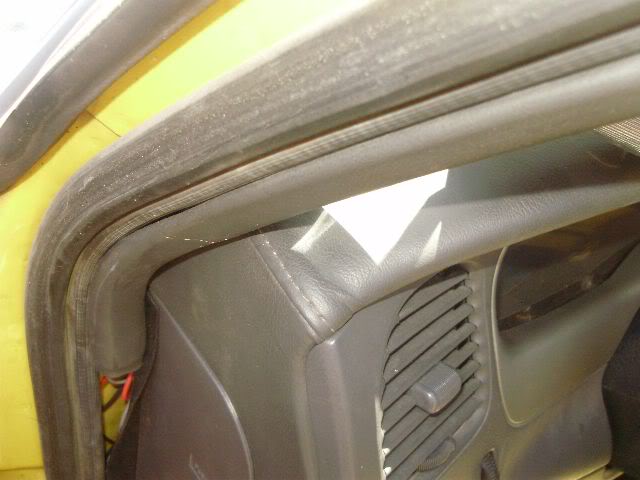

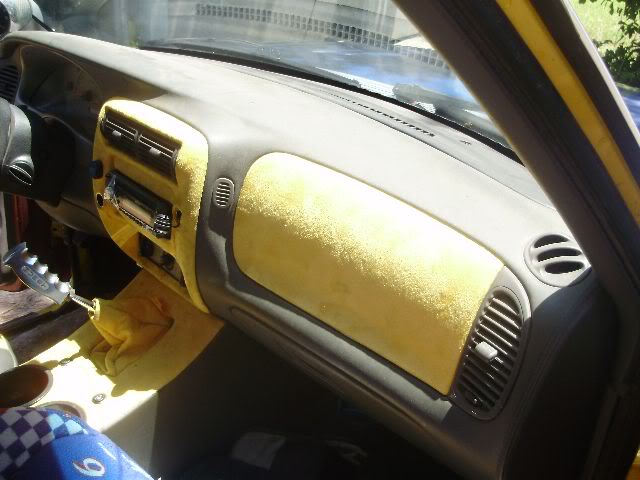

Haven't done much more lately. But I did get an 03 Ranger silver cluster and put it in with the LEDs. I need to get a new piece of vinyl cut for the gear selector delete. Also, took a few pics of the dash as I don't think I have ever posted any pics of it. There are a couple spots that I need to address, maybe this winter I can pull it back out.

Name:  P6150501.jpg
Views: 7
Size:  42.7 KB
Name:  P6150500.jpg
Views: 8
Size:  44.0 KB
Name:  P6150503.jpg
Views: 6
Size:  64.8 KB
Name:  P6150502.jpg
Views: 9
Size:  53.8 KB
Name:  P6150504.jpg
Views: 3
Size:  43.6 KB
Name:  P6150505.jpg
Views: 3
Size:  48.8 KB
Name:  P6150507.jpg
Views: 3
Size:  40.0 KB
Reply With Quote
  #22
Old 09-05-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
And that gets everything caught up to where I am. More progress hopefully tomorrow.
Reply With Quote
  #23
Old 09-05-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
wow looks good
Reply With Quote
  #24
Old 09-06-2010
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
did some work on the headliner today. started out by putting the dome light switches back in the door latches. first time having a working dome light in close to 5 years. also found out that my "fuel door" light works and the dinger. guess i'll have to fix those later.

anyways, here are the pics of the headliner board.

rough layout where to cut:


first cut and fit. yes, i cut up a $250 piece of plastic.
Name:  Image09062010142112.jpg
Views: 3
Size:  51.5 KB
Name:  Image09062010142140.jpg
Views: 3
Size:  53.7 KB

had to trim out for the ohc, and two small spots on the back of the sunroof frame.
Name:  Image09062010144616.jpg
Views: 2
Size:  52.9 KB

put the ohc back up and ran into this problem.
Name:  Image09062010145458.jpg
Views: 3
Size:  50.3 KB
Name:  Image09062010145434.jpg
Views: 3
Size:  42.0 KB

so a few minutes with the grinder, it now sits like this.
Name:  Image09062010161323.jpg
Views: 3
Size:  32.7 KB
Name:  Image09062010161338.jpg
Views: 4
Size:  42.2 KB

that's as far as i got. still need to drill a couple holes for the mustang dome light. i sat it up in place and it's gonna look nice. i can't wait to start laying some material on the visors, ohc, and dome light, but don't want to do the headliner until i can get some welding done on the roof. maybe i can get that stuff done in the next few weeks so i can button the headliner up.

i am happy with the fit of the board, but it's not perfect. a couple holes are cut too big. if you were wanting to paint it, it would be a problem. once the material is on, should be no problem. i just have to remember not to trim my material down to the board as i normally do.

over both doors:
Name:  Image09062010150414.jpg
Views: 3
Size:  39.6 KB
Name:  Image09062010150358.jpg
Views: 3
Size:  22.0 KB

and the big problem is across the back. could be from cutting it all up, or the ohc may have pulled the board forward. i'll have to add a piece some board to it to make it go all the way to the window. no biggie. still need to shave the "oh crap" handle and the rear coat hook. don't need those.
Name:  Image09062010161428.jpg
Views: 3
Size:  16.0 KB

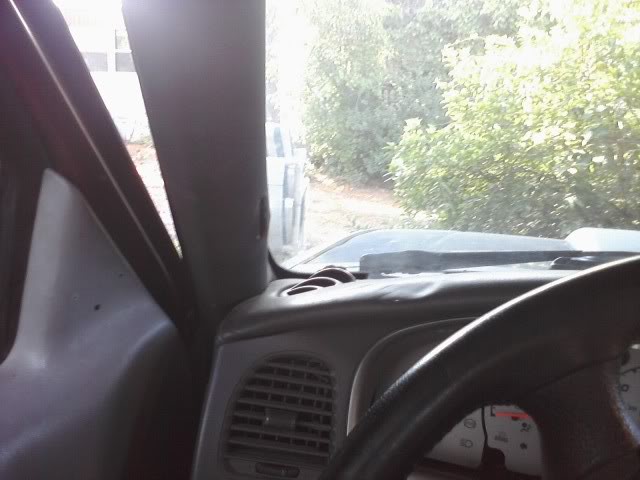

and just for you dem, no more tach! pillars will get recovered when i do the suede work. hoping the spot in the dash pops back up in a few days.
Name:  Image09062010161648.jpg
Views: 3
Size:  43.2 KB

and a little more fiberglass work.

didn't get as far as i wanted. ran out of resin about half way through. have to wait til next week to buy some more. will probably get a gallon this time.

reinforcement on the rear: still need to add some more to the edge of the tail light filler, but it's pretty close.
Name:  Image09062010100110.jpg
Views: 2
Size:  60.7 KB

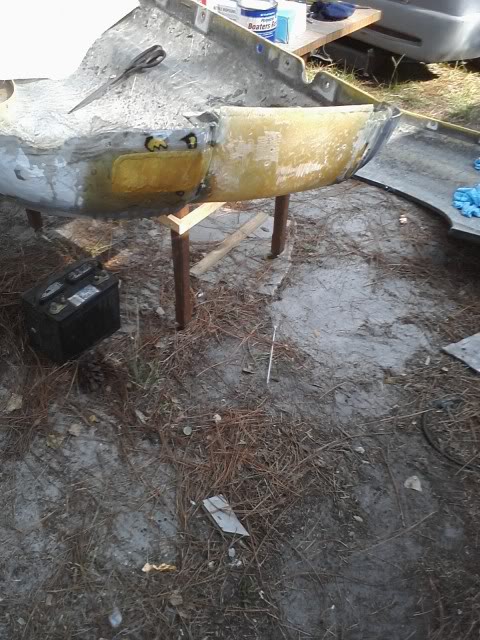

shot from the outside where the caddy's used to be:
Name:  Image09062010100124.jpg
Views: 3
Size:  83.8 KB

and i guess i'll go ahead and post this. here are my tails.

Reply With Quote
  #25
Old 09-06-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
those tails are gonna look sweet!
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Fender Flare Paint and Prep ...HELP!!!!!!!! fx4wannabe Exterior Semi-Tech 16 01-02-2010 08:12 PM
whats the best way to prep my tool box? Tys 4x4 FTW General Ford Ranger Discussion 11 05-27-2009 07:44 AM
Vehicle Prep For CA trip jaycheetwood General Ford Ranger Discussion 51 10-16-2008 09:29 AM
Painted frame to prep for Dixon Bros Bumper rideac1 Exterior Semi-Tech 12 08-22-2006 06:14 AM
Mazda B-4000 Off-Road Prep. bschittler New Ideas 22 04-27-2005 10:17 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 11:17 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
