Quote:
Originally Posted by outdoorsman View Post
I did a quick measurement and frame under cab to ground is (going off memory) about 25". I'm very happy. I might have to do an add a leaf for the front in the future.
It looks really good man I like it!

Just to point out though, my frame with 37s was 26" off the ground under the cab as well.

I dont get why people say it looks so huge! I mean yours is a good height. The thing with these trucks is they are so long! when you go up a ledge the belly is going to scrape everywhere. i have that problem now.
Reply With Quote
  #227
Old 01-06-2010
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
im diggin it alot
Reply With Quote
  #228
Old 01-06-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Nice, man!
I think it looks like the perfect height! Can't wait to see it in action.

Carl, I think his shock mounts are mounted the way the are because the axle doesn't have much room for up-travel. The discussion of extra height was not to make it taller, but to make more room for the axle to move up.
Reply With Quote
  #229
Old 01-06-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Quote:
Originally Posted by zabeard View Post
It looks really good man I like it!

Just to point out though, my frame with 37s was 26" off the ground under the cab as well.

I dont get why people say it looks so huge! I mean yours is a good height. The thing with these trucks is they are so long! when you go up a ledge the belly is going to scrape everywhere. i have that problem now.
Out here the wheelbase issue is frequent. I've beat the crap out of the underside of my truck. I went up a mini ledge when it was stock on 31s and ended up with my 2 front tires a few inches off the ground from my rear (locked) pushing it up. That crap gets anoying.
Reply With Quote
  #230
Old 01-06-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
yeah the more trails i run the more i run into that issue. glad I am running 42s!

did you ever post pictures of the steering arm setup and stuff? i went back a few pages but didnt see anything.
Reply With Quote
  #231
Old 01-06-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
The draglink and steering arm are what is being worked on now. Page 11 is a picture of the pitman arm. The frame is being notched for the tie rod end to clear the frame. Other than that it is pretty complete. I will drive it around the street for a week or two and then it will go back for some modification. I also have a snow trip I want to make. I have a custom drive shaft that is on order. Once I get that we will see how to modify the tranny crossmember. Bumpstops are also in the works too.
Reply With Quote
  #232
Old 01-06-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
where did you order the shaft from? any specs or price you would like to share?
Reply With Quote
  #233
Old 01-06-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Not exactly sure what shaft you're tralking about.

My fab guy is making the draglink, but first we have to see get the pitman arm in there so we can get it measured out. The steering column shaft is custom fabbed. There is a shop near his shop benchworks steering that does custom steering and he dug around there and got some pretty good stuff. Not sure what it comes from. The tie rod is also custom .250 wall (not sure on diameter) reverse threads.
Reply With Quote
  #234
Old 01-07-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
In the previous post, you mentioned a custom drive shaft. sorry probably should have mentioned that. :)
Reply With Quote
  #235
Old 01-07-2010
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
The ranger wheel base doesn't seem that big until you get into wheeling more, then it sucks. A lot of the trails in Oregon are super tight with a lot of turns between trees, obstables on both sides. Nothing like some careful 8 point turns in 4 low...
I was always able to get where I wanted without dragging the bottom over obstables, it was always more of an issue for me to get the truck to physically fit somewhere.
Reply With Quote
  #236
Old 01-07-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i find my self dragging frequently or getting hung up on something.

yeah those 8 point turn arounds are great, you think yeah i made it! and you watch the jeep behind you just turn the corner. haha
Reply With Quote
  #237
Old 01-07-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690

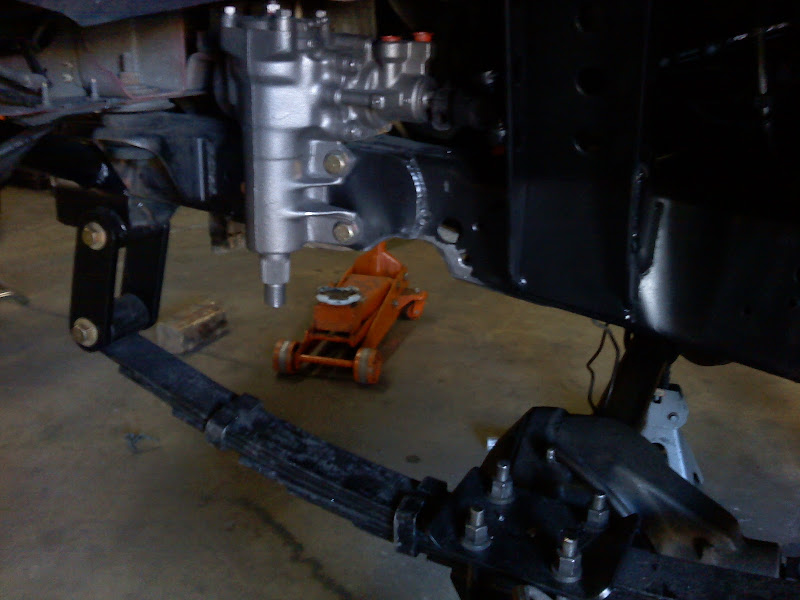

Here is some of the final progress from today. Notch the frame for the Pitman Arm/Tie Rod End. It is now all welded up and painted. The blank space behind the shackle that you can see is also plated up.



Reply With Quote
  #238
Old 01-07-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good Bryan.
Reply With Quote
  #239
Old 01-07-2010
08rangerdan's Avatar
Member

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
was there a vital reason to use a flat pitman arm? clearance? im assuming the flat arm is the reason you needed to clear the frame for the drag link.

your steering shaft,
is it just cv'd at both ends with a straight telescoping shaft? is it supported in the middle at all? or just connected from the pump to the column?
Reply With Quote
  #240
Old 01-07-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
nice fab work with this build..

next time Im in AZ I will see this thing in person just to let you know..
Reply With Quote
  #241
Old 01-07-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Yeah Evan I know you've been here a few times in the past. Thanks for letting me know about the future!
Reply With Quote
  #242
Old 01-07-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Quote:
Originally Posted by 08rangerdan View Post
was there a vital reason to use a flat pitman arm? clearance? im assuming the flat arm is the reason you needed to clear the frame for the drag link.

your steering shaft,
is it just cv'd at both ends with a straight telescoping shaft? is it supported in the middle at all? or just connected from the pump to the column?


The flat pitman arm was used so I have plenty of clearance. The frame had to be notched so the TRE wouldn't make contact with the frame.

My steering shaft doesn't have a middle support. I looked a Zabeards thread and noticed he recommends a middle support. My steering shaft is from who knows what. I noticed that it is different as far as joint location. I will mention it to my fab guy and see what he thinks. I guess I will find out when I start driving it, but I don't like to find things out that way!

Mine

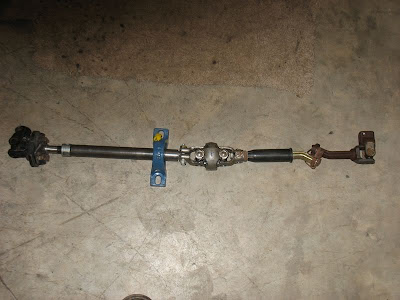

Zabeards

Reply With Quote
  #243
Old 01-08-2010
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you will understand why that bearing is there the minute you try to turn! trust me. and when you wedge the tires in a spot and need to turn it just wont. the shaft will take all the force and it wont turn the box.
Reply With Quote
  #244
Old 01-08-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690

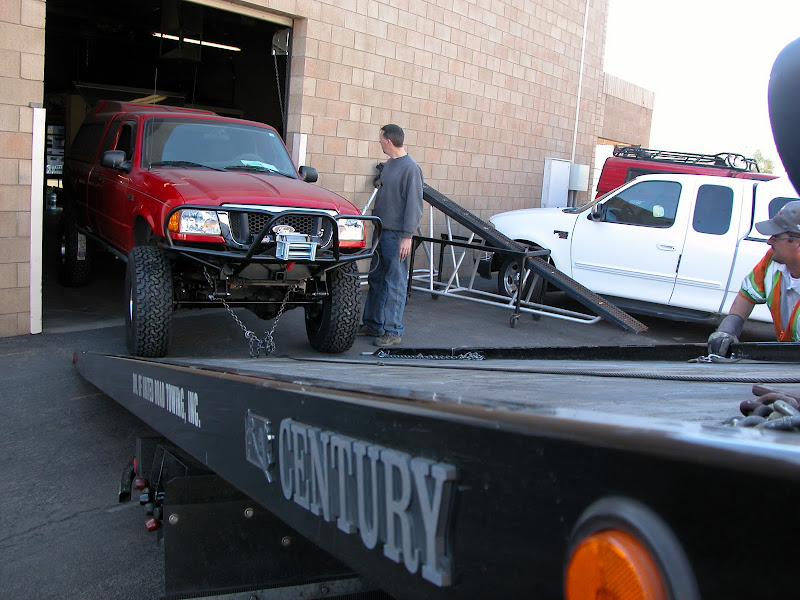

New Updated Pictures.....No cell phone pictures this time.....











Reply With Quote
  #245
Old 01-08-2010
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
im impressed!
Reply With Quote
  #246
Old 01-08-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
I know I've mentioned it, but the truck is getting gears, drag link, brakes, alignment, power steering lines, 1/2" axle studs, new extended breather tubes, and some other little stuff.
Reply With Quote
  #247
Old 01-08-2010
jlstang351's Avatar
Member

Join Date: May 2009
Location: Covington,GA
Posts: 578
Looks like your buddy does some nice work. Looks much bigger than the earlier pics you posted. Not a fan of the all terrain tires on there but still a kick *** ride!
Reply With Quote
  #248
Old 01-08-2010
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
I will probably be upgrading to some muds in future. KM2s or GoodYear Kevlars. For now I am happy.
Reply With Quote
  #249
Old 01-08-2010
08rangerdan's Avatar
Member

Join Date: May 2009
Location: London/Cambridge Ontario
Posts: 323
its a beautiful, yet practical design, great planning as far as im concerned!
Reply With Quote
  #250
Old 01-08-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quality!!!!!
