  #151
Old 12-06-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
the ranger looking great.... dam u all sased guys.....
Reply With Quote
  #152
Old 12-06-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
there isn't really a good benefit to having the axle go forward instead of back. If the shackles are on the rear it will push back yes, that is why its nice to move the axle forward a few inches. Also I makes a bit more sense to have the axle flow with the direction of the bumps and rocks you hit, as apposed to having the axle have to try and go the opposite way. just my .02 on the issue.


anyways... truck is lookn badass!
Reply With Quote
  #153
Old 12-06-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470



great pic first thing i thought was whoops
Reply With Quote
  #154
Old 12-06-2009
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Quote:
Originally Posted by INT3RC3PTOR View Post
there isn't really a good benefit to having the axle go forward instead of back. If the shackles are on the rear it will push back yes, that is why its nice to move the axle forward a few inches. Also I makes a bit more sense to have the axle flow with the direction of the bumps and rocks you hit, as apposed to having the axle have to try and go the opposite way. just my .02 on the issue.


anyways... truck is lookn badass!
I like your thinking and thanks. I was more or less thinking of how it was set-up stock and also I don't want that tire smashing back into the cab area. Either way I went with it I was giving up something or changing it.
Reply With Quote
  #155
Old 12-06-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by outdoorsman View Post
As far as steering goes my fab guy is working on something. If I don't like whatever he does then I will be doing what everybody else does.

Beard, I didn't measure anything. That is what he told me.

I'll update this thread later tonight with pictures.
only reason i say that is the steering box can only go forward so far before it hits the radiator, then your Tie rod will bind with the drag link
Reply With Quote
  #156
Old 12-07-2009
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
Quote:
Originally Posted by outdoorsman View Post
Here are some pics from tonight. I have 6" Skyjacker lift springs in the rear. I also have a Belltech shackle that will be installed as the front is higher than the rear.




thats sexy! now he has to disasemble and weld thoes bushing tubes on a lil more. damn thats lookin good. hopfully you can motivate him a tad more to get your steering done! also wait to see if your spings to settle before you buy shackles for the rear. the rear will also settle but not as much as the front. may drop about an inch or so all around but more so in the fornt.

Reply With Quote
  #157
Old 12-08-2009
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Everything is tacked in right now. The top of that custom bracked still needs to be welded up along with almost everything else. We didn't want to weld everything up and then realized something is screwed up.

The rear has been sitting on those springs since the end of October so I know they are pretty settled. Either way I want the shackles on the rear as once I have all my wheeling crap back there it will be down a little. If anything I'd rather have the rear up an inch or so. Kind of like a factory rake.
Reply With Quote
  #158
Old 12-08-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
dude! looking sooo sick!! i really wanna newer ranger now to SAS WITH LEAFS!! im really starting to like leafs for some reason.. i donno why, just because they keep the axle under the vehicle so well and are super durable!! but i did beat to you to getting my 5.13s front and rear!! btw you'll love them on the trail cause they are nuts + being locked front and rear is absurdly amazing!!! only negative is on the freeway, the 5.13s suck! im stuck driving a little bit slower but its totally worth it and you got another truck so its all good!
Reply With Quote
  #159
Old 12-08-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
whats wrong with 5.13s on the highway? i dont see any issues with it.

btw you sound confusing. ha.
Reply With Quote
  #160
Old 12-08-2009
lepp1892's Avatar
Member

Join Date: Oct 2007
Location: Almont, MI
Posts: 103
5.13's aren't bad on the freeway. It's actually nice holding a gear and never having to shift even on steep hills.
Reply With Quote
  #161
Old 12-08-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
true true... 5.13s arent to bad, and actually safer because i dont drive as fast now on the highway. is it bad for the engine to have the rpms at about 2500 or even at 3000 for an extended period of time?? how does that affect milage.
Reply With Quote
  #162
Old 12-08-2009
BOBO's Avatar
Member

Join Date: May 2007
Location: Mundelein, ill
Posts: 416


got any video of how they did that? lol
Reply With Quote
  #163
Old 12-08-2009
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
lol at the jeeps... trucks lookin killer
Reply With Quote
  #164
Old 12-09-2009
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Quote:
Originally Posted by BOBO View Post


got any video of how they did that? lol
Here is a video from another person that attended.

hunter12.flv video by sms1688 - Photobucket

or

hunters bbq :: ryannwoody.flv video by gsxrdevil04 - Photobucket
Reply With Quote
  #165
Old 12-09-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
that was sweet that must have been some hell of a party lol
Reply With Quote
  #166
Old 12-15-2009
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
updates on the progress...!!!????
Reply With Quote
  #167
Old 12-15-2009
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Here is the latest picture from Thursday last week.

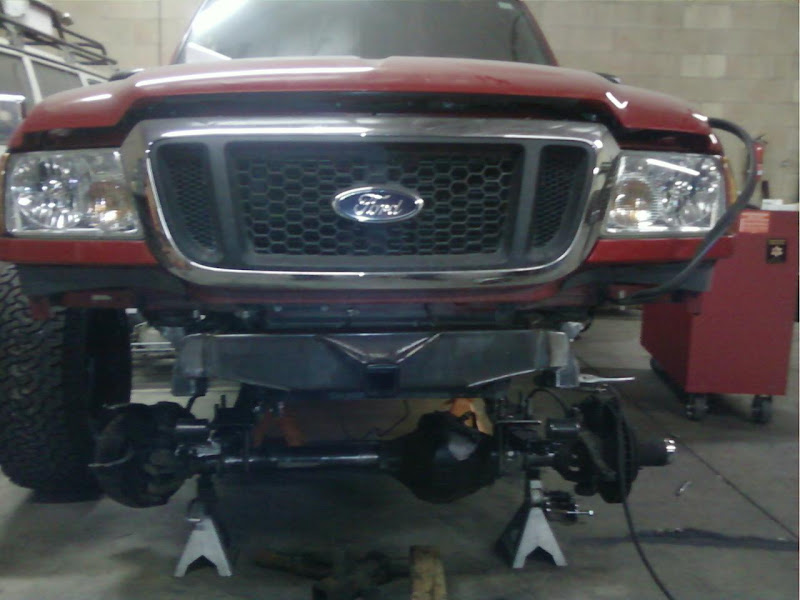

Front crossmember.

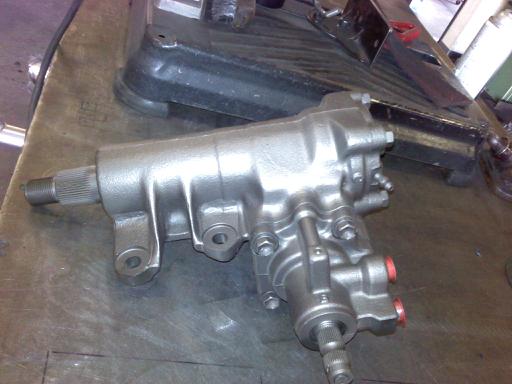

Toyota Steering Box



The steering is the goal this week. Then shock hoops/tabs, tranny crossmember and that is it for the main part. Then onto shop #2 for brakes and regear the 8.8 to match the front 5.13s. It has been a slow build, but progress each week and it is turning out to be pretty badass.
Reply With Quote
  #168
Old 12-16-2009
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
that x member is beef!
Reply With Quote
  #169
Old 12-16-2009
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
how come its not done yet! we've been giving you tons of time!!!!
Reply With Quote
  #170
Old 12-16-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by fourliter dan View Post
that x member is beef!
x2, its [email protected]
Reply With Quote
  #171
Old 12-16-2009
MudSlanger's Avatar
Member
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Hey man, id like to come check this out sometime. Im in the phx area as well. let me know
Reply With Quote
  #172
Old 12-16-2009
outdoorsman's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Phoenix Arizona
Posts: 1,690
Once it is finished up we can meet up. I know the Phoenix guys are growing so maybe it could be an open invite and a little mini meet too.
Reply With Quote
  #173
Old 12-16-2009
Robin Hood's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: AZ
Posts: 789
count me in too. me and chris will take a drive over to you.
Reply With Quote
  #174
Old 12-26-2009
wellcom2knoxvile's Avatar
Member
iTrader: (2)

Join Date: Oct 2007
Location: Corvallis, OR/Seattle, WA
Posts: 1,390
just read through the ENTIRE thread!! whats the status?! i know its christmas but lets go already!!!!
Reply With Quote
  #175
Old 12-26-2009
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
^bingo
Reply With Quote
