senor baja f100 race build

well ill start a rebuild thread for mike since his computer sucks
well one of my buddy peps favorite fords is at my buddy mikes shop getting built into a race truck
this is how it started out
Name:  l_8dc02631fe5540b8a745b4c4f18863a4.jpg
Views: 133
Size:  37.9 KB
Name:  plpromoparty024.jpg
Views: 54
Size:  126.6 KB

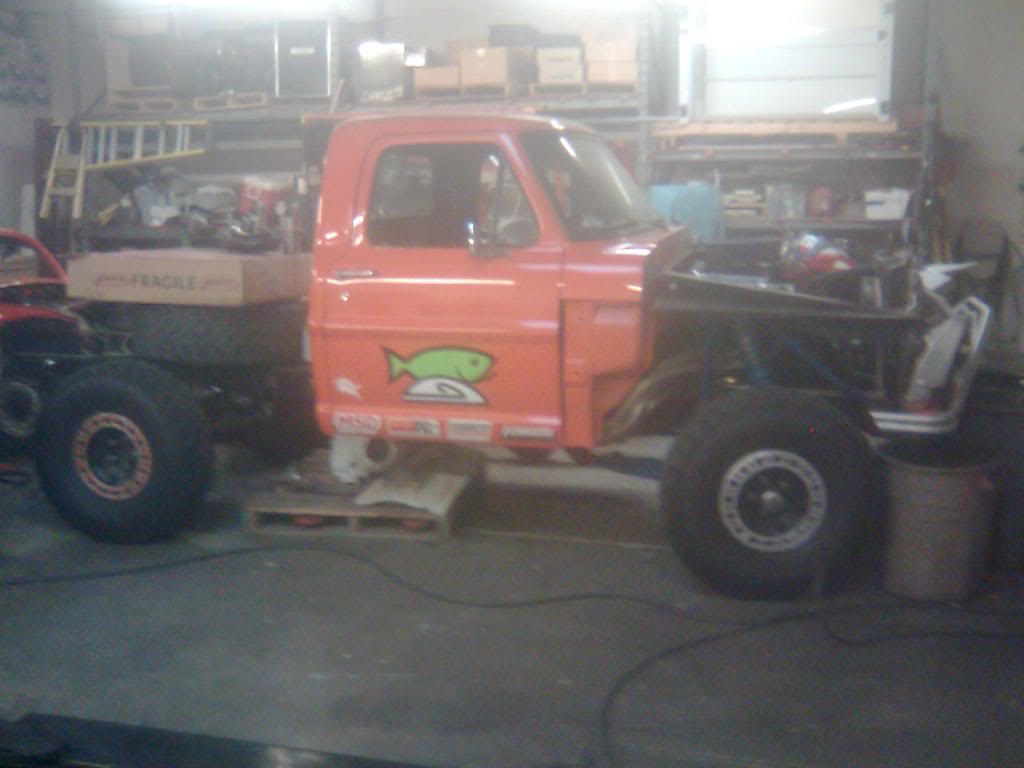

then a few months ago this is how it looked
Name:  Image002.jpg
Views: 49
Size:  60.4 KB

today i went over there and he was working on a bumper for a bronco and asked if could help him out in any way so i tore the rest of the crap out of the rear end of the frame from the cab back
now it looks like this
Name:  Image046.jpg
Views: 47
Size:  56.9 KB
later on this week im goin back over to cut the frame off after the cab
he has the kingpin i-beams for the front are there and the radius arms will look similar to these

heres a pic of the lower trailing arms all tig welded


Reply With Quote
  #2
Old 09-04-2009
84socal's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
got more done today i got the front end out from under this thing while mike was dicking around with a bumper for a titan
Name:  Image007-1.jpg
Views: 52
Size:  69.1 KB
Name:  Image009.jpg
Views: 47
Size:  63.2 KB
Name:  Image011-1.jpg
Views: 74
Size:  58.9 KB

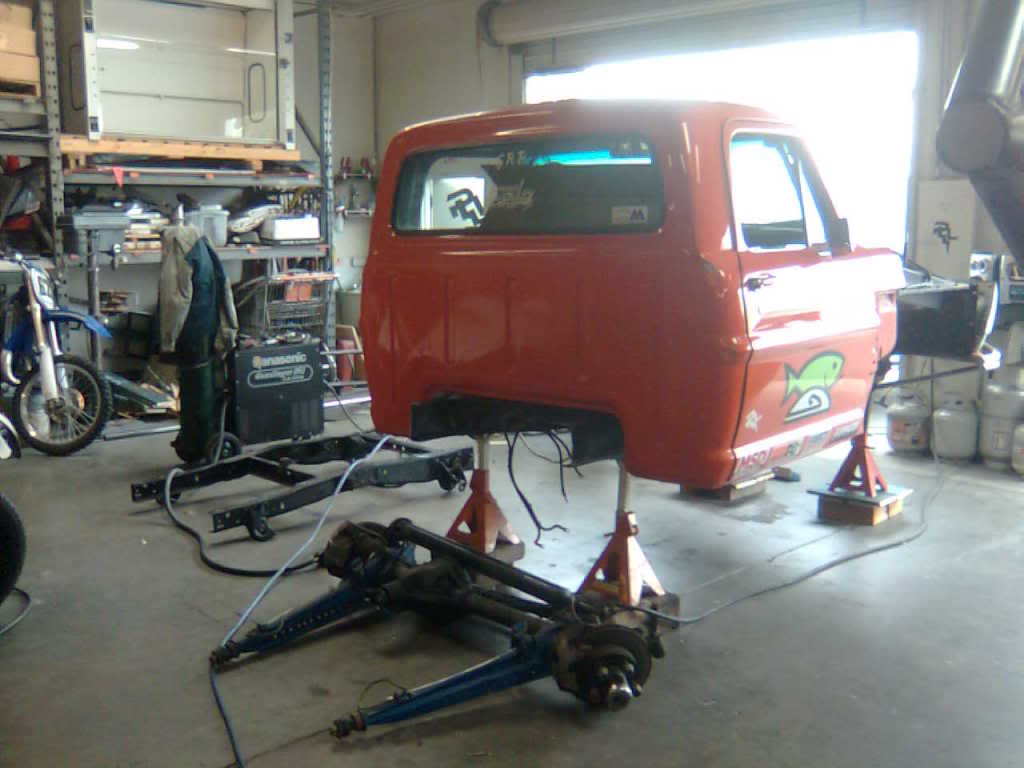

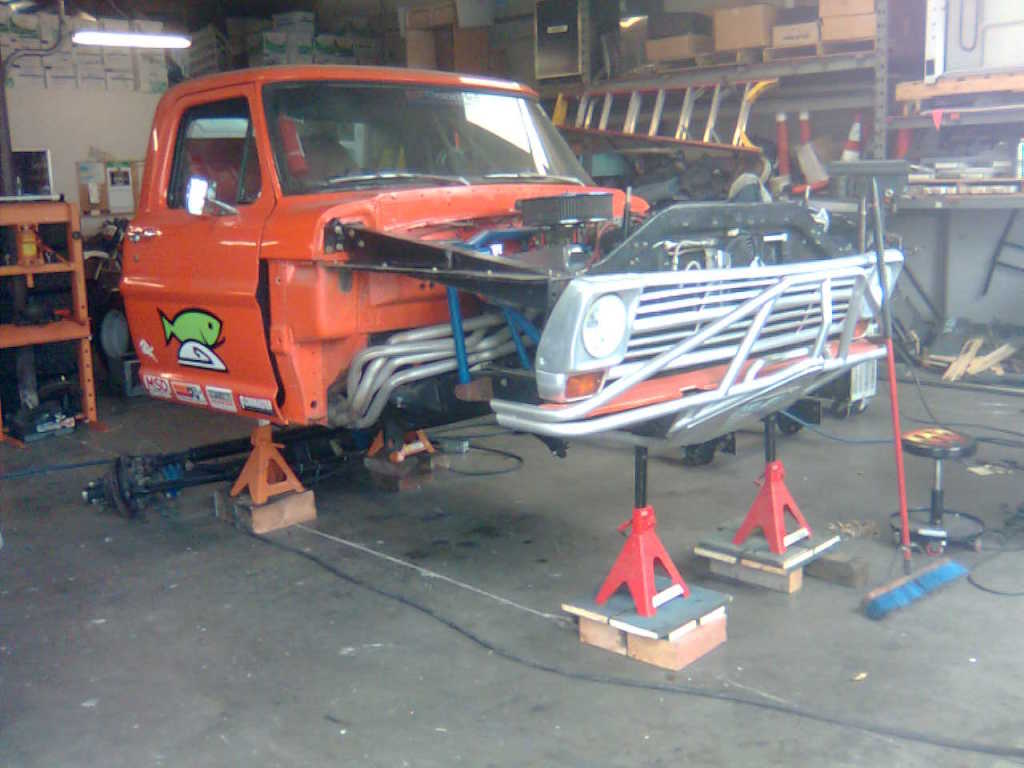

then we hacked the back half of the frame off
Name:  Image032.jpg
Views: 48
Size:  61.3 KB
Name:  Image030.jpg
Views: 48
Size:  66.6 KB

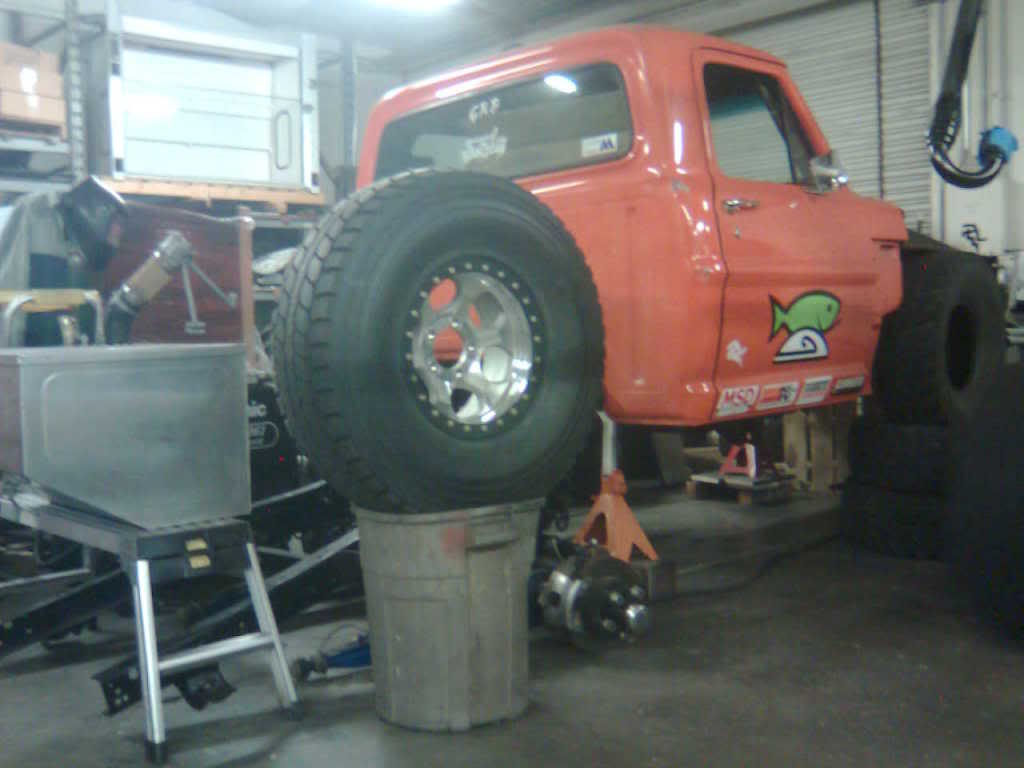

then we kinda semi half assed mocked it up at full bump
Name:  Image036.jpg
Views: 110
Size:  47.1 KB
Reply With Quote
  #3
Old 09-04-2009
84socal's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
a couple thing he has sitting around for this thing
a currie 9 in center section that has been modified for a 10 in ring gear
and 3.5in axle tubes
Name:  Image012-1.jpg
Views: 49
Size:  36.7 KB
Name:  Image023-1.jpg
Views: 48
Size:  33.1 KB

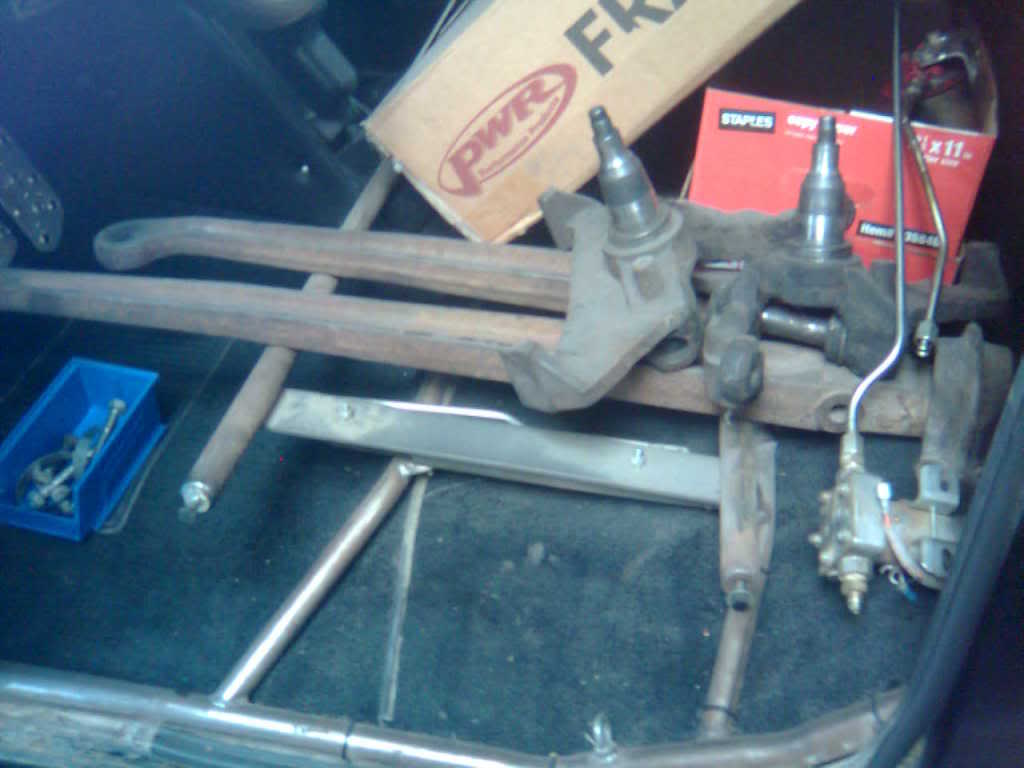

some king pin ibeams and knuckles they will be made into equal length
beams something similar to these
Name:  Image026-1.jpg
Views: 51
Size:  52.4 KB

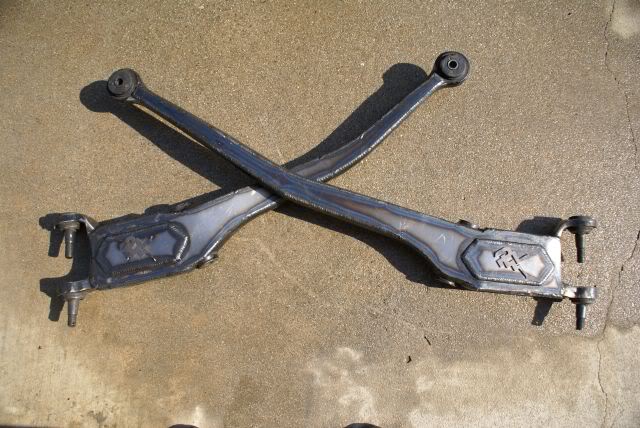

Name:  beamscrossed.jpg
Views: 86
Size:  65.1 KB
and 14 in kings for the rear there will be a bypass shock as well
Name:  Image024-1.jpg
Views: 49
Size:  51.4 KB
Reply With Quote
  #4
Old 09-04-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
awesome. Looks like its going to be a sweet truck
Reply With Quote
  #5
Old 09-04-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Got any pics of the class 1/pre-runner in the background?

Looks good. Wondering why he's not going with a fabricated center section for the 9"?
Reply With Quote
  #6
Old 09-04-2009
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
holy freakin crap batman! im excited to see the end of that!
Reply With Quote
  #7
Old 09-04-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
wow, keep us updated! looks good man.
Reply With Quote
  #8
Old 09-04-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Sweet truck. Can't wait to see it finished.
Reply With Quote
  #9
Old 09-04-2009
Demo1986's Avatar
Member

Join Date: Feb 2009
Location: Long Beach, CA
Posts: 423
its gonna look clean!
Reply With Quote
  #10
Old 09-04-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
how many inches of travel were you getting out of that SFA???
Reply With Quote
  #11
Old 09-04-2009
84socal's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
about 12 inches the way the shocks were set up
and i will get a pic of the other two buggys in the shop and the bug


the reason for the non fabricated housing is he can set what ever length he wants on either side plus the cost is cheaper doin it this way plus currie doesnt offer it the way he wants
Reply With Quote
  #12
Old 09-04-2009
Member

Join Date: Jun 2005
Posts: 148
Sweet build, but I hate to see a 4wd get turned into a 2wd.....
Reply With Quote
  #13
Old 09-07-2009
84socal's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
im not to sad to see the 4wd on this think get yanked out

and i got pick of the truggy and class one on my phone i will get those uploaded fairly soon
Reply With Quote
  #14
Old 09-07-2009
silverbullet32's Avatar
Member

Join Date: Jan 2009
Location: Skagit Valley, Washington
Posts: 1,175
sweet i love those old fords
Reply With Quote
  #15
Old 09-07-2009
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Some badass rides.
Reply With Quote
  #16
Old 09-08-2009
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Quote:
Originally Posted by 84socal View Post
the reason for the non fabricated housing is he can set what ever length he wants on either side plus the cost is cheaper doin it this way plus currie doesnt offer it the way he wants
Didn't want to use one of these and cut the tubes himself?

Currie Enterprises Racing Rear End Categories
Reply With Quote
  #17
Old 09-08-2009
silverbullet32's Avatar
Member

Join Date: Jan 2009
Location: Skagit Valley, Washington
Posts: 1,175
Quote:
Originally Posted by 034x4 View Post
Didn't want to use one of these and cut the tubes himself?

Currie Enterprises Racing Rear End Categories
obviously not
Reply With Quote
  #18
Old 09-08-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
So........whats happening to that front axle? I'm sure someone would love it for a SAS project.

Keep it up, I love that body style, and I love the prerunner look, so this is a match made in heaven. Sweet paint job on the truck too!
Reply With Quote
  #19
Old 09-08-2009
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Quote:
Originally Posted by Johnbaum13 View Post
So........whats happening to that front axle? I'm sure someone would love it for a SAS project.
It's over in the Classifieds already.

https://www.ranger-forums.com/forum2...-steering.html
Reply With Quote
  #20
Old 09-08-2009
84socal's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
Quote:
Originally Posted by 034x4 View Post
Didn't want to use one of these and cut the tubes himself?

Currie Enterprises Racing Rear End Categories
nope didnt want to go all fancy wanted to keep it some what stock looking
and again they dont allow enough room for a 3.5 in axle tube
and he did cut the tubes him self
Name:  Image032.jpg
Views: 46
Size:  36.5 KB
Name:  Image033.jpg
Views: 47
Size:  33.4 KB
Name:  Image035.jpg
Views: 47
Size:  33.2 KB
Reply With Quote
  #21
Old 09-08-2009
84socal's Avatar
Member
Thread Starter

Join Date: Nov 2007
Location: chino hills ,ca
Posts: 370
heres a couple other pics of whats happening at the shop as repuested

the truggy getting pretty much redesigned the origonal builder did some janky *** stuff
Name:  Image039.jpg
Views: 49
Size:  52.1 KB
Name:  Image040.jpg
Views: 51
Size:  53.0 KB
Name:  Image041.jpg
Views: 47
Size:  59.4 KB

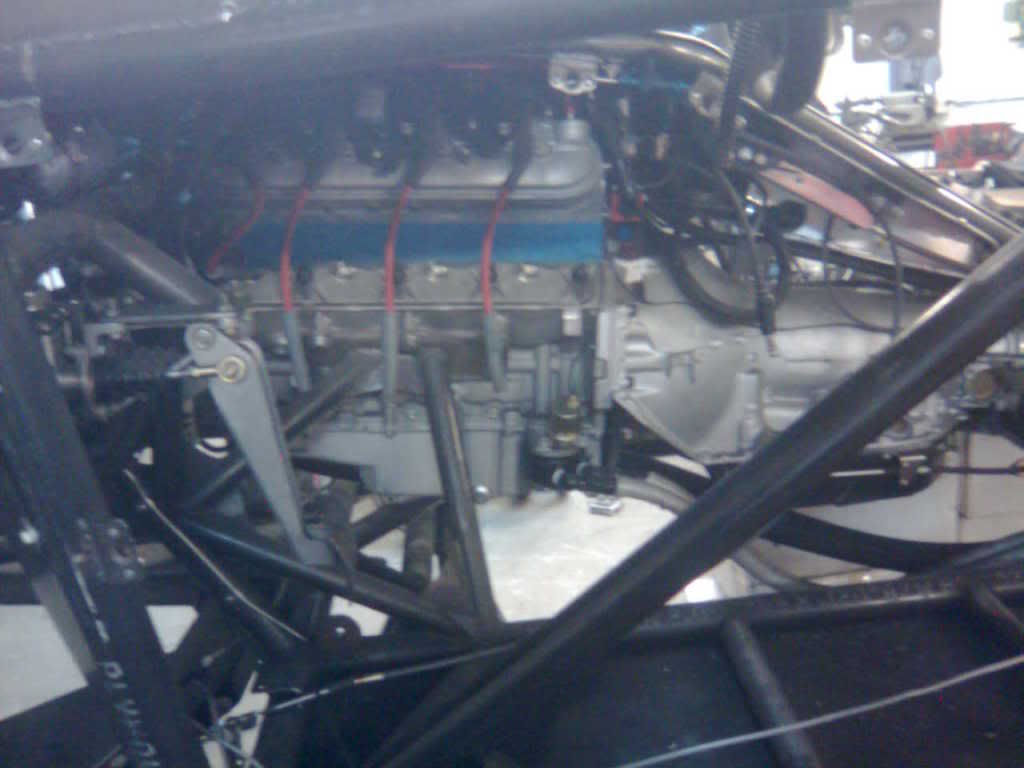

6l ls motor ftw with th400
Name:  Image043.jpg
Views: 47
Size:  47.3 KB

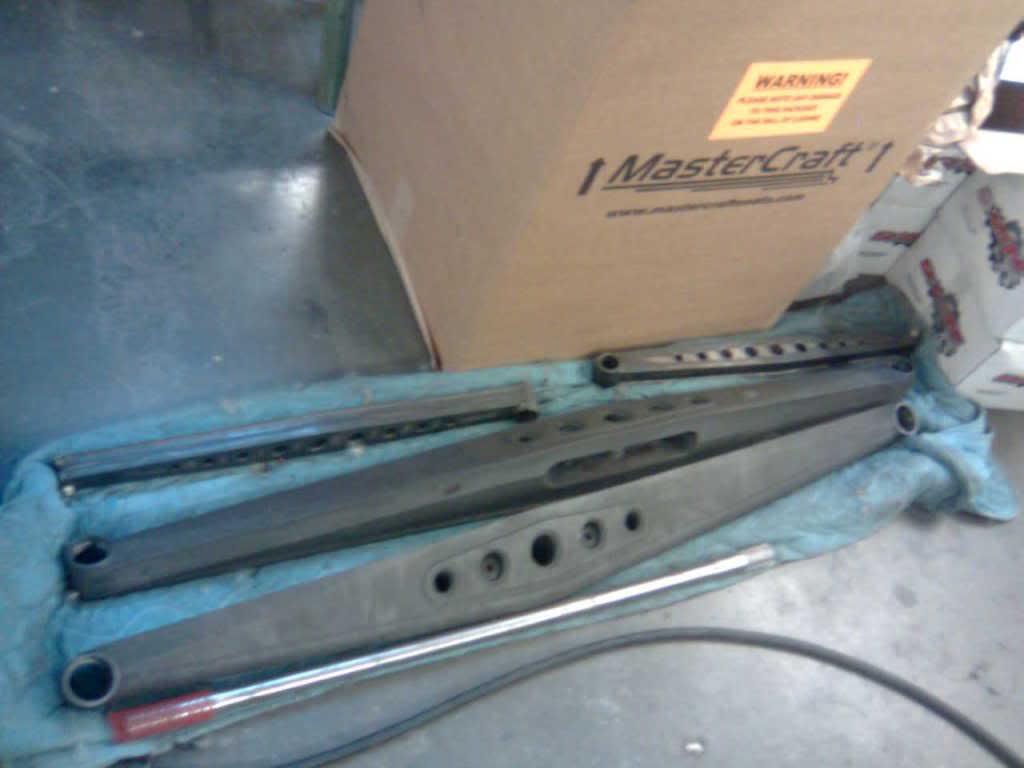

Name:  Image042.jpg
Views: 47
Size:  40.6 KB
this will be getting a custom 9 in rear axle as well with a 10 in ring gear



and the class 1
Name:  Image044.jpg
Views: 47
Size:  61.3 KB
587hp small block was on the cover of engine builder mag
with custom power glide trans
Name:  Image045.jpg
Views: 46
Size:  54.0 KB
Name:  Image046.jpg
Views: 49
Size:  45.6 KB
Name:  Image047.jpg
Views: 46
Size:  48.5 KB

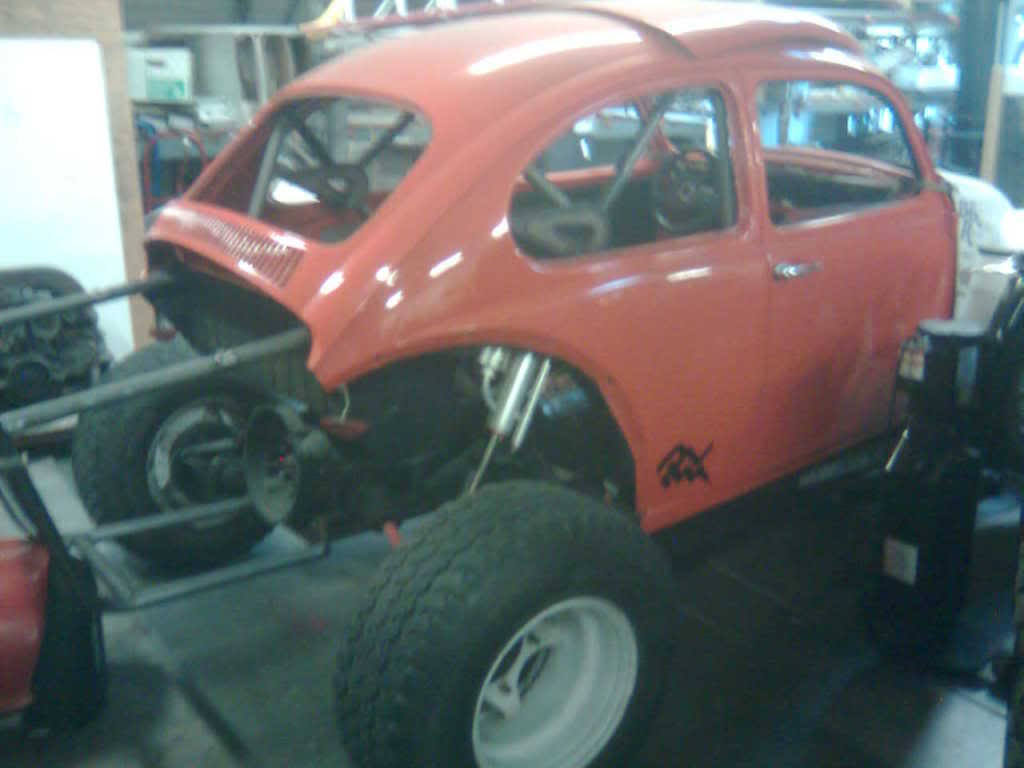

and the bug project that the kid is lacking funds for
Name:  Image049.jpg
Views: 54
Size:  42.7 KB
Reply With Quote
  #22
Old 09-08-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
sick, Everytime I see builds like those I wish I lived down where I could build and use one.
