DangerRanger01: This kids finally lifted!!!...

about 1inch in the rear! lol.

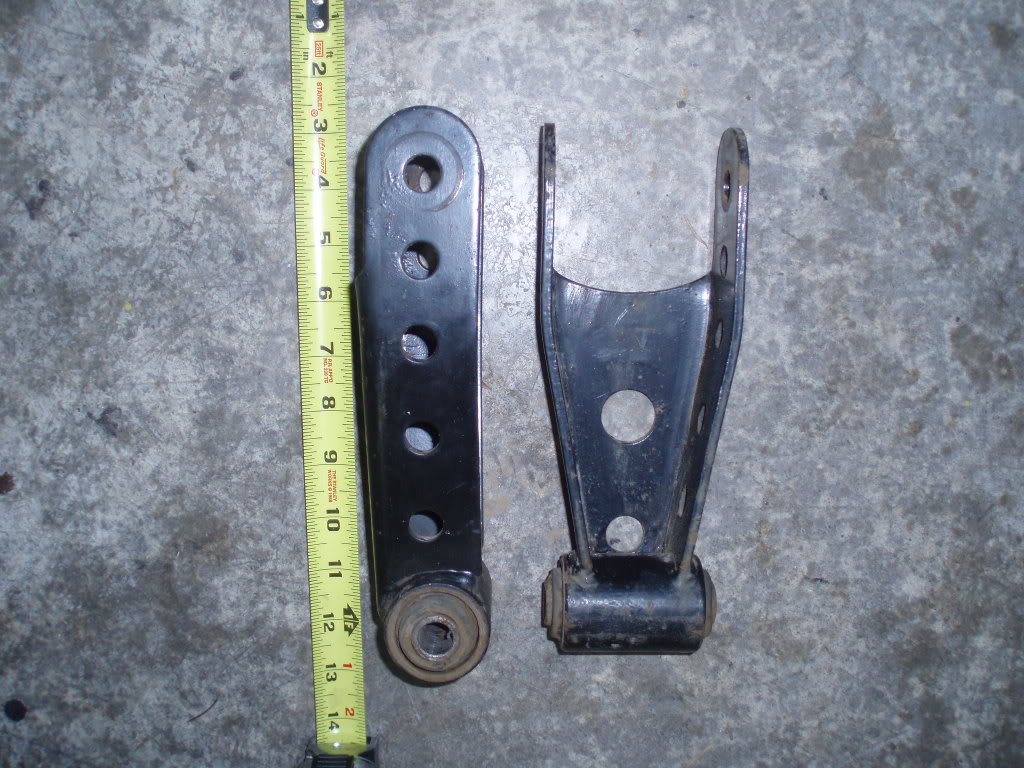

Decided that i was hitting bump stops too much, so i installed some cheby belltech shackles....cost $25! very niiice:
Name:  P1010048.jpg
Views: 1
Size:  154.3 KB

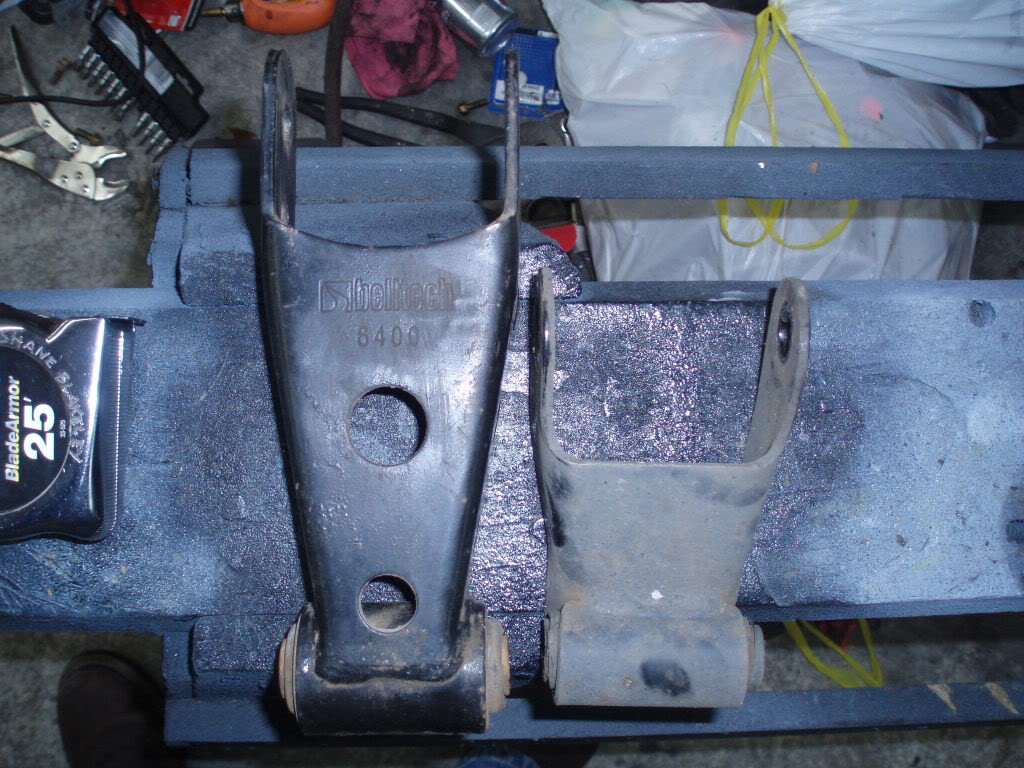

Compared to stock shackles. Gives ~1inch lift. Maybe a little more:
Name:  P1010046.jpg
Views: 1
Size:  161.7 KB

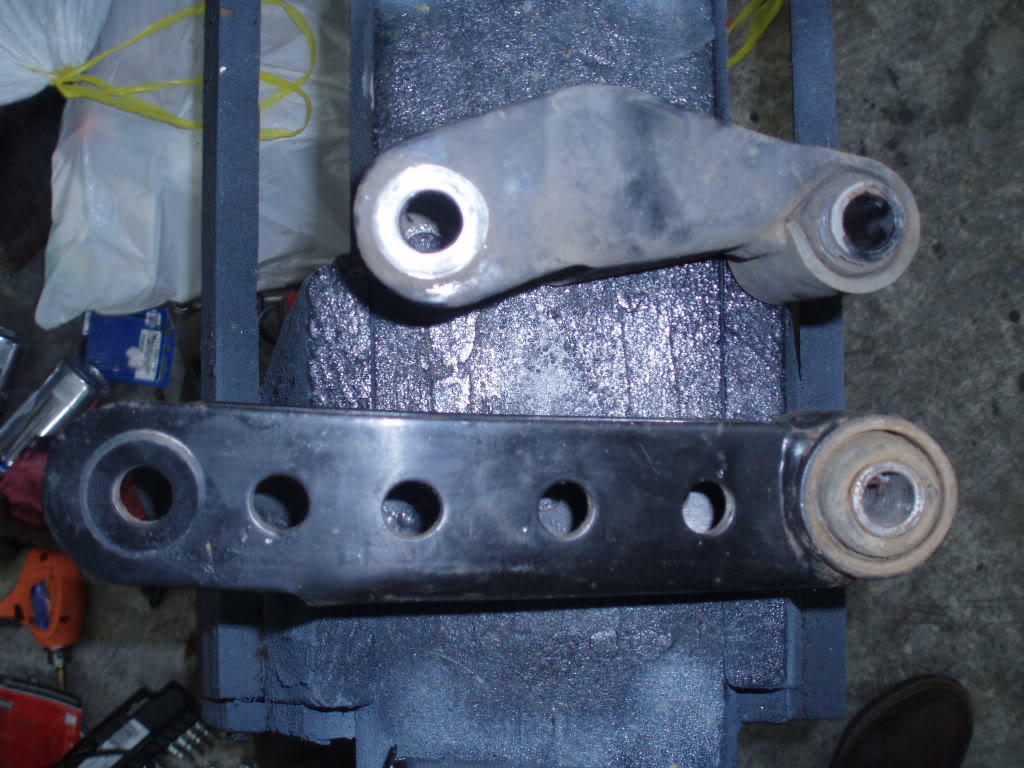

and:
Name:  P1010047.jpg
Views: 1
Size:  132.4 KB

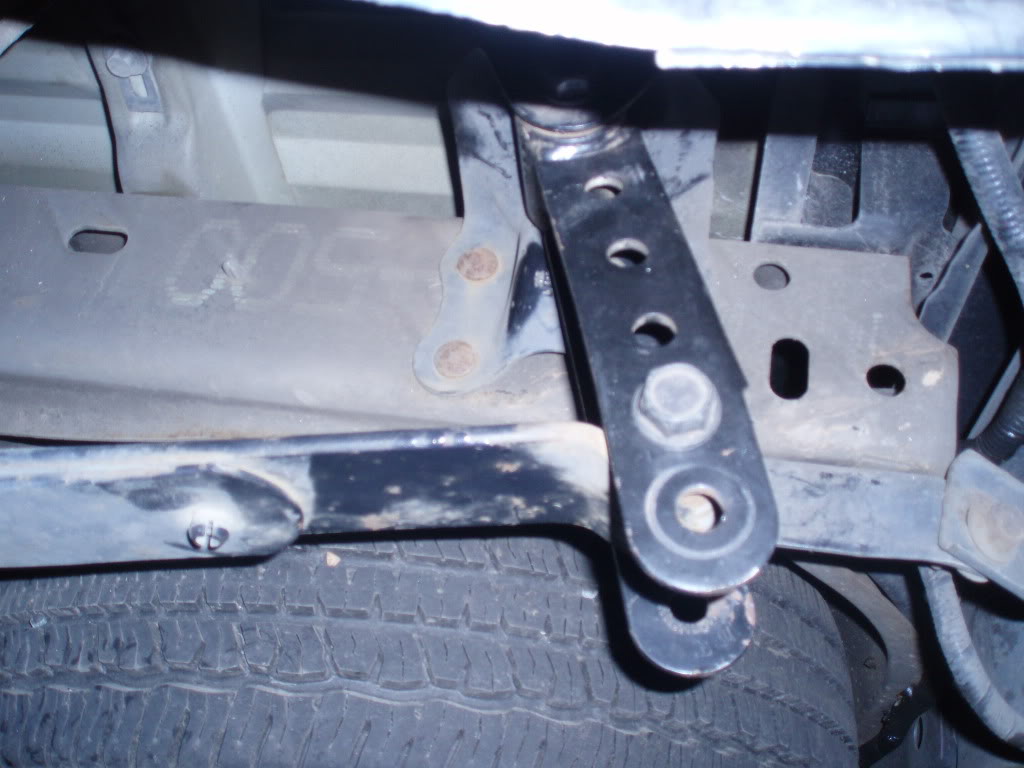

Installed:
Name:  P1010051.jpg
Views: 1
Size:  92.7 KB

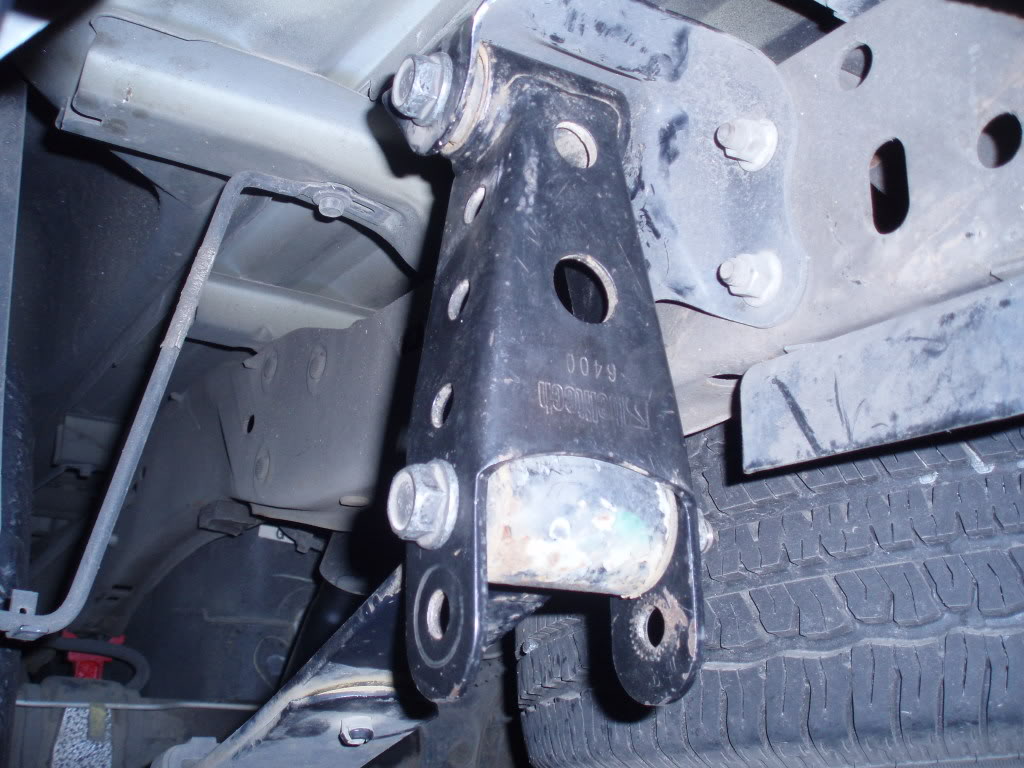

and:
Name:  P1010049.jpg
Views: 1
Size:  125.9 KB

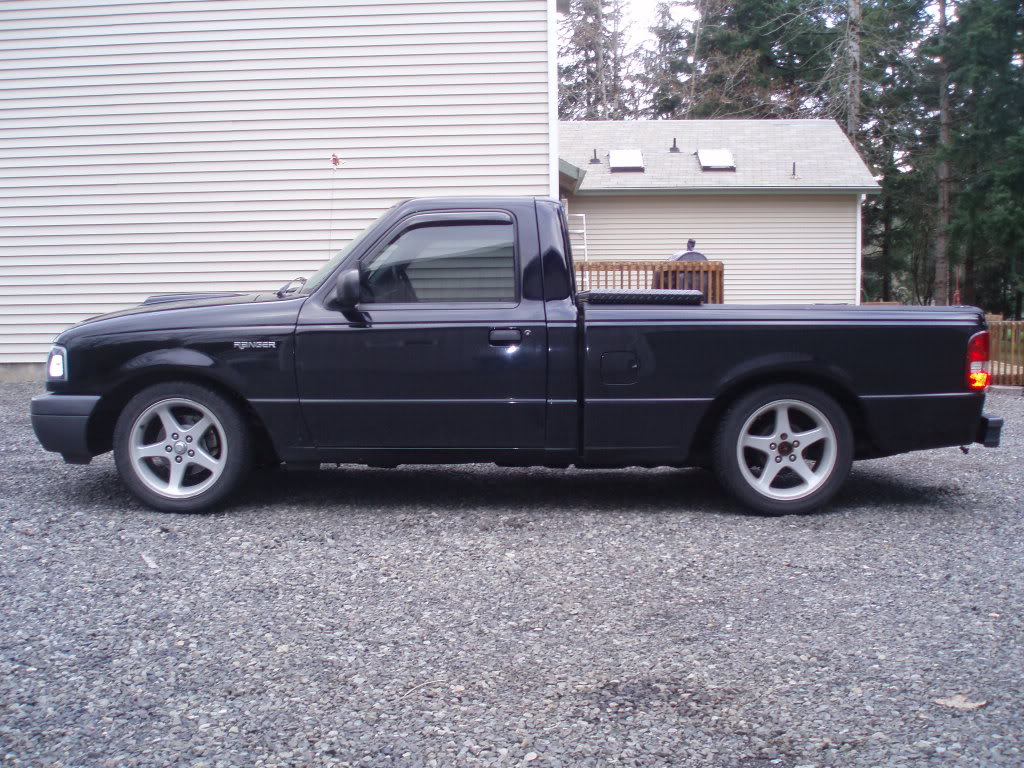

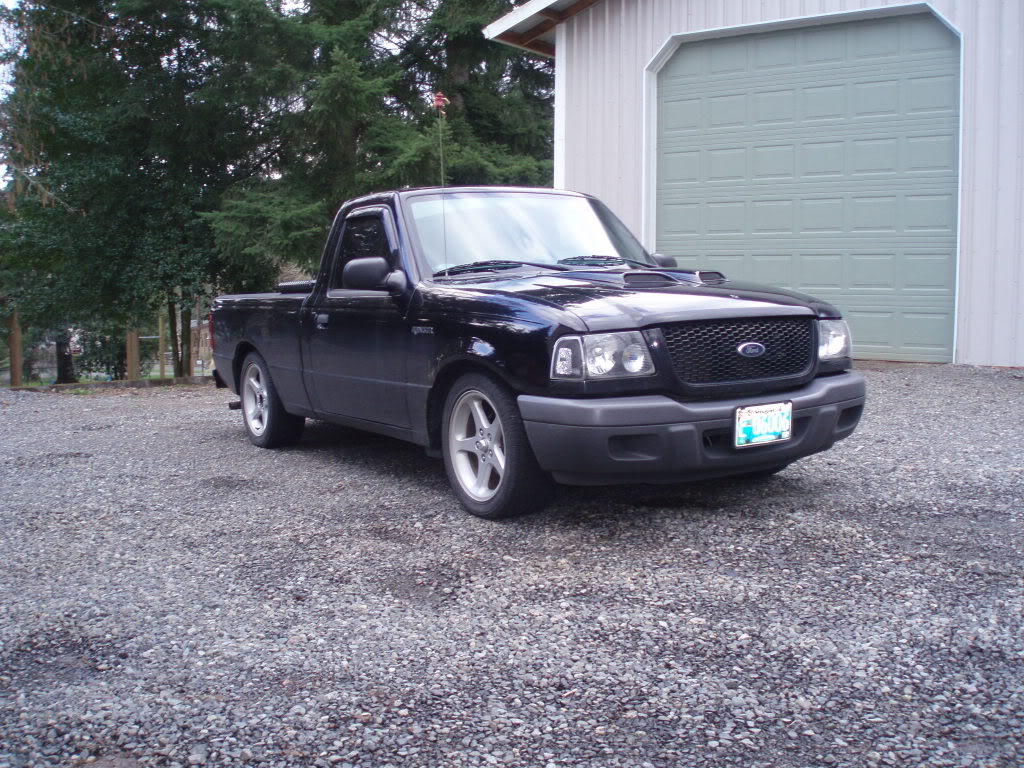

Truck before shackles:
Name:  P1010042.jpg
Views: 1
Size:  196.2 KB
and
Name:  P1010044.jpg
Views: 1
Size:  191.7 KB

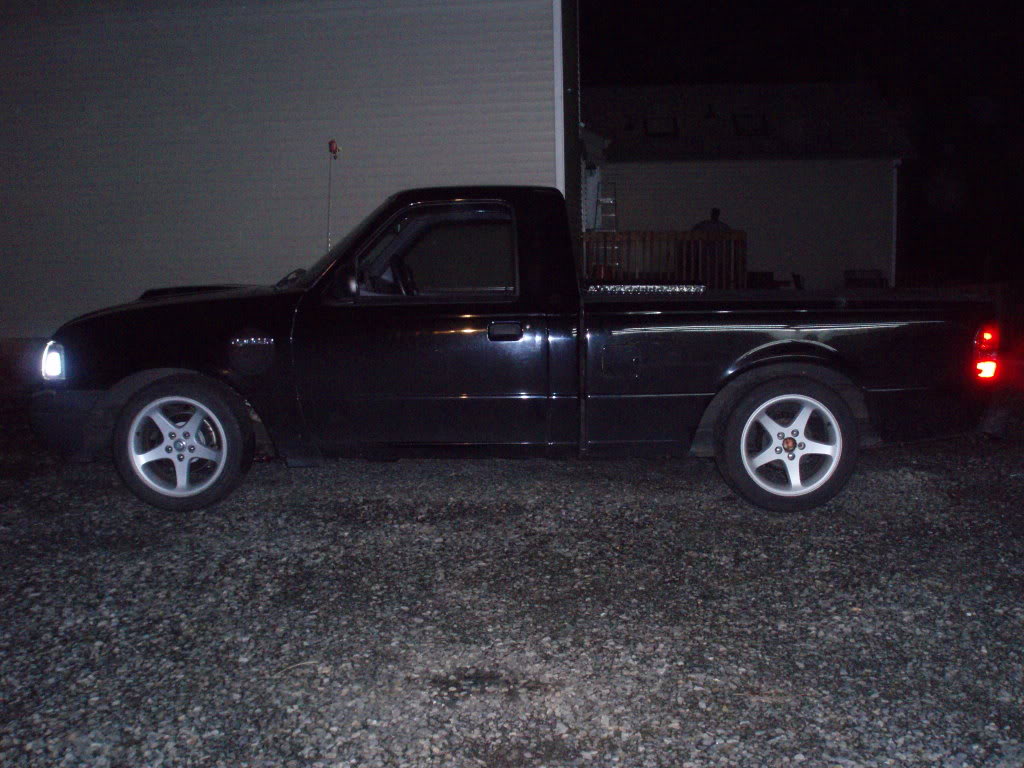

Truck after shackles:
Name:  P1010053.jpg
Views: 1
Size:  127.3 KB

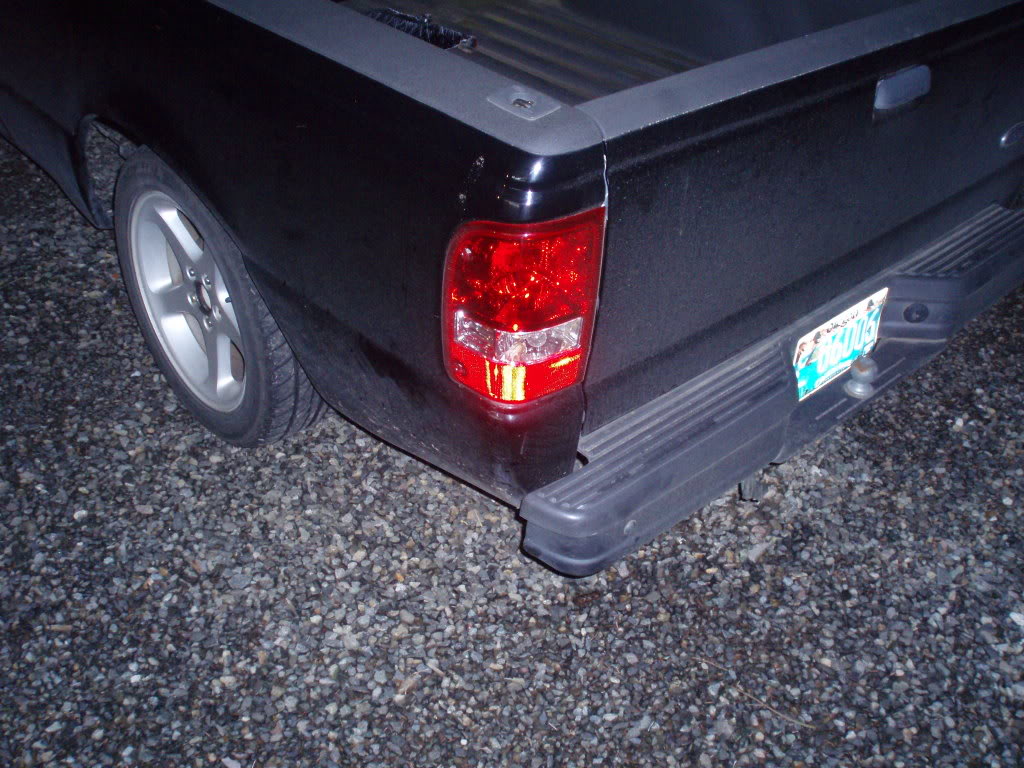

'06 tails FTW!!!!:
Name:  P1010056.jpg
Views: 1
Size:  165.4 KB



Going to drive around tomorrow, should ride about the same if not better because I'm not hitting bump stops.

Going to the junkyard to eye some parts for next weekend then I'll re-torque the bolts again just for safe keeping.
Reply With Quote
  #2
Old 04-04-2009
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
Should of just trimmed your bumpstops or a bolt in notch screw going back up..
Reply With Quote
  #3
Old 04-04-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
bump stops are trimmed duder. c-notch was too much money/work for me right now. Don't have lots of time to work on it during the school year.
Reply With Quote
  #4
Old 04-04-2009
Member

Join Date: Jul 2005
Location: College Station
Posts: 2,781
I think it looks better with the extra inch! Ranger's just look odd level like they are almost sagging but not, lol.
Reply With Quote
  #5
Old 04-04-2009
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
im surprised you were hittin that short bumpstop at all with only a flip kit. that thing looks trimmed all the way to the frame lip. hardly any squish before the axle hits the frame there.
im still runnin a full bumpstop with my flipkit, but i guess i did add an extra leaf to the pack as well. which rear springs do you have?
Reply With Quote
  #6
Old 04-04-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
I have the standard leaf spring???? IDk, where does it tell you?

When i go over bumps on the interstate i hit them a lot. I think its just because I'm so light (standard cab, 4cylinder 5spd) but i feel safer with the added inch. I'll probably do c-notch...djm has an awesome Ranger specific one i can bolt in (because welding is too much a pain lol).
Reply With Quote
  #7
Old 04-04-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Truck looks good, but you need to peel off those scoops ASAP lol.
Reply With Quote
  #8
Old 04-04-2009
03bamaGT's Avatar
Member

Join Date: Aug 2006
Location: B'ham, AL
Posts: 1,752
Being light should make you not hit the bump stops...looks good though.
Reply With Quote
  #9
Old 04-04-2009
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
Quote:
Originally Posted by Dangerranger01 View Post
I have the standard leaf spring???? IDk, where does it tell you?

When i go over bumps on the interstate i hit them a lot. I think its just because I'm so light (standard cab, 4cylinder 5spd) but i feel safer with the added inch. I'll probably do c-notch...djm has an awesome Ranger specific one i can bolt in (because welding is too much a pain lol).
djm is way overpriced for what it is.. go with this

http://www.suicidedoors.com/notches/bolt-c-notch-kit

Should just drop the truck off to shane and have him do it im sure he could do it with your help in a matter of an hour or 2.
Reply With Quote
  #10
Old 04-04-2009
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by Dangerranger01 View Post
I have the standard leaf spring???? IDk, where does it tell you?

When i go over bumps on the interstate i hit them a lot. I think its just because I'm so light (standard cab, 4cylinder 5spd) but i feel safer with the added inch. I'll probably do c-notch...djm has an awesome Ranger specific one i can bolt in (because welding is too much a pain lol).

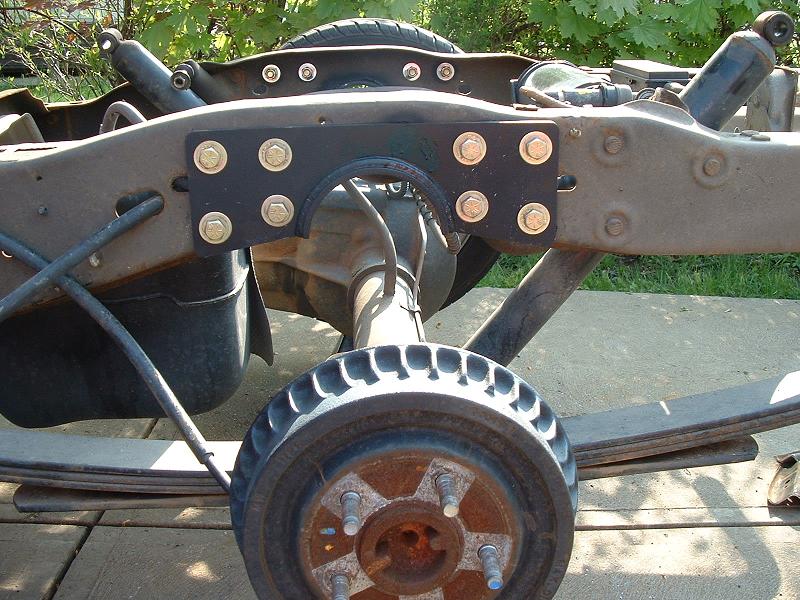

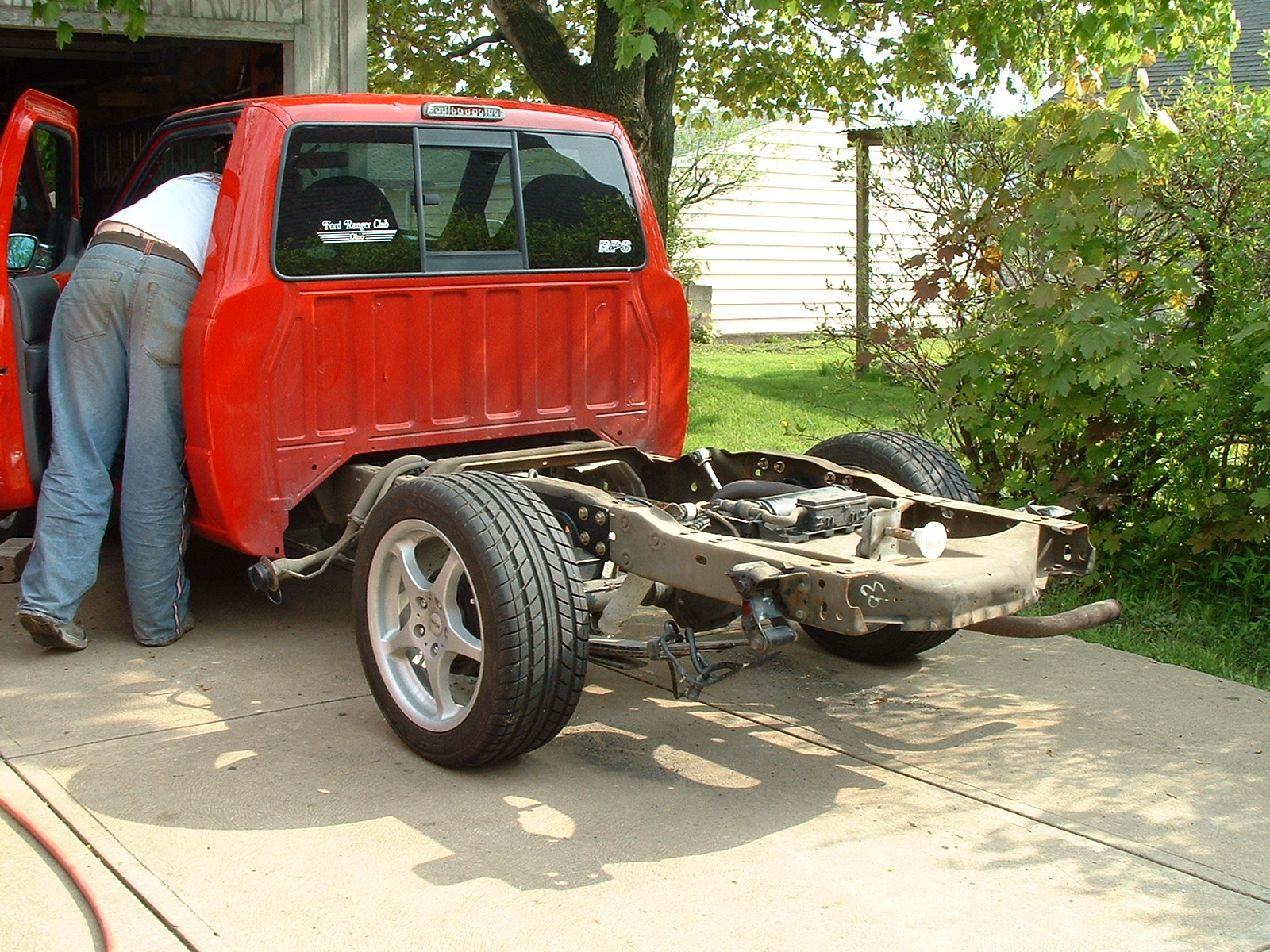

I ran a 5/5 drop with the same djm flipkit, and a sucide doors notch. Don't think I was sitting that close

it was on a 2001 2.3 duratec, standard cab, automatic


oh, disregard the miss aligned notch, should have messured twice
Attached Thumbnails
DangerRanger01: This kids finally lifted!!!...-pics-1655.jpg   DangerRanger01: This kids finally lifted!!!...-pics-1658.jpg
Reply With Quote
  #11
Old 04-04-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
weird we have basically the same truck. I was sitting about .5inch away from the bump stop before i cut them, so now i'm at about 3in or so. More now with the spindle lift. It looks better now...little rake going on. I like it.

Oh, my spring code was a '3'...my service manual told me nothing of what '3' meant out of the like 5 different spring codes.

ScottG, how bad was it drilling the holes?? I think i'd only be afraid of drilling into the gas tank, lol. How about cutting the notch, what did you use??
Reply With Quote
  #12
Old 04-04-2009
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Looks good Grant!!
Reply With Quote
  #13
Old 04-04-2009
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Quote:
Originally Posted by Dangerranger01 View Post
weird we have basically the same truck. I was sitting about .5inch away from the bump stop before i cut them, so now i'm at about 3in or so. More now with the spindle lift. It looks better now...little rake going on. I like it.

Oh, my spring code was a '3'...my service manual told me nothing of what '3' meant out of the like 5 different spring codes.

ScottG, how bad was it drilling the holes?? I think i'd only be afraid of drilling into the gas tank, lol. How about cutting the notch, what did you use??


the notch was cut out with a sawzall and cut off wheel. and drilling was easy, once you used sharp drill bits, and the tank was far enough away from the frame, we weren't scared
Reply With Quote
  #14
Old 04-04-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Looks good man!
Reply With Quote
  #15
Old 04-04-2009
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
i dunno what "3" means either......do you have two or three leafs in each pack? see scotts pics are three leaf plus overload. mine were 2leaf plus overload, but i added a third leaf when i installed the flipkit.
Reply With Quote
  #16
Old 04-04-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I like it. Nice height.
Reply With Quote
  #17
Old 04-04-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
I personally think it looks a little bit better with the slight rake. Like mentioned above, when it was level it almost looked like it was sagging even though it wasn't.

When I had my slammed B2200, I had taken out 2 leaf springs and put in 3" blocks and I smacked my frame all the time. I used to drag frame with a static drop.

Your truck is lookin really good, but the scoops just aren't my taste. Powerdome FTW!
Reply With Quote
  #18
Old 04-04-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
I'll have to take a look at how many leafs i have in each spring pack. Right now, i'm about 3.5inches from the cut-bump stop. I definitely noticed driving back done to my apartment today (about 90miles, mostly interstate) that i didn't hit and had more rear travel.

The spring number is 33. First 3 is for the front (2wd springs), second 3 is for the rear springs. Ford didn't list a spring rate or comparison chart so i have no idea what they mean.

Mike, i have the powerdome sitting in my shop, just need to paint it this summer, along with the edge bumper/valance!! 4wd front end FTW!!!
Reply With Quote
  #19
Old 04-14-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Grant...

I've leard this on torsion bar ratings and 4x4 leaf ratings...

in order of strongest to weakest (firmest to softest)

1 B F(bars)
C K(leafs)

Higher number/letter, higher spring rate. Ive looked online for specific ratings of springs, but came up empty handed. I did however find a post saying something like #1 torsion bars are rated at 675lb? And thats it. lol.
Reply With Quote
  #20
Old 04-14-2009
Roddy's Avatar
Member

Join Date: Mar 2008
Location: Canada
Posts: 1,332
I have my shackles on the same setting. Works perfect for me.
Reply With Quote
  #21
Old 04-14-2009
Dangerranger01's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by Fx4wannabe01 View Post
Grant...

I've leard this on torsion bar ratings and 4x4 leaf ratings...

in order of strongest to weakest (firmest to softest)

1 B F(bars)
C K(leafs)

Higher number/letter, higher spring rate. Ive looked online for specific ratings of springs, but came up empty handed. I did however find a post saying something like #1 torsion bars are rated at 675lb? And that's it. lol.
Okay then, if this holds true for leafs, what are the other numbers/letters so i can compare teh 3 i have? And 675 sounds a little low, but maybe right (i've never dealt with t-bars but assume springs constants work the same way but rotational?? Where is D. when you need him?)
