My lifted Edge

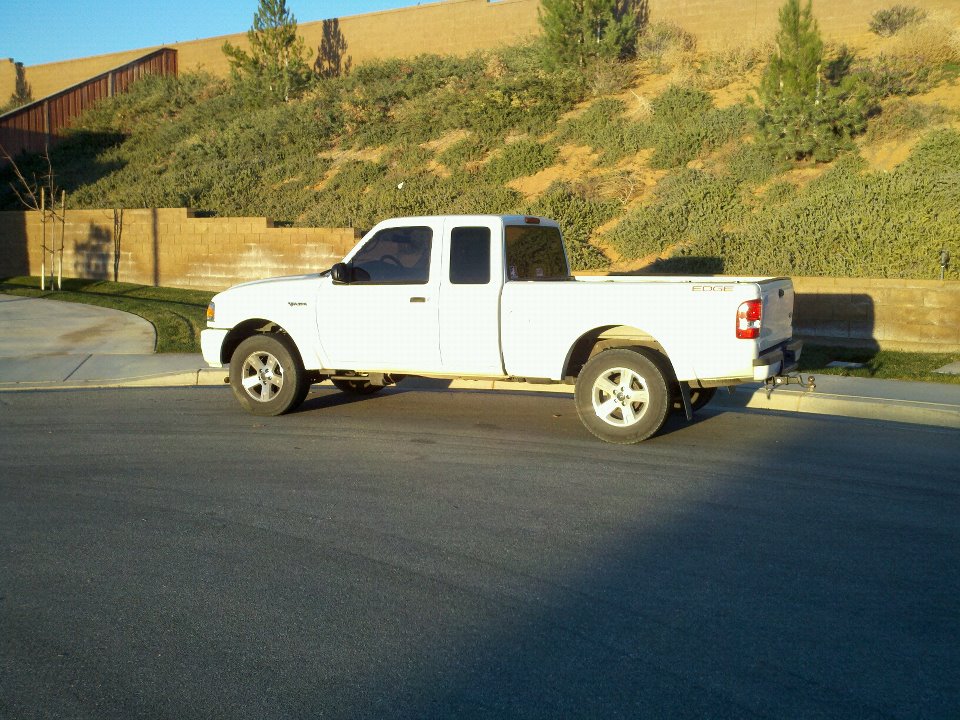

Bought it in 09 with 17k....had driven it like this up until couple days ago



Bought some parts

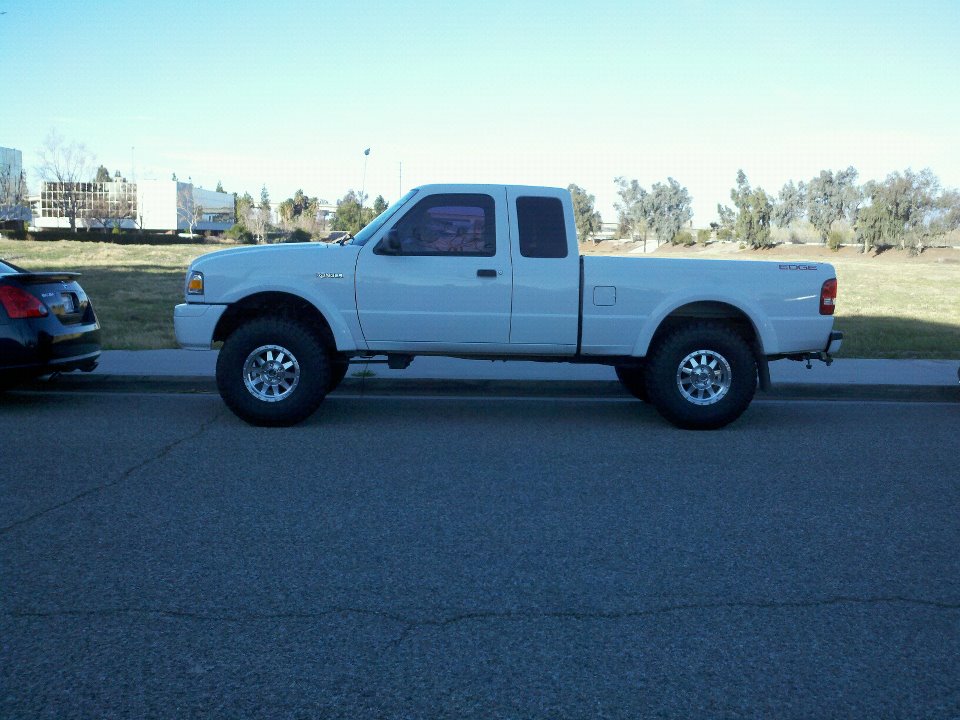

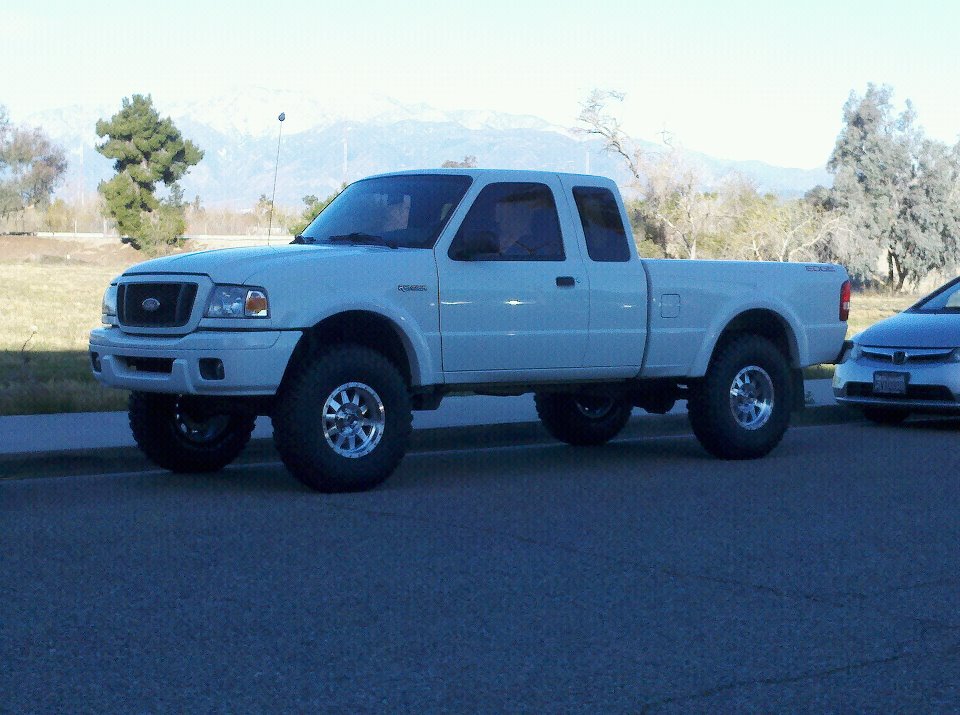

and ended up with this

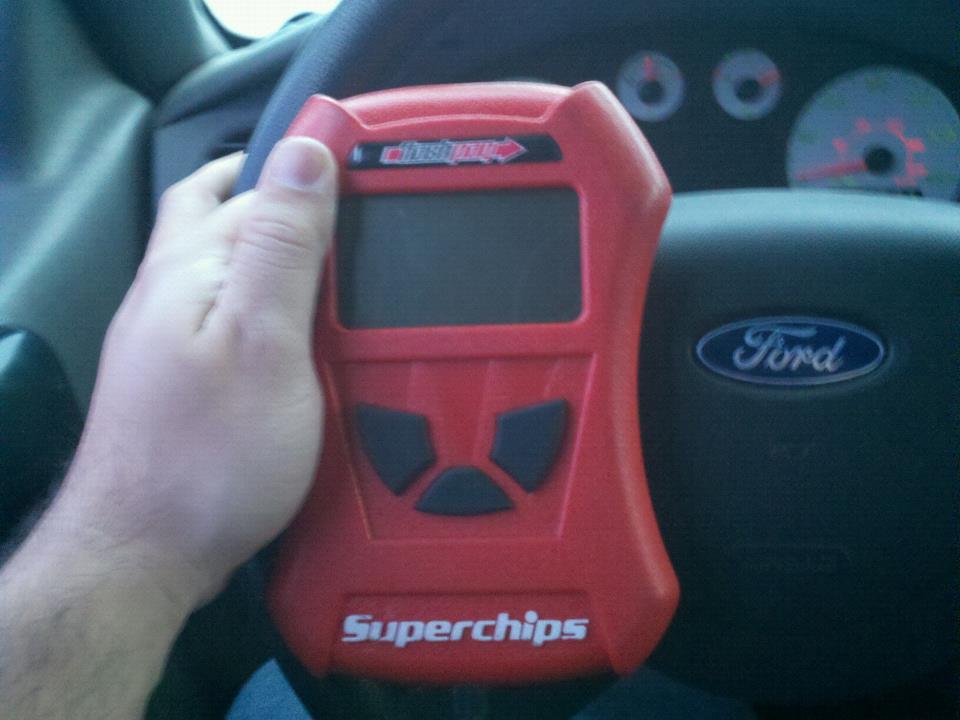

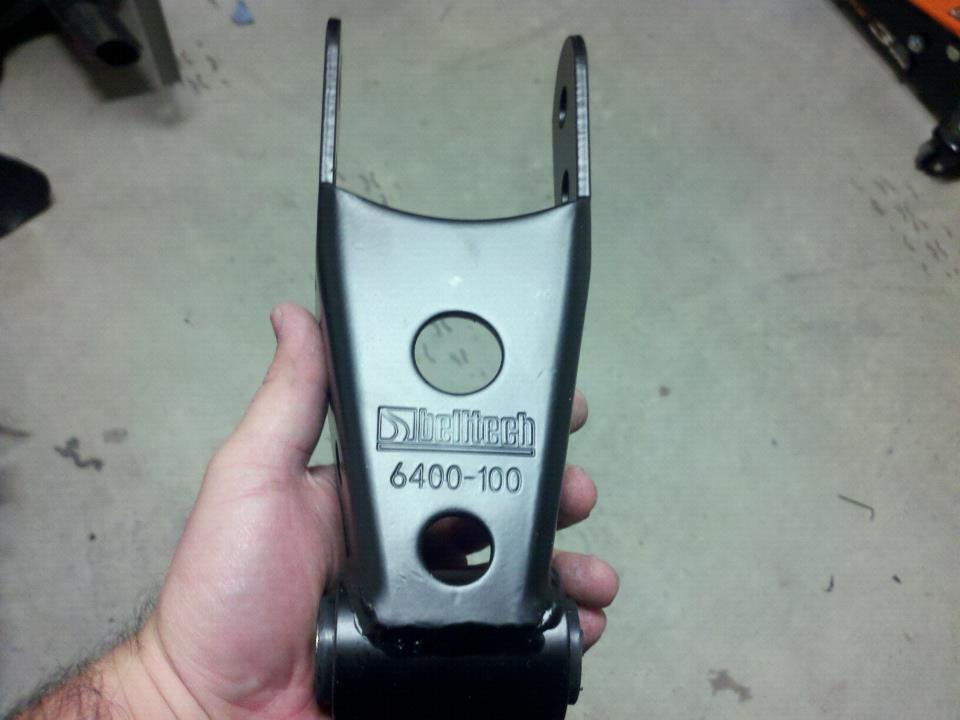

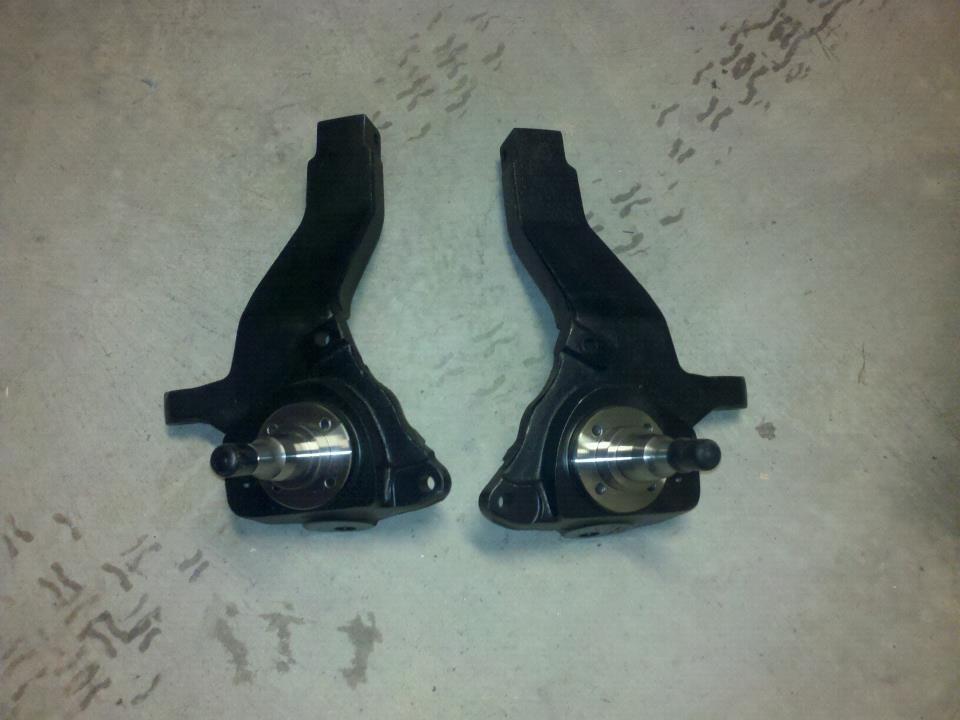

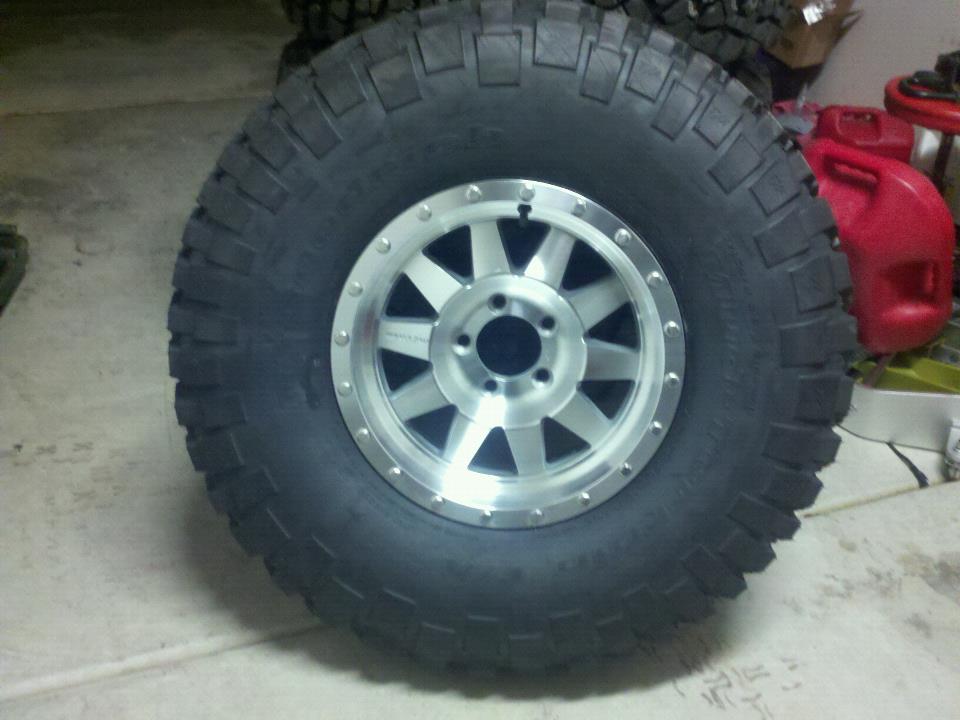

Springtech spindles, 6400s, minor crank (not needed), 33x10.5x15 KM2s, 15x7 Method Wheels, Super Chips Flashpaq
Attached Thumbnails
My lifted Edge-425138_374396759243876_100000206650351_1652786_282718878_n.jpg   My lifted Edge-398483_373671539316398_100000206650351_1650975_530623051_n.jpg   My lifted Edge-419558_372042899479262_100000206650351_1646468_143372939_n.jpg   My lifted Edge-404492_372022929481259_100000206650351_1646440_1091420812_n.jpg   My lifted Edge-420378_373679219315630_100000206650351_1650982_274057539_n.jpg

My lifted Edge-431126_374899525860266_100000206650351_1654390_1100705995_n.jpg   My lifted Edge-404252_374899939193558_100000206650351_1654392_326779349_n.jpg
Reply With Quote
  #2
Old 02-05-2012
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
this looks amazing! love those wheels.
Reply With Quote
  #3
Old 02-05-2012
Member

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
need a leaf in the rear to level that girl out
Reply With Quote
  #4
Old 02-05-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Nice looking truck!
Reply With Quote
  #5
Old 02-05-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Looking good man!
Reply With Quote
  #6
Old 02-05-2012
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
that looks very good! i like it
Reply With Quote
  #7
Old 02-05-2012
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Looks awsome, flashpaq does alot on its own.
Reply With Quote
  #8
Old 02-05-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
nice!
Reply With Quote
  #9
Old 02-05-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks great! Those Method wheels?
Reply With Quote
  #10
Old 02-05-2012
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Yup....love them...buddy has them on his silverado in black but i like the non-polished aluminum color
Reply With Quote
  #11
Old 02-05-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good!
Reply With Quote
  #12
Old 02-05-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
33x10.5s looks great on there, wheels are perfect
Reply With Quote
  #13
Old 02-05-2012
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
How do you like the spring tech spindles? I am thinking about getting them off ebay.

BTW, looks great
Reply With Quote
  #14
Old 02-05-2012
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I really like the wheels. Nice truck man!
Reply With Quote
  #15
Old 02-05-2012
Member
Thread Starter
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Thanks guys!

Spindles are good quality, instructions suck. Had to cut/mod my lower control arms to make them work..heres what I did

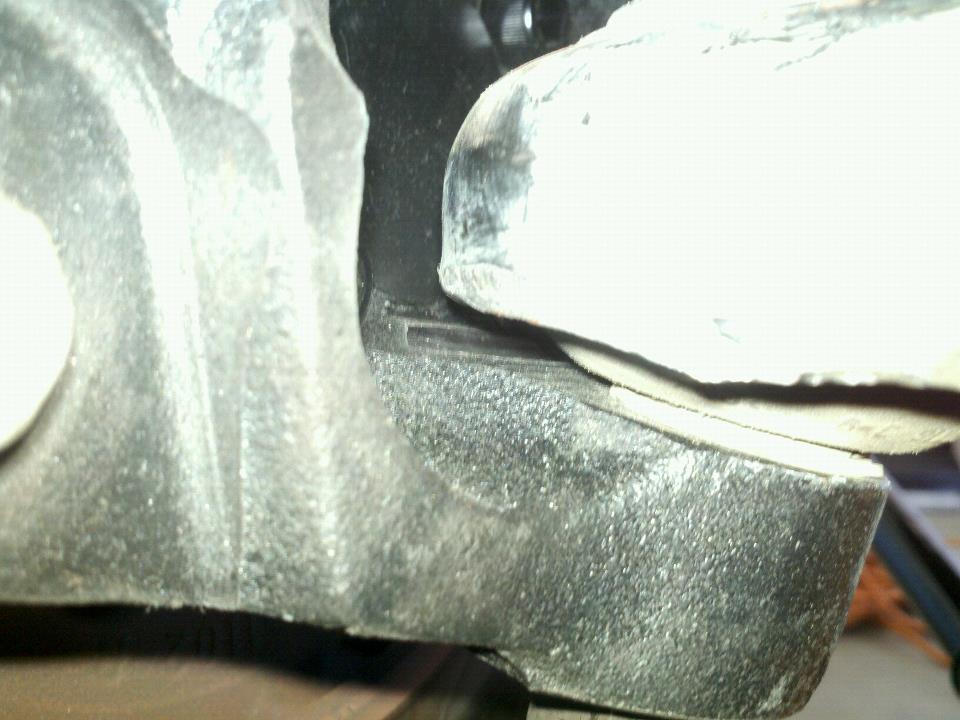

At full suspension droop, the lower control arm (LCA) would hit the spindle and bind up the steering. So I cut off part of the LCA's "skirt" at the bottom to make room for it to cycle up and down w/o binding.

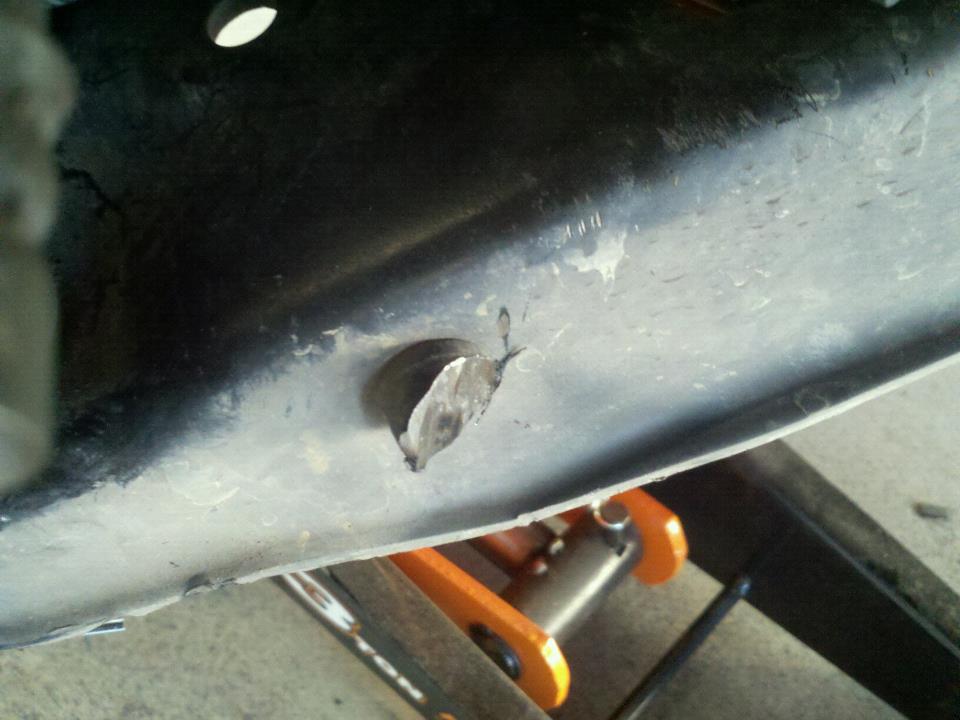

Since the spindle moves everything down, the calipers now hit the steering stop where there original spindle would hit. So I ground down that lil button to make room for the caliper but also leave some there in case I ever went back to stock

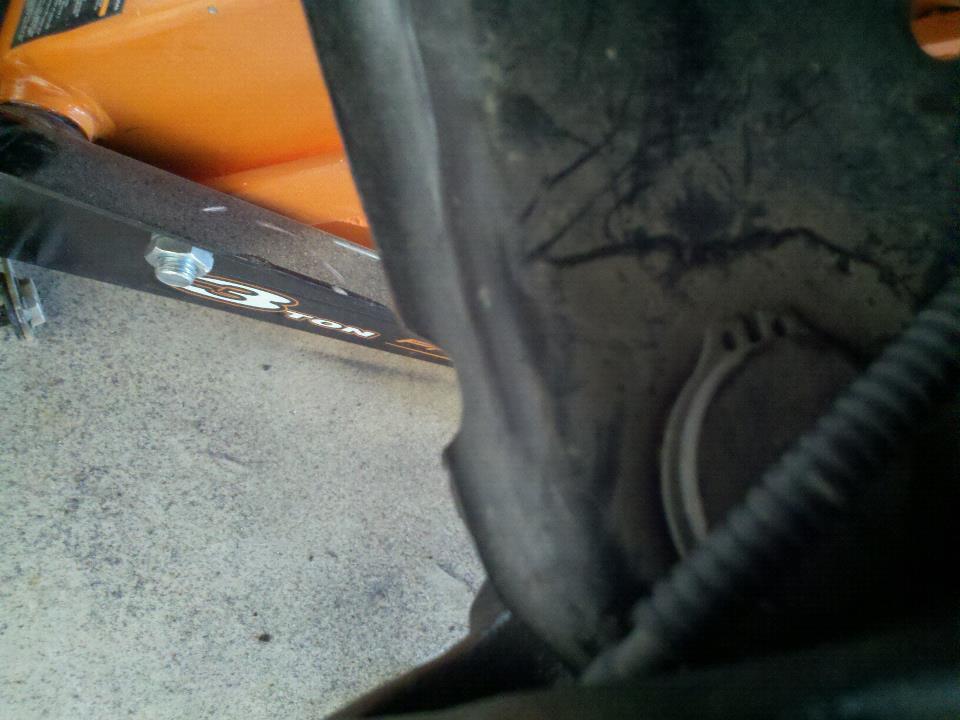

The ABS sensor hold down bolt would hit the LCA skirt as well, so I cut a lil section of the skirt off to make room for it.



Without these mods, turning radius sucked and it was going to break the bolt head. Again, none of this is covered in the general instructions they send you. My truck had never been aligned so I needed a camber kit as well. Hope this helps and thanks for the compliments
Attached Thumbnails
My lifted Edge-426285_376255489058003_100000206650351_1658947_837476420_n.jpg   My lifted Edge-430444_376254835724735_100000206650351_1658935_421618095_n.jpg   My lifted Edge-401465_376254645724754_100000206650351_1658930_1616927981_n.jpg
