NEW Clear LED 3rd Brake Light

I know there's a million pic of these, but I'll add mine up too.

The 1st of a few X-Mas presents to the Ranger from me.

Before:


After:
Reply With Quote
  #2
Old 12-17-2008
jaycheetwood's Avatar
Member

Join Date: Sep 2008
Location: Ogden, Utah
Posts: 2,218
is that entirely just plug and play simple swap?
Reply With Quote
  #3
Old 12-17-2008
rizoss16's Avatar
Member

Join Date: Nov 2008
Location: CT
Posts: 808
looks alot better man!
Reply With Quote
  #4
Old 12-17-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looks nice.

Niteshade it!!!!
Reply With Quote
  #5
Old 12-17-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Simple plug and play.

The surround was chrome, so I gave it a light sand, a few coats of flat black, and a few coats of clear.

The harness in the truck has 3 prongs (ground, brake lamp, acc lamp) and the harness on the light has 3. I would have figured that the acc lamps would light up with the door ajar or the acc lamps on with the interior light wheel.

My stocker had only the brake lamp so it's harness just had 2 prongs. I'll have to check that out when I bring the truck in the garage. Too cold outside.
Reply With Quote
  #6
Old 12-17-2008
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980
Yeah, as Chris said...plug'n'play application. Best cheap mod to do IMO, looks great with my RECON line of fire bar.
Reply With Quote
  #7
Old 12-17-2008
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Just like the one I bought I think. Is yours just the regular or the 'smoked' one?

As far as the cargo lights, if your truck is an early 2003 or older it likely has the correct harness and it should light up right now.

The stock light only had 2 prongs because it didn't have the cargo lights in it. Had it been the red and white CHMSL there likely would've been three prongs.
Reply With Quote
  #8
Old 12-17-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
how much did that run ya and does it have the cargo lights?
Reply With Quote
  #9
Old 12-17-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
I want some night pics. I have been looking at them on ebay but want to see how bright the cargo lights are.
Reply With Quote
  #10
Old 12-17-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
Much better, looks great on the BIB color.
Reply With Quote
  #11
Old 12-17-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
The one I made is much brighter, redder, and vivid when lit up. I think the chrome is very tackey, so I chose to stay away from the plug and play light.







Reply With Quote
  #12
Old 12-17-2008
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Quote:
Originally Posted by RangerNDog View Post
I want some night pics. I have been looking at them on ebay but want to see how bright the cargo lights are.
They're decently bright but nothing too special.

Name:  Brakeandcargo.jpg
Views: 0
Size:  28.1 KB

Name:  Tailsreversecargo.jpg
Views: 0
Size:  14.3 KB
Reply With Quote
  #13
Old 12-17-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
I really like how you painted the housing i think i am gonna have to do that to mine. thats been the reason i havent installed it on my black truck because it was to much chrome....
Reply With Quote
  #14
Old 12-17-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
JP7, only issue with that IMO is that you have no cargo lamps with that system.
Reply With Quote
  #15
Old 12-17-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
bump...

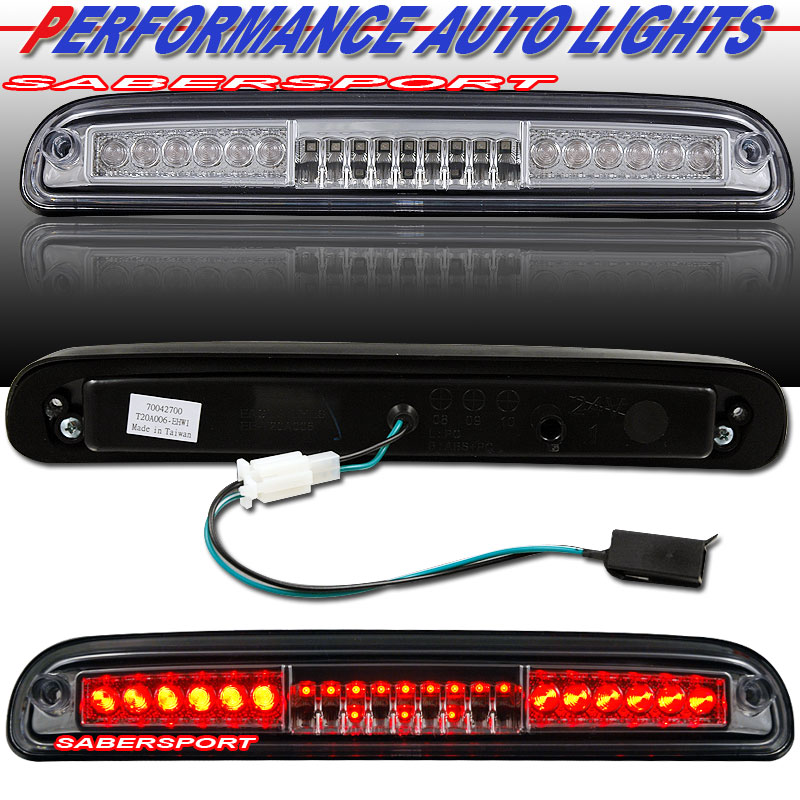

ebay...

all red

Reply With Quote
  #16
Old 12-17-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Quote:
Originally Posted by bwester04 View Post
JP7, only issue with that IMO is that you have no cargo lamps with that system.

I have a hard-flipup tonneau cover, cargo lights have no use.

I will be installing 2- 6 foot white LED strips in my bed for MEGA bright lighting as soon as the temperature gets in the ranger where I can work in the truck.
Reply With Quote
  #17
Old 12-17-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by 07SPORT View Post
bump...

ebay...

all red

That is the one I have. I blacked it out, looks nice.



Reply With Quote
  #18
Old 12-17-2008
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Dosen't look very bright... can you clearly see it when you stop? The dispersers make it fill the entire opening. Thats what make it say STOP really loud IMO.
Reply With Quote
  #19
Old 12-17-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Jp7 View Post
Dosen't look very bright... can you clearly see it when you stop? The dispersers make it fill the entire opening. Thats what make it say STOP really loud IMO.
Looking out the back window you can see it light up the bed, not real bright or anything. But it passes inspection and looks super uber cool!!!
Reply With Quote
  #20
Old 12-17-2008
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
While your are talkin bout 3rd brake lights I got a question, does any one know if then make non led clear lens replacement for the 3rd brake light... ya know kinda like the equivilant of clear corners?
Reply With Quote
  #21
Old 12-17-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by 0RangerEdge2 View Post
Just like the one I bought I think. Is yours just the regular or the 'smoked' one?

As far as the cargo lights, if your truck is an early 2003 or older it likely has the correct harness and it should light up right now.

The stock light only had 2 prongs because it didn't have the cargo lights in it. Had it been the red and white CHMSL there likely would've been three prongs.
It's suppose to be the smoked one. Really doesn't look to "smoked", but from the eBay pics, mine looks darker then the regular but lighter then the smoked.

I may put a light coat of Niteshade on it though, just to "smoke" it.

I'm going to take it off tomorrow and look at the harness. The post for the acc lights may have been pushed out and it's probably not making contact.

Last edited by Rolldogg; 12-17-2008 at 08:03 PM.
Reply With Quote
  #22
Old 12-17-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by Redneckstone View Post
I really like how you painted the housing i think i am gonna have to do that to mine. thats been the reason i havent installed it on my black truck because it was to much chrome....
Yeah, wasn't a fan of the chrome when I opened the box. I don't have any on the truck, so it would stick out. Looks much better painted black.
Reply With Quote
  #23
Old 12-17-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by 07SPORT View Post
bump...

ebay...

all red

Seen that one too, but I wanted the cargo lights. I knew my harness from the Ranger had 3 prongs so I knew I could the cargo lights to work with just "plug and play".
Reply With Quote
  #24
Old 12-17-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by Hanks Rangers View Post
how much did that run ya and does it have the cargo lights?
$38US off eBay and yes it has cargo lights.
Reply With Quote
  #25
Old 12-17-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
If you think its not bright enough just install a flasher unit on your high mount light... easy to do, and gets attention...
