  #26
Old 12-08-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Here are some pics of how much wider the axle is. Depending on what tires and rims you have they will be different. I believe the axle is 1.75" wider total then the 7.5. Here are some quick pics.

I'm running 15x8 Procomp rims with 33x12.50 tires

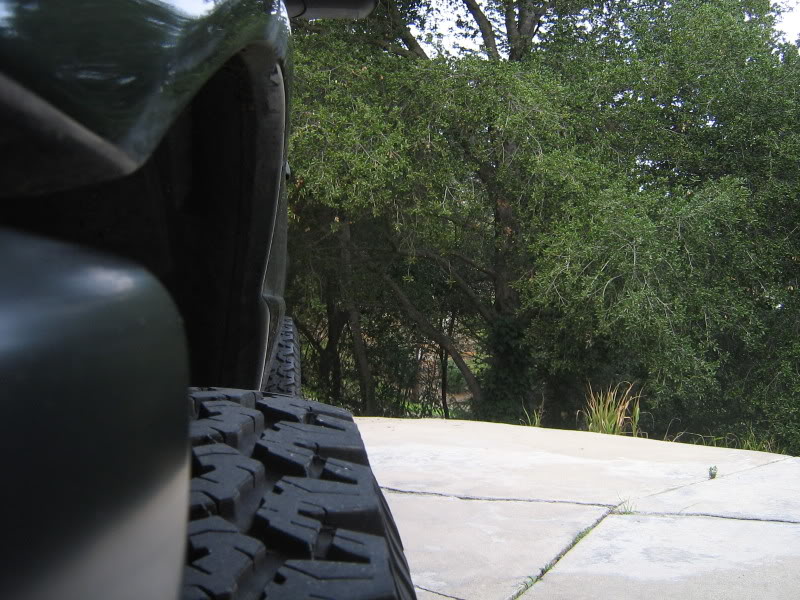

Front of truck looking back:
Name:  IMG_1649.jpg
Views: 0
Size:  110.4 KB

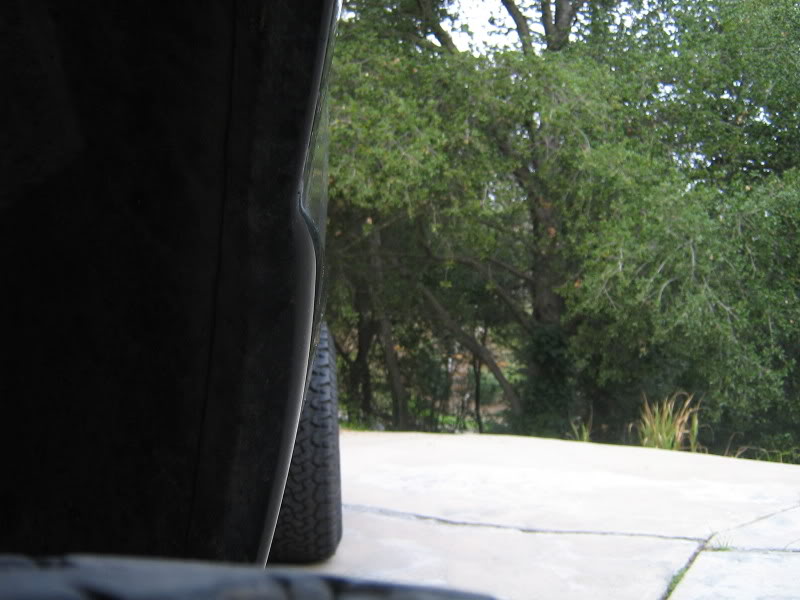

Name:  IMG_1650.jpg
Views: 1
Size:  65.1 KB

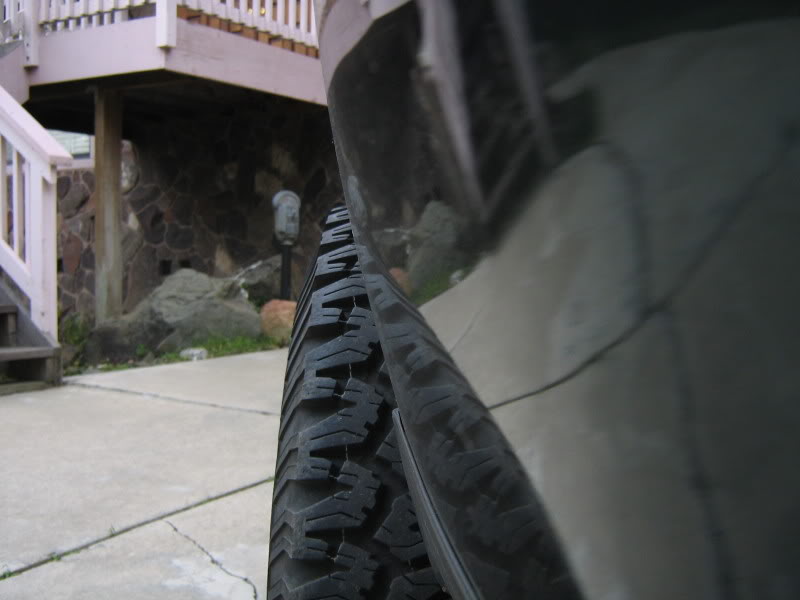

Back driver side:
Name:  IMG_1651.jpg
Views: 0
Size:  42.8 KB

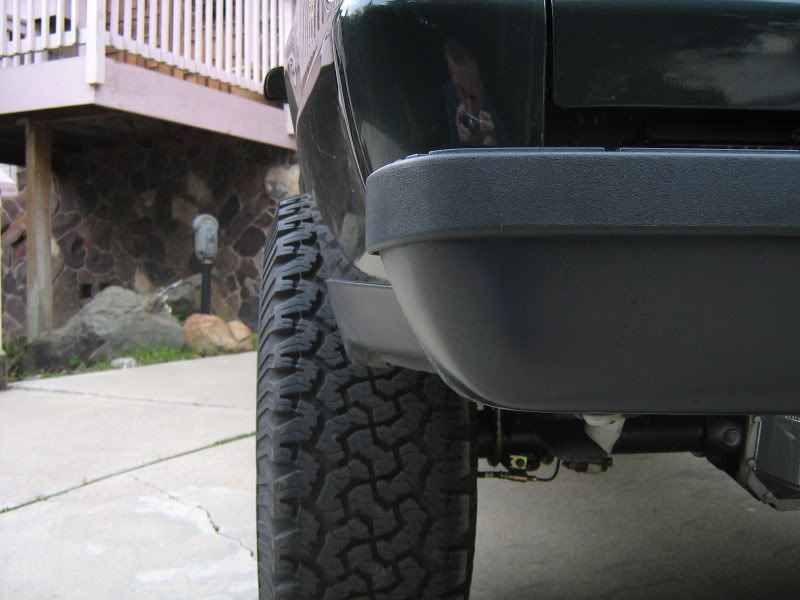

Name:  IMG_1652.jpg
Views: 0
Size:  56.3 KB

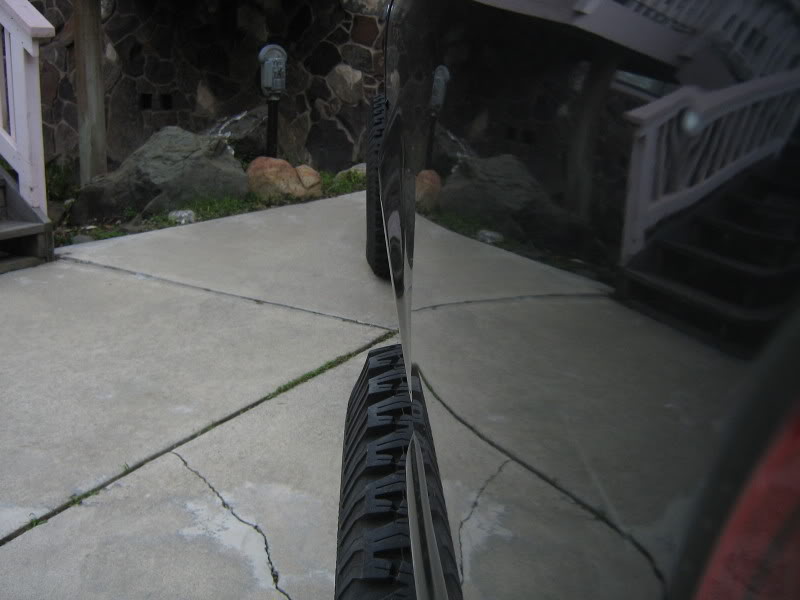

Name:  IMG_1653.jpg
Views: 0
Size:  47.5 KB

Well hope this helps. If you want a complete bolt on axle with no welding then get one from a Level II FX4 Ranger. Your still going to have drum brakes but you can still swap out and get Disc brakes.
Reply With Quote
  #27
Old 12-08-2008
super cool guy's Avatar
Member

Join Date: Jun 2007
Location: Castro Valley, CA
Posts: 102
Well hope this helps. If you want a complete bolt on axle with no welding then get one from a Level II FX4 Ranger. Your still going to have drum brakes but you can still swap out and get Disc brakes.[/QUOTE]

Thanks for the pics. I was thinking about the fx4 axle but they are super hard to find and I can easily have the axle welded. 3/4" isnt too bad I guess. Do you know if the 7.5 and 8.8 are the same width? I didnt notice till now that you are in SJ. I work out in Fremont so not too far from you. We should grab a bite to eat one day and check out the trucks.
Reply With Quote
  #28
Old 12-08-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Nope the 7.5 is skinnier then the 8.8. I never measured the total difference between the axles but I think the 8.8 is around 1.75" wider then the 7.5.
Reply With Quote
  #29
Old 12-09-2008
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
thanks jordan, i get it now
Reply With Quote
  #30
Old 12-09-2008
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
That is one clean lookin ranger. Nice job with everything!
Reply With Quote
  #31
Old 12-09-2008
Member
Thread Starter
iTrader: (6)

Join Date: Mar 2008
Location: San Jose, CA
Posts: 822
Thanks for the comments, I enjoy working on it and modding it. I'm going to start to pay it off this year so I'm not going to be doing anything special to it. Just make sure it runs great for me.
Reply With Quote
