pics of new hellas

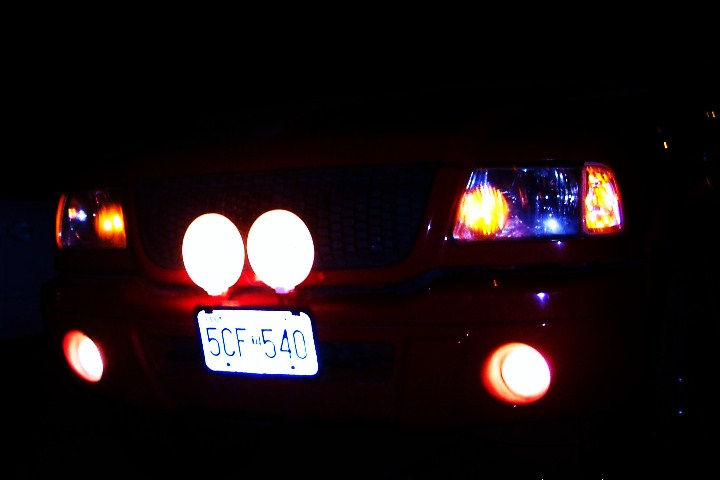

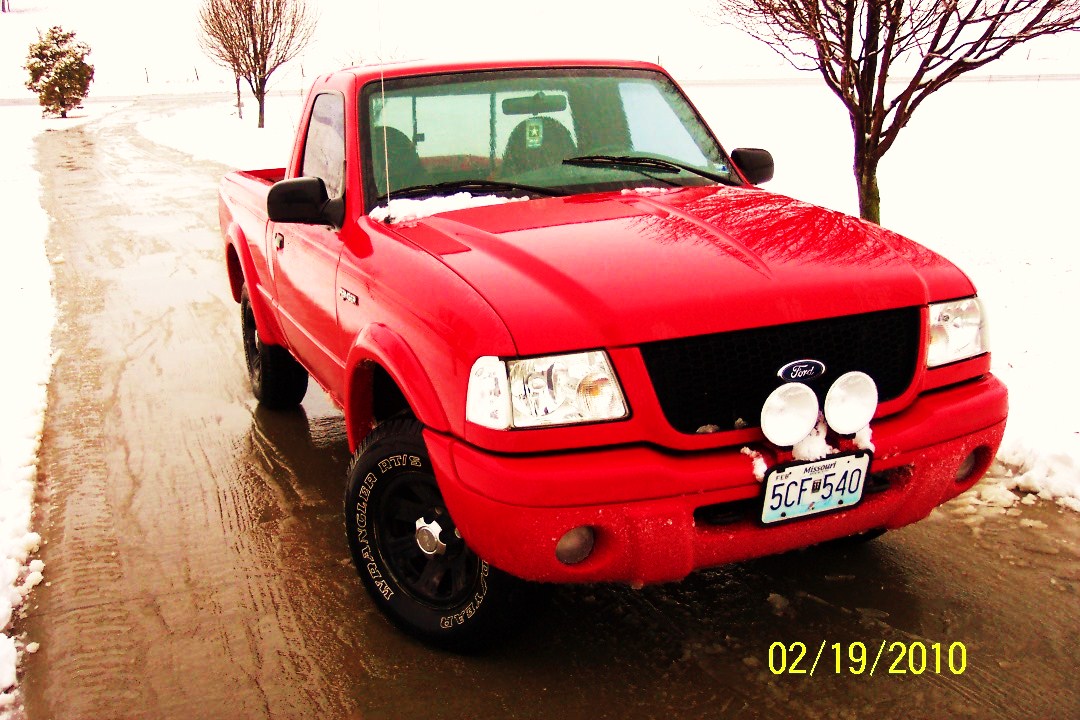

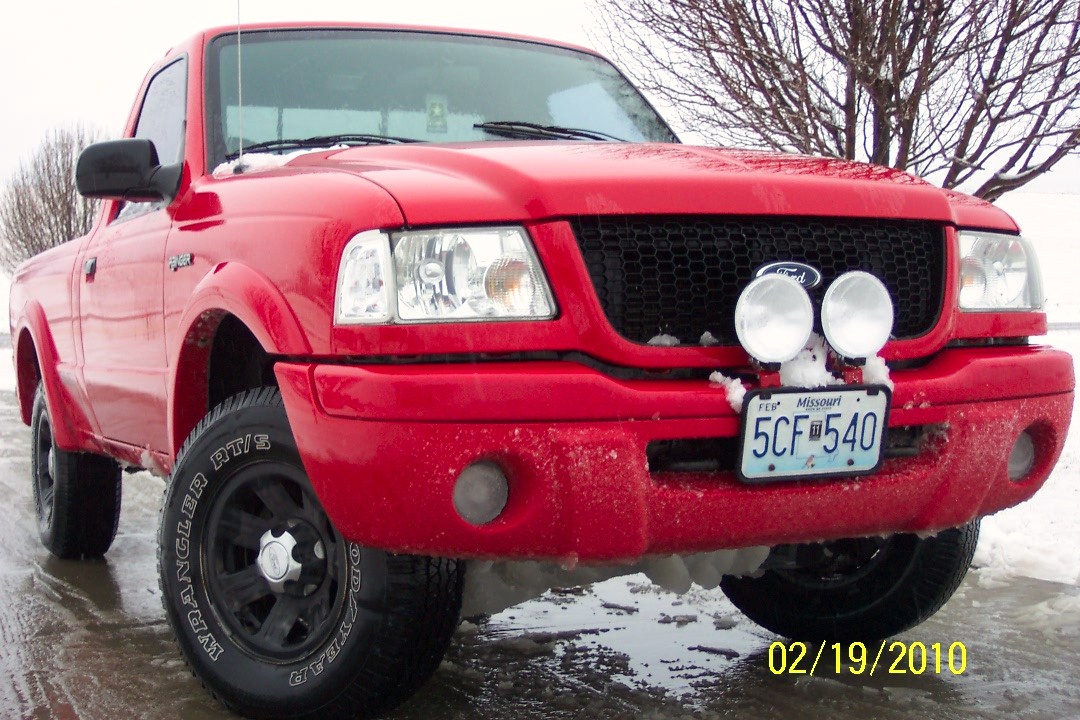

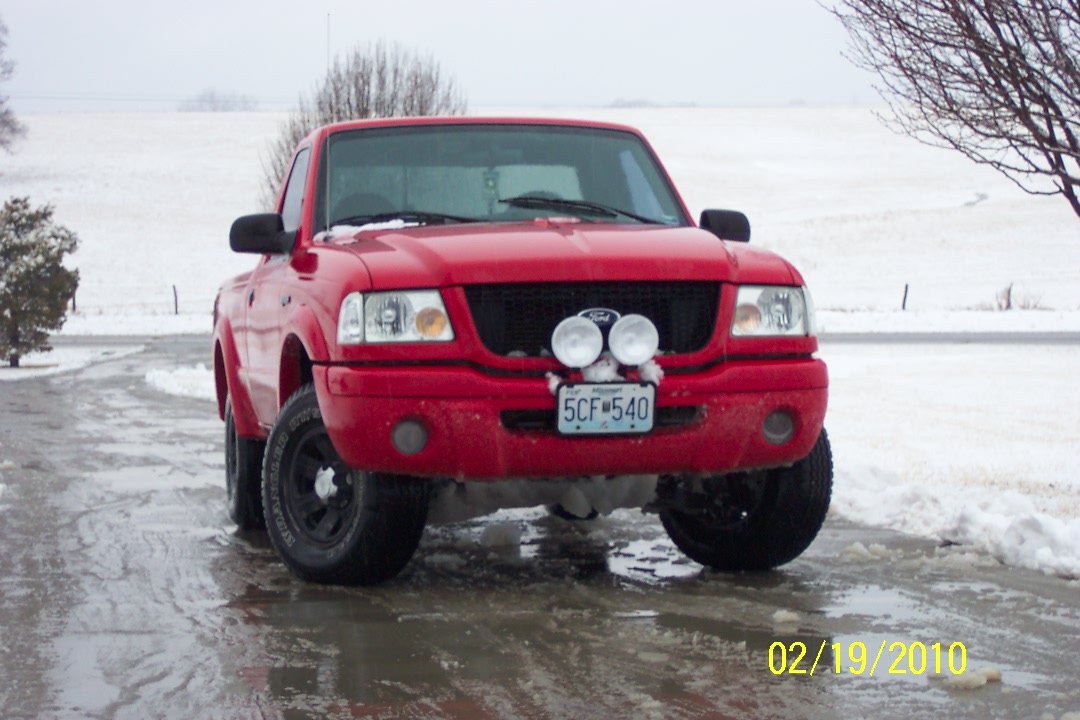

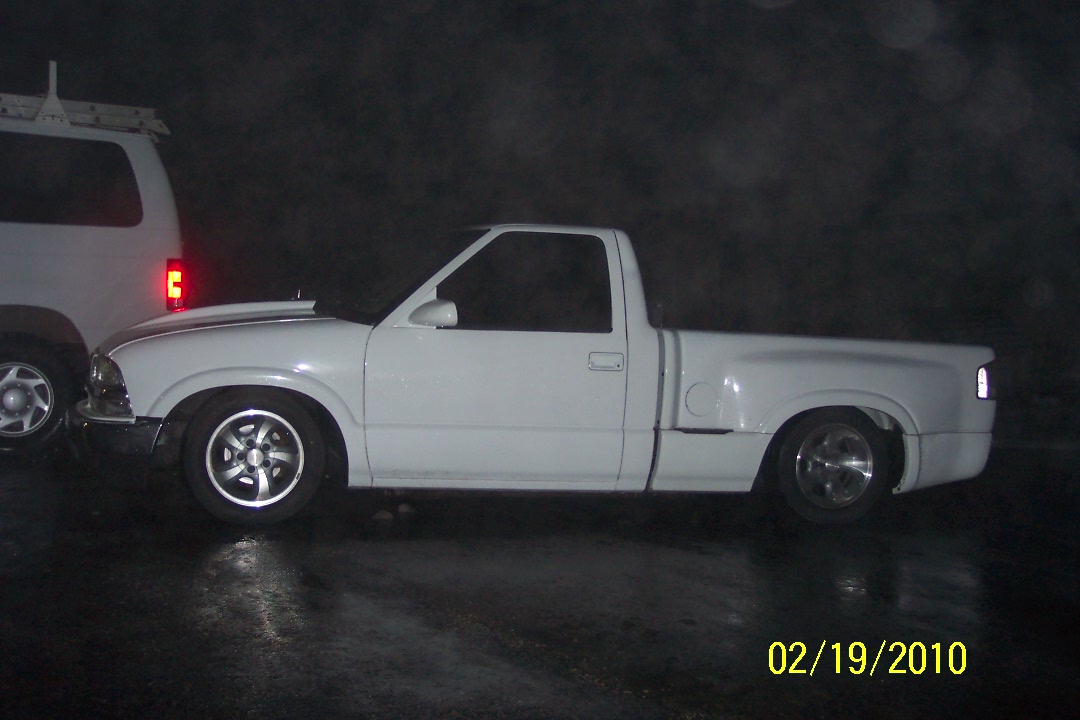

just putting up some recent pics of my 01 Edge, with my new hellas, dont worry im putting two more on, i know it looks awkward right now also just a pic of my bros S10
Attached Thumbnails
pics of new hellas-007.jpg   pics of new hellas-009.jpg   pics of new hellas-014.jpg   pics of new hellas-000_0036.jpg   pics of new hellas-047.jpg

Reply With Quote
  #2
Old 02-20-2010
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Yeah I think you need a few more or at least mount those behind the grille. It kind of looks like truck has buck teeth or something.
Reply With Quote
  #3
Old 02-20-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
im adding two more once i strengthen the mounts, i didnt want to put them behind the grille because i think that it looks a bit ****ty like that, just my opinion, you cant tell from the pics but i made some light tabs, that way i didnt drill into the bumper.
Reply With Quote
  #4
Old 02-20-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looks like you have plowed through some snow
Reply With Quote
  #5
Old 02-20-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
yea we have had lots of snow here in kc, just playing around on some abandoned streets
Reply With Quote
  #6
Old 02-20-2010
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
lights and truck are looking great!
Reply With Quote
  #7
Old 02-20-2010
Member

Join Date: Aug 2009
Location: Valdosta,Georgia
Posts: 140
I love how you painted your factory wheels how did you paint them?
Reply With Quote
  #8
Old 02-20-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
well i sorta just scrubbed them with some warm soapy water, dried em in front of a big *** propane heater, then sprayed them with dark grey primer, until they became that color, no actual "paint" used.
Reply With Quote
  #9
Old 02-21-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
reminds me of Robbie's old ranger but lifted. Nice truck!
Reply With Quote
  #10
Old 02-21-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
thx for the compliments, where could i get one of those ranger forums.com stickers?
i want a big one for my rear window
Reply With Quote
  #11
Old 02-25-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
How'd you mount 'em? Have you looked into light tabs? The no-drill awesome way to mount lights??? I ran 4 KC's for the past few years on mine usng home-made 1/4" light tabs using existing bumper hardware with a crossmember between 'em.
Reply With Quote
  #12
Old 02-26-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
i made two light tabs out of 1/4inch steel, and then i drilled out the rivets that hold the license plate on, and replaced them with bolts. so i have light tabs that are bolted to the front of the bumper, behind the license plate
Reply With Quote
  #13
Old 02-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 2001FORDRANGEREDGE View Post
i made two light tabs out of 1/4inch steel, and then i drilled out the rivets that hold the license plate on, and replaced them with bolts. so i have light tabs that are bolted to the front of the bumper, behind the license plate
ohhh. Did you not see this option? I guarantee you it's ALOT sturdier of a setup compared to what you've got there and I find it alot more pleasing to the eyes.

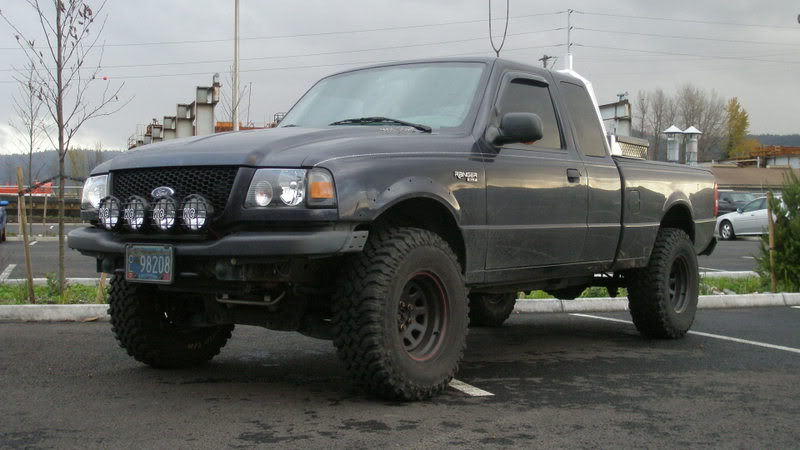

They're 0.250x1.500 flat bar and they mount to an existing bumper bolt on the backside of the bumper(pic below). (will only work on 98-05 trucks) I then put on a crossmember between the two and BAM! 4 lights.











Name:  PC150047-1.jpg
Views: 0
Size:  64.6 KB



I'm not doggin' your setup at all. It's different and it is good looking. I just think a different way of mounting would have resulted in a cleaner setup knowing you're going to be going with 4 lights here shortly like you said earlier.
Reply With Quote
  #14
Old 02-27-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
i just did it the way i did because i didnt have the time to unbolt my bumper, and do it that way. i will probably remake my mounts like that in a few weeks once 4th quarter of my welding class begins, because for the last 9 weeks of school we can work on anything that we want to work on. i just did it this way because of the amount of time i have, between school, and army training. i know there are cleaner ways of doing it, and i was going to do it the way yours are mounted, but just didnt want to mess with taking off the bumper at the time.
Reply With Quote
  #15
Old 03-01-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 2001FORDRANGEREDGE View Post
i just did it the way i did because i didnt have the time to unbolt my bumper, and do it that way. i will probably remake my mounts like that in a few weeks once 4th quarter of my welding class begins, because for the last 9 weeks of school we can work on anything that we want to work on. i just did it this way because of the amount of time i have, between school, and army training. i know there are cleaner ways of doing it, and i was going to do it the way yours are mounted, but just didnt want to mess with taking off the bumper at the time.
I never touched the bumper for the install....i just happened to take that pic for people who ask where they mount. I had it off for either the front hitch install or new bumper bracket insall. I only snaked the brackets up from the bottom and tightened them down. removal of the grille makes install alot easier. Then mount your lights to the brackets.

have fun man! sounds like a cool class.

again, not trying to say your setup isn't good, just saying there's other options out there you could look into. I do like yours because it's different than the rest who do two lights on these light tabs.
Reply With Quote
  #16
Old 03-02-2010
2001FORDRANGEREDGE's Avatar
Member
Thread Starter

Join Date: Mar 2009
Location: Ft. Carson, Co
Posts: 86
Quote:
Originally Posted by Fx4wannabe01 View Post
I never touched the bumper for the install....i just happened to take that pic for people who ask where they mount. I had it off for either the front hitch install or new bumper bracket insall. I only snaked the brackets up from the bottom and tightened them down. removal of the grille makes install alot easier. Then mount your lights to the brackets.

have fun man! sounds like a cool class.

again, not trying to say your setup isn't good, just saying there's other options out there you could look into. I do like yours because it's different than the rest who do two lights on these light tabs.
i keep hearing about how easy it is to do stuff by taking the grille off, but the one time i did take it off to paint it, it was a ***** getting it off, and a ***** getting it back on.
