Reverse lights installed! redone expo bezel

Got my reverse lights installed this yesterday. They are just cheap fogs but work great for what I need. I wired the lights up to come on with the reverse lights and I have a switch in the cab to turn them on when I need them.

Also sprayed my bezel grey and re-did the shave on the defrost switch, the first time I used glazing putty and it was to ridged and as the truck vibrated it cracked so I did it again with plastic weld. Its holding up much better, also LED'd both my fog switches and changed the indicator light on the second one to amber.

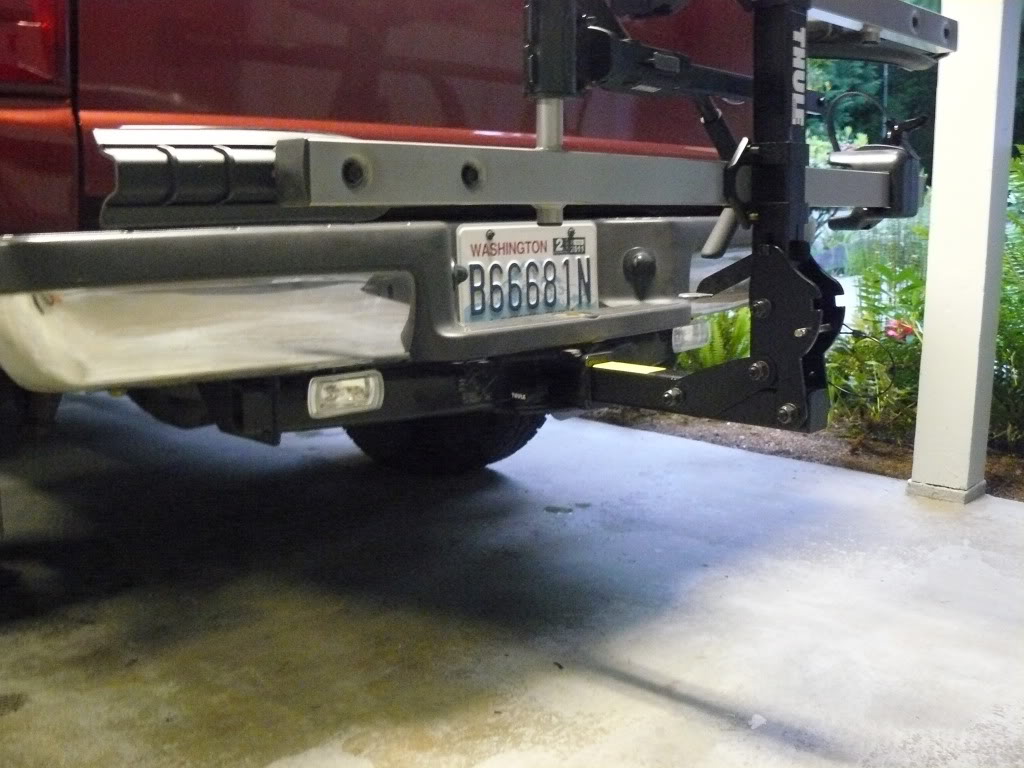

Reverse lights installed

Name:  P1040869.jpg
Views: 4
Size:  141.2 KB

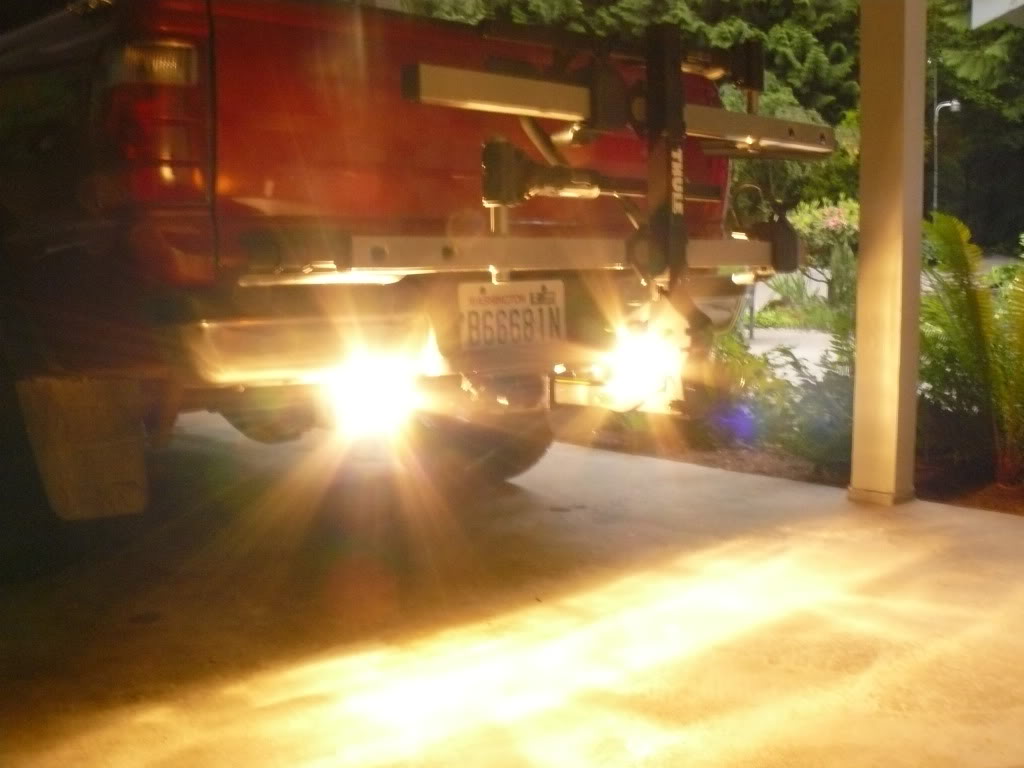

on with switch

Name:  P1040876.jpg
Views: 5
Size:  101.1 KB

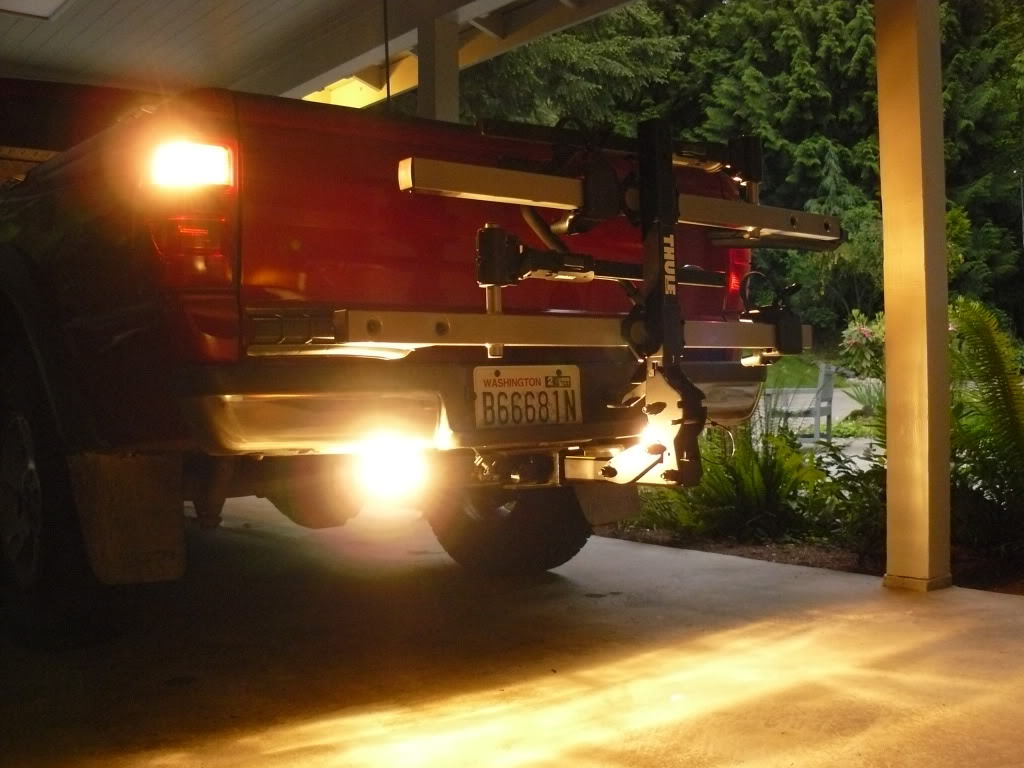

on with factory lights

Name:  P1040882.jpg
Views: 7
Size:  132.4 KB

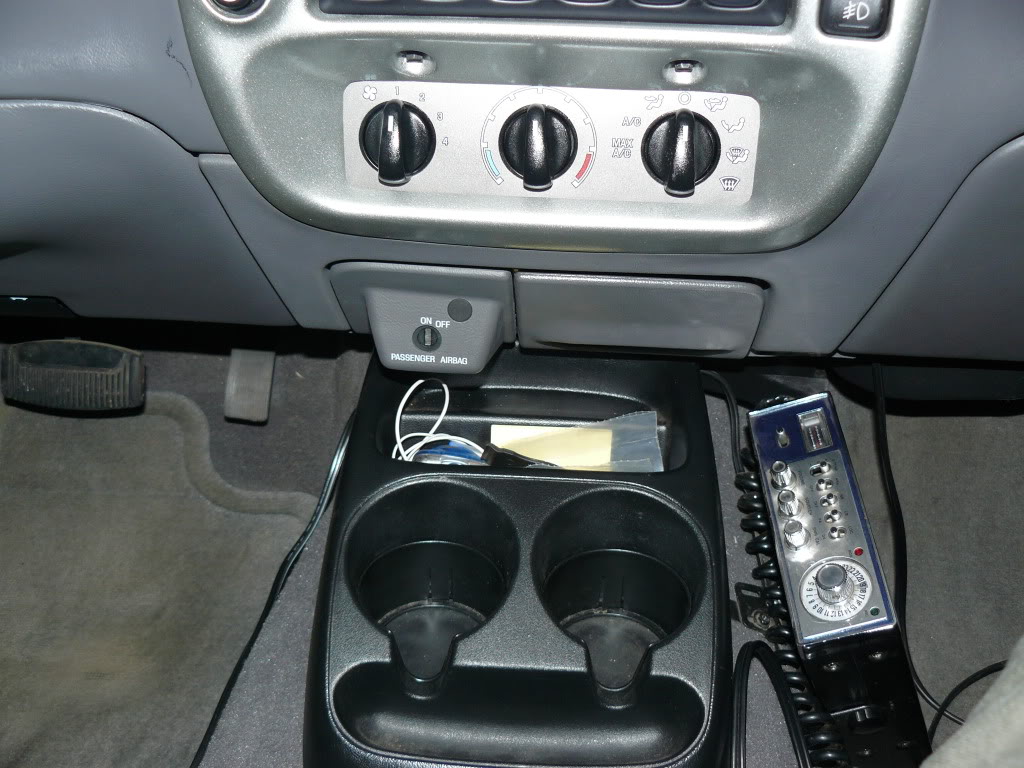

ash tray?

Name:  P1040860.jpg
Views: 4
Size:  161.3 KB

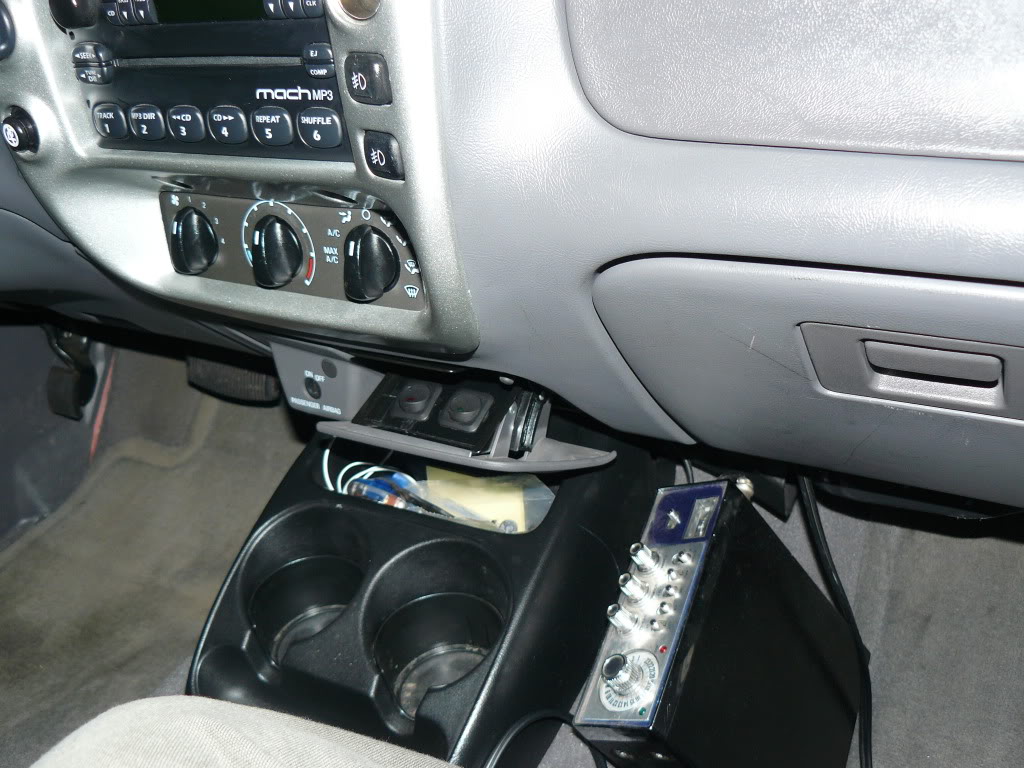

Switch panel! The cool part is when you close the ash tray the switches turn off.

Name:  P1040857.jpg
Views: 5
Size:  164.5 KB

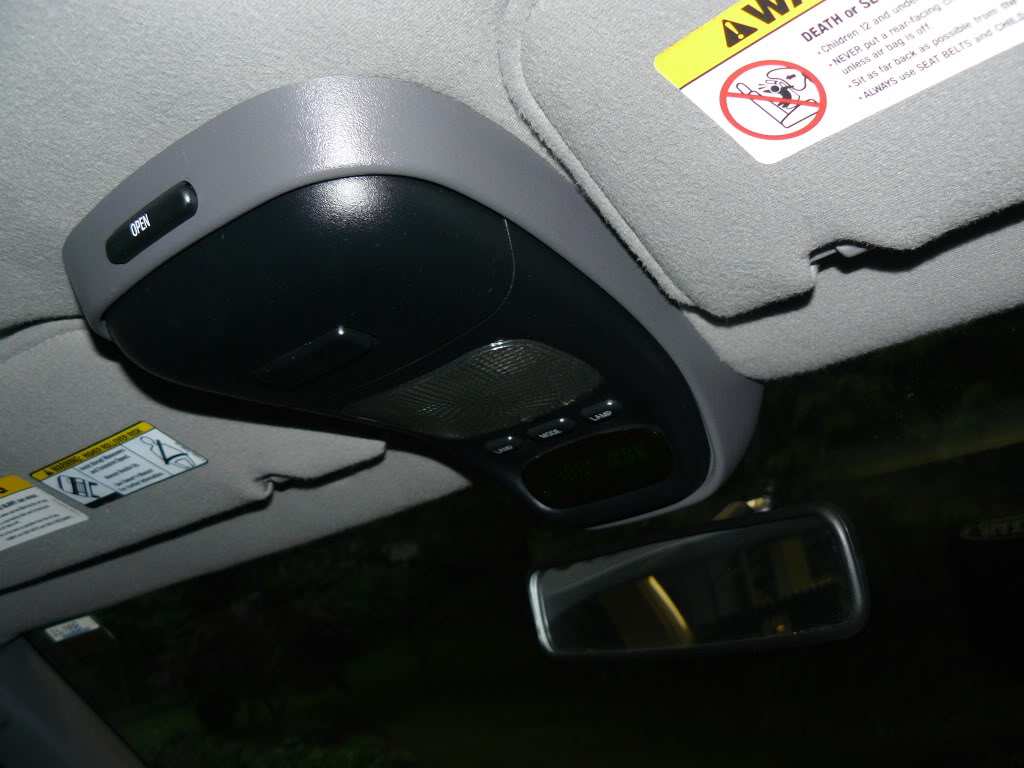

charcoal OHC

Name:  P1040866.jpg
Views: 3
Size:  133.0 KB

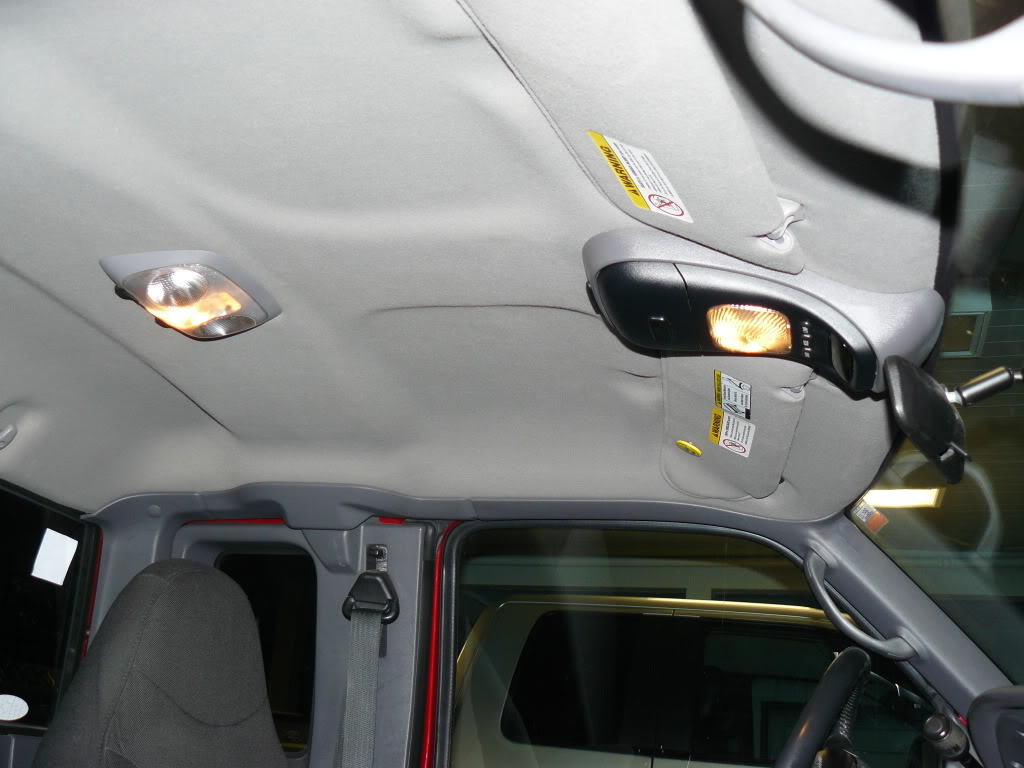

expo dome light

Name:  P1040868.jpg
Views: 8
Size:  118.2 KB

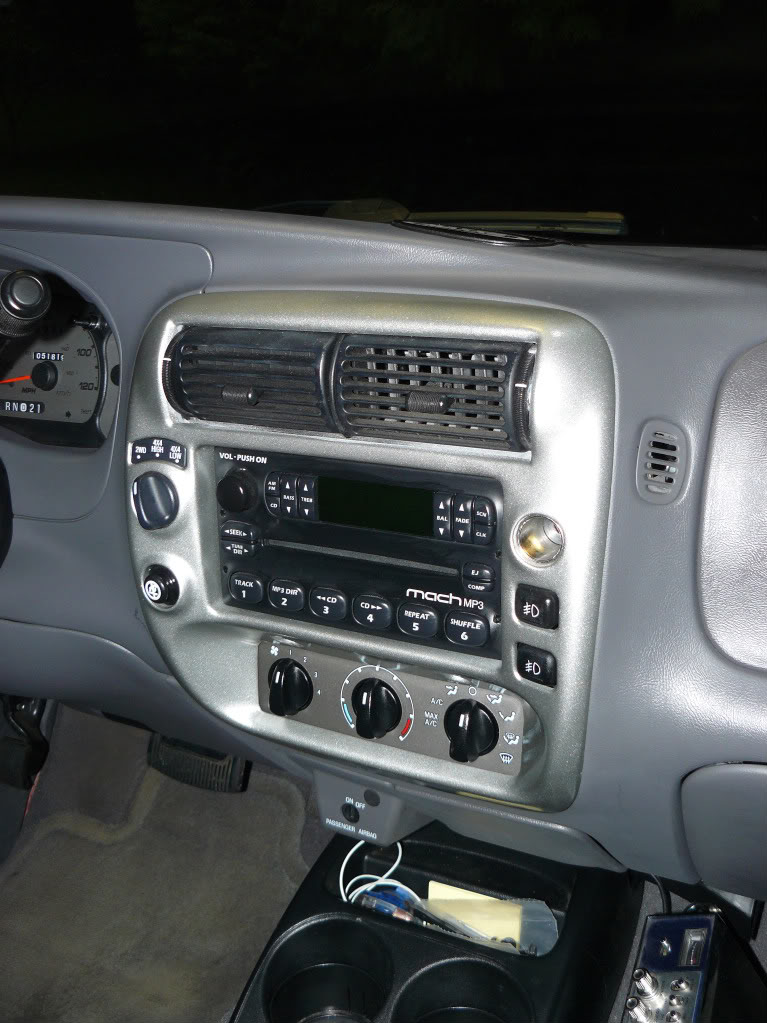

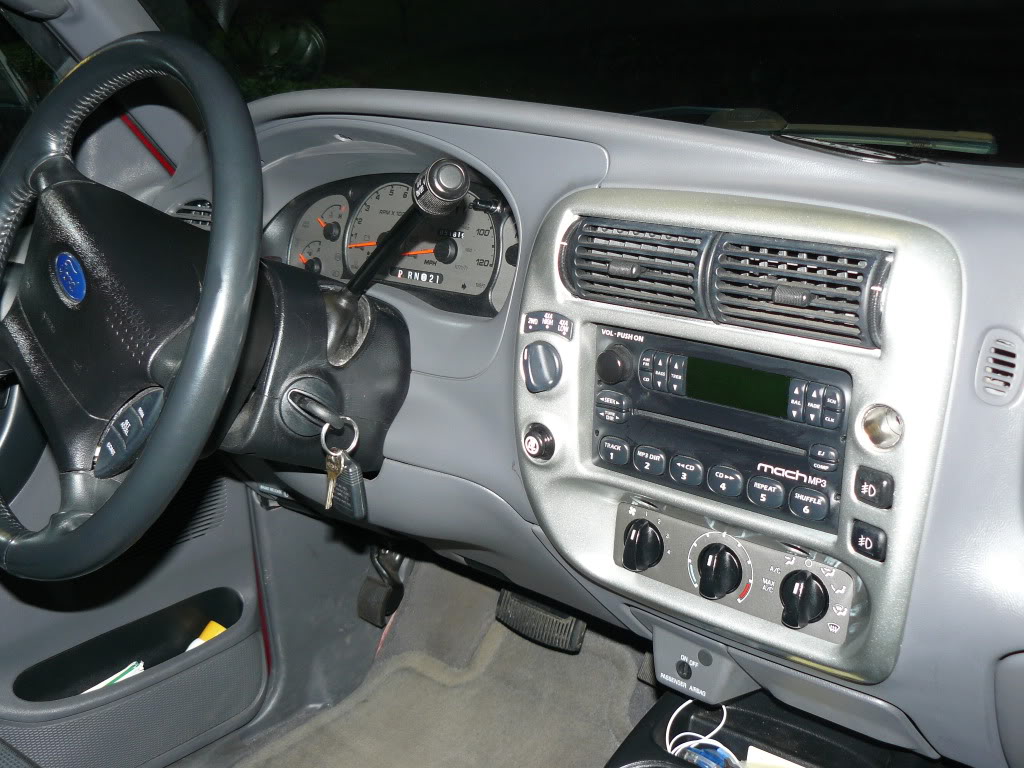

misc interior shots.



Name:  P1040865.jpg
Views: 3
Size:  171.2 KB

Name:  P1040864.jpg
Views: 4
Size:  134.6 KB
Reply With Quote
  #2
Old 06-03-2010
04_xlt_4.0_4x4's Avatar
Member

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
look sooo good!!!! this is my next mod the reverse lights for sure....
Reply With Quote
  #3
Old 06-03-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by 04_xlt_4.0_4x4 View Post
look sooo good!!!! this is my next mod the reverse lights for sure....
ya i should prolly get on that...........that and rock lights
Reply With Quote
  #4
Old 06-03-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
The ashtray switches are sweet, how about Flashing LED Indicator Lights on the outside to let you know the switches are on. (Rat Shaq has the flashing LEDs all set up for 12 V)
It will draw some attention and get you talking about the mod, nice, I like it.

Also, Silver Faces Gauges, Silver Center Bezel, and Heater Panel… Lvl II ?

Just thinking… how about a Silver Faced Radio… ?
Reply With Quote
  #5
Old 06-03-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Very nice!
Reply With Quote
  #6
Old 06-03-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by Scrambler82 View Post
The ashtray switches are sweet, how about Flashing LED Indicator Lights on the outside to let you know the switches are on. (Rat Shaq has the flashing LEDs all set up for 12 V)
It will draw some attention and get you talking about the mod, nice, I like it.

Also, Silver Faces Gauges, Silver Center Bezel, and Heater Panel… Lvl II ?

Just thinking… how about a Silver Faced Radio… ?
Thanks guys its just a regular fx4 so it came with the silver gauges and bezel but I painted the expo bezel and the HVAC is from an explorer. I have been on the look out for a cheap silver pioneer but no luck yet and it may be to much silver.

The switches actually turn off as soon as the ashtray is closed, (the lid comes down and hits the back of the 2 rockers perfectly) and they are lighted already. Keeps me from forgetting they are on.
Reply With Quote
  #7
Old 06-03-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by mikerider View Post
Thanks guys its just a regular fx4 so it came with the silver gauges and bezel but I painted the expo bezel and the HVAC is from an explorer. I have been on the look out for a cheap silver pioneer but no luck yet and it may be to much silver.

The switches actually turn off as soon as the ashtray is closed, (the lid comes down and hits the back of the 2 rockers perfectly) and they are lighted already. Keeps me from forgetting they are on.
Sounds good.
Check out my pics for sale stuff, there is a Silver Radio mounted in the Bezel.
Reply With Quote
  #8
Old 06-03-2010
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
That really is sharp..Looks great
Reply With Quote
  #9
Old 06-03-2010
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Looks good
Reply With Quote
  #10
Old 06-03-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
nice, i like the hidden mods better then just drilling into your dash.
Reply With Quote
  #11
Old 06-03-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by morris View Post
nice, i like the hidden mods better then just drilling into your dash.
Thats what I was going for keeps everything nice, clean and out of the way.
Reply With Quote
  #12
Old 06-03-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
what color paint did you use on the bezel? it looks great!
Reply With Quote
  #13
Old 06-03-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by drppdyllwrngr View Post
what color paint did you use on the bezel? it looks great!
Its a combination of a lot of paint, started with duplicolor high fill primer and a lot of sanding. then I used 6-8 coats of duplicolor metalcast ground coat (gives a nice silver), next came a light coat of duplicolor metalcast "smoke" to match the factory grey/silver color. Then last but not least was the clearcoat, I used Duplicolor paint shop clear. everything comes in a spray can from your local auto part store except the clear it is a paint can and I sprayed it through an airbrush. I wet sanded between most of the coats to get a nice even finish its not perfect but darn close and I am happy with it.
Reply With Quote
