Turbo :)

well heres my setup as of now. the head and block need tanked. so its pretty messy, but its so sexy!

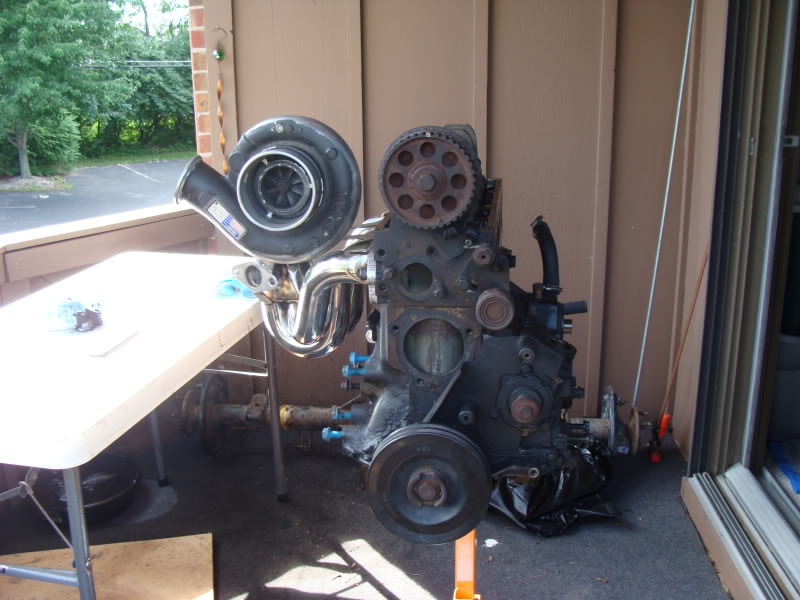

Name:  001-9.jpg
Views: 1
Size:  90.1 KB

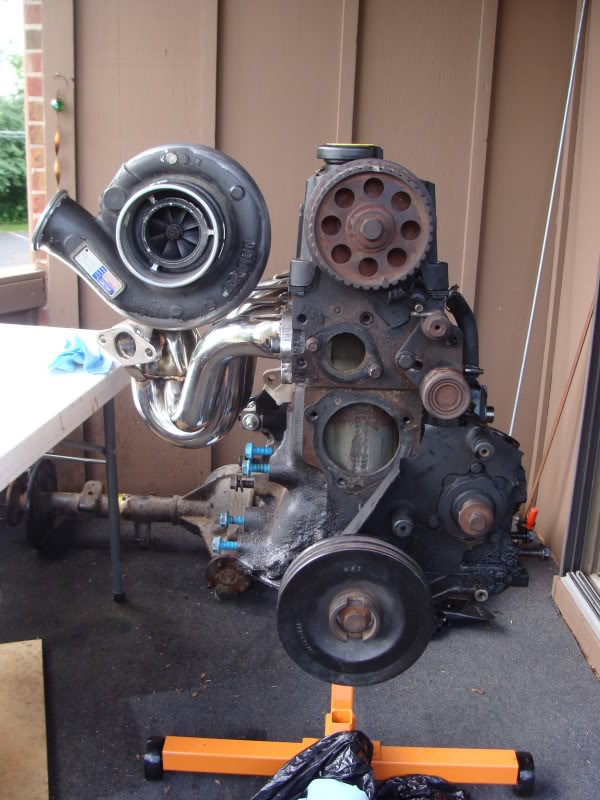

Name:  002-7.jpg
Views: 0
Size:  97.9 KB

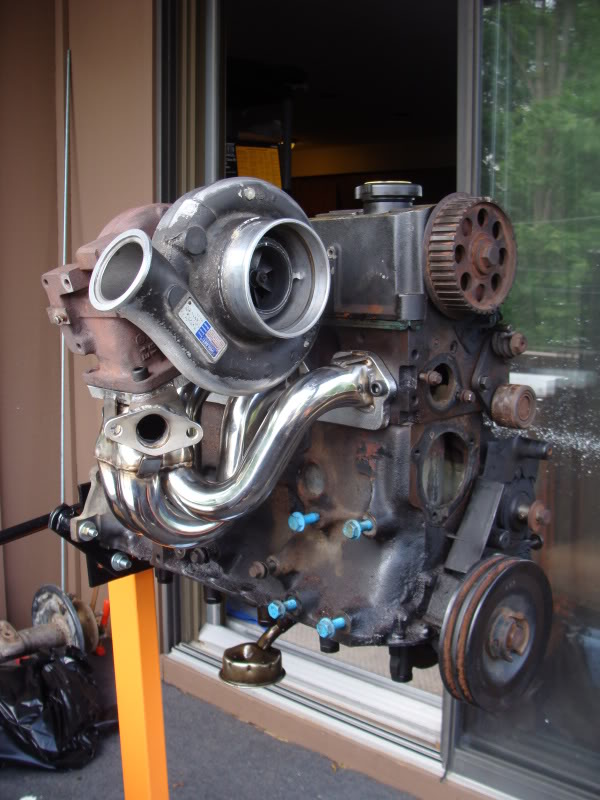

Name:  003-7.jpg
Views: 1
Size:  91.4 KB

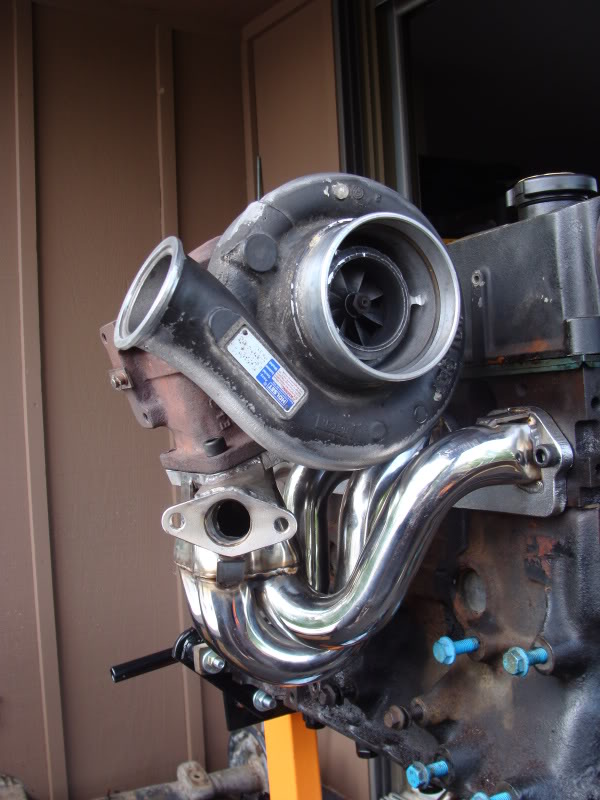

Name:  004-7.jpg
Views: 2
Size:  87.4 KB

Last edited by 07Ranger; 10-04-2009 at 04:32 PM.
Reply With Quote
  #2
Old 06-17-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Is this going in your 07?
Reply With Quote
  #3
Old 06-17-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
nope, prob a 96 splash blacked out :)
Reply With Quote
  #4
Old 06-17-2009
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Whats the engine out of?
Reply With Quote
  #5
Old 06-17-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
86 cougar
Reply With Quote
  #6
Old 06-17-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Ahhhh me likey!
Reply With Quote
  #7
Old 06-17-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
me too :P
Reply With Quote
  #8
Old 06-17-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Nice! I just got back from the JY tearing apart a 87 TC. Going to buy the short black just for the pistons, rods, and crank. Hopefully going to bring it home in a day or two.....Is that the JCWracing header?? Wish he had them in stock....
Reply With Quote
  #9
Old 06-17-2009
edgerider2002's Avatar
Member
iTrader: (9)

Join Date: Aug 2008
Location: Fresno, CA
Posts: 1,584
clean turbo, dirty motor, i like it
Reply With Quote
  #10
Old 06-17-2009
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
That a HX35? Looks a lot bigger than the HY I had...best uf luck with the swap
Reply With Quote
  #11
Old 06-17-2009
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
bout time!
Reply With Quote
  #12
Old 06-17-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
Quote:
Originally Posted by 07Ranger View Post
nope, prob a 96 splash blacked out :)
gen 3 ftw
Reply With Quote
  #13
Old 06-17-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
yes its the jcwracing header. the turbo is a hx35w. motor will be dipped hopefully soon.
Reply With Quote
  #14
Old 06-26-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Updates? could you tell me moar that you've got planned to do to the motor?
Reply With Quote
  #15
Old 06-26-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
what numbers are you panning on pulling with it?
Reply With Quote
  #16
Old 06-29-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
magic number is 400.

plans as of right now:
-felpro 1035 headgasket- bought
-255 fuel pump
-roller cam- bought
-60# injectors
-port&polish head
-welded shut internal wastegate
-run external wastegate off of header
-stock pistons as of right now.
-90mm maf
-replace all sensors and ignition components.


ill list more when they come to my head. :)
Reply With Quote
  #17
Old 06-29-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
damn 400 hp that fing thing is going to be fast
Reply With Quote
  #18
Old 06-29-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
fast and sick, good combination
Reply With Quote
  #19
Old 06-30-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
yes sir :)

then ill prob run weisco pistons with crower rods and go with a meth injection
Reply With Quote
  #20
Old 06-30-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 07Ranger View Post
magic number is 400.

plans as of right now:
-felpro 1035 headgasket- bought
-255 fuel pump
-roller cam- bought
-60# injectors
-port&polish head
-welded shut internal wastegate
-run external wastegate off of header
-stock pistons as of right now.
-90mm maf
-replace all sensors and ignition components.


ill list more when they come to my head. :)
Nice, just about everything i'm going to do for my slow as Christmas turbo build. I hope you're doing an intercooler.
What kind of intake are you going to run? (shameless plug:) I've got a 87 TC intake i'll sell you...
Reply With Quote
  #21
Old 06-30-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
lol you dont need one at 30lbs :) ill worry about it later. truck isnt even in the garage. im going to take measurements down the road and figure out how its all being routed.
Reply With Quote
  #22
Old 08-09-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
turbo2.3 project is on hold till oct.
Reply With Quote
  #23
Old 08-09-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
shame
Reply With Quote
  #24
Old 08-10-2009
07Ranger's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: lima/dublin, ohio
Posts: 1,267
Quote:
Originally Posted by Smakes View Post
shame

i know but myfocus is all for the race team thing right now. one day ill get back to it. no worries.
Reply With Quote
  #25
Old 08-10-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
race team....autocrossing the ranger?!
