33" on a 4 Banger? - Ranger-Forums - The Ultimate Ford Ranger Resource


SOHC - 2.3L & 2.5L Lima Engines Discussions and Topics specific to the Lima 4 cylinder engines

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 05-06-2010
Member
Thread Starter

Join Date: May 2010
Location: Charleston, SC
Posts: 29
33" on a 4 Banger?

Hey guys. New to the forum. I've had my '98 for a few years and have been talkin about liftin her since before I had it(it was my dads truck). Finally fell into some money and it's in the works. So what do you guys think about throwin 33x12.5x15 on my 2.5L. I've already got the body lift and I've got those Belltech 6400's on the way. I'll crank the T bars cuz I've seen that helps too. What's your input?

Last edited by Little Bear; 05-06-2010 at 08:06 PM.
Reply With Quote
  #2
Old 05-06-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
youll be ok, gearing is your friend, had a few guys runnin 35's with them
Reply With Quote
  #3
Old 05-06-2010
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
regear, id reccomend 4.56 and you dont have tbars you have coil springs most likely which isnt bad you can just get new springs
Reply With Quote
  #4
Old 05-06-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
of course you can run them but your sohc wont be pleased with you, id say regear to 4.88
Reply With Quote
  #5
Old 05-07-2010
Member
Thread Starter

Join Date: May 2010
Location: Charleston, SC
Posts: 29
Quote:
Originally Posted by ES894x4 View Post
of course you can run them but your sohc wont be pleased with you, id say regear to 4.88
Not so good with the mechanic speak either; what's "sohc"?? You and the other guy disagreed on the regearing...big difference or little difference?

Quote:
Originally Posted by Melt View Post
regear, id reccomend 4.56 and you dont have tbars you have coil springs most likely which isnt bad you can just get new springs
Where can I get said springs from? Summit? Some place cheaper?
Reply With Quote
  #6
Old 05-07-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
sohc=singe over head cam.99 or 2000 and up rangers have sohc and 99 down have ohc
Reply With Quote
  #7
Old 05-07-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
guys, he's got a 4 banger (4cyl) not 4L

33's on a 4cyl is a bad idea if you want to get moving at any speed close to hiway, but with the right gearing, you can spin them in the mud... i wouldn't want to go much bigger than 33's with that motor

your 2.5L has 119hp and about 150 torque, so 33's are going to be big, but should be ok with MINIMUM 4.10's (you can pick 4.10's up at any junk yard)
Reply With Quote
  #8
Old 05-07-2010
Member
Thread Starter

Join Date: May 2010
Location: Charleston, SC
Posts: 29
I don't wanna go bigger than 33's with this moter either.lol. That's seriously pushing the envelope. Thanks for your input. I'm gonna go to my junk yard tomorrow morning. I never even thought of that.
Reply With Quote
  #9
Old 05-07-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
make sure you get gears for front and rear, and they will either fit your housing, or you get the new housings
Reply With Quote
  #10
Old 05-07-2010
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
he said it was a 98, last year 4wd 4cyls were offered were 95
Reply With Quote
  #11
Old 05-07-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
ok, so rear gears only then...
Reply With Quote
  #12
Old 05-08-2010
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
my sister has a 2.5L 4cyl jeep on stock gears and 33s. its slow but it does fine.
Reply With Quote
  #13
Old 06-02-2010
Member
Thread Starter

Join Date: May 2010
Location: Charleston, SC
Posts: 29
What coils should I get to lift the front up just a little bit more after the body lift. Cuz I'm puttin the Belltech's on the back and I figure there may be a little rake? I want it to be leveled out ya know.
Reply With Quote
  #14
Old 06-02-2010
pwrranger88's Avatar
Member
iTrader: (1)

Join Date: Dec 2008
Location: West Greenwich RI
Posts: 330
Quote:
Originally Posted by Melt View Post
he said it was a 98, last year 4wd 4cyls were offered were 95
they offered the 4 cyls with 4wd up till 97
Reply With Quote
  #15
Old 06-02-2010
cucukid124's Avatar
Member

Join Date: Apr 2009
Location: lebanon township, NJ
Posts: 390
Quote:
Originally Posted by Little Bear View Post
What coils should I get to lift the front up just a little bit more after the body lift. Cuz I'm puttin the Belltech's on the back and I figure there may be a little rake? I want it to be leveled out ya know.

if you have a 98, you dont have coils you have torsion bars, this is the first year they did this( someone correct me if im wrong but who thought a 98 had coils)
Reply With Quote
  #16
Old 06-03-2010
Member
Thread Starter

Join Date: May 2010
Location: Charleston, SC
Posts: 29
Well somebody said I was coil sprung. I think you may be thinking of the 4.0L Rangers, not the 4 cylinders. I think they have torsion bars. My little engine has coil springs.
Reply With Quote
  #17
Old 06-03-2010
demiseranger's Avatar
Member
iTrader: (2)

Join Date: May 2008
Location: Tucson , Arizona
Posts: 331
You can pick up some coils from Springtech on Ebay for cheap. Or get some spacers in the front.

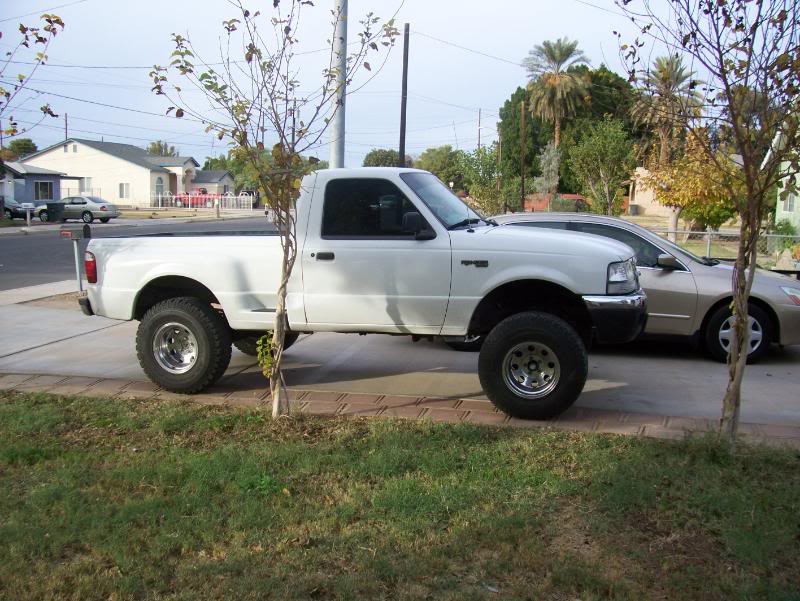

Here's is 5.5" of lift with 32's on our generation trucks:
Name:  100_4054.jpg
Views: 1
Size:  103.9 KB

I'd get at least 4.10's for the rear. I had 3.73's with my 32's and it would not hold O/D on the highway for long, and that's with a 3.0. Now I have some 4.56's and couldn't be happier.
Reply With Quote
  #18
Old 06-03-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
Quote:
Originally Posted by cucukid124 View Post
if you have a 98, you dont have coils you have torsion bars, this is the first year they did this( someone correct me if im wrong but who thought a 98 had coils)
98+
4x4 =Torsion bars
Edge,Sport 2wd=Torsion bars
2wd xl,xlt,stx = coilsprings
he has a 4banger 2wd so he has a xl or xlt with coilsprings

didnt comment on 97 and older i just dont know enough about them and dont want to spread bad info
Reply With Quote
  #19
Old 06-03-2010
pwrranger88's Avatar
Member
iTrader: (1)

Join Date: Dec 2008
Location: West Greenwich RI
Posts: 330
ford ranger
1983-1997
4x4=coils with TTB - (Twin Traction Beam)
2wd=coils with TIB - (Twin I Beam)
mazda b-series
1994-1997
4x4=coils with TTB - (Twin Traction Beam)
2wd=coils with TIB - (Twin I Beam)
Reply With Quote
