92 2.3 into a 96?

ok i have a 96 with a 2.3 and i have a 2.3 out of a 92 and wiring is different......any help on re wiring? ASAP.............................................. .can this be done?
Reply With Quote
  #2
Old 09-08-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
just swap the wiring harnness,that's the best thing to do
Reply With Quote
  #3
Old 09-08-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Quote:
Originally Posted by steveo1271 View Post
just swap the wiring harnness,that's the best thing to do
will all the sensors work? will it run right?
Reply With Quote
  #4
Old 09-08-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
ok......i still have the 96 intake and all bolt ons will they swap over and use the 96 wires or am i screwed??????
Reply With Quote
  #5
Old 09-08-2010
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Everything should swap over just fine.
Reply With Quote
  #6
Old 09-08-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
96 block has the crank sensor needed for the OBDII to work (for 95+ vehicles).
The 92 block does not have this. You'll need a differnet computer to run te 92 enigne in the 96 truck.

The 96 intake will not bolt to the 92 head. But the heads can swap over.
Reply With Quote
  #7
Old 09-08-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Quote:
Originally Posted by Dangerranger01 View Post
96 block has the crank sensor needed for the OBDII to work (for 95+ vehicles).
The 92 block does not have this. You'll need a differnet computer to run te 92 enigne in the 96 truck.

The 96 intake will not bolt to the 92 head. But the heads can swap over.
ok???????????intake is bolted on????? did it this afternoon???? it says on the timing cover 10/27/92 maybe im wrong.......
Reply With Quote
  #8
Old 09-08-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Quote:
Originally Posted by latenighthauler View Post
ok???????????intake is bolted on????? did it this afternoon???? it says on the timing cover 10/27/92 maybe im wrong.......
i just swaped the inake and exhaust man. over to this engine and was going to try that......maybe not now???????
Reply With Quote
  #9
Old 09-09-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
I meant intake manifolds. did you just swap over the intake tubes?
Reply With Quote
  #10
Old 09-09-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Quote:
Originally Posted by Dangerranger01 View Post
I meant intake manifolds. did you just swap over the intake tubes?
yes......i put the intake and exhaust man. off of the "96" onto this block i quess its a 92???? now i am wondering........ i was told it came out of a 96 but the intakes and egr setups and wiring were all different......but on the timing cover it says 10/27/92 is it possible they made two different types of the 2.3 in 96??? oh yeah......this "92" does have a crank sensor?????????
Reply With Quote
  #11
Old 09-09-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Is the intake off the 96 all 4 runners in a line? or a 2x2 square

Crank sensors only came on 95-up. Post a picture of the complete engine....

Those timing covers are interchangeable...

Last edited by Dangerranger01; 09-09-2010 at 12:32 PM.
Reply With Quote
  #12
Old 09-09-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011

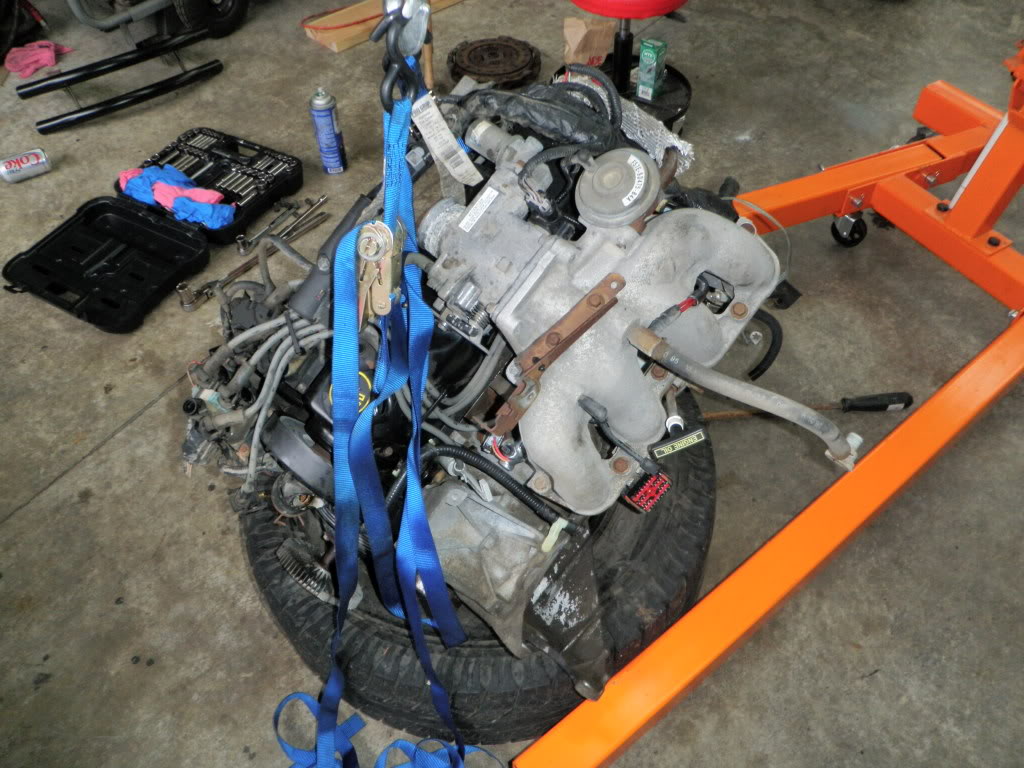

This is a 95-2001 engine. note the intake is 4 in-line
Name:  P8310048.jpg
Views: 2
Size:  158.0 KB

Last edited by Dangerranger01; 09-09-2010 at 12:35 PM.
Reply With Quote
  #13
Old 09-09-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
And this here is an older style, 2x2 runners:
Reply With Quote
  #14
Old 09-09-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
the intake i swapped over was 4 tube.......off a 96 i know that is right . but the engine i bought was fuel injected, has coil packs but intake looks like the one in the second picture...it does have a crank sensor heads are the same exhaust man. and intake manifold were different than what was on the engine in my 96...thats why i just took everything off the 96 and i am putting on the "other one"...... i havent cranked it yet a few more things to do...i wil take a picture but now it looks just like the one in the first picture.
Reply With Quote
  #15
Old 09-09-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
You know, they could have swapped the head over. the heads swap over no matter the year (it was an 8 plug though, right?).
Mine, idk, if it had a crank sensor, the block at least is definitely a 95-up, as they didn't have it earlier on.
Reply With Quote
  #16
Old 09-10-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Icon14

Quote:
Originally Posted by Dangerranger01 View Post
You know, they could have swapped the head over. the heads swap over no matter the year (it was an 8 plug though, right?).
Mine, idk, if it had a crank sensor, the block at least is definitely a 95-up, as they didn't have it earlier on.
yeah its an 8 plug. and it does have a crank sensor....just had me all messed up didnt know what was what but i just got back from the shop and i sat the engine right in place and bolted tranny up so tomorrow i will hook the rest up and see if it fires......dont see why it shouldnt everything is now the same as it was (far as electronics) ill post more as soon as i finish it up...but thanks for all the input!
Reply With Quote
  #17
Old 09-10-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
You should be fine then. That is weird though, but let us know how it goes.
Reply With Quote
  #18
Old 09-10-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Quote:
Originally Posted by Dangerranger01 View Post
You should be fine then. That is weird though, but let us know how it goes.
ok everything is in and wired up...but.....the crank sensor plugs are different? the one one the engine i bought has a round 4 pin with four wires going to it and a single plug with one wire.,.....but my truck has a 4pin round with only 2 wires going to it and nothing else and both plugs are female.........so im at a stop for the moment....again...
Reply With Quote
  #19
Old 09-12-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Another thing, the 92 engine will have a distributor, and the 96 engine will not. It is a DIS system. I totally forgot about that. You can get convertors to plug the 92 distributor hole and gives it an extra sensor.
Reply With Quote
  #20
Old 09-12-2010
Member
Thread Starter

Join Date: Sep 2010
Location: waynesboro ga
Posts: 18
Quote:
Originally Posted by Dangerranger01 View Post
Another thing, the 92 engine will have a distributor, and the 96 engine will not. It is a DIS system. I totally forgot about that. You can get convertors to plug the 92 distributor hole and gives it an extra sensor.
it has coil packs...
Reply With Quote
  #21
Old 09-17-2010
BlackRanger04's Avatar
Member
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,240
Yeah, The 1992 2.3 came with coil packs from the factory. I had a 1990 with a 2.3 and it had coil packs on it.
The 2.3 got coil packs in 1989 for the Gen 2 Ranger.
