Well the tranny is trashed and the tcase is getting tired (stretched chain) and I have decided to move onto a new motor/tranny/case. I have settled on a 6.8L/4R100/1356+205 doubler.

Pics of the transmission/tcase killing incident. OD band blew and while slowing down to pull over on the side of the road front right tire's tube blew thanks to something on the highway and ended up in the ditch.

Attached Thumbnails
2005 edge dana 30 4 link swap-20121222_232024-1.jpg
Reply With Quote
  #130
Old 12-29-2012
blue03ranger's Avatar
Member

Join Date: Mar 2011
Location: ME
Posts: 145
Sucks abbout thetrans and tire. 6.8?!?! Go big or go home I guess.
Reply With Quote
  #131
Old 12-29-2012
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by blue03ranger View Post
Sucks abbout thetrans and tire. 6.8?!?! Go big or go home I guess.
Not that big of a deal it would have been more ideal to make it all the way to texas before failure, but can be happy walking away with my kiddo and myself unhurt.

As for the 6.8L I am excited it is going to be a great upgrade for the lack of power the 4.0L has.
Reply With Quote
  #132
Old 02-10-2013
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209


Attached Thumbnails
2005 edge dana 30 4 link swap-untitled058.jpg
Attached Images

Reply With Quote
  #133
Old 02-11-2013
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Let the big dog eat!!!
Reply With Quote
  #134
Old 02-11-2013
WildcatRange's Avatar
Member

Join Date: Jul 2011
Location: Sandy Or
Posts: 122
Awesome build! D60's look amazing on a Ranger
Reply With Quote
  #135
Old 02-15-2013
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by seed60 View Post
Let the big dog eat!!!
It will be a "1 ton" ranger when all is said and done. I can't wait to see how the motor/tranny combo does on the rocks I have never wheeled with a manual...I feel like a 1356-1356 doubler will hide most of the issues people have since the yota guys can manage to use 22RE's with doublers and not stall.

Quote:
Originally Posted by WildcatRange View Post
Awesome build! D60's look amazing on a Ranger
Thanks it came out nice and I think the motor will really finish off the performance side.
Reply With Quote
  #136
Old 02-16-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
wheeling a fairly stock truck with a stick is quite challenging on certain terrains because the gear ratios are not low enough. i have wheeled a jeep with a doubler and it was fine. if you let out the clutch it would just climb or slowly spin the tires. kinda sucked though because it still had open diffs. he only did the doubler because he split the original t-case so why not upgrade right?
Reply With Quote
  #137
Old 03-30-2013
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Picked up some 4340 chromo front shafts and 35 spline yukon hardcore hubs for the front along with a ford NP205 to mate with one of the 1356 tcases I have sitting around.



One of those fancy box pictures
Attached Thumbnails
2005 edge dana 30 4 link swap-168507_581112868573235_729625078_n.jpg

Last edited by cdawall; 03-30-2013 at 09:16 AM.
Reply With Quote
  #138
Old 09-01-2013
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Well things changed a bit. V10 is now going into the superduty which threw a rod. I have a new house and need a plow truck without question, the beat up superduty fits that build pretty well. The 5.4L should be hopefully good enough to rebuild, if not the blocks are plentiful. I have also gotten my doubler parts from behemoth along with the NP205 brace.

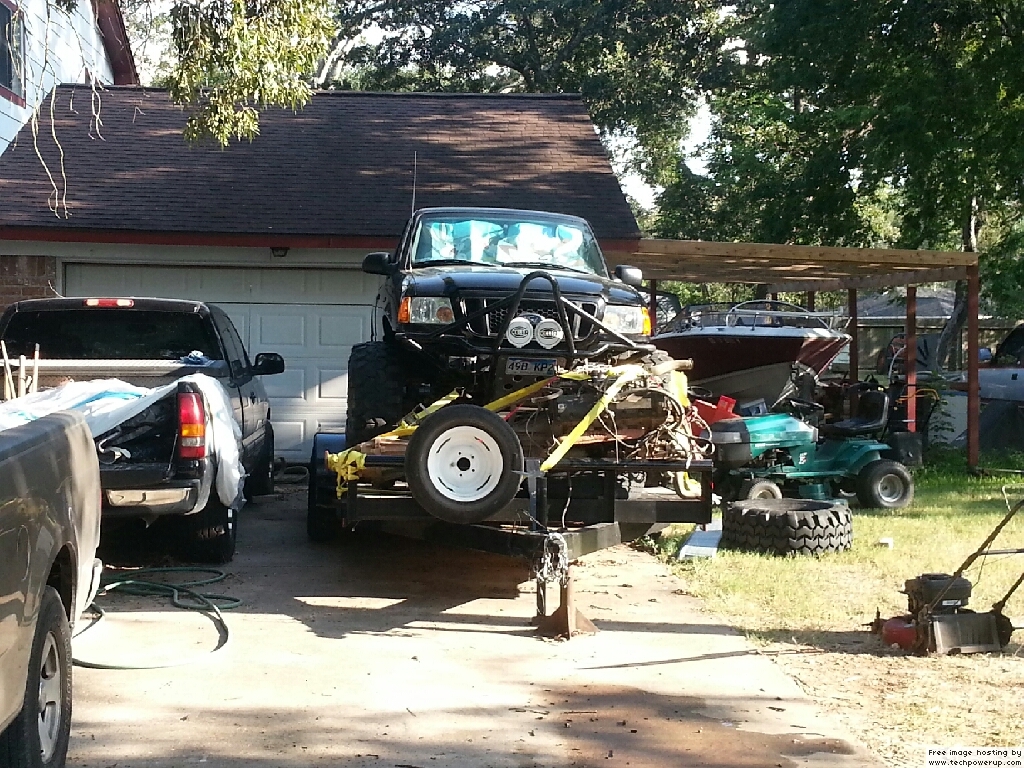

Ranger+V10/ZF6/NV271 loaded up for the trip from Houston to SD.



NP205 brace

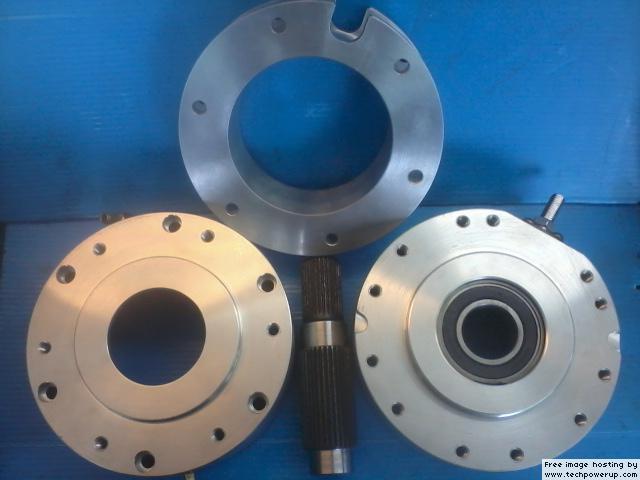

NV271 doubler housing
Attached Thumbnails
2005 edge dana 30 4 link swap-20130901_175632.jpg   2005 edge dana 30 4 link swap-13050695001282.jpg   2005 edge dana 30 4 link swap-13081695002.jpg   2005 edge dana 30 4 link swap-13081695004.jpg
Reply With Quote
  #139
Old 09-16-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
this is going to be pretty stout! So now you are going with a 5.4? 2v I assume? With the ZF6?
Reply With Quote
  #140
Old 09-16-2013
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Heck yeah! Beast mode!
Reply With Quote
  #141
Old 10-14-2013
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by zabeard View Post
this is going to be pretty stout! So now you are going with a 5.4? 2v I assume? With the ZF6?
No idea yet the block is bad and I have a buddy willing to buy the axles out from under the superduty for more than I think they are worth along with toss me some wagoneer D44's that I will put into my XJ. So that leaves a 6.8L sitting around in the garage without a home. So many options

In other news.

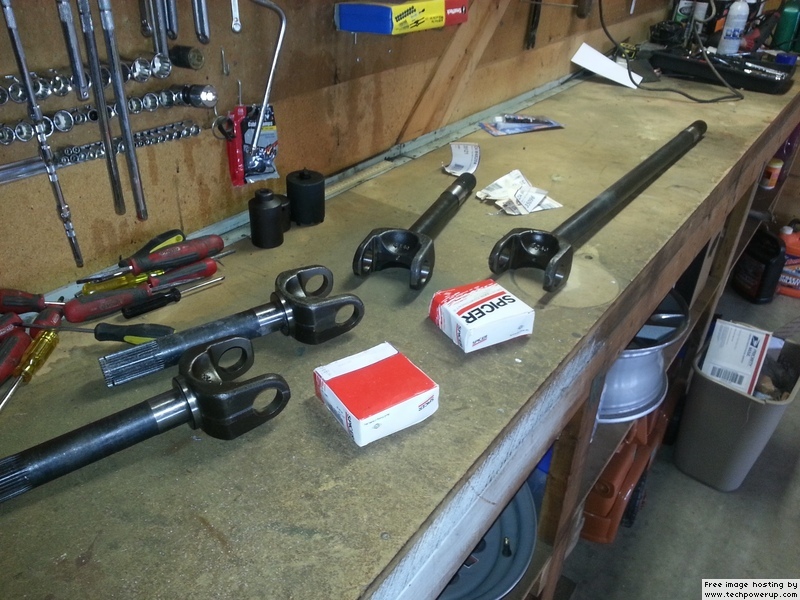

35 spline 4340 shafts assembled and ground down a smidge to clear the knuckles.





and broke my snap-on dead blow in the process



Got one of the Yukon hubs installed (well both, but one doesn't lock in going to have to pull it back apart)

Attached Thumbnails
2005 edge dana 30 4 link swap-20131012_163523.jpg   2005 edge dana 30 4 link swap-20131013_155741.jpg   2005 edge dana 30 4 link swap-20131012_163902.jpg   2005 edge dana 30 4 link swap-20131013_172140.jpg
Reply With Quote
  #142
Old 10-22-2013
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,344
That truck is a beast! Looks really good
Reply With Quote
  #143
Old 11-14-2013
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209

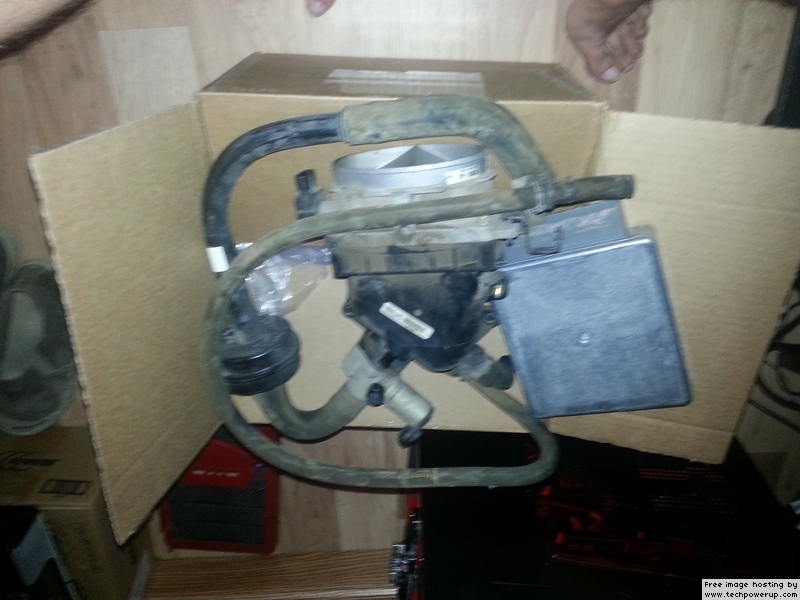

Throttle body and ECU in. Luckily this is a cable TB and not an electric one makes the swap about a million times better.

Attached Thumbnails
2005 edge dana 30 4 link swap-20131114_172304.jpg
Reply With Quote
  #144
Old 06-29-2014
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209


New fuel tank (39 gallon)



4.0 out



Gutted bay



6.8 taking a nap

So large lol.



Going to have to cut the core support out and reweld it in after the motor is swapped.

Reply With Quote
  #145
Old 06-29-2014
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209






Checking for clearances. Motor fits with room to spare, this is with the rad in the stock location even. Drivers side motor mount is going to be a fiasco however...
Reply With Quote
  #146
Old 06-29-2014
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Basic gist of the motor mounts plans. Plate on the block is 3/8th, the pair of ramps is 1/4. I am however out of gas...so tack with flux and purchase some 75/25 monday.

Reply With Quote
  #147
Old 06-29-2014
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
First off I hate flux core, but was out of gas and everything is closed. Penetration is good and I lifted the truck with the mount so I assume its fine. Have to work later today so only got one mount done. Other side will mimic this one.

Reply With Quote
  #148
Old 06-29-2014
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That's gonna be awesome. What steering box is that?
Reply With Quote
  #149
Old 06-29-2014
cdawall's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by seed60 View Post
That's gonna be awesome. What steering box is that?
Ford box
Reply With Quote
  #150
Old 06-29-2014
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
nice! you're almost ready to outwheel Dustin S. LOL
