Solid Axle Swaps General discussion of solid axle swaps for the Ford Ranger.

SAS done...crossmember issues

  #1
Old 02-19-2012
4X4Play's Avatar
Member
Thread Starter
Join Date: Feb 2012
Location: Carlisle, PA
Posts: 41
SAS done...crossmember issues

D30 swaped in in less than a day things went really smooth up til the trans crossmember.
There is no room for it I have some 2" square tubing holding it up for the moment, but I know that cant stay, Has anyone ran into this before? but between my long arms, t-case and front driveshaft, theres no room on the left, and with the 2 cats on the right space is limited, I'll post up some pics soon as I get them off the camera, but this is gonna have to be some tricked out crossmember.

  #2
Old 02-19-2012
4X4Play's Avatar
Member
Thread Starter
Join Date: Feb 2012
Location: Carlisle, PA
Posts: 41
as seen below I some how ran out of room under there.

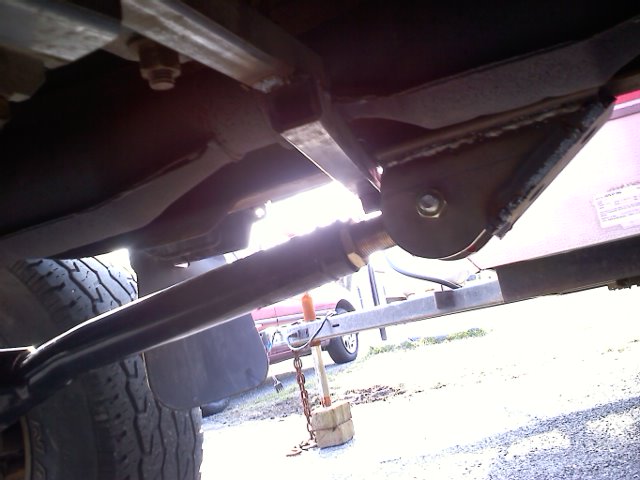

right side.

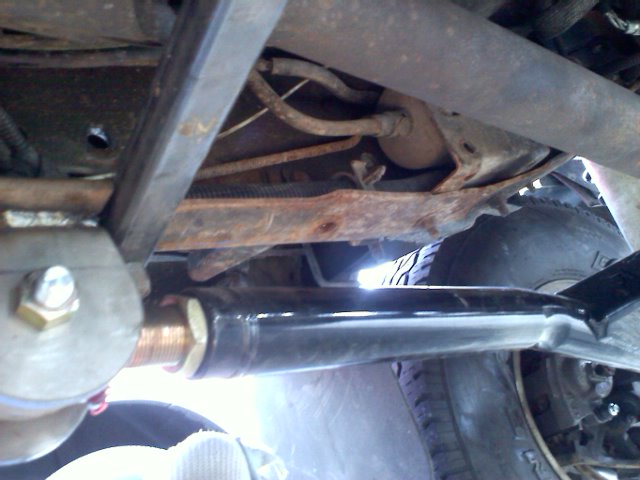

left side front of long arm mount.

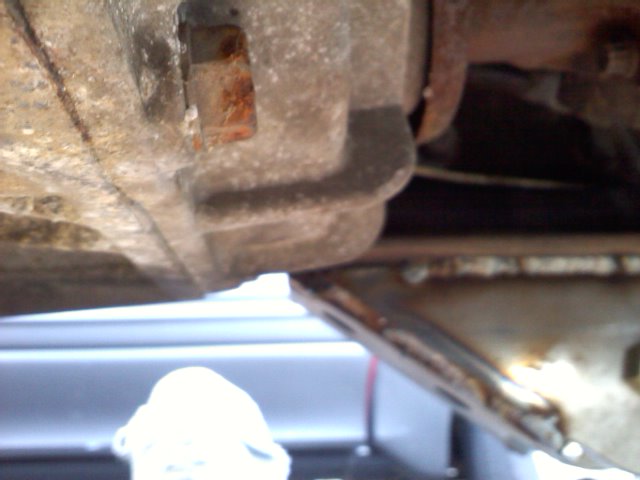

left side rear of long arm mount.

Attached Thumbnails SAS done...crossmember issues-20120219150727.jpg   SAS done...crossmember issues-20120219150746.jpg   SAS done...crossmember issues-20120219150757.jpg
  #3
Old 02-19-2012
HighRollerII's Avatar
RF Veteran
iTrader: (4)
Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
I ran a d30 set up on my truck and didn't have any issues. What arms are you running?

  #4
Old 02-20-2012
4X4Play's Avatar
Member
Thread Starter
Join Date: Feb 2012
Location: Carlisle, PA
Posts: 41
I have Rusty's off road high clearence arms, I'm about 2" past where the skyjacker extended arms were on the ttb, and also pusher the d30 forward about 2 1/2". I could have prolly moved the arms back another inch with out any issue as far as that part. I'm thinking mayby an "X" type cross member with a drive shaft loop in it to clear the front drive shaft, and that should give me enuf strength to hold every thing up where it needs to be.
