2 inch suspension cheapo lift

2 inch coil spacer up front
Ford Ranger 2" Front Spacer Lift Kit 2WD 1998-2007 -- Fat Bob's Garage Online Store
2 inch lift blocks in the rear
Lift Blocks - 2" cast iron lift blocks - pair

I think I can pull it off with just a socket set and coil spring compressors. I don't think I need bigger U-joints. I know I can run stock shocks. I think I am good on stabilizer bar links.

What do you all think?

By the way, while I'm in there I am replacing on the links and an inner tie rod that I bent during a little road rage last year. What size wrench do I need for inner tie rod and how do I get that the outer tie rod off. It's all a rusty mess. Torch?
Reply With Quote
  #2
Old 05-11-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
waist of money IMO just order a body lift. stacking rear blocks is a no go
Reply With Quote
  #3
Old 05-11-2010
GI_JO_NATHAN's Avatar
Member
iTrader: (2)

Join Date: May 2007
Location: Spartanburg, SC/Pensacola
Posts: 343
Quote:
Originally Posted by Downey View Post
waist of money IMO just order a body lift. stacking rear blocks is a no go
Only thing I can say is these are way cheaper and easier than a body lift. And I don't see where he said anything about stacking blocks?
Reply With Quote
  #4
Old 05-11-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
spacer lift is fine just make sure there ductile iron or steel, stay away from plastic and aluminum. rear blocks are fine ford even uses them stock on 4x4's
Reply With Quote
  #5
Old 05-11-2010
GI_JO_NATHAN's Avatar
Member
iTrader: (2)

Join Date: May 2007
Location: Spartanburg, SC/Pensacola
Posts: 343
Oh yeah, OP, I wouldn't use those parts in the links you posted. Use these front spacers. Don't run the 3" though, use the middle, the 1705's. And I would prolly just do shackles instead. They're easier to install, normally cheaper, and a lil better for your truck. Also you would most likely need longer ubolts for the blocks.
Reply With Quote
  #6
Old 05-12-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Ok the shackles you posted are lowering shackles.

And the bid for those spacers expired yesterday.

Good job.

BTW I am not stacking blocks. It is a solid 2 inch block. I am not doing a BL. Too much work. No go with my rust belt vehicle.
Reply With Quote
  #7
Old 05-12-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
^lol lowering shackels from a chevy lift our rangers
Reply With Quote
  #8
Old 05-12-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
LOL WUT!?


Ok, didn't realize thanks. I am DEFINATLY doing those spacers though. I'm sticking with blocks for the back.
Reply With Quote
  #9
Old 05-12-2010
GI_JO_NATHAN's Avatar
Member
iTrader: (2)

Join Date: May 2007
Location: Spartanburg, SC/Pensacola
Posts: 343
The ebay spacers are always available.

Last edited by GI_JO_NATHAN; 05-12-2010 at 04:27 PM.
Reply With Quote
  #10
Old 05-12-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i body lift will cost 110 dollars and wont destroy the ride of the truck
Reply With Quote
  #11
Old 05-18-2010
Masteratarms93's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
I might do a BL later but I did get all my suspension lift stuff the other day. Spacers, coil spring compressors, and rear blocks. If the rear still sags I'm gonna do leaf spring helpers.

BL new is like $280 from Summit. Used I am nervous about. Missing parts FTW.

Actually suspension lifts are safer and better for your vehicle then body lifts because you don't get body roll or strain any lines or hoses. It just moves the wheels down instead of the body and all of it's componets up. Seems like the better choice to me.
Reply With Quote
  #12
Old 05-24-2010
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
Quote:
Originally Posted by Downey View Post
i body lift will cost 110 dollars and wont destroy the ride of the truck
Where?
Reply With Quote
  #13
Old 05-25-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
ya i would love to know of this 110 dollar bodylift.
Reply With Quote
  #14
Old 05-26-2010
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583

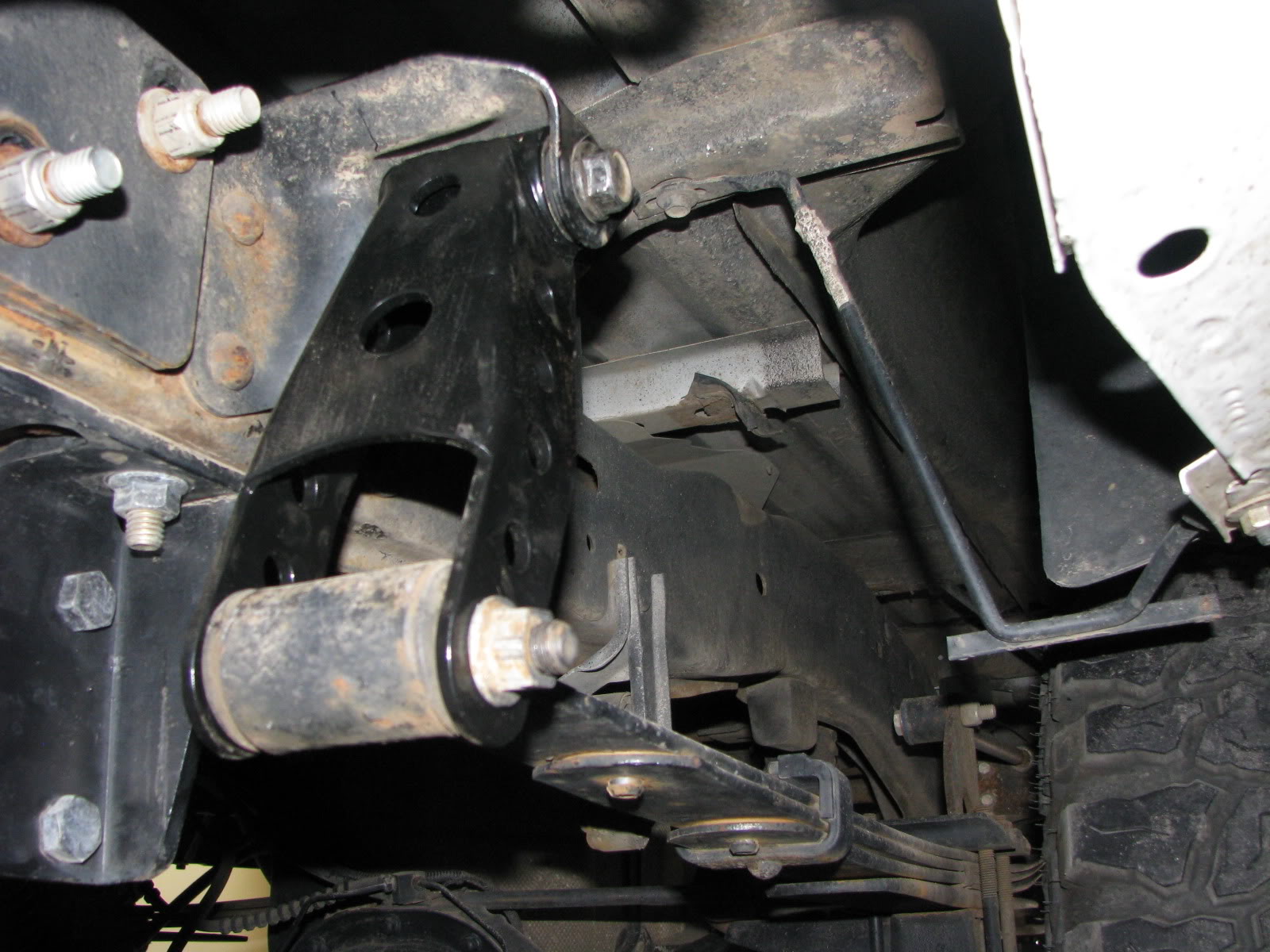

Chevy lowering shackles lift the truck :-)


Name:  Picture001.jpg
Views: 765
Size:  251.1 KB
Reply With Quote
  #15
Old 05-26-2010
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by Masteratarms93 View Post
Actually suspension lifts are safer and better for your vehicle then body lifts because you don't get body roll or strain any lines or hoses. It just moves the wheels down instead of the body and all of it's componets up. Seems like the better choice to me.
Not safer by any means - CoG is affected heavily when doing suspension lifts - along with the stress of the actual Shock Absorbers, they are constantly extended and can max out/break if rough-playing and you havent bought new ones to compensate for the extra few inches.

A Body Lift really doesn't put any strain on any of the vehicles parts - and when doing engine work, those extra few inches are an insane amount of gain in extra room to work with for your hands and tools
Reply With Quote
  #16
Old 05-30-2010
Member

Join Date: May 2010
Location: Wasilla
Posts: 8
Lift Shackles will be better for your truck then blocks, Blocks can some times lead to the axle flexing and thats a bad thing. Also by doing your suspension like you are you will gain more ground clearence than you would with a Body lift, so If I were you I would go with the Lift shackles and coil spacers up front and then later maby look at a 2 inch body lift for a lil more clearence for bigger tires but I wouldnt go any higher than 3 inches of Body lift IF you do decide to do that. I use to have a 95 Explorer that I did a TT on the front and a Shackle in the back and got a full 2 inches of lift out of it when I was done, When I parked next to other you could notice the diffrence in ground clearence under between mine and the other explorers. I also put on 31inch Buckshot Mudder XMTs and with that lil bit of a lift diffrence made a diffrence offroading. I guess what Im saying is that if you actually plan on offroading your truck, do the coil spacer and Shackle lift before you do a body lift, a body lift will give you no more ground clearence than stock because all your doing is lifting your body higher off the frame. Hope this advise helps some if not , then o well lol.
Reply With Quote
  #17
Old 05-31-2010
Member

Join Date: Apr 2010
Location: Tulsa, ok
Posts: 12
^ a body lift it's self doesn't gain more ground clearance but makes more room for bigger tires causing ur ground clearance to increase
Reply With Quote
  #18
Old 06-01-2010
coleary15's Avatar
Member

Join Date: Jul 2009
Location: Cincinnati, Ohio
Posts: 343
i put on my body lift and it does nothing to body roll. it made the rear end lighter, but a suspension lift will add more countersteer which is a PITA
Reply With Quote
  #19
Old 06-02-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
it does affect your CoG or center of gravity. you are raising it with a BL. the truck is now sitting 3" higher then it was before. this affects your roll in a turn, affects vehicles when on a slope or tilted to one side.

downey, how would shackels, blocks or spacers ruin a trucks' ride? the manufacturer put's shackels and blocks on trucks already. all a person is doing is putting longer shackels and taller blocks on.
as for spacers, they seem to be working fine on the new f-150s.
Reply With Quote
  #20
Old 06-11-2010
sliders's Avatar
Member

Join Date: May 2010
Location: Rialto Ca.
Posts: 8
hey i got a quick questions, will those lowering shackle's fit on an 1996 ford ranger?
also the coil spacers for the front? everything says 98-09.
Reply With Quote
  #21
Old 06-11-2010
GI_JO_NATHAN's Avatar
Member
iTrader: (2)

Join Date: May 2007
Location: Spartanburg, SC/Pensacola
Posts: 343
Yeah the shackles will work, give me a second I'll find ya the spacers.
Edit:Here's the spacers you need.
Reply With Quote
  #22
Old 06-11-2010
sliders's Avatar
Member

Join Date: May 2010
Location: Rialto Ca.
Posts: 8
thank you, but i have 2WD im guessing it will still fit?
and im def going to do the shackles in the back instead of the blocks =]
EDIT: these are the shackleshere

Last edited by sliders; 06-11-2010 at 10:46 AM.
