Do i need new tierods/joints? PICS

I noticed today that my front tire is inward some. got home and i dont remember what it looked like when "new".
here are the pics of what i got.
drivers

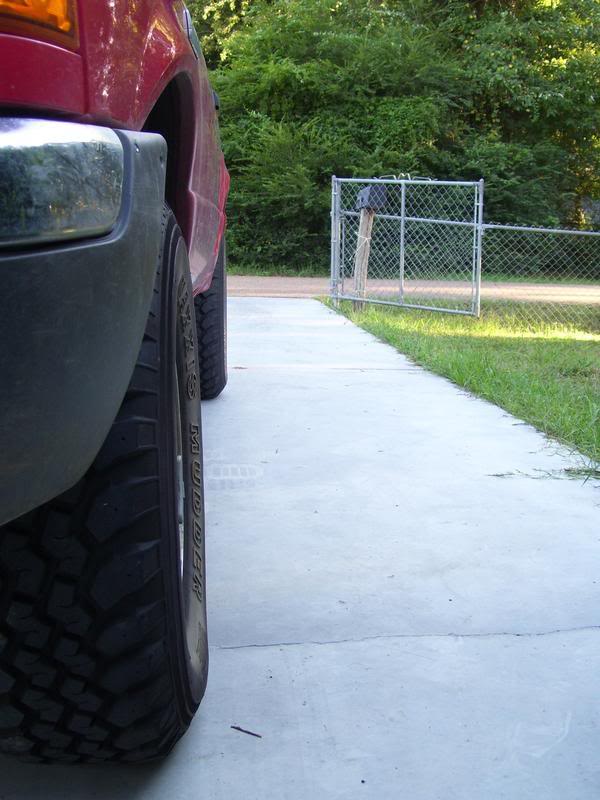

Name:  100_0667.jpg
Views: 7
Size:  70.7 KB

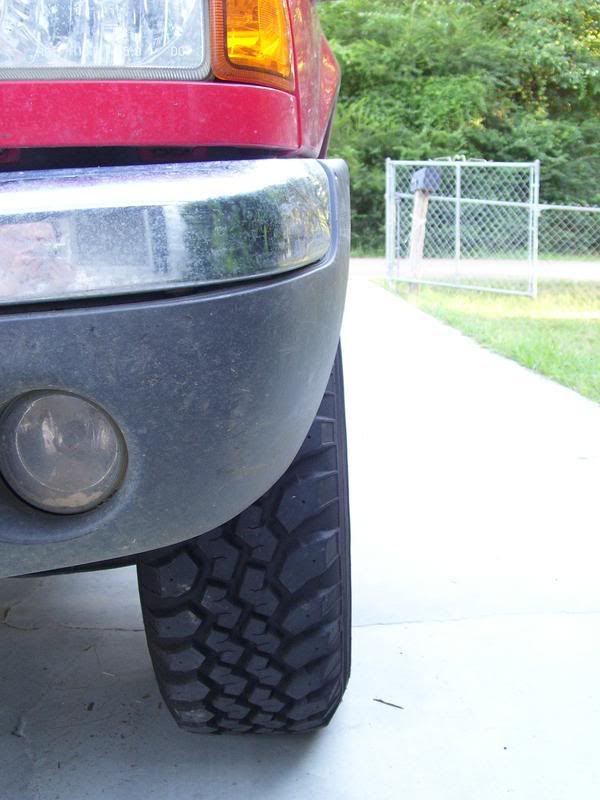

Name:  100_0666.jpg
Views: 5
Size:  62.7 KB

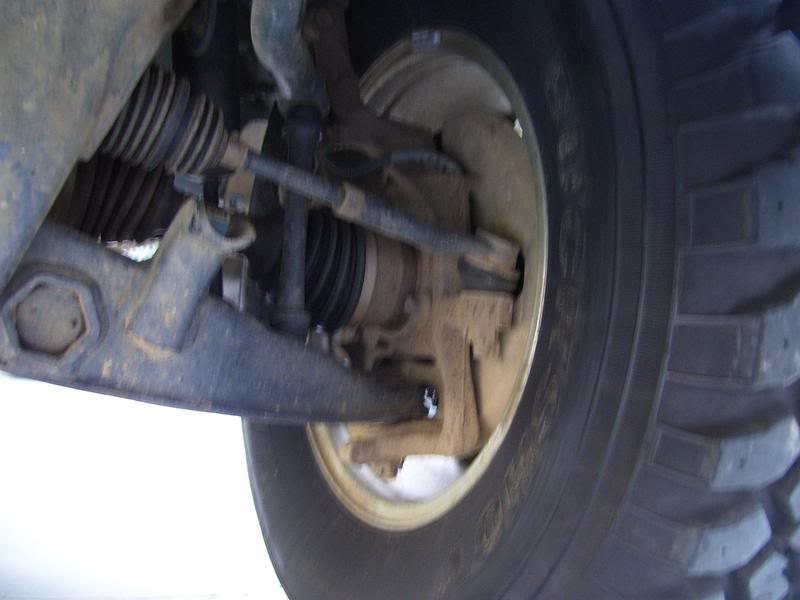

Name:  100_0659.jpg
Views: 8
Size:  43.4 KB
passenger

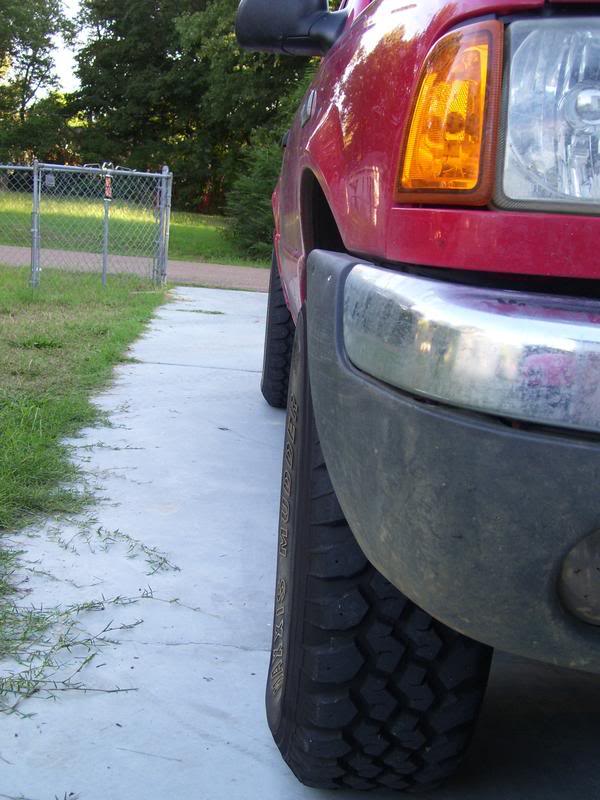

Name:  100_0668.jpg
Views: 4
Size:  76.5 KB
Name:  100_0664.jpg
Views: 3
Size:  51.0 KB

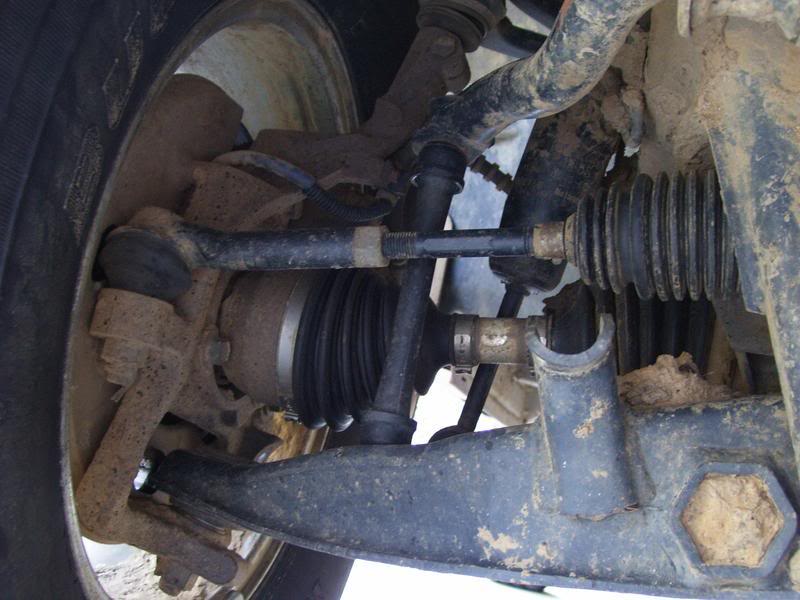

Name:  100_0665.jpg
Views: 8
Size:  69.2 KB

91k miles on it, i have never changed them myself.
so what is the diagnosis. or am i just worried and it just needs a alignment.

EDIT: and i do not need to do the bumper mod...i hit a tree offroad and bent it some in the middle and in. oops
Reply With Quote
  #2
Old 09-12-2007
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
Did you crank your T-bars?
Reply With Quote
  #3
Old 09-12-2007
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
If you jack it up from the control arm grab the tire at 3 and 9 and move back and forth, if there is play, its normally the tie rod... grab a pry bar and put it under the tire and move up and down as someone looks at the ball joints.. if they move then they need replaced... if you can jiggle it back and forth at 12 and 6 then your wheel bearings are shot...

But if you cranked your t-bars then thats why its leaning..

Rocky
Reply With Quote
  #4
Old 09-12-2007
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
my guess is that he cracked the t-bars and needs an alignment now.
Reply With Quote
  #5
Old 09-12-2007
NicksterSVT's Avatar
Member

Join Date: Apr 2005
Location: NC
Posts: 1,955
my ball joints went out at 31k miles and it has never seen mud...
Reply With Quote
  #6
Old 09-12-2007
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
you dont have to see mud for them to go out.. They should be sealed pretty good.. but ball joints are known to go out easily...

Where are some new pics of your truck nick?


Rocky
Reply With Quote
  #7
Old 09-12-2007
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Reply With Quote
  #8
Old 09-12-2007
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
ha, nevermind... 3 threads down
Reply With Quote
  #9
Old 09-12-2007
nated0g's Avatar
Member
Thread Starter

Join Date: Nov 2005
Location: Millington, TN
Posts: 467
yes the bars are cranked but got it aligned a right after i did the crank. i jacked it up and moved it from 6-12 and it didnt move. will do it again at 3-9 and see whats up.
think i might need another alignment, i do wheel it. might save up and get the lifetime alignment.
thanks for the info.

does it matter or mean anything if the tie rod is angled like that?
Reply With Quote
  #10
Old 09-12-2007
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
They are suppose to pivot.. they will move either way, they look fine, but shouldnt move up or down and if you hit it it shouldnt vibrate..

Rocky
Reply With Quote
  #11
Old 09-12-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
actually they can still be bad even if it does feel tight... i would take it to a shop, they might need replaced.
Reply With Quote
  #12
Old 09-12-2007
D.
Unregistered User

Posts: n/a
Grab the rod end with a pair of channel locks. Try and turn it up and down from the front.

There SHOULD be some resistence meaning the ball end isn't worn. If its really easy to twist up and down.. Its done and ' needs to be replaced '.
Reply With Quote
  #13
Old 01-30-2011
Turbo Roadster's Avatar
Member

Join Date: Jul 2007
Location: Lancaster, CA
Posts: 277
The angle in your tire is camber, tie rods are more related to steering easiest way to check tie rods is to get someone to help by turning the free play at the steering wheel while you watch for movement at the steering rack. Watch the tie rod ends and also look at the boots on the rack. If you see any movement with out tires moving then that part is bad.
Your issue is with camber could be a simple adjustment or a bad ball joint, control arm bushing.
I have been doing suspension work for over 20 years and their is movement in the suspension in all cars even new. The trick is knowing what is acceptable and what is wear.

Good luck!
Reply With Quote
  #14
Old 01-30-2011
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Pssst...thread was made in 2007.
Reply With Quote
  #15
Old 01-30-2011
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Quote:
Originally Posted by Turbo Roadster View Post
The angle in your tire is camber, tie rods are more related to steering easiest way to check tie rods is to get someone to help by turning the free play at the steering wheel while you watch for movement at the steering rack. Watch the tie rod ends and also look at the boots on the rack. If you see any movement with out tires moving then that part is bad.
Your issue is with camber could be a simple adjustment or a bad ball joint, control arm bushing.
I have been doing suspension work for over 20 years and their is movement in the suspension in all cars even new. The trick is knowing what is acceptable and what is wear.

Good luck!
You do realize this thread is over 3 years old, don't you?

Edit: Haha, someone beat me to it.
Reply With Quote
  #16
Old 01-30-2011
Turbo Roadster's Avatar
Member

Join Date: Jul 2007
Location: Lancaster, CA
Posts: 277
Quote:
Originally Posted by logan03CO View Post
Pssst...thread was made in 2007.
Yea, I noticed after I hit the submit button. Was doing a search when I came across it. So thanks for the heads up will make sure I've had at least two cups of coffee before posting in the morning!
Reply With Quote
  #17
Old 01-30-2011
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Quote:
Originally Posted by Turbo Roadster View Post
Yea, I noticed after I hit the submit button. Was doing a search when I came across it. So thanks for the heads up will make sure I've had at least two cups of coffee before posting in the morning!
HAHA been there done that. I bet you thought when you posted this you were really helping the guy out.
Reply With Quote
  #18
Old 01-30-2011
Turbo Roadster's Avatar
Member

Join Date: Jul 2007
Location: Lancaster, CA
Posts: 277
Quote:
Originally Posted by Masteratarms93 View Post
HAHA been there done that. I bet you thought when you posted this you were really helping the guy out.
Yea you got me I am just mister nice guy. I think I am going to have to give up decaf and go back to the real thing.
Reply With Quote
  #19
Old 02-04-2011
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Hey - it was a good post to bring up though, because it has a few good pictures - and detailed instructions on how to check for ball joint/tie-rod end play.. Thumbs up for that, with a thumbs down for it being 3 years old :-D hahaha
Reply With Quote
  #20
Old 02-04-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
I thumbs down the 3 year old thing. I Thumbs up the fact that i am not the only person who cannot function without 3 cups of coffee or more.
Reply With Quote
  #21
Old 02-05-2011
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
At the minimum, 2 cups a coffee per day for me - One cup being about 15 minutes after I wake up.. doing the zombie shuffle into the kitchen every morning seems to be a habit now
Reply With Quote
  #22
Old 02-23-2011
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by Turbo Roadster View Post
The angle in your tire is camber, tie rods are more related to steering easiest way to check tie rods is to get someone to help by turning the free play at the steering wheel while you watch for movement at the steering rack. Watch the tie rod ends and also look at the boots on the rack. If you see any movement with out tires moving then that part is bad.
Your issue is with camber could be a simple adjustment or a bad ball joint, control arm bushing.
I have been doing suspension work for over 20 years and their is movement in the suspension in all cars even new. The trick is knowing what is acceptable and what is wear.

Good luck!
what if the play in the steering is a good 1"-1.25"? what should i with that? i had it in 2 diff shops and got to 3 diff conclusions. first shop said rack and the second shop said ball joints and turn around and said gear box from another tech. i havent had a chance to get up in there to look but with this revival from the dead thread, now i know what to check.

thanks turbo
