Help: How to remove/install leaf spring hanger

I was wondering if anyone had a how to on replacing the rear leaf spring hangers for a 99 Ranger. Mine are looking bad and I know i will get owned if I take it to a shop. I'm pretty much learning how to fix stuff as it breaks so every little bit of help would be appreciated.

Thanks
Reply With Quote
  #2
Old 09-24-2010
kellernr's Avatar
Member
Thread Starter

Join Date: Jan 2010
Location: Cincinnati, OH
Posts: 35
I called around and every place wants about $530 to do it. The brackets are only $16 at autozone. Is the labor that intense to warrant almost $500 in labor costs? They are really rusted and cracked. Will I be safe driving it still or will they drop and drag on the ground?
Reply With Quote
  #3
Old 09-25-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
remove bed, unbolt shackle, grind off rivets holding the hanger, hammer them out, remove, and get some grade 8 hardware to reinstall the new ones and bolt 'em in
Reply With Quote
  #4
Old 10-03-2010
kellernr's Avatar
Member
Thread Starter

Join Date: Jan 2010
Location: Cincinnati, OH
Posts: 35
Does is matter how you hang the shackles? Could not find anything that said if the open end of the shackle faces the front or the back of the truck. thanks.
Reply With Quote
  #5
Old 10-03-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

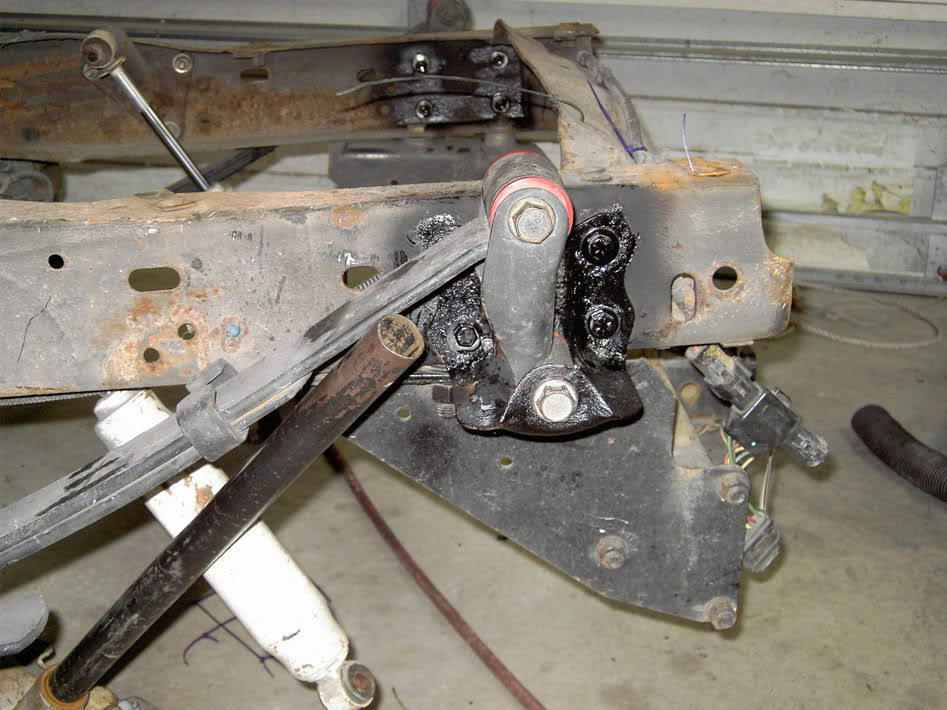

Name:  PICT2550.jpg
Views: 1639
Size:  135.9 KB

if you put them up like mine are, you will get a 2" drop. rotate them 180* and it's stock.
Reply With Quote
  #6
Old 10-03-2010
kellernr's Avatar
Member
Thread Starter

Join Date: Jan 2010
Location: Cincinnati, OH
Posts: 35
Mine are on the stock way. My question was about what way the shackle should face. one side is open and the other isnt. Should the open side face front or back? I couldnt tell when i removed mine because they were so rusty and bent up. Cool pic though.
Reply With Quote
  #7
Old 10-03-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
i looked at mine just know and the open side faces the back
Reply With Quote
  #8
Old 10-03-2010
kellernr's Avatar
Member
Thread Starter

Join Date: Jan 2010
Location: Cincinnati, OH
Posts: 35
hmmmm. We put them on with it facing the front. Will that make a difference?
Reply With Quote
  #9
Old 10-04-2010
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
shouldn't. i know mine are flipped over, but my open side is to the front.
Reply With Quote
  #10
Old 10-04-2010
wvcat's Avatar
Member
iTrader: (4)

Join Date: May 2007
Location: New Cumberland
Posts: 2,044
I did a how to a long time ago, just do a search in the how to section.
Reply With Quote
  #11
Old 10-08-2010
0ranger99's Avatar
Member

Join Date: May 2010
Location: woonsocket RI
Posts: 224
u need the open facing the tord the front it give the leaf spring clearnce to move normaly if u put it tord the back and flex up the rear suspension it will in time rip the metal on the shackle
sounds like u did it the right way
Quote:
This image has been resized. Click this bar to view the full image. The original image is sized 947x710 and weights 136KB.
this is right also open tord the front
if u have the hanger on the other way u just flip the shakle over and its still ok
