Johhny Joint Shackles

I found them on All Pro..
the normal shackles are $85 a pair, these are $169 a pair but they look like they would allow for more movement.

has anyone seen them in action?

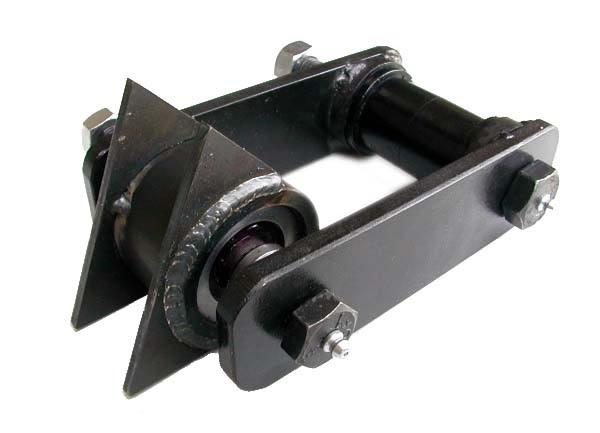

Name:  Shacklemount640x480.jpg
Views: 3
Size:  27.7 KB
Reply With Quote
  #2
Old 04-11-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Those are crazy lookin!
Reply With Quote
  #3
Old 04-11-2008
2002FX4's Avatar
Member

Join Date: Aug 2006
Location: San Diego, CA
Posts: 428
I was gonna use them wayy back originally in the rear, but decided to try just the leafs and see how they flex. I might use 'em at some point (in the rear) if I stay with leafs for awhile.
Reply With Quote
  #4
Old 04-11-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Im thinking about it because when I look at the spring hanger on the front of my friends yoda, the leaf looks like it wants to twist out of the hanger, idk?

I could be the guinea pig
Reply With Quote
  #5
Old 04-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
They do work. There is alot of twisting force on a leaf spring when flexing. but I wouldnt buy them. Id make them. You can buy those Flex joints for under a 100 for the pair then make your own shackles for them. Would be alot cheaper then 170 bucks.
Reply With Quote
  #6
Old 04-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15


http://suicidedoors.com/SuperPivotBarEnd.php

35 dollars each.

This is what I have on my lower links for my truck. SuicideDoors built them for me.

Last edited by redranger4.0; 04-11-2008 at 08:56 AM.
Reply With Quote
  #7
Old 04-11-2008
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
seems like the alxe would be all over the place
Reply With Quote
  #8
Old 04-11-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by redranger4.0 View Post


http://suicidedoors.com/SuperPivotBarEnd.php

35 dollars each.

This is what I have on my lower links for my truck. SuicideDoors built them for me.
their 39 from All Pro. and i can get them for $100 a pair with the brackets to weld it to the frame already on there, then put it on the longer shackles that are an inch longer.. idk

i'm not going to have access to torches or plasma cutters where i do my sas..

Last edited by 99ranger4x4; 04-11-2008 at 06:35 PM.
Reply With Quote
  #9
Old 04-11-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Quote:
Originally Posted by rangererv View Post
seems like the alxe would be all over the place
Agreed. If I ran them I'd want a track bar for street use I think. They'll allow more side to side axle movement. If they're for offroad only, no problem.
Reply With Quote
  #10
Old 04-11-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
good point.. and i would be putting them up front...


maybe i'll stick with the conventional stuff

i'm guessing revolver shackles would also probably be a bad idea for the street then?
Reply With Quote
  #11
Old 04-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 99ranger4x4 View Post
good point.. and i would be putting them up front...


maybe i'll stick with the conventional stuff

i'm guessing revolver shackles would also probably be a bad idea for the street then?
Revolvers have no business anywhere not on the street and not offroad. They have crappy unloading characteristics and bad sidehilling. Plus by the time they open up theres no weight on the axle and then they dont add any traction.

As for the flex joints acting funny I dont think they would as they dont let the axle move side to side they only allow the leaf springs not to bind on one end.
Reply With Quote
  #12
Old 04-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 99ranger4x4 View Post
good point.. and i would be putting them up front...


maybe i'll stick with the conventional stuff

i'm guessing revolver shackles would also probably be a bad idea for the street then?
If your worried about flex just switch to a link style suspension with coils. Flex is over rated anyways. If you want to build a ramp queen then go for the flex joints
Reply With Quote
  #13
Old 04-11-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I've encouraged the use of leaves way too much to do coils right now ha
when i link it i'll just skip coils and go to coil overs

i know i've put the picture up already


thats plenty of flex for me.. considering i've had ifs for 2.5 years now haha

i just want to keep them from binding.. do something different haha
Reply With Quote
  #14
Old 04-11-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
tell ya what guys.

i'll run em, and see how they work out for me
if i need a track bar for the highway i'll figure something out

I'm only going to do the All Pro leaves up front for right now and a block in the rear, then when i get the money or get home I'll swap the rears out for All Pros before i worry about getting a front drive line pieced together
Reply With Quote
  #15
Old 04-12-2008
Member

Join Date: Apr 2008
Location: Hinesburg, vt
Posts: 59
I didn't see those when I did my sas. So I just ran a bigger bushing with a smaller bolt (I know a bit ghetto, but it acts the same way). Seems to work fine for me.

You be interested in selling your old lift when you sas??
Reply With Quote
  #16
Old 04-12-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yep

i may hold onto it until i get the new rear leaves so i can sell the AAL and Shackle too though.
Reply With Quote
  #17
Old 04-12-2008
Member

Join Date: Apr 2008
Location: Hinesburg, vt
Posts: 59
Quote:
Originally Posted by 99ranger4x4 View Post
yep

i may hold onto it until i get the new rear leaves so i can sell the AAL and Shackle too though.
Just let me know what up when you decide. I may be interested.
