Superlift Sway bar end links size?

Ive done some research and everyone seems to agree that the sway bar drop links are CRAP. So im gonna go out and buy some universal links to replace the crappy ones superlift includes in there kits. I searched a little on summitracing.com and looked up some universal energy suspension sway bar links. I know energy is a good brand for suspension bushings and such, just wondering would this be a good replacement for the superlift crap links? Im assuming so but just want to be sure.

If it is, im kinda curious on which size to get. The links come in like 10 different sizes. What is the sleeve length on the Super lift drop links? Anyone ever do this? The engery drop links sizes range from 1.000in to 4.500in. Any help on this would be awesome, thanks.

PS: yes i want to hook my sway bar back up once i do this lift so im searching for more reliable drop links, thanks again!
Reply With Quote
  #2
Old 03-15-2008
Member

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
actually, i found 12" warrior quick discos that are stem-stem configuation. here is the link. you might be interested in those.
http://www.jackit.com/store/supercart.cgi?s=wrr_83141
Reply With Quote
  #3
Old 03-15-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
It doesnt give me a lot of info on this product. Im wondering is 12" too big or is this a perfect size for the 4"in lift the superlift gives u. thx for the link
Reply With Quote
  #4
Old 03-15-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
12" should work fine
Reply With Quote
  #5
Old 03-16-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Sweet, i think ill buy these links then! Hopefully they will work for the money ill be spending on them lol
Reply With Quote
  #6
Old 03-16-2008
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
Cool I'd be interested in how this work's out. I've got the Crappy Superlift sway-bar links too and not happy with them. So keep us posted on how this works.
Reply With Quote
  #7
Old 03-16-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
will do. Ill post pics as well of course!
Reply With Quote
  #8
Old 03-16-2008
12r's Avatar
12r 12r is offline
Member

Join Date: Jan 2007
Location: Virginia Beach Va
Posts: 139

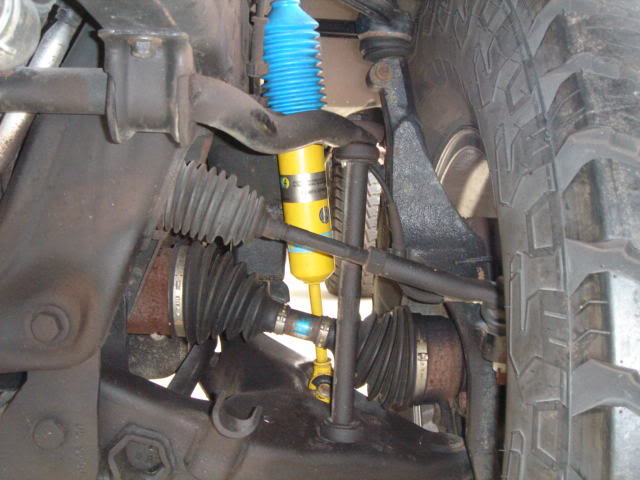

Yeah, 12" from swaybar to LCA with the SL. You can make a set easily for under $20 also. 5/8x14" bolts, 1" pipe, washers and bushings are all it takes.


Name:  DSC02766.jpg
Views: 33
Size:  48.5 KB
Reply With Quote
  #9
Old 03-16-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
that looks pretty cool.. Crazy that long a$$ pipe is keeping that truck from swaying hmmm.
Reply With Quote
  #10
Old 03-16-2008
12r's Avatar
12r 12r is offline
Member

Join Date: Jan 2007
Location: Virginia Beach Va
Posts: 139
Quote:
Crazy that long a$$ pipe is keeping that truck from swaying hmmm
The stock endlinks are just a plastic pipe. The ones I am using are much stronger in both tension and compression.
Reply With Quote
  #11
Old 03-16-2008
Member

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
what is the part number of your bilsteins... thats what i want to konw, haha
Reply With Quote
  #12
Old 03-16-2008
12r's Avatar
12r 12r is offline
Member

Join Date: Jan 2007
Location: Virginia Beach Va
Posts: 139
Quote:
what is the part number of your bilsteins... thats what i want to konw, haha
I am assuming you know I just made some adapters to run stock length bilsteins. I have only been running them a few weeks now, but 1000x better than the SL shocks. Can't wait to get rid of the SL shocks in the rear now.
Reply With Quote
  #13
Old 03-16-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Hey Alex, got any pics of your adapter?? Can you seriously make links just using a bolt?? I bought a used superlift and the links are totally crap! Thanks for any help.
Reply With Quote
  #14
Old 03-16-2008
12r's Avatar
12r 12r is offline
Member

Join Date: Jan 2007
Location: Virginia Beach Va
Posts: 139
Quote:
got any pics of your adapter??
I used the stock rear lift blocks to move the bilsteins down. Cut off the bumpstops and alignment pin, then drill the blocks and bolt on. They are a perfect fit in the shock tower and correct extension length. Travel is same with the SL as stock so I don't think there should be any problems.


Name:  DSC02776.jpg
Views: 35
Size:  31.6 KB

Quote:
Can you seriously make links just using a bolt??
Stock is a bolt inside of a plastic tube. I replaced it with a larger bolt and steel tube and it has worked fine for me.


Stock link


Name:  DSC02777.jpg
Views: 37
Size:  41.8 KB

I used extra shock bushings for ends and so far they have held up fine for the last 8 months.

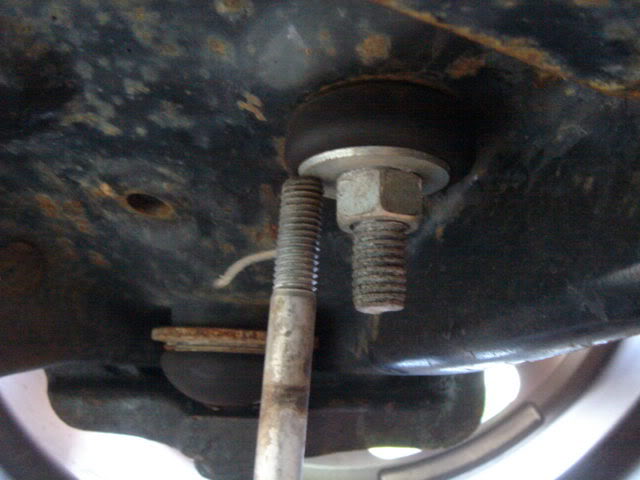

Stock bolt dia for comparison.

Name:  DSC02781.jpg
Views: 30
Size:  41.3 KB
Reply With Quote
  #15
Old 03-17-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Alex.....thanks man. Love the truck by the way...I've been in awe seeing it over at rps.
