Think Plus 2 inshes - Ranger-Forums - The Ultimate Ford Ranger Resource

Suspension Tech General discussion of suspension for the Ford Ranger.

Think Plus 2 inshes

Reply




  #1
Old 10-24-2006
florida ranger's Avatar
Member
Thread Starter
Join Date: Sep 2006
Location: Lehigh Acres
Posts: 73
Think Plus 2 inches

If I go with a 5.5 Fabtech suspension lift can I add a 2inch coil spacer block and gain another 2 inches without affecting the camber adjustment? Or will I need to find a larger camber adjustment bolt? Because if I add 5.5+2=7.5 tha equals priceless lift. I wll add another thread about my rear end dragging like an old tried dog.

Reply With Quote
  #2
Old 10-24-2006
ScottG's Avatar
Member
Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
why dont you run a bodylift?

and then its a 8.5inch lift

thats what im running

Reply With Quote
  #3
Old 10-26-2006
florida ranger's Avatar
Member
Thread Starter
Join Date: Sep 2006
Location: Lehigh Acres
Posts: 73
Thanks for the reply, but you did not answer my question. I have considered a body lift, but if I intend to do the lift and I have the coil springs out (there right now) why not add coil spring spacers if I can. After the fact a body lift would work but what about now.

Reply With Quote
  #4
Old 10-26-2006
florida ranger's Avatar
Member
Thread Starter
Join Date: Sep 2006
Location: Lehigh Acres
Posts: 73
this will make a person think, especially me. I am not a mechanic (sorry if some spelling wrong, I have been drinking." Ask me what my background is????

Reply With Quote
  #5
Old 10-26-2006
RF Veteran
Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Adding coil spacers will affect your camber and make the top of your tires point out away from your truck. This can be fixed several ways. Most lift kits will come with some sort of camber adjustment shims, cams, bolts, or something of the sort, and they should be able to put you back within spec, even with coil spacers. Coil spacers are, IMO though, only a "band-aid." They may look better, but alot of times they can be a real headache to make work properly also.

Reply With Quote
  #6
Old 10-26-2006
florida ranger's Avatar
Member
Thread Starter
Join Date: Sep 2006
Location: Lehigh Acres
Posts: 73
thank you Kuyle. That has been the most informative thing since I posted a few days ago. The Fabtech kit comes with a camber adjustment kit but will it be enough to compinsate for the 2 inch spacers????

Reply With Quote
  #7
Old 10-26-2006
florida ranger's Avatar
Member
Thread Starter
Join Date: Sep 2006
Location: Lehigh Acres
Posts: 73
thank you Kyle. That has been the most informative thing since I posted a few days ago. The Fabtech kit comes with a camber adjustment kit but will it be enough to compensate for the 2 inch spacers????

Reply With Quote
  #8
Old 10-26-2006
gumby's Avatar
Member
iTrader: (1)
Join Date: Nov 2005
Location: indy
Posts: 1,581
there is only one size adjustment kit for 98+ trucks. what you get is what you get.

Reply With Quote
  #9
Old 10-26-2006
Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
if you add a coil spacer you will not be able to allign the truck........it will always have positive camber(the top of the tires point out) no matter what you do......

just run a body lift if you want an extra 2-3" of lift......

Reply With Quote
  #11
Old 10-26-2006
flynryan's Avatar
Member
Join Date: Jun 2006
Location: Destrehan / New Orleans, La
Posts: 233
Just a heads up. i dont think you can get the coils and spacers in. those fabtech coils are stiff.

Reply With Quote
  #12
Old 10-27-2006
florida ranger's Avatar
Member
Thread Starter
Join Date: Sep 2006
Location: Lehigh Acres
Posts: 73
Thanks for the answers ya'll. Its hard to get a answer from mechanics around here. They all say something different, you know the game. It was a thought that I got from reading/viewing through the suspension thread where people needed to level out thier trucks. Plus it really seems like a pita the put the dam things in anyhow.
Bytheway I think I have read ALL the suspension threads now.

Reply With Quote
  #13
Old 10-27-2006
ScottG's Avatar
Member
Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
Name:  truck003.jpg
Views: 7
Size:  79.8 KB

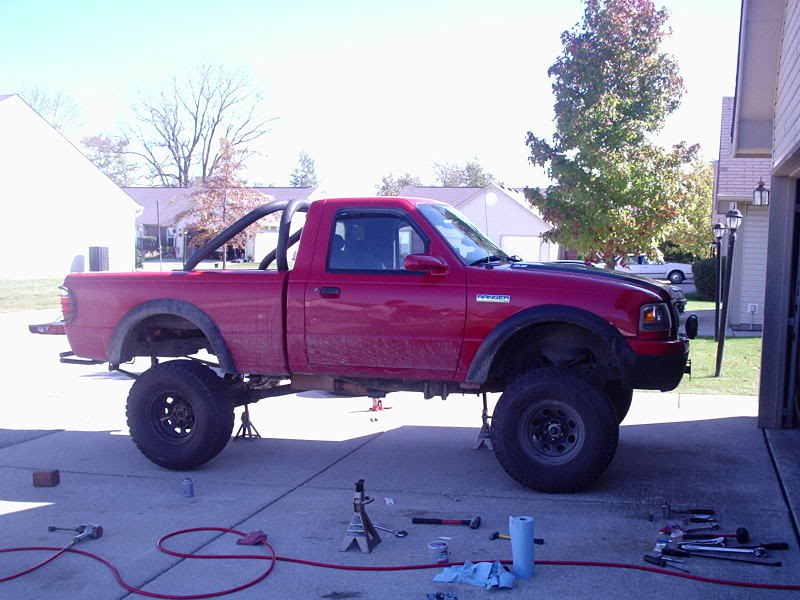

not the best pic, but all i can find

thats mine with the fabtech 5.5 and a 3inch bodylift

i had such a hard time getting the coils on, i dont even want to imagine adding a coil spacer

Reply With Quote
  #14
Old 10-27-2006
Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Originally Posted by Gay-briel


not the best pic, but all i can find

thats mine with the fabtech 5.5 and a 3inch bodylift

i had such a hard time getting the coils on, i dont even want to imagine adding a coil spacer
Gumby your light post is crooked! lol ............dont add a coil spacer... you will wear our tires fast with a coil spacers and spindles...

Reply With Quote
  #15
Old 10-27-2006
KARPE's Avatar
Member
Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
Originally Posted by lifted97ranger
Gumby your light post is crooked! lol ............dont add a coil spacer... you will wear our tires fast with a coil spacers and spindles...
Gumby?? .... Scotty?!?!?

Reply With Quote
  #16
Old 10-27-2006
gumby's Avatar
Member
iTrader: (1)
Join Date: Nov 2005
Location: indy
Posts: 1,581
that is scotty's truck at my house. pay attention

hahah, never noticed the light pole.....thats funny

Reply With Quote
  #17
Old 10-27-2006
KARPE's Avatar
Member
Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
ohh I was thinking he meant scotty's roll bar... damn I'm getting senile at 22

Reply With Quote
  #18
Old 10-27-2006
Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Originally Posted by KARPE
ohh I was thinking he meant scotty's roll bar... damn I'm getting senile at 22
we all could've told you that!
