Wheels & Tires Semi-Tech General discussion of wheels and tires for the Ford Ranger.

New wheels and tires...need lift opinion!

Thread Tools

Search this Thread

Old Mar 16, 2012
  #1
4x4Ranger108's Avatar
Thread Starter
|
Member
iTrader: (1)
Joined: Nov 2010
Posts: 49
Likes: 0
From: Medway ma
New wheels and tires...need lift opinion!

Recently purchased mickey thompson classic II's 16x10 and wrapped them with 285-75-16 BFG A/T KOs.
I have Rancho rs5000 shocks up front with t-bars cranked to the max.
I currently do not have any sort of lift in the back, which is my issue.
Should i put shackles in or should i get new blocks and u-bolts?
And other opinions of what else i should to the truck to would be great!

Name:  IMG_0165.png
Views: 435
Size:  242.7 KB

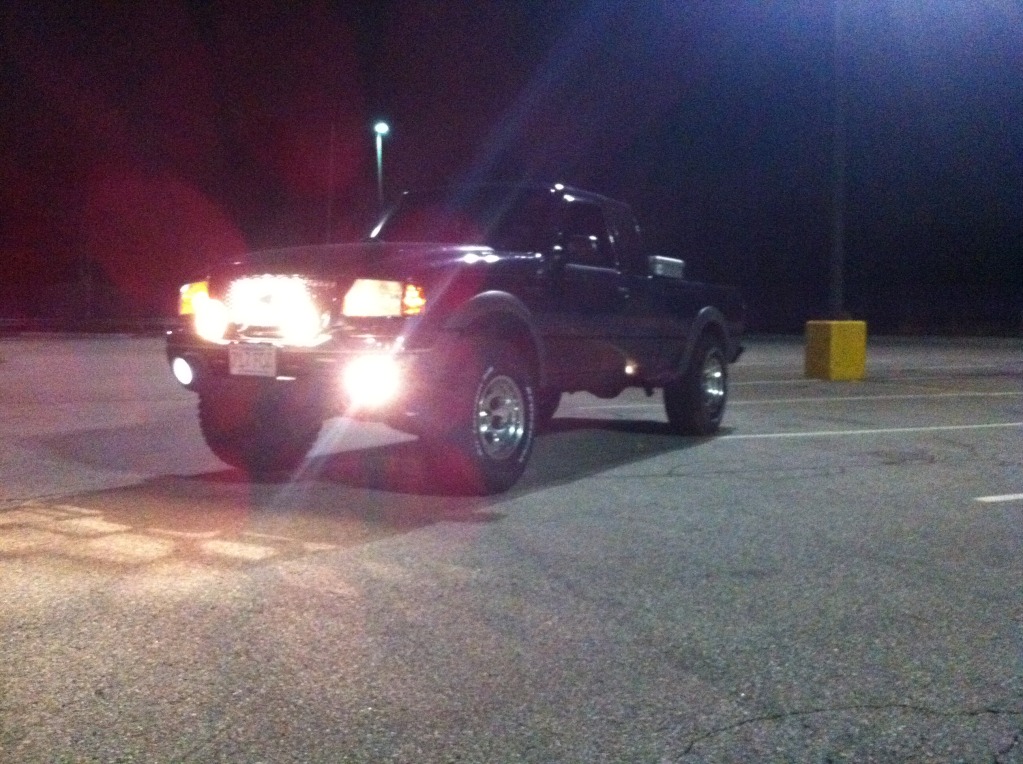

Attached Thumbnails New wheels and tires...need lift opinion!-img_0157.jpg
Reply
Old Mar 16, 2012
  #2
FULLSCALE's Avatar
Level III Supporter
iTrader: (12)
Joined: Mar 2009
Posts: 8,184
Likes: 4
From: Clinton, Ontario
Looks good! I'd go with shackles.

Reply
Old Mar 16, 2012
  #3
rangerrunner11's Avatar
Joined: Feb 2011
Posts: 1,018
Likes: 4
From: .
shackles. I agree. not to sound cheap but your local auto store carries them for cheap. (we have advance auto down here in the south, unsure of company name in the north). something like 40$, no name brand but they are identical to the expensive beltechs

Reply
Old Mar 16, 2012
  #4
98liftedranger's Avatar
RF Veteran
iTrader: (5)
Joined: Aug 2008
Posts: 12,538
Likes: 4
From: California
Looks great!

Reply
Old Mar 16, 2012
  #5
morris's Avatar
RF Veteran
iTrader: (5)
Joined: Feb 2008
Posts: 7,841
Likes: 2
From: South Detroit.
I'd vote AAL. Little stiff but you should be used to it w/ maxed bars.

Reply
Old Mar 17, 2012
  #6
4x4Ranger108's Avatar
Thread Starter
|
Member
iTrader: (1)
Joined: Nov 2010
Posts: 49
Likes: 0
From: Medway ma
Thanks for the input everyone.
How much lift do the shackles usually give you?

Reply
Old Mar 17, 2012
  #7
bravetitan24's Avatar
Member
iTrader: (3)
Joined: Jun 2010
Posts: 2,139
Likes: 3
From: Haughton, LA
Originally Posted by FULLSCALE
Looks good! I'd go with shackles.
x2!

Reply
Old Mar 17, 2012
  #8
KLC's Avatar
KLC
RF Veteran
iTrader: (29)
Joined: Nov 2007
Posts: 13,115
Likes: 5
From: New Mexico
Belltech shackles are $60 from Amazon.

Amazon Amazon

Reply
Old Mar 17, 2012
  #9
06RangerXLT's Avatar
Member
iTrader: (2)
Joined: Feb 2011
Posts: 1,685
Likes: 6
From: Halton Hills, Ont
2" from shackles. blocks will cost the same, and give axle wrap.

Reply
Old Mar 17, 2012
  #10
Fink132's Avatar
Member
Joined: Feb 2011
Posts: 758
Likes: 1
From: Alberta
Looks great! Love that wheel/tire combo!!

Reply
Old Mar 17, 2012
  #11
Ford04Ranger4.0's Avatar
Joined: Dec 2008
Posts: 3,390
Likes: 3
From: Plattsburgh, New York
That looks awsome, I'd get a low pro box or a black one. the tires C load? AAL or shackles.

Reply
Old Mar 19, 2012
  #12
dixie_boysles's Avatar
Member
iTrader: (1)
Joined: Jul 2006
Posts: 3,779
Likes: 6
From: NC
I think Im in love.....

word of advice pick up the Meguiar's Polishing cone and you can keep those wheels looking like my old ones







That is all

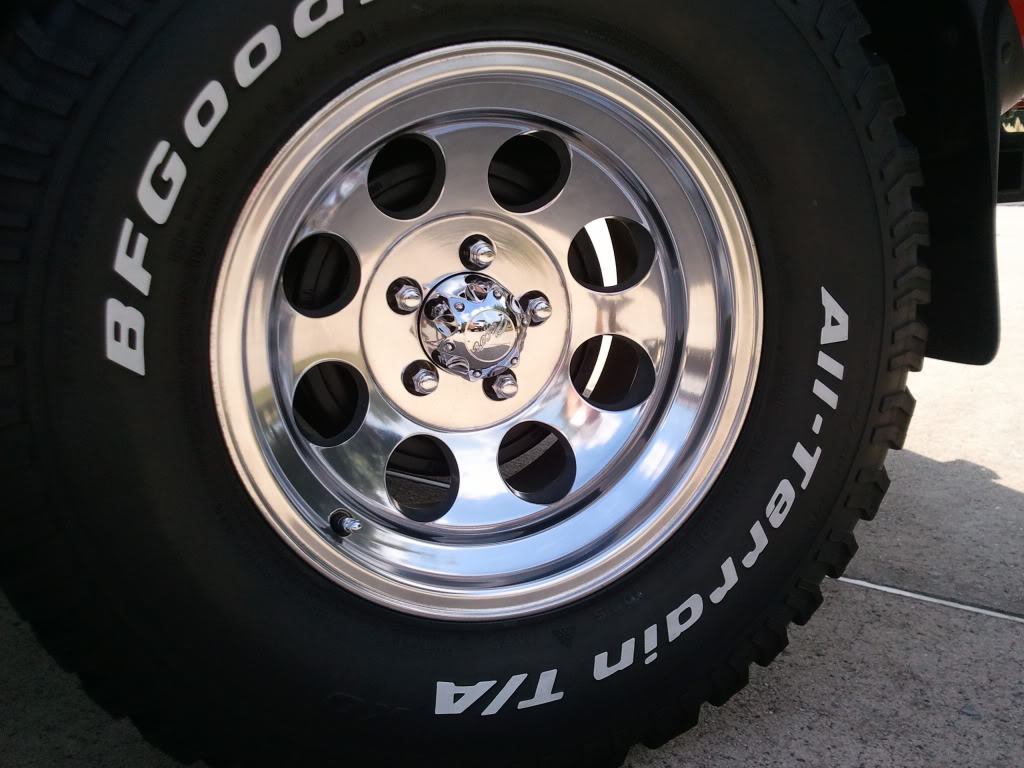

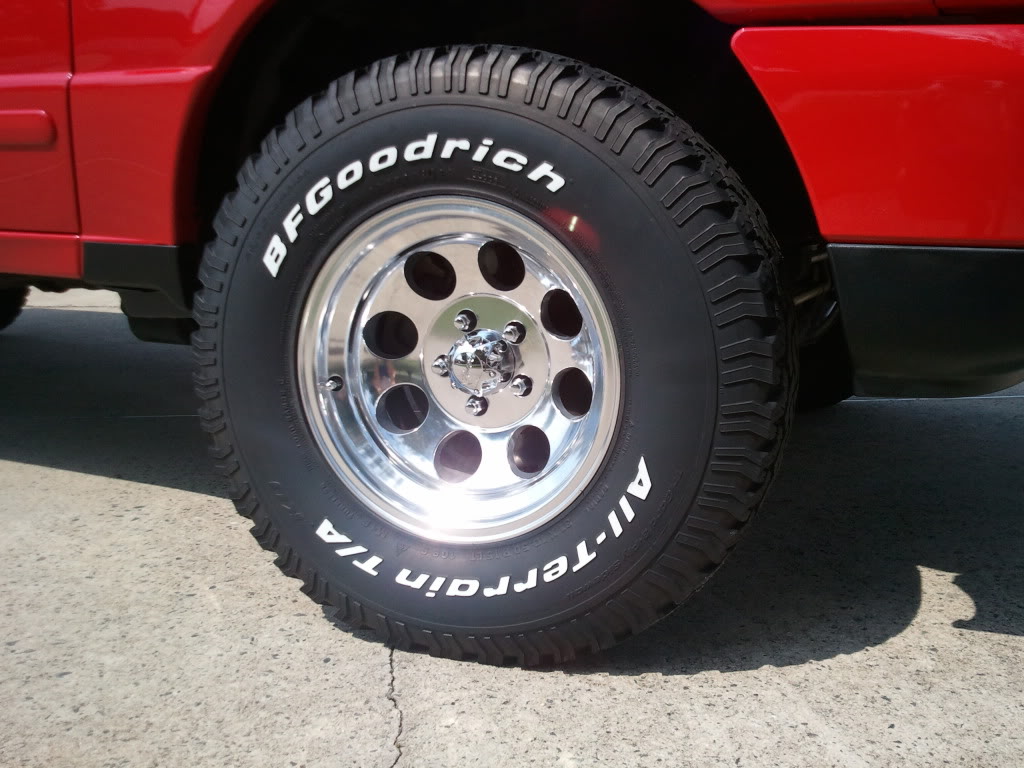

Attached Thumbnails New wheels and tires...need lift opinion!-4650_1_lg.jpg   New wheels and tires...need lift opinion!-2011-08-20153218.jpg   New wheels and tires...need lift opinion!-2011-08-20153536.jpg
Reply
Old Mar 19, 2012
  #13
ME00Stepside's Avatar
Member
iTrader: (2)
Joined: Nov 2010
Posts: 1,237
Likes: 28
From: Maine
Shackles. Even if you're used to the stiffer ride of the maxed bars, why go with the stiffer option for the rear if you don't have to?

Nice wheel & tire choice, BTW. Will look good with a little more lift.

And for another opinion of what to do with the truck, swap the t-bars our for coilovers.
The right coilovers up front and shackles in the back will give you lift and a decent ride.

Reply
Old Mar 19, 2012
  #14
4x4Ranger108's Avatar
Thread Starter
|
Member
iTrader: (1)
Joined: Nov 2010
Posts: 49
Likes: 0
From: Medway ma
Originally Posted by ME00Stepside
Shackles. Even if you're used to the stiffer ride of the maxed bars, why go with the stiffer option for the rear if you don't have to?

Nice wheel & tire choice, BTW. Will look good with a little more lift.

And for another opinion of what to do with the truck, swap the t-bars our for coilovers.
The right coilovers up front and shackles in the back will give you lift and a decent ride.
What would i have to do to put coilovers in?

Reply
Old Mar 20, 2012
  #15
ME00Stepside's Avatar
Member
iTrader: (2)
Joined: Nov 2010
Posts: 1,237
Likes: 28
From: Maine
Originally Posted by 4x4Ranger108
What would i have to do to put coilovers in?
Remove your factory front shocks, install the brackets (requires a few holes drilled in the lower control arm and shock tower for the bolts), and install the coilover shocks.

Highly recommended: weld gussets to shock towers and frame for reinforcement (just two flat pieces of steel on each side of the vehicle)
limit straps (depending on the style you get, it requires welding the mounts in place or drilling mounting holes for bolts in lower control arm and side of frame rail).

Here is a good place to start.

There's also an install thread from ORW, who used to make a kit here

Hope that helps.

Reply
Old Mar 21, 2012
  #16
morris's Avatar
RF Veteran
iTrader: (5)
Joined: Feb 2008
Posts: 7,841
Likes: 2
From: South Detroit.
LOL, your a pusher....

"hey man, try this....no charge...." "m*thaf*cka! I sold you those parts!!! You owe me, imma cut you!!"

Reply
Old Mar 22, 2012
  #17
ME00Stepside's Avatar
Member
iTrader: (2)
Joined: Nov 2010
Posts: 1,237
Likes: 28
From: Maine
Originally Posted by morris
LOL, your a pusher....

"hey man, try this....no charge...." "m*thaf*cka! I sold you those parts!!! You owe me, imma cut you!!"
LOL. Hey man, I have a few sets still from the last run I'd like to move, but I would recommend the conversion even if I didn't sell the parts. I've loved mine since I put them in. Definitely my favorite mod to date.

Reply
Old Mar 24, 2012
  #18
4x4Ranger108's Avatar
Thread Starter
|
Member
iTrader: (1)
Joined: Nov 2010
Posts: 49
Likes: 0
From: Medway ma
Yeah i have some miles on the truck, so if im going to be doing any front end work its going to be a SAS.

Reply
Old Mar 25, 2012
  #19
morris's Avatar
RF Veteran
iTrader: (5)
Joined: Feb 2008
Posts: 7,841
Likes: 2
From: South Detroit.
You could run an SAS W/ coilovers. You might not need his parts though, or only some of them.

Reply
Old Apr 15, 2012
  #20
ZWilson07's Avatar
Member
iTrader: (1)
Joined: Apr 2010
Posts: 872
Likes: 1
From: Louisville, Kentucky
Originally Posted by 4x4Ranger108
Yeah i have some miles on the truck, so if im going to be doing any front end work its going to be a SAS.
I know a guy selling some brand new shackles still in the box for a good price lol.

Reply
Old Apr 18, 2012
  #21
4x4Ranger108's Avatar
Thread Starter
|
Member
iTrader: (1)
Joined: Nov 2010
Posts: 49
Likes: 0
From: Medway ma
I ended up going with a 2" shackle lift, now im waitng on a pair of Ranco RS5000's to match the front; ill get some pics up soon

Reply
