abs light - Ranger-Forums - The Ultimate Ford Ranger Resource


2.9L & 3.0L V6 Tech General discussion of 2.9L and 3.0L V6 Ford Ranger engines.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 11-10-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
abs light

Why does my ABS light come on whenever it rains or snows??

i shut the truck off and restart and its off. then I drive a block or two and it comes back on... WHY
Reply With Quote
  #2
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
you probably have a bad wheel speed sensor, or you could have a brake that is locking up and wont pulse with the abs. my front left would lock up because the caliper slide froze up and broke
Reply With Quote
  #3
Old 11-10-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
Quote:
Originally Posted by Hanks Rangers View Post
you probably have a bad wheel speed sensor, or you could have a brake that is locking up and wont pulse with the abs. my front left would lock up because the caliper slide froze up and broke
nothing locks up.... after I shut it off and restart (light goes off) and drive and hit the brakes on ice.. the abs works.. just drive a lil bit more and BAM light comes on and hit the brakes and NO more abs....

always happens when it rains or snows
Reply With Quote
  #4
Old 11-10-2008
Fenech627's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Detroit, MI
Posts: 908
Hmmmmm. Not very experienced in this section but the only time I ever had that problem I had a leak in my rear brake. It was raining I had to stop quick and lost brake pressure and the light came on.

Check your brake fluid to make sure its not low. If it is fill it up and keep an eye on it. My understanding is it should not be low unless its leaking because its a closed circuit right?
Reply With Quote
  #5
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
i would be leaning more towards the wheel speed senosr then. and all your doing is resetting the abs computer and thats why it shuts the light off. probably the best advice would be taking it to a dealer and having them read the abs code
Reply With Quote
  #6
Old 11-10-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
fluid is fine.. only happens when raining or snow..

where do I find the wheel sensors????? could they be dirty
Reply With Quote
  #7
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
Quote:
Originally Posted by Fenech627 View Post
Hmmmmm. Not very experienced in this section but the only time I ever had that problem I had a leak in my rear brake. It was raining I had to stop quick and lost brake pressure and the light came on.

Check your brake fluid to make sure its not low. If it is fill it up and keep an eye on it. My understanding is it should not be low unless its leaking because its a closed circuit right?
true, but if your fluid was low your (red) brake light would illuminate, the reason your (amber) abs light came on was because it couldn't hold the pressure in the line to get the brakes to pulsate
Reply With Quote
  #8
Old 11-10-2008
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Clean the plug connections in the square connector under the truck , about in the area under the driver's seat.Then coat the plug with dieelctric grease before putting it back together.
Reply With Quote
  #9
Old 11-10-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
any pics??
Reply With Quote
  #10
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
Quote:
Originally Posted by interceptorguy View Post
fluid is fine.. only happens when raining or snow..

where do I find the wheel sensors????? could they be dirty
your front wheel speed sensors are on the wheel bearing hub unit. and i doubt they would mess up from dirt being on the toner wheel, because its a pm setup. your rear wheel speed sensor is on the rear diff on the top of the pumpkin. as for replacement i don't know if the fronts can be changed with out the wheel bearing being replaced as well. the rear can be replaced though.
Reply With Quote
  #11
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
i'll go take some pictures and post em tonight i have to goto work here in a bit
Reply With Quote
  #12
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
the rear sensor just unbolts and you can't see the front ones because of my dust shield
Reply With Quote
  #13
Old 11-10-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
dont think its the front.. ill look under the truck under the drivers seat.. then check the back speed sensor
Reply With Quote
  #14
Old 11-10-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
well I crawled under the truck and found the harness.. used a 10 MM socket nd unscrewed it.. cleaned it with conatct cleaner and hooked it back up.. went for a short ride and NO LIGHT... ill report back later and let you know!
Reply With Quote
  #15
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821

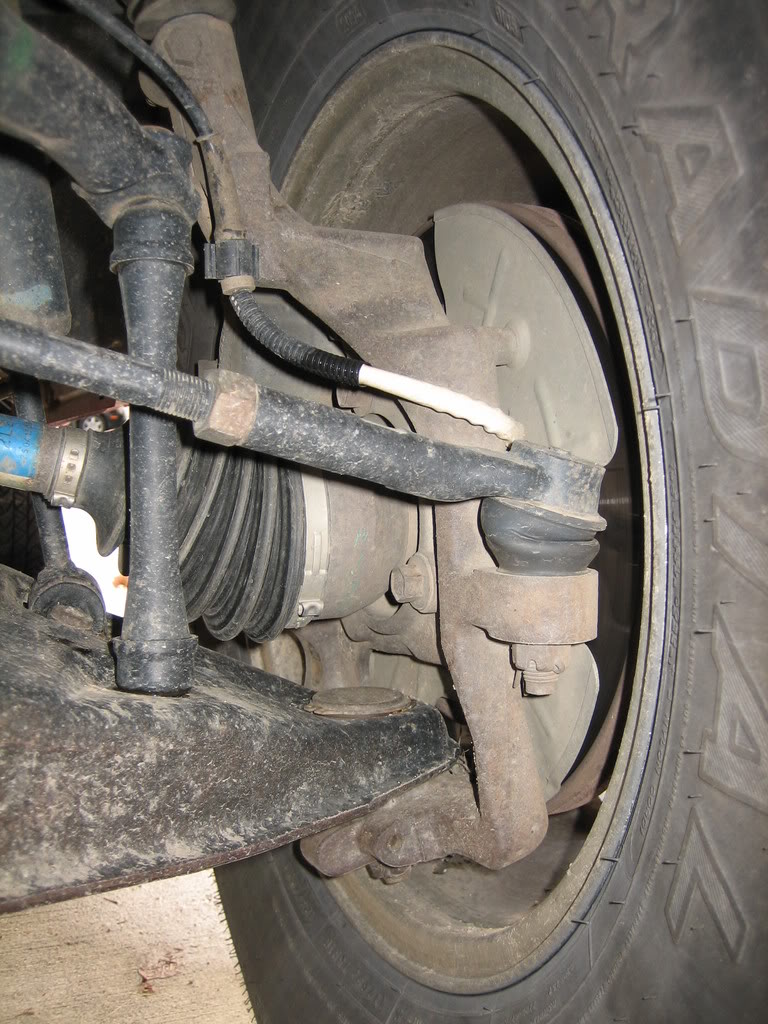

ok yeah the front two are gonna be hard to get to because you got alot of stuff in the way
Name:  Rangerpics119.jpg
Views: 2
Size:  109.9 KB

Name:  Rangerpics120.jpg
Views: 2
Size:  164.8 KB
Reply With Quote
  #16
Old 11-10-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
its probably easiest to pull the tire off and you might have to take the caliper off can't quite remember if you can get to it
Reply With Quote
  #17
Old 11-11-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
well light came on just once.. compared to usual few times.. ill try and clean again tomorro really good.. post results
Reply With Quote
  #18
Old 11-11-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
another thing you could do is grab one of the code readers from napa or something. don't know if they do abs though. now for some odd reason my left rear likes to lock up makes braking interesting
Reply With Quote
  #19
Old 11-11-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
try and get to the front ones you ever replaced the wheel bearings on one of these? doesn't take too long. about 45 min if your not messing around too much
Reply With Quote
  #20
Old 11-11-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
i'm guessing he figured this out
Reply With Quote
  #21
Old 11-12-2008
Member

Join Date: Mar 2007
Location: Upstate,NY
Posts: 2,598
Quote:
Originally Posted by Hanks Rangers View Post
another thing you could do is grab one of the code readers from napa or something. don't know if they do abs though. now for some odd reason my left rear likes to lock up makes braking interesting
The code readersfrom napa ,az, ect. only read the OBD in the PCM.The ABS codes can only be read with a special tool at the dealer.

On the brake locking , does it usually happen right after it rains ?
That's 'normal' on Fords .Try a different brand of rear shoes.
Reply With Quote
  #22
Old 11-14-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
no light still on... gonna try and change the speed sensor
Reply With Quote
  #23
Old 11-20-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
changed the speed sensor.. will cross my fingers
Reply With Quote
  #24
Old 11-20-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
thats about all you can do, did you mess with the front ones at all?
Reply With Quote
  #25
Old 11-27-2008
Member
Thread Starter

Join Date: Jun 2008
Location: Winnipeg
Posts: 11
light still comin on.. time to go to the dealer
Reply With Quote
