Part Identification

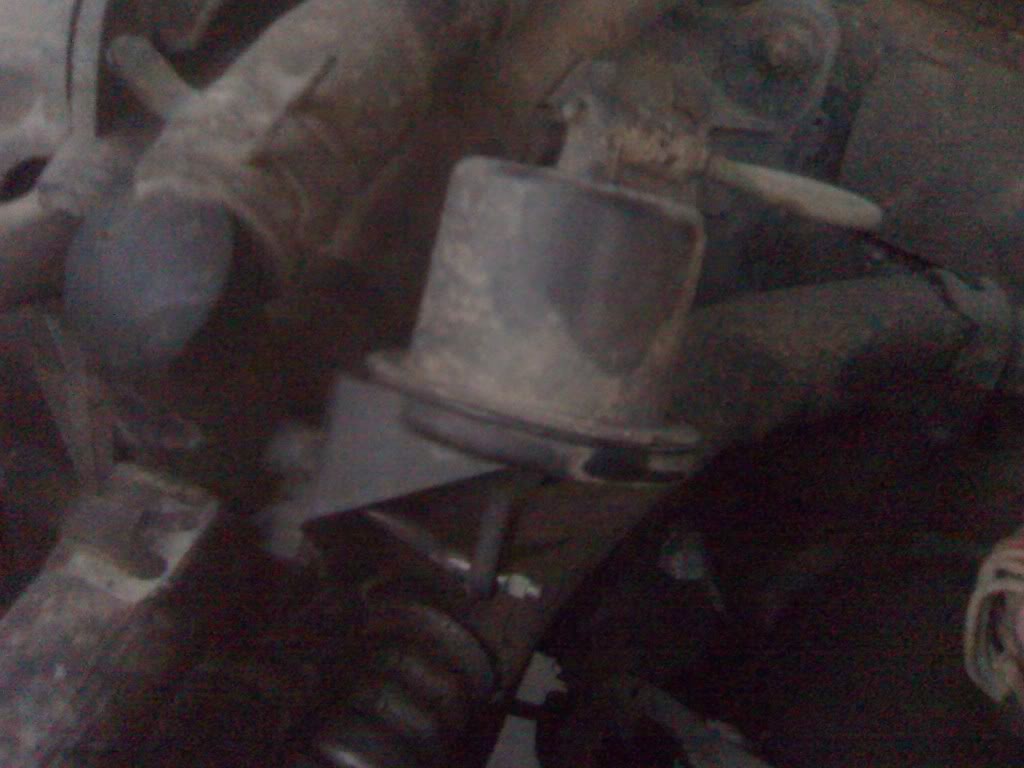

Need some help identifying a part. It appears to be connected to the coolant lines comeing from the heater core. Haynes was no help in figuring it out (no suprise). Its pissing out coolant when my truck warms up. Any idears?

Name:  0818102019a.jpg
Views: 8
Size:  72.7 KB

Reply With Quote
  #2
Old 08-18-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)
Join Date: Nov 2004
Location: Michigan
Posts: 7,910
Heater Control Valve, sometimes called a Diverter Valve. It it shuts off and bypasses coolant flow from the heater core when the selector is in the OFF or MAX AC position.

Ford OE replacements last about 10 years. Cheapies from AutoZone, etc. often last a year or less before leaking again.

Reply With Quote
  #3
Old 08-18-2010
chainfire's Avatar
Member
Thread Starter
iTrader: (1)
Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Excellent, thanks alot

Reply With Quote
  #4
Old 08-18-2010
chainfire's Avatar
Member
Thread Starter
iTrader: (1)
Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Ive been having problems with my HVAC controls latley. It wants to blow heat no matter where I have it on the temp dial. Could this be a symptom of this valve failing?

Reply With Quote
  #5
Old 08-18-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)
Join Date: Nov 2004
Location: Michigan
Posts: 7,910
That sounds like a Blend Door failure.

Reply With Quote
  #6
Old 08-19-2010
Member
Join Date: Aug 2010
Location: Anchorage, AK
Posts: 16
I have 07 Ranger and even when it's on defrost and feet and kicks on the A/C compressor if that's the correct term. Anyone else having this happen?

Reply With Quote
  #7
Old 08-19-2010
V8 Level II's Avatar
RF Veteran
iTrader: (4)
Join Date: Nov 2004
Location: Michigan
Posts: 7,910
Originally Posted by pogi69x View Post
I have 07 Ranger and even when it's on defrost and feet and kicks on the A/C compressor if that's the correct term. Anyone else having this happen?
All Rangers in recent memory do that. Try selecting Vent Only, Floor Only or Off to keep the compressor off.
