2010 Reg Cab Rear Speakers???

Hey there guys. I just got a 2010 Ranger base. I installed a Kenwood Deck a little while ago, and noticed that the truck is wired (at the dash) for four speakers. However, the truck only has two door speakers. There are grilles in the back for speakers, but no wiring behind the grilles. Any ideas on where the wires that are connected to the head unit go?

Thanks in advance
Reply With Quote
  #2
Old 04-07-2010
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Is it a base model truck? Alot of times Ford installs thinks that arent crucial to your truck because of the way the assmebly line is set up. So in saying that, there could be wires that run for rear speakers, but no rear speakers
Reply With Quote
  #3
Old 04-07-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Some got the wires back there.....some didn't. But they have the buckets and all that for the speakers. My brother's 01 XL regcab wasn't pre-wired for speakers back there, but we wired it up and tossed in some 6x8's.
Reply With Quote
  #4
Old 04-07-2010
sonicbluestx's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: Dover Delaware
Posts: 315
i just ran my own wires, worked for the time being. now that im redoing my subs, i will be running a good set of components and will be powering the doors and rears off of an amp rather then the head unit.
Reply With Quote
  #5
Old 04-07-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Georgetown, TX
Posts: 2
Thanks guys. I will have to dig a little further back there. The wires are there at the HU, but I don't see anything in the back. Thanks again.
Reply With Quote
  #6
Old 04-07-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
If there are no wires to the back it is so easy to run wires. It will take you all of fifteen minutes. It only took me a couple to run wires for my extended cab for my subs from the battery through the firewall and from the deck
Reply With Quote
  #7
Old 04-07-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Cen-Tex Coupe View Post
Thanks guys. I will have to dig a little further back there. The wires are there at the HU, but I don't see anything in the back. Thanks again.
It's super easy. The wires are there behind the headunit. Just find the wires, cut, solder or crimp on the 20ga or whatever speaker wire, route it to the back under the carpet/vinyl, snake it up the speaker grille, install on speakers. Congrats...you've got rear speakers. lol.
Reply With Quote
  #8
Old 04-07-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
i added them to mine a few months back ford ran the wire under the drivers seat to a plug like 8 wires go into it and 4 come out the wires that dont come out are your speaker wires you will have to run the rear speaker wires the rest of the way heres a some pics

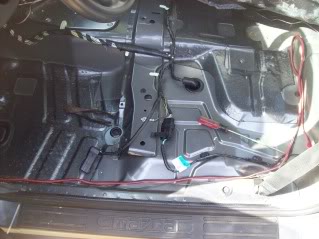

driverside floorpan see the black plug
Name:  000_0003.jpg
Views: 66
Size:  36.2 KB
Name:  000_0004.jpg
Views: 81
Size:  31.1 KB

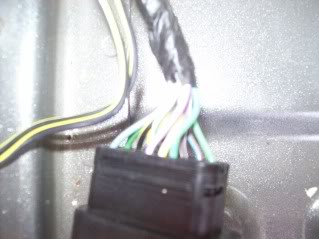

wires going in
Name:  000_0005.jpg
Views: 70
Size:  30.2 KB

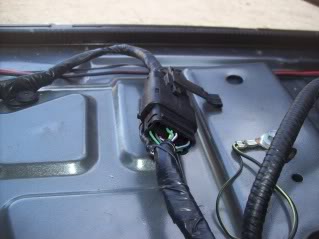

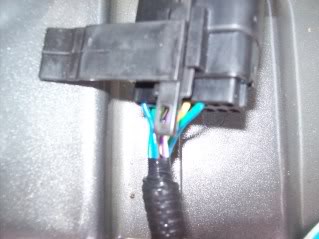

wires coming out the ones coming out go to a sensor on the seatbelts wires not comning out are for rear speakers
Name:  000_0006.jpg
Views: 72
Size:  30.6 KB
Name:  000_0009.jpg
Views: 105
Size:  30.8 KB
