My door pods

Well last year about this time i decided to do some door pods. I never got around to doing it so now i am. :) 1 selenium 8 and 1 selenium st200 tweeter in each door. Keeping it simple since this is my first set of door pods. Here some pics. I know there are a lot of imperfections but i got to learn somewhere.

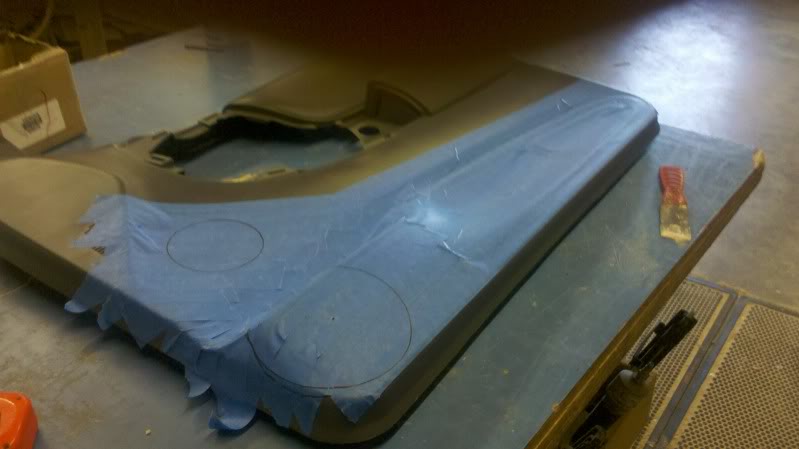

Taping off the door
Name:  2010-10-24_17-06-28_692.jpg
Views: 47
Size:  63.7 KB

First layer of resin and mat.
Name:  2010-10-24_17-26-27_974.jpg
Views: 23
Size:  77.2 KB

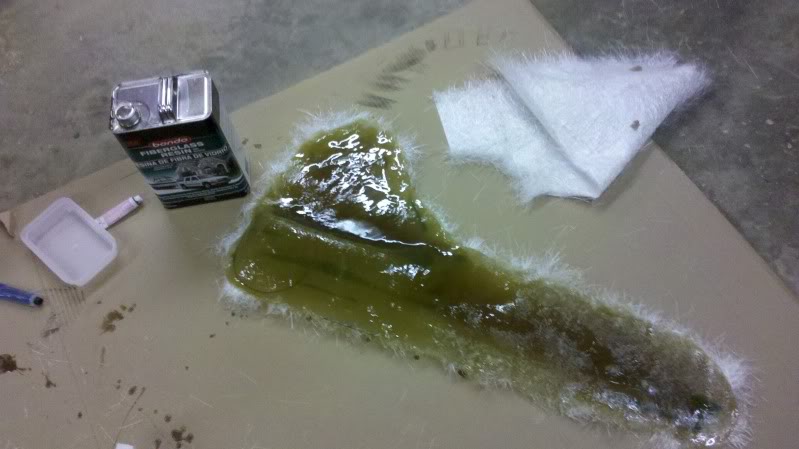

After 3 layers, i pulled the mold off the door.
Name:  2010-10-24_20-47-12_738.jpg
Views: 14
Size:  79.7 KB

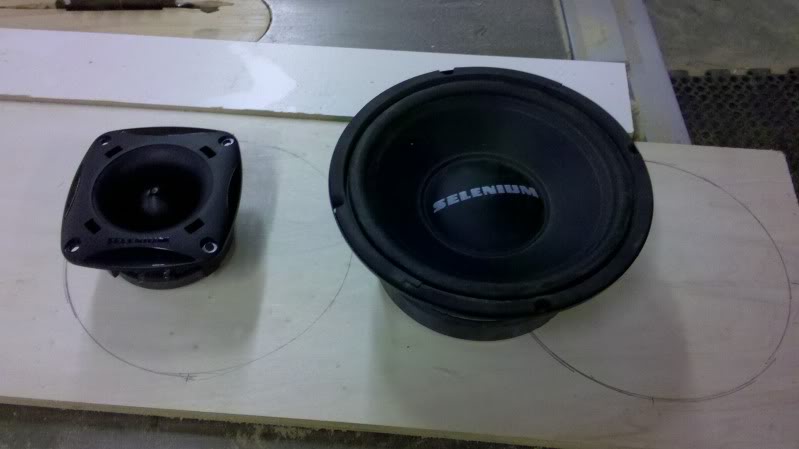

Heres 1 8 and 1 tweeter.
Name:  2010-10-24_20-47-45_660.jpg
Views: 15
Size:  56.0 KB

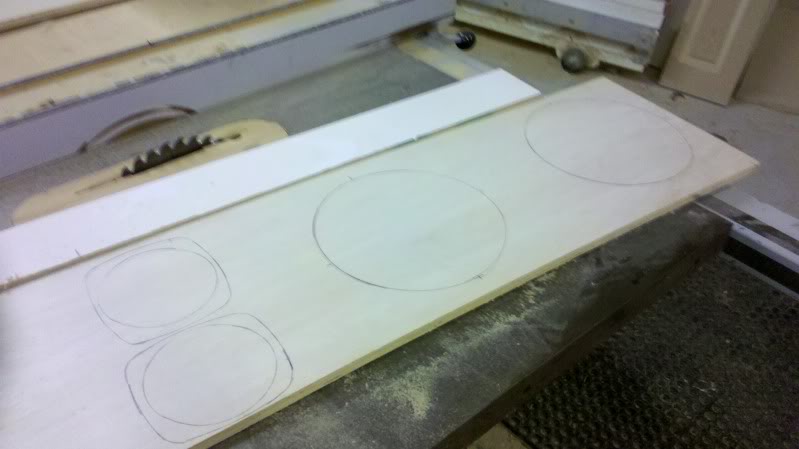

Started drawing out the speaker and tweeter mounting rings.
Name:  2010-10-24_20-48-20_27.jpg
Views: 13
Size:  63.9 KB
Reply With Quote
  #2
Old 10-24-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
That's gonna be awesome
Reply With Quote
  #3
Old 10-24-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
sweet
Reply With Quote
  #4
Old 10-24-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
How are you going to mount something that big in a door pod?
Reply With Quote
  #5
Old 10-24-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Run screws from the back of the door pod thru the metal in the door.
Reply With Quote
  #6
Old 10-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
More progress for you guys. :) the grinder got away from me at the bottom of the pod. Oops. LOL o well i can patch it up.

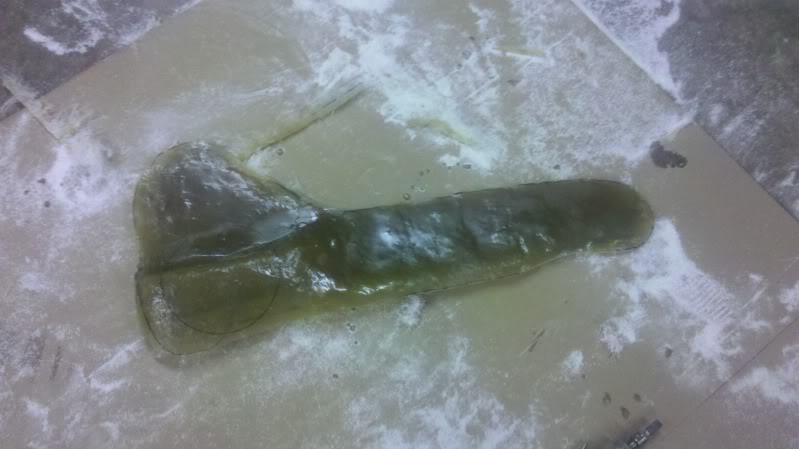

Mold trimmed up
Name:  2010-10-25_20-30-52_929.jpg
Views: 13
Size:  73.0 KB

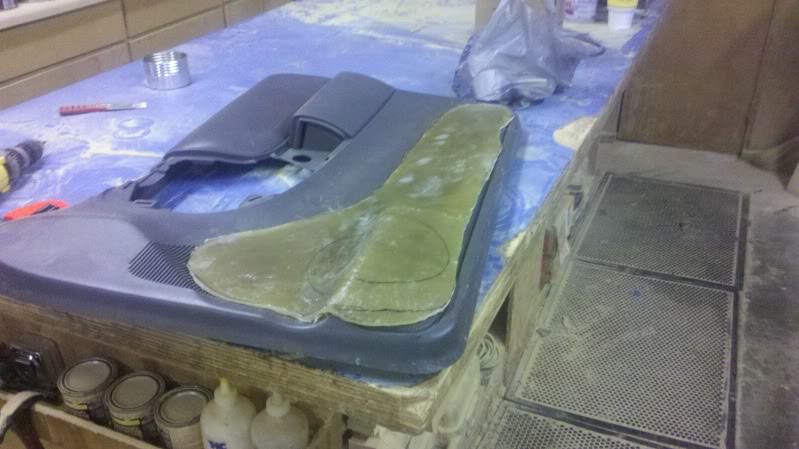

Mold laying on the door panel
Name:  2010-10-25_20-31-29_218.jpg
Views: 12
Size:  93.9 KB

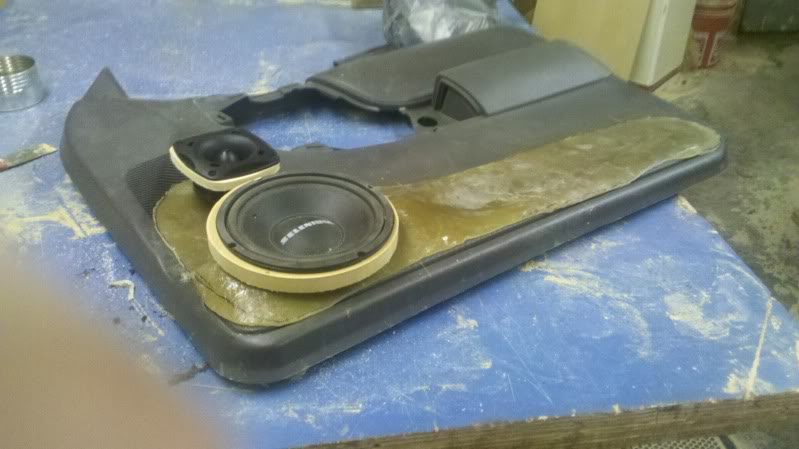

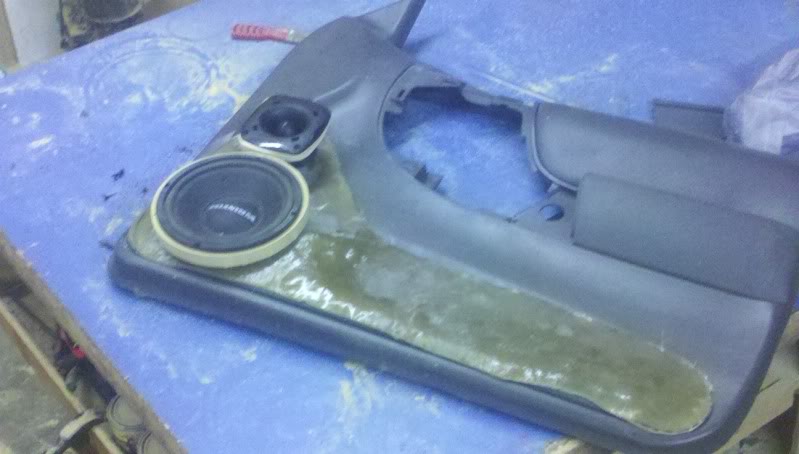

Test fitting speaker and tweeter
Name:  2010-10-25_21-07-55_469.jpg
Views: 13
Size:  80.4 KB
Name:  2010-10-25_21-08-33_45.jpg
Views: 13
Size:  78.6 KB
Reply With Quote
  #7
Old 10-25-2010
BettyVo7Ranger's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: Niagara Falls, New York
Posts: 695
i want!!
Reply With Quote
  #8
Old 10-25-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Like to hear about it!
What are you going to use for crossovers?

I'm curious to see how these are going to work.
Reply With Quote
  #9
Old 10-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Ill just use the amps crossovers.
Reply With Quote
  #10
Old 10-25-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Are you worried about the panels rattling? Or do you have a different way to secure them?
Reply With Quote
  #11
Old 10-25-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Im putting wood bw the panel and door and screwing it to do the door.
Reply With Quote
  #12
Old 11-02-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Make any progress?
I wanted to note that those speakers really wont work well for you. im sure you know that those are "pro audio" the supertweeter only has a 40deg dispersion path. They will need to be aimed directly at your ears or you will have a large dip in system response. the woofer only has a 2-3mm Xmax. not to mention they are extremely sensitive. they will be real loud but will lack warmth and should be very harsh. *

8" mid basses can sound awesome but you should use them with a dedicated mid-range or full range speaker in addition to a tweeter. instead of just a tweeter.

I would rather see you use one of those SA8 instead. find your self a fullrange with good upperend response to go with it.
Reply With Quote
  #13
Old 11-10-2010
Member
Thread Starter

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503

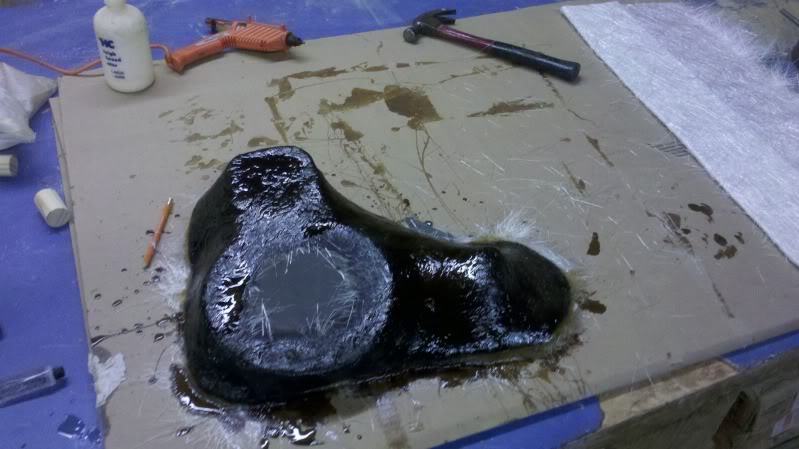

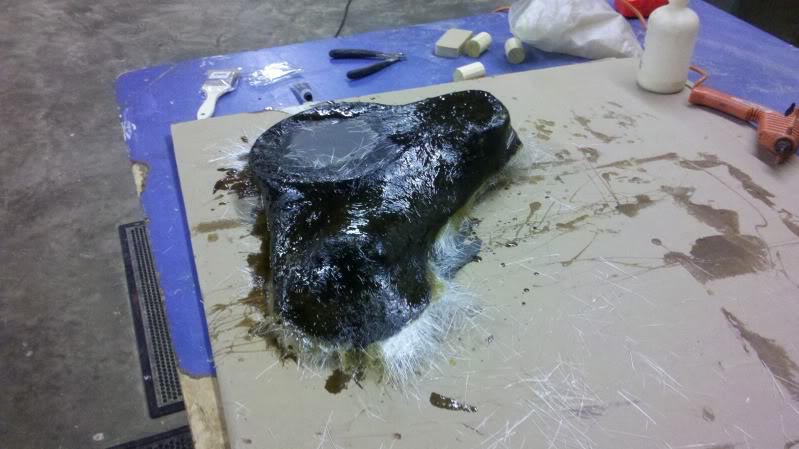

Well its time to get back to working on them again. LOL Heres some pics. I cut the end off and made them shorter bc they looked like crap.
Name:  2010-11-10_21-30-38_380.jpg
Views: 13
Size:  99.0 KB
Name:  2010-11-10_21-30-46_929.jpg
Views: 13
Size:  107.0 KB
Reply With Quote
  #14
Old 11-10-2010
dangelj316's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
Cool.
